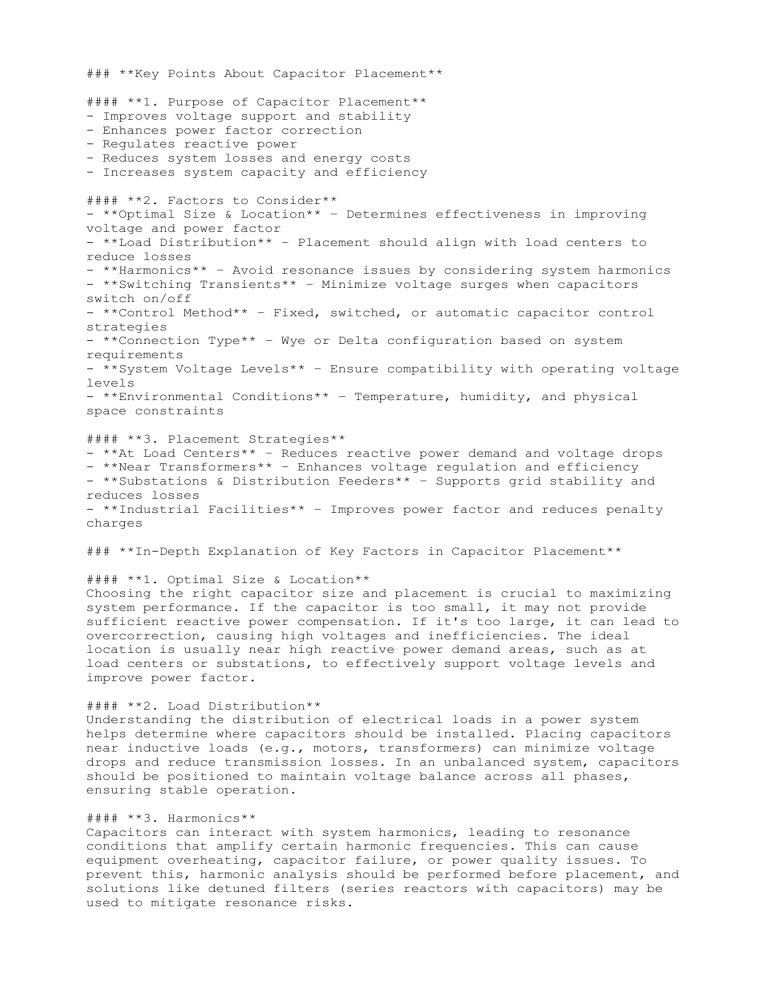

### **Key Points About Capacitor Placement** #### **1. Purpose of Capacitor Placement** - Improves voltage support and stability - Enhances power factor correction - Regulates reactive power - Reduces system losses and energy costs - Increases system capacity and efficiency #### **2. Factors to Consider** - **Optimal Size & Location** – Determines effectiveness in improving voltage and power factor - **Load Distribution** – Placement should align with load centers to reduce losses - **Harmonics** – Avoid resonance issues by considering system harmonics - **Switching Transients** – Minimize voltage surges when capacitors switch on/off - **Control Method** – Fixed, switched, or automatic capacitor control strategies - **Connection Type** – Wye or Delta configuration based on system requirements - **System Voltage Levels** – Ensure compatibility with operating voltage levels - **Environmental Conditions** – Temperature, humidity, and physical space constraints #### **3. Placement Strategies** - **At Load Centers** – Reduces reactive power demand and voltage drops - **Near Transformers** – Enhances voltage regulation and efficiency - **Substations & Distribution Feeders** – Supports grid stability and reduces losses - **Industrial Facilities** – Improves power factor and reduces penalty charges ### **In-Depth Explanation of Key Factors in Capacitor Placement** #### **1. Optimal Size & Location** Choosing the right capacitor size and placement is crucial to maximizing system performance. If the capacitor is too small, it may not provide sufficient reactive power compensation. If it's too large, it can lead to overcorrection, causing high voltages and inefficiencies. The ideal location is usually near high reactive power demand areas, such as at load centers or substations, to effectively support voltage levels and improve power factor. #### **2. Load Distribution** Understanding the distribution of electrical loads in a power system helps determine where capacitors should be installed. Placing capacitors near inductive loads (e.g., motors, transformers) can minimize voltage drops and reduce transmission losses. In an unbalanced system, capacitors should be positioned to maintain voltage balance across all phases, ensuring stable operation. #### **3. Harmonics** Capacitors can interact with system harmonics, leading to resonance conditions that amplify certain harmonic frequencies. This can cause equipment overheating, capacitor failure, or power quality issues. To prevent this, harmonic analysis should be performed before placement, and solutions like detuned filters (series reactors with capacitors) may be used to mitigate resonance risks. #### **4. Switching Transients** When capacitors switch on or off, they can create voltage spikes or transients due to sudden changes in reactive power. These transients can damage sensitive equipment and disrupt system stability. To minimize these effects, capacitor switching should be controlled using methods such as pre-insertion resistors, staggered switching, or the use of thyristor-switched capacitor banks (TSCs) for smoother transitions. #### **5. Control Method** Capacitor banks can be controlled in different ways depending on system needs: - **Fixed Capacitors** – Permanently connected to the system and used for steady-state power factor correction. - **Switched Capacitors** – Activated or deactivated based on system conditions, such as load variations or voltage fluctuations. - **Automatic Capacitor Banks** – Controlled by microprocessor-based relays that adjust capacitance dynamically in response to real-time power factor and voltage requirements. #### **6. Connection Type (Wye or Delta)** - **Wye Connection** – Commonly used in medium and high-voltage applications, providing a neutral point for grounding. This configuration is preferred for unbalanced systems or when grounding is required. - **Delta Connection** – Often used in low-voltage networks, providing better phase-to-phase voltage balancing. It is suitable for balanced three-phase loads without requiring a neutral connection. #### **7. System Voltage Levels** Capacitors must match the system’s operating voltage levels to prevent overvoltage or undervoltage issues. For high-voltage applications, capacitors are often installed in series or in banks with appropriate insulation ratings. The voltage rating should also account for transient overvoltages that may occur during switching operations. #### **8. Environmental Conditions** Capacitors are sensitive to external conditions such as temperature, humidity, and pollution. High temperatures can reduce capacitor lifespan, while humidity and contaminants can lead to insulation degradation and dielectric breakdown. Proper enclosure, ventilation, and cooling measures should be considered, especially for outdoor installations. Would you like additional details or examples for any of these factors
