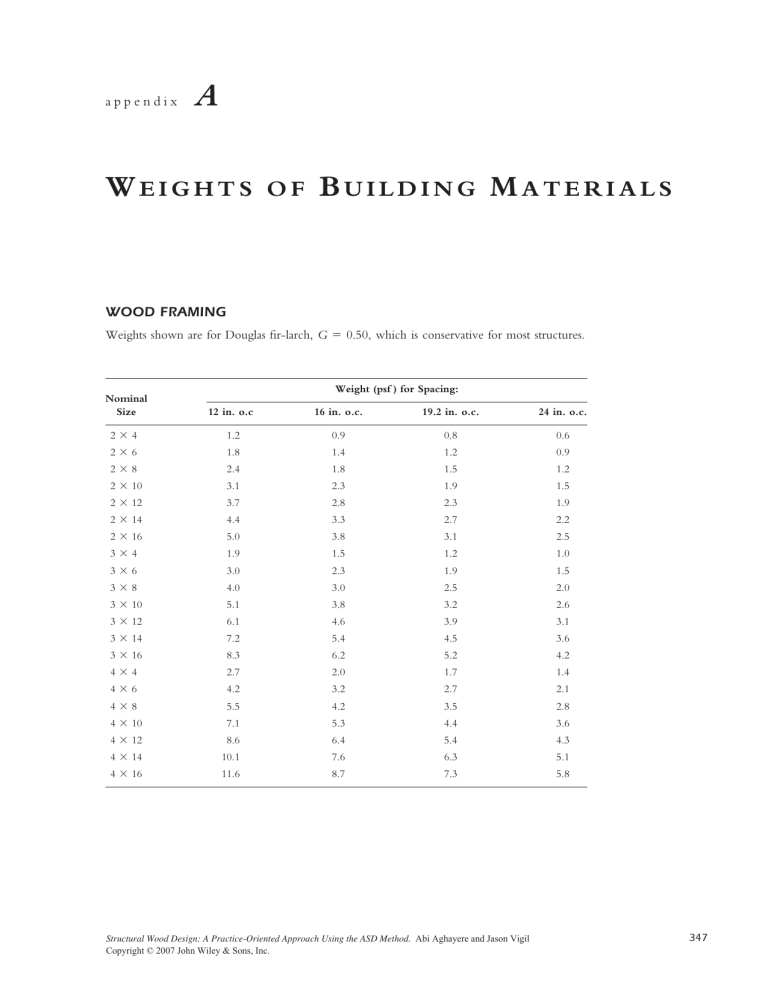

WEIGHTS OF BUILDING MATERIALS
WOOD FRAMING
Weights shown are for Douglas fir-larch, G ⫽ 0.50, which is conservative for most structures.
Weight (psf ) for Spacing:
Nominal
Size
12 in. o.c
16 in. o.c.
19.2 in. o.c.
24 in. o.c.
2⫻4
1.2
0.9
0.8
0.6
2⫻6
1.8
1.4
1.2
0.9
2⫻8
2.4
1.8
1.5
1.2
2 ⫻ 10
3.1
2.3
1.9
1.5
2 ⫻ 12
3.7
2.8
2.3
1.9
2 ⫻ 14
4.4
3.3
2.7
2.2
2 ⫻ 16
5.0
3.8
3.1
2.5
3⫻4
1.9
1.5
1.2
1.0
3⫻6
3.0
2.3
1.9
1.5
3⫻8
4.0
3.0
2.5
2.0
3 ⫻ 10
5.1
3.8
3.2
2.6
3 ⫻ 12
6.1
4.6
3.9
3.1
3 ⫻ 14
7.2
5.4
4.5
3.6
3 ⫻ 16
8.3
6.2
5.2
4.2
4⫻4
2.7
2.0
1.7
1.4
4⫻6
4.2
3.2
2.7
2.1
4⫻8
5.5
4.2
3.5
2.8
4 ⫻ 10
7.1
5.3
4.4
3.6
4 ⫻ 12
8.6
6.4
5.4
4.3
4 ⫻ 14
10.1
7.6
6.3
5.1
4 ⫻ 16
11.6
8.7
7.3
5.8
Structural Wood Design: A Practice-Oriented Approach Using the ASD Method. Abi Aghayere and Jason Vigil
Copyright © 2007 John Wiley & Sons, Inc.
347
PREENGINEERED FRAMING
Roof Trusses
Span
(ft.)
Weight (psf of
horizontal plan area)
30
5.0
35
5.5
40
6.0
50
6.5
60
7.5
80
8.5
100
9.5
120
10.5
150
11.5
Floor Joists (I-Joists and Open Web)
Depth
(in.)
Weight (psf of
horizontal plan area)
9–12
2.5
7
8
11–
3.5
14
4.0
16
4.5
18
5.0
20
5.5
24
6.0
26
6.3
28
6.6
30
7.0
