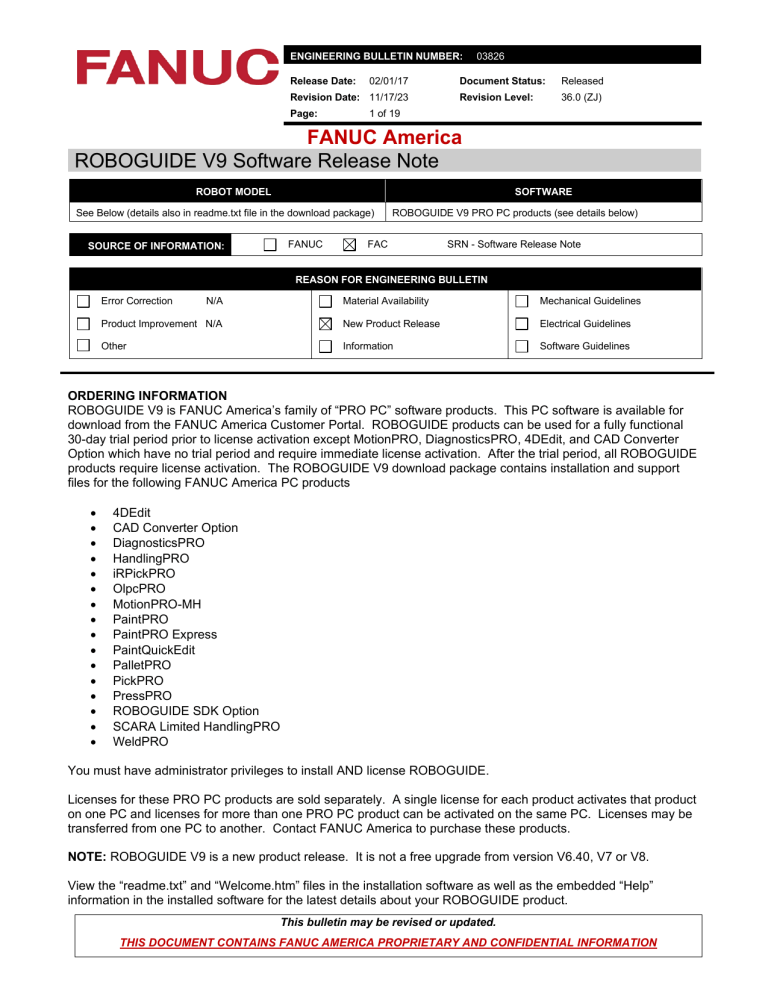

FANUC America
ROBOGUIDE V9 Software Release Note
ROBOT MODEL
SOFTWARE
See Below (details also in readme.txt file in the download package)
SOURCE OF INFORMATION:
FANUC
ROBOGUIDE V9 PRO PC products (see details below)
FAC
SRN - Software Release Note
REASON FOR ENGINEERING BULLETIN
Error Correction
N/A
Material Availability
Mechanical Guidelines
Product Improvement N/A
New Product Release
Electrical Guidelines
Other
Information
Software Guidelines
ORDERING INFORMATION
ROBOGUIDE V9 is FANUC America’s family of “PRO PC” software products. This PC software is available for
download from the FANUC America Customer Portal. ROBOGUIDE products can be used for a fully functional
30-day trial period prior to license activation except MotionPRO, DiagnosticsPRO, 4DEdit, and CAD Converter
Option which have no trial period and require immediate license activation. After the trial period, all ROBOGUIDE
products require license activation. The ROBOGUIDE V9 download package contains installation and support
files for the following FANUC America PC products
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
4DEdit
CAD Converter Option
DiagnosticsPRO
HandlingPRO
iRPickPRO
OlpcPRO
MotionPRO-MH
PaintPRO
PaintPRO Express
PaintQuickEdit
PalletPRO
PickPRO
PressPRO
ROBOGUIDE SDK Option
SCARA Limited HandlingPRO
WeldPRO
You must have administrator privileges to install AND license ROBOGUIDE.
Licenses for these PRO PC products are sold separately. A single license for each product activates that product
on one PC and licenses for more than one PRO PC product can be activated on the same PC. Licenses may be
transferred from one PC to another. Contact FANUC America to purchase these products.
NOTE: ROBOGUIDE V9 is a new product release. It is not a free upgrade from version V6.40, V7 or V8.
View the “readme.txt” and “Welcome.htm” files in the installation software as well as the embedded “Help”
information in the installed software for the latest details about your ROBOGUIDE product.
This bulletin may be revised or updated.

THIS DOCUMENT CONTAINS FANUC AMERICA PROPRIETARY AND CONFIDENTIAL INFORMATION
ENGINEERING BULLETIN NUMBER:
Release Date:
02/01/17
Revision Date: 11/17/23
Page:
03826
Document Status:
Released
Revision Level:
36.0 (ZJ)
2 of 19
FANUC America
ROBOGUIDE V9 Software Release Note
Minimum System Requirements:
Operating System:*
Microsoft® Windows® 7 (32 and 64 bit)
Microsoft® Windows® 7 (64 bit) recommended
Microsoft® Windows® 8/8.1 (32 and 64 bit)*
Microsoft® Windows® 10 (32 and 64 bit)*
Processor Type:
AMD® Athlon® 64 3200+ or Intel® Pentium® 4
Core™2 Quad or higher recommended
Processor Speed:
2.4 GHz
System Memory:
1.0 GB RAM; 4GB recommended
Video Card:
512 MB 1280x1024 24-bit color OpenGL Hardware Support
Hard Disk Space:
1.0 GB
Other:
Ethernet Card 10/100
OS Requirements:
Administrator Privileges to install product and register full version of software.
Normal font size (96DPI).
Port 3002 should not be used for other purpose.
Computer name must be A-Z, a-z, 0-9 or '-'.
Internet Explorer 6. Internet Explorer 8 or later recommended.
Version of Internet Explorer and OS in which the vision setup operation test was done is
different in each robot software version.
Please refer to [Vision Simulation/Restrictions] section of ROBOGUIDE online manual for
detail.
Other:
Virtual PC, VMware and similar software are not supported.
Windows XP Mode of Windows 7 is not supported.
Remote desktop is not supported.
Windows RT is not supported.
Comma decimal separator is not supported.
Screen should be 96DPI.
You cannot use Guest account for ROBOGUIDE.
*Touch panel operation on Windows 8 is not supported.
Installing ROBOGUIDE on Windows 8/10 versions:
A prerequisite for the installation of ROBOGUIDE is the .NET 3.5 framework. The framework is considered to be a
Windows feature in Windows 8/10 versions, and therefore installed by the operating system.
When running the ROBOGUIDE installer on Windows 8/10 version*, the operating system will interrupt the
installer when the .NET 3.5 framework is being processed and prompt the user to obtain the files over the
Internet, or via the installation disk. If you have an Internet connection, select "Install this Feature" and proceed
with the installation. The ROBOGUIDE setup may need to be restarted after the installation of the .NET 3.5
framework. If you do not have an Internet connection, select "Skip this Installation".
To install the .NET 3.5 framework with the Windows 8/10 disk, go to the Windows start screen and right click on
any open space, selecting "All apps" on the menu at the bottom of the screen. On the Apps screen find the
"Windows System" group and right click on "Command Prompt". Select "Run as administrator". In the command
prompt window, type in the following:
DISM /Online /Enable-Feature /FeatureName:NetFx3 /All /LimitAccess /Source:d:\sources\sxs
where "d" is the DVD drive that contains the Windows 8/10 disk
This bulletin may be revised or updated.
THIS DOCUMENT CONTAINS FANUC AMERICA PROPRIETARY AND CONFIDENTIAL INFORMATION
ENGINEERING BULLETIN NUMBER:
Release Date:
02/01/17
Revision Date: 11/17/23
Page:
03826
Document Status:
Released
Revision Level:
36.0 (ZJ)
3 of 19
FANUC America
ROBOGUIDE V9 Software Release Note
When the installation of the .NET 3.5 framework is complete, close the command prompt window and restart the
ROBOGUIDE setup to complete the ROBOGUIDE installation.
Note: Touch Panel operation on Windows 8/10 is not supported.
If the ROBOGUIDE installer fails immediately on Windows 8/10, please install the .NET 3.5 framework prior to
running the installer.
ROBOGUIDE Process Plug-in Compatibility:
HandlingPRO
Support for Virtual
Robot Version
Application Tools
and Multiple Robot
Workcells
HandlingTool
SpotTool+
V9.30
V9.10
X
X
X
X
X
X
V9.00
X
X
X
V8.30
X
X
X
V8.20
X
X
X
V8.10
X
X
X
V7.70
X
X
X
X
V7.50
X
X
X
X
V7.40
X
X
X
X
V7.30
X
X
X
V7.20
X
X
X
V6.40
X
X
X
V6.31
X
V6.22
X
V5.30
X
DispenseTool
Can be used
in multiple
Robot Cells
X
This bulletin may be revised or updated.
THIS DOCUMENT CONTAINS FANUC AMERICA PROPRIETARY AND CONFIDENTIAL INFORMATION
ENGINEERING BULLETIN NUMBER:
Release Date:
02/01/17
Revision Date: 11/17/23
Page:
03826
Document Status:
Released
Revision Level:
36.0 (ZJ)
4 of 19
FANUC America
ROBOGUIDE V9 Software Release Note
ROBOGUIDE Process Plug-in Compatibility (continued):
WeldPRO Support for
Virtual Robot Version
Application Tools
and Multiple Robot
Workcells
ArcTool
Can be used
in multiple
Robot Cells
V9.30
X
X
V9.10
X
X
V9.00
X
X
V8.30
X
X
V8.20
X
X
V8.10
X
X
V7.70
X
X
V7.50
X
X
V7.40
V7.30
V7.20
X
X
X
X
X
X
V6.40
X
X
V6.31
X
X
V6.22
X
V5.30
X
This bulletin may be revised or updated.
THIS DOCUMENT CONTAINS FANUC AMERICA PROPRIETARY AND CONFIDENTIAL INFORMATION
ENGINEERING BULLETIN NUMBER:
Release Date:
02/01/17
Revision Date: 11/17/23
Page:
03826
Document Status:
Released
Revision Level:
36.0 (ZJ)
5 of 19
FANUC America
ROBOGUIDE V9 Software Release Note
ROBOGUIDE Process Plug-in Compatibility (continued):
PaintPRO Support for
Virtual Robot Version
Application Tools
and Multiple Robot
Workcells
PaintTool
Can be used
in multiple
Robot Cells
V9.30
X
X
V9.10
X
X
V9.00
X
X
V8.30
X
X
V8.20
X
X
V8.10
X
X
V7.70
X
X
V7.50
X
X
V7.40
X
X
V7.30
X
X
V7.20
X
X
V6.43
X
X
V6.40
X
X
V6.31
X
X
PickPRO Support for
Virtual Robot Version
Application Tools
and Multiple Robot
Workcells
PickTool
Can be used
in multiple
Robot Cells
V8.10
X
X
V7.70
X
X
V7.50
X
X
iRPickPRO Support
for Virtual Robot
Version Application
Tools and Multiple
Robot Workcells
iRPickTool
Can be used
in multiple
Robot Cells
V9.30
X
X
V9.10
X
X
V9.00
X
X
V8.30
X
X
V8.20
X
X
This bulletin may be revised or updated.
THIS DOCUMENT CONTAINS FANUC AMERICA PROPRIETARY AND CONFIDENTIAL INFORMATION
ENGINEERING BULLETIN NUMBER:
Release Date:
02/01/17
Revision Date: 11/17/23
Page:
03826
Document Status:
Released
Revision Level:
36.0 (ZJ)
6 of 19
FANUC America
ROBOGUIDE V9 Software Release Note
ROBOGUIDE Process Plug-in Compatibility (continued):
PalletPRO Support
for Virtual Robot
Version Application
Tools and Multiple
Robot Workcells
PalletTool
V9.30
X
V9.10
X
V9.00
X
V8.30
X
V8.20
X
V8.10
X
V7.70
X
V7.50
X
V7.40
X
V7.20
X
V6.40
X
V6.31
X
V6.22
X
V5.30
X
MotionPRO Support
for Virtual Robot
Version Application
Tools
HandlingTool
SpotTool+
ArcTool
V9.30
X
X
X
V9.10
X
X
X
V9.00
X
X
X
V8.30
X
X
X
V8.20
X
X
X
V8.10
X
X
X
V7.70
X
X
X
V7.50
X
X
X
V7.40
X
X
X
V7.30
X
X
V7.20
X
X
V6.40
X
Can be used
in multiple
Robot Cells
This bulletin may be revised or updated.
THIS DOCUMENT CONTAINS FANUC AMERICA PROPRIETARY AND CONFIDENTIAL INFORMATION
ENGINEERING BULLETIN NUMBER:
Release Date:
02/01/17
Revision Date: 11/17/23
Page:
03826
Document Status:
Released
Revision Level:
36.0 (ZJ)
7 of 19
FANUC America
ROBOGUIDE V9 Software Release Note
ROBOGUIDE Process Plug-in Compatibility (continued):
OlpcPRO Support for
Virtual Robot Version
Supported
V9.30
X
V9.10
X
V9.00
X
V8.30
X
V8.20
X
V8.10
X
V7.70
X
V7.50
X
V7.40
X
V7.20
X
V6.40
X
V6.31
V6.22
V5.30
This bulletin may be revised or updated.
THIS DOCUMENT CONTAINS FANUC AMERICA PROPRIETARY AND CONFIDENTIAL INFORMATION
ENGINEERING BULLETIN NUMBER:
Release Date:
02/01/17
Revision Date: 11/17/23
Page:
03826
Document Status:
Released
Revision Level:
36.0 (ZJ)
8 of 19
FANUC America
ROBOGUIDE V9 Software Release Note
New Features/Functions in ROBOGUIDE V9 Revisions:
ROBOGUIDE V9 Rev. A (02/01/17)
ROBOGUIDE V9A adds support for new features and robots in V9.00P/02 software:
What's new in V9A:
• Support for new robot controller - R-30iB Plus (Version V9.00P/02)
• Support for V8.30P/29, V8.20P/29 and V8.10P/29 virtual robots.
• Support for new robot models:
o CR-4iA
o CR-7iA
o CR-7iA/L
o M-20iB/25C
o R-1000iA/130F
• Improved user interface
ROBOGUIDE V9 user interface has been greatly improved. Try ROBOGUIDE Basic Tutorial to
experience our new user interface.
o Support for start screen that opens on ROBOGUIDE start-up and prompts users for initial
operation.
o New drag and drop operations
- Support for dropping Workcell (or Workcell .rgx or .zip file) onto main window when no
Workcell is opened.
- Support for dropping robot backup files onto main window to create new Workcell when
no Workcell is opened.
- Support for adding object by drag-and-drop from CAD library.
- Support for copying object (machine, fixture, and obstacle) by drag-and-drop from cell
browser.
- Support for assigning part to object (machine, fixture, and robot tool) by drag-and-drop
from cell browser.
- Support for loading robot program into another robot by drag-and-drop from cell browser.
- Support for adding objects by drag-and-drop of CAD files from the Windows explorer.
- Support for directly moving robot to object on Workcell by drag-and-drop of center part of
teach tool.
- Support for specifying and checking drag distance of teach tool.
o Status bar improvements
- Support for clicking icon to perform corresponding functions such as showing Alarm Log
window.
- Support for showing and modifying current position of robot.
- Support for undo and redo of jog operations.
- Support for showing and modifying Feature Position Configuration.
- Support for setting up Target at the point of TCP.
- Support for restoring teach tool position when it moved to location where robot cannot
reach.
o Cell browser improvements
- Support for docking cell browser to ROBOGUIDE main window.
- Support for right click menu to duplicate a robot program.
o Support Home screen.
- Home screen has buttons that are often used.
o Create virtual robot wizard improvements
- Support selecting robot tool
• Select a similar tool there then tool settings will be easier.
- Support searching robot software options.
This bulletin may be revised or updated.
THIS DOCUMENT CONTAINS FANUC AMERICA PROPRIETARY AND CONFIDENTIAL INFORMATION
ENGINEERING BULLETIN NUMBER:
Release Date:
02/01/17
Revision Date: 11/17/23
Page:
03826
Document Status:
Released
Revision Level:
36.0 (ZJ)
9 of 19
FANUC America
ROBOGUIDE V9 Software Release Note
o
o
o
•
•
•
•
Improve for robot preview function (translucent robot).
Support for setting up binomial and offset using MoveTo tab of tool property page of robot.
Support for setting to show robot tool when the tool is not selected.
- It is useful for double hand animation. (Please refer How to create animation to pick/drop
work piece with double hand?)
- It is also useful for fixed robot tool like hand camera that should be always visible.
o Support for function to disable mouse operations to objects (machine, fixture, and obstacle).
- For example, you can perform teaching easily by disabling mouse operation to a fence
that may hamper your teaching.
Virtual teach pendant user interface improvement
o Resizing virtual iPendant screen is supported for R-30iB Plus.
Support for remote iPendant
o You can use as additional virtual teach pendant.
Move Object Dialog improvement to move or copy the mirror image of the selected object to Symmetrical
Location relative to the face or the origin of Base Frame.
Other supports
o You can specify graphic memory size.
o You can adjust mouse operation sensitivity when rotating viewpoint in 3D world.
o Support for specifying whether to enable AVI logo.
(*Note) Differences from ROBOGUIDE V8
• Virtual TP tabs are removed. To select [Current Position] or [Virtual Robot Settings], please use right click
menu.
• Some toolbar buttons (navigator, KCL, alarm and others) are removed. Please use menu instead of them.
• Menu, toolbar, cell browser, option window was arranged. Some item order is changed.
• [Normal-to-Surface] setting is moved from EOAT [UTOOL] tab to [MoveTo] tab.
• Moved AVI settings from Run Panel to Options page.
ROBOGUIDE V9 Rev. B (03/01/17)
ROBOGUIDE V9B adds support for new features and robots in V9.00P/03 software:
What's new in V9B:
• Support for V9.00P/03, V8.30P/30 virtual robots.
ROBOGUIDE V9 Rev. C (06/01/17)
ROBOGUIDE V9C adds support for new features and robots in V9.10P/02 software:
What's new in V9C:
• Support for V9.10P02, V8.30P/31 and V7.70P/51 virtual robots.
• Improved user interface:
o Support for setting the default feature name on the options page.
o Support [POSN] tab of virtual teach pendant.
o Support rotating robot base function.
• Simulation new features:
o Improved high-accurate servo gun simulation function to specify max 500 welding times to V9.10
and V8.30 virtual robots.
o Support for simulate trace function in TCP trace property page
• Improved spray simulation:
o Support for collision detections of nozzles.
•
PaintQuickEdit
o a new ROBOGUIDE support application for the ROBOGUIDE process plugin PaintPRO
This bulletin may be revised or updated.
THIS DOCUMENT CONTAINS FANUC AMERICA PROPRIETARY AND CONFIDENTIAL INFORMATION
ENGINEERING BULLETIN NUMBER:
Release Date:
02/01/17
Revision Date: 11/17/23
Page:
03826
Document Status:
Released
Revision Level:
36.0 (ZJ)
10 of 19
FANUC America
ROBOGUIDE V9 Software Release Note
o
o
PQE provides a quick and easy method to modify process nodepoints and paint instructions
Please refer to PaintQuickEdit help for more information
ROBOGUIDE V9 Rev. D (08/31/17)
ROBOGUIDE V9D adds support for new features and robots in V9.10P/03 software:
What's new in V9D:
• Support for V9.10P03, V8.30P/33 and V8.20P/30 virtual robots.
• Support for new robot models:
o R-2000iC/100P
o R-2000iC/210WE
o R-2000iC/220U
• Improved user interface:
o Support for setting of MoveTo preview for Shift+Ctrl and others options page.
• WeldPRO:
o Support for directly enter values for weaving conditions.
ROBOGUIDE V9 Rev. E (03/05/18)
ROBOGUIDE V9E adds support for new features and robots in V9.10P/07 software:
What's new in V9E:
• Support for V9.10P07, V8.30P/37, V8.20P/31 and V7.70P/52 virtual robots.
• Support for new robot models:
o M-410iC/110
o R-1000iA/120F-7B
o SR-3iA
o M-20iB/35S
o P-40iA
• Simulation new features:
o Support for drawing robot arm trace model in TCP trace property page
o Support for drawing trace at estimated stop positions if E-STOP occurs in every TCP trace
positions in TCP trace property page
o Improved high-accurate servo gun simulation function to specify max 500 welding times to V8.20
and V7.70 virtual robots.
• Improved user interface:
o Support for modifying current position of the axis driving the link on the machine axis Motion tab.
o Support X and Y motion axis on the machine axis General tab.
o Support function to export object position in CSV format and function to multicopy object.
o Support ClipPlane function which restrict the display area of the screen on the workcell ClipPlane
tab.
• Worker simulation new features:
o Improve the motion editor and support for importing/exporting worker's motion.
• CAD to Path:
o CAD to Path Quickbar: A feature can be edited to add to the start/ end of a feature, and to delete
part of a feature.
• WeldPRO:
o Support for detecting the work angle automatically when creating an arc welding Feature from
CAD edges.
• PaintPRO:
o Back to Back job simulation: ability to run multiple styles in Paint Simulation.
o Standard IO Support.
• PalletPRO:
This bulletin may be revised or updated.
THIS DOCUMENT CONTAINS FANUC AMERICA PROPRIETARY AND CONFIDENTIAL INFORMATION
ENGINEERING BULLETIN NUMBER:
Release Date:
02/01/17
Revision Date: 11/17/23
Page:
03826
Document Status:
Released
Revision Level:
36.0 (ZJ)
11 of 19
FANUC America
ROBOGUIDE V9 Software Release Note
o
New Unit Load Box reachability check. Toolbar button enables visualization of reachability for
each unit on the pallet.
ROBOGUIDE V9 Rev. E Service Release 1 (04/18/18)
This is the same as ROBOGUIDE V9 Rev. E, but with the additional FRVRC listed below.
Available only as a download from the FAC Robotics Customer Resource Center
• Support for V9.10P08
• Support for new robot models:
o SR-6iA
ROBOGUIDE V9 Rev. F (07/24/18)
ROBOGUIDE V9F adds support for new features and robots in V9.10P/11 software:
What's new in V9F:
• Support for V9.10P/11, V8.30P/40, and V8.10P/30 virtual robots.
• Support for new robot models:
o CR-15iA
o ARC Mate 100iD/10L
• Support for CAD converter option.
o CATIA, Creo, Inventor, NX, PRO/E, Solid Edge, SolidWorks, STEP, Parasolid, JT, IGES (surface,
solid) are supported
• Support for SCARA Limited HandlingPRO option.
• Support for near miss check.
• Improved user interface
o Support for preset extended axis settings in virtual robot edit wizard.
• FC Deburring Package:
o Support for setting of motion instructions and wait instructions for base position programs and find
edge programs.
• Machine Tool support:
o Support to start and stop NC program on NCGUide from ROBOGUIDE.
o Support to generate a Workcell of QSSR vision detection.
• Modeling function:
o Support to generate the roller conveyor and curved conveyor.
o Support to generate clamp type hand
o Support to generate low-profile type air gripper on chuck library.
ROBOGUIDE V9 Rev. G (02/08/19)
ROBOGUIDE V9G adds support for new features and robots in V9.10P/15 software:
What's new in V9G:
• Support for V9.10P/15, V8.30P/44, V7.70P/53 virtual robots.
• Support M-20iB/35S adding estimation function.
• Measurement tool: Support to display the surface-angle between FROM and TO surfaces.
• Improved user interface:
o Support multiple selection on part tab and simulation tab.
o Support to display the object name while hovering mouse cursor.
o Support to prompt message when deleting an item from cell browser.
o Support new dockable Image Library to quickly add objects to the Workcell.
o Support for Searching/Replacing/Jump-to functions in TP programming.
o Support to display point position data (XyzWpr) at TP point Node Map.
• Support 'No UOP Control' mode in simulation start selection.
• Support to display and modify actual value of I/O state on I/O panel.
This bulletin may be revised or updated.
THIS DOCUMENT CONTAINS FANUC AMERICA PROPRIETARY AND CONFIDENTIAL INFORMATION
ENGINEERING BULLETIN NUMBER:
Release Date:
02/01/17
Revision Date: 11/17/23
Page:
03826
Document Status:
Released
Revision Level:
36.0 (ZJ)
12 of 19
FANUC America
ROBOGUIDE V9 Software Release Note
•
•
•
•
•
•
•
Support to transfer signed/unsigned values between external devices at external device connection.
Support Workcell wizard for building NCGuide Workcell in Machine tool.
Modeling function
o Support pallet model generation.
o Support measure function.
o Unify chuck library and clamp library.
o Support taper type jaw to hand generation.
Support Target model collision check function at DCS property page.
Support ROBOGUIDE 3D Player - provides 3D playback of robot Workcell.
• Create: RG 3D player installed with ROBOGUIDE. Use ROBOGUIDE to create RG 3D Video.
• Playback: full ROBOGUIDE not required to run 3D video.
Automatic Components provide enhanced Workcell devices for more realistic simulation of Workcell
components.
• Rev G supports the ROBOGUIDE Automatic Components Infeed Conveyor with flowing boxes
and interface signals that model real world conveyors.
PaintPRO Analytics:
o Profiler Summary: lists all devices and their profiler summary data, including init. data, cycle
times, conveyor wait times, gun-on times and total time.
o Wait / Release Macro Table: displays all Wait and Release macro instructions from all devices in
one table.
ROBOGUIDE V9 Rev. H (06/01/19)
ROBOGUIDE V9H adds support for new features and robots in V9.10P/19 software:
What's new in V9H:
• Support for V9.10P/19, V8.30P/48 virtual robots.
• Support for new robot models
o ARC Mate 100iD/8L
o ARC Mate 120iD
o CR-14iA/L
o ER-4iA
o R-2000iC/190U
• Improved spray simulation:
o Support an air curtain. A link attached to robot tool can be specified as a paint target object.
o Support to export painted object models to OBJ files.
o Support to specify density distribution and deposit efficiency pattern by numerical values.
• Improved vision function:
o Support to connect USB frame grabber. Actual iRVision cameras can connect using USB frame
grabber, and can test to detect real workpiece.
• iRPickPRO:
o Support for clearance check function. Part region and clearance region are displayed on the
parts.
ROBOGUIDE V9 Rev. I (10/14/19)
ROBOGUIDE V9I adds support for new features and robots in V9.10P/23 software:
What's new in V9I:
• Support for V9.10P/23, V8.30P/52, and V8.20P/34 virtual robots.
• Support for new robot models
o R-2000iC/270R
o ARC Mate 120iD/12L
o LR Mate 200iD/14L
This bulletin may be revised or updated.
THIS DOCUMENT CONTAINS FANUC AMERICA PROPRIETARY AND CONFIDENTIAL INFORMATION
ENGINEERING BULLETIN NUMBER:
Release Date:
02/01/17
Revision Date: 11/17/23
Page:
03826
Document Status:
Released
Revision Level:
36.0 (ZJ)
13 of 19
FANUC America
ROBOGUIDE V9 Software Release Note
•
•
•
•
•
•
•
•
•
Support R-2000iC/270R on estimation function.
Improved standard IGES converter:
o Support for new standard IGES converter. Select IGES converter in options page.
CAD to Path Edit Feature Angle:
o Functions to change the angle of Normal vector of a Feature.
o Opened from cell browser with right-mouse click on Feature.
o Opens the new ROBOGUIDE Streamline feature at the bottom of screen, which allows easy
navigation of the feature.
Simulation Program Editor:
o Allow multiple simulation program editor windows with variable setting up to maximum of 10.
o Allow “Always on Top” mode for all simulation program editor windows.
o Ability to copy and paste lines.
o Ability to copy motion parameters from one motion line to another.
o Ability to reverse sequence of lines.
o Allow open of new simulation editor window of a called program.
Automatic Components:
o New functionality allows for part path definition.
Cell browser:
o Support for creation of sub-folders for Machines, Fixtures, Obstacles, and Parts:
- Ability to drag/drop items between folders.
- Ability to right-click and move items to specific folders.
- Ability to change visibility of folder.
- Sub-folder automatically created for Generate Fences.
Support easy return of all robots in the Workcell to set initial positions. (toolbar button)
Improved vision function:
o Support for 3D Vision Sensor.
iRPickPRO:
o Improve Sensor Model ID properties page:
- Assign Model IDs based upon conveyor lane.
- Assign random Model IDs.
- Assign sequential Model IDs.
o Improve Tray Layers properties page:
- View all parts on a single tray simultaneously.
- Visually identify which part is currently being edited.
ROBOGUIDE V9 Rev. J (12/16/19)
ROBOGUIDE V9J adds support for new features and robots in V9.10P/24 software:
What's new in V9J:
• Support for V9.30P/03, V9.10P/24, and V8.30P/54 virtual robots.
• Support for new robot models
o R-2000iD/210FH
ROBOGUIDE V9 Rev. K (02/28/20)
ROBOGUIDE V9K adds support for new features and robots in V9.30P/04, V9.10P/25 and V7.70P/54 software:
What's new in V9K:
• Support for V9.30P/04, V9.10P/25 and V7.70P54 virtual robots.
• Support for new robot models:
o M-900iB/330L
• Support for robot estimation functions:
o CR-35iA
This bulletin may be revised or updated.
THIS DOCUMENT CONTAINS FANUC AMERICA PROPRIETARY AND CONFIDENTIAL INFORMATION
ENGINEERING BULLETIN NUMBER:
Release Date:
02/01/17
Revision Date: 11/17/23
Page:
03826
Document Status:
Released
Revision Level:
36.0 (ZJ)
14 of 19
FANUC America
ROBOGUIDE V9 Software Release Note
•
•
•
•
•
•
•
•
•
o LR Mate 200iD/14L
o ARC Mate 120iD/12L
o R-2000iD/210FH
o M-900iB/330L
Simulation new features:
o Improved high-accurate servo gun simulation function to specify max 500 welding times to
V8.10virtual robots.
Support for importing Workcell function.
Improved iPendant:
o Support for displaying the controller and program list at the top of iPendant.
o Support for pinning function in the program list at the top of iPendant.
Improved CAD Converter:
o Support for Rhino3D.
Support for the same name CAD files (the file which the name is the same, and is different in a folder) in
options page.
Improved spray simulation:
o Support to specify the deposit efficiency for distance from nozzle.
o Support to make the reachable range shape of far segment cylindrical.
o Support to visualize the nozzle open/close status in teaching mode.
o Support to capture screen when each program line starts.
Improved simulation program editor:
o Support for Auto Path Generation
Support to iRProgrammer:
o Select iRProgrammer under the Robot category on the main menu. iRProgrammer will appear in
Web Browser.
Improved I/O Panel:
o Support to import and export settings of I/O panel.
o Support to change button’s color to monitor waiting I/O.
o Support to import I/O from simulation program for adding to I/O panel.
o Support to set 0.02sec to time scale of I/O time chart.
ROBOGUIDE V9 Rev. L (07/10/20)
ROBOGUIDE V9L adds support for new features and robots in V9.40P/01, V9.30P/07,V9.10P/28, V8.30/56 and
V7.70P/55 software:
What's new in V9L:
• Support for V9.40P/01, V9.30P/07,V9.10P/28, V8.30/56, V7.70P/55 virtual robots.
• Support for new robot models:
o ARCMate100iD/16S
o CRX-10iA
o CRX-10iA/L
o DR-3iB/8L
o M-10iD/16S
o M-800iA/60
o R-2000iD/165FH
o SR-12iA
o 500kg 1-Axis Positioner iD (Hollow type)
(*) Please use virtual robot V9.40 for CRX-10iAand CRX-10iA/L
• Support for Tablet TP function.
• Improved importing Workcell function:
o Support for I/O map.
This bulletin may be revised or updated.
THIS DOCUMENT CONTAINS FANUC AMERICA PROPRIETARY AND CONFIDENTIAL INFORMATION
ENGINEERING BULLETIN NUMBER:
Release Date:
02/01/17
Revision Date: 11/17/23
Page:
03826
Document Status:
Released
Revision Level:
36.0 (ZJ)
15 of 19
FANUC America
ROBOGUIDE V9 Software Release Note
•
•
Improved CAD Converter:
o Support for CATIA V6 R2019,Creo 6.0, NX 1899, SolidWorks 2020 and more.
Improved user interface:
o Support to delete Workcell by right-click menu of the recent Workcell list at the start screen.
ROBOGUIDE V9 Rev. M (08/17/20)
ROBOGUIDE V9M adds support for new features and robots in V9.40P/02, V9.30P/08, V9.10P/29, and
V8.30P/57 software:
What's new in V9M:
• Support for V9.40P/02, V9.30P/08,V9.10P/29, and V8.30P/57 virtual robots.
• Support for new robot models:
o ARCMate120iD/35
o M-20iD/35
• Support for robot estimation functions:
o ARCMate120iD/35
o M-20iD/35
ROBOGUIDE V9 Rev. N (09/21/20)
ROBOGUIDE V9N adds support for new features and robots in V9.40P/03, V9.30P/10, and V9.10P/30 software:
What's new in V9N:
• Support for V9.40P/03, V9.30P/10, and V9.10P/30 virtual robots.
ROBOGUIDE V9 Rev. O (10/16/20)
ROBOGUIDE V9O adds support for new features and robots in V9.40P/04, V9.30P/11, and V9.10P/31 software:
What's new in V9O:
• Support for V9.40P/04, V9.30P/11, and V9.10P/31 virtual robots.
• Support for a new robot model:
o R-2000iC/240F
ROBOGUIDE V9 Rev. P (10/30/20)
ROBOGUIDE V9P adds support for new features and robots in V9.40P/05 software:
What's new in V9P:
• Support for V9.40P/05 virtual robots.
• Support for robot estimation function:
o R-2000iC/240F
ROBOGUIDE V9 Rev. Q (12/07/20)
ROBOGUIDE V9Q adds support for new features and robots in V9.40P/06, V9.30P/12, V9.10P/32, V8.30P/58
software:
What's new in V9Q:
• Support for V9.40P/06, V9.30P/12, V9.10P/32, V8.30P/58 virtual robots.
• Support for new robot models:
o SR-3iA/H
o SR-6iA/H
o SR-20iA
o R-2000iD/100FH
• Support robots for estimation function:
o SR-3iA/H
o SR-6iA/H
o SR-20iA
This bulletin may be revised or updated.
THIS DOCUMENT CONTAINS FANUC AMERICA PROPRIETARY AND CONFIDENTIAL INFORMATION
ENGINEERING BULLETIN NUMBER:
Release Date:
02/01/17
Revision Date: 11/17/23
Page:
03826
Document Status:
Released
Revision Level:
36.0 (ZJ)
16 of 19
FANUC America
ROBOGUIDE V9 Software Release Note
o
R-2000iD/100FH
ROBOGUIDE V9 Rev. R (02/08/21)
ROBOGUIDE V9R adds support for new features and robots in V9.40P/09, V9.30P/13, and V8.30P/59 software:
What's new in V9R:
• Support for V9.40P/09, V9.30P/13, and V8.30P/59 virtual robots.
• Support for new robot models:
o 1500kg 1-Axis Positioner iD (Hollow type)
• Support for robot estimation functions:
o CRX-10iA
o CRX-10iA/L
• Improved machine:
o Support for programmatic machine link operation control.
• Improved status bar function :
o Support for always displaying the robot's current position and operation icon appeared when the
teaching tool is selected.
o Support for copying and pasting of the robot's current position in the right-click menu of the
robot's current position and operation icon.
o Support for displaying Cartesian coordinate position viewed from the Workcell origin and the
relative movement based on the tool coordinate.
• Improved user interface:
o Support for automatic determination of the surface orientation of the tool used in the MoveTo
function.
o Support for automatically moving the robot to the position of the teaching point when the teaching
point is selected in 3D world or TP.
ROBOGUIDE V9 Rev. S (03/15/21)
ROBOGUIDE V9S adds support for new features and robots in V9.40P/10, V9.30P/15, V9.10P/33, V8.30P/60,
and V8.20P/35 software:
What's new in V9S:
• Support for V9.40P/10, V9.30P/15, V9.10P/33, V8.30P/60, and V8.20P/35 virtual robots.
ROBOGUIDE V9 Rev. T (05/25/21)
ROBOGUIDE V9T adds support for new features and robots in V9.40P/13, V9.30P/16, V8.30P/61, and V7.70P/56
software:
What's new in V9T:
• Support for V9.40P/13, V9.30P/16, V8.30P/61, and V7.70P/56 virtual robots.
ROBOGUIDE V9 Rev. U (07/19/21)
ROBOGUIDE V9U adds support for new features and robots in V9.40P/15 and V9.30P/17 software:
What's new in V9U:
• Support for V9.40P/15 and V9.30P/17 virtual robots.
• Support for new robot models:
o 2000kg 1-Axis Positioner iD (Hollow type)
ROBOGUIDE V9 Rev. V (10/10/21)
ROBOGUIDE V9V adds support for new features and robots in V9.40P/17, V9.30P/20, V9.10P/36, V8.30P/62,
and V8.10P/32 software:
What's new in V9V:
• Support for V9.40P/17, V9.30P/20, V9.10P/36, V8.30P/62, and V8.10P/32 virtual robots.
This bulletin may be revised or updated.
THIS DOCUMENT CONTAINS FANUC AMERICA PROPRIETARY AND CONFIDENTIAL INFORMATION
ENGINEERING BULLETIN NUMBER:
Release Date:
02/01/17
Revision Date: 11/17/23
Page:
03826
Document Status:
Released
Revision Level:
36.0 (ZJ)
17 of 19
FANUC America
ROBOGUIDE V9 Software Release Note
•
•
•
•
•
Support for new robot models:
o R-2000iC/100PH
Support for robot estimation functions:
o R-1000iA/130F
o R-1000iA/120F-7BS
o R-2000iC/100PH
Support for specifying an initial waypoint location of cable route.
Improved vision function:
o Support for 3D Vision Sensor 3DV/70 and 3DV/200.
Improved user interface:
o Support for setting breakpoints in TP programs.
ROBOGUIDE V9 Rev. W (11/05/21)
ROBOGUIDE V9W adds support for new features and robots in V9.40P/20, software:
What's new in V9W:
• Support for V9.40P/20 virtual robots.
• Windows 11 is added as supporting OS.
ROBOGUIDE V9 Rev. X (1/15/22)
ROBOGUIDE V9X adds support for new features and robots in V9.40P/23, V9.30P/21, V8.30P/63, V7.70P/57,
and V7.40P/25 software:
What's new in V9X:
• Support for V9.40P/23, V9.30P/21, V8.30P/63, V7.70P/57, and V7.40P/25 virtual robots.
• Support for new robot models:
o M-1000iA
o SR-3iA/U
ROBOGUIDE V9 Rev. Y (3/10/22)
ROBOGUIDE V9Y adds support for new features and robots in V9.40P/26 software:
What's new in V9Y:
• Support for V9.40P/26 virtual robots.
• Support for new robot models:
o LR-10iA/10
o R-2000iC/190S-SE
• Improved spray simulation:
o Support for specifying a dispense schedule number or paint condition number for which the
nozzle is activated.
ROBOGUIDE V9 Rev. Z (5/10/22)
ROBOGUIDE V9Z adds support for new features and robots in V9.40P/29, V9.30P/24 and V9.10P/39 software:
What's new in V9Z:
• Support for V9.40P/29, V9.30P/24 and V9.10P/39 virtual robots.
• Support for new robot models:
o R-2000iC/190S
o CRX-20iA/L
• Support for robot estimation functions:
o R-2000iC/190S
o R-2000iC/190S-SE
ROBOGUIDE V9 Rev. ZA (6/10/22)
This bulletin may be revised or updated.
THIS DOCUMENT CONTAINS FANUC AMERICA PROPRIETARY AND CONFIDENTIAL INFORMATION
ENGINEERING BULLETIN NUMBER:
Release Date:
02/01/17
Revision Date: 11/17/23
Page:
03826
Document Status:
Released
Revision Level:
36.0 (ZJ)
18 of 19
FANUC America
ROBOGUIDE V9 Software Release Note
ROBOGUIDE V9ZA adds support for new features and robots in V9.40P/31 and V8.30P/66 software:
What's new in V9ZA:
• Support for V9.40P/31 and V8.30P/66 virtual robots.
• Support for new robot models:
o CRX-5iA
• Support for robot estimation functions:
o CR-14iA/L
ROBOGUIDE V9 Rev. ZB (7/15/22)
ROBOGUIDE V9ZB adds support for new features and robots in V9.40P/33, V9.30P/25 and V9.10P/40 software:
What's new in V9ZB:
• Support for V9.40P/33, V9.30P/25 and V9.10P/40 virtual robots.
• Support for new robot models:
o SR-3iA/C
o SR-6iA/C
o ARC Mate 120iD-FG (M-20iD/25)
o CR-35iB
o CRX-25iA
• Support for robot estimation functions:
o SR-3iA/U
o CR-35iB
ROBOGUIDE V9 Rev. ZC (10/17/22)
ROBOGUIDE V9ZC adds support for new features and robots in V9.40P/36, V8.30P/67 software:
What's new in V9ZC:
• Support for V9.40P/36, V8.30P/67 virtual robots.
• Improved spray simulation:
o Support machine links controlled by DO signal, macro, and program
o Support spray simulation using 64bit out-process server
ROBOGUIDE V9 Rev. ZD (12/16/22)
ROBOGUIDE V9ZD adds support for new features and robots in V9.40P/39, V9.30P/26, V9.10P/41, V8.30P/68,
and V7.70P/58 software:
What's new in V9ZD:
• Support for V9.40P/39, V9.30P/26, V9.10P/41, V8.30P/68, and V7.70P/58 virtual robots.
• Support for new robot models:
o DR-3iB/6 STAINLESS
o CRX-20iA/L-J1
• Support for robot estimation functions:
o ARC Mate 120iD-FG
o CRX-5iA
o SR-3iA/C
o SR-6iA/C
RG_9ZD is released by FANUC Japan, not FANUC America.
ROBOGUIDE V9 Rev. ZE Service Release 1 (3/17/23)
ROBOGUIDE V9ZE adds support for new features and robots in V9.40P/42, V9.30P/27, V8.30P/69, and
V7.70P/59 software:
What's new in V9ZE:
• Support for V9.40P/42, V9.30P/27, V8.30P/69, and V7.70P/59 virtual robots.
This bulletin may be revised or updated.
THIS DOCUMENT CONTAINS FANUC AMERICA PROPRIETARY AND CONFIDENTIAL INFORMATION
ENGINEERING BULLETIN NUMBER:
Release Date:
02/01/17
Revision Date: 11/17/23
Page:
03826
Document Status:
Released
Revision Level:
36.0 (ZJ)
19 of 19
FANUC America
ROBOGUIDE V9 Software Release Note
•
•
Support for new robot models:
o M-900iB/360E
o M-900iB/700-SE
Support for robot estimation functions:
o M-900iB/360E
o DR-3iB/6 STAINLESS
ROBOGUIDE V9 Rev. ZF (4/17/23)
ROBOGUIDE V9ZF adds support for new features and robots in V9.40P/43, V9.30P/28, V9.10P/43, and
V8.30P/70 software:
What's new in V9ZF:
• Support for V9.40P/43, V9.30P/28, V9.10P/43, and V8.30P/70 virtual robots.
ROBOGUIDE V9 Rev. ZG (6/30/23)
ROBOGUIDE V9ZG adds support for new features and robots in V9.40P/45, V9.30P/30, V9.10P/44, and
V8.30P/71 software:
What's new in V9ZG:
• Support for V9.40P/45, V9.30P/31, V9.10P/44, and V8.30P/71 virtual robots.
• Improved user interface:
o Support for function showing direction to TCP trace.
• Improved CAD Converter:
o Support for CATIA V5 R2023, Inventor 2024, NX 2212, SolidWorks 2023 and more.
ROBOGUIDE V9 Rev. ZH (7/28/23)
ROBOGUIDE V9ZH adds support for new features and robots in V9.40P/47 software:
What's new in V9ZH:
• Support for V9.40P/47 virtual robots.
• Support for new robot model:
o R-2000iC/270F-SE
ROBOGUIDE V9 Rev. ZI (9/28/23)
ROBOGUIDE V9ZI adds support for new features and robots in V9.40P/50, V9.10P/45, and V8.30P/72 software:
What's new in V9ZI:
• Support for V9.40P/50, V9.10P/45, and V8.30P/72 virtual robots.
• Support for new robot models:
o 5000kg 1-AxisPositioner iD
o CRX-5iA-Food grease variant
o CRX-20iA/L-Food grease variant
o CRX-25iA-Food grease variant
• Support for robot estimation functions:
o CRX-20iA/L
o CRX-5iA-Food grease variant
• Improved ROBOGUIDE SDK Option:
o Added functions to retrieve information about user defined machines and robot configuration.
o Removed functions to access robot mesh information.
ROBOGUIDE V9 Rev. ZJ (11/10/23)
ROBOGUIDE V9ZJ adds support for new features and robots in V9.40P/52, V9.30P/32, and V7.70P/60 software:
What's new in V9ZJ:
• Support for V9.40P/52, V9.30P/32, and V7.70P/60 virtual robots.
