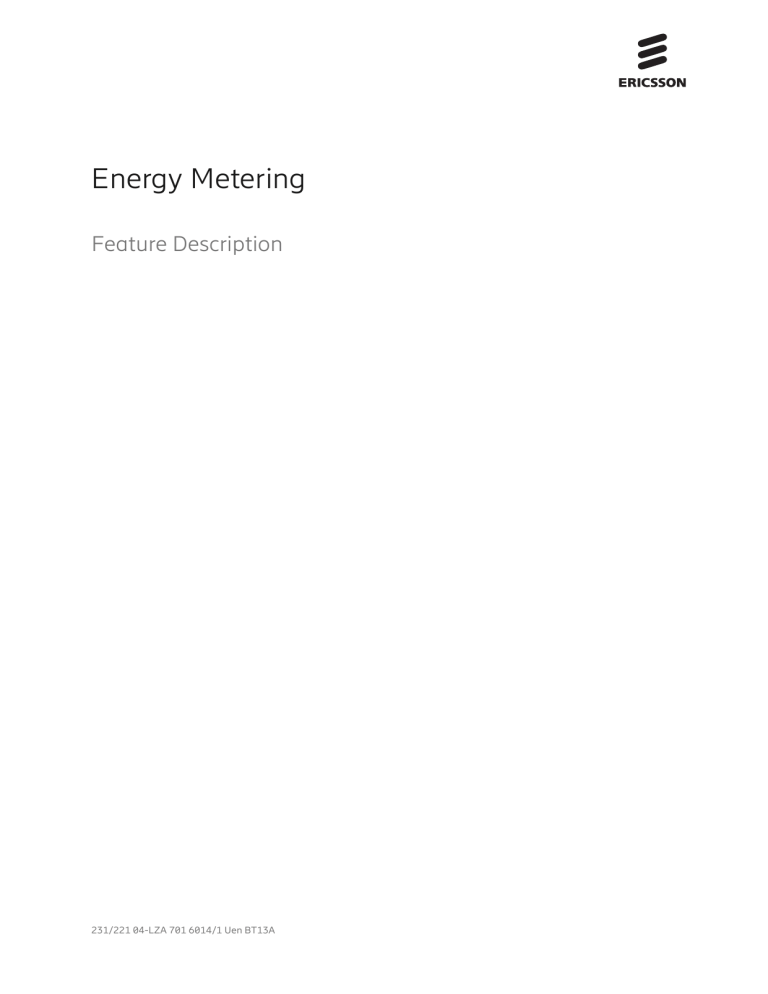

Energy Metering
Feature Description
231/221 04-LZA 701 6014/1 Uen BT13A
Copyright
© Ericsson AB 2016-2020. All rights reserved. No part of this document may be
reproduced in any form without the written permission of the copyright owner.
Disclaimer
The contents of this document are subject to revision without notice due to
continued progress in methodology, design and manufacturing. Ericsson shall
have no liability for any error or damage of any kind resulting from the use of this
document.
Trademark List
All trademarks mentioned herein are the property of their respective owners.
These are shown in the document Trademark Information.
231/221 04-LZA 701 6014/1 Uen BT13A | 2020-11-06
Contents
Contents
1
Energy Metering Overview
1
2
Dependencies of Energy Metering
2
3
Feature Operation of Energy Metering
4
3.1
Overview of Energy Consumption Measurement Aggregation
5
3.2
PM Counters under EnergyMeasurement MO
6
3.3
PM Counters under EnergyMeter MO
7
3.4
9
3.5
PM Counters under ConsumedEnergyMeasurement and
ConsumedEnergy MOs
Ericsson Energy Report
9
4
Network Impact of Energy Metering
11
5
Parameters for Energy Metering
12
6
Performance of Energy Metering
14
7
Activate Basic Feature
15
Appendix A: Feature Change History
16
Appendix A.a: 17.Q3: Extended SW Support for PDU 03 01
16
Appendix A.b: 18.Q1: Power and Energy Consumption Reporting Per
Radio Unit
18
Appendix A.c: 18.Q3: Power and Energy Consumption Reporting for the
Sum of All Consumer Units in a Node
19
231/221 04-LZA 701 6014/1 Uen BT13A | 2020-11-06
Energy Metering
231/221 04-LZA 701 6014/1 Uen BT13A | 2020-11-06
1
Energy Metering Overview
The purpose of the Energy Metering feature is to provide a standardized
way to observe power consumption and energy consumption on a node or
parts of a node.
Access Type:
Feature
Identity:
Value Package
Name:
NR
FAJ 121
3079
NR Base
Package
LTE
WCDMA
FAJ 121 3079 FAJ 121
4579
LTE Base
WCDMA
Package
Base
Package
GSM
FAJ 121
3079
GSM RAN
Base
Package
MI
FAJ 121
3079
M-IoT
RAN on
LTE Base
Package
Value Package FAJ 801 FAJ 801 0400 FAJ 801
FAJ 801 FAJ 801
Identity:
4002
0359
0386
1000
Node Type:
Baseband Baseband
Baseband
Baseband Baseband
Radio
Radio Node
Radio Node Radio
Radio
Node
Node
Node
DU Radio
DU Radio
Node
Node
Licensing:
Basic
Basic feature. Basic
Basic
Basic
feature.
No license is
feature. No feature.
feature.
No license required.
license is
No license No license
is
required.
is
is
required.
required. required.
Summary
The feature enables measurements that can be used to monitor and validate
energy performance. For more information on energy saving features, see Energy
Performance Optimization Guidelines.
The measurement results can be used by ENIQ for the Ericsson Energy Report
tool.
231/221 04-LZA 701 6014/1 Uen BT13A | 2020-11-06
1
Energy Metering
2
Dependencies of Energy Metering
Feature Dependencies
There are no dependencies to other features.
Hardware
Energy metering is supported on all Baseband units. However, the power
measurements reported on the Baseband 6303 and Baseband 6502 do not cover
the PSU and the fan.
Energy metering is not supported on DUs.
All internal radios, RRUs, and AIRs support energy metering, except the
following:
— AIR 11, AIR 21, AIR 32
— RRUS A2, RRUS 01, RRUS 02, RRUS 11, RRUS 32, RRUS 61, mRRUS 12,
mRRUS 61, RRUS 72, RRUS 82
— RUS 01, RUS 02
— RUL 01
— RUW 01, RUW 02
— RRUW 01, RRUW 02, RRUW 03
— RIR 11, RIR 12, RIR 14
— IRU 2242
Energy metering is supported on the following support system units:
— PDU 03 02, PDU 03 01
— PSU AC 03
— EMU
Energy metering is not supported on the following support system units:
— BFU 01 02, BFU 01 03
— PDU 01 01, PDU 01 03, PDU 01 04, PDU 02 01, PDU 02 02
— PSU AC 01
— SAU 01 01, SAU 02 01
2
231/221 04-LZA 701 6014/1 Uen BT13A | 2020-11-06
— SCU 01 01, SCU 02 01, SCU 03 01
Limitations
— The PM counters under the EnergyMeter MO for RBS 6501 show the
consumption of the integrated radio unit, not the whole RBS. To see the
consumption of the whole RBS 6501, legacy counters under the MO
EnergyMeasurement must be used instead.
— The measurement of the power consumption of the radio unit includes the
power consumption of RET and TMA equipment with power supply from a
radio unit.
— The pmVoltage counter under the EnergyMeter MO reports only in absolute
values.
— Up to 150 active EnergyMeter MOs are supported on a node. From these,
maximum 50 can be consumer units, including both radio units and
baseband units.
Network Requirements
There are no network requirements for this feature.
231/221 04-LZA 701 6014/1 Uen BT13A | 2020-11-06
3
Energy Metering
3
Feature Operation of Energy Metering
The Energy Metering feature provides a standardized way to observe power
consumption and energy consumption of Baseband and radio units.
Measurements are presented with PM counters under the following MOs:
— EnergyMeter
— ConsumedEnergyMeasurement for Baseband units
— ConsumedEnergy for DUs
— EnergyMeasurement
The PM counters are activated automatically, except those that are under the
EnergyMeasurement MO, where manual configuration is needed.
The EnergyMeter MO is automatically created and enabled for each supported
Baseband, radio unit, and installed support system unit (PSU, PDU, and EMU) of
a node. It can be manually enabled or disabled with
EnergyMeter.setEnergyMeterEnabled for example, if the maximum number of
active EnergyMeter MOs is reached.
For Baseband units, the ConsumedEnergyMeasurement MO automatically
summarizes the power consumption of all active EnergyMeter MOs representing
Baseband and radio units.
For DUs the ConsumedEnergy MO automatically summarizes the power
consumption of all active EnergyMeter MOs representing radio units.
The EnergyMeasurement MO can be configured to summarize the power
consumption of active EnergyMeter MOs for support system units representing
PSUs, EMUs or PDUs, that is, e-fuses. For example, several EnergyMeasurment
MO instances can be created to summarize the power consumption of different
parts of the Modular PDU System (e-fuses).
Baseband Radio Node
The PM counters under the EnergyMeter MO with different parent MOs in the
Baseband Radio Node support measurements on the following units:
4
Unit
Parent of EnergyMeter MO
Supported baseband units
FieldReplaceableUnit
Supported radio units
FieldReplaceableUnit
PSU AC 03
FieldReplaceableUnit
231/221 04-LZA 701 6014/1 Uen BT13A | 2020-11-06
Unit
Parent of EnergyMeter MO
EMU
FieldReplaceableUnit
Modular PDU System
FieldReplaceableUnit
Each individual output (e-fuse) on a
Modular PDU System
EFuse
DU Radio Node
The PM counters under the EnergyMeter MO with different parent MOs in the DU
radio node support measurements on the following units:
Unit
Parent of EnergyMeter MO
Supported radio units
AuxPlugInUnit(1)
PSU AC 03
HwUnit
EMU
HwUnit
Modular PDU System
HwUnit
Each individual output (e-fuse) on a
Modular PDU System
EFuse
(1) This MO class is applicable for LTE only.
3.1
Overview of Energy Consumption Measurement
Aggregation
On a site with Ericsson power system, energy consumption can be measured on
the following levels:
— Site level - AC-fed cabinet
The incoming AC voltage energy consumption in a cabinet can be measured
by aggregating the energy meters from the installed PSUs. The units to be
included in the measurement are configured in the EnergyMeasurement MO.
— Site level - DC-fed cabinet
The DC voltage energy consumption can be aggregated for several PDUs
including all e-fuses, selected e-fuses, or EMUs. The units to be included in
the measurement are configured in one or several EnergyMeasurement MOs.
— Equipment level - consumer units
The energy consumption of Baseband units and radio units that support the
EnergyMeter MO is automatically aggregated by the
ConsumedEnergyMeasurement MO (for Baseband units) and the
ConsumedEnergy MO (for DUs).
231/221 04-LZA 701 6014/1 Uen BT13A | 2020-11-06
5
Energy Metering
Figure 1 shows an example of energy consumption measurement aggregation on
site. The energy consumption of the units not supporting energy metering is
calculated by the PDU (e-fuse).
PDU
Baseband 5216
EnergyMeter
E-fuse
EnergyMeter
Baseband R503
Radio4442B1B3
EnergyMeter
PDU
AC Grid
Smart
Meter
PSU
Radio4442B1B3
DC
EnergyMeter
E-fuse
EnergyMeter
EnergyMeter
Radio4442B1B3
EnergyMeter
BFU
RUS01 B20
PDU
RUS01 B20
Legend
Aggregation of PSU Load
Aggregation of PDU Load
E-fuse
EnergyMeter
Battery
RUS01 B20
Aggregation of Consumer
L0002772A
Figure 1 Example for Energy Consumption Measurement Aggregation
In one cabinet, PM counters under the EnergyMeasurement MO from multiple
support system units of the same type, such as PDUs, EMUs, or PSUs, can be
used. However, the combination of different types of units cannot be used.
3.2
PM Counters under EnergyMeasurement MO
The PM counters under EnergyMeasurement MO are used to measure the total
energy consumption of one of the following units:
— An RBS cabinet
— A selected number of consumer units that are supplied with power by the
Modular PDU System or the EMU
The EnergyMeasurement.energyMeterListRef parameter must be manually
configured to obtain measurements. For more information, see Perform Energy
Measurements Using the EnergyMeasurement MO in Manage Hardware
Equipment.
The consumed energy is measured on the following units:
— Power providers, such as the PSU
— Power distributors, such as the Modular PDU System
6
231/221 04-LZA 701 6014/1 Uen BT13A | 2020-11-06
— Clamp-on energy meters, such as the EMU
ManagedElement
Equipment
EquipmentSupportFunction
EnergyMeasurement
FieldReplaceableUnit
(PSU-1)
FieldReplaceableUnit
(PSU-2)
FieldReplaceableUnit
(PSU-3)
FieldReplaceableUnit
(PSU-4)
EnergyMeter
EnergyMeter
EnergyMeter
EnergyMeter
L0002771A
Note:
The PM counters under EnergyMeasurement MO support measurements
only on PSUs that are capable of retrieving EnergyMeter MO attributes.
For more information, see PSU Description.
Figure 2 MOM View Example of Total RBS Cabinet Energy Metering
The following PM counters are associated with the EnergyMeasurement MO:
— EnergyMeasurement.pmMaxPowerConsumption
— EnergyMeasurement.pmMinPowerConsumption
— EnergyMeasurement.pmPowerConsumption
— EnergyMeasurement.pmEnergyConsumption
— EnergyMeasurement.pmAccumulatedEnergyConsumption
3.3
PM Counters under EnergyMeter MO
The PM counters under the EnergyMeter MO are used to measure the following:
— Energy consumption
— Accumulated energy consumption
— Average power consumption
— Average voltage
231/221 04-LZA 701 6014/1 Uen BT13A | 2020-11-06
7
Energy Metering
The measurement is based on values reported from baseband or radio units
which support energy measurements.
The following units support energy measurements:
— PSU AC 03
— EMU
— Each individual output (e-fuse) on Modular PDU System, represented by the
parent EFuse MO
— Supported radio units
— Supported baseband units
Additionally, PM counters under the EnergyMeter MO in the Modular PDU
System Controller are used to measure the following:
— System voltage, measured by EnergyMeter.pmVoltage. The value of this
attribute is always 48 V in the following baseband units:
— Baseband 5216
— Baseband 5212
— Baseband 6630
— Baseband 6620
— Baseband 6502
— Baseband 6303
— Total energy consumption of the Modular PDU System
— Average power consumption from all ECMs on a PDU subrack or cassette
The following PM counters are associated with the EnergyMeter MO:
— EnergyMeter.pmConsumedEnergy
— EnergyMeter.pmConsumedEnergyAccumulated
— EnergyMeter.pmPowerConsumption
— EnergyMeter.pmVoltage
— EnergyMeter.pmMinPowerConsumption
Note:
Not applicable to DU Radio Nodes.
— EnergyMeter.pmMaxPowerConsumption
8
231/221 04-LZA 701 6014/1 Uen BT13A | 2020-11-06
Note:
Note applicable to DU Radio Nodes.
For more information, see Manage Hardware Equipment.
3.4
PM Counters under ConsumedEnergyMeasurement and
ConsumedEnergy MOs
The PM counters under the ConsumedEnergyMeasurement MO (for baseband
units) and the ConsumedEnergy MO (for DUs) are used to measure the following
for the whole node, based on values reported from radio units that support
energy measurements:
— Energy consumption
— Accumulated energy consumption
— Average power consumption
The following attributes can be used to get a ratio of units supporting power
measurements and the total number of radio units in the node.
— ConsumedEnergyMeasurement.noOfContributingUnits
— ConsumedEnergy.noOfContributingUnits
— ConsumedEnergyMeasurement.totalNoOfUnits
— ConsumedEnergy.totalNoOfUnits
The following PM counters are associated with the
ConsumedEnergyMeasurement MO:
— ConsumedEnergyMeasurement.pmConsumedEnergy
— ConsumedEnergyMeasurement.pmConsumedEnergyAccumulated
— ConsumedEnergyMeasurement.pmPowerConsumption
The following PM counters are associated with the ConsumedEnergy MO:
— ConsumedEnergy.pmConsumedEnergy
— ConsumedEnergy.pmConsumedEnergyAccumulated
— ConsumedEnergy.pmPowerConsumption
3.5
Ericsson Energy Report
The Ericsson Energy Report feature is a guided analysis. It is intended to give the
user an overview of power use, energy consumption and data volumes for the top
100 consuming nodes. The details are on EnergyMeter MO-level.
231/221 04-LZA 701 6014/1 Uen BT13A | 2020-11-06
9
Energy Metering
The analysis allows for search and grouping of nodes for comparison in the
network. Detailed analysis of the benefits and effects of various energy saving
features on data volumes and energy consumption is available.
The Energy Report supports ranking and searching of nodes across the following
radio nodes visible to an ENIQ-S deployment:
— NR
— LTE ERBS
— WCDMA RBS
— LTE
— WCDMA
— GSM
The analysis retrieves, queries, and visualizes data for the previous seven-day
period for the Ranking, Search and Energy Saving flows.
For the Energy Usage flow, the analysis retrieves and visualizes data for up to the
previous three years.
The report supports the pmConsumedEnergy counter on both the
EnergyMeasurement and the EnergyMeter MOs, as well as data volume and
energy saving counters.
For more information on the Ericsson Energy Report feature, see Ericsson Energy
Report User Guide and Ericsson Energy Report Analysis User Guide - Data
Description.
10
231/221 04-LZA 701 6014/1 Uen BT13A | 2020-11-06
4
Network Impact of Energy Metering
Capacity and Performance
No impact is expected from this feature.
Interfaces
No impact is expected from this feature.
Other Network Elements
No impact is expected from this feature.
231/221 04-LZA 701 6014/1 Uen BT13A | 2020-11-06
11
Energy Metering
5
Parameters for Energy Metering
Table 1
12
Parameters
Parameter
Type
Description
EnergyMeter.energyMe
terEnabled
Introduced
See MOM description.
EnergyMeter.availabi
lityStatus
Introduced
See MOM description.
EnergyMeter.operatio
nalState
Introduced
See MOM description.
EnergyMeter.consumed
EnergyMeasurementRef
Introduced
See MOM description.
EnergyMeter.inputCur
rent
Introduced
See MOM description.
EnergyMeter.inputVol
tage
Introduced
See MOM description.
EnergyMeter.outputCu
rrent
Introduced
See MOM description.
EnergyMeter.outputPo
wer
Introduced
See MOM description.
EnergyMeter.outputVo
ltage
Introduced
See MOM description.
EnergyMeter.powerLoa
d
Introduced
See MOM description.
EnergyMeter.unitInfo
rmation
Introduced
See MOM description.
ConsumedEnergyMeasur
ement.consumedEnergy
MeasurementId
Introduced
See MOM description.
ConsumedEnergyMeasur
ement.noOfContributi
ngUnits
Introduced
See MOM description.
ConsumedEnergyMeasur
ement.reservedBy
Introduced
See MOM description.
231/221 04-LZA 701 6014/1 Uen BT13A | 2020-11-06
Parameter
Type
Description
ConsumedEnergyMeasur
ement.totalNumberOfU
nits
Introduced
See MOM description.
231/221 04-LZA 701 6014/1 Uen BT13A | 2020-11-06
13
Energy Metering
6
Performance of Energy Metering
KPIs
This feature has no associated Key Performance Indicators (KPIs).
Counters
This feature has no directly associated counters, that measure the performance
of this feature.
Events
This feature has no associated events.
14
231/221 04-LZA 701 6014/1 Uen BT13A | 2020-11-06
Activate Basic Feature
7
Activate Basic Feature
This is a basic feature. It does not require manual activation and cannot be
deactivated.
While optional features need to be activated, basic features are activated
automatically during node integration. They also do not have a software license
key associated, which means that they have no entries in the LKF that is installed
on the node.
It is possible that some functions of basic features need to be enabled or
configured manually.
231/221 04-LZA 701 6014/1 Uen BT13A | 2020-11-06
15
Energy Metering
Appendix A: Feature Change History
This section lists changes that affected this feature and the impact it had on
the network.
Appendix A.a: 17.Q3: Extended SW Support for PDU 03 01
Improvements on output based energy measurements on Modular PDU
System and PDU controller (PDU 03 01).
Feature Name:
Feature Identity:
Value Package Name:
Value Package
Identity:
Node Type:
Access Type:
Energy Metering
FAJ 121 3079 R3
LTE Base Package
FAJ 801 0400
Baseband Radio Node, DU Radio Node
LTE, WCDMA
This feature introduces the following improvements:
— Energy measurements on each individual output on the Modular PDU System
and on the PDU controller (PDU 03 01).
— Reading of DIP (Dual In-line Package) switch settings remotely on a legacy
PSU.
— Additional attributes on the EFuse MO.
For more information, see Energy Metering, Running on Battery Supply, and
Manage Hardware Equipment.
Capacity and Performance
No impact.
Operation
Table 2
16
PM Counters
PM Counter
MO class
Description
pmConsumedEnergy
EnergyMeter
Energy consumed during
each ROP. After
measurement period
counter is reset. In PDU
231/221 04-LZA 701 6014/1 Uen BT13A | 2020-11-06
Feature Change History
PM Counter
MO class
Description
Controller, counter
evaluates total energy
consumption from all its
installed e-fuses.
pmConsumedEnergyAccu
mulated
EnergyMeter
Total energy
consumption. Counter is
not reset after
measurement period. In
PDU Controller, counter
evaluates total energy
consumption from all its
installed e-fuses.
pmPowerConsumption
EnergyMeter
Average power
consumption during a
time window of 6
seconds. In PDU
Controller, the counter
evaluates sum of the
average power
consumption from all its
installed e-fuses.
pmVoltage
EnergyMeter
Average output voltage
during a time window of
6 seconds. In PDU
Controller, the counter
collects information
about system voltage.
Table 3
New Parameters
Parameter
MO class
fuseRating
EFuse
fuseHoldUp
EFuse
fuseState
EFuse
fuseType
EFuse
limitedOutputCurrentSetting
EFuse
userLabel
EFuse
unitInformation
EnergyMeter
231/221 04-LZA 701 6014/1 Uen BT13A | 2020-11-06
17
Energy Metering
Table 4
Updated parameters
Parameter
MO class
energyMeterListRef
EnergyMeasurement
Interfaces
No impact.
Hardware
No special hardware requirements.
Other Network Elements
No impact.
Appendix A.b: 18.Q1: Power and Energy Consumption Reporting Per Radio Unit
Enhancement to the Energy Metering feature, that improves observability
for energy efficiency.
Feature Name:
Feature Identity:
Value Package Name:
Value Package Identity:
Node Type:
Access Type:
Energy Metering
FAJ 121 3079 R4
LTE Base Package
FAJ 801 0400 R10
Baseband Radio Node, DU Radio Node
LTE, WCDMA, GSM
This enhancement to the Energy Metering feature improves observability for
energy efficiency by enabling measurements of energy and power consumption
on a radio unit level. This is achieved by introducing support of PM counters
under EnergyMeter MO for radio units.
The measurements can be used to monitor and validate the following energy
saving features:
— Cell Sleep Mode
— Low Energy Scheduler Solution
— Micro Sleep Tx
— MIMO Sleep Mode
The measurement results can be used by ENIQ for the Ericsson Energy Report
tool.
18
231/221 04-LZA 701 6014/1 Uen BT13A | 2020-11-06
Feature Change History
Capacity and Performance
No impact.
Operation
No impact.
Interfaces
No impact.
Hardware
No special hardware requirements.
Other Network Elements
To fully benefit from the change, the node requires support from the following
network elements:
— Radio unit
The radio unit must support power and energy measurements.
Appendix A.c: 18.Q3: Power and Energy Consumption Reporting for the Sum of All
Consumer Units in a Node
Access Type:
Hardware Platform:
Licensing:
Value Package:
LTE, WCDMA, GSM
DU and Baseband
Energy Metering, FAJ 121 3079 R5
LTE Base Package, FAJ 801 0400
This enhancement to the Energy Metering feature improves observability for
energy efficiency by enabling measurements of energy and power consumption
for the sum of consumer units in a node. This is achieved by introducing support
of PM counters under ConsumedEnergyMeasurement MO (for Baseband units)
and ConsumedEnergy MO (for DUs).
The measurement results can be used by ENIQ for the Ericsson Energy Report
tool.
Capacity and Performance
The enhancement introduces the following new PM counters under MOs
ConsumedEnergyMeasurement MO (for Baseband units) and ConsumedEnergy
MO (for DUs):
— pmConsumedEnergy
231/221 04-LZA 701 6014/1 Uen BT13A | 2020-11-06
19
Energy Metering
— pmConsumedEnergyAccumulated
— pmPowerConsumption
Operation
No impact.
Interfaces
No impact.
Other Network Elements
No impact.
20
231/221 04-LZA 701 6014/1 Uen BT13A | 2020-11-06
