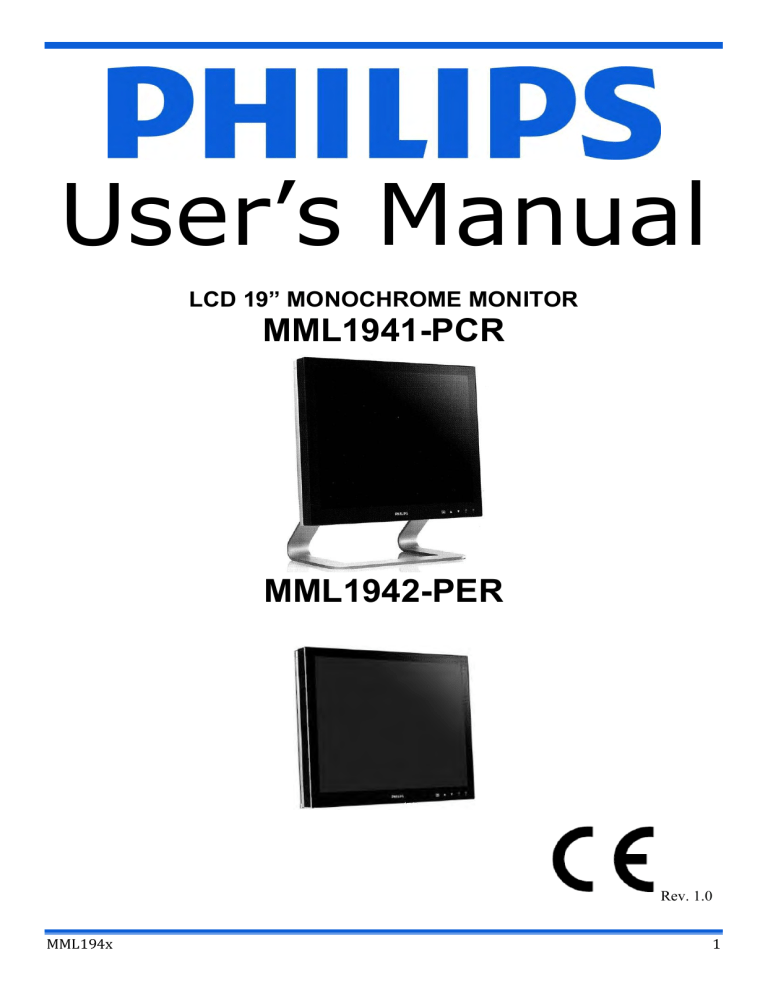

User’s Manual
LCD 19” MONOCHROME MONITOR
MML1941-PCR
MML1942-PER
Rev. 1.0
MML194x
1
INTENTIONALLY LEFT BLANK
MML194x
2
TABLE OF CONTENTS
INTRODUCTION ................................................................4
CAUTION ..........................................................................5
PRECAUTIONS ..................................................................6
INSTALLATION ...................................................................... 6
HANDLING .......................................................................... 6
MAINTENANCE..................................................................... 6
TRANSPORTATION................................................................. 6
BACKLIGHT .......................................................................... 6
SERVICEABILITY .................................................................... 7
BIOLOGICAL HAZARD AND RETURNS ......................................... 7
DISPOSAL OF THE LCD MONITOR ............................................. 8
PRODUCT DISPOSAL INFORMATION........................................... 9
POWER MANAGEMENT .......................................................... 9
TECHNICAL INFORMATION .............................................10
DIMENSIONS ..................................................................11
MML1942-PER ............................................................... 11
MML1941-PCR ............................................................... 12
INSTALLATION ................................................................13
MOUNTING INSTRUCTION ..............................................14
CONNECTING INSTRUCTION ...........................................15
INPUT INSTRUCTION ......................................................19
CONTROL PANEL DESCRIPTION.......................................20
BRIGHTNESS KEY FUNCTIONS .........................................21
OSD - ON SCREEN DISPLAY .............................................23
OSD KEY FUNCTIONS ......................................................24
MAIN MENU ...................................................................... 25
INFORMATION ................................................................... 26
LANGUAGE ........................................................................ 26
VIDEO SOURCE................................................................... 26
KEY LOCK .......................................................................... 27
OSD TIME-OUT ................................................................. 27
OSD HOR. POS. ................................................................. 27
OSD VERT. POS. ................................................................ 28
IMAGE ADJUST ................................................................... 29
MML194x
HOR. POSITION .................................................................. 30
VERT. POSITION ................................................................. 30
IMAGE SIZE........................................................................ 30
LUT ................................................................................. 31
BLACK VALUE..................................................................... 31
COLOR EMULATION............................................................. 31
BORDER COLOR .................................................................. 32
FREEZE ............................................................................. 32
ADVANCED ........................................................................ 33
PHASE ADJUST ................................................................... 34
CLOCK ADJUST ................................................................... 34
AUTO CLOCK ..................................................................... 34
AUTO PHASE ..................................................................... 35
VIDEO CALIBRATION ............................................................ 35
RESTORE FACTORY .............................................................. 35
AIC (AMBIENT LIGHT COMPENSATION 000 – 300 LUX) ............ 36
BAUD RATE ....................................................................... 36
5 VOLT - DVI ..................................................................... 36
SERVICE ............................................................................ 37
OFFSET RED....................................................................... 38
OFFSET GREEN ................................................................... 38
OFFSET BLUE ..................................................................... 38
GAIN RED ......................................................................... 39
GAIN GREEN ...................................................................... 39
GAIN BLUE ........................................................................ 39
DAISY ADDRESS .................................................................. 40
ANALOG FILTER .................................................................. 40
ACTUAL BRIGHTNESS ........................................................... 40
EXIT ................................................................................. 41
WARNING MESSAGES .................................................... 42
VIDEO MODES ............................................................... 43
IDENTIFICATION LABEL .................................................. 44
SYMBOLS ....................................................................... 45
GENERAL DEFINITIONS .................................................. 46
3
INTRODUCTION
The PHILIPS Medical Grade MML194x is a monochrome active matrix, liquid crystal display exclusively designed for medical
imaging applications.
The monitor can be used for X-ray and PACS and other medical systems requiring a very high level of image quality for
examination and control purpose and can accept an analogue signal input as well as a digital input.
The typical application is for displaying high resolution X-ray images.
This product has much higher brightness than ordinary Flat Panel monitors, equal at least to the brightness level of current highend monochrome CRT monitors used for the same applications.
Other key features of the MML194x family are:
•
long term luminance stability through backlight stabilization circuit
•
luminance stability vs. the viewing angle
•
contrast stability vs. the viewing angle
•
brightness uniformity
•
automatic brightness control with backlight sensor
•
internal automatic greyscale correction (10 bit L.U.T.)
The following models are available:
•
MML1941-PCR
(equipped with pedestal)
•
MML1942-PER
(equipped with protective screen)
These monitors, certified/registered by the safety agencies/regulatory authorities as model number 19LCD-XR, follow the
provisions of Medical Directive:
93/42/EEC, Amended by 2007/47/EC (Medical device Class I)
The monitors have been designed to meet the following medical safety requirements, including;
EN 60601-1:1990 + A1:1993 + A2:1995 (2nd Ed.)
EN 60601-1:2006 (3rd Ed.)
IEC 60601-1:1988 + A1:1991 + A2:1995 (2nd Ed.)
IEC 60601-1:2005 + Corr.1: 2006 + Corr.2: 2007 (3rd Ed.)
UL60601-1 1st Ed, 2006-04-26
ANSI/AAMI ES 60601-1: 2005
CAN/CSA-C22.2 No. 601.1-M90, 2005
CAN/CSA-C22.2 No. 60601-1: 2008
•
The monitor is intended for indoor use
•
Class I Equipment, according to the type of protection against electric shock (*)
•
Detachable supply connection
•
Continuous Operation, according to the mode of operation,
•
Pollution degree classification 2
•
Degree of protection against ingress of water: IP20 / IP21
(IP21 with protective screen: monitor tested with a tilt of +5° towards the operator / -15° towards the back side)
•
Stationary, in case of “slave” monitor placed in Control Room, not fixed on wall; Fixed, when mounted in MCS.
•
Do not use in areas with flammable anesthetics
•
Do not use in oxygen rich environments
•
The monitor is not intended to be sterilized
•
The monitor has been designed to be used in landscape position with a tilt of -15° (backward) and +5° (forward)
(*) To avoid the risk of electric shock, this equipment must only be connected to a supply mains with protective earth
(**) This equipment does not have a gas-sealed electronics enclosure and could ignite any flammable or explosive gases present
in its environment.
4
MML194x
Copyright ©
This manual is covered by Copyright with all rights reserved. Under the copy rights law, this manual may not be copied, in whole
or part, without written consent of Philips. Under the law, copying includes translating into another language or format.
FCC Notice
This equipment has been tested and found to comply with the limits for a class B digital device, pursuant to Part 15 of FCC Rules.
These limits are designed to provide reasonable protection against harmful interference in a residential installation.
This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the
instructions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular installation.
If this equipment does cause harmful interference to radio or television reception, while can be determined by turning the
equipment off and on, the User is encouraged to try to correct the interference by one or more of the following measures:
- Re orient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
- Consult the dealer or an experienced radio TV technician for help.
Modification
The FCC requires the User to be notified that any changes or modifications made to this device that are not expressly approved by
the manufacturer may void the User’s authority to operate the equipment.
Cables
Connections to this device must be made with shielded signals cables with metallic RFI / EMI connector hoods to maintain
compliance with FCC Rules and Regulations.
The lighting flash with arrowhead symbol is intended to alert the User about the presence of not insulated “dangerous
voltages” within the product’s enclosure that may be sufficient magnitude to constitute a risk of electrical shock to
people.
The exclamation mark is intended to alert the User about the presence of important operating and maintenance
(servicing) instructions in literature accompanying the appliance.
CAUTION
RISK OF ELECTRICAL SHOCK
DO NOT OPEN
ATTENTION
RISQUE DE CHOC ELECTRIQUE
NE PAS OUVRIR
CAUTION: TO REDUCE THE RISK OF ELECTRICAL SHOCK.
DO NOT REMOVE COVER (OR BACK)
NO USER SERVICEABLE PARTS INSIDE
REFER SERVICING TO QUALIFIED SERVICE PERSONNEL
WARNING:
TO PREVENT DAMAGE WHICH MAY RESULT IN FIRE OR SHOCK HAZARD,
DO NOT EXPOSE THIS APPLIANCE TO RAIN OR EXCESSIVE MOISTURE.
THE ENCLOSURE HAS TO BE CHECKED UPON COLLISION DAMAGE; REFER
TO QUALIFIED SERVICE PERSONNEL
MML194x
5
PRECAUTIONS
Installation
Power cord: due to the different power cable lengths necessary at system level, the power cable is not provided with this LCD
monitor.
 in Europe, use a power cord H05VV-F or H05VVH2-F rated 0.75mm2 250V, with a Plug rated 10A 250V. At least one
European safety mark is required.
 in US and Canada, use a power cord with plug “hospital grade”, provided with instructions to indicate that grounding
reliability can be achieved only when the equipment is connected to an equivalent receptacle marked hospital only or
hospital grade. Rating, min 18 AWG SJT 60°C 300V, Plug NEMA 5-15 P, Connector IEC 320. The cURus safety mark is
required.
 Contact the local dealer if you have doubt on the right cord set to be used.
Protective earth: to avoid the risk of electric shock, this equipment must only be connected to a supply mains with protective
earth. (Class I Equipment)
Cables: when the monitor is assembled in the medical system, take care of the anchorage of all cables, to avoid unwanted
detachment
Connections: any external connection with other peripherals must follow the requirements of clause 16 of IEC60601-1 3rd ed. or
Table BBB.201 of IEC 60601-1-1 for the medical electrical systems.
The equipment should be installed near an easily accessible outlet.
Do not install or leave the monitor:
 In places subject to extreme temperatures, for example near a radiator, heating vent, or in direct sunlight. Subjecting the
LCD monitor to extreme temperatures, could cause deformations of the casing or malfunctions.
 Provide adequate ventilation to the monitor, do not block the ventilation holes.
 In places subject to mechanical vibration or shock.
 Near any equipment that generates a strong magnetic field.
 In places subject to inordinate amounts of dust, dirt, or sand, for example near an open window or an outdoor exit.
If setting up temporarily in an outdoor environment, be sure to take adequate precautions against airborne dust and dirt otherwise
irreparable malfunctions could occur.
Handling
Do not press on or scratch the LCD screen. Do not place a heavy object on the LCD screen. This may cause the screen to lose
uniformity or cause LCD panel malfunctions.
If the monitor is used in a cold place, a residual image may appear in the screen. This is not a malfunction.
The screen returns to normal as temperature rises to normal operating level.
If a still picture is displayed for a long time, a residual image may appear for a while. The residual image will eventually
disappear.
The LCD panel becomes warm during normal operation. This is not a malfunction.
Maintenance
Be sure to unplug the power chord from the mains when cleaning your LCD monitor.
The front polarizer can be easily damaged. Take care not to scratch the front surface with any hard or abrasive material. Dust,
finger marks, grease etc. can be removed with a soft damp cloth (a small amount of mild detergent can be used on the damp
cloth). Do not apply water or detergent directly to the front surface as this may cause staining or damage the electronic
components. Never use any solvent on the front polarizer or module as this may cause permanent damage. Wipe off water drop
immediately. Long contact with water may cause discoloration spots. When the panel surface is soiled, wipe it with absorbent
cotton or other soft cloth.
Transportation
Disconnect all cables from the monitor when transporting.
When you transport this LCD display, hold the base sections of the display stand firmly in both hands. If you drop the monitor,
you may be injured or the monitor may be damaged.
When you transport this monitor for repair or shipment, use the original cardboard box and packing materials.
Be always sure that the monitor is stable and safe during the transport: the pedestal is not suitable for using the monitor in
movable system; in these cases use the VESA mounting holes.
Backlight
Specially designed fluorescent tubes are installed as back-lighting apparatus for this monitor. If the screen turns dark, unstable, or
does not come on, consult your Customer service for replacing the monitor.
6
MML194x
Serviceability
There are no User serviceable parts within the 19” LCD monitor. Attempting to open or disassemble the monitor may expose the
User to hazardous voltages, risk of excessive temperatures, fire or explosion from enclosed energy sources, or impairment of
function. This product is intended to be installed in a medical system only by trained system integrator.
Biological Hazard and Returns
The structure and the specifications of this device as well as the materials used for manufacturing make it easy to wipe and clean
and therefore suitable to be used for various applications in hospitals and other medical environments, where procedures for
frequent cleaning are specified. However, normal use shall exclude biological contaminated environments, to prevent spreading of
infections. Therefore use of this device in such environments is at the exclusive risk of Customer. In case this device is used where
potential biological contamination cannot be excluded, Customer shall implement the decontamination process as defined in the
latest edition of the ANSI/AAMI ST35 standard on each single failed Product that is returned for servicing, repair, reworking or
failure investigation to Seller (or to the Authorized Service Provider). At least one adhesive yellow label shall be attached on the
top site of the package of returned Product and accompanied by a declaration statement proving that the Product has been
successfully decontaminated. Returned Products that are not provided with such external decontamination label, and/or whenever
such declaration is missing, can be rejected by Seller (or by the Authorized Service Provider) and shipped back at Customer
expenses.
MML194x
7
For the design of MML194x LCD monitors, special attention has been placed to the environmental impact of the product:
packaging, product’s weight and energy consumption have been optimized vs. its performances. Then, please consider the
following notes in the disposal of the product.
The monitor’s packaging is re-usable, please retain the packaging for future use.
Disposal of the LCD monitor
Do not dispose of this monitor with general household waste.
The fluorescent tubes used in this LCD monitor contain mercury. Disposal of this monitor must be carried out in accordance with
the regulations of your local sanitation authority.
WARNING
The fluorescent lamps in the liquid crystal
display (LCD) contain mercury.
Do not put it in trash that is disposed of in
landfills.
Dispose of it as required by local ordinances
or regulations.
8
MML194x
Product disposal information
Directive 2002/96/EC on waste of electrical and electronic equipment (WEEE).
For countries in the European Union
This symbol indicates that this product (including the cables, plugs and accessories) must not be disposed of with
the other household waste. Instead, it is your responsibility to dispose of your waste equipment by handing it over to
a designated collection point for the recycling of waste electrical and electronic equipment. The separate collection
and recycling of your waste equipment at the time of disposal will help preserve natural resources and ensure that
your waste equipment is recycled in a manner that protects human health and environment. For more information
about where you can drop off your waste equipment for recycling, please contact your local city office, or your
supplier’s office.
For countries outside the European Union
Disposal of electrical products in countries outside the European Union should be done in line with local
regulations.
Directive 2002/95/EC on the restriction of certain hazardous substances in electrical and electronic equipment (RoHS)
According to what declared by our components supplier, this product is RoHS compliant.
Directive 1907/2006/EC on Registration, Evaluation, Authorization and Registration of Chemicals (REACH)
Information on REACH Substances of Very High Concern (SVHCs) in our products can be found on the PHILIPS website
www.philips.com/about/sustainability/reach. The information will be regularly updated.
Power management
If the power management function of the computer connected to the MML194x display is enabled, the monitor turns to and from
Stand-by automatically.
The User can control power management features from the computer.
MODE
LED
POWER CONSUMPTION (typical)
Power ON
Green
55W (*)
Stand-by
Orange
8.3W
Switch OFF
Not illuminated
0W
(*) Factory settings
MML194x
9
TECHNICAL INFORMATION
Display Panel
19” (482 mm) SXGA active matrix monochrome TFT/LCD
Resolution Horizontal
1280 dots
Vertical
1024 lines
Supported Grayscale
8-bit
Dimensions
425 x 375 x 96,8 mm (width x height x depth.)
Weight
5560g (MML1942-PER), 7580g (MML1941-PCR), 2380g ( pedestal )
Active display area
376.32 x 301.056 mm ( width x height )
Response Time
40 ms ( 10% to 90% rising + 90% to 10% falling )
Viewing Angle
± 85° typ. horizontal or vertical ( contrast ratio ≥ 20 )
Contrast Ratio
800 : 1 typ.
White luminance
500 cd/m2
Pixel Pitch
0.294 (one triad) x 0.294 mm ( width x height )
Video interface
Analog Input:
Digital Input:
Analog Output:
• BNC connection for Composite Video Signal
• DSUB-15 connection for Separate Sync Video Signal or SOG Video Signal.
• Analog on DVI (DVI-I connector)
• DVI-D connection for TMDS signal link standard version.
• BNC connection for Loop Through Composite Video Signal.
Scanning Frequency
Max pixel clock 165 MHz
Power Consumption
<58 W max
Power Supply
From 90 to 264 Vac , 45 - 66 Hz
Operation Temperature
+10 to +40° C
Storage Temperature
-20 to +60° C
Humidity
80% ( Maximum Wet-Bulb should be 39° C and No condensation )
Altitude: Operative
≤ 3000m (70kPa)
Storage ≤ 3000m (70kPa)
10
MML194x
DIMENSIONS
MML1942-PER
MML194x
11
MML1941-PCR
12
MML194x
INSTALLATION
Before unpacking the monitor, prepare a suitable workspace: a stable and level surface near a grounded wall outlet in
an area that is relatively free of glare from sunlight or other sources of bright light. Do not block the cooling vents.
NOTE: before installing this monitor, please refer to the User’s Guide of the attached computer and/or video adapter
to check if these devices require any change of setting.
Positioning
WARNING:
WHEN POSITIONING THIS EQUIPMENT, ENSURE THAT THE MAINS PLUG AND SOCKET ARE EASILY
ACCESSIBLE
While unpacking the monitor, inspect all package contents for any eventual shipping damage that could cause a fire or
shock hazard.
Immediately report any shipping damage to the carrier or transportation company and contact customer service for
assistance. Keep all packaging material in case you need to ship, store or return the monitor.
After unpacking the monitor, make sure the following items are included:
MML1942-PER
• Monitor
• This User’s Manual
• Warning Note DMR147472
• User Manual MML194x Series CCC version 4519 206 1101.x
• 4 VESA Screws M4x25mm 4519 200 40451
• 4 VESA Screws M4x25mm 4519 200 40181
• 4 VESA Screws M4x30mm 4519 200 40441 (mounted in VESA holes)
• 4 Lock washer 4519 200 40191 (mounted in VESA holes)
• 4 Plain washer 4519 200 40201 (mounted in VESA holes)
MML1941-PCR
• Monitor
• This User’s manual
• RS232 to RJ11 (RJ10) 4p4c (4 pins, 4 connectors) interface cable
• Warning Note DMR147472
MML194x
13
MOUNTING INSTRUCTION
Pedestal (MML1941-PCR)
With the built-in pedestal the monitor can be tilted for a most comfortable viewing angle as shown in figure here
below.
VESA Plate (MML1942-PER)
The arm with VESA (100mm x 100mm) interface must be fixed to the monitor with the 4 screws already present on
the back cover.
Note: If not available, use M4 x 25 screws, spring washers and plain washers (see figure above).
14
MML194x
CONNECTING INSTRUCTION
Additional Protective Earth Pin
The position of the external ground safety connector (to fix by screw with lock washer M4x12 max) is indicated in the
figure below.
Protective earth pin
MML194x
15
Connecting AC Power
Plug the receptacle end of the cord set into the AC power adapter, then plug the power connector of the adapter into
the power port on the monitor.
This power port is located on the back of the monitor (see figure below).
The power cord set can be fixed to cabinet with proper cable clamp and screw (see figure below).
16
MML194x
Connecting analog video (SXGA)
Connect the supplied video cable from the monitor to the computer’s video port (see figure below) only when the
computer and the monitor are turned off.
Make sure the video cable connector is securely connected to the video port on the computer.
MML194x
17
Connecting composite video - BNC
Connect a BNC video cable from the monitor to the computer’s video port (see figure below) only when the computer
and the monitor are turned off.
For example: connection between MML1942-PER and Image source via BNC cable.
Connecting digital video (DVI)
Connect a DVI video cable from the monitor to the computer’s video port (see figure below) only when the computer
and the monitor are turned off.
18
MML194x
INPUT INSTRUCTION
Mains switch
12A - 125/250V~
AC inlet (Meet IEC 320/CEE 22 STANDARD)
100/240V~
RS232 Connector (RJ11-4)
Pin 1 : RS232 RX
Pin 2 : RS232 TX
Pin 3 : V sense 3,3V
Pin 4 : GND
DVI input Connector (Microcross™ DVI-I female connector)
Pin 1 : D2_RX - (T.M.D.S.)
Pin 13 : D3_RX + (T.M.D.S.)
Pin 2 : D2_RX + (T.M.D.S.)
Pin 14 : +5V Power
Pin 3 : GND (Data 2 shield)
Pin 15 : GND
Pin 4 : D4_RX - (T.M.D.S.)
Pin 16 : Hot Plug Detect
Pin 5 : D4_RX + (T.M.D.S.)
Pin 17 : D0_RX - (T.M.D.S.)
Pin 6 : SCL (For DDC)
Pin 18 : D0_RX + (T.M.D.S.)
Pin 7 : SDA (For DDC)
Pin 19 : GND (Data 0 shield)
Pin 8 : A-VSYNC
Pin 20 : D5_RX - (T.M.D.S.)
Pin 9 : D1_RX - (T.M.D.S.)
Pin 21 : D5_RX + (T.M.D.S.)
Pin 10 : D1_RX + (T.M.D.S.)
Pin 22 : GND (Clock shield)
Pin 11 : GND (Data 1 shield)
Pin 23 : CK_RX + (T.M.D.S.)
Pin 12 : D3_RX - (T.M.D.S.)
Pin 24 : CK_RX - (T.M.D.S.)
Pin C1 : Analog Red
Pin C2 : Analog Green
Pin C3 : Analog Blue
Pin C4 : Analog Horizontal Sync
Pin C5 : Analog Ground (R.G.B.)
Video input Connection (DSUB15 female connector)
Pin 1 : R-in
Pin 2 : G-in
Pin 3 : B-in
Pin 4 : N.C.
Pin 5 : N.C.
Pin 6 : GND
Pin 7 : GND
Pin 8 : GND
Pin 9 : N.C.
Pin 10 : GND
Pin 11 : N.C.
Pin 12 : SDA (For DDC option)
Pin 13 : H.S.-in
Pin 14 : V.S.-in
Pin 15 : SCL (For DDC option)
SOG input Connection (BNC 75Ω male coaxial jack)
Body : Signal GND
Center contact : Composite Video input
SOG output Connection (BNC 75Ω male coaxial jack)
Body : Signal GND
Center contact : Composite Video output
MML194x
19
CONTROL PANEL DESCRIPTION
On the front bottom part of the unit the following controls are placed:
KEY NAME
SYMBOL
DESCRIPTION
- BRIGHTNESS ADJ+
☼+
Increase brightness
Decrease brightness
- BRIGHTNESS ADJ☼–
- MENU SELECT ▼
Move cursor in OSD
- MENU SELECT +
▲
Recall brightness Preset/Move cursor in OSD
- ENTER
I
(Store/Select)
- LOGO
PHILIPS
Turn keyboard backlight ON (touch PHILIPS logo for 2.5s)
20
MML194x
BRIGHTNESS KEY FUNCTIONS
KEY NAME
- BRIGHTNESS ADJ-
SYMBOL
☼–
- BRIGHTNESS ADJ+
☼+
DESCRIPTION
It temporarily decrements the current brightness value, the LED turns
RED if the current brightness value is different from the User
brightness preset. Current brightness can be stored entering the
Brightness preset item in the OSD Service menu.
At power-on the stored brightness User preset value will be reloaded
It temporarily increments the current brightness value, the LED turns
RED if the current brightness value is different from the User
brightness preset. Current brightness can be stored entering the
Brightness preset item in the OSD Service menu.
At power-on the stored brightness User preset value will be reloaded
Brightness range: • 300 ÷ 700 Cd/m2, the factory default value is 500
Cd/m2. When Brightness is at 700Cd/m2, by keeping the
BRIGHTNESS ADJ+ key pressed for at least 3s, the brightness is
forced to the maximum and the backlight stabilization feature is
disabled; the brightness pop-up window turns up to show this status
(see figure below, on the right).
- MENU SELECT -
▼
It moves cursor in OSD menu from left to right and from up to down.
If the freeze feature is enabled, it toggles the image from normal to
frozen and vice versa. When the image is frozen, the LED is orange
and blinking.
- MENU SELECT +
▲
It moves cursor in OSD menu from right to left and from down to up.
When used to restore the User brightness preset, the LED turns green
and the brightness pop-up window turns up to show the User default
settings (see figure below, on the right)
- ENTER
I
It is used to Enter Menu, Sub-menus and items in the OSD.
When no video signal is available for the current video source, after
5s the MML194x enters the stand-by mode (the panel is black and the
front LED is orange). Touch ENTER for 1s to switch back to Normal
mode
- LOGO
MML194x
PHILIPS
When touched for at least 3s, it turns the backlight illumination of the
keypad ON and OFF (toggle mode).
21
Keyboard Lock/Unlock
To prevent unintentional access to the OSD menu, the keyboard can be locked.
If the Keyboard Status is locked, any access either to OSD or to the brightness control keys are inhibited.
- By touching any OSD key, the dialogue here below appears
Access to the OSD menu is granted only after touching the following key sequence:
• BRIGHTNESS ADJ• BRIGHTNESS ADJ+
• BRIGHTNESS ADJ+
• MENU SELECT +
The Keylock dialogue box disappears any time a wrong key in the sequence is touched.
For every right touched key, the corresponding empty circle in the row becomes embossed.
To enable/disable the keyboard lock see the corresponding page in the OSD menu description.
22
MML194x
OSD - ON SCREEN DISPLAY
MENU STRUCTURE
│
MENU
├─────
│
│
│
│
│
│
│
│
│
│
│
│
│
│
│
│
│
│
│
│
│
│
│
│
│
│
MAIN
├─────
│
│
│
│
│
│
│
│
│
│
│
│
│
│
│
│
│
│
│
│
├─────
│
│
│
│
│
│
│
│
│
│
│
│
│
│
│
├─────
│
│
│
│
│
│
│
│
│
│
│
│
│
│
│
└─────
MML194x
│
┐
├─────
├─────
│
│
│
│
│
├─────
│
│
│
│
│
├─────
│
│
├─────
│
│
│
│
│
│
│
│
├─────
└─────
IMAGE ADJUST ┐
├─────
├─────
├─────
│
│
│
├─────
│
│
│
├─────
│
│
├─────
│
│
├─────
└─────
ADVANCED
SERVICE
EXIT
┐
├─────
├─────
├─────
├─────
├─────
│
│
│
│
├─────
├─────
├─────
└─────
┐
├─────
├─────
├─────
├─────
├─────
├─────
├─────
│
│
├─────
│
│
│
│
└─────
┐
├─────
└─────
SUBMENU
│
ITEM
│
NOTE
│
Highlighted text indicates default selection
INFORMATION
LANGUAGE
VIDEO SOURCE
KEY LOCK
OSD TIME-OUT
┐
├─────
├─────
├─────
├─────
└─────
┐
├─────
├─────
├─────
├─────
└─────
┐
├─────
└─────
┐
├─────
├─────
├─────
├─────
├─────
├─────
├─────
└─────
ENGLISH
FRANÇAIS
ITALIANO
DEUTSCH
ESPAÑOL
AUTO
DVI
D-SUB
BNC
DVI-A
DISABLED
ENABLED
10 Sec
20 Sec
30 Sec
45 Sec
60 Sec
90 Sec
120 Sec
DISABLED
(5 minutes)
OSD HOR. POS.
OSD VERT. POS.
HOR. POSITION
VERT. POSITION
IMAGE SIZE
LUT
BLACK VALUE
COLOR EMULATION
BORDER COLOR
FREEZE
┐
├─────
├─────
└─────
┐
├─────
├─────
└─────
┐
├─────
└─────
┐
├─────
└─────
┐
├─────
└─────
PHASE ADJUST
CLOCK ADJUST
AUTO CLOCK
AUTO PHASE
VIDEO CALIBRATION ┐
├─────
├─────
├─────
└─────
RESTORE FACTORY
AIC
BAUD RATE
5 VOLT - DVI
┐
├─────
└─────
FULL
ASPECT/RATIO
CENTER
LINEAR
DICOM
CAL. TG3-PMS
NATIVE
USER
DISABLED
ENABLED
000
DISABLED
ENABLED
OFFSET
GAIN
OFFSET+GAIN
CANCEL
000
9800
ON
OFF
OFFSET RED
OFFSET GREEN
OFFSET BLUE
GAIN RED
GAIN GREEN
GAIN BLUE
DAISY ADDRESS
┐
├─────
└─────
ANALOG FILTER
┐
├─────
├─────
├─────
└─────
BRIGHTNESS PRESET
(Color version and Analog input signal only)
(Analog input signal only)
(Color version and Analog input signal only)
(Color version and Analog input signal only)
(Analog input signal only)
(Color version and Analog input signal only)
1-9
A-F
75 MHz
150 MHz
300 MHz
DISABLED
500
CANCEL EXIT
EXIT
23
OSD KEY FUNCTIONS
Function
Key
Description
Enter
It activates the OSD MAIN MENU if this is not active, otherwise selects and
executes a desired OSD Special Function.
Adjust
When main menu or sub-menu is active, it allows to move or scroll to the
next (down) item or adjust the parameter.
Adjust
When main menu or sub-menu is active, it allows to move or scroll to the
previous (upper) item or adjust the parameter.
Touching “Enter” button the OSD MENU appears, touching again “Enter” button the current menu is confirmed and the first
Sub-menu is highlighted
Touching “Adjust +” or “Adjust -” button, the highlighted selection of menu item moves downward/ upward.
Touching “Enter” button, the current menu window disappears and is replaced by the new sub-menu windows.
OSD (ON SCREEN DISPLAY) CONTROLS
1) Touch Enter button and the OSD Menu appears :
2) Touch the Adjust + or Adjust - button until the desired OSD Menu is highlighted.
3) When the desired OSD menu is highlighted, touch the Enter and the first Sub-menu is highlighted
4) Touch Adjust + or Adjust - button to adjust the value or to select the desired sub-menu and touch again Enter to
confirm.
5) Touch again Adjust + or Adjust - button to exit or to select another Sub-menu.
MAIN It shows the general features menu (this menu is always enabled)
IMAGE ADJUST It shows the image features menu (it is disabled if no or bad video
signal is recognized)
ADVANCED It shows the advanced features menu (it is disabled if no or bad video
signal is recognized)
SERVICE It shows the service feature menu (it is disabled if no or bad video signal is recognized)
EXIT
It exit from OSD menu
STATUS BAR It shows :
• Video timing INFO
• Check input signal
• Unsupported signal
24
MML194x
Main menu
After the activation of OSD Main menu the following window appears
1) Touch Enter to enter in Sub-menu of Main menu
2) Touch the Adjust + or Adjust - button until the desired item is highlighted.
3) When the desired Sub-menu is highlighted, touch the Enter and the Item is highlighted
4) Touch Adjust + or Adjust - button to adjust the value or to select the desired sub-menu and touch again Enter to confirm.
5) Touch again Adjust + or Adjust - button to exit or to select another Sub-menu.
Information
It shows the hardware and firmware status (operating hours and release
number)
Languages
To select the correct language
Video Source
To select the correct video input source
Key Lock To select the keyboard status.
OSD Time-out To adjust the OSD timer activity delay
OSD Hor. Pos. To adjust the OSD horizontal position
OSD Ver. Pos. To adjust the OSD vertical position
MML194x
25
Information
1) Touch Enter button when the Information is highlighted on Main menu.
The Information window appears:
MML19 Model
D1.15H - 04 - LP03 Firmware Release
h00002
Operating Hours
xxxx Warning 1
xxxx Warning 2
3) Touch Enter button to return to Main Menu.
4) Touch the Adjust + or Adjust - button to exit or to select
another item
Note:
Warning 1 can display:
Backlight NC = Backlight Not Calibrated
DVI 5V Over Current = DVI 5 Volt disabled for Over Current
Warning 2 can display:
BaudRate = XXXXX
EOL Backlight ON = End of Life of the Backlight is ON
Language
1) Touch Enter button when the Language is highlighted on Main Menu.
The Language window appears:
The ON SCREEN DISPLAY shows the available languages.
The default is English, but you can select Français, Deutsch, Español or
Italiano.
2) Touch the Adjust + or Adjust - button until the desired item is
highlighted.
3) Touch the Enter button to confirm your selection.
4) Touch the Adjust + or Adjust - button to exit or to select another item
Video Source
1) Touch Enter button when the Video Source is highlighted on Main
Menu.
The Video Source window appears:
The ON SCREEN DISPLAY shows the following available selections:
- Auto
All the video sources are checked automatically
- DVI
(Digital Video Input)
- DSUB (D-sub input Video with separated sync./or Sync. On Green).
- BNC
(Composite Video with Sync. On Green).
- DVI-A (Digital Video Input - Analog)
2) Touch the Adjust + or Adjust - button until the desired item is
highlighted.
3) Touch the Enter button to confirm your selection.
4) Touch the Adjust + or Adjust - button to exit or to select another item
26
MML194x
Key Lock
1) Touch Enter button when the Key Lock is highlighted on Main Menu.
The Key Lock window appears:
The ON SCREEN DISPLAY shows the following available choices:
- Disabled
- Enabled
2) Touch the Adjust + or Adjust - button until the desired item is
highlighted.
3) Touch the Enter button to confirm your selection.
4) Touch the Adjust + or Adjust - button to exit or to select another item
OSD Time-out
1) Touch Enter button when the OSD Time-out is highlighted on Main
Menu.
The OSD Time-out window appears:
The ON SCREEN DISPLAY shows the following available choices:
- 10 sec - 60 sec
- 20 sec - 90 sec
- 30 sec - 120 sec
- 45 sec - Disabled (Max 5 min. - to avoid image sticking)
2) Touch the Adjust + or Adjust - button to choose the time of activation
of the OSD-Menu.
3) Touch the Enter button to confirm your selection.
4) Touch the Adjust + or Adjust - button to exit or to select another item
OSD Hor. Pos.
1) Touch Enter button when the OSD Hor. Pos. is highlighted on Main
Menu.
The OSD Hor. Pos. window appears:
2) Touch the Adjust + or Adjust - button until the desired value appears.
3) Touch the Enter button to confirm your selection.
4) Touch the Adjust + or Adjust - button to exit or to select another item
MML194x
27
OSD Vert. Pos.
1) Touch Enter button when the OSD Vert. Pos. is highlighted on Main
Menu.
The OSD Vert. Pos. window appears:
2) Touch the Adjust + or Adjust - button until the desired value appears.
3) Touch the Enter button to confirm your selection.
4) Touch the Adjust + or Adjust - button to exit or to select another item
28
MML194x
Image Adjust
After the activation of Image Adjust menu the following window appears:
1) Touch Enter to enter in Sub-menu of Image Adjust menu
2) Touch the Adjust + or Adjust - button until the desired item is
highlighted.
3) When the desired Sub-menu is highlighted, touch the Enter and the
Item is highlighted
4) Touch Adjust + or Adjust - button to adjust the value or to select the
desired sub-menu and touch again Enter to
confirm.
5) Touch again Adjust + or Adjust - button to exit or to select another
Sub-menu.
MML194x
Hor. Position
Manual adjust of horizontal position (only for analog inputs)
Vert. Position
Manual adjust of vertical position (only for analog inputs)
Image Size
Image format selection
LUT
Linear, Dicom, CAL. TG3-PMS
Black Value
Native, User
Color Emulation
Activate/deactivate the emulation of Color monitors on
Monochrome
Border Color
Grey level selection for the frame around the image (when available)
Freeze
If enabled in the menu and activated with the Freeze ON/OFF
button, it freezes the image
29
Hor. Position
1) Touch Enter button when the Hor. Position is highlighted on Image
Adjust Menu.
The Hor. Position window appears:
2) Touch the Adjust + or Adjust - button until the desired value appears.
3) Touch the Enter button to confirm your selection.
4) Touch the Adjust + or Adjust - button to exit or to select another item
Vert. Position
1) Touch Enter button when the Vert. Position is highlighted on Image
Adjust Menu.
The Vert. Position window appears:
2) Touch the Adjust + or Adjust - button until the desired value appears.
3) Touch the Enter button to confirm your selection.
4) Touch the Adjust + or Adjust - button to exit or to select another item
Image Size
1) Touch Enter button when the Image Size is highlighted on Image
Adjust Menu.
The Image Size window appears:
- Full
- Aspect/Ratio
- Center
2) Touch the Adjust + or Adjust - button until the desired value appears.
3) Touch the Enter button to confirm your selection.
4) Touch the Adjust + or Adjust - button to exit or to select another item
30
MML194x
LUT
1) Touch Enter button when the LUT is highlighted on Image Adjust
Menu.
The LUT window appears:
The ON SCREEN DISPLAY shows the following available choices, you
can select:
- Linear
The Transfer Function is transparent
- Dicom
The output curve follows the DICOM curve
- CAL. TG3 – PMS The output curve is the same as PMS
standard monitor. (Calibrated curve)
2) Touch the Adjust + or Adjust - button until the desired value appears.
3) Touch the Enter button to confirm your selection.
4) Touch the Adjust + or Adjust - button to exit or to select another item
Note: The selection of the color LUT works for all modes except for SOG
video formats.
Black Value
1) Touch Enter button when the Black Value is highlighted on Image
Adjust Menu.
The Black Value window appears:
The ON SCREEN DISPLAY shows the following available choices, you
can select:
- Native
The first entry of the LUT is empty
- User
The value of the first entry of the LUT is the one
passed using the proper RS232 command
2) Touch the Adjust + or Adjust - button until the desired value appears.
3) Touch the Enter button to confirm your selection.
4) Touch the Adjust + or Adjust - button to exit or to select another item
Color Emulation
1) Touch Enter button when the Color Emulation is highlighted on
Image Adjust Menu.
The Color Emulation window appears:
The ON SCREEN DISPLAY shows the following available choices:
- Disabled
- Enabled
2) Touch the Adjust + or Adjust - button until the desired value appears.
3) Touch the Enter button to confirm your selection.
4) Touch the Adjust + or Adjust - button to exit or to select another item
MML194x
31
Border Color
1) Touch Enter button when the Border Color is highlighted on Image
Adjust Menu.
The Border Color window appears:
2) Touch the Adjust + or Adjust - button until the desired value appears.
3) Touch the Enter button to confirm your selection.
4) Touch the Adjust + or Adjust - button to exit or to select another item
Freeze
1) Touch Enter button when the Freeze is highlighted on Image Adjust
Menu.
The Freeze window appears:
The ON SCREEN DISPLAY shows the following available choices:
- Disabled
- Enabled
After setting Freeze to Enabled it freezes the image if activated with the
Freeze ON/OFF (MENU SELECT -) button (see page 21)
2) Touch the Adjust + or Adjust - button until the desired value appears.
3) Touch the Enter button to confirm your selection.
4) Touch the Adjust + or Adjust - button to exit or to select another item
32
MML194x
Advanced
1) Touch Enter to enter in Sub-menu of Advanced menu
2) Touch the Adjust + or Adjust - button until the desired item is
highlighted.
3) When the desired Sub-menu is highlighted, touch the Enter and the
Item is highlighted
4) Touch Adjust + or Adjust - button to adjust the value or to select the
desired sub-menu and touch again Enter to confirm.
5) Touch again Adjust + or Adjust - button to exit or to select another
Sub-menu.
MML194x
Phase Adjust
Manual Adjust the Phase (only for analog inputs)
Clock Adjust
Manual Adjust the Clock (only for analog inputs)
Auto Clock
Auto Adjust of Clock & Position (only for analog inputs)
Auto Phase
Auto Adjust of Phase (only for analog inputs)
Pixel ON-OFF pattern recommended
Video Calibration
Auto Adjust of Gain & Offset (only for analog inputs)
Gain: White (254) Page Recommended
Offset: Black (001) Page Recommended
Restore Factory
Reload factory parameters (Gain / Offset)
Baud Rate
Set the Baud Rate of the Serial Communication Link
5 Volt - DVI
Activate/Disable 5V on pin 16 of DVI
33
Phase Adjust
1) Touch Enter button when the Phase Adjust is highlighted on Advanced
Menu.
The Phase Adjust window appears:
2) Touch the Adjust + or Adjust - button until the desired value appears.
3) Touch the Enter button to confirm your selection.
4) Touch the Adjust + or Adjust - button to exit or to select another item
Clock Adjust
1) Touch Enter button when the Clock Adjust is highlighted on Advanced
Menu.
The Clock Adjust window appears:
2) Touch the Adjust + or Adjust - button until the desired value appears.
3) Touch the Enter button to confirm your selection.
4) Touch the Adjust + or Adjust - button to exit or to select another item
Auto Clock
1) Touch Enter button when the Auto Clock is highlighted on Advanced Menu.
The Auto Clock window appears:
2) Touch the Enter button to confirm your selection and run the automatic
adjustment procedure.
3) Touch the Adjust + or Adjust - button to exit or to select another item
34
MML194x
Auto Phase
1) Touch Enter button when the Auto Phase is highlighted on Advanced
Menu.
The Auto Phase window appears:
2) Touch the Enter button to confirm your selection and run the automatic
adjustment procedure.
3) Touch the Adjust + or Adjust - button to exit or to select another item
NOTE: It is not allowed to run the procedure more than one
time: to execute it again, Exit the item first.
Video Calibration
1) Touch Enter button when the Video Calibration is highlighted on
Advanced Menu.
The Video Calibration window appears:
The ON SCREEN DISPLAY shows the following available choices:
- Offset
it is necessary a black pattern (level 1)
- Gain
it is necessary a white pattern (level 254)
- Offset +Gain
it is necessary a half black and half white pattern
- Cancel
to exit without execute none calibration
2) Touch the Adjust + or Adjust - button until the desired value appears.
3) Touch the Enter button to confirm your selection.
4) Touch the Adjust + or Adjust - button to exit or to select another item
Restore Factory
1) Touch Enter button when the Restore Factory is highlighted on Advanced Menu.
The Restore Factory window appears:
2) Touch the Enter button to confirm your selection.
3) Touch the Adjust + or Adjust - button to exit or to select another item
MML194x
35
AIC (Ambient Light Compensation 000 – 300 lux)
1) Touch Enter button when the AIC is highlighted on Advanced Menu.
The AIC window appears:
2) Touch the Adjust + or Adjust - button until the desired value appears.
3) Touch the Enter button to confirm your selection.
4) Touch the Adjust + or Adjust - button to exit or to select another item
Note: Phase Adjust, Clock Adjust, Auto Clock, Auto Phase, Video
Calibration, Restore Factory are valid only in analog video source. (DSub
and DVI-A)
Baud Rate
1) Touch Enter button when the Baud Rate is highlighted on Advanced
Menu.
The Baud Rate window appears:
2) Touch the Adjust + or Adjust - button until the desired value appears.
3) Touch the Enter button to confirm your selection.
4) Touch the Adjust + or Adjust - button to exit or to select another item
5 Volt - DVI
1) Touch Enter button when the 5 Volt - DVI is highlighted on Advanced
Menu.
The 5 Volt - DVI window appears:
The ON SCREEN DISPLAY shows the following available choices:
- On
5 Volt is supplied on DVI conn. (pin 16)
- Off
No power available on DVI conn. (pin 16)
2) Touch the Adjust + or Adjust - button until the desired value appears.
3) Touch the Enter button to confirm your selection.
4) Touch the Adjust + or Adjust - button to exit or to select another item
36
MML194x
Service
After the activation of Service menu the following window appears
1) Touch Enter to enter in Sub-menu of Service menu
2) Touch the Adjust + or Adjust - button until the desired item is highlighted.
3) When the desired Sub-menu is highlighted, touch the Enter and the Item is highlighted
4) Touch Adjust + or Adjust - button to adjust the value or to select the desired sub-menu and touch again Enter to confirm.
5) Touch again Adjust + or Adjust - button to exit or to select another Sub-menu.
MML194x
Offset Red
Manual adjust of Red offset (only for analog inputs)
Offset Green
Manual adjust of Green offset (only for analog inputs)
Offset Blue
Manual adjust of Blue offset (only for analog inputs)
Gain Red
Manual adjust of Red gain (only for analog inputs)
Gain Green
Manual adjust of Green gain (only for analog inputs)
Gain Blue
Manual adjust of Blue gain (only for analog inputs)
Daisy Address
FIMI proprietary protocol address (only for mono versions)
Analog Filter
Select analog bandwidth (only for analog inputs)
Actual Brightness
Store brightness preset*
*each video timing (Max 14) can use a different brightness preset
37
Offset Red
1) Touch Enter button when the Offset Red is highlighted on Service
Menu.
The Offset Red window appears:
2) Touch the Adjust + or Adjust - button until the desired value appears.
3) Touch the Enter button to confirm your selection.
4) Touch the Adjust + or Adjust - button to exit or to select another item
Offset Green
1) Touch Enter button when the Offset Green is highlighted on Service
Menu.
The Offset Green window appears:
2) Touch the Adjust + or Adjust - button until the desired value appears.
3) Touch the Enter button to confirm your selection.
4) Touch the Adjust + or Adjust - button to exit or to select another item
Offset Blue
1) Touch Enter button when the Offset Blue is highlighted on Service
Menu.
The Offset Blue window appears:
2) Touch the Adjust + or Adjust - button until the desired value appears.
3) Touch the Enter button to confirm your selection.
4) Touch the Adjust + or Adjust - button to exit or to select another item
38
MML194x
Gain Red
1) Touch Enter button when the Gain Red is highlighted on Service
Menu.
The Gain Red window appears:
2) Touch the Adjust + or Adjust - button until the desired value appears.
3) Touch the Enter button to confirm your selection.
4) Touch the Adjust + or Adjust - button to exit or to select another item
Gain Green
1) Touch Enter button when the Gain Green is highlighted on Service
Menu.
The Gain Green window appears:
2) Touch the Adjust + or Adjust - button until the desired value appears.
3) Touch the Enter button to confirm your selection.
4) Touch the Adjust + or Adjust - button to exit or to select another item
Gain Blue
1) Touch Enter button when the Gain Blue is highlighted on Service
Menu.
The Gain Blue window appears:
2) Touch the Adjust + or Adjust - button until the desired value appears.
3) Touch the Enter button to confirm your selection.
4) Touch the Adjust + or Adjust - button to exit or to select another item
MML194x
39
Daisy Address
1) Touch Enter button when the Daisy Address is highlighted on Service
Menu.
The Daisy Address window appears:
The ON SCREEN DISPLAY shows the following available choices:
- 1 to -9
- A to -F
2) Touch the Adjust + or Adjust - button until the desired value appears.
3) Touch the Enter button to confirm your selection.
4) Touch the Adjust + or Adjust - button to exit or to select another item
Analog Filter
1) Touch Enter button when the Analog Filter is highlighted on Service
Menu.
The Analog Filter window appears:
The ON SCREEN DISPLAY shows the following available choices:
- 75 MHz
- 150 MHz
- 300 MHz
- Disabled (500 MHz)
2) Touch the Adjust + or Adjust - button until the desired value appears.
3) Touch the Enter button to confirm your selection.
4) Touch the Adjust + or Adjust - button to exit or to select another item
Actual Brightness
1) Touch Enter button when the Actual Brightness is highlighted on
Service Menu.
The Actual Brightness window appears:
The ACTUAL BRIGHTNESS can be adjusted via keyboard (brightness +
and brightness - keys - see 8.1.0)
and saved “User preset” via this OSD item.
40
MML194x
Exit
After the activation of Exit menu the following window appears
MML194x
41
WARNING MESSAGES
Check Input Signal
If the Video Signal is not available for the selected Video Source a warning message pops-up on the screen for about
5s.
When the monitor is properly calibrated (No warning messages in the information item) the displayed message is the
following:
XXX= Current Video Source (BNC, DVI, DSUB, DVI-A)
After about 15s the monitor enter the Stand-By mode.
The front LED turns orange.
To change the video source when the no video is available on the selected input, read the followings steps:
- Wait for the Warning Message.
- Execute the normal change of the Video Source using the OSD.
Input Available
After a video source change, if in the selected video source no video signal is available, the MML194x switches back
to the previous video source and shows the dialogue box here below:
Unsupported Mode
If the Video Timing is not available a warning message will appear on the screen for about 5s.
XXX= Current Video Source (BNC, DVI, DSUB, DVI-A)
After about 5s the monitor enters the Stand-By mode.
The front LED turns orange.
Warning: No interlaced video modes are supported.
42
MML194x
VIDEO MODES
H. freq.
(kHz)
31.5
37.8
37.8
31.5
31.5
35.0
37.5
37.8
37.5
43.2
52.5
31.2
31.5
31.2
35.2
37.9
48.0
46.9
53.7
63.6
31.0
35.0
36.0
37.6
42.0
37.3
43.7
45.0
49.7
48.4
56.5
57.7
60.0
MML194x
Resolution
640x350
640x350
640x400
720x400
640x480
640x480
640x480
640x480
640x480
640x480
640x480
700x512
720x480
720x576
800x600
800x600
800x600
800x600
800x600
800x600
848x480
848x480
848x480
848x480
848x480
960x600
960x600
960x600
832x624
1024x768
1024x768
1024x768
1024x768
V. freq.
(Hz)
70
85
85
70
60
67
70
72
75
85
100
58.8
60
50
56
60
72
75
85
100
60
70
72
75
85
60
70
72
75
60
70
72
75
H. freq.
(kHz)
61.0
44.6
45.9
45.9
47.5
54.1
63.9
67.5
68.7
61.8
71.8
44.7
52.5
54.0
56.4
64.4
47.8
56.1
57.6
60.2
49.6
58.3
60.0
62.6
60.0
75.0
63.9
73.7
77.0
80.0
81.0
65.3
75.0
65.3
Resolution
1024x768
1088x612
1088x612
1088x612
1088x612
1152x864
1152x864
1152x864
1152x870
1152x900
1152x900
1280x720
1280x720
1280x720
1280x720
1280x720
1280x768
1280x768
1280x768
1280x768
1280x800
1280x800
1280x800
1280x800
1280x960
1280x960
1280x1024
1280x1024
1280x1024
1280x1024
1280x1024
1400x1050
1600x1200
1680x1050
V. freq.
(Hz)
75
60
70
72
75
60
70
75
75
66
76
60
70
72
75
85
60
70
72
75
60
70
72
75
60
75
60
70
72.3
75
76
60
60
60
43
IDENTIFICATION LABEL
RATING LABEL CONTENT
Code Number (12NC)
Model Number
Serial Number:
AN00yyww001001
AN =Original Code
(FIMI)
00 =Technical Level
yy =Year (12=2012)
ww =Week (01 to 52)
001001= Progressive Number
44
Date of Manufacture
Factory Address
MML194x
SYMBOLS
The following symbols may appear on the product or its accessory:
WARNING: this symbol alerts the User that important information
concerning operation and maintenance are provided.
The information should be read carefully
WARNING: dangerous voltage
Disconnect supply before service
Compliance with 2002/96/EC (WEEE Directive)
Consult instructions for use
Compliance with Demko IEC/EN 60601 (Medical Standard)
Compliance with Underwrites Laboratories (Medical Standard)
Conformité Européenne (European Conformity)
Notice of proper disposal
MML194x
45
GENERAL DEFINITIONS
Abbreviations
CE
DEMKO
CCFL
CSA
CVBS
DVI
EEDID
EMC
ESD
FCC
FRU
HDP
IEC
LCD
LUT
LVDS
MCS
MTBF
MTTR
OSD
PCA
RFI
SDI
SMPTE
SOG
S-VIDEO
TMDS
UL
VESA
VGA
WEEE
ROHS
REACH
European Conformity
Danish Conformity Mark
Cold Cathode Fluorescent Lamp
Canadian Standardization Authority
Composite Video Blanking and Sync
Digital Visual Interface
Enhanced Extended Display Identification Data
Electromagnetic Compatibility
Electrostatic Discharge
Federal Communications Commission
Field Replaceable Unit
Hot Plug Detect (DVI)
International Electrotechnical Commission (Standards)
60601-1 Medical electrical equipment requirements
Liquid Crystal Display
Look-Up Table
Low voltage differential signal
Monitor Ceiling Suspension
Mean Time Between Failure
Mean Time To Replace
On Screen Display
Printed Circuit Assembled
Radio Frequency Interference
Serial Digital Interface
Society of Motion Picture and Television Engineers
Sync On Green (monochrome video)
Separated Video Y/C ;
Y = luminance
C = color
Transition Minimized Differential Signalling
Underwriters Laboratories inc.
Video Electronics Standards Association
Video Graphics Adapter
Waste Electrical and Electronic Equipment
Restriction of Hazardous Substances
Registration Evaluation Authorization and Restriction of Chemical Substances
Units of measurement
Length
m
meter
Time
s
second
Voltage
V
Volt
Current
A
Ampere
Power
W
Watt
Resistance
Ω
Ohm
Weight
kg
Kilogram
Luminance
Cd/m² Candela per square meter
Illuminance
lx
lux
Temperature °C
degree Celsius
Frequency
Hz
Hertz (Cycles per second)
Noise level
dB(A) dBspl A weighted
Magnetic field T
Tesla (= 10000 Gauss)
46
MML194x
INTENTIONALLY LEFT BLANK
MML194x
47
FIMI BARCO R&D .PI0612 R2012D
FIMI S.r.l. Saronno - Italy
All rights are reserved. Reproduction in whole or in part is prohibited without the written consent of the copyright owner
Product specification subject to change without notice.
Printed in Italy
(Rev. 1.0)
4519 206 1098.2
4519 206 1098.2
