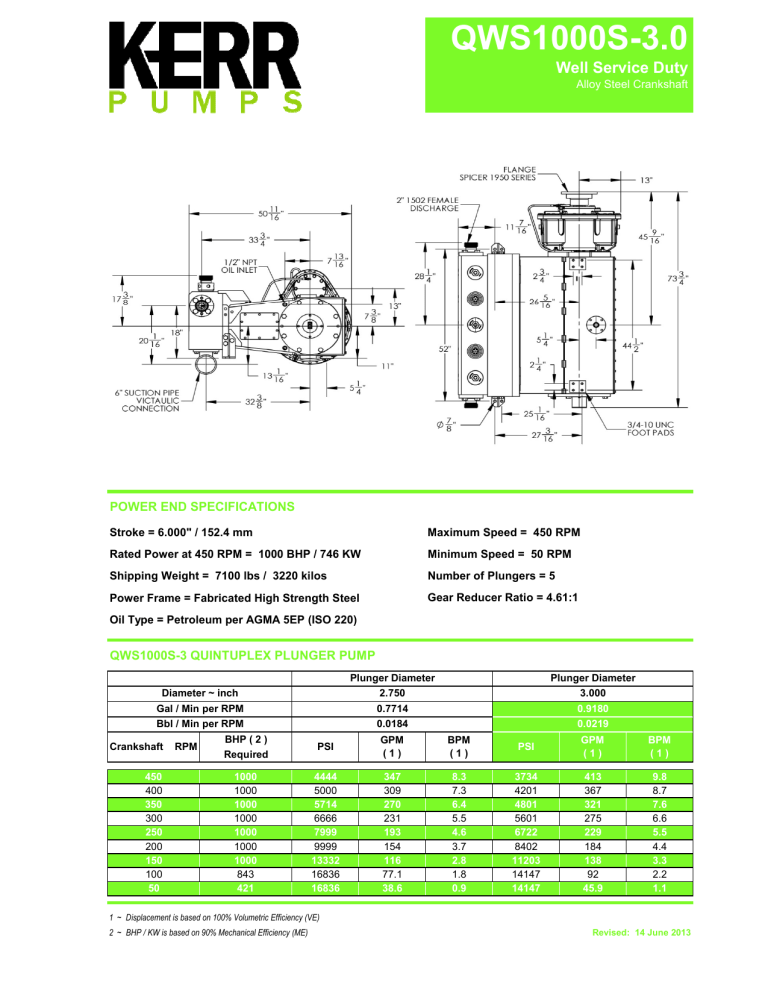

QWS1000S-3.0
Well Service Duty
Alloy Steel Crankshaft
POWER END SPECIFICATIONS
Stroke = 6.000" / 152.4 mm
Maximum Speed = 450 RPM
Rated Power at 450 RPM = 1000 BHP / 746 KW
Minimum Speed = 50 RPM
Shipping Weight = 7100 lbs / 3220 kilos
Number of Plungers = 5
Power Frame = Fabricated High Strength Steel
Gear Reducer Ratio = 4.61:1
Oil Type = Petroleum per AGMA 5EP (ISO 220)
QWS1000S-3 QUINTUPLEX PLUNGER PUMP
Plunger Diameter
2.750
0.7714
0.0184
Diameter ~ inch
Gal / Min per RPM
Bbl / Min per RPM
Crankshaft
450
400
350
300
250
200
150
100
50
RPM
Plunger Diameter
3.000
0.9180
0.0219
BHP ( 2 )
Required
PSI
GPM
(1)
BPM
(1)
PSI
GPM
(1)
BPM
(1)
1000
1000
1000
1000
1000
1000
1000
843
421
4444
5000
5714
6666
7999
9999
13332
16836
16836
347
309
270
231
193
154
116
77.1
38.6
8.3
7.3
6.4
5.5
4.6
3.7
2.8
1.8
0.9
3734
4201
4801
5601
6722
8402
11203
14147
14147
413
367
321
275
229
184
138
92
45.9
9.8
8.7
7.6
6.6
5.5
4.4
3.3
2.2
1.1
1 ~ Displacement is based on 100% Volumetric Efficiency (VE)
2 ~ BHP / KW is based on 90% Mechanical Efficiency (ME)
Revised: 14 June 2013
