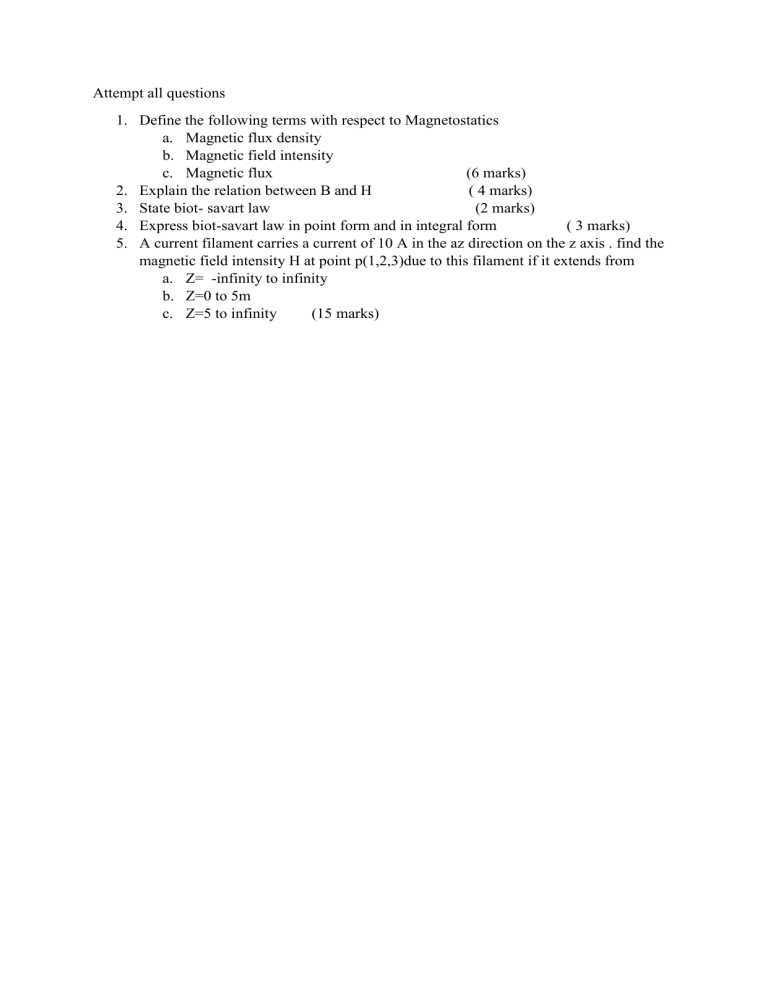

Attempt all questions
1. Define the following terms with respect to Magnetostatics
a. Magnetic flux density
b. Magnetic field intensity
c. Magnetic flux
(6 marks)
2. Explain the relation between B and H
( 4 marks)
3. State biot- savart law
(2 marks)
4. Express biot-savart law in point form and in integral form
( 3 marks)
5. A current filament carries a current of 10 A in the az direction on the z axis . find the
magnetic field intensity H at point p(1,2,3)due to this filament if it extends from
a. Z= -infinity to infinity
b. Z=0 to 5m
c. Z=5 to infinity
(15 marks)
