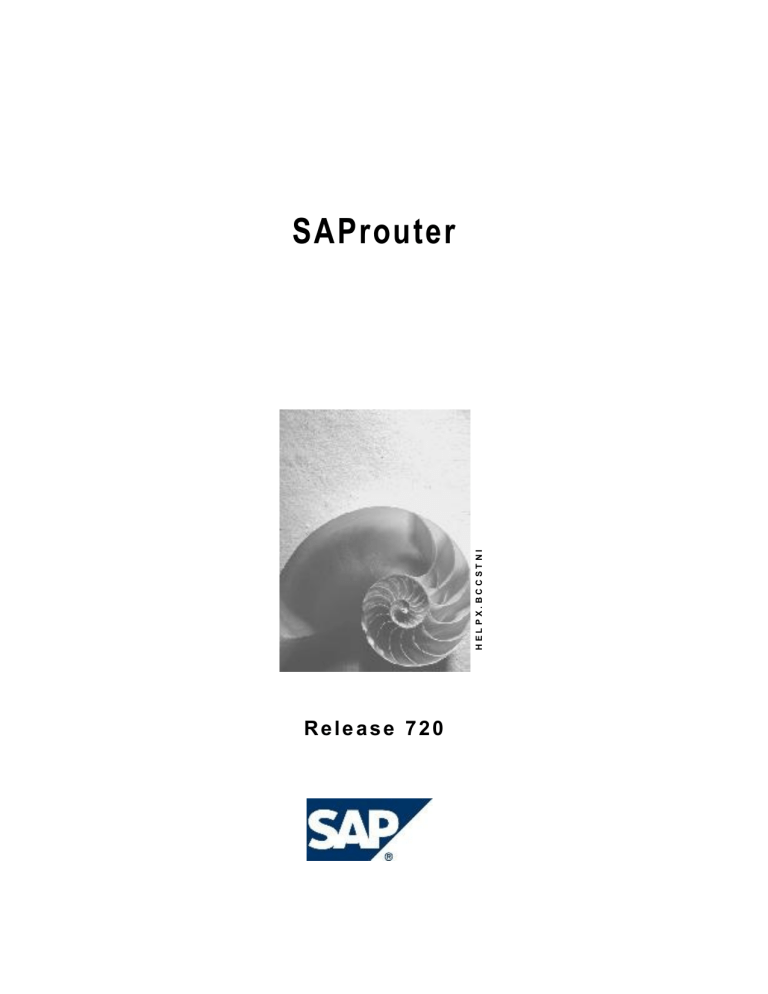

HELPX.BCCSTNI
SAProuter
Release 720
Copyright
© Copyright 2011 SAP AG. All rights reserved.
SAP Library document classification: PUBLIC
No part of this publication may be reproduced or transmitted in any form or for any purpose
without the express permission of SAP AG. The information contained herein may be changed
without prior notice.
Some software products marketed by SAP AG and its distributors contain proprietary software
components of other software vendors.
Microsoft, Windows, Excel, Outlook, and PowerPoint are registered trademarks of Microsoft
Corporation.
IBM, DB2, DB2 Universal Database, System i, System i5, System p, System p5, System x,
System z, System z10, System z9, z10, z9, iSeries, pSeries, xSeries, zSeries, eServer, z/VM,
z/OS, i5/OS, S/390, OS/390, OS/400, AS/400, S/390 Parallel Enterprise Server, PowerVM,
Power Architecture, POWER6+, POWER6, POWER5+, POWER5, POWER, OpenPower,
PowerPC, BatchPipes, BladeCenter, System Storage, GPFS, HACMP, RETAIN, DB2 Connect,
RACF, Redbooks, OS/2, Parallel Sysplex, MVS/ESA, AIX, Intelligent Miner, WebSphere,
Netfinity, Tivoli and Informix are trademarks or registered trademarks of IBM Corporation.
Linux is the registered trademark of Linus Torvalds in the U.S. and other countries.
Adobe, the Adobe logo, Acrobat, PostScript, and Reader are either trademarks or registered
trademarks of Adobe Systems Incorporated in the United States and/or other countries.
Oracle is a registered trademark of Oracle Corporation.
UNIX, X/Open, OSF/1, and Motif are registered trademarks of the Open Group.
Citrix, ICA, Program Neighborhood, MetaFrame, WinFrame, VideoFrame, and MultiWin are
trademarks or registered trademarks of Citrix Systems, Inc.
HTML, XML, XHTML and W3C are trademarks or registered trademarks of W3C®, World Wide
Web Consortium, Massachusetts Institute of Technology.
Java is a registered trademark of Sun Microsystems, Inc.
JavaScript is a registered trademark of Sun Microsystems, Inc., used under license for
technology invented and implemented by Netscape.
SAP, R/3, SAP NetWeaver, Duet, PartnerEdge, ByDesign, SAP BusinessObjects Explorer,
StreamWork, and other SAP products and services mentioned herein as well as their respective
logos are trademarks or registered trademarks of SAP AG in Germany and other countries.
Business Objects and the Business Objects logo, BusinessObjects, Crystal Reports, Crystal
Decisions, Web Intelligence, Xcelsius, and other Business Objects products and services
mentioned herein as well as their respective logos are trademarks or registered trademarks of
Business Objects Software Ltd. Business Objects is an SAP company.
(C) SAP AG
HELPX.BCCSTNI
2
Sybase and Adaptive Server, iAnywhere, Sybase 365, SQL Anywhere, and other Sybase
products and services mentioned herein as well as their respective logos are trademarks or
registered trademarks of Sybase, Inc. Sybase is an SAP company.
All other product and service names mentioned are the trademarks of their respective companies.
Data contained in this document serves informational purposes only. National product
specifications may vary.
These materials are subject to change without notice. These materials are provided by SAP AG
and its affiliated companies ("SAP Group") for informational purposes only, without representation
or warranty of any kind, and SAP Group shall not be liable for errors or omissions with respect to
the materials. The only warranties for SAP Group products and services are those that are set
forth in the express warranty statements accompanying such products and services, if any.
Nothing herein should be construed as constituting an additional warranty.
(C) SAP AG
HELPX.BCCSTNI
3
Icons in Body Text
Icon
Meaning
Caution
Example
Note
Recommendation
Syntax
Additional icons are used in SAP Library documentation to help you identify different types of
information at a glance. For more information, see Help on Help
General Information Classes
and Information Classes for Business Information Warehouse on the first page of any version of
SAP Library.
Typographic Conventions
Type Style
Description
Example text
Words or characters quoted from the screen. These include field
names, screen titles, pushbuttons labels, menu names, menu paths,
and menu options.
Cross-references to other documentation.
Example text
Emphasized words or phrases in body text, graphic titles, and table
titles.
EXAMPLE TEXT
Technical names of system objects. These include report names,
program names, transaction codes, table names, and key concepts of a
programming language when they are surrounded by body text, for
example, SELECT and INCLUDE.
Example text
Output on the screen. This includes file and directory names and their
paths, messages, names of variables and parameters, source text, and
names of installation, upgrade and database tools.
Example text
Exact user entry. These are words or characters that you enter in the
system exactly as they appear in the documentation.
<Example text>
Variable user entry. Angle brackets indicate that you replace these
words and characters with appropriate entries to make entries in the
system.
EXAMPLE TEXT
Keys on the keyboard, for example, F2 or ENTER.
(C) SAP AG
HELPX.BCCSTNI
4
Table of Contents
SAProuter ................................................................................................................................... 7
What is SAProuter? ................................................................................................................. 8
NI Network Interface........................................................................................................... 10
SAP Protocol .................................................................................................................. 11
Route Connections ............................................................................................................. 12
SNC - Secure Network Communication .............................................................................. 14
Installing the SAProuter ......................................................................................................... 15
Hardware Requirements for SAProuter ............................................................................... 15
Installation on UNIX............................................................................................................ 17
Installation Under Windows ................................................................................................ 17
Installation on IBM i ............................................................................................................ 19
Using and Configuring the SAProuter..................................................................................... 20
Starting SAProuter ............................................................................................................. 20
Testing Basic Functions...................................................................................................... 21
Entering Route Strings ....................................................................................................... 23
Route Strings .................................................................................................................. 25
Creating a Route Permission Table .................................................................................... 26
Route Permission Table .................................................................................................. 27
Example of a Route Permission Table............................................................................. 30
Example of a Route Permission Table with SNC ............................................................. 31
Setting Up Logging in the SAProuter .................................................................................. 32
Identifying and Correcting Errors ............................................................................................ 35
Successful Connection Setup and Data Transfer ................................................................ 36
SAProuter Error Messages ................................................................................................. 38
Checking the Route Permission Table............................................................................. 39
Setting Up More Connections.......................................................................................... 40
Connection Setup Errors .................................................................................................... 40
Connection Terminations .................................................................................................... 47
Other Errors ....................................................................................................................... 49
SAP Notes for SAProuter ................................................................................................... 57
Reference .............................................................................................................................. 58
SAProuter Options ............................................................................................................. 58
Option -s (stop saprouter) ............................................................................................... 61
Option -n (new saprouttab).............................................................................................. 61
Option -t (toggle trace) .................................................................................................... 62
(C) SAP AG
HELPX.BCCSTNI
5
Option -c<n> (cancel connection n) ................................................................................. 64
Option -l / -L .................................................................................................................... 64
Option -d (dump buffers) ................................................................................................. 65
Option -f (flush buffers) ................................................................................................... 65
Option -p (Soft Shutdown) ............................................................................................... 66
Option -R <routtab> ........................................................................................................ 66
Option -K <mysncname> ................................................................................................ 67
Option -G<logfile> ........................................................................................................... 67
Option -J<size in bytes>.................................................................................................. 68
Option -T<tracefile> ........................................................................................................ 68
Option -V<tracelev> ........................................................................................................ 68
Option -E ........................................................................................................................ 69
Option -S <service> ........................................................................................................ 69
Option -C <clients> ......................................................................................................... 69
Option -D ........................................................................................................................ 70
Option -6 (enable IPv6) ................................................................................................... 71
Option -Z ........................................................................................................................ 71
Option -I <address> ........................................................................................................ 71
Option -Y <n> ................................................................................................................. 72
Option -H <host name> [-P <password>]......................................................................... 72
Option -M <min> <max> ................................................................................................. 74
NI and SAProuter Implementation ...................................................................................... 74
Communication Modes ................................................................................................... 75
Route Connects .............................................................................................................. 75
Buffered Connection Handles.......................................................................................... 77
Select Sets ..................................................................................................................... 77
NI Keepalive ................................................................................................................... 78
NI Error Information ........................................................................................................ 78
NI Control Messages ...................................................................................................... 78
Common Settings for Sockets ......................................................................................... 79
SAProuter Route Permission........................................................................................... 79
Route Table Examples ................................................................................................ 80
(C) SAP AG
HELPX.BCCSTNI
6
SAProuter
SAProuter is an SAP program that can protect your SAP network against unauthorized access. It
is a stand-alone program that is normally installed on the system with the firewall.
SAProuter
LAN
(SAP System)
WAN (Internet)
SAProuter in the Network
More Information
This documentation comprises the following sections.
Section
Content
What is SAProuter?
Introduction, concept, and architecture of SAProuter.
Installing the SAProuter
Installation guidelines for the platforms supported by SAP
Using and Configuring
the SAProuter
Starting and stopping, administration functions while the SAProuter
is running, and configuration of SAProuter
Identifying and
Correcting Errors
Troubleshooting
Reference
SAProuter Options: Overview of All Administration Options
(C) SAP AG
HELPX.BCCSTNI
7
Section
Content
NI and SAProuter Implementation: Implementation Details
What is SAProuter?
SAProuter is an SAP program that acts as an intermediate station (proxy) in a network
connection between SAP systems, or between SAP systems and external networks. SAProuter
controls the access to your network, and, as such, is a useful enhancement to an existing firewall
system (port filter).
Figuratively, the firewall forms an impenetrable “wall”around your network. However, since
particular types of connections need to penetrate this wall, a “gate”has to be made in the firewall.
SAProuter assumes control of this gate.
In short, SAProuter provides you with the means of controlling access to your SAP system.
Implementation Considerations
You can use SAProuter to do the following:
Control and log the connections to your SAP system, for instance from an SAP service
center
Set up an indirect connection when programs involved in the connection cannot
communicate with each other due to the network configuration
o
Address conflicts when using non-registered IP addresses
o
Restrictions arising from firewall systems
Improve network security by means of the following:
o
A password, which protects your connection and data from unauthorized external
access
o
Allowing access from only particular SAProuters
o
Only allowing encrypted connections from a known partner (using the SNC layer)
Increase performance and stability by reducing the SAP system workload within a local
area network (LAN) when communicating with a wide area network (WAN)
The following graphic illustrates your network (LAN) using a firewall as protection against access
from outside. SAProuter runs on the firewall host, and serves as a “gate” to your network. This
gate is only opened for connections you specify.
(C) SAP AG
HELPX.BCCSTNI
8
SAProuter
LAN
(SAP System)
WAN (Internet)
This is often useful if, for example, there is a support connection from SAP to your SAP system
that SAP staff use to access your system in the case of problems. SAProuter controls and
monitors these connections.
Note that installing SAProuter without the use of a firewall does not protect your network
against access from external networks. You must ensure that all incoming SAP
connections go through the SAProuter “gate”.
Increasing Network Security with SAProuter
The SAProuter running on your firewall host should be configured to allow the following:
Only the NI protocol (SAP Protocol) is accepted from external systems
Not just any number of SAProuters are allowed before and after this one in a route
station.
Only SAProuters that you trust are allowed access
Under UNIX, we do not recommend starting the SAProuter on a port reserved for root.
(C) SAP AG
HELPX.BCCSTNI
9
Constraints
The following scenarios are supported by the SAProuter:
SAP GUI communication through the SAProuter (to the Message Server and/or SAP
Dispatcher)
RFC communication between systems or between RFC client and SAP Gateway
Support connections from SAP to customers. For support purposes SAP enables the
transfer of other protocols through special, proprietary precautions, but these are not
appropriate for production operation and are not released.
The following scenarios are not supported by the SAProuter:
Communication between server components with HTTP-based protocols through the
SAProuter (e.g. Web service calls through HTTP)
Communication from a user interface such as the browser or the Business Client through
SAProuter to an application server (e.g. Web Dynpro or BSP-based applications)
Binary protocols (e.g. terminal server, X-server) between communication partners
More Information
NI Network Interface
Route Connections
SNC - Secure Network Communication
Installing the SAProuter
Using and Configuring the SAProuter
NI Network Interface
To provide independency from the various platforms, SAP has developed the intermediate layer
NI (Network Interface) for all network connections. It is used by SAProuter and all SAP programs,
as well as by the development kits for CPI-C and Remote Function Call (RFC).
Structure
In the OSI 7 layer model, the NI layer forms the upper part of the transport layer, and is therefore
the part nearer the applications. Specifically, this means that NI uses TCP or UDP. The protocol
is also known as the SAP Protocol [Page 11] .
NI in the OSI 7 layer model
OSI layer
7
Application
6
Presentation
(C) SAP AG
Protocol
HELPX.BCCSTNI
10
OSI layer
5
Session
4
Transport
Protocol
NI
TCP / UDP
3
Network
IP
2
Data transfer
Ethernet,...
1
Transfer method
The test program niping, which tests the NI functions, belongs to the NI layer. A predefined
number of data packages is simply sent from the client to the server, is returned by the server,
and read again by the client. The program also outputs average transfer times and, depending on
the trace level, detailed information on the data transfer. Niping can be used to test network
connections with or without SAProuter.
If niping is entered without parameters, an online help is displayed with possible parameters
and additional options.
More Information
Testing Basic Functions
NI and SAProuter Implementation
SAP Protocol
The protocol used by SAP programs that communicate using the NI interface is called the SAP
Protocol. This is an enhanced version of the TCP/IP protocol, which has been supplemented by
one length field and some options for error information .
When defining the route permission table, you can use S as the initial letter. This then only allows
the SAP protocol, that is, the line is interpreted as usual, but only SAP programs (SAP GUI, SAP
application servers, etc.) are permitted to communicate with each other.
For more information, see: Creating a Route Permission Table
Integration
The NI network interface provides the SAP protocol as the default for communication, although it
can also use the TCP/IP protocol with external programs (for example, telnet or lpd) that do
not 'speak' SAP protocol.
More Information
Route Connections
(C) SAP AG
HELPX.BCCSTNI
11
SNC - Secure Network Communication
Route Connections
A route connection is a connection between two hosts via a network. The route is the sequence
of intermediate stations used to set up the connection.
Structure
You can set up a connection between SAP systems with or without SAProuter.
Connections Without SAProuter
The following graphic shows a network connection from SAP to the customer without SAProuter:
SAP
LAN
WAN
(Internet)
Customer
LAN
Customer
Work
Stations
SAP
Work
Stations
We are assuming that both the SAP LAN (local area network) as well as the customer LAN are
protected against unwanted access by firewalls.
If a connection is to be set up between an SAP workstation and a customer workstation, a "hole"
needs to be made in the firewall. The more connections required to external hosts, the more
holes (and therefore security gaps) the firewall contains.
If a connection is set up without SAProuter, the following information is required:
(C) SAP AG
HELPX.BCCSTNI
12
1. IP address of the host
or the logical name of the host on which the server process is running. The target host
must therefore have a unique IP address.
2. Port number or the logical name of the port used by the process.
The server process must use an exclusive port number on its host. Also, this port number
must be known to the client.
When the NI network interface is used, the host address and port number can be passed as
logical names (for example, host saposs, service sapdp00) or address strings (for example, a
host IP address in the form www.xxx.yyy.zzz, port sapdp00).
Connections with SAProuter
The following graphic shows a network connection with SAProuter:
SAP
LAN
WAN
(Internet)
SAProuter
Customer
LAN
SAProuter
Customer
Work
Stations
SAP
Work
Stations
SAProuter only allows a network to be accessed from fixed points. The number of access points
(holes) is therefore reduced, since fewer direct lines are required for connections. Each "hole" is
guarded by an SAProuter whose route permission table determines the routes that can be used
and the necessary passwords for gaining access. The hole in the firewall is therefore monitored.
Without SAProuter, the IP addresses must be unique. This is not always possible, particularly in
the case of a connection between two networks that do not normally have an external connection.
The concatenation of SAProuter enables two points with identical IP addresses to be connected.
(C) SAP AG
HELPX.BCCSTNI
13
SAProuter cannot only be used to connect one host with a particular service, but also several
hosts and services with each other. The route information is provided in the form of a route string.
The passwords required for access are also specified in the route string.
More Information
Route Permission Table
Route Strings
Using and Configuring the SAProuter
Route Connects in the implementation part
SNC - Secure Network Communication
SNC is used to make network connections using the Internet, in particular WAN connections,
secure. It provides reliable authentication as well as encryption of the data to be transferred.
SAProuter allows SNC connections to be set up. The route permission table can be used to
specify precisely whether SNC connections are allowed, and if so, which ones.
Prerequisites
You are using at least version 30 of SAProuter, and have configured SNC using the relevant
guide.
The following are prerequisites for setting up an SNC connection between two SAProuters:
Both SAProuters must have been started with option -K <SNCname> (IBM i: '-K
<SNCname>'). These names ensure the authenticity of a host.
There must be a KT entry in the route permission table of the source host. This causes
the connection to the target host to use the SNC layer.
There must be a KP entry in both route permission tables, allowing the connection.
Activities
To set up an SNC connection between two SAProuters, you need to start them using the option K and configure the route permission table appropriately.
More Information
Option -K <mysncname>
Route Connections
Route Permission Table
(C) SAP AG
HELPX.BCCSTNI
14
Installing the SAProuter
The following describes how to install SAProuter. On UNIX, SAProuter is installed as a daemon.
On Windows it is installed as a service.
We recommend you always install the latest SAProuter.
Prerequisites
For information about the hardware prerequisites see Hardware Requirements for SAProuter.
Procedure
Download
You will find the latest SAProuter in the SAP Service Marketplace under
Software <Support Packages & Patches>,
Download SAP
http://service.sap.com/patches..
On the Support Packages and Patches page choose links in navigation bar Entry by Application
Group, and then Additional Components SAPROUTER SAPROUTER 7.20 <Platform>
.
Here you will find the saprouter packet.
Installation
How you install the SAProuter depends on the operating system you are using. Choose the
appropriate method:
Installation on UNIX
Installation Under Windows
Installation on IBM i
Hardware Requirements for SAProuter
SAProuter Architecture and Requirement Profile
Since the work of the SAProuter (also with SNC) is mainly I/O-based (input/output), you do not
require any especially powerful CPU.
The workload handled by the SAProuter is determined by the number of open connections.
If over 800 connections have to be maintained, we recommend that you start new SAProuter
processes with Option -Y <n>. This distributes the load across several processes and reduces
the risk of any problem occurring (if a problem does occur, it never affects all the open
(C) SAP AG
HELPX.BCCSTNI
15
connections.) The following rule of thumb applies to many connections: 1 SAProuter per 500
connections.
Alternatively to option -Y you can also set a script that monitors the SAProuter process and
restarts the SAProuter (soft shutdown with Option -p, then restart), as soon as a certain number
of connections is exceeded, or when the message
Maximum number of clients reached is written for the first time.
Since the SAProuter process is running in one thread (single threaded) and is often busy with I/O
calls or with host name resolutions, a computer with one CPU manages well with several
SAProuter processes running in parallel.
Recommended Hardware
For an SAProuter with 3000 parallel connections between SAP GUIs and application servers,
transferring an average volume of data, a small number of file downloads and uploads
(approximately 8kB data transfer in both directions per connection and per 10 seconds), we
recommend:
Quick network adapter (very important)
2 hyper-threading (HTT) CPUs with 2GHz tact frequency
512 MB RAM
50 MB free space on the hard drive for SAProuter and configuration
Hard drive space for log files
Background
For 3000 users we estimate six SAProuter processes (set Option -C <clients> to 1000).
Each of these processes requires 4.5 MB of memory, and 9% of a two-way HTT 3 GHz CPU, if
you assume one third of the CPU workload is for the users and two thirds for the system. The six
SAProuter processes together require approximately 30 MB and 55% of the CPU.
Sometimes it takes a few seconds to determine the host name from the IP address (reverse
lookup), and during this time the process is blocked. The cause is usually an error in the DNS
configuration. Users will notice these delays particularly if the workload on the SAProuter is large.
Use Option -D, to prevent this happening.
Recommended Start Options
Start the SAProuter as follows:
saprouter -r -K <SNC name> -Y 0 -C 1000 -D -G <log file> -J 2000000
More Information
For information about operating the SAProuter under Windows see SAP note 734095.
(C) SAP AG
HELPX.BCCSTNI
16
Installation on UNIX
Procedure
1. Create the subdirectory saprouter in directory /usr/sap/.
2. Get the latest version of the SAProuter from the SAP Service Marketplace
(http://service.sap.com/patches, as described under Installation of the SAProuter. The
SAProuter is in packet saprouter*.SAR; the niping program is also in this packet.
Copy programs saprouter andniping to the newly created directory
/usr/sap/saprouter.
If you cannot copy the programs from SAP Service Marketplace, you can copy a version
(may be obsolete) from your directory /usr/sap/<SID>/SYS/exe/run.
3. (Optional) If you want to start the SAProuter on the same computer used for an SAP
instance, insert the following line into file /usr/sap/<SID>/SYS/exe/run/startsap:
#
# Start saprouter
#
SRDIR=/usr/sap/saprouter
if [ -f $SRDIR/saprouter ] ; then
echo "\nStarting saprouter Daemon " | tee -a $LOGFILE
echo "----------------------------" | tee -a $LOGFILE
$SRDIR/saprouter -r -R $SRDIR/saprouttab \
| tee -a $LOGFILE &
fi
Insert the lines before the commands to start the SAP instance.
Normally the SAProuter runs on a different computer. If this is so, this step is
omitted and you start the SAProuter as described in Starting the SAProuter.
4. Maintain the Route Permission Table in directory /usr/sap/saprouter. If you want to keep
it in another directory or under a name other than saprouttab, you must specify this with
the SAProuter option -R (see Option R <routtab>).
Installation Under Windows
Prerequisites
You have the latest version of SAProuter available on SAP Service Marketplace
(http://service.sap.com/patches, seeInstalling the SAProuter), and have read the README file.
(C) SAP AG
HELPX.BCCSTNI
17
Procedure
1. Create the subdirectory saprouter in directory <laufwerk>:\usr\sap.
2. Download the latest version of the SAProuter from SAP Service Marketplace. Read the
README file in this package. Copy the executables saprouter.exe and niping.exe
into the directory you have just created.
If there is no SAProuter there, you can get a version (may be obsolete) from your
directory <laufwerk>:\usr\sap\<SID>\SYS\exe\run.
3. If SAProuter has already been entered as a service with srvany.exe, remove the
definition of the service from the Registry and restart the host.
4. Define the service with the following command:
ntscmgr install SAProuter -b ...\saprouter\saprouter.exe -p
"service -r <parameter>"
Note:
The points stand for <drive>:\usr\sap
<parameter> can be replaced by other parameters with which SAProuter is to be
started. See SAProuter Options. It is important that the parameters are within the
character string enclosed in double quotation marks.
5. Define the general attributes of the service: In Control Panel Services , set the
startup type to "automatic" and enter a user. SAProuter should not run under the
SystemAccount.
6. To avoid the error message The description for Event ID (0)" in the Windows
NT event log, you must enter the following in the registry: Choose
HKEY_LOCAL_MACHINE SYSTEM CurrentControlSet Services Eventlog
Application , create the key saprouter, and define the following values for it:
EventMessageFile (REG_SZ): ....\saprouter\saprouter.exe
TypesSupported (REG_DWORD): 0x7
These adjustments are not obligatory for running SAProuter. They are only used for
providing detailed error messages in the event log.
Maintain the Route Permission Table in the system32 Windows directory. If you want to
keep it in another directory or under a name other than saprouttab, you must specify
this with the SAProuter option -R.
For more information, see: Option -R <routtab>
Result
You have installed SAProuter under Windows.
There may be a problem if some of the Microsoft DLLs have not been replaced. You can
find which ones you need in SAP Note 684106.
(C) SAP AG
HELPX.BCCSTNI
18
Installation on IBM i
Prerequisites
You have the latest version of SAProuter available on SAP Service Marketplace (see
Installing the SAProuter), and have read the README file.
Procedure
Install the programs SAPROUTER and NIPING in a separate library (such as
SAPROUTER).
1. Log on to the IBM i machine as <SID>ADM.
2. Create a library
CRTLIB <library name>
3. Create the backup file SAPROUTER:
CRTSAVF <library name>/SAPROUTER
4. Create the backup file NIPING:
using the command <library name>/NIPING
5. Download the programs SAPROUTER.SVF and NIPING.SVF from the SAP
Service Marketplace to your local PC, using the following commands:
ftp <IBM i>
cd QGPL
lcd <dir> (<dir> is the directory where SAPROUTER.SVF and NIPING.SVF
are located)
bin:
put SAPROUTER.SVF SAPROUTER
put NIPING.SVF NIPING
quit
6. Re-create the SAPROUTER or NIPING objects. Use the command APYR3FIX as
described in SAP Note 493654, and for parameter KRNLIB use the library that you
created above.
7. Create the directory /usr/sap/saprouter.
8. You have to maintain the Route Permission Table in
/usr/sap/saprouter/saprouttab.
More Information
Creating a Route Permission Table [Page 26]
(C) SAP AG
HELPX.BCCSTNI
19
Starting SAProuter
Using and Configuring the SAProuter
Procedure
This section describes how SAProuter is started, tested, and configured.
The following tasks are described:
Operation
Starting SAProuter
Testing Basic Functions
Entering Route Strings
Configuration
Creating a Route Permission Table
Setting Up Logging in the SAProuter
More Information
SAProuter Options
Error Diagnosis
Starting SAProuter
Prerequisites
Before using SAProuter, you should test its basic functions.
For more information, see Testing SAProuter Basic Functions
Procedure
To start SAProuter:
Enter saprouter -r in the input field. (IBM i: enter saprouter '-r' in the input field in batch
mode if possible.)
This command starts SAProuter. The connections allowed are contained in the saprouttab.
You can start SAProuter automatically when booting the system. Under UNIX, for example, you
change your /etc/rc file.
(C) SAP AG
HELPX.BCCSTNI
20
If you want to run a high number of connections (more than 1000) via SAProuter, start
the SAProuter using Option -r -Y <n>, and set the maximum number of clients to 2000
using Option -C <clients>, thus:
saprouter -r -Y 0 -C 2000
If this option is set, a new SAProuter is automatically started if the client table becomes
full. New connections then use this new SAProuter.
The table below contains the most important SAProuter commands:
Command
Meaning
saprouter
Displays a complete list of SAProuter parameters on
the screen
saprouter -r (IBM i: saprouter
'-r')
Starts SAProuter
saprouter -s (IBM i: saprouter
'-s')
Stops the running SAProuter
More Information
Creating a Route Permission Table
SAProuter Options
Testing Basic Functions
Prerequisites
Before using SAProuter, you should test whether there are any network problems.
To test the basic functions of the SAProuter, you require the programs saprouter and niping as
well as three open windows (shells) on one or more hosts.
Procedure
The following table shows the test scenario when using niping:
SAProuter runs in window 1, the server in window 2, and the client in window 3.
UNIX/Windows
Window 2
(host2)
Without
SAProuter
niping -s
With SAProuter
niping -s
(C) SAP AG
Window 1
(host1)
Window 3 (host3)
niping -c -H host2
saprouter -r
niping -c -H
/H/host1/H/host2
HELPX.BCCSTNI
21
IBM i
Window 2
(host2)
Without
SAProuter
call niping
'-s'
With
SAProuter
call niping
'-s'
Window 1
(host1)
Window 3 (host3)
call niping '-c' '-H' 'host2'
saprouter
'-r'
call niping '-c' '-H'
'/H/host1/H/host2'
Follow the procedure below:
1. Start SAProuter in window 1 (on host1). To do this, enter the following command:
UNIX/Windows: saprouter -r (IBM i: saprouter '-r'
This command calls SAProuter without any parameters.
For a complete list of the SAProuter commands, refer to the chapter SAProuter Options
or the online help. To call the online help, enter saprouter.
2. In window 2 (host2), start the test program niping to simulate a test server. Enter the
command
UNIX/Windows: niping -s
IBM i call niping '-s'
For a complete list of the niping commands, see the online help. To call the online help,
enter niping.
3. In window 3 (host3), start the test program niping to simulate a client. Enter the
command
UNIX/Windows: niping -c -H host2
IBM i call niping '-c' '-H' 'host2'
This command tests the connection without the SAProuter, that is directly between
host2 and host3.
4. In window 3, start the test program niping again with the following command:
UNIX/Windows: niping -c -H /H/host1/H/host2
IBM i call niping '-c' '-H' '/H/host1/H/host2'
This command tests the connection with SAProuter. A host name is interpreted as a
route (over one or more SAProuters to the server) if /H/ is added as a prefix to the host
name.
For more information, see Route Strings
In steps 3 and 4, data packages are sent to the server, and the server sends the data packages
back. In step 3, the data packages should be sent to the server more frequently, since more
process changes take place.
(C) SAP AG
HELPX.BCCSTNI
22
To perform a self test for the local host:
Enter the command niping -t (IBM i: call niping '-t').
A list with function names, parameters, and return codes is displayed. If the self test is successful,
the following message appears:
*** SELFTEST O.K. ***
To get an idea of the options provided by niping, enter niping without any
parameters.
SAP Note 500235 contains comprehensive documentation about the nipingtool.
More Information
Entering Route Strings for SAProuter
Creating a Route Permission Table
NI Network Interface
Entering Route Strings
A route string describes a connection required between two hosts using one or more SAProuters.
Each of these SAProuters then checks its Route Permission Table to see whether the connection
between its predecessor and successor is allowed, and if it is, sets it up.
Procedure
The entry of route strings is best illustrated by an example.
The following graphic shows an example of a connection between SAP and a customer system.
In this example, an SAP service employee working on sappc wants to log on to a customer
application server yourapp that provides or uses the service sapsrv.
(C) SAP AG
HELPX.BCCSTNI
23
WAN
(Internet)
SAP
LAN
Customer
LAN
sappc
sap_rout
your_rout
sapsrv
yourapp
The SAP service employee logs on to the SAP system, and sets up a connection between sappc
and yourapp using the SAProuter on sap_rout and the customer's SAProuter your_rout.
your_rout requires password pass_to_app for connections with yourapp.
The route string appears as follows:
/H/sap_rout/H/your_rout/W/pass_to_app/H/yourapp/S/sapsrv
This route string is interpreted by the SAProuters involved in the route as follows:
Host/address
Service/port
Password
Substring 1
/H/sap_rout
/S/<default>
<no password>
Substring 2
/H/your_rout
/S/<default>
/W/pass_to_app
Substring 3
/H/yourapp
/S/sapsrv
The connection from sappc to the application server is set up in the following steps:
sappc (front end)
Sets up the connection to SAProuter sap_rout according to substring 1
and relays the route information.
sap_rout
(SAProuter on SAP
side)
Uses the route permission table to check whether route sappc zu
your_rout 3299 is allowed, sets up the connection to the customer
SAProuter on host your_rout, and passes substring 2 and 3.
(C) SAP AG
HELPX.BCCSTNI
24
Checks whether route sap_rout to yourapp, sapsrv is permitted.
Password pass_to_app is also checked. SAProuter then sets up the
connection to the application server.
your_rout
(SAProuter on
customer side)
A SAProuter always checks only the previous host name or the previous IP address and the
next substring (/H/.../S/.../W/..) for host name or IP address, service and password. The
last substring does not contain a password, since there is no successor in the route.
If the /S/ section is missing, the default port number of the SAProuter is used. If the /W/ section
is missing, a password is not used.
With the old password entry, the above route string would appear as follows:
/H/sap_rout/H/your_rout/H/yourapp/S/sapsrv/P/pass_to_app
Note that the host name (which follows the /H/ in the route string) must be at least two
characters long.
More Information
Route Strings
Route Permission Table
Route Connects in the implementation part
Route Strings
A route string describes the stations of a connection required between two hosts. A route string
has the syntax
1.
(/H/host/S/service/W/pass)*
It consists of any number of “substrings” in the form /H/host/S/service/W/pass.
H, S, and W must be uppercase!
Structure
A route string contains a substring for each SAProuter and for the target server.
Each substring contains the information required by SAProuter to set up a connection in the
route: the host name, the port name, and the password, if one was given.
Syntax for substrings
/H/ indicates the host name
(C) SAP AG
HELPX.BCCSTNI
25
Note that the host name must be at least two characters long.
/S/ is used for specifying the service (port); it is an optional entry, the default value is
3299
/W/ indicates the password for the connection between the predecessor and successor
on the route and is also optional (default is "", no password)
In earlier Releases (<4.0A), the password entry was made one substring later and with
the letter /P/.
New /H/saprouter/W/pass/H/targetserver
Old: /H/saprouter/H/targetserver/P/pass
(Here pass is the password which is checked by the SAProuter on host saprouter to set
up or prohibit the connection from the source host to the target host.)
Due to downward compatibility, the old password entry form is still possible.
More Information
Entering Route Strings
Route Connects in the implementation part
Creating a Route Permission Table
You can create a route permission table with a standard text editor.
You must create a separate route permission table for each SAProuter in your network.
If no specific route permission table has been assigned to the SAProuter,
./saprouttab is used on UNIX and IBM i. File saprouttab is searched for in the
working directory of SAProuter <lwk>:\usr\sap\saprouter. If this file is not
available, SAProuter terminates with an appropriate message.
Procedure
Create the file in the relevant directory. You can find a description of the syntax under
Route Permission Table.
You can use generic entries ( *) in hosts, ports, and passwords.
You can use subnetworks in host routes as described in the following table:
Entry in the Route
Permission Table
(C) SAP AG
Meaning
HELPX.BCCSTNI
26
Entry in the Route
Permission Table
Meaning
156.56.*.*
All host addresses beginning with 156.56.
133.27.17.*
All host addresses beginning with 133.27.17
133.27.16.0/24
All host addresses beginning with 133.27.16 (0/24 at the
end means that the first 24 bits are relevant, that is, the first
three blocks)
All host addresses from 156.56.176.* bis 156.56.191.*.
156.56.1011xxxx.*
(Binary interpretation of the third byte of the address. 'x' is a
freely selectable binary value (1 or 0).)
You can display an example of a route permission table on the screen. To do this, enter
saprouter to call the SAProuter online help:
More Information
You can find more examples of route permission tables in the following sections:
Example of a Route Permission Table
Example of a Route Permission Table with SNC
More Information
Route Permission Table
Route String Entry for SAProuter
Route Connects in the implementation part
Route Permission Table
The route permission table contains the host names and port numbers of the predecessor and
successor points on the route (from the SAProuter’s point of view), as well as the passwords
required to set up the connection (corresponds to a substring).
It is used to specify which connections are allowed and which prohibited by SAProuter. It also
specifies whether SNC connections are set up and which these are.
For more information, see: Route Strings
Structure
Standard Entries
Standard entries in a route permission table appear as follows:
(C) SAP AG
HELPX.BCCSTNI
27
P/S/D <source-host> <dest-host> <dest-serv> <password>
Here <source-host> and <dest-host> could be the SAProuter.
Elements of a table entry are described below:
Handling Connection: P/S/D
The beginning of the line can be as follows:
P(ermit) causes SAProuter to set up the connection. P(ermit) entries can contain a
password. SAProuter checks whether this password corresponds to that sent by the
client.
Directly after the P, you can also specify the maximum number of SAProuters permitted
before and after this SAProuter on the route for the connection to be allowed: Pv,n –here
v denotes the maximum number of preceding SAProuters on the route, n the maximum
number of following ones.
S(ecure) only allows connections with the SAP Protocol; connections with other protocols
(such as TCP) are not allowed.
With Sv,n you can determime the number of preceding and succeeding SAProuters on
the route, the same as you can with P.
D(eny) prevents the connection from being set up.
You can also add comment lines, which must begin with #.
Source Host <source host>
This element describes the host from where the connection comes (from viewpoint of the
SAProuter). This can be a host name, an IP address, or an IP subnetwork.
For more information, see: Creating a Route Permission Table
Destination Host <dest host>
This element describes the host the connection is going to (from viewpoint of the SAProuter).
This can be a host name, an IP address, or an IP subnetwork.
Destination Port <dest serv>
This element describes the port (service) of the destination host where the connection is going to.
Here you can also specify port ranges by separating the two ports that enclose the port range
with a point. If <dest-serv> has value 3200.3298, this means connections to the target server
on all ports between 3200 and 3298.
If a <source-host> client wants to set up a connection to <dest-host> <destserv> using SAProuter, SAProuter checks its route permission before the connection is
set up. If the password and route SAProuter has received correspond to the entries in the
route permission table, SAProuter sets up the connection. In this is not the case,
SAProuter does not set up the connection, and issues the message, Route permission
denied.
(C) SAP AG
HELPX.BCCSTNI
28
For more information, see:
Example of a Route Permission Table
Identifying and Correcting Errors
SNC Entries
SNC entries always start with the letter K (like key).
There are two types of SNC entries:
1. KT entries (key target)
This defines which connections should be SNC connections. This can be defined for both
incoming and outgoing connections (from the point of view of this SAProuter).
1. Incoming connections
The syntax is KT <SNCname src-host> <src-host> <src-serv>.
This means that connections coming from the host <src-host> <src-serv>
with the SNC name <SNCname src-host> should be SNC connections.
The user can thus define that service connections from SAP must be SNC
connections.
2. Outgoing connections
They have the syntax KT <SNCname dest-host> <dest-host> <destserv>. This means that connections from the SAProuter to <dest-host>
<dest-serv> with the SNC name <SNCname> should be SNC connections.
2. KD, KP, and KS entries
They have the following syntax:
K<D/P/S> <SNCname source-host> <dest-host> <dest-serv> <password>.
This means that the (encrypted) SNC connection from <SNCname source-host> via
SAProuter to <dest-host> <dest-serv> is set up when the route string contains the
correct <password>.
So that SNC connections are possible, the appropriate SAProuters need to have been
started with the option -K and the route permission table must contain the appropriate
KT entry.
For more information, see: Example of a Route Permission Table with SNC
Evaluation of the Route Permission Table
The following rules apply when the SAProuter evaluates the route permission table.
(C) SAP AG
HELPX.BCCSTNI
29
First Match
The first entry in the route permission table for which source address, target address, and
target port match is decisive. In other words, in the Example of a Route Permission
Table, this means that the connection from host1 to host2, service serviceX, is not
allowed (because of the first entry) although all connections with service serviceX are
allowed according to the third entry.
No match
If there is not an appropriate entry in the table for a route, the connection is rejected. It
behaves as though the last line were a
D * * *.
Wildcards Exception
If the SAProuter is the last SAProuter on the route (for example, the front end), and the
service is not an SAP service (not an SAP protocol), a wildcard (“*”) cannot be used with
the service. The connection is only allowed if the non-SAP service is explicitly selected. If
the example given above contained a * instead of telnet, and the SAProuter was the
last one on the route, the telnet connection would not be set up.
Note
Security Note
For security reasons SAP recommends, that you do not use wildcards ( *) for the target
host ( <dest-host>) and the target port ( <dest-serv>) in P and S lines in the route
permission table. If the table contains these lines, the SAProuter issues a warning
message:
WARNING: wildcard character used in route target
End of the note.
More Information
Creating a Route Permission Table
SAProuter Route Permission in the implementation part.
Example of a Route Permission Table
A route permission table could appear as follows:
D
host1
host2
serviceX
D
host3
P
*
*
3200.3298
P
155.56.*.*
155.56.*.*
(C) SAP AG
HELPX.BCCSTNI
30
P
155.57.1011xxxx.*
P
host4
S
host6
P
P*,0
host5
*
host7
host8
telnet
*
*
pass
gui
This means:
Do not allow routes from host1 to host2, service serviceX
Do not allow routes starting from host3
Allow all routes to server processes that use a service in area 3200 to 3298
Allow all routes within subnetwork 155.56.0.0/16
Allow all routes starting from subnetwork 155.57.1011xxxx (the last byte is written as
a binary number; each x stands for 0 or 1).
Allow all routes from host4 to host5 if password pass is correct
All routes from host6, but only SAP protocol
Native protocol routes (TCP/IP) from host7 to host8 for the non-SAP service telnet on
telnet
All connections to non-SAProuters (no more SAProuters allowed on this route) if
password gui is correct
In the above example in Entering Route Strings the route permission table of host saprouter
must have the entry:
P sappc your_rout
and the route permission table of host yoursaprouter must contain the entry
P saprouter yourapp sapsrv pass_to_app
It can contain parentheses, signs and the following operators:
More Information
Example of a Route Permission Table with SNC
Route Permission Table
Example of a Route Permission Table with SNC
A route permission table using SNC could look like this:
(C) SAP AG
HELPX.BCCSTNI
31
P
*
*
*
KT
S:SR@host4
host4
3333
KT
S:SR@host4
host9
*
KD
S:SR@host4
host9
*
KP
S:SR@host4
*
*
KS
*
host10
4444
KP
*
*
*
pass
pass2
This means:
Allow all connections if password pass is specified correctly.
Connections from this SAProuter to host4 (SNC name S:SR@host4), service 3333
should be SNC connections.
Connections from host9 (SNC name s:SR@host9) to this SAProuter should be SNC
connections.
A SNC connection from SR@host4 to host9 through this SAProuter should not be set
up.
A SNC connection from S:SR@host4 through this SAProuter (any target host) is allowed
if the password pass2 is correct (unless the connection is to host9, since this is not
allowed according to the previous entry - the first entry which “matches” is decisive).
All SAP to SAP connections (NI protocols) to host10, service 4444, which come in as
SNC connections are passed on as non-SNC connections to host10 (no SNC host).
All SNC connections (for which the previous entries are not suitable) are allowed.
More Information
Route Permission Table
Creating a Route Permission Table
Setting Up Logging in the SAProuter
To get an overview of the function and capacity of the SAProuter, a log can be kept of all the
connections established and actions performed via the SAProuter.
Procedure
You can configure the log using Option -G<logfile>. Here you create the name of the log file and
specify where it is to be created.
(C) SAP AG
HELPX.BCCSTNI
32
Structure of the Log File
The log file is structured line by line. Each line contains the following information:
Date and time: week day, month, day, time, year
Action: Possible actions are INIT LOGFILE (start of log file), READ ROUTTAB (read
Error! Hyperlink reference not valid.), CONNECT FROM/TO (set up connection from/to),
DISCONNECT (close connection), PERM DENIED (connection not permitted by route
permission table).
After the action there is always a handle pair <C|S>n/m, whereby the letter means whether the
action was initialized by the client or the server, and the two numbers refer to the internal NI
handle numbers.
The handle pair 'C1/2' means that this log refers to the connection with handle 1 to the
client (the first number) and with handle 2 to the server (second number). The C at the
front means that the action was initialized by the client. A CONNECT FROM is therefore
always written with C; a CONNECT TO with S. With a DISCONNECT each page closed by
the connection is specified. The IP address and port always refer to the connection’s
counter page (peer). A log with a handle pair C1/- means that no server-side connection
between a pair exists yet.
The most important log entries are described below.
Example
Actions
Assuming that logging has been activated, the following actions are executed through the
SAProuter. The SAProuter stands between the physical hosts ldp007 with the IP address
10.21.72.60 and binmain (IP address 10.21.82.77).
1. Connection is opened between host ldp007 (10.21.72.60) and host binmain
(10.21.82.77) with port sapmsBIN, which is closed by the client again.
2. Administrator calls up local SAProuter to display the list of connections ( saprouter l).
3. Connection is established between host ldp007 (10.21.72.60) and the same host
ldp007 with port 3298, which is closed by the server again.
4. Attempt to open connection from host ldp007 (10.21.72.60) to the same host with
telnet port 23 is rejected by the SAProuter.
Route Permission Table
The route permission table in this example allows connections from any host to host
10.21.82.77 with port sapmsBIN, as well as to host 10.21.72.60 with port 3298:
P * 10.21.82.77 sapmsBIN
P * 10.21.72.60 3298
(C) SAP AG
HELPX.BCCSTNI
33
Log File
After these actions have been executed, the log file would look like the following (the line
numbers are not displayed, but are added here to help with the description).
(1) Wed Dec 7 13:13:59 2005 INIT LOGFILE
(2) Wed Dec 7 13:13:59 2005 READ ROUTTAB ./saprouttab o.k.
(3) Wed Dec 7 13:14:05 2005 CONNECT FROM C1/- host 10.21.72.60/1245
(ldp007.wdf.sap.corp)
(4) Wed Dec 7 13:14:05 2005 CONNECT TO S1/2 host 10.21.82.77/sapmsBIN
(binmain)
(5) Wed Dec 7 13:14:05 2005 DISCONNECT C1/2 host 10.21.72.60/1245
(ldp007.wdf.sap.corp)
(6) Wed Dec 7 13:14:13 2005 CONNECT FROM C2/- host 127.0.0.1/44997
(local host)
(7) Wed Dec 7 13:14:13 2005 SEND INFO TO C2/(8) Wed Dec 7 13:14:13 2005 DISCONNECT C2/- host 127.0.0.1/44997
(localhost)
(9) Wed Dec 7 13:14:23 2005 CONNECT FROM C2/- host 10.21.72.60/1276
(ldp007.wdf.sap.corp)
(10) Wed Dec 7 13:14:23 2005 CONNECT TO S2/1 host 10.21.72.60/3298
(ldp007)
(11) Wed Dec 7 13:14:24 2005 DISCONNECT S2/1 host 10.21.72.60/3298
(ldp007)
(12) Wed Dec 7 13:14:31 2005 CONNECT FROM C2/- host 10.21.72.60/1352
(ldp007.wdf.sap.corp)
(13) Wed Dec 7 13:14:31 2005 PERM DENIED C2/- host 10.21.72.60
(ldp007.wdf.sap.corp) to ldp007/23
(14) Wed Dec 7 13:14:31 2005 DISCONNECT C2/- host 10.21.72.60/1352
(ldp007.wdf.sap.corp)
Meaning
The lines mean the following:
Line(s
)
Meaning
(1), (2)
The first two lines are always at the start of the log file. The first line marks the start,
the second means that the Route Permission Table has been read in successfully.
(3), (4)
The client (host 10.21.72.60, port 1245) connects to the SAProuter and through this
host it can connect to host 10.21.82.77, port sapmsBIN, since this connection is
permitted according to the route permission table.
(C) SAP AG
HELPX.BCCSTNI
34
Line(s
)
Meaning
(5)
The connection between host 10.21.72.60, port 1245 and host 110.21.82.77,
port sapmsBIN is closed by the client.
(6)
On the local host (IP address 127.0.0.1, port 44997) the connection list display is
called up (saprouter -l). The connection is opened with the SAProuter.
(7)
The SAProuter sends the client the requested connection information.
(8)
The connection is closed again. As it is not a client/server connection via the
SAProuter, the connection is closed by the SAProuter.
(9),
(10)
Client host 10.21.72.60, port 1276 wants to connect to server 10.21.72.60, port
3298 via the SAProuter, which is permitted according to the route permission table.
The SAProuter opens the connection.
(11)
The connection is closed again (from the server).
(12),
(13)
Client host 10.21.72.60, port 1352 wants to connect to server 10.21.72.60, port
23 (telnet) via the SAProuter, which is not permitted according to the route
permission table. The SAProuter returns message, "permission denied".
(14)
The connection is closed by the SAProuter. (With unpermitted connections and in error
situations the SAProuter closes the connections.)
Identifying and Correcting Errors
If an error occurs while a SAProuter is in operation, an error message is displayed by the
SAProuter client. The message helps you to locate the cause of the error and find a solution.
Prerequisites
You can find more information about error handling in the log file. Logging in SAProuter must be
activated (Option -G<logfile>).
Procedure
Restrict the error to one of the following error groups:
Connection Setup Errors
Connection Terminations
Other errors /occasional errors
To find the relevant group, you can enter the error text in the full text search in the
documentation.
Once you have restricted the error to a group, proceed as follows:
(C) SAP AG
HELPX.BCCSTNI
35
Connection Setup Errors
Connection Terminations
Other Errors
More Information
You can find information about the syntax of SAProuter error messages, and examples of
frequently occurring errors in SAProuter Error Messages
Log file
If no error occurs, you can tell this from the log file. Entries are described in Successful
Connection Setup and Data Transfer.
SAP Notes
With other error messages or problems with SAProuter you can look for solutions in the SAP
Note system under component BC-CST-NI.
You can find notes about the SAProuter environment in section SAP Notes for the SAProuter.
Successful Connection Setup and Data Transfer
When the connection is set up and data transferred without any errors, you can see the following
entries in the log file:
Operation Without SNC
Thu Jun 14 16:08:04 2007 CONNECT FROM C9/ host 10.66.66.90/19114
(host1.company.corp)
Thu Jun 14 16:08:04 2007 CONNECT TO S9/17 host 10.21.83.41/3299 (host2)
Thu Jun 14 16:08:06 2007 ESTABLISHED S9/17
Thu Jun 14 16:21:06 2007 DISCONNECT C9/17 host 10.66.66.90/19114
(host1.company.corp)
Thu Jun 14 14:28:40 2007 CONNECT FROM C19/ host 10.66.66.90/12127
(host1.company.corp)
Thu Jun 14 14:28:40 2007 CONNECT TO S19/11 host 10.21.72.60/3299
(host3), *** NATIVE ROUTING ***
Thu Jun 14 14:28:41 2007 ESTABLISHED S19/11 , *** NATIVE ROUTING ***
Thu Jun 14 14:58:43 2007 DISCONNECT S19/11 host 10.21.72.60/3299
(host3), *** NATIVE ROUTING ***
Operation with SNC
When using SNC for data communication between two SAProuters there are two different
mechanisms for setting up the connection.
(C) SAP AG
HELPX.BCCSTNI
36
SNC Forwards Setup
With this mechanism, client-side SAProuter initiates the SNC connection/encryption. The
SAProuter on the client-side has an entry of the type KT in the router permission table for the
server-side SAProuter and therefore establishes the SNC connection. The SNC name is written
to the 'CONNECT TO' log when the connection to the server-side SAProuter is established. The
'ESTABLISHED' log displays the recipient side of the SNC communication once the connection
has been set up successfully.
Client Side
Thu Jun 14 17:13:22 2007 CONNECT FROM C9/ host 10.66.66.90/30888
(host1.company.corp)
Thu Jun 14 17:13:25 2007 CONNECT TO S9/17 host 10.18.211.3/3299
(10.18.211.3) (p:CN=D039768, O=SAP-AG, C=DE)
Thu Jun 14 17:13:25 2007 ESTABLISHED S9/17 (-/SNC)
Thu Jun 14 17:19:12 2007 DISCONNECT C9/17 host 10.66.66.90/30888
(host1.company.corp)
Server Side
Thu Jun 14 17:13:22 2007 CONNECT FROM C9/- host 10.18.211.3/1150
(host2)
Thu Jun 14 17:13:25 2007 CONNECT TO S9/17 host 10.66.66.91/3253
(binmain)
Thu Jun 14 17:13:25 2007 ESTABLISHED S9/17 (SNC/-)
Thu Jun 14 17:19:12 2007 DISCONNECT C9/17 host 10.18.211.3/1150 (host2)
SNC Backwards Setup
The server-side SAProuter can also initiate SNC. This is what happens if the incoming connection
from the client-side SAProuter does not use SNC (see above) but the server-side SAProuter
requires it due to the relevant entries in the route permission table. In this scenario, the SNC
handshake is triggered by the server-side SAProuter later on. This means that there is no SNC
name in the 'CONNECT TO' entry in the log on the client side.
Client Side
Thu Jun 14 16:55:21 2007 CONNECT FROM C9/- host 10.18.211.3/1065
(host2)
Thu Jun 14 16:55:21 2007 CONNECT TO S9/17 host 10.18.211.3/3299
(10.18.211.3)
Thu Jun 14 16:55:21 2007 ESTABLISHED S9/17 (-/SNC)
Thu Jun 14 16:56:42 2007 DISCONNECT S9/17 host 10.18.211.3/3299
(10.18.211.3)
Server Side
Thu Jun 14 16:55:21 2007 CONNECT FROM C9/- host 10.18.211.3/1066
(C) SAP AG
HELPX.BCCSTNI
37
(host2)
Thu Jun 14 16:55:21 2007 CONNECT TO S9/17 host 10.66.66.91/sapdp53
(host4.company.corp)
Thu Jun 14 16:55:21 2007 ESTABLISHED S9/17 (SNC/-)
Thu Jun 14 16:56:42 2007 DISCONNECT S9/17 host 10.66.66.91/3253
(host4.company.corp)
More Information
Route Connections
SNC - Secure Network Communication
SAProuter Error Messages
A SAProuter error message consists of eight or more lines, with a blank line inserted after one or
two lines.
SAProuter error message
LOCATION
SapRouter on myhost
ERROR
partner not reached
TIME
Wed Jul 23 15:24:42 2008
RELEASE
710
COMPONENT
NI (network interface)
VERSION
39.2
RC
-100
COUNTER
1
The first two lines are important. They indicate:
On which host the SAProuter concerned is running (in this example myhost)
To which application area the error belongs (here connection setup)
In this example, SAProuter cannot set up the connection to its partner. You are advised to check
the connection again.
If there is no LOCATION entry, the error message refers to a local program.
The information after the blank line is particularly relevant for internal errors. If you cannot correct
the error and therefore contact SAP, the detailed information may be helpful.
(C) SAP AG
HELPX.BCCSTNI
38
The most important error messages are:
Route permission denied: The connection is not permitted and will not be opened
by the SAProuter. Check the route permission table and make changes, if necessary.
For more information, see: Checking the Route Permission Table
Maximum number of clients reached: SAProuter cannot open the connection
because it has already opened the maximum number of connections. Change the
maximum setting or start another SAProuter.
For more information, see: Setting Up More Connections
More Information
Connection Setup Errors
Connection Terminations
Other Errors
Checking the Route Permission Table
One of the most common error messages is the following:
LOCATION
SapRouter on myhost
ERROR
Route Permission Denied
TIME
.....
....
....
A connection has not been set up because SAProuter does not allow the route concerned.
Procedure
Check the route permission table of this SAProuter (on host myhost) carefully and change it, if
necessary.
You can find out which directory the running SAProuter and the route permission table are in with
option -l / -L.
Remember that the first entry in the route permission table for which the source address, target
address, and target port match is decisive.
You can import a modified route permission table with option -n (new saprouttab).
More Information
Route Permission Table
(C) SAP AG
HELPX.BCCSTNI
39
Option -l / -L
Option -n (new saprouttab)
Setting Up More Connections
SAProuter does not accept a connection and outputs the following error message:
LOCATION
SapRouter on myhost
ERROR
maximum number of clients reached
TIME
.....
....
....
This means that SAProuter cannot accept any further clients because the maximum number has
been reached (default 800). However, SAProuter continues running with all other clients.
Procedure
In order not to have to restart SAProuter (and thereby end all existing connections), you should
perform a soft shutdown of the SAProuter using Option -p. SAProuter then continues running on
a different port. SAProuter can then be started on the old port, possibly with a larger number of
clients. It will then accept clients again.
If you would like to automate this procedure, you can start SAProuter using Option -Y <n>. A
new SAProuter is started automatically every time the client table becomes full.
More Information
Option -p (Soft Shutdown)
Option -C <clients>
Option -Y <n>
Connection Setup Errors
The following errors can occur during the connection setup:
Connect fails because the server is not running
TCP/IP connect takes too long (longer than the timeout -W value)
Route setup takes too long (longer than the timeout -W value)
No route permission for the connection
(C) SAP AG
HELPX.BCCSTNI
40
Error on the subsequent host
These errors are described below with possible solutions.
Connect fails (server not running)
The log file contains the following entries:
SAProuter Log File
Thu Jun 14 13:18:22 2007 CONNECT FROM C9/- host 10.66.66.90/35169
(host2.company.corp)
Thu Jun 14 13:18:22 2007 CONNECT TO S9/17 host 10.66.66.91/3299 (host1)
Thu Jun 14 13:18:22 2007 CONNECT ERR S9/17 connection refused
Thu Jun 14 13:18:22 2007 DISCONNECT S9/17 host 10.66.66.91/3299 (host1)
The client issues the error message below.
SAProuter Error Message
1.
********************************************************
***************
2.
*
LOCATION
SAProuter 39.1 (SP3) on 'ld8060'
3.
*
ERROR
partner '10.66.66.91:3299' not reached
4.
*
5.
*
TIME
Thu Jun 14 13:18:22 2007
6.
*
RELEASE
710
7.
*
COMPONENT
NI (network interface)
8.
*
VERSION
39
9.
*
RC
-92
10.
*
MODULE
nixxi.cpp
11.
*
LINE
3068
12.
*
DETAIL
NiPConnect2: 10.66.66.91:3299
13.
*
SYSTEM CALL connect
14.
*
ERRNO
111
15.
*
ERRNO TEXT
Connection refused
16.
*
COUNTER
4
17.
********************************************************
***************
nd of the source code.
(C) SAP AG
HELPX.BCCSTNI
41
Background and Further Analysis
On the server side, there is no program running that listens to the IP address 10.66.66.91 and
port 3299 (LISTEN). Check that the host name/IP address and server name/port number are
correct. If they are correct, the right server is being reached but it appears that the program to
which the connection should be established is not running. Check that the SAProuter and the
system or corresponding program on the server is running and is using the correct port (OS
command netstat -an).
TCP/IP connect takes too long (longer than the timeout -W value)
The log file contains the following entries:
SAProuter Log File
Thu Jun 14 13:22:01 2007 CONNECT FROM C10/- host 10.66.66.90/41060
(host2.company.corp)
Thu Jun 14 13:22:01 2007 CONNECT TO S10/18 host 1.1.1.1/3299 (1.1.1.1)
Thu Jun 14 13:22:06 2007 CONNECT ERR S10/18 could not establish
connection within 5s
Thu Jun 14 13:22:06 2007 DISCONNECT S10/18 host 1.1.1.1/3299 (1.1.1.1)
The client issues the error message below.
SAProuter Error Message
1.
********************************************************
***************
2.
*
LOCATION
SAProuter 39.1 (SP3) on 'ld8060'
3.
*
ERROR
connection to 1.1.1.1:3299 timed out
4.
*
5.
*
TIME
Thu Jun 14 13:22:06 2007
6.
*
RELEASE
710
7.
*
COMPONENT
NI (network interface)
8.
*
VERSION
39
9.
*
RC
-5
10.
*
MODULE
nirout.cpp
11.
*
LINE
6548
12.
* DETAIL
RTPENDLIST::timeoutPend: could not
establish connection within
13.
*
14.
*
5s (ROUTED)
COUNTER
6
15.
********************************************************
***************
nd of the source code.
(C) SAP AG
HELPX.BCCSTNI
42
Background and Further Analysis
In this example, the TCP/IP connection from the SAProuter to the next node (the next SAProuter,
a system, or another network component) could not be established within a specified timeout
period. This error can occur if the server host is down or the IP address of the host cannot be
reached. It can also be due to the network failing to establish the TCP/IP connection within 5
seconds (the timeout value defined in option -W). You might be able to solve this problem by
using a greater value for option -W.
For more information, see: Expert Options in SAProuter Options.
Route setup takes too long
The SAProuter is able to connect to the next host using TCP/IP, but the next host takes too long
to establish the route to the destination. It receives no NI_PONG (confirmation that the route has
been established) within the -W timeout period.
The log file contains the following entries:
SAProuter Log File
Thu Jun 14 13:34:19 2007 CONNECT FROM C15/- host 10.66.66.90/41070
(host2.company.corp)
Thu Jun 14 13:34:19 2007 CONNECT TO S15/23 host 10.21.72.60/3299
(host3)
Thu Jun 14 13:34:24 2007 CONNECT ERR S15/23 no route completion within
5s; check SAProuter on 'host3'
Thu Jun 14 13:34:24 2007 DISCONNECT S15/23 host 10.21.72.60/3299
(host3)
The client issues the error message below.
SAProuter Error Message
1.
********************************************************
***************
2.
*
LOCATION
SAProuter 39.1 (SP3) on 'ld8060'
3.
*
ERROR
connection to host3:3299 timed out
4.
*
5.
*
TIME
Thu Jun 14 13:34:24 2007
6.
*
RELEASE
710
7.
*
COMPONENT
NI (network interface)
8.
*
VERSION
39
9.
*
RC
-5
10.
*
MODULE
nirout.cpp
11.
*
LINE
6537
(C) SAP AG
HELPX.BCCSTNI
43
12.
* DETAIL
RTPENDLIST::timeoutPend: no route
completion within 5s
13.
*
14.
*
(ROUTED)
COUNTER
17
15.
********************************************************
***************
nd of the source code.
Background and Further Analysis
Find out why the subsequent SAProuter was unable to establish the connection within 5 seconds
(in this example). It might be due to slow name resolution, for example. The log and trace files
should provide further information on this. In the case of connections using multiple SAProuters in
a WAN environment, increase option -W. If multiple SAProuters are involved in setting up a
connection and the network response times are relatively high, the default value of 5 seconds is
not sufficient to enable the connection to the target system to be established.
For more information, see: Expert Options in SAProuter Options.
No route permission for the connection
The SAProuter rejects the connection because the route permission table does not allow it.
The log file contains the following entries:
SAProuter Log File
Thu Jun 14 14:18:20 2007 CONNECT FROM C10/- host 10.66.66.90/63669
(host2.company.corp)
Thu Jun 14 14:18:20 2007 PERM DENIED C10/- host 10.66.66.90
(host2.company.corp) to host1/3254
Thu Jun 14 14:18:20 2007 DISCONNECT C10/- host 10.66.66.90/63669
(host2.company.corp)
The client issues the error message below.
SAProuter Error Message
1.
2.
3.
********************************************************
****************
*
LOCATION
SAProuter 39.1 (SP3) on 'ld8060'
* ERROR
ld8060: route permission denied
(host2.company.corp to
4.
*
5.
*
6.
*
TIME
Thu Jun 14 14:18:20 2007
7.
*
RELEASE
710
8.
*
COMPONENT
NI (network interface)
(C) SAP AG
host1, 3254)
HELPX.BCCSTNI
44
9.
*
VERSION
39
10.
*
RC
-94
11.
*
COUNTER
5
12.
********************************************************
***************
nd of the source code.
Background and Further Analysis
Checking the Route Permission Table
Error on the subsequent host
This error does not occur on the local SAProuter. Instead, it occurs on a subsequent host.
Messages of the following type appear in the log of the local SAProuter:
SAProuter Log File
Thu Jun 14 14:42:53 2007 CONNECT FROM C10/- host 10.66.66.90/30005
(host2.company.corp)
Thu Jun 14 14:42:53 2007 CONNECT TO S10/18 host 10.21.72.60/3299
(host3)
Thu Jun 14 14:42:54 2007 CONNECT ERR S10/18 NIEROUT_INTERN on
'SAProuter 37.15 on hs0126'
Thu Jun 14 14:42:54 2007 DISCONNECT S10/18 host 10.21.72.60/3299
(host3)
The client issues the error message below.
SAProuter Error Message
1.
********************************************************
**************** LOCATION
SAProuter 37.15 on hs0126
2.
* ERROR
service 3298)
partner not reached (host 10.66.66.91,
3.
*
4.
*
TIME
Thu Jun 14 14:42:54 2007
5.
*
RELEASE
640
6.
*
COMPONENT
NI (network interface)
7.
*
VERSION
37
8.
*
RC
-93
9.
*
MODULE
nixxi.cpp
10.
*
LINE
8724
11.
*
DETAIL
NiPConnect2
12.
*
SYSTEM CALL SiPeekPendConn
(C) SAP AG
HELPX.BCCSTNI
45
13.
*
ERRNO
239
14.
*
ERRNO TEXT
Connection refused
15.
*
COUNTER
5
16.
********************************************************
***************
nd of the source code.
Or
SAProuter Log File
Thu Jun 14 14:40:28 2007 CONNECT FROM C9/- host 10.66.66.90/24016
(host2.company.corp)
Thu Jun 14 14:40:28 2007 CONNECT TO S9/17 host 10.21.72.60/3299
(host3), *** NATIVE ROUTING ***
Thu Jun 14 14:40:28 2007 CONNECT ERR S9/17 NIEROUT_PERM_DENIED on
'SAProuter 39.0 on 'host3'', *** NATIVE ROUTING ***
Thu Jun 14 14:40:28 2007 DISCONNECT S9/17 host 10.21.72.60/3299
(host3), *** NATIVE ROUTING ***
SAProuter Error Message
1.
********************************************************
***************
2.
3.
*
LOCATION
SAProuter 39.0 on 'host3'
* ERROR
host3: route permission denied
(host2.company.corp to
4.
*
host1, 3253)
5.
*
6.
*
TIME
Thu Jun 14 14:40:28 2007
7.
*
RELEASE
710
8.
*
COMPONENT
NI (network interface)
9.
*
VERSION
39
10.
*
RC
-93
11.
*
COUNTER
3
12.
********************************************************
**************
nd of the source code.
Background and Further Analysis
Check the log and trace files on the SAProuter where the error occurred if the information already
provided is not sufficient. The SAProuter error message that is normally displayed on the client
contains information on the error. The LOCATION line tells you the location of the error.
(C) SAP AG
HELPX.BCCSTNI
46
More Information
Connection Terminations
Other Errors
SAProuter Options
Connection Terminations
Connection terminations can be triggered from both the client side and the server side
Connection Terminations from the Server Side
The following entries appear in the log file when a connection termination is triggered from the
server side (if the local SAProuter is the client).
SAProuter Log File
Thu Jun 14 16:08:47 2007 CONNECT FROM C18/- host 10.66.66.90/24761
(host2.company.corp)
Thu Jun 14 16:08:47 2007 CONNECT TO S18/10 host 10.21.83.41/3299
(host2)
Thu Jun 14 16:08:47 2007 ESTABLISHED S18/10
Thu Jun 14 16:08:58 2007 DISCONNECT S18/10 host 10.21.83.41/3299
(host2)
The client issues the error message below.
SAProuter Error Message
1.
********************************************************
**************** LOCATION
SAProuter 39.0 on 'host2'
2.
* ERROR
broken
connection to partner '10.21.72.60:3298'
3.
*
4.
*
TIME
Thu Jun 14 16:08:58 2007
5.
*
RELEASE
710
6.
*
COMPONENT
NI (network interface)
7.
*
VERSION
39
8.
*
RC
-95
9.
*
MODULE
nixxi.cpp
10.
*
LINE
4660
11.
*
DETAIL
NiIRead: P=10.21.72.60:3298; L=???
(C) SAP AG
HELPX.BCCSTNI
47
12.
*
SYSTEM CALL recv
13.
*
ERRNO
232
14.
*
ERRNO TEXT
Connection reset by peer
15.
*
COUNTER
17
16.
********************************************************
***************
nd of the source code.
Or
SAProuter Log File
Thu Jun 14 16:09:50 2007 CONNECT FROM C19/- host 10.66.66.90/24847
(host2.company.corp)
Thu Jun 14 16:09:50 2007 CONNECT TO S19/11 host 10.21.72.60/3298
(ldp007)
Thu Jun 14 16:09:50 2007 ESTABLISHED S19/11
Thu Jun 14 16:10:02 2007 DISCONNECT S19/11 host 10.21.72.60/3298
(ldp007) RST
The client issues the error message below.
SAProuter Error Message
1.
********************************************************
***************
2.
3.
*
LOCATION
* ERROR
broken
SAProuter 39.1 (SP3) on 'host1'
connection to partner '10.21.72.60:3298'
4.
*
5.
*
TIME
Thu Jun 14 16:10:02 2007
6.
*
RELEASE
710
7.
*
COMPONENT
NI (network interface)
8.
*
VERSION
39
9.
*
RC
-95
10.
*
MODULE
nixxi.cpp
11.
*
LINE
4660
12.
* DETAIL
NiIRead: P=10.21.72.60:3298;
L=10.66.66.90:24848
13.
*
SYSTEM CALL recv
14.
*
ERRNO
104
15.
*
ERRNO TEXT
Connection reset by peer
(C) SAP AG
HELPX.BCCSTNI
48
16.
*
COUNTER
10
17.
********************************************************
***************
nd of the source code.
Connection Terminations from the Client Side
The following entries appear in the log file when a connection termination is triggered from the
client side (if the local SAProuter is the server).
Thu Jun 14 16:13:20 2007 CONNECT FROM C20/- host 10.66.66.90/24849
(host2.company.corp)
Thu Jun 14 16:13:20 2007 CONNECT TO S20/12 host 10.21.83.41/3299
(host2)
Thu Jun 14 16:13:20 2007 ESTABLISHED S20/12
Thu Jun 14 16:13:43 2007 DISCONNECT C20/12 host 10.66.66.90/24849
(host2.company.corp) RST
There is no error message with errInfo because the error is on the client side.
Background and Further Analysis
The DISCONNECT entry in teh log file tells you the side where the connection termination was
triggered. You can use this information to find the node/program that first closed the connection.
The trace file for this program contains more information on the cause of the connection
termination.
In some cases, the connection between the two programs can be terminated without either side
triggering the termination. For example, this is the case if two SAProuters with a direct TCP/IP
connection both record that the other side triggered the connection termination. This means that
an active network component between the two programs terminated the TCP/IP connection. The
network component concerned is often a firewall or a router with an idle timeout. If this occurs,
check the network.
The DISCONNECT log entry also tells you whether or not the connection was closed in a TCP/IPcompliant manner. 'RST' at the end of the line indicates and RDT package or a retransmit
timeout. This means that the other side or an active network component between the two sides of
the TCP/IP connection ended the connection incorrectly. This can be caused by the program
crashing, the connection being closed to early at application level, or a firewall.
Procedure
Connection Setup Errors
Other Errors
Other Errors
The following errors occur only rarely. The descriptions below aim to help you to analyze and
eliminate these errors.
(C) SAP AG
HELPX.BCCSTNI
49
The SAProuter receives incorrect data. This can happen if the route is too short or if the
system overlooks the fact that the connection is to a SAProuter rather than a backend
connection.
The SAProuter receives the route information too late (TCP/IP connection setup was
successful).
The SAProuter is the client and it receives an incorrect response from the server.
The SAProuter is the server and it receives the data from the client too early.
SNC not active for a forwards connection
SNC not active for a backwards connection
Incorrect data sent to the SAProuter
The log file contains the following entries:
SAProuter Log File
Thu Jun 14 09:55:36 2007 CONNECT FROM C10/- host 10.66.66.90/34506
(host1.company.corp)
Thu Jun 14 09:55:36 2007 INVAL DATA C10/- route expected
Thu Jun 14 09:55:36 2007 DISCONNECT C10/- host 10.66.66.90/34506
(host1.company.corp)
The client issues the error message below.
SAProuter Error Message
1.
********************************************************
***************
2.
*
LOCATION
SAProuter 39.1 (SP3) on 'host1'
3.
*
ERROR
internal error
4.
*
5.
*
TIME
Thu Jun 14 09:55:36 2007
6.
*
RELEASE
710
7.
*
COMPONENT
NI (network interface)
8.
*
VERSION
39
9.
*
RC
-93
10.
*
MODULE
nirout.cpp
11.
*
LINE
2664
12.
*
DETAIL
NiRClientHandle: route expected
13.
*
COUNTER
4
14.
********************************************************
***************
(C) SAP AG
HELPX.BCCSTNI
50
nd of the source code.
Background and Further Analysis
The client program sends incorrect data to the SAProuter. This is usually the case if the client
assumes that it is already communicating with the target system but the connection was actually
established to an SAProuter that has to wait for a route first. Check the parameters for the
connection setup on the client.
Route sent too late
The connection setup (connect) was successful but the client sends the route to the SAProuter
too late, or the client assumes that it is already connected to the server and is waiting for data, or
the timeout -W is exceeded.
The log file contains the following entries:
SAProuter Log File
Thu Jun 14 12:27:27 2007 CONNECT FROM C11/- host 10.66.66.90/35087
(host1.company.corp)
Thu Jun 14 12:27:32 2007 CONNECT ERR C11/- no route received within 5s
Thu Jun 14 12:27:32 2007 DISCONNECT C11/- host 10.66.66.90/35087
(host1.company.corp)
The client issues the error message below.
SAProuter Error Message
1.
********************************************************
***************
2.
*
LOCATION
SAProuter 39.1 (SP3) on 'host1'
3.
*
ERROR
connection timed out
4.
*
5.
*
TIME
Thu Jun 14 12:27:32 2007
6.
*
RELEASE
710
7.
*
COMPONENT
NI (network interface)
8.
*
VERSION
39
9.
*
RC
-5
10.
*
MODULE
nirout.cpp
11.
*
LINE
6519
12.
* DETAIL
RTPENDLIST::timeoutPend: no route
received within 5s
13.
*
14.
*
(CONNECTED)
COUNTER
5
15.
********************************************************
***************
(C) SAP AG
HELPX.BCCSTNI
51
nd of the source code.
Background and Further Analysis
This error can occur if the client does not send the route quickly enough after the TCP/IP connect
to the SAProuter. This might be caused by the client hanging temporarily.
Incorrect response from the server
If a server-side program other than a SAProuter responds, or if the back end responds, the
SAProuter cannot use t he response. It needs another SAProuter as the server.
The log file contains the following entries:
SAProuter Log File
Thu Jun 14 13:59:43 2007 CONNECT FROM C9/- host 10.66.66.90/46915
(host1.company.corp)
Thu Jun 14 13:59:43 2007 CONNECT TO S9/17 host 10.66.66.91/3253 (host2)
Thu Jun 14 13:59:43 2007 CONNECT ERR S9/17 invalid data form server
during route completion
Thu Jun 14 13:59:43 2007 DISCONNECT S9/17 host 10.66.66.91/3253 (host2)
The client issues the error message below.
SAProuter Error Message
1.
********************************************************
***************
2.
*
LOCATION
SAProuter 39.1 (SP3) on 'host1'
3.
*
ERROR
internal error
4.
*
5.
*
TIME
Thu Jun 14 13:59:43 2007
6.
*
RELEASE
710
7.
*
COMPONENT
NI (network interface)
8.
*
VERSION
39
9.
*
RC
-93
10.
*
MODULE
nirout.cpp
11.
*
LINE
2694
12.
* DETAIL
'host2' during
NiRClientHandle: invalid data from server
13.
*
route completion
14.
*
COUNTER
3
15.
********************************************************
***************
(C) SAP AG
HELPX.BCCSTNI
52
nd of the source code.
Background and Further Analysis
Check the parameters for the connection setup on the client.
Data received too early from the client
If the SAProuter, as the server, receives data from the client before the route is established, the
following entries appear in the log file:
SAProuter Log File
Thu Jun 14 14:15:00 2007 CONNECT FROM C10/- host 10.66.66.90/52640
(host1.company.corp)
Thu Jun 14 14:15:00 2007 CONNECT TO S10/18 host 10.66.66.91/3253
(host2)
Thu Jun 14 14:15:00 2007 CONNECT ERR C10/18 invalid data form client
during route completion
Thu Jun 14 14:15:00 2007 DISCONNECT C10/18 host 10.66.66.90/52640
(host1.company.corp)
The client issues the error message below.
SAProuter Error Message
1.
********************************************************
***************
2.
*
LOCATION
SAProuter 39.1 (SP3) on 'host1'
3.
*
ERROR
internal error
4.
*
5.
*
TIME
Thu Jun 14 14:15:00 2007
6.
*
RELEASE
710
7.
*
COMPONENT
NI (network interface)
8.
*
VERSION
39
9.
*
RC
-93
10.
*
MODULE
nirout.cpp
11.
*
LINE
2688
12.
*
DETAIL
NiRClientHandle: invalid data from client
13.
*
completion
'host1.company.corp' during route
14.
5
*
COUNTER
15.
********************************************************
***************
nd of the source code.
(C) SAP AG
HELPX.BCCSTNI
53
Background and Further Analysis
The client program is behaving incorrectly. Check for a more recent version of the client program.
Data received too early from the server
The log file contains the following entries:
SAProuter Log File
Thu Jun 14 13:59:43 2007 CONNECT FROM C9/- host 10.66.66.90/46915
(host1.company.corp)
Thu Jun 14 13:59:43 2007 CONNECT TO S9/17 host 10.66.66.91/3253 (host2)
Thu Jun 14 13:59:43 2007 CONNECT ERR S9/17 invalid data form server
during route completion
Thu Jun 14 13:59:43 2007 DISCONNECT S9/17 host 10.66.66.91/3253 (host2)
The client issues the error message below.
SAProuter Error Message
1.
********************************************************
***************
2.
*
LOCATION
SAProuter 39.1 (SP3) on 'host1'
3.
*
ERROR
internal error
4.
*
5.
*
TIME
Thu Jun 14 13:59:43 2007
6.
*
RELEASE
710
7.
*
COMPONENT
NI (network interface)
8.
*
VERSION
39
9.
*
RC
-93
10.
*
MODULE
nirout.cpp
11.
*
LINE
2694
12.
* DETAIL
'host2' during
NiRClientHandle: invalid data from server
13.
*
route completion
14.
*
COUNTER
3
15.
********************************************************
***************
nd of the source code.
Background and Further Analysis
Check the version of the SAProuter on the server side and update the program if necessary.
(C) SAP AG
HELPX.BCCSTNI
54
SNC not active for a forwards connection
The log file contains the following entries:
Client Side
Thu Jun 14 17:16:40 2007 CONNECT FROM C18/ host 10.66.66.90/30891
(host1.company.corp)
Thu Jun 14 17:16:40 2007 CONNECT TO S18/10 host 10.18.211.3/3299
(10.18.211.3) (p:CN=D039768, O=SAP-AG, C=DE)
Thu Jun 14 17:16:40 2007 CONNECT ERR S18/10 forwarding route failed
NIESNC_FAILURE
Thu Jun 14 17:16:40 2007 DISCONNECT C18/10 host 10.66.66.90/30891
(host1.company.corp)
Server Side
Thu Jun 14 17:16:40 2007 CONNECT FROM C9/- host 10.18.211.3/1168
(host3.wdf.sap.corp)
Thu Jun 14 17:16:40 2007 DISCONNECT C9/- host 10.18.211.3/1168
(host3.wdf.sap.corp)
SAProuter Error Message on Client Sire
1.
********************************************************
***************
2.
*
LOCATION
SAProuter 39.1 (SP3) on 'host3'
3.
*
ERROR
SNC processing failed:
4.
*
5.
*
6.
*
TIME
Thu Jun 14 17:16:40 2007
7.
*
RELEASE
710
8.
*
COMPONENT
NI (network interface)
9.
*
VERSION
39
10.
*
RC
-104
11.
*
MODULE
nisnc.c
12.
*
LINE
566
13.
*
DETAIL
NiSncOpcode: NISNC_REQ
14.
*
COUNTER
2
SNC not enabled
15.
********************************************************
***************
nd of the source code.
(C) SAP AG
HELPX.BCCSTNI
55
Background and Further Analysis
The SAProuter on the server side has not activated SNC. Restart the SAProuter on the server
side with the option -K mysncname.
SNC not active for a backwards connection
The log file contains the following entries:
Client Side
Thu Jun 14 17:08:19 2007 CONNECT FROM C9/ host 10.66.66.90/30883
(host1.company.corp)
Thu Jun 14 17:08:19 2007 CONNECT TO S9/17 host 10.18.211.3/3299
(10.18.211.3)
Thu Jun 14 17:08:19 2007 CONNECT ERR S9/17 NIESNC_FAILURE on 'SAProuter
39.1 (SP3) on 'host3''
Thu Jun 14 17:08:19 2007 DISCONNECT S9/17 host 10.18.211.3/3299
(10.18.211.3)
Server Side
Thu Jun 14 17:08:19 2007 CONNECT FROM C12/- host 10.18.211.3/1119
(host3.wdf.sap.corp)
Thu Jun 14 17:08:19 2007 CONNECT TO S12/20 host 10.66.66.91/3253
(host2)
Thu Jun 14 17:08:19 2007 CONNECT ERR C12/20 NIECONN_BROKEN on
'SAProuter 39.1 (SP3) on 'host3''
Thu Jun 14 17:08:19 2007 DISCONNECT C12/20 host 10.18.211.3/1119
(host3.wdf.sap.corp)
SAProuter Error Message on Client Sire
1.
********************************************************
***************
2.
*
LOCATION
SAProuter 39.1 (SP3) on 'host3'
3.
*
ERROR
SNC processing failed:
4.
*
5.
*
6.
*
TIME
Thu Jun 14 17:08:19 2007
7.
*
RELEASE
710
8.
*
COMPONENT
NI (network interface)
9.
*
VERSION
39
10.
*
RC
-104
11.
*
MODULE
nisnc.c
(C) SAP AG
SNC not enabled
HELPX.BCCSTNI
56
12.
*
LINE
586
13.
*
DETAIL
NiSncOpcode: NISNC_ACC
14.
*
COUNTER
4
15.
********************************************************
***************
nd of the source code.
Background and Further Analysis
The SAProuter on the client side has not activated SNC. Restart the SAProuter on the client side
with the option -K mysncname.
More Information
SNC - Secure Network Communication
Option -K <mysncname>
SAP Notes for SAProuter
As a rule, always refer to the relevant SAP Notes if you experience problems with SAProuter. You
will find these on the SAP Service Marketplace.
Note Number
Content
0029684
STFK: Route Permission Denied
0062636
saprouter terminates on ending UNIX session
0063342
List: NI error codes
0164937
NiPBind: service 'sap????' in use
0104576
Package filter between ITS and R/3
0042692
Test tool for RFC connections: sapinfo
0066168
Required documents when analyzing RFC problems
0025917
Changes to /etc/hosts are not accepted
0147021
"Address already in use" due to TCP state
0037211
ftp not via SAProuter : "connection refused"
You can also search for SAP Notes under component BC-CST-NI to find current corrections in
the SAProuter environment.
(C) SAP AG
HELPX.BCCSTNI
57
Reference
The reference section of the SAProuter documentation contains the following information:
A complete overview of the SAProuter options: For example, start options, options for the
administration of a running SAProuter: SAProuter Options
Technical description of the implementation of SAProuter in the NI layer of the SAP
kernel: NI and SAProuter Implementation
More Information
What is SAProuter?
SAProuter Options
SAProuter provides a number of optional functions. They consist of a letter, which is specified
when SAProuter is called (syntax: UNIX/Windows: saprouter -<option>, Syntax IBM i:
saprouter -'<option>') or is sent to a running SAProuter. The following describes how they
are used and the default values.
Features
There are administrative options (lowercase), additional options, and expert options
(uppercase). The various options can be combined by specifying an administrative option and
any number of other options.
Under IBM i options must be enclosed in inverted commas. For example, to stop the SAProuter,
enter saprouter '-s'.
Administrative Options
Administrative options, except for the startup function, are sent to a running SAProuter. It then
executes the appropriate function.
SAProuter is started with function saprouter -r (IBM i:saprouter '-r')
The following list gives you an overview of the administrative options:
Administrative Options
Option
Meaning
Option -s (stop saprouter)
Stop SAProuter
Option -n (new saprouttab)
Re-read in the route permission table
Option -t (toggle trace)
Changing the trace level
Option -c<n> (cancel connection
n)
Terminate connection n
(C) SAP AG
HELPX.BCCSTNI
58
Administrative Options
Option
Meaning
Option -l / -L
Display route information
Option -d (dump buffers)
Write detailed information from the internal buffers to the
trace file
Option -f (flush buffers)
Reset internal buffers
Option -p
Carry out soft shutdown
For more information, see Starting SAProuter.
Additional Options
The additional options - with one exception - are indicated by uppercase letters. They can be
combined with each other and with an administrative option, as long as this makes sense. Most
additional options are used when the SAProuter is started. The ways in which the options can be
combined are indicated in the sections in which they are described.
If an invalid combination of SAProuter options is specified, SAProuter behaves as if only
saprouter was specified and displays the online help.
The additional options can also be omitted, as there are default values that are specified for each
option.
The following options are available:
Additional Options
Option
Meaning
Default Value
./saprouttab (UNIX and IBM i)
Option -R
<routtab>
File name and path of
the route permission
table
Option -K
<mysncname>
Use of SNC: SNC name
of the host on which the
SAProuter is running.
-
Option G<logfile>
Name and path of the
SAProuter log file
No log file
Option -J<size in
bytes>
Size restriction for
SAProuter log file
No size restriction
Option T<tracefile>
Name and path of the
SAProuter trace file
dev_rout in the directory of the SAProuter
Option V<tracelev>
Trace level of the
SAProuter
1
Option -E
Update trace and log
files instead of
- (Trace and log files are overwritten when the
SAProuter is restarted)
(C) SAP AG
<lwk>:\usr\sap\saprouter\saprouttab
(Windows)
HELPX.BCCSTNI
59
Additional Options
Option
Meaning
Default Value
overwriting them
Option -S
<service>
Service (port) on which
the SAProuter runs
3299
Maximum number of
client that the SAProuter
administrates. Note:
Option -C
<clients>
This value cannot
exceed 2048
800
2 clients make a
connection
Option -D
Deactivate DNS reverse
lookup
Option -6
(enable IPv6)
Activate IPv6 support
Option -Z
Suppress exact error
message while opening
connection
Option -I
<address>
Establish external
connection, if there are
several network cards.
-
Option -Y <n>
n number of times an
SAProuter automatically
restarts if the client table
is overfilled
SAProuter is not automatically restarted (case
n=1)
Option -H <host
name> [-P
<password>]
Name of the host to
which the SAProuter
listens; password
protection for route
information (see Option
-l / -L)
-
Option -M <min>
<max>
A port area for outgoing
connection
-
-
Expert Options
SAProuter has some expert options, which are described below.
Use these options only after consulting SAP or if you are very experienced in this area.
The following expert options are available:
(C) SAP AG
HELPX.BCCSTNI
60
Expert Options
Command
Function
Default
-B <bufsize>
Maximum queue length per client
1 NI package
-Q
<queuesize>
Maximum heap space for NI package
20,000,000 bytes
-W
<waittimeL>
Timeout for blocking network calls (if there is an error)
5000 msec
Activities
Call SAProuter with the desired functions using the following commands:
UNIX/Windows: saprouter [-<adm>] [-<opt>].
IBM i saprouter '[-<adm>] [-<opt>]'
If an invalid combination of SAProuter options is specified, SAProuter behaves as if only
saprouter was specified and displays the online help.
Option -s (stop saprouter)
This function is used to stop a running SAProuter.
Integration
If the SAProuter to be stopped is not running on the default service 3299, the service has to be
made known with Error! Hyperlink reference not valid..
This also applies toall successive administrative options that are send to a SAProuter that is
already running.
Commands saprouter -s -S 3299 and saprouter -s (IBM i: : saprouter '-s
-S 3299' and saprouter '-s') have the same effect.
Option -n (new saprouttab)
The saprouter -n command (IBM i: saprouter -n is used to report changes in the route
permission table to the running SAProuter. It causes SAProuter to use the updated table, as
named with option -R <routtab> (default saprouttab).
(C) SAP AG
HELPX.BCCSTNI
61
If you would like to enter, for example, other restrictions in the route permission table, you do not
have to stop and restart SAProuter, but you can use this function.
The new route permission table does not affect connections which already exist! Even if
the existing connection is not allowed according to the new table, it remains in place!
More Information
Creating a Route Permission Table
Option -t (toggle trace)
This function is used to toggle the trace level of a running SAProuter. Trace levels 1, 2 and 3
exist. If the trace level was 1, it is now increased to 2, and if it was 2 or 3, it is decreased to 1.
You can also activate the trace for individual connections (see below).
Integration
When SAProuter is started, the trace level is selected with option -V<tracelev> .
Features
Connection Trace
You can also activate the trace for individual connections. For these connections the information
is written with trace level 2.
The connection is traced using an enhanced syntax of option –t. You have the following options:
Command
saprouter -t "on
<id>"
Meaning
<id> is the number of the connection. You can see this number when
you display the connection information (saprouter -l). This
command activates the trace for this (existing) connection.
For more information, see: Option -l / -L
saprouter -t "off
<id>"
Deactivates the trace for connection with number <id>.
saprouter -t "on
<IPaddress>"
Activates the trace for all new connections coming from the IP address
<IP address>. You use this option if the connection is not yet open
and you are looking the for connection setup information.
saprouter -t "off
<IPaddress>"
Deactivates the trace for all new connections coming from the IP
address <IP address>.
saprouter -t "on
<subnet>"
<subnet> specifies a set of IP addresses. The command activates the
trace for all new connections coming from this subnetwork.
(C) SAP AG
HELPX.BCCSTNI
62
Command
Meaning
saprouter -t "off
<subnet>"
Deactivates the trace for all new connections coming from this
subnetwork.
Trace ID in the Connection Overview
Connections for which the trace is activated are marked with an asterisk in the connection
overview (to display the overview enter command saprouter -l).
You can find the trace information in the trace file dev_rout.
Example
You activate the trace for connection number 4 by sending the command saprouter -t "on
4" to the active SAProuter.
Then you call saprouter -l to display the connections. You get the following output:
1.
SAP Network Interface Router running on port 3299 (PID =
1576962)
2.
Started on: Wed Apr 13 09:00:10 2005
3.
4.
ID CLIENT
service
5.
------------------------------+------------------------------
6.
7.
| PARTNER
7
localhost
| (no partner)
6
10.18.203.8
| 10.17.74.118
4
*10.18.203.8
| 10.17.74.118
2
10.18.203.8
| 10.17.74.118
3227
8.
3227
9.
3227
10.
11.
Total no. of clients: 7
12.
Working directory
: /usr/sap/PRD/work
13.
Routtab
: ./saprouttab
nd of the source code.
The * is the trace for connection 4.
More Information
Option -l / -L
(C) SAP AG
HELPX.BCCSTNI
63
Option -c<n> (cancel connection n)
Internally, each connection using SAProuter has a number, which can be seen with option -l / -L .
This function can be used to close a connection.
The saprouter -c 2 command (IBM i: Command saprouter '-c 2' closes the
connection with the (internal) number 2.
Option -l / -L
With function saprouter -l (IBM i: saprouter '-l') you trigger the SAProuter to display
route information on the screen; with saprouter -L (IBM i: saprouter '-L') you get more
detailed information.
The information contains the following:
A table with the connection number, client, partner, and service for each existing
connection Connections for which the connection trace is activated are marked with an
asterisk (*).
For more information, see Option -t (toggle trace)
The total number of clients, the working directory in which SAProuter is running, and the
path of the route permission table
The PID and the port of the parent, if the SAProuter was started by another SAProuter
process (For more information, see Starting the SAProuter and Option -Y <n>.)
If you want to display the SAProuter information from a remote host, use option H <hostname> [-P <password>].
Route Details for Several SAProuters
If you are running several SAProuter processes, and you want to display the route details of a
SAProuter other than the last one started, use option Option -S <service> and specify the port.
You can find out the port of the SAProuter preceding the current one by using the option -l (see
above).
Example
If you specify saprouter –l, the output may look like:
1.
(C) SAP AG
Wed Apr 11 09:01:57 2007
HELPX.BCCSTNI
64
2.
SAP Network Interface Router, Version 38.0
3.
4.
Wed Apr 11 09:01:58 2007
5.
peer SAProuter with NI version 38 ...
6.
send info-request to running SAProuter ...
7.
8.
SAP Network Interface Router running on port 3299 (PID =
1576962)
9.
Started on: Wed Apr 13 09:00:10 2005
10.
11.
ID CLIENT
service
| PARTNER
12.
--------------------------------+----------------------------------13.
7
localhost
| (no partner)
14.
6
3227
10.18.203.8
| 10.17.74.118
15.
4
3227
*10.18.203.8
| 10.17.74.118
16.
2
3227
10.18.203.8
| 10.17.74.118
17.
18.
Total no. of clients: 7
19.
Working directory
:
/net/usr.scratch/d039768/mm/rs6000_64
20.
Routtab
: ./saprouttab
nd of the source code.
Option -d (dump buffers)
If this function is used, detailed information on the host names involved in the connection and
their IP addresses is written to the trace file (default dev_rout, or the name specified with Error!
Hyperlink reference not valid.). The trace file is not overwritten, the information is simply
appended at the end.
Option -f (flush buffers)
This function can be used to empty the internal buffer (which is written to the trace file with option
-d (dump buffers)).
(C) SAP AG
HELPX.BCCSTNI
65
Option -p (Soft Shutdown)
This option can be used to perform a soft shutdown of an SAProuter. SAProuter continues
running on another port and can be administrated on this port, but does not accept any logon
requests, and terminates automatically when no more clients are connected.
The port on which SAProuter was running before (default 3299) is now free. This is useful in the
following cases:
You want to start a new SAProuter without closing all existing connections.
More connections are required than one SAProuter alone can handle (max. 1018).
If you enter the command saprouter -p, information is displayed telling you on which port
SAProuter can now be administered, and the host on which SAProuter is running.
The standard port on which SAProuter is running is port 65000. If it is already assigned or if a port
range was already defined for the SAProuter with option -M <min>.<max>. , a different port is
selected.
You can start the SAProuter using the Option -r -Y <n>. This has the effect that the existing
SAProuter is automatically moved to another port and a new SAProuter is started. The new
SAProuter then accepts incoming connections on this port.
Option -R <routtab>
Option saprouter -R <path> (IBM i: saprouter -R <path>) specifies the file
containing the route permission table. If nothing is specified, SAProuter searches the file
./saprouttab (UNIX and IBM i)
<lwk>:\usr\sap\saprouter\saprouttab (Windows)
Caution
The route permission table is essential for SAProuter. If it is not found, SAProuter
terminates with an appropriate message.
If you want to permit all connections, you must specify the following single-line
route permission table:
P * * *
End of the caution.
More Information
Creating a Route Permission Table
(C) SAP AG
HELPX.BCCSTNI
66
Option -K <mysncname>
For SNC connections to be possible with SAProuter, SAProuter must be started with this
option:
saprouter -r -K <mysncname> (IBM i: saprouter '-r -K <mysncname>').
There must also be a KT entry in the Route Permission Table specifying that connections
with a certain host (whose SNC name is known) should be SNC connections.
<mysncname> is the SNC name of the host on which the SAProuter is running.
More Information
SNC - Secure Network Communication
Example of a Route Permission Table with SNC
Option -G<logfile>
If you want to use Logging in the SAProuter, you can start your SAProuter with this option and
specify a log file.
UNIX/Windows: saprouter -r -G <logfile>
IBM i saprouter '-r -G <logfile>'
<logfile> is the name (relative path name) you specify for the log file. All important activities,
such as starting the connection and runtime operations, are logged in this file:
Connection from (client name/address)
Connection to (partner name/address)
Partner service
Start time
End time
Connection requests rejected after checking the route permission table.
You can restrict the size of the log file in Option -J<size in bytes>.
If the SAProuter can no longer write to the log file, because for instance the hard drive is
full, for security reasons it switches to soft shutdown mode (it does not accept any new
connections, see Option -p (Soft Shutdown)).
If this option is not used, a log file is not created.
(C) SAP AG
HELPX.BCCSTNI
67
Example
In section Logging im SAProuter you can find an example of a log file.
Option -J<size in bytes>
This option enables you to restrict the size of the log file and archive the resulting files.
If you do not use this option, the log file can become as large as is necessary.
Prerequisites
You are using a log file (see Option -G<logfile>).
Features
If you use this option, once the log file reaches the defined size, it is renamed to
<logfile name>_a_<start date>_<start time>-<end date>_<end time>.
Option -T<tracefile>
A trace file is used to search for and correct errors. It logs what SAProuter does (the higher the
trace level, the more detailed is the information). From this, you can see in which function an error
occurred, why a connection was not established, etc.
When you start SAProuter, you can specify a trace file:
UNIX/Windows: saprouter -r -T <tracefile>
IBM i saprouter '-r -T <tracefile>'
There is always a trace file. If the option is not used, the trace file dev_rout is used. It resides in
the working directory of the SAProuter.
More Information
Option -V<tracelev>
Option -V<tracelev>
This option is used to set the trace level when SAProuter is started.
UNIX/Windows: saprouter -r -V3
(C) SAP AG
HELPX.BCCSTNI
68
IBM i saprouter '-r -V3'
for example, starts SAProuter with trace level 3.
The trace level specifies how detailed the information should be in the trace file: 1 means hardly
any information, 3 very detailed information. The name of the trace file can be set with option T<tracefile> .
You can change the trace level while SAProuter is running with option -t (toggle trace).
Possible values are 1, 2, and 3. The default value is 1.
Option -E
This option is used to prevent old trace files and log files from being overwritten when the
SAProuter is restarted.
If you start the SAProuter with option -E (saprouter -r -E), the SAProuter updates all existing
log and trace files.
Option -S <service>
The option -S <service> is used to specify the service (port) on which SAProuter runs (default
3299). SAProuter can, for example, be started on any other service:
saprouter -r-S 4444 (IBM i: saprouter '-r -S 4444') starts SAProuter on the
local host on service 4444.
If you then want to administer this SAProuter, the service obviously has to be specified.
Option -C <clients>
You can use this function to set the maximum number of clients. The default setting is 800, the
maximum value is 2039.
Note that two clients correspond to one connection; that is max 400 connections are
preset and max. 1019 connections are possible.
If you want to run 1000 connections with your SAProuter, start SAProuter as follows:
(C) SAP AG
HELPX.BCCSTNI
69
UNIX/Windows: saprouter -r -C 2000
IBM i saprouter '-r -C 2000'
If you would like to have more connections than the maximum (1019), you can "move" SAProuter
to another port with option -p and start a new SAProuter on this port.
These limitations are obviously only valid if smaller values for the number of connections
have not been set in the operating system. Therefore you must take the operating system
parameters into consideration.
As of SAProuter version 37 significant higher values are possible, up to 16000 (with the
exception of IBM i). But make sure that only one thread process is involved. For this
reason having more than about 1000/1500 clients is not at all practical. With many
connections you can work better with Option -Y <n>, which distributes the connections
across several processes.
Option -D
With this option you can set the IP addresses so that they are not broken up by incoming
connections in the SAProuter.
This can result in better performance for SAProuters, with which connections from many different
clients are established. However, if this option is used, only the IP addresses are visible in the log
(client-side).
(C) SAP AG
HELPX.BCCSTNI
70
Option -6 (enable IPv6)
With this option you can activate the Internet Protocol version 6 (IPv6) for the SAProuter. The
SAProuter can then open and manage both IPv4 and IPv6 connections.
Prerequisites
You have at least SAProuter version 38.0.
The section Installing SAProuter describes where you can find the latest SAProuter.
Option -Z
With this option you can specify that any errors occurring while opening the connection are not
reported in detail to the client. The same error text is then always returned to the caller regardless
of the error (connection could not be opened, route is not permitted, host name could not be
resolved, and so on).
The client receives the following error text that the connection could not be established:
1.
********************************************************
**************
2.
*
LOCATION
SAProuter
3.
*
ERROR
route could not be established
4.
*
5.
*
TIME
Tue Sep
6.
*
RELEASE
0
7.
*
COMPONENT
NI (network interface)
8.
*
RC
-92
9.
5 15:38:57 2006
********************************************************
**************
nd of the source code.
Prerequisites
You have at least SAProuter version 38.0.
The section Installing SAProuter describes where you can find the latest SAProuter.
Option -I <address>
(C) SAP AG
HELPX.BCCSTNI
71
If a computer has several network interfaces, you can use this option to determine which interface
is used to establish external connections. For example, this can be useful for firewalls between
two networks. In this way you can specify that the connection is established in one specific
network only.
The specified address must be a local interface.
Option -Y <n>
You can use this function to force the SAProuter to automatically start a new SAProuter if the
client table is full when the SAProuter is started. This allows you to circumvent the limit of 1000
clients.
saprouter -r -Y <n>
The numner n specifies the maximum number of times a new SAProuter can be started.
Value
of n
Meaning
0
A new SAProuter is started every time the client table becomes full.
1
SAProuter never starts automatically.
n > 1
SAProuter is started a maximum of n times when the client table becomes full. You
can use this value to control the amount of SAProuter restarts.
Integration
If you use Option -l / -L to display information on the running SAProuter, you are given information
about whether the SAProuter was started, and if so, which SAProuter process started the
SAProuter.
Prerequisites
You have not yet started the SAProuter. You cannot send this option to a running SAProuter. You
can only specify if before the SAProuter starts.
Example
If you want to run a high number of connections via the SAProuter (more than 1000), you can use
the following option to start the SAProuter:
saprouter -r -Y 0 -C 2000
If this option is set, a new SAProuter is automatically started if the client table becomes full. New
connections then use this new SAProuter.
Option -H <host name> [-P <password>]
(C) SAP AG
HELPX.BCCSTNI
72
With this option you can specify the host name and password. The option can be specified when
the SAProuter is started, or sent to a running SAProuter. The two procedures are described
below.
At Startup
You can define the option when you start SAProuter:
saprouter -r -H <host name> (IBM i: saprouter '-r -H <host name>).
This caues SAProuter to "listen" to the IP address of host <hostname>.
If nothing else is defined with option -S, SAProuter uses the default port 3299. If
SAProuter is started without option -H, it listens to all the IP addresses belonging to this
host. <hostname> can also be an IP address.
Host myhost has two IP addresses: a1 and a2.
Call saprouter -r (IBM i: saprouter '-r') causes SAProuter to listen to
a1/3299 and a2/3299. The call to saprouter -r -H a2 (IBM i: saprouter
'-r -H a2') causes SAProuter to listen only to a2/3299.
If you started SAProuter with option -H <host name>, of course you also have
to define the host name for administration. For example, if you want to use a new
route permission table, you must enter saprouter -n -H <host name> (IBM
i: saprouter '-n -H <host name>').
When SAProuter is Running
You can use this option in a running SAProuter to get SAProuter information (displayed
with option -l / -L) from a remote host. A password may be required, which is then
entered with option -P <password> (IBM i: Option '-P <password>'). SAProuter
then checks its route permission table to determine whether the route is allowed with this
password, and if it is, it displays the information.
SAProuter is running on host_sr, port 3299 (default). You would like to display
the SAProuter information (list of all SAProuter clients, for example) from the host
myhost.
Enter command saprouter -l -H host_sr -P pass (IBM i: saprouter
'-l -H host_sr -P pass ').
SAProuter checks whether its route permission table contains the entry
P myhost host_sr 3299 pass
Do_Destroy. If it does, the SAProuter information is displayed on your host
myhost.
(C) SAP AG
HELPX.BCCSTNI
73
Integration
If the SAProuter is running on a port other than the default port 3299, you can specify this in the
command line with option -S <service>.
Option -M <min> <max>
With this option you can specify a range of ports for outgoing connections, which will increase
security. For example, command saprouter -r -M 1.1023 only allows outgoing connections
from ports 1 to 1023 (reserved for root under UNIX).
More Information
What is SAProuter?
NI and SAProuter Implementation
The following documentation gives a detailed technical description of the implementation of the
SAP Network Interface (NI) and SAProuter.
This is supplementary information and not a customer interface. Do not create custom
developments based on this information. The interface is subject to change without
notice.
SAProuter is an SAP program that acts as an intermediate station (proxy) in a network
connection between SAP Systems, or between SAP Systems and external networks. SAProuter
controls the access to your network (application level gateway), and, as such, is a useful
enhancement to an existing firewall system (port filter).
This documentation covers the following topics:
Communication Modes
Route Connects
Route Strings
Buffered Connection Handles
Select Sets
SNC - Secure Network Communication
NI Keepalive
NI Error Information
NI Control Messages
(C) SAP AG
HELPX.BCCSTNI
74
Common Settings for Sockets
More Information
What is SAProuter?
Communication Modes
The network interface supports a platform independent interface to communicate between SAP
systems. NI knows the following different operation modes:
NI_RAW_IO
NI_MESG_IO
NI_ROUTE_IO
The NI_RAW_IO mode is used to communicate between SAP applications without any further
interpretation of the data blocks.
The NI_MSG_IO mode is the common used operation mode between SAP applications. The
format is also called the SAP Protocol. A 4-byte header precedes each data block. These 4 bytes
give the length of the data block (length without leading 4 bytes). This value is needed to
recognize a complete data block, if underlying layers fragment it.
In addition this operation mode knows three special messages. They are recognized by a leading
byte-string 'NI_PING\0', 'NI_PONG\0' or 'NI_RTERR\0'. The first two are used for keepalive tests,
the third one for error messages (see NI Keepalive, NI Error Information and NI Control
Messages).
Only the SAProuter uses the NI_ROUTE_IO mode. This mode is similar to the NI_MSG_IO
mode, but keepalive messages are ignored. This is necessary for the keepalive test passing the
SAProuter.
Route Connects
If the connection should be established over SAProuters, the route information is sent as the first
message. The information includes:
Eye catcher
Route information version
NI version
Operation mode
Route length
Total number of nodes on the route
(C) SAP AG
HELPX.BCCSTNI
75
Pointer to the next hop on the route
Number of remaining nodes
Route string
The field for the route string contains the whole route, inclusive all previous nodes. For each
node, the hostname, service/port and the password is included, separated by null characters. The
values for the service/port and the password field may be empty strings. As default port number
the value 3299 is used.
In the connect phase, the NI layer converts the route string from the input format (see Route
Strings) into this internal format.
The data structure for the message is as follows:
Offs
et
Size
(bytes)
Description and Value
0x00
9
eye catcher ("NI_ROUTE\0")
0x09
1
route information version (current version: 2)
0x0a
1
NI version (current version: 36)
0x0b
1
total number of entries (value 2 to 255)
0x0c
1
talk mode (NI_MSG_IO: 0; NI_RAW_IO; 1; NI_ROUT_IO: 2), see
Communication Modes.
0x0d
2
currently unused field
0x0f
1
number of rest nodes (remaining hops; value 2 to 255)
0x10
4
route length (integer value in net byte order)
0x14
4
current position as an offset into the route string (integer value in net byte
order)
0x18
*
route string in ASCII
This is supplementary information and not a customer interface. Do not create custom
developments based on this information. The interface is subject to change without
notice.
Route String Format
The internal format of the route string looks like following (ASCII characters):
1.
<hostname node 1>\0<port node 1>\0<password node
1>\0<hostname node 2>\0 ...
where \0 means the null character.
(C) SAP AG
HELPX.BCCSTNI
76
Example of a remote connection
localhost\03300\0test\0sapserv3.wdf.sapag.de\0\0\0147.204.100.35\0sapdp01\0\0
with
node 1: hostname = localhost; port = 3300; password = test
node 2: hostname = sapserv3.wdf.sap-ag.de; port = 3299 (def.); password
=
node 3: host address = 147.204.100.35; service name = sapdp01; password
=
After a SAProuter has received the route information, the next destination is extracted from the
string. If the connect to the next destination is successful, the same route information is passed
with an incremented current position and decremented number of remaining nodes.
The own hostname in the string is replaced by the address / hostname of the previous node. This
mechanism allows following SAProuters still to extract the whole route. In addition, newer
SAProuter will add a leading blank to the hostname.
Buffered Connection Handles
To hide fragmentation of messages from the application, NI supports buffered connections, which
provide the assembly of the fragments. In NI_MESG_IO and NI_ROUTE_IO the data block length
is given, which is necessary for buffering the incoming data until the block is completed.
NI_RAW_IO does not support buffering.
For an incoming data block, the data buffer is created after the first received packet (particularly
after receiving the whole data block header; 4 bytes). To prevent running out of memory, a limit
for the maximal message length can be set.
More Information
Communication Modes
Select Sets
A select set is a wrapper around a select or poll implementation. The advantages are, that the
user does not have to care about the final implementation (select or poll) and the set stores the
status. If events for buffered handles are received, the implementation processes it silently and
notifies the user only if a whole data block has arrived or the connection is writable again.
Keepalive as well as control messages, packed in error info blocks, can be processed hidden.
Most applications, e.g. dispatcher or SAProuter, use these select sets.
(C) SAP AG
HELPX.BCCSTNI
77
NI Keepalive
In NI a keepalive mechanism is implemented, to check connections between applications. That
includes 2 messages, a request and response.
The request message contains 8 data bytes, headed by the data length, a 4-byte integer. The
data corresponds the ASCII String "NI_PING\0". If the receiver mode is NI_MSG_IO, this packet
will be detected as a keepalive request. The receiver is going to reply with the response packet.
This response is as long as the request and contains the ASCII sting "NI_PONG\0". The
keepalive initiator notes the test as successful, if he receives the response within a specified time
interval.
NI Error Information
If an error occurs or is detected by a node between the client and final destination, an error info
packet is sent to the client. A 9-byte eye catcher characterizes this error information; the data is
basically an ASCII string.
The data structure is formatted as follows:
Offset
Size
Description and Value
0x00
9
eye catcher ("NI_RTERR\0")
0x09
1
NI version (current version: 36)
0x0a
1
operation code (error information: 0; other messages > 0)
0x0b
1
currently unused filed
0x0c
4
return code (integer value in net byte order)
0x10
4
error information text length (integer value in net byte order)
0x04
*
error information text in ASCII
A user will be notified by the client (e.g. SAP GUI) that an error occurred, the SAProuter just
forwards the packet.
NI Control Messages
Control messages are used for handshakes and other communication, located in the NI layer.
These messages are based on the same structure as the NI Error Information. None zero
operation code indicates a message. The following control messages are known in NI version 36:
(C) SAP AG
HELPX.BCCSTNI
78
NI control messages
NI version request
NI version response
NI send handle (4 messages)
SNC control messages:
SNC request from client side
SNC request from server side
SNC handshake completed
Common Settings for Sockets
The sockets created by NI have set several socket settings differently from the operating system
defaults.
Following setting will be set:
Non-blocking mode
Disable Nagle algorithm for client sockets (TCP no delay)
Allow reuse of address
No keepalive
Not remain open across exec (close on exec flag)
In addition on some platforms receive and send buffer size is redefined as well.
SAProuter Route Permission
The SAProuter works with a Route Permission Table, which is used to authorize route
connection. Following properties are essential for the route-check:
Source IP address
Destination IP address
Destination port
Number of previous SAProuter hops
Number of remaining SAProuter hops
(C) SAP AG
HELPX.BCCSTNI
79
The route permission file is loaded in an internal table during the SAProuter startup. The
permission is checked for each accepted connection after receiving the route data. Administrative
requests are rejected, if they are not from the local host. Info requests need to be authorized by
the route table, too.
The permission check works with a first-match-lookup of the route data received against the route
table. For a successful lookup source address, destination address and port are required to
match.
The number of previous and post hops are conditions for the permission, but not
essential for the match.
The internal table, in which the route table is mapped, has the following fields:
Type (permitted or denied)
SNC (secure network communication required or not)
Native (native protocols permitted or not)
Previous hops (maximum number of previous hops / SAProuters)
Post hops (maximum number of following hops / SAProuters)
Source address
Source address mask
Destination address
Destination address mask
All destination ports (no port specified)
Destination port min
Destination port max
Password (required password for building up the route)
SNC name
The address masks are set, if a subnet is given in the route file. You find details about the route
table in section Route Permission Table. Mapping examples of file entries into the internal table
are given in Route Table Examples.
Route Table Examples
In this part, few examples are given, how the entries in the route permission file are mapped into
the internal table.
(C) SAP AG
HELPX.BCCSTNI
80
Table Fields
Field
Meaning
Possible Values
t
type
P = permitted; D = denied; T = SNC target
s
SNC
X = secure network communication required
n
native
X = native protocols permitted
shs
previous SAProuter hops
number
dsh
post SAProuter hops
number
s-add
source address
s-msk
source address mask
d-add
destination address
d-msk
destination address mask
a
all destination ports
X = no port specified
d-p-l
destination port min (low)
16-bit integer
d-p-m
destination port max (high)
16-bit integer
pwd
password
string
snc-n
SNC name
string
Example mapping route table file into internal route table
The route table file
D 10.1.0.0 * *
P0,* 10.1.*.* * *
S*,0 * 10.2.00001xxx.* *
P*,1 * 10.2.*.* *
P 10.3.0.0 10.4.*.* 7
P 10.3.0.1 10.4.0.1 * test
P 10.3.0.2 localhost *
P 10.3.0.3 localhost * info
S 10.3.0.4
KT "p:CN=s0" 10.5.0.0 *
KD "p:CN=s1" 10.5.0.1 *
KP "p:CN=s1" * *
(C) SAP AG
HELPX.BCCSTNI
81
KS * 10.5.0.* *
D * * *
is mapped into the following internal route table:
s
t s n h
s
d
s
h
sadd
s-msk
d-add
d-msk
D
~
~ ~
~
~
~
~
a.1.
0.0
00.00.
00.00
0.0.
0.0
ff.ff.
ff.ff
P
X 0
2
5
5
a.1.
0.0
00.00.
ff.ff
0.0.
0.0
P
2
5
5
0
0.0.
0.0
ff.ff.
ff.ff
P
2
X 5
5
1
0.0.
0.0
P
2
X 5
5
2
5
5
P
2
X 5
5
P
a d-p-l
d-ph
p
w
d
sncn
E
nt
ry
X
~~~~
~~~
~~~~
~~~
*
~~~~
~~~
a
ff.ff.
ff.ff
X
~~~~
~~~
~~~~
~~~
*
~~~~
~~~
b
a.2.
8.0
00.00.
07.ff
X
~~~~
~~~
~~~~
~~~
*
~~~~
~~~
c
ff.ff.
ff.ff
a.2.
0.0
00.00.
ff.ff
X
~~~~
~~~
~~~~
~~~
*
~~~~
~~~
d
a.3.
0.0
00.00.
00.00
a.4.
0.0
00.00.
ff.ff
7
7
*
~~~~
~~~
e
2
5
5
a.3.
0.1
00.00.
00.00
a.4.
0.1
00.00.
00.00
X
~~~~
~~~
~~~~
~~~
te
st
~~~~
~~~
f
2
X 5
5
2
5
5
a.3.
0.2
00.00.
00.00
7f.0
.0.1
00.00.
00.00
X
~~~~
~~~
~~~~
~~~
*
~~~~
~~~
g
P
2
X 5
5
2
5
5
a.3.
0.3
00.00.
00.00
7f.0
.0.1
00.00.
00.00
X
~~~~
~~~
~~~~
~~~
in
fo
~~~~
~~~
h
P
2
5
5
2
5
5
a.3.
0.4
00.00.
00.00
0.0.
0.0
ff.ff.
ff.ff
X
~~~~
~~~
~~~~
~~~
*
~~~~
~~~
i
2
T X ~ 5
5
2
5
5
0.0.
0.0
ff.ff.
ff.ff
a.5.
0.0
00.00.
00.00
X
~~~~
~~~
~~~~
~~~
*
p:CN
=s0
j
~
D X ~ ~
~
~
~
~
0.0.
0.0
ff.ff.
ff.ff
a.5.
0.1
00.00.
00.00
X
~~~~
~~~
~~~~
~~~
*
p:CN
=s1
k
2
P X X 5
5
2
5
5
0.0.
0.0
ff.ff.
ff.ff
0.0.
0.0
ff.ff.
ff.ff
X
~~~~
~~~
~~~~
~~~
*
p:CN
=s1
l
(C) SAP AG
HELPX.BCCSTNI
82
s
t s n h
s
d
s
h
sadd
s-msk
d-add
d-msk
2
5
5
2
5
5
0.0.
0.0
ff.ff.
ff.ff
a.5.
0.0
00.00.
00.ff
~
~ ~
~
~
~
~
0.0.
0.0
ff.ff.
ff.ff
0.0.
0.0
ff.ff.
ff.ff
P X
D
a d-p-l
d-ph
p
w
d
sncn
E
nt
ry
X
~~~~
~~~
~~~~
~~~
*
*
m
X
~~~~
~~~
~~~~
~~~
*
~~~~
~~~
n
The entry '~' will specify a filed as not initialized respectively unused.
Permission example with permission table above
Permission example with permission table above
The current SAProuter is running on the host "this" on port 3299. A '*' indicates a parameter
without effect.
For a match, one of the following conditions for the destination port must be complied:
1. Entry 'destination port' is valid and equal with destination port of route
2. Entry 'native' is not set and 'all destination ports' is set, i.e. no destination port specified
