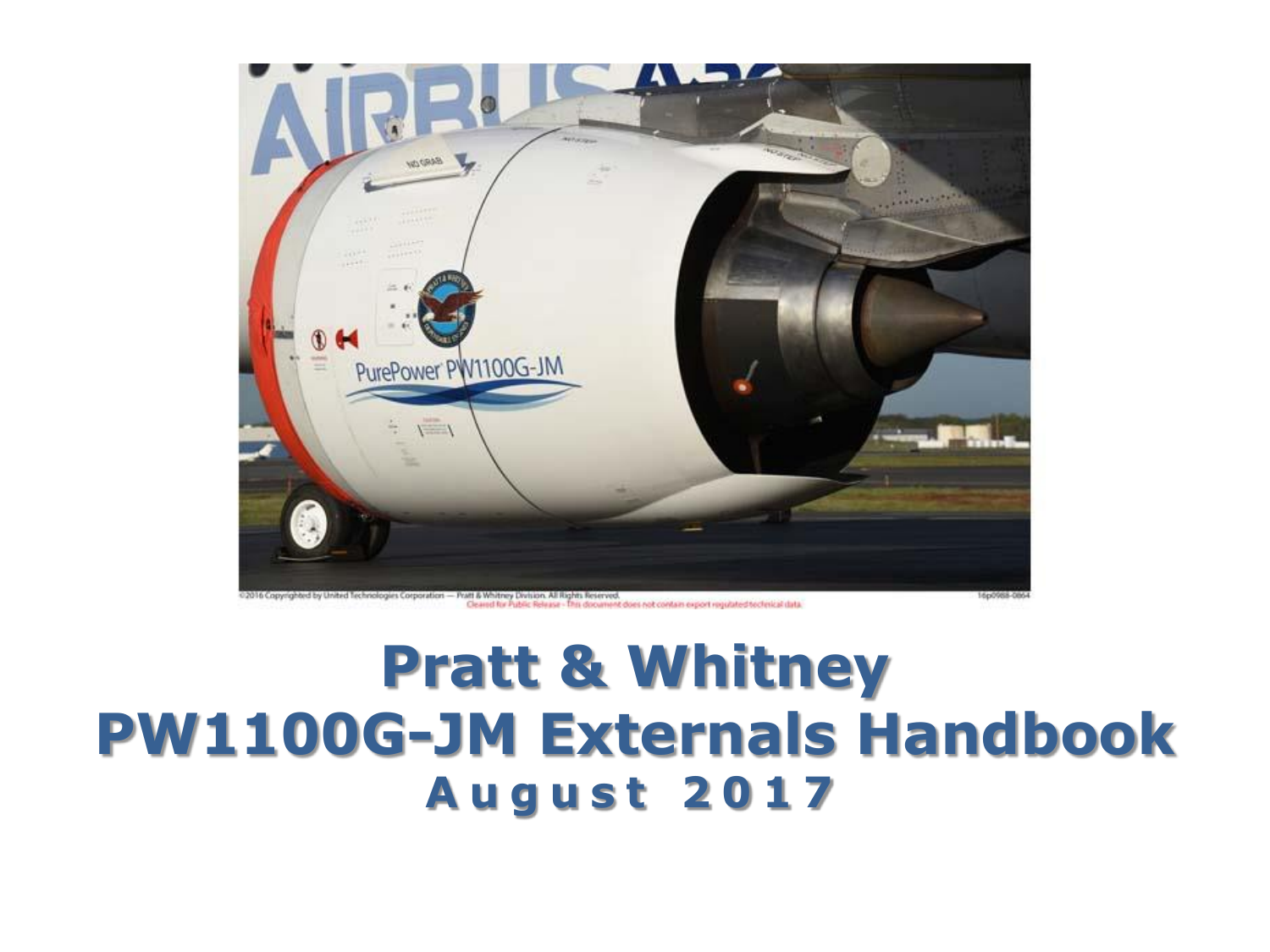

Pratt & Whitney
PW1100G-JM Externals Handbook
August 2017
Uncontrolled copy – For reference Only
The information provided in this booklet is prepared for general reference purposes only. The data contained herein shall not be
considered in any way as replacing or superseding the information contained in the PW1100G-JM Engine Maintenance Manual (EMM) or
any other regulatory approved Instructions for Continued Airworthiness (ICA) released to the operators.
-----------
UTC Proprietary Statement
This document is the property of United Technologies Corporation (UTC). You may not possess, use, copy or disclose this document or
any information in it, for any purpose, including without limitation to design, manufacture or repair parts, or obtain FAA or other
government approval to do so, without UTC’s express written permission. Neither receipt nor possession of this document alone, from
any source, constitutes such permission. Possession, use, copying or disclosure by anyone without UTC’s express written permission is
not authorized and may result in criminal and/ or civil liability.
2
INTRODUCTION
This Externals Configuration Hardware Handbook is intended to provide customers with a quick reference for the handling,
identification, routing and part repair of the PW1100G-JM engine externals which includes all air, oil, and fuel tubing, hoses, ducts
and engine harnesses.
This publication is a snapshot in time and is not intended to replace any information in the Engine Manual or Illustrated
Parts Catalog. It is recommended that personnel concerned with engine maintenance also familiarize themselves with
the appropriate Engine Manual, Illustrated Parts Catalog for the listed service bulletin and Cleaning Inspection or Repair
Manual, for the latest part number and cleaning/repair activity.
For each of the three major tube systems (Air, Oil and Fuel) an index table is provided for each sub-system.
The index table will provide the particular tube code, tube part number, description, tube diameter and Engine Manual location for
each External tube. The more complex tube sub-systems will include a tube line schematic to show the tube routing and tube label
identification. In addition, Left and Right views of the engine illustrating the tubes routing and connectivity are provided for a visual
reference. The individual tubes have been color coded in an effort to help follow the tube routing within the illustrations.
Unusual problems concerning engine maintenance should be presented to the Customer Technical Service Department either
through its field representatives or by direct contact. Assistance will be provided to resolve these problems.
Requests for pertinent information not covered by this publication, and suggestions for modifications or amplification of this
handbook to increase its usefulness, will be welcomed. Please address your comments to:
United Technologies Corporation Pratt & Whitney
Large Commercial Engines
Hank Radziwon
PW1100G-JM Customer Technical Service
400 Main Street, East Hartford, CT 06108, U.S.A.
M/S 165-41
henry.radziwon@pw.utc.com
P&W PW1100G-JM Externals Handbook | REA17CCA34 | Date: July 18, 2017
UTC Proprietary- Subject to the limitations on Page 2 | U.S. Export Classification: 9E991
3
CONTENTS
Introduction
3
Abbreviations and Terms
5
Handling and Maintenance Procedures
7
Externals Tube Inspections and Repairs
8
Air System
13
Fuel System
29
Lubrication System
43
Engine Harnesses
63
P&W PW1100G-JM Externals Handbook | REA17CCA34 | Date: July 18, 2017
UTC Proprietary- Subject to the limitations on Page 2 | U.S. Export Classification: 9E991
4
ABBREVIATIONS AND TERMS
AGB
Angle Gearbox
N1
Rotational Speed of Low Pressure Rotor
AOC
Air/Oil Cooler
PAMB
Ambient Pressure
AUTO
Automatic
PB
Burner Pressure
BAL
Balance
PMA
Permanent Magnet Alternator
CPU
Central Processing Unit
PS
Static Pressure
DEP
Data Entry Plug
PS3
High Pressure Compressor Discharge Static Pressure
DOTS
Delta Oil Temperature
PSI
Pounds Per Square Inch
EBU
Engine Buildup
PSIA
Pounds Per Square Inch Absolute
EEC
Electronic Engine Control
PSIG
Pounds Per Square Inch Gauge
EECM
Electronic Engine Control Monitor
PT
Total Pressure
EGT
Exhaust Gas Temperature (Also referred to as 114.95 or T5)
PT2
Compressor Inlet Total Pressure
ENG
Engine
PT2.5
Low Pressure Compressor Exit Total Air Pressure (Also referred to as Intercompressor Pressure)
EPR
Engine Pressure Ratio
PT4.95
Exhaust Gas Pressure (Also referred to as PT4.9 or PT5)
EPR
PT4.95/PT2
REV
Reverse
FLT
Flight
RPM
Revolutions Per Minute
FMU
Fuel Metering Unit
SC
Silicone
FOC
Fuel Oil Cooler
SOL
Solenoid Valve
FT
Feet
SOV
Shut Off Valve
GND
Ground
STG
Stage
HPC
High Pressure Compressor
SVA
Stator Vane Actuator
HPT
High Pressure Turbine
TAMB
Ambient Temperature
HX
Heat Exchanger
TAT
Total Air Temperature
IDG
Integrated Drive Generator
TBV
Thrust Balance Vent
IDGO
Integrated Drive Generator Override
TCC
Turbine Clearance Control
IDGS
Integrated Drive Generator System
T-FUEL
Fuel Temperature
IGV
Inlet Guide Vane
TOIL
Main Oil Temperature
LB
Pound
TRC
HPC Secondary Flow Control Valve
LPC
Low Pressure Compressor
TT
Total Temperature
LPT
Low Pressure Turbine
T2
Compressor Inlet Total Temperature
MGB
Main Gearbox
TT2.5
Low Pressure Compressor Exit Total Air Temperature
N
Rotational Speed in RPM or Percent
TT3
High Pressure Compressor Exit Total Air Temperature
NM
Nonmetallic
TT4.95
Exhaust Gas Total Temperature
NO
Number
TR
Thrust Reverse
TVBCA
Turbine Vane and Blade Cooling Air
VIB
Vibration
P&W PW1100G-JM Externals Handbook | REA17CCA34 | Date: July 18, 2017
UTC Proprietary- Subject to the limitations on Page 2 | U.S. Export Classification: 9E991
5
ABBREVIATIONS AND TERMS
Tube Designations
AA
Air Actuation
AC
Air Cooling
AD
Air Duct
AS
Air Sense
AP
Air Pressure
CP
Fuel Pressure
CR
Fuel Return
FM
Fuel Main Pressure
FS
Fuel Secondary
LB
Lubrication Breather
LD
Lubrication Drain
LP
Lubrication Pressure
LR
Lubrication Return
DR
Drain
P&W PW1100G-JM Externals Handbook | REA17CCA34 | Date: July 18, 2017
UTC Proprietary- Subject to the limitations on Page 2 | U.S. Export Classification: 9E991
6
HANDLING AND MAINTENANCE PROCEDURES
1. During removal of tubes or engine parts look for indications of scoring, burning or other undesirable conditions. To facilitate reinstallation, observe the
location of each part during removal. Tag unserviceable parts and units for investigation and possible repair.
2. Extreme care shall be taken to prevent dust, dirt, lockwire, nuts, washers or other foreign matter from entering the engine. It cannot be overem phasized that this precaution applies whenever work is done on the engine either on the wing or off the wing. Suitable plugs, caps, and other
coverings shall be used to protect all openings as they are exposed.
CAUTION: Dust caps used to protect open lines against contamination shall always be installed over the tube ends and not in
the tube ends. Flow through the lines may be blocked off if lines are inadvertently installed with dust caps in the
tube ends. Do not place tools, fasteners, or other small objects in the area between inner fan exit case struts. It is
possible for small objects to fall through the 2.5 bleed valve ports and into the engine interior.
3. Foreign Objects
a.
If at any time items are dropped into the engine, the assembly process must stop until the dropped articles are located, even though this
may require a considerable amount of time and labor. Before assembling or installing any part, be sure it is thoroughly clean .
b.
Objects have successfully been retrieved by use of a fiber optic scope to locate object. Tape small plastic tube about .375 i nch (9.5
mm) to 0.50 inch (12.7 mm) in diameter to side of fiber optic scope with ends of the tube and scope about flush. Tape end of tube to
end of scope so that it does not interfere with movement of scope. Tape at one other location 18 inches (457.2 mm) or so back from
end of scope. Tape plastic tube to hose of vacuum cleaner (preferably industrial type or equivalent) for suction purpose. Hol d object
for removal by suction on plastic hose.
c.
If above equipment is not available, a magnet can be used to remove objects if they are magnetic. Attach magnet to a flexible cable so it
can be maneuvered to cover a greater area. Double-sided Adhesive Tape (P05-012), can be utilized for removal of objects by wrapping
tape on end of flexible cable.
4. Safety cable lockwire, lockwashers, tablocks, keywashers (tab type or cup type), or cotter pins shall never be reused. All lockwire and cotter pins
must fit snugly in their holes. Install a cotter pin so the head fits into the castellation of the nut, and unless otherwise specified, bend one end of the
pin back over the stud or bolt and the other end down flat against the nut. Only lockwire and cotter pins per Standard Practices Manual shall be used.
5. Replace all gaskets, packings and rubber parts at every removal. Make sure that new nonmetallic parts to be installed show no sign of having
deteriorated in storage. If necessary, coat gasket surfaces with Gasket Lubricant (P06-014), to reduce the possibility of the gasket adhering to the
surfaces of mating parts.
CAUTION: Before using tools covered with protective material, make certain that there is sufficient protective material prese nt
to preclude the possibility of damaging engine parts.
6. If any parts were coated with corrosion preventive compounds, all traces of this compound and accumulated foreign matter must be removed.
NOTE: It is recommended that the Standard Practices Manual be consulted for the latest Maintenance Practices.
P&W PW1100G-JM Externals Handbook | REA17CCA34 | Date: July 18, 2017
UTC Proprietary- Subject to the limitations on Page 2 | U.S. Export Classification: 9E991
7
EXTERNAL TUBE INSPECTION AND REPAIRS
1. INSPECT (FUEL) HYDRAULIC EXTERNAL TUBES
A. PREREQUISITES
1. See CIR Manual Visual Inspection – Engine Fuel and Control System Tubes and Hoses (Task PW1000G-C-73-004900-00A-310A-C)
2. General Visual Inspection (GVI) of the Fuel Distribution System (Task PW1000G-C-73-11-00-00A-310A-D)
B. EQUIPMENT AND MATERIALS REQUIRED – NONE
C. PROCEDURE
1. Inspect tubes for nicks, chafing, scratches, and pitting.
a) Damage not greater than 0.002 inch (0.051 mm) in depth is acceptable in any locations of tube length, including
the bend area.
2.
Inspect tubes for dents.
a) No dents are permitted within 0.25 inch (6.350 mm) of ferrules.
b) Tube dents without sharp edges or concerns are acceptable provided tubing internal passage will permit free
passage of a ball having an 80 percent diameter of ID of tube. Tubes not meeting the requirements are
unacceptable.
3. Inspect tubes for corrosion (rust) and stain.
a) Corrosion (rust) and stain are acceptable if removable by lightly polishing with crocus cloth.
4. Pressure test tubes.
a) Pressure test tubes per Standard Practices Manual testing pressures.
b) If tube leaks, replace.
2. INSPECT OIL SYSTEM AND EXTERNAL TUBES
A. PREREQUISITES
1.
See CIR Manual Visual – Oil System Tubes and Hoses (Task PW1000G-C-79-00-4900-00A-310A-C)
2. Visual Inspection of the Engine Oil System (Task PW1000G-C-79-00-00-00A-310A-D)
P&W PW1100G-JM Externals Handbook | REA17CCA34 | Date: July 18, 2017
UTC Proprietary- Subject to the limitations on Page 2 | U.S. Export Classification: 9E991
8
EXTERNAL TUBE INSPECTION AND REPAIRS
B. EQUIPMENT AND MATERIALS REQUIRED - NONE.
C. PROCEDURE
1. Inspect tubes for nicks, chafing, scratches, and pitting.
a) Damage not greater than 0.003 inch (0.076 mm) depth is acceptable in any location of tube length, including the
tube bend area.
2. Inspect tube for dents.
a) No dents are permitted within 0.250 inch (6.350 mm) of ferrules.
b) Tube dents without sharp edges or corners are acceptable provided tubing internal passage will permit free
passage of a ball having an 80 percent diameter of ID of tube. Tubes not meeting the requirement are
unacceptable.
3. Inspect tubes for corrosion (rust) and stain.
a) Corrosion (rust) and stain are acceptable if removable by lightly polishing with crocus cloth.
4. Pressure test tubes.
a) (Pressure test tubes per Standard Practices Manual testing pressures.
b) If tube leaks, replace.
3. INSPECT FUEL SYSTEM EXTERNAL TUBES
A. PREREQUISITES
1. See CIR Manual Visual Inspection – Engine Fuel and Control System Tubes and Hoses (Task PW1000G-C-73-004900-00A-310A-C)
B. EQUIPMENT AND MATERIALS REQUIRED – NONE
P&W PW1100G-JM Externals Handbook | REA17CCA34 | Date: July 18, 2017
UTC Proprietary- Subject to the limitations on Page 2 | U.S. Export Classification: 9E991
9
EXTERNAL TUBE INSPECTION AND REPAIRS
C. PROCEDURE
1. Inspect tubes for nicks, chafing, scratches, and pitting.
2. Inspect tubes for nicks, chafing, scratches, and pitting.
a) No dents are permitted within 0.250 inch (6.350 mm) of ferrules.
b) Tube dents without sharp edges or corners are acceptable pro-vided tubing internal passage will permit free
passage of a ball having an 80 percent diameter of ID of tube. Tubes not meeting the requirement are
unacceptable.
3. Inspect tubes for corrosion (rust) and stain.
a) (a) Corrosion (rust) and stain are acceptable if removable by lightly polishing with crocus cloth.
4. Pressure test tubes
a) Pressure test tubes per Standard Practice Manual testing pressures.
b) If tube leaks, replace.
P&W PW1100G-JM Externals Handbook | REA17CCA34 | Date: July 18, 2017
UTC Proprietary- Subject to the limitations on Page 2 | U.S. Export Classification: 9E991
10
EXTERNAL TUBE INSPECTION AND REPAIRS
4. INSPECT AIR SYSTEM EXTERNAL TUBES
A. PREREQUISITES
1. See CIR Manual Visual Inspection – Bleed Air System Tubes and Hoses (Task PW1000G-C-75-00-4900-00A-310A-C)
2. Do a Visual Examination of the Engine Air System (Task PW1100G-C-75-00-00-00A-310A-D)
B. EQUIPMENT AND MATERIALS REQUIRED - NONE.
C. PROCEDURE
1. Inspect tubes for nicks, chafing, scratches, and pitting.
a) Damage not greater than 0.003 inch (0.076 mm) depth is acceptable in any location of tube length, including
the bend area.
2. Inspect tube for dents.
a) No dents are permitted within 0.250 inch (6.350 mm) of ferrules.
b) Tube dents without sharp edges or corners are acceptable pro-vided tubing internal passage will permit free
passage of a ball having an 80 percent diameter of ID of tube. Tubes not meeting the requirement are
unacceptable.
3. Inspect tubes for corrosion (rust) and stain.
a) Corrosion (rust) and stain are acceptable if removable by lightly polishing with crocus cloth.
4. Pressure test tubes.
a) Pressure test tubes per Standard Practices Manual testing pressures.
b) If tube leaks, replace.
P&W PW1100G-JM Externals Handbook | REA17CCA34 | Date: July 18, 2017
UTC Proprietary- Subject to the limitations on Page 2 | U.S. Export Classification: 9E991
11
This page intentionally left blank
12
Air System
P&W PW1100G-JM Externals Handbook | REA17CCA34 | Date: July 18, 2017
UTC Proprietary- Subject to the limitations on Page 2 | U.S. Export Classification: 9E991
13
Air Actuation System
Tube Code Tube Part no
AA01
AA05
AA15
AA25
AA28
AA29
AA31
AA32
5321748-01
5318063-01
5318061-01
5324272-01
5321667-01
5321742-01
5321669-01
5321668-01
Description
TUBE ASSY OF-AIR,SUPPLY,DIFFUSER CASE(AA01)
TUBE ASSY OF-AIR,SUPPLY,EJECTOR VAVLE SOLENOID(AA05)
TUBE ASSY OF-AIR,SUPPLY,EJECTOR VALVE SOLENOID(AA15)
TUBE ASSY OF-AIR,SUPPLY,BUFFER SOLENOID(AA25)
TUBE ASSY OF-AIR,SUPPLY, SOLENOID VALVE(AA28)
TUBE ASSY OF - AIR, HPC BLEED (AA29),
TUBE ASSY OF-AIR,SUPPLY, SOLENOID VALVE(AA31)
MANIFOLD ASSY OF - AIR, SUPPLY, BUFFER SOLENIOD (AA32)
IPC Location
75-26-49-07A-941A-D
75-26-49-06A-941A-D
75-26-49-06A-941A-D
75-26-49-06A-941A-D
75-26-49-07A-941A-A
75-26-49-07A-941A-A
75-26-49-07A-941A-A
75-26-49-06A-941A-D
P&W PW1100G-JM Externals Handbook | REA17CCA34 | Date: July 18, 2017
UTC Proprietary- Subject to the limitations on Page 2 | U.S. Export Classification: 9E991
Tube
Diameter
0.500 Inch
0.375 Inch
0.375 Inch
0.375 Inch
0.375 Inch
0.500 Inch
0.375 Inch
0.500 Inch
Engine Manual Location
72-00-52-09A-720A-B
72-00-30-04A-720A-B
72-00-30-04A-720A-B
72-00-30-04A-720A-B
72-00-52-09A-720A-B
72-00-54-02A-720A-B
75-32-03-00A-720A-D
72-00-30-04A-720A-B
14
Air Actuation System
AA01
P&W PW1100G-JM Externals Handbook | REA17CCA34 | Date: July 18, 2017
UTC Proprietary- Subject to the limitations on Page 2 | U.S. Export Classification: 9E991
15
Air Cooling System
Tube Code Tube Part no
Description
5313620-01
MANIFOLD
ASSY
OF
- AIR, TIC (AC11)
AC11
IPC Location
75-24-49-02A-941A-D
Tube Diameter
semicircular ring
Engine Manual Location
72-00-52-09A-720A-B
AC12
5313617-01 MANIFOLD ASSY OF- AIR, TIC (AC12)
75-24-49-02A-941A-D
semicircular ring
72-00-52-09A-720A-B
AC13
5313618-01 MANIFOLD ASSY OF- AIR, TIC (AC13)
75-24-49-02A-941A-D
semicircular ring
72-00-52-09A-720A-B
AC14
5313619-01 MANIFOLD ASSY OF- AIR, TIC (AC14)
75-24-49-02A-941A-D
semicircular ring
72-00-52-09A-720A-B
P&W PW1100G-JM Externals Handbook | REA17CCA34 | Date: July 18, 2017
UTC Proprietary- Subject to the limitations on Page 2 | U.S. Export Classification: 9E991
16
Air Cooling System
P&W PW1100G-JM Externals Handbook | REA17CCA34 | Date: July 18, 2017
UTC Proprietary- Subject to the limitations on Page 2 | U.S. Export Classification: 9E991
17
Air Duct System
Tube Code
Tube Part no
IPC Location
Description
Tube Diameter
Engine Manual Location
AD01
5321767-01 DUCT ASSY OF-FAN
79-21-11-01A-941A-D
N/A
AD02
5322330-01 DUCT ASSY OF-AIR OIL COOLER
N/A
AD03
5321691-01 DUCT ASSY OF-AIR, SUPPLY, HPT CASE
79-21-11-01A-941A-D
75-24-49-01A-941A-D
N/A
79-21-11-00A-720A-D
75-24-49-00A-720A-D
AD04
5314929-01 DUCT ASSY OF-LPT CASE
TUBE ASSY OF-AIR, DRAIN, AIR BUFFER HEAT
5318198-01 EXCHANGER(AD06)
TUBE ASSY OF- AIR COOLING, BUFFER HEAT
5317955-01 EXCHANGER(AD07)
75-24-49-01A-941A-D
N/A
75-24-49-00A-720A-D
1.500 Inch
75-26-49-00A-720A-D
AD06
AD07
AD03
75-26-49-03A-941A-D
75-26-49-04A-941A-D
2.000 Inch
AV100
79-21-11-00A-720A-D
75-26-49-00A-720A-D
AD04
AD04
Coupling Tube
EBU
P&W PW1100G-JM Externals Handbook | REA17CCA34 | Date: July 18, 2017
UTC Proprietary- Subject to the limitations on Page 2 | U.S. Export Classification: 9E991
18
Air Duct System
P&W PW1100G-JM Externals Handbook | REA17CCA34 | Date: July 18, 2017
UTC Proprietary- Subject to the limitations on Page 2 | U.S. Export Classification: 9E991
19
Air Sense System
Tube Code
Tube Part no
Description
AS01
AS11
AS33
AS34
AS41
5317760-01
5321677-01
5323610-01
5321828-01
5319066-01
TUBE ASSY OF-AIR, ELECTRONIC ENGINE CONTROL (AS01)
TUBE ASSY OF-AIR, DIFFUSER CASE (AS11)
MANIFOLD ASSY OF-PB, HPC SENSOR (AS33)
MANIFOLD ASSY OF-PB, HPC SENSOR (AS34)
TUBE ASSY OF-PB, FAN CASE(AS41)
IPC Location
73-21-49-01A-941A-D
73-21-49-01A-941A-D
75-32-49-01A-941A-D
75-32-49-02A-941A-D
75-26-49-02A-941A-D
P&W PW1100G-JM Externals Handbook | REA17CCA34 | Date: July 18, 2017
UTC Proprietary- Subject to the limitations on Page 2 | U.S. Export Classification: 9E991
Tube Diameter Engine Manual Location
0.375 Inch
0.375 Inch
0.375 Inch
0.375 Inch
0.375 Inch
72-21-00-04A-710A-B
72-00-52-09A-720A-B
72-00-30-04A-720A-B
72-00-61-03A-720A-B
72-00-30-04A-720A-B
20
Air Sense System
P&W PW1100G-JM Externals Handbook | REA17CCA34 | Date: July 18, 2017
UTC Proprietary- Subject to the limitations on Page 2 | U.S. Export Classification: 9E991
21
Air Pressure System
Tube Code
Tube Part no
AP01
5321565-01
MANIFOLD ASSY OF-AIR, HPC CASE (AP01)
Description
75-25-49-02A-941A-D
IPC Location
Tube Diameter
1.500 Inch
75-25-49-00A-720A-D
Engine Manual Location
AP02
5317897-01
TUBE ASSY OF-AIR PRESSURE, LPT CASE (AP02)
75-25-49-02A-941A-D
0.500 Inch
75-25-49-00A-720A-D
AP03
5321809-01
TUBE ASSY OF-AIR PRESSURE, HPC (AP03)
75-25-49-03A-941A-D
1.250 Inch
75-25-49-00A-720A-D
AP04
5318084-01
TUBE ASSY OF-AIR PRESSURE, LPT (AP04)
75-25-49-03A-941A-D
0.500 Inch
75-25-49-00A-720A-D
75-25-49-00A-720A-D
AP05
5322364-01
MANIFOLD ASSY OF-AIR PRESSURE, HPT CASE (AP05)
75-25-49-04A-941A-D
1.500 Inch
0.875 Inch
AP06
5317939-01
TUBE ASSY OF-AIR, LPT (AP06)
75-25-49-01A-941A-D
0.500 Inch
75-25-49-00A-720A-D
AP07
5321908-01
MANIFOLD ASSY OF-AIR, HPT CASE(AP07)
75-25-49-01A-941A-D
1.500 Inch
75-25-49-00A-720A-D
AP101,AP102
5317628-01
TUBE ASSY OF- OIL, NO. 4 BEARING, SUPPLY,
72-52-00-04A-941A-D
0.625 Inch
72-52-00-02A-710A-B
AP11
5318085-01
TUBE ASSY OF-AIR PRESSURE, DIFFUSER (AP11)
75-25-49-03A-941A-D
1.500 Inch
75-25-49-00A-720A-D
AP12
5318456-01
TUBE ASSY OF-AIR PRESSURE, DIFFUSER CASE (AP12)
75-25-49-02A-941A-D
1.500 Inch
75-25-49-00A-720A-D
AP13
5317986-01
TUBE ASSY OF-PRESSURE, DIFFUSER CASE (AP13)
75-25-49-01A-941A-D
1.500 Inch
75-25-49-00A-720A-D
5322299-01
TUBE ASSY OF-AIR PRESSURE, DIFFUSER CASE (AP14)
75-25-49-04A-941A-D
1.500 Inch
75-25-49-00A-720A-D
72-00-30-04A-720A-B
AP14
AP21
5317842-01
MANIFOLD ASSY OF-AIR PRESSURE,LPC INTERMEDIATE CASE (AP21)
75-26-49-02A-941A-D
1.2500 Inch
0.8750 Inch
AP22
5317930-01
TUBE ASSY OF-AIR PRESSURE, FAN CASE (AP22)
75-26-49-02A-941A-D
1.750 Inch
72-00-30-04A-720A-B
5317848-01
TUBE ASSY OF-AIR PRESSURE, LPC CASE (AP23)
75-26-49-02A-941A-D
1.000 Inch
72-00-30-04A-720A-B
TUBE ASSY OF - AIR, PRESSSURE, NO. 4 BEARING AIR COOLER (AP24),
75-26-49-03A-941A-D
0.875 Inch
75-26-49-00A-720A-D
MANIFOLD ASSY OF-AIR PRESSURE, FAN INTERMEDIATE CASE (AP26)
75-26-49-01A-941A-D
1.500 Inch
72-00-30-04A-720A-B
AP23
AP24
5322325-01
AP26
5324275-01
AP27
5318111-01
MANIFOLD ASSY OF-AIR PRESSURE, #4 BEARING (AP27)
75-26-49-04A-941A-D
0.750 Inch
75-26-49-00A-720A-D
AP28
5318112-01
TUBE ASSY OF-AIR PRESSURE, HEAT EXCHANGER (AP28)
75-26-49-04A-941A-D
0.625 Inch
75-26-49-00A-720A-D
5317851-01
TUBE ASSY OF-AIR PRESSURE, FAN CASE (AP29)
75-26-49-01A-941A-D
1.000 Inch
72-00-30-04A-720A-B
MANIFOLD ASSY OF-PRESSURE, FAN DRIVE GEAR SYSTEM (AP30)
75-26-49-01A-941A-D
0.7500 Inch
0.7500 Inch
72-00-30-00A-720A-B
AP29
AP30
5317856-01
AP31
5318367
DUCT - HPC CASE
75-25-49-06A-941A-D
Duct
72-35-00-20A-710A-B
AP32
5318368
DUCT - HPC CASE
75-25-49-06A-941A-D
Duct
72-35-00-20A-710A-B
AP33
5318617
DUCT - LOW PRESSURE, BUFFER AIR VALVE
75-26-03-01A-941A-D
Duct
75-26-03-00A-720A-D
AP34
5318618
DUCT ASSY OF- LOW PRESSURE BUFFER AIR VALVE(AP34)
75-26-49-02A-941A-D
Duct
72-00-30-04A-720A-B
AP43
5318033-01
TUBE ASSY OF-AIR PRESSURE, HPC CASE (AP43)
75-25-49-04A-941A-D
0.625 Inch
75-25-49-00A-720A-D
5321845-01
TUBE ASSY OF-AIR, HPC CASE (AP44)
75-25-49-01A-941A-D
0.625 Inch
75-25-49-00A-720A-D
5318252-01
TUBE ASSY OF-AIR, HPT CASE (AP46)
75-25-49-01A-941A-D
0.625 Inch
75-25-49-00A-720A-D
0.875 Inch
75-25-49-00A-720A-D
AP44
AP46
AP47
5318248-01
MANIFOLD ASSY OF - AIR, PRESSURE, HPT CASE (AP47)
75-25-49-02A-941A-D
AP48
5318249-01
TUBE ASSY OF - AIR, PRESSURE, HPT CASE (AP48)
75-25-49-02A-941A-D
0.625 Inch
75-25-49-00A-720A-D
AP49
5318251-01
MANIFOLD ASSY OF - AIR, PRESSURE, HPT CASE (AP49)
75-25-49-03A-941A-D
0.750 Inch
75-25-49-00A-720A-D
P&W PW1100G-JM Externals Handbook | REA17CCA34 | Date: July 18, 2017
UTC Proprietary- Subject to the limitations on Page 2 | U.S. Export Classification: 9E991
22
Air Pressure System
P&W PW1100G-JM Externals Handbook | REA17CCA34 | Date: July 18, 2017
UTC Proprietary- Subject to the limitations on Page 2 | U.S. Export Classification: 9E991
23
Air Pressure System
P&W PW1100G-JM Externals Handbook | REA17CCA34 | Date: July 18, 2017
UTC Proprietary- Subject to the limitations on Page 2 | U.S. Export Classification: 9E991
24
Air Pressure System
P&W PW1100G-JM Externals Handbook | REA17CCA34 | Date: July 18, 2017
UTC Proprietary- Subject to the limitations on Page 2 | U.S. Export Classification: 9E991
25
Air Pressure System
P&W PW1100G-JM Externals Handbook | REA17CCA34 | Date: July 18, 2017
UTC Proprietary- Subject to the limitations on Page 2 | U.S. Export Classification: 9E991
26
Air Pressure System
P&W PW1100G-JM Externals Handbook | REA17CCA34 | Date: July 18, 2017
UTC Proprietary- Subject to the limitations on Page 2 | U.S. Export Classification: 9E991
27
This page intentionally left blank
28
Fuel System
P&W PW1100G-JM Externals Handbook | REA17CCA34 | Date: July 18, 2017
UTC Proprietary- Subject to the limitations on Page 2 | U.S. Export Classification: 9E991
29
Fuel Hydraulic Pressure System
Tube Code
Tube Part no
CP01
5321685-01
MANIFOLD ASSY OF - FUEL, HYDRAULIC FUEL PRESSURE, LPC ACTUATOR (CP01)
Description
73-20-49-01A-941A-D
IPC Location
0.625 Inch
73-11-02-00A-720A-D
CP02
CP03
CP04
CP09
5318069-01
5318058-01
5321826-01
5318103-01
TUBE ASSY OF-FUEL HYDRAULIC PRESSURE, STATOR VANE ACTUATOR (CP02)
TUBE ASSY OF-FUEL, HYDRAULIC FUEL RETURN, HPC STATOR VANE ACTUATOR (CP03)
MANIFOLD ASSY OF-FUEL, HYDRAULIC FUEL PRESSURE, HPC ACTUATOR (CP04),
TUBE ASSY OF-FUEL, HYDRAULIC FUEL PRESS,FUEL OIL COOLER (CP09)
73-20-49-04A-941A-D
73-20-49-02A-941A-D
73-20-49-01A-941A-D
73-20-49-01A-941A-D
0.375
0.375
0.625
0.375
Inch
Inch
Inch
Inch
72-00-30-04A-720A-B
73-11-02-00A-720A-D
72-00-21-05A-720A-B
72-00-61-03A-720A-B
CP15
5318091-01
TUBE ASSY OF-HYDRAULIC FUEL PRESS,STATOR VANE ACTUATOR (CP15)
73-20-49-02A-941A-D
0.375 Inch
72-00-30-04A-720A-B
CP16
5318093-01
TUBE ASSY OF-FUEL, HYDRAULIC FUEL PRESS,STATOR VANE ACTUATOR (CP16)
73-20-49-02A-941A-D
0.375 Inch
72-00-30-04A-720A-B
CP17
5318199-01
TUBE ASSY OF-FUEL, HYDRAULIC PRESSURE, HPC (CP17)
73-20-49-03A-941A-D
0.375 Inch
72-00-30-04A-720A-B
CP18
5318072-01
TUBE ASSY OF-FUEL, HYDRAULIC PRESSURE, HPC PRIM ACTUATOR (CP18),
73-20-49-03A-941A-D
0.375 Inch
72-00-30-04A-720A-B
CP25
5324310-01
TUBE - HYDRAULIC FUEL PRESSURE, BLEED VALVE (CP25), ASSEMBLY OF
73-20-49-01A-941A-D
0.500 Inch
72-00-50-03A-720A-B
CP26
5324311-01
TUBE - HYDRAULIC FUEL PRESSURE, BLEED VALVE (CP26), ASSEMBLY OF
73-20-49-01A-941A-D
0.500 Inch
72-00-50-03A-720A-B
P&W PW1100G-JM Externals Handbook | REA17CCA34 | Date: July 18, 2017
UTC Proprietary- Subject to the limitations on Page 2 | U.S. Export Classification: 9E991
Tube Diameter
Engine Manual Location
30
Fuel Hydraulic Pressure System
CP04
P&W PW1100G-JM Externals Handbook | REA17CCA34 | Date: July 18, 2017
UTC Proprietary- Subject to the limitations on Page 2 | U.S. Export Classification: 9E991
31
Fuel Hydraulic Pressure System
P&W PW1100G-JM Externals Handbook | REA17CCA34 | Date: July 18, 2017
UTC Proprietary- Subject to the limitations on Page 2 | U.S. Export Classification: 9E991
32
Fuel Hydraulic Return System
Tube Code
Tube Part no
CR01
5321687-01
MANIFOLD ASSY OF-FUEL, HYDRAULIC FUEL RETURN, LPC ACTUATOR (CR01)
Description
73-20-49-01A-941A-D
IPC Location
0.750 Inch
73-11-02-00A-720A-D
CR02
5318068-01
MANIFOLD ASSY OF-HYDRAULIC FUEL RETURN,LPC BLEED ACTUATOR (CR02)
73-20-49-04A-941A-D
0.5 Inch
72-00-30-03A-720A-B
CR03
5318055-01
TUBE ASSY OF-HYDRAULIC FUEL RETURN,FUEL PUMP (CR03)
73-20-49-02A-941A-D
0.5 Inch
73-11-02-00A-720A-D
CR04
5318094-01
MANIFOLD ASSY OF-FUEL, HYDRAULIC FUEL RETURN, FUEL MANIFOLD (CR04)
73-20-49-01A-941A-D
0.75 Inch
72-00-21-05A-720A-B
CR13
5318089-01
TUBE ASSY OF-FUEL, HYDRAULIC RETURN, FUEL MANIFOLD (CR13)
73-20-49-03A-941A-D
0.375 Inch
72-00-30-04A-720A-B
CR14
5321822-01
TUBE ASSY OF - FUEL, HYDRAULIC RETURN, HPC ACTUATOR (CR14)
73-20-49-03A-941A-D
0.375 Inch
72-00-30-04A-720A-B
CR15
5318095-01
TUBE ASSY OF-FUEL, HYDRAULIC FUEL RETURN, STATOR VANE ACTUATOR (CR15)
73-20-49-02A-941A-D
0.375 Inch
72-00-30-04A-720A-B
CR16
5318096-01
TUBE ASSY OF-FUEL, HYDRAULIC FUEL RETURN, STATOR VANE ACTUATOR (CR16)
73-20-49-02A-941A-D
0.375 Inch
72-00-30-04A-720A-B
CR17
5318200-01
TUBE ASSY OF-FUEL, HYDRAULIC RETURN, HPC (CR17)
73-20-49-03A-941A-D
0.375 Inch
72-00-54-02A-720A-B
CR18
5318147-01
TUBE ASSY OF-FUEL, HYDRAULIC RETURN,HPC STATOR VANE ACTUATOR (CR18)
73-20-49-03A-941A-D
0.375 Inch
72-00-30-04A-720A-B
CR25
5324314-01
TUBE -HYD FUEL RETURN,FUEL OIL COOLER
73-20-49-01A-941A-D
0.375 Inch
73-11-09-00A-720A-B
CR26
5324313-01
TUBE -HYD FUEL RETURN,FUEL OIL COOLER
73-20-49-01A-941A-D
0.375 Inch
73-11-09-00A-720A-B
P&W PW1100G-JM Externals Handbook | REA17CCA34 | Date: July 18, 2017
UTC Proprietary- Subject to the limitations on Page 2 | U.S. Export Classification: 9E991
Tube Diameter
Engine Manual Location
33
Fuel Hydraulic Return System
CR01
P&W PW1100G-JM Externals Handbook | REA17CCA34 | Date: July 18, 2017
UTC Proprietary- Subject to the limitations on Page 2 | U.S. Export Classification: 9E991
34
Fuel Hydraulic Return System
P&W PW1100G-JM Externals Handbook | REA17CCA34 | Date: July 18, 2017
UTC Proprietary- Subject to the limitations on Page 2 | U.S. Export Classification: 9E991
35
Fuel Main Pressure
Tube Code
Tube Part no
FM01
5319498-01
Description
TUBE ASSY OF-FUEL,SUPPLY,FUEL MANIFOLD (FM01)
73-11-53-01A-941A-D
IPC Location
FM02
5318108-01
MANIFOLD ASSY OF-FUEL, SUPPLY, FUEL MANIFOLD(FM02)
73-11-53-01A-941A-D
P&W PW1100G-JM Externals Handbook | REA17CCA34 | Date: July 18, 2017
UTC Proprietary- Subject to the limitations on Page 2 | U.S. Export Classification: 9E991
Tube Diameter
Engine Manual Location
0.750 Inch
73-11-02-00A-720A-D
0.750 Inch
73-31-21-00A-720A-D
36
Fuel Main Pressure
P&W PW1100G-JM Externals Handbook | REA17CCA34 | Date: July 18, 2017
UTC Proprietary- Subject to the limitations on Page 2 | U.S. Export Classification: 9E991
37
Fuel Supply System
Tube Code Tube Part no
FS01
FS02
FS31
FS32
FS39
FS41
FS42
FS43
FS33
FS34
FS35
FS36
FS37
FS38
FS44
FS45
FS46
FS47
FS48
FS49
FS51
FS52
FS53
FS54
FS55
FS56
FS57
FS58
FS59
FS61
FS62
FS63
Description
IPC Location
Tube Diameter Engine Manual Location
5318081-01 MANIFOLD ASSY OF-FUEL, SUPPLY, DIFFUSER CASE(FS01)
5318082-01 MANIFOLD ASSY OF-FUEL, SUPPLY, DIFFUSER CASE (FS02)
73-11-53-02A-941A-D
73-11-53-02A-941A-D
0.500 Inch
0.500 Inch
72-00-42-02A-720A-B
72-00-42-02A-720A-B
5318432-01 TUBE ASSY OF-FUEL,SUPPLY,PRIMARY NOZZLE(FS31)
73-11-49-04A-941A-D
73-11-49-01A-941A-D
0.250 Inch
73-11-49-00A-720A-D
5318543-01 TUBE ASSY OF-FUEL,SUPPLY,FLOW DIVIDER VALVE(FS33)
73-11-49-02A-941A-D
0.250 Inch
73-11-49-00A-720A-D
5318554-01 TUBE ASSY OF-FUEL,SUPPLY,FLOW DIVIDER VALVE(FS37)
5318553-01 TUBE ASSY OF-FUEL,SUPPLY,FLOW DIVIDER VALVE(FS38)
73-11-49-03A-941A-D
0.250 Inch
0.250 Inch
73-11-49-00A-720A-D
73-11-49-00A-720A-D
0.250 Inch
73-11-49-00A-720A-D
0.250 Inch
73-11-49-00A-720A-D
5318435-01 TUBE ASSY OF-FUEL,SUPPLY,SECONDARY NOZZLE(FS46)
73-11-49-04A-941A-D
73-11-49-01A-941A-D
73-11-49-01A-941A-D
5318552-01 TUBE ASSY OF-FUEL,SUPPLY,FLOW DIVIDER VALVE(FS47)
73-11-49-01A-941A-D
0.250 Inch
73-11-49-00A-720A-D
5318492-01 TUBE ASSY OF-FUEL,SUPPLY,SECONDARY NOZZLE(FS49)
73-11-49-02A-941A-D
0.250 Inch
73-11-49-00A-720A-D
5318551-01
5318549-01
5318548-01
5318459-01
5318458-01
73-11-49-03A-941A-D
73-11-49-03A-941A-D
73-11-49-03A-941A-D
73-11-49-03A-941A-D
73-11-49-04A-941A-D
0.250 Inch
0.250 Inch
0.250 Inch
0.250 Inch
0.250 Inch
73-11-49-00A-720A-D
73-11-49-00A-720A-D
73-11-49-00A-720A-D
73-11-49-00A-720A-D
73-11-49-00A-720A-D
5318433-01 TUBE - FUEL, SUPPLY, FLOW DIVIDER VALVE (FS44), ASSEMBLY OF 73-11-49-04A-941A-D
0.250 Inch
73-11-49-00A-720A-D
5318433-01 TUBE ASSY OF-FUEL,SUPPLY,FLOW DIVIDER VALVE(FS44)
TUBE ASSY OF-FUEL,SUPPLY,FLOW DIVIDER VALVE(FS54)
TUBE ASSY OF-FUEL,SUPPLY,FLOW DIVIDER VALVE(FS55)
TUBE ASSY OF-FUEL,SUPPLY,FLOW DIVIDER VALVE(FS56)
TUBE ASSY OF-FUEL,SUPPLY,SECONDARY NOZZLE(FS57)
TUBE ASSY OF-FUEL,SUPPLY,SECONDARY NOZZLE(FS58)
P&W PW1100G-JM Externals Handbook | REA17CCA34 | Date: July 18, 2017
UTC Proprietary- Subject to the limitations on Page 2 | U.S. Export Classification: 9E991
38
Fuel Supply System
P&W PW1100G-JM Externals Handbook | REA17CCA34 | Date: July 18, 2017
UTC Proprietary- Subject to the limitations on Page 2 | U.S. Export Classification: 9E991
39
Fuel Supply System
A
B
P&W PW1100G-JM Externals Handbook | REA17CCA34 | Date: July 18, 2017
UTC Proprietary- Subject to the limitations on Page 2 | U.S. Export Classification: 9E991
40
Fuel Supply System
A - Top View
B - Bottom View
P&W PW1100G-JM Externals Handbook | REA17CCA34 | Date: July 18, 2017
UTC Proprietary- Subject to the limitations on Page 2 | U.S. Export Classification: 9E991
41
This page intentionally left blank
42
Lubrication System
P&W PW1100G-JM Externals Handbook | REA17CCA34 | Date: July 18, 2017
UTC Proprietary- Subject to the limitations on Page 2 | U.S. Export Classification: 9E991
43
Lubrication Breather System
Tube Code Tube Part no
LB01
5319469-01
LB02
5319437-01
LB03
5317767-01
LB30
5325266-01
LB35
5318004-01
LB60
5318038-01
LB64
5322346-01
LB65
5322347-01
Description
TUBE - BREATHER, MAIN GEARBOX (LB01), ASSEMBLY OF
MANIFOLD ASSY OF -BREATHER,MAIN GEARBOX(LB02)
TUBE ASSY OF-BREATHER,OIL TANK(LB03)
MANIFOLD ASSY OF-BREATHER,MAIN GEARBOX HOUSING(LB30)
TUBE ASSY OF-BREATHER,OIL COOLER MANIFOLD(LB35)
TUBE ASSY OF-BREATHER,MAIN GEARBOX(LB60)
TUBE - BREATHER, NO. 5 AND NO. 6 BEARING (LB64), ASSEMBLY OF
TUBE - BREATHER, NO. 5 AND NO. 6 BEARING (LB65), ASSEMBLY OF
IPC Location
79-23-49-01A-941A-D
79-23-49-01A-941A-D
79-23-49-01A-941A-D
79-23-49-02A-941A-D
79-23-49-02A-941A-D
79-23-49-03A-941A-D
79-23-49-02A-941A-D
79-23-49-02A-941A-D
P&W PW1100G-JM Externals Handbook | REA17CCA34 | Date: July 18, 2017
UTC Proprietary- Subject to the limitations on Page 2 | U.S. Export Classification: 9E991
Tube Diameter
1.250 Inch
1.250 Inch
1.250 Inch
1.000 Inch
0.375 Inch
1.250 Inch
0.375 Inch
0.3750 inch
Engine Manual Location
79-21-01-00A-720A-D
72-00-21-05A-720A-B
72-21-00-04A-710A-B
72-00-61-03A-720A-B
79-21-02-00A-720A-D
79-23-49-00A-720A-D
72-00-61-03A-720A-B
72-00-53-04A-720A-B
44
Lubrication Breather System
P&W PW1100G-JM Externals Handbook | REA17CCA34 | Date: July 18, 2017
UTC Proprietary- Subject to the limitations on Page 2 | U.S. Export Classification: 9E991
45
Lubrication Drain System
Tube Code
Tube Part no
Tube Diameter
Engine Manual Location
LD101
5317562-01
LD60
5318196-01
TUBE ASSY OF-DRAIN,TURBINE INTERMEDIATE INNER CASE(LD101) 72-52-00-04A-941A-D
TUBE ASSY OF-DRAIN,#4BEARING(LD60)
0.375 Inch
72-52-00-02A-710A-B
71-71-49-16A-941A-D
0.375 Inch
72-00-53-04A-720A-B
Description
IPC Location
(LB60)
(LB60)
P&W PW1100G-JM Externals Handbook | REA17CCA34 | Date: July 18, 2017
UTC Proprietary- Subject to the limitations on Page 2 | U.S. Export Classification: 9E991
46
Lubrication Drain System
P&W PW1100G-JM Externals Handbook | REA17CCA34 | Date: July 18, 2017
UTC Proprietary- Subject to the limitations on Page 2 | U.S. Export Classification: 9E991
47
Lubrication Pressure System
Tube Code
LP01
LP02
LP03
LP101,LP102
LP111
LP112
LP121
LP131
LP151
LP30
LP32
LP33
LP35
LP40
LP41
LP45
LP46
LP50
LP52
LP56
LP57
LP60
Tube Part no
5317815-01
5325067-01
5319432-01
5317753-01
5311466-01
5317694-01
5317624-01
5317588-01
5323367
5317963-01
5317932-01
5318163-01
5317920-01
5318134-01
5318176-01
5318135-01
5318049-01
5321149-01
5325419-01
5318136-01
5321151-01
5316534-01
Description
TUBE ASSY OF-OIL, SUPPLY, MAIN OIL PUMP (LP01)
MANIFOLD ASSY OF-OIL, SUPPLY, OIL TANK (LP02)
TUBE ASSY OF-OIL, SUPPLY, OIL TANK (LP03)
TUBE ASSY OF-OIL, SUPPLY, FAN DRIVE GEAR SYSTEM (LP101,LP102)
TUBE ASSY OF-TRANSFER, #3 BEARING
TUBE ASSY OF-OIL, SUPPLY, OIL CONTROL MANIFOLD (LP112)
TUBE ASSY OF-OIL, SUPPLY, OIL CONTROL MANIFOLD (LP121)
TUBE ASSY OF- OIL, NO. 5 AND NO. 6 BEARING SCAVENGE
TUBE ASSY OF-OIL, SUPPLY, LOW PRESSURE COMPRESSOR (LP151)
TUBE ASSY OF-OIL, SUPPLY, CONTROL MODULE (LP30)
TUBE ASSY OF-OIL, SUPPLY, FAN CASE (LP32)
TUBE ASSY OF-OIL, SUPPLY, #3 BEARING DAMPER VALVE (LP33)
TUBE ASSY OF-OIL, SUPPLY, MAIN GEARBOX (LP35)
MANIFOLD ASSY OF-OIL, SUPPLY, #4 BEARING (LP40)
TUBE ASSY OF-OIL, SUPPLY, #4 BEARING (LP41)
TUBE ASSY OF-OIL, SUPPLY, TURBINE EXHAUST (LP45)
TUBE ASSY OF-OIL, SUPPLY, OIL CONTROL MANIFOLD (LP46)
TUBE ASSY OF-OIL, SUPPLY, THERMAL MANAGEMENT SYSTEM (LP50)
TUBE ASSY OF-OIL, SUPPLY, CONTROL MODULE (LP52)
TUBE ASSY OF-OIL, SUPPLY, AIR OIL HEAT EXCHANGER (LP56)
TUBE ASSY OF-OIL, SUPPLY, AIR OIL HEAT EXCHANGER (LP57)
TEE ASSY OF-SWIVEL NUT,TUBE
IPC Location
79-21-49-01A-941A-D
79-21-49-01A-941A-D
79-21-49-01A-941A-D
72-22-00-01A-941A-D
72-34-00-01A-941A-D
72-34-00-01A-941A-D
72-52-00-04A-941A-D
72-54-00-01A-941A-D
72-22-00-01A-941A-D
79-21-49-04A-941A-D
79-21-49-05A-941A-D
79-21-49-06A-941A-D
79-21-49-05A-941A-D
79-21-49-07A-941A-D
79-21-49-07A-941A-D
79-21-49-07A-941A-D
79-21-49-07A-941A-D
79-21-49-08A-941A-D
79-21-49-08A-941A-D
79-21-49-08A-941A-D
79-21-49-08A-941A-D
79-21-49--03A-941A-D
LP61
5323435-01
MANIFOLD ASSY OF - OIL, VARIABLE OIL REDUCTION VALVE (LP61)
79-21-49-02A-941A-D
LP62
5316536-01
ELBOW ASSY OF-SWIVEL NUT,TUBE
79-21-49-03A-941A-D
Tube Diameter
1.750 Inch
1.750 Inch
1.750 Inch
0.500 Inch
0.4375 Inch
0.4375 Inch
0.500 Inch
0.375 Inch
0.654 Inch
0.5000 Inch
0.3750 Inch
0.375 Inch
0.375 Inch
0.500 Inch
0.5000 Inch
0.5000 Inch
0.375 Inch
1.000 Inch
1.000 Inch
1.000 Inch
1.000 Inch
0.609 Inch
1.250 Inch
0.750 Inch
0.869 Inch
Engine Manual Location
72-21-00-04A-710A-B
72-00-21-05A-720A-B
79-21-01-00A-720A-D
72-00-30-00A-720A-B
72-00-34-03A-720A-B
72-00-34-03A-720A-B
72-52-00-02A-710A-B
72-00-54-02A-720A-B
72-00-15-00A-720A-B
79-21-18-00A-720A-D
79-21-18-00A-720A-D
72-00-61-03A-720A-B
72-61-01-00A-720A-D
72-00-61-03A-720A-B
79-21-18-00A-720A-D
72-00-53-04A-720A-B
72-00-53-04A-720A-B
72-00-50-03A-720A-B
72-00-50-03A-720A-B
72-00-50-03A-720A-B
79-21-02-00A-720A-D
72-00-30-04A-720A-B
79-21-18-00A-720A-D
72-00-30-04A-720A-B
LP63
5323436-01
MANIFOLD ASSY OF- OIL, VARIABLE OIL REDUCTION VALVE (LP63)
79-21-49-02A-941A-D
1.250 Inch
0.750 Inch
LP64
5322255-01
TUBE ASSY OF- OIL, VARIABLE OIL REDUCTION VALVE (LP64)
79-21-49-02A-941A-D
1.250 Inch
0.750 Inch
72-00-30-04A-720A-B
LP66
5322256-01
TUBE ASSY OF- OIL, VARIABLE OIL REDUCTION VALVE (LP66)
79-21-49-03A-941A-D
1.250 Inch
0.750 Inch
72-00-30-04A-720A-B
LP67
5322257-01
TUBE ASSY OF- OIL, VARIABLE OIL REDUCTION VALVE (LP67)
79-21-49-03A-941A-D
LP68
5323437-01
MANIFOLD ASSY OF- OIL, VARIABLE OIL REDUCTION VALVE (LP68)
79-21-49-03A-941A-D
LP69
LP80
5321914
5321916
ELBOW ASSY OF-SWIVEL NUT,TUBE
ELBOW ASSY OF-SWIVEL NUT,TUBE
79-21-49-03A-941A-D
79-21-49-03A-941A-D
P&W PW1100G-JM Externals Handbook | REA17CCA34 | Date: July 18, 2017
UTC Proprietary- Subject to the limitations on Page 2 | U.S. Export Classification: 9E991
1.250 Inch
0.750 Inch
1.250 Inch
0.750 Inch
0.869 Inch
0.869 Inch
72-00-30-04A-720A-B
72-00-30-04A-720A-B
72-00-30-04A-720A-B
72-00-30-04A-720A-B
72-00-30-04A-720A-B
48
Lubrication Pressure System
P&W PW1100G-JM Externals Handbook | REA17CCA34 | Date: July 18, 2017
UTC Proprietary- Subject to the limitations on Page 2 | U.S. Export Classification: 9E991
49
Lubrication Pressure System
P&W PW1100G-JM Externals Handbook | REA17CCA34 | Date: July 18, 2017
UTC Proprietary- Subject to the limitations on Page 2 | U.S. Export Classification: 9E991
50
Lubrication Pressure System
P&W PW1100G-JM Externals Handbook | REA17CCA34 | Date: July 18, 2017
UTC Proprietary- Subject to the limitations on Page 2 | U.S. Export Classification: 9E991
51
Lubrication Pressure System
P&W PW1100G-JM Externals Handbook | REA17CCA34 | Date: July 18, 2017
UTC Proprietary- Subject to the limitations on Page 2 | U.S. Export Classification: 9E991
52
Lubrication Pressure System
P&W PW1100G-JM Externals Handbook | REA17CCA34 | Date: July 18, 2017
UTC Proprietary- Subject to the limitations on Page 2 | U.S. Export Classification: 9E991
53
Lubrication Pressure System
P&W PW1100G-JM Externals Handbook | REA17CCA34 | Date: July 18, 2017
UTC Proprietary- Subject to the limitations on Page 2 | U.S. Export Classification: 9E991
54
Lubrication Pressure System
P&W PW1100G-JM Externals Handbook | REA17CCA34 | Date: July 18, 2017
UTC Proprietary- Subject to the limitations on Page 2 | U.S. Export Classification: 9E991
55
Lubrication Pressure System
P&W PW1100G-JM Externals Handbook | REA17CCA34 | Date: July 18, 2017
UTC Proprietary- Subject to the limitations on Page 2 | U.S. Export Classification: 9E991
56
Lubrication Return System
Tube Code
LR01
LR02
LR03
LR111
LR121
Tube Part no
5319562-01
5323260-01
5324548-01
5325191-01
5317576-01
Description
TUBE ASSY OF-OIL SCAVENGE, OIL TANK (LR01)
MANIFOLD ASSY OF-OIL SCAVENGE, MAIN GEARBOX (LR02)
TUBE ASSY OF- OIL SCAVENGE, MAIN OIL TANK (LR03)
TUBE & SHIELD ASSY OF-SCAVENGE,#4 BEARING (LR111)
TUBE ASSY OF-OIL, NO. 5 AND NO. 6 BEARING SUPPLY
IPC Location
79-22-49-01A-941A-D
79-22-49-01A-941A-D
79-22-49-01A-941A-D
72-52-00-04A-941A-D
72-54-00-01A-941A-D
LR20
5323470-01 MANIFOLD ASSY OF-OIL, SCAVENGE, FAN CASE (LR20)
79-22-49-02A-941A-D
LR21
LR30
LR35
LR36
LR37
LR40
LR45
LR46
LR101
LR60
5319435
5319433-01
5319390-01
5318097-01
5318488-01
5318138-01
5318177-01
5318178-01
5317699-01
5316530
79-22-49-02A-941A-D
79-22-49-03A-941A-D
79-22-49-03A-941A-D
79-22-49-03A-941A-D
79-22-49-03A-941A-D
79-22-49-04A-941A-D
79-22-49-05A-941A-D
79-22-49-05A-941A-D
72-22-00-01A-941A-D
79-22-49-06A-941A-D
LR61
5323438-01 MANIFOLD ASSY OF- OIL, SCAVENGE, VARIABLE REDUCTION VALVE (LR61)
79-22-49-06A-941A-D
LR62
5323440-01 MANIFOLD ASSY OF- OIL, SCAVENGE, VARIABLE REDUCTION VALVE (LR62)
79-22-49-06A-941A-D
LR63
5323441-01 MANIFOLD ASSY OF- OIL, SCAVENGE, VARIABLE REDUCTION VALVE (LR63)
79-22-49-06A-941A-D
DUCT ASSY OF-OIL, SCAVENGE, FAN CASE (LR21)
TUBE ASSY OF-SCAVENGE, ANGLE GEARBOX (LR30)
TUBE ASSY OF- OIL, SCAVENGE, ANGLE GEARBOX (LR35)
TUBE ASSY OF-OIL, SCAVENGE, OIL CONTROL MANIFOLD (LR36)
TUBE ASSY OF-OIL, SCAVENGE, OIL TANK (LR37)
MANIFOLD ASSY OF-OIL SCAVENGE, MAIN GEARBOX (LR40)
TUBE ASSY OF-OIL, SCAVENGE, TURBINE EXHAUST CASE (LR45)
TUBE ASSY OF-OIL, SCAVENGE,TURBINE EXHAUST CASE (LR46)
TUBE ASSY OF- OIL, SCAVENGE, OIL PUMP
TUBE ASSY OF-OIL, FAN DRIVE GEAR SYSTEM (LR60)
P&W PW1100G-JM Externals Handbook | REA17CCA34 | Date: July 18, 2017
UTC Proprietary- Subject to the limitations on Page 2 | U.S. Export Classification: 9E991
Tube Diameter
1.750 Inch
1.750 Inch
1.750 Inch
OVAL
OVAL
VARIABLE
CROSSECTION
2.000 Inch
1.000 Inch
0.625 Inch
1.000 Inch
1.000 Inch
1.250 Inch
0.750 Inch
0.750 Inch
0.750 Inch
0.869 Inch
1.250 Inch
0.750 Inch
1.250 Inch
0.750 Inch
1.250 Inch
0.750 Inch
Engine Manual Location
79-21-01-00A-720A-D
72-00-21-05A-720A-B
72-21-00-04A-710A-B
72-52-00-02A-710A-B
72-00-54-02A-720A-B
72-00-30-04A-720A-B
79-21-01-00A-720A-D
79-21-01-00A-720A-D
72-62-01-00A-720A-D
72-00-30-04A-720A-B
72-00-61-03A-720A-B
72-00-61-03A-720A-B
72-00-61-03A-720A-B
72-00-61-03A-720A-B
72-00-15-00A-720A-B
72-00-30-04A-720A-B
72-00-30-04A-720A-B
72-00-30-04A-720A-B
72-00-30-04A-720A-B
57
Lubrication Return System
P&W PW1100G-JM Externals Handbook | REA17CCA34 | Date: July 18, 2017
UTC Proprietary- Subject to the limitations on Page 2 | U.S. Export Classification: 9E991
58
Lubrication Return System
P&W PW1100G-JM Externals Handbook | REA17CCA34 | Date: July 18, 2017
UTC Proprietary- Subject to the limitations on Page 2 | U.S. Export Classification: 9E991
59
Lubrication Return System
P&W PW1100G-JM Externals Handbook | REA17CCA34 | Date: July 18, 2017
UTC Proprietary- Subject to the limitations on Page 2 | U.S. Export Classification: 9E991
60
Lubrication Return System
P&W PW1100G-JM Externals Handbook | REA17CCA34 | Date: July 18, 2017
UTC Proprietary- Subject to the limitations on Page 2 | U.S. Export Classification: 9E991
61
Lubrication Return System
P&W PW1100G-JM Externals Handbook | REA17CCA34 | Date: July 18, 2017
UTC Proprietary- Subject to the limitations on Page 2 | U.S. Export Classification: 9E991
62
Engine Harnesses
P&W PW1100G-JM Externals Handbook | REA17CCA34 | Date: July 18, 2017
UTC Proprietary- Subject to the limitations on Page 2 | U.S. Export Classification: 9E991
63
HARNESS CODE
W03
W04
WC05
WF01
WF02
WF07
IGNRCAB
WC10
WC11
WC08
WF06
WF50
WF51
WF52
WF53
TUBE PART NUMBER
5323028
5323029
5323445
5316165
5316166
5316190
5323027
5323420
5323423
5323007
5316189
5323755
5323756
5323757
5323758
DESCRIPTION
WIRING HARNESS - ELECTRONIC ENGINE CONTROL (W03)
WIRING HARNESS - ELECTRONIC ENGINE CONTROL (W04)
EGT HARNESS
WIRING HARNESS - ELECTRONIC ENGINE CONTROL (WF01)
WIRING HARNESS - ELECTRONIC ENGINE CONTROL (WF02)
WIRING HARNESS - ELECTRONIC ENGINE CONTROL (WF07)
IGNITION CABLE ASSEMBLY
WIRING HARNESS - ELECTRONIC ENGINE CONTROL (WC10)
WIRING HARNESS - ELECTRONIC ENGINE CONTROL (WC11)
WIRING HARNESS - ELECTRONIC ENGINE CONTROL (WC08)
WIRING HARNESS - ELECTRONIC ENGINE CONTROL (WF06)
CABLE ASSY OF- GROUND (WF50)
CABLE ASSY OF- GROUND (WF51)
CABLE ASSY OF- GROUND (WF52)
CABLE ASSY OF- GROUND (WF53)
P&W PW1100G-JM Externals Handbook | REA17CCA34 | Date: July 18, 2017
UTC Proprietary- Subject to the limitations on Page 2 | U.S. Export Classification: 9E991
IPC LOCATION
73-21-63-01A-941A-D
73-21-64-01A-941A-D
77-21-61-01A-941A-D
73-21-61-01A-941A-D
73-21-62-01A-941A-D
73-21-67-01A-941A-D
74-21-61-01A-941A-D
73-21-69-01A-941A-D
73-21-70-01A-941A-D
73-21-68-01A-941A-D
73-21-66-01A-941A-D
72-21-00-07A-941A-D
72-21-00-07A-941A-D
72-21-00-07A-941A-D
72-21-00-07A-941A-D
64
W03
FWD
P&W PW1100G-JM Externals Handbook | REA17CCA34 | Date: July 18, 2017
UTC Proprietary- Subject to the limitations on Page 2 | U.S. Export Classification: 9E991
65
W03
W03
P&W PW1100G-JM Externals Handbook | REA17CCA34 | Date: July 18, 2017
UTC Proprietary- Subject to the limitations on Page 2 | U.S. Export Classification: 9E991
66
W03
W03
P&W PW1100G-JM Externals Handbook | REA17CCA34 | Date: July 18, 2017
UTC Proprietary- Subject to the limitations on Page 2 | U.S. Export Classification: 9E991
67
W03
W03
P&W PW1100G-JM Externals Handbook | REA17CCA34 | Date: July 18, 2017
UTC Proprietary- Subject to the limitations on Page 2 | U.S. Export Classification: 9E991
68
W03
W03
P&W PW1100G-JM Externals Handbook | REA17CCA34 | Date: July 18, 2017
UTC Proprietary- Subject to the limitations on Page 2 | U.S. Export Classification: 9E991
69
W04
FWD
P&W PW1100G-JM Externals Handbook | REA17CCA34 | Date: July 18, 2017
UTC Proprietary- Subject to the limitations on Page 2 | U.S. Export Classification: 9E991
70
W04
W04
P&W PW1100G-JM Externals Handbook | REA17CCA34 | Date: July 18, 2017
UTC Proprietary- Subject to the limitations on Page 2 | U.S. Export Classification: 9E991
71
W04
W04
P&W PW1100G-JM Externals Handbook | REA17CCA34 | Date: July 18, 2017
UTC Proprietary- Subject to the limitations on Page 2 | U.S. Export Classification: 9E991
72
W04
W04
P&W PW1100G-JM Externals Handbook | REA17CCA34 | Date: July 18, 2017
UTC Proprietary- Subject to the limitations on Page 2 | U.S. Export Classification: 9E991
73
W04
W04
P&W PW1100G-JM Externals Handbook | REA17CCA34 | Date: July 18, 2017
UTC Proprietary- Subject to the limitations on Page 2 | U.S. Export Classification: 9E991
74
W05
FWD
P&W PW1100G-JM Externals Handbook | REA17CCA34 | Date: July 18, 2017
UTC Proprietary- Subject to the limitations on Page 2 | U.S. Export Classification: 9E991
75
W05
WC05
P&W PW1100G-JM Externals Handbook | REA17CCA34 | Date: July 18, 2017
UTC Proprietary- Subject to the limitations on Page 2 | U.S. Export Classification: 9E991
76
W05
WC05
P&W PW1100G-JM Externals Handbook | REA17CCA34 | Date: July 18, 2017
UTC Proprietary- Subject to the limitations on Page 2 | U.S. Export Classification: 9E991
77
FIREWALL
WC08
FWD
P&W PW1100G-JM Externals Handbook | REA17CCA34 | Date: July 18, 2017
UTC Proprietary- Subject to the limitations on Page 2 | U.S. Export Classification: 9E991
78
WC08
WC08
P&W PW1100G-JM Externals Handbook | REA17CCA34 | Date: July 18, 2017
UTC Proprietary- Subject to the limitations on Page 2 | U.S. Export Classification: 9E991
79
WC08
WC08
P&W PW1100G-JM Externals Handbook | REA17CCA34 | Date: July 18, 2017
UTC Proprietary- Subject to the limitations on Page 2 | U.S. Export Classification: 9E991
80
WC10
FWD
P&W PW1100G-JM Externals Handbook | REA17CCA34 | Date: July 18, 2017
UTC Proprietary- Subject to the limitations on Page 2 | U.S. Export Classification: 9E991
81
WC10
WC10
P&W PW1100G-JM Externals Handbook | REA17CCA34 | Date: July 18, 2017
UTC Proprietary- Subject to the limitations on Page 2 | U.S. Export Classification: 9E991
82
WC10
WC10
P&W PW1100G-JM Externals Handbook | REA17CCA34 | Date: July 18, 2017
UTC Proprietary- Subject to the limitations on Page 2 | U.S. Export Classification: 9E991
83
WC11
FWD
P&W PW1100G-JM Externals Handbook | REA17CCA34 | Date: July 18, 2017
UTC Proprietary- Subject to the limitations on Page 2 | U.S. Export Classification: 9E991
84
WC11
WC11
P&W PW1100G-JM Externals Handbook | REA17CCA34 | Date: July 18, 2017
UTC Proprietary- Subject to the limitations on Page 2 | U.S. Export Classification: 9E991
85
WC11
WC11
P&W PW1100G-JM Externals Handbook | REA17CCA34 | Date: July 18, 2017
UTC Proprietary- Subject to the limitations on Page 2 | U.S. Export Classification: 9E991
86
WF01
P&W PW1100G-JM Externals Handbook | REA17CCA34 | Date: July 18, 2017
UTC Proprietary- Subject to the limitations on Page 2 | U.S. Export Classification: 9E991
87
WF01
P&W PW1100G-JM Externals Handbook | REA17CCA34 | Date: July 18, 2017
UTC Proprietary- Subject to the limitations on Page 2 | U.S. Export Classification: 9E991
88
WF01
WF01
P&W PW1100G-JM Externals Handbook | REA17CCA34 | Date: July 18, 2017
UTC Proprietary- Subject to the limitations on Page 2 | U.S. Export Classification: 9E991
89
WF02
P&W PW1100G-JM Externals Handbook | REA17CCA34 | Date: July 18, 2017
UTC Proprietary- Subject to the limitations on Page 2 | U.S. Export Classification: 9E991
90
WF02
P&W PW1100G-JM Externals Handbook | REA17CCA34 | Date: July 18, 2017
UTC Proprietary- Subject to the limitations on Page 2 | U.S. Export Classification: 9E991
91
WF02
WF02
P&W PW1100G-JM Externals Handbook | REA17CCA34 | Date: July 18, 2017
UTC Proprietary- Subject to the limitations on Page 2 | U.S. Export Classification: 9E991
92
WF06
P&W PW1100G-JM Externals Handbook | REA17CCA34 | Date: July 18, 2017
UTC Proprietary- Subject to the limitations on Page 2 | U.S. Export Classification: 9E991
93
WF06
P&W PW1100G-JM Externals Handbook | REA17CCA34 | Date: July 18, 2017
UTC Proprietary- Subject to the limitations on Page 2 | U.S. Export Classification: 9E991
94
WF06
WF06
P&W PW1100G-JM Externals Handbook | REA17CCA34 | Date: July 18, 2017
UTC Proprietary- Subject to the limitations on Page 2 | U.S. Export Classification: 9E991
95
WF07
P&W PW1100G-JM Externals Handbook | REA17CCA34 | Date: July 18, 2017
UTC Proprietary- Subject to the limitations on Page 2 | U.S. Export Classification: 9E991
96
WF07
P&W PW1100G-JM Externals Handbook | REA17CCA34 | Date: July 18, 2017
UTC Proprietary- Subject to the limitations on Page 2 | U.S. Export Classification: 9E991
97
WF07
WF07
P&W PW1100G-JM Externals Handbook | REA17CCA34 | Date: July 18, 2017
UTC Proprietary- Subject to the limitations on Page 2 | U.S. Export Classification: 9E991
98
WF50, 51, 52, 53
P&W PW1100G-JM Externals Handbook | REA17CCA34 | Date: July 18, 2017
UTC Proprietary- Subject to the limitations on Page 2 | U.S. Export Classification: 9E991
99
WF50, 51
WF50
WF51
P&W PW1100G-JM Externals Handbook | REA17CCA34 | Date: July 18, 2017
UTC Proprietary- Subject to the limitations on Page 2 | U.S. Export Classification: 9E991
100
WF52, 53
WF53
WF52
P&W PW1100G-JM Externals Handbook | REA17CCA34 | Date: July 18, 2017
UTC Proprietary- Subject to the limitations on Page 2 | U.S. Export Classification: 9E991
101
Ignition Cables
FWD
P&W PW1100G-JM Externals Handbook | REA17CCA34 | Date: July 18, 2017
UTC Proprietary- Subject to the limitations on Page 2 | U.S. Export Classification: 9E991
102
Ignition Cables
Cable B
Cable A
P&W PW1100G-JM Externals Handbook | REA17CCA34 | Date: July 18, 2017
UTC Proprietary- Subject to the limitations on Page 2 | U.S. Export Classification: 9E991
103
