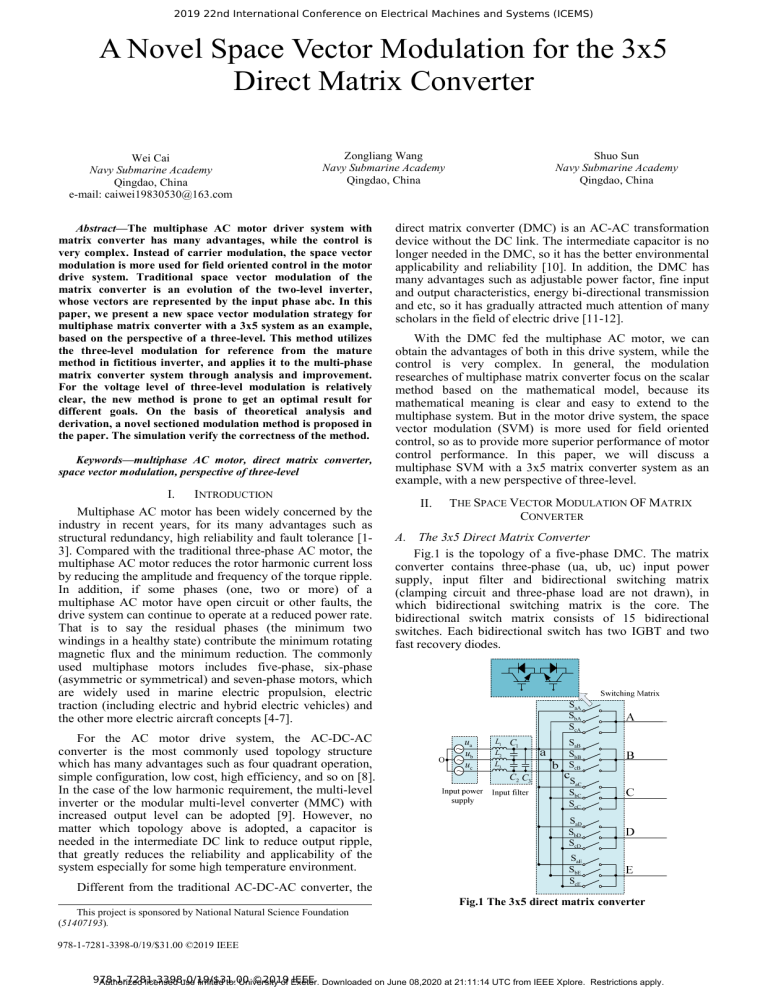

A Novel Space Vector Modulation for the 3x5
Direct Matrix Converter
Wei Cai
Navy Submarine Academy
Qingdao, China
e-mail: caiwei19830530@163.com
Zongliang Wang
Navy Submarine Academy
Qingdao, China
Abstract—The multiphase AC motor driver system with
matrix converter has many advantages, while the control is
very complex. Instead of carrier modulation, the space vector
modulation is more used for field oriented control in the motor
drive system. Traditional space vector modulation of the
matrix converter is an evolution of the two-level inverter,
whose vectors are represented by the input phase abc. In this
paper, we present a new space vector modulation strategy for
multiphase matrix converter with a 3x5 system as an example,
based on the perspective of a three-level. This method utilizes
the three-level modulation for reference from the mature
method in fictitious inverter, and applies it to the multi-phase
matrix converter system through analysis and improvement.
For the voltage level of three-level modulation is relatively
clear, the new method is prone to get an optimal result for
different goals. On the basis of theoretical analysis and
derivation, a novel sectioned modulation method is proposed in
the paper. The simulation verify the correctness of the method.
Keywords—multiphase AC motor, direct matrix converter,
space vector modulation, perspective of three-level
I.
INTRODUCTION
Multiphase AC motor has been widely concerned by the
industry in recent years, for its many advantages such as
structural redundancy, high reliability and fault tolerance [13]. Compared with the traditional three-phase AC motor, the
multiphase AC motor reduces the rotor harmonic current loss
by reducing the amplitude and frequency of the torque ripple.
In addition, if some phases (one, two or more) of a
multiphase AC motor have open circuit or other faults, the
drive system can continue to operate at a reduced power rate.
That is to say the residual phases (the minimum two
windings in a healthy state) contribute the minimum rotating
magnetic flux and the minimum reduction. The commonly
used multiphase motors includes five-phase, six-phase
(asymmetric or symmetrical) and seven-phase motors, which
are widely used in marine electric propulsion, electric
traction (including electric and hybrid electric vehicles) and
the other more electric aircraft concepts [4-7].
For the AC motor drive system, the AC-DC-AC
converter is the most commonly used topology structure
which has many advantages such as four quadrant operation,
simple configuration, low cost, high efficiency, and so on [8].
In the case of the low harmonic requirement, the multi-level
inverter or the modular multi-level converter (MMC) with
increased output level can be adopted [9]. However, no
matter which topology above is adopted, a capacitor is
needed in the intermediate DC link to reduce output ripple,
that greatly reduces the reliability and applicability of the
system especially for some high temperature environment.
Different from the traditional AC-DC-AC converter, the
This project is sponsored by National Natural Science Foundation
(51407193).
Shuo Sun
Navy Submarine Academy
Qingdao, China
direct matrix converter (DMC) is an AC-AC transformation
device without the DC link. The intermediate capacitor is no
longer needed in the DMC, so it has the better environmental
applicability and reliability [10]. In addition, the DMC has
many advantages such as adjustable power factor, fine input
and output characteristics, energy bi-directional transmission
and etc, so it has gradually attracted much attention of many
scholars in the field of electric drive [11-12].
With the DMC fed the multiphase AC motor, we can
obtain the advantages of both in this drive system, while the
control is very complex. In general, the modulation
researches of multiphase matrix converter focus on the scalar
method based on the mathematical model, because its
mathematical meaning is clear and easy to extend to the
multiphase system. But in the motor drive system, the space
vector modulation (SVM) is more used for field oriented
control, so as to provide more superior performance of motor
control performance. In this paper, we will discuss a
multiphase SVM with a 3x5 matrix converter system as an
example, with a new perspective of three-level.
THE SPACE VECTOR MODULATION OF MATRIX
CONVERTER
II.
A. The 3x5 Direct Matrix Converter
Fig.1 is the topology of a five-phase DMC. The matrix
converter contains three-phase (ua, ub, uc) input power
supply, input filter and bidirectional switching matrix
(clamping circuit and three-phase load are not drawn), in
which bidirectional switching matrix is the core. The
bidirectional switch matrix consists of 15 bidirectional
switches. Each bidirectional switch has two IGBT and two
fast recovery diodes.
SaA
SbA
ScA
O
ua
ub
uc
L1 C1
L2
L3
C2 C3
SaB
SbB
ScB
SaC
SbC
ScC
SaD
SbD
ScD
SaE
SbE
ScE
Fig.1 The 3x5 direct matrix converter
