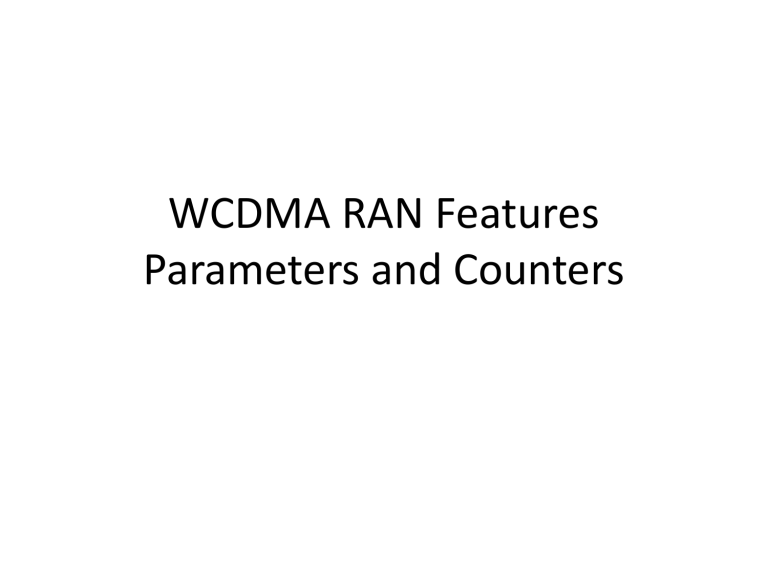

WCDMA RAN Features
Parameters and Counters
Agenda
Day 2
 WCDMA RAN PARAMETERS
√ Power Control Parameters
√ Handover Parameters
√ Admission Control Parameters
√ Congestion Control Parameters
√ Load Sharing Parameters
√ Channel Switching Parameters
√ Connection Handling Parameter
√ HSDPA User Plan Parameter
√ Capacity Management
Agenda
Day 3
 WCDMA RAN Counters
 Admission Counters
 Cell Availability Counters
 Cell Update Counters
 Channel Switching Counters
 Channel Quality Counters
 Code Control Counters
 Compressed Mode Counters
 Congestion Counters
 Diversity Counters
Agenda
Day 3
 Frame Synchronization Counters
 Handover Counters
 Inter-Frequency Handover Counters
 I-RAT Handover (Outgoing) Counters
 I-RAT Handover (Incoming) Counters
 I-RAT Cell Change (Outgoing) Counters
 I-RAT Cell Change (Incoming) Counters
 UE Positioning Counters
 Paging Counters
Agenda
Day 3
 Packet Data Counters
 Payload Traffic Counters
 Processor Supervision Counters
 RAB Handling Counters
 Radio Connection Supervision Counters
 RLC Handling Counters
 RRC Handling Counters
 Security Counters
 Radio Link Addition Counters
Agenda
Day 3
HS-DSCH Cell Change Counters
Iu RANAP Handling Counters
CN Hard Handover Counters
URA Update Counters
Multi-Operator Core Network
GSM RAN Counters
Admission Counters
Admission Counters
 pmNoFailedAfterAdm
– Description: Number of RRC or RAB establishment requests failed after being
admitted by admission control.
– MO Class UtranCell
– Counter Type PEG
– ST- CS, PS
– Unit-
 pmNoOfNonHoReqDeniedCs
– Description Number of CS data or CS Streaming RAB establishments rejected
by admission control.
– MO Class UtranCell
– Counter Type PEG
– ST CS
– Unit-
Admission Counters
 pmNoOfNonHoReqDeniedInteractive
– Description Number of Interactive RAB establishments rejected by admission
control.
– MO Class UtranCell
– Counter Type PEG
– ST PS
– Unit-Counter Name
 pmNoOfNonHoReqDeniedPsStreaming
– Description Number of PS Streaming RAB establishments rejected by admission
control.
– MO Class UtranCell
– Counter Type PEG
– ST PS
– Unit-
Admission Counters
 pmNoOfNonHoReqDeniedSpeech
– Description Number of Speech RAB establishments rejected by admission
control.
– MO Class UtranCell
– Counter Type PEG
– ST CS
– Unit-Counter Name
 pmNoReqDeniedAdm
– Description Number of RAB establishment and RRC requests denied due to
admission
– MO Class UtranCell
– Counter Type PEG
– ST CS, PS
– Unit-
Admission Counters
 pmNoOfSwDownNgAdm
– Description Number of down switch requests for non guaranteed and guaranteed – hs users served by this RNC switched down due
to admission control
– MO Class UtranCell
– Counter Type PEG
– ST PS
– Unit-
 pmNoOfDiscardedNbapMessages
– Description Number of NBAP: Radio Link Setup Messages reject by Admission
Control due to UNI-SAAL congestion
– MO Class NbapCommon
– Counter Type PEG7
– ST CS, PS
– Unit-
Admission Counters
 pmNoOfNonHoReqDeniedHs
– Description Number of Interactive RAB establishments on a HS configuration
rejected by admission control.
– MO Class UtranCell
– Counter Type PEG
– ST PS
– Unit-
 pmNoOfNonHoReqDeniedEul
– Description Number of admission requests denied at RAB establishment on EDCH.
– MO Class UtranCell
– Counter Type PEG
– ST PS
– Unit Number of admission request denied
Admission Counters
 pmNoServingCellReqDeniedEul
– Description Number of admission requests denied when requesting the cell as
serving cell because the number of E-DCH users is above the admission
threshold.
– MO Class UtranCell
– Counter Type PEG
– ST PS
– Unit Number of admission request denied
 pmNoNonServingCellReqDeniedEul
– Description Number of admission requests denied when requesting the cell as
non-serving cell because the number of E-DCH users is above the admission
threshold
– MO Class UtranCell
– Counter Type PEG
– ST PS
– Unit Number of admission request denied
Admission Counters
 pmNoOfNonHoReqDeniedPsStr128
– Description Number of PS Streaming 128 RAB establishments rejected by
admission control.
– MO Class UtranCell
– Counter Type PEG
– ST PS
– Unit-
 Admission Monitoring
 pmNoOfSampAseDl
–
–
–
–
–
Description Number of samples of ASE DL
MO Class UtranCell
Counter Type SCAN
ST CS, PS
Unit-
Admission Counters
 pmNoOfSampAseUl
–
–
–
–
–
Description Number of samples of ASE UL
MO Class UtranCell
Counter Type SCAN
ST CS, PS
Unit-
 pmSumOfSampAseDl
–
–
–
–
–
Description Total ASE DL
MO Class UtranCell
Counter Type ACC
ST CS, PS
Unit-
Admission Counters
 pmSumOfSampAseUl
–
–
–
–
–
Description Total ASE UL
MO Class UtranCell
Counter Type ACC
ST CS, PS
Unit-
Cell Availability Counters
Cell Availability Counters
 pmCellDowntimeAuto
– Description The length of time during which a cell is unavailable for service
because, due to a fault, the system has set a cell or channel state to disabled
and the cell and/or channel Administration state = unlocked.
– MO Class UtranCell
– Counter Type PEG
– ST CS, PS
– Unit Seconds
 pmCellDowntimeMan
– Description The length of time during which a cell is unavailable for service
because of Administration state being set to manual lock.
– MO Class UtranCell
– Counter Type PEG
– ST CS, PS
– Unit Seconds
Cell Availability Counters
 pmHsDowntimeMan
– Description Amount of time the Hsdsch service in the cell is unavailable due to
operation setting,.
– MO Class Hsdsch
– Counter Type PEG
– ST CS, PS
– Unit Seconds
 pmHsDowntimeAuto
– Description Amount of time the Hsdsch service in the cell is unavailable due to
that the system has considered the cell as down,
– MO Class Hsdsch
– Counter Type PEG
– ST CS, PS
– Unit Seconds
Cell Availability Counters
 pmEulDowntimeMan
– Description Amount of time (in seconds) the Eul service in the cell has been
unavailable due to operator setting
– MO Class Eul
– Counter Type PEG
– ST CS and PS
– Unit Seconds
 pmEulDowntimeAuto
– Description Amount of time (in seconds) the Eul service in the cell has been
unavailable because the system has considered the cell as down
– Counter Type PEG
– ST CS and PS
– Unit Seconds
Cell Update Counters
Cell Update Counters
 pmNoCellUpdAttempt
–
–
–
–
–
Description Total number of attempted cell update procedures
MO Class UtranCell
Counter Type PEG
ST CS, PS
Unit-
 pmNoCellUpdSuccess
–
–
–
–
–
Description Total number of successful cell updates
MO Class UtranCell
Counter Type PEG
ST CS, PS
Unit-
Channel Switching Counters
Channel Switching Counters
 pmChSwitchAttemptFachUra
– Description Number of channel down switching attempts from CELL_FACH to
URA_PCH.
– MO Class UtranCell
– Counter Type PEG
– ST– Unit-
 pmChSwitchSuccFachUra
– Description Number of successful channel down switching attempts from
CELL_FACH to URA_PCH.
– MO Class UtranCell
– Counter Type PEG
– ST– Unit-
Channel Switching Counters
 pmChSwitchAttemptUraFach
–
–
–
–
–
Description Number of transitions attempted from URA_PCH to Cell_FACH
MO Class UtranCell
Counter Type PEG
STUnit-
 pmChSwitchSuccUraFach
–
–
–
–
–
Description Number of transitions succeeded from URA_PCH to Cell_FACH
MO Class UtranCell
Counter Type PEG
STUnit-
Channel Switching Counters
 pmChSwitchFachDch
– Description Number of attempted switches from Packet Switch-RACH/FACH to
Packet Switch-64/64
– MO Class UtranCell
– Counter Type PEG
– ST PS
– Unit -
 pmChSwitchDch64Fach
– Description Number of attempted switches from one packet data RAB with 64Kb
ps data rate on DCH to common channel throughput-based attempts. Switches
triggered only by Channel Switching are counted.
– MO Class UtranCell
– Counter Type PEG
– ST PS
– Unit-
Channel Switching Counters
 pmChSwitchDch128Fach
– Description Number of attempted switches from a RAB with 128 Kbps data rate
on DCH to common channel,throughput-based attempts
– MO Class UtranCell
– Counter Type PEG
– ST PS
– Unit-
 pmChSwitchDch384Fach
– Description Number of attempted switches from one packet data RAB with 384K
bps data rate on DCH to common channel, throughput-based attempts
– MO Class UtranCell
– Counter Type PEG
– ST PS
– Unit-
Channel Switching Counters
 pmNoOfSwDownNgHo
– Description Number of down switch requests for nonguaranteed users served by this RNC due to handover
– MO Class UtranCell
– Counter Type PEG
– ST PS
– Unit-
 pmChSwitchFachIdle
–
–
–
–
–
Description Number of attempted switches from common channel to idle
MO Class UtranCell
Counter Type PEG
ST PS
Unit-
Channel Switching Counters
 pmChSwitchSp0Sp64
– Description Number of attempted multi-RAB switches from a multi-RAB with “one
speech + one packet RAB with 0 data on DCH” to the same RAB type at a
different packet data rate, that is, “one speech + one packet RAB with 64 Kbps
data rate on DCH”. The switching is done byre-configuring the radio bearers
of the existing RAB
– .MO Class UtranCell
– Counter Type PEG
– ST PS
– Unit-
 pmChSwitchSp64Sp0
– Description Number of multi-RAB attempted switches from a multi-RAB with “one
speech + one packet RAB with 64 Kbps data rate on DCH” to the same RAB
type at a different packet data rate, that is, “one speech + one packet RAB with 0
data on DCH”. The switching is done by re-configuring the radio bearers of the
existing RAB.
– MO Class UtranCell
– Counter Type PEG
– ST PS
– Unit-
Channel Switching Counters
 pmChSwitchP384P128
– Description Number of attempted switches from a RAB with 384 Kbps data rate
on DCH to a RAB with 128 Kbps data rate on DCH, based on DL transmitted
code power measurements or throughput.
– MO Class UtranCell
– Counter Type PEG
– ST PS
– Unit-
 pmChSwitchP128P64
– Description Number of attempted switches from a RAB with 128 Kbps data rate
on DCH to a RAB with 64 Kbps data rate on DCH, based on DL transmitted code
power measurements or throughput.
– MO Class UtranCell
– Counter Type PEG
– ST PS
– Unit-
Channel Switching Counters
 pmChSwitchP64P128
– Description Number of attempted switches from a RAB with 64 Kbps data rate
on DCH to a RAB with 128 Kbps data rate on DCH, based on throughput
measurements.
– MO Class UtranCell
– Counter Type PEG
– ST PS
– Unit-
 pmChSwitchP128P384
– Description Number of attempted switches from a RAB with 128 Kbps data rate
on DCH to a RAB with 384 Kbps data rate on DCH, counted after admission and
throughput-based attempts
– MO Class UtranCell
– Counter Type PEG
– ST PS
– Unit-
Channel Switching Counters
 pmFailedDchChSwitch
– Description Number of failed channel switches between dedicated channels
except to/from PS 128/128. Stepped for the best cell in the active set, if this cell
belongs to the SRNC.
– MO Class UtranCell
– Counter Type PEG
– ST PS
– Unit-
 pmFailedChSwitch
– Description Number of failed channel type switches except to/from PS 128/128.
Stepped for the best cell in the active set, if this cell belongs to the SRNC.
– MO Class UtranCell
– Counter Type PEG
– ST PS
– Unit-
Channel Switching
 pmFailedChSwitch
– Description Number of failed channel type switches except to/from PS 128/128.
Stepped for the best cell in the active set, if this cell belongs to the SRNC.
– MO Class UtranCell
– Counter Type PEG
– ST PS
– Unit-
 pmDownSwitchAttempt
– Description Number of channel down switching attempts. The counter includes
switches between dedicated channels as well as channel type switches and
down switch from E-DCH/HSDPA RB combination on cell level.
– MO Class UtranCell
– Counter Type PEG
– ST PS
– Unit-
Channel Switching Counters
 pmDownSwitchSuccess
– Description Number of successful channel down switches. The counter includes
switches between dedicated channels as well as channel type switches and
down switch from E-DCH/HSDPA RB combination on cell level.
– MO Class UtranCell
– Counter Type PEG
– ST PS
– Unit-
 pmUlUpswitchSuccessEul
– Description Number of successful up-switches, triggered by Ul user activity, to a
target RB combination E-DCH/HSDPA. Stepped for the target cell.
– MO Class UtranCell
– Counter Type PEG
– ST PS
– Unit-
Channel Switching Counters
 pmUlUpswitchAttemptEul
– Description Number of attempted up-switches, triggered by Ul user activity, to a target
RB combination E-DCH/HSDPA. Stepped for the target cell.
– MO Class UtranCell
– Counter Type PEG
– ST PS
– Unit-
 pmUlUpswitchAttemptMedium
– Description Number of UL up Switch attempt to TrCh with
64 Kbit/s < UL rate < 256 Kbit/s.
– MO Class UtranCell
– Counter Type PEG
– ST PS
– Unit-
Channel Switching Counters
 pmUlUpswitchSuccessMedium
– Description Number of successfull UL up switches to TrCh with 64 Kbit/s
< UL rate < 256 Kbit/s.
– MO Class UtranCell
– Counter Type PEG
– ST PS
– Unit-
 pmUpswitchFachHsSuccess
–
–
–
–
–
Description Number of successful up switches from FACH to any HS state
MO Class UtranCell
Counter Type PEG
ST PS
Unit-
Channel Switching Counters
 pmUpswitchFachHsAttempt
–
–
–
–
–
Description Number of up switch attempts from FACH to any HS state.
MO Class UtranCell
Counter Type PEG
ST PS
Unit-Counter Name
 pmUlUpswitchSuccessLow
– Description Number of successful UL up switches to TrCh with UL rate <= 64
kbit/s.
– MO Class UtranCell
– Counter Type PEG
– ST PS
– Unit-Counter Name
Channel Switching Counters
 pmUlUpswitchAttemptLow
–
–
–
–
–
Description Number of UL up switch attempts to TrCH with UL rate <= 64 kbit /s.
MO Class UtranCell
Counter Type PEG
ST PS
Unit-
 pmUlUpswitchSuccessHigh
– Description Number of successful UL up switches to TrCh with UL rate >
= 256kbit/s.
– MO Class UtranCell
– Counter Type PEG
– ST PS
– Unit-Counter Name
Channel Switching Counters
 pmUlUpswitchAttemptHigh
–
–
–
–
–
Description Number of UL up switch attempts to TrCH with UL rate >= 256 kbit/s.
MO Class UtranCell
Counter Type PEG
ST PS
Unit-
 pmDlUpswitchSuccessHs
–
–
–
–
–
Description Number of successful DL up switches to any HS state.
MO Class UtranCell
Counter Type PEG
ST PS
Unit-
Channel Switching Counters
 pmDlUpswitchAttemptHs
–
–
–
–
–
Description Number of DL up switch attempts to any HS state.
MO Class UtranCell
Counter Type PEG
ST PS
Unit-
 pmDlUpswitchAttemptLow
– Description Number of attempted DL up-switches to bitrates less than or equal to 64 kbps
– MO Class UtranCell
– Counter Type PEG
– ST PS
– Unit-
Channel Switching Counters
 pmDlUpswitchAttemptMedium
– Description Number of attempted DL up-switches to bit-rates higher than 64 kbps
and less than or equal to 256 kbps.
– MO Class UtranCell
– Counter Type PEG
– ST PS
– Unit-
 pmDlUpswitchAttemptHigh
– Description Number of attempted DL up-switches to bitrates higher than 256 kbps
– MO Class UtranCell
– Counter Type PEG
– ST PS
– Unit-Counter Name
Channel Switching Counters
 pmDlUpswitchSuccessLow
– Description Number of successful DL up-switches to bitrates less than or equal to 64 kbps
– MO Class UtranCel
– lCounter Type PEG
– ST PS
– Unit-
 pmDlUpswitchSuccessMedium
– Description Number of successful DL up-switches to bitrates higher than 64 kbps and less than or equal to 256 kbps.
– MO Class UtranCell
– Counter Type PEG
– ST PS
– Unit-
Channel Switching Counters
 pmDlUpswitchSuccessHigh
– Description Number of successful DL up-switches to bitrates higher than 256kbps
– MO Class UtranCell
– Counter Type PEG
– ST PS
– Unit-
Channel Quality Counters
Channel Quality Counters
 pmFaultyTransportBlocks
– Description Total number of faulty RACH transport blocks Contributions from all
active UEs using that RACH channel are counted.
– MO Class Rach
– Counter Type PEG
– ST CS, PS
– Unit-
 pmNoRecRandomAccSuccess
– Description Number of successfully received frames on the common channel UL,
both connection oriented and connectionless
– MO Class Rach
– Counter Type PEG
– ST CS, PS
– Unit-
Channel Quality Counters
 pmTransportBlocks
–
–
–
–
–
Description Total number of RACH transport blocks
MO Class Rach
Counter Type PEG
ST CS, PS
Unit-
 pmFaultyTransportBlocksBcUl
–
–
–
–
–
Description Total number of faulty DCH transport blocks
MO Class UtranCell
Counter Type PEG
ST CS, PS
Unit-
Channel Quality Counters
 pmTransportBlocksBcUl
–
–
–
–
–
Description Total number of DCH transport blocks
MO Class UtranCell
Counter Type PEG
ST CS, PS
Unit-
 pmFaultyTransportBlocksAcUl
–
–
–
–
–
Description Number of faulty UL DCH transport blocks
MO Class UeRc
Counter Type PEG
ST CS, PS
Unit-
Channel Quality Counters
 pmTransportBlocksAcUl
–
–
–
–
–
Description Number of UL DCH transport blocks
MO Class UeRc
Counter Type PEG
ST CS, PS
Unit-
 pmSamplesUlRssi
– Description Number of received NBAP Common Measurement Report
messages containing valid RTWP value.
– MO Class UtranCell
– Counter Type TrigSCAN
– ST CS and PS
– Unit-
Channel Quality Counters
 pmSumUlRssi
– Description Sum of valid RTWP values as received in NBAP Common
Measurement Reports. RTWP range: 0-621
– MO Class UtranCell
– Counter Type TrigACC
– ST CS and PS
– Unit-
 pmEulHarqTransmTti10PsInteractive
–
–
–
–
–
Description Number of HARQ transmissions attempted for the PS interactive
MO Class UtranCell
Counter Type PDF
ST PS
Unit-
Channel Quality Counters
 pmEulHarqTransmTti10Srb
–
–
–
–
–
Description Number of HARQ transmissions attempted for the SRB’s
MO Class UtranCell
Counter Type PDF
ST PS
Unit-
 pmEulHarqTransmTti10Failure
– Description Number of events when HARQ failure is indicated for the Ps
interactive RB and the SRBs
– MO Class UtranCell
– Counter Type PEG
– ST PS
– Unit-
Code Control Counters
Code Control Counters
 pmNoDlChCodeAllocAttemptCm
– Description Number of attempted DL channelization code allocations for
compressed mode
– MO Class UtranCell
– Counter Type PEG
– ST CS, PS
– Unit-
 pmNoDlChCodeAllocAltCodeCm
– Description Number of attempted allocations with alternative scrambling code for
compressed mode
– MO Class UtranCell
– Counter Type PEG
– ST CS, PS
– Unit-
Compressed Mode Counters
Compressed Mode Counters
 pmCmAttUlSf2
– Description Attempted reconfiguration of RL with CM for UL by using SF/2
method.
– MO Class UtranCell
– Counter Type PEG
– ST PS
– Unit-
 pmCmAttUlHls
– Description Attempted reconfiguration of RL with CM for UL by using HLS
method
– MO Class UtranCell
– Counter Type PEG
– ST PS
– Unit-
Compressed Mode Counters
 pmCmAttDlSf2
– Description Attempted reconfiguration of RL with CM for DL by using SF/2
method
– MO Class UtranCell
– Counter Type PEG
– ST PS
– Unit-
 pmCmAttDlHls
– Description Attempted reconfiguration of RL with CM for DL by using HLS
method
– MO Class UtranCell
– Counter Type PEG
– ST PS
– Unit-
Compressed Mode Counters
 pmCmStop
– Description Compressed Mode Stops when the connection is maintained after
CM stop
– MO Class UtranCell
– Counter Type PEG
– ST PS
– Unit-
 pmCmSuccUlHls
– Description Successful reconfiguration of RL with CM for UL by using HLS
ethod.
– MO Class UtranCell
– Counter Type PEG
– ST PS
– Unit-
m
Compressed Mode Counters
 pmCmSuccDlHls
– Description Successful reconfiguration of RL with CM for DL by using HLS
ethod
– MO Class UtranCell
– Counter Type PEG
– ST PS
– Unit-
 pmCmSuccUlSf2
– Description Successful reconfiguration of RL with CM for UL by using SF/2
method
– MO Class UtranCell
– Counter Type PEG
– ST PS
– Unit-
m
Compressed Mode Counters
 pmCmSuccDlSf2
– Description Successful reconfiguration of RL with CM for DL by using SF/2
method
– MO Class UtranCell
– Counter Type PEG
– ST PS
– Unit-
 pmInterFreqMeasCmStart
– Description Number of inter-frequency measurements started with compressed
mode
– MO Class UtranCell
– Counter Type PEG
– ST PS
– Unit-
Compressed Mode Counters
 pmInterFreqMeasCmStop
– Description Number of inter-frequency measurements stops with compressed
mode
– MO Class UtranCell
– Counter Type PEG
– ST PS
– Unit-
 pmSumCompMode
– Description Total number of compressed mode users, reported per cell A
snapshot of the number of compressed mode users is taken once every 30
seconds in each cell and this counter contains the sum of all snapshot values.
– MO Class UtranCell
– Counter Type ACC
– ST PS
– Unit-
Compressed Mode Counters
 pmSamplesCompMode
–
–
–
–
–
Description Number of samples of compressed mode users
MO Class UtranCell
Counter Type SCAN
ST PS
Unit-
Congestion Counters
Congestion Counters
 pmNoOfTermCsCong
– Description Number of circuit-switched data Radio Connections served by this
RNC terminated due to congestion
– MO Class UtranCell
– Counter Type PEG
– ST CS
– Unit-
 pmNoOfTermSpeechCong
– Description Number of speech Radio Connections served by this RNC
terminated due to congestion
– MO Class UtranCell
– Counter Type PEG
– ST CS
– Unit-
Congestion Counters
 pmSumOfTimesMeasOlDl
– Description Number of times Congestion Control is triggered due to high DL
power
– MO Class UtranCell
– Counter Type ACC
– ST CS, PS
– Unit-
 pmNoOfSwDownEulCong
– Description Number of E-DCH users served by this RNC, which are downswitched due to DL congestion in both EUL serving cell and EUL non-serving
cell.
– MO Class UtranCell
– Counter Type PEG
– ST PS
– Unit Number of E-DCH user
Congestion Counters
 pmNoOfSwDownNgCong
– Description Number of non-guaranteed users served by this RNC switched down
to common or terminated due to congestion
– MO Class UtranCell
– Counter Type PEG
– ST PS
– Unit-
 pmNoOfIurSwDownNgCong
– Description Number of non-guaranteed users served by another RNC terminated
due to congestion
– MO Class UtranCell
– Counter Type PEG
– ST PS
– Unit-
Congestion Counters
 pmNoOfIurTermSpeechCong
– Description Number of speech Radio Connections served by another RNC
terminated due to congestion
– MO Class UtranCell
– Counter Type PEG
– ST CS
– Unit-
 pmNoOfIurTermCsCong
– Description Number of both CS Radio Connections and PS streaming parts in a
connection, served over Iur and terminated due to congestion.
– MO Class UtranCell
– Counter Type PEG
– ST CS
– Unit-
Congestion Counters
 pmSumOfTimesMeasOlUl
– Description Number of times Congestion Control is triggered due to high Ul
interference
– MO Class UtranCell
– Counter Type PEG
– ST CS, PS
– Unit-
 pmTotalTimeDlCellCong
– Description The total amount of time a cell was congested in DL during a
reporting period.
– MO Class UtranCell
– Counter Type PEG
– ST CS, PS
– Unit Seconds
Congestion Counters
 pmTotalTimeUlCellCong
– Description The total amount of time a cell was congested in UL during a
reporting period.
– MO Class UtranCell
– Counter Type PEG
– ST CS, PS
– Unit Seconds
 pmNoOfSwDownHsCong
– Description Number of Radio Connections served by this RNC, including an
HSDPA service, which are channel switched down due to a congestion resolve
action initiated on a serving Ue Context.
– MO Class UtranCell
– Counter Type PEG
– ST PS
– Unit-
Diversity Counters
Diversity Counters
 pmSamplesUesWith1Rls1RlInActSet
– Description Number of samples recorded within the ROP period for number of
Ues with one RL set and one RL in the active set, sampled once every minute
– MO Class UtranCell
– Counter Type SCAN
– ST CS, PS
– Unit-
 pmSamplesUesWith1Rls2RlInActSet
– Description Number of samples recorded within the ROP period for number of
Ues with one RL set and two RLs in the active set, sampled once every minute
– MO Class UtranCell
– Counter Type SCAN
– ST CS, PS
– Unit-
Diversity Counters
 pmSamplesUesWith1Rls3RlInActSet
– Description Number of samples recorded within the ROP period for number of
Ues with one RL set and three or more RLs in the active set, sampled once
every minute
– MO Class UtranCell
– Counter Type SCAN
– ST CS, PS
– Unit-
 pmSamplesUesWith2Rls2RlInActSet
– Description Number of samples recorded within the ROP period for number of
Ues with two RL sets and two RLs in the active set, sampled once every minute
– MO Class UtranCell
– Counter Type SCAN
– ST CS, PS
– Unit-Counter Name
Diversity Counters
 pmSamplesUesWith2Rls3RlInActSet
– Description Number of samples recorded within the ROP period for number of
Ues with two RL sets and three RLs in the active set, sampled once every
minute
– MO Class UtranCell
– Counter Type SCAN
– ST CS, PS
– Unit-
 pmSamplesUesWith2Rls4RlInActSet
– Description Number of samples recorded within the ROP period for number of
Ues with two RL sets and four RLs in the active set, sampled once every minute
– MO Class UtranCell
– Counter Type SCAN
– ST CS, PS
– Unit-
Diversity Counters
 pmSamplesUesWith3Rls3RlInActSet
– Description Number of samples recorded within the ROP period for number of
Ues with three RL sets and three RLs in the active set, sampled once every
minute
– MO Class UtranCell
– Counter Type SCAN
– ST CS, PS
– Unit-
 pmSamplesUesWith3Rls4RlInActSet
– Description Number of samples recorded within the ROP period for number of
Ues with three RL sets and four RLs in the active set, sampled once every
minute
– MO Class UtranCell
– Counter Type SCAN
– ST CS, PS
– Unit-
Diversity Counters
 pmSamplesUesWith4Rls4RlInActSet
– Description Number of samples recorded within the ROP period for number of
Ues with four RL sets (only one RL possible per RL set), sampled once every
minute.
– MO Class UtranCell
– Counter Type SCAN
– ST CS, PS
– Unit-
 pmSumUesWith1Rls1RlInActSet
– Description A snapshot of the total number of UEs with one RL set and one RL in
the active set is recorded once every minute This counter contains the sum of all
the snapshot values taken in a ROP period added together.
– MO Class UtranCell
– Counter Type ACC
– ST CS, PS
– Unit-
Diversity Counters
 pmSumUesWith1Rls2RlInActSet
– Description A snapshot of the total number of UEs with one RL set and two RLs i
n the active set is recorded once every minute This counter contains the sum of
all the snapshot values taken in a ROP period added together
– MO Class UtranCell
– Counter Type ACC
– ST CS, PS
– Unit-
 pmSumUesWith1Rls3RlInActSet
– Description A snapshot of the total number of UEs with one RL set and three or
more RLs in the active set is recorded once every minute This counter contains
the sum of all the snapshot values taken in a ROP period added together.
– MO Class UtranCell
– Counter Type ACC
– ST CS, PS
– Unit-
Diversity Counters
 pmSumUesWith2Rls2RlInActSet
– Description A snapshot of the total number of UEs with two RL sets and two RLs
in the active set is recorded once every minute This counter contains the sum of
all the snapshot values taken in a ROP period added together.
– MO Class UtranCell
– Counter Type ACC
– ST CS, PS
– Unit-
 pmSumUesWith2Rls3RlInActSet
– Description A snapshot of the total number of UEs with two RL sets and three
RLs in the active set is recorded once every minute This counter contains the
sum of all the snapshot values taken in a ROP period added together.
– MO Class UtranCell
– Counter Type ACC
– ST CS, PS
– Unit-
Diversity Counters
 pmSumUesWith2Rls4RlInActSet
– Description A snapshot of the total number of UEs with two RL sets and four RLs
in the active set is recorded once every minute This counter contains the sum of
all the snapshot values taken in a ROP period added together.
– MO Class UtranCell
– Counter Type ACC
– ST CS, PS
– Unit-
 pmSumUesWith3Rls3RlInActSet
– Description A snapshot of the total number of UEs with three RL sets and three R
Ls in the active set is recorded once every minute This counter contains the sum
of all the snapshot values taken in a ROP period added together.
– MO Class UtranCell
– Counter Type ACC
– ST CS, PS
– Unit-
Diversity Counters
 pmSumUesWith3Rls4RlInActSet
– Description A snapshot of the total number of UEs with three RL sets and four R
Ls in the active set is recorded once ever y minute This counter contains the
sum of all the snapshot values taken in a ROP period added together.
– MO Class UtranCell
– Counter Type ACC
– ST CS, PS
– Unit-
 pmSumUesWith4Rls4RlInActSet
– Description A snapshot of the total number of UEs with four RL sets (only one
RL possible per RL set) recorded once every minute This counter contains the
sum of all the snapshot values taken in a ROP period added together.
– MO Class UtranCell
– Counter Type ACC
– ST CS, PS
– Unit-
Diversity Counters
 pmNoOfRlForDriftingUes
– Description Current number of Radio Links assigned in this cell for UEs that are
served by an RNC other than the CRNC
– MO Class UtranCell
– Counter Type GAUGE
– ST CS, PS
– Unit-
 pmNoOfRlForNonDriftingUes
– Description Current number of Radio Links assigned in this cell for UEs that are
served by the CRNC.
– MO Class UtranCell
– Counter Type GAUGE
– ST CS, PS
– Unit-
Frame Synchronization Counters
Frame Synchronization Counters
 pmNoDchDlTimingAdjContrFrames
–
–
–
–
–
Description Number of received DL timing adjustment control frames for Dch
MO Class DchFrameSynch
Counter Type PEG
ST CS, PS
Unit-
 pmNoDchUlDataFramesOutsideWindow
–
–
–
–
–
Description Number of UL data frames received outside desired window
MO Class DchFrameSynch
Counter Type PEG
ST CS, PS
Unit-
Frame Synchronization Counters
 pmNoDlDchDiscardedDataFramesE
–
–
–
–
–
Description Number of discarded DL data frames due to too early reception
MO Class DchFrameSynch
Counter Type PEG
ST CS, PS
Unit-
 pmNoDlDchDiscardedDataFramesL
–
–
–
–
–
Description Number of discarded DL data frames due to too late reception
MO Class DchFrameSynch
Counter Type PEG
ST CS, PS
Unit-
Frame Synchronization Counters
 pmNoUlDchDiscardedDataFramesE
–
–
–
–
–
Description Number of discarded UL data frames due to too early reception
MO Class DchFrameSynch
Counter Type PEG
ST CS, PS
Unit-
 pmNoUlDchDiscardedDataFramesL
–
–
–
–
–
Description Number of discarded UL data frames due to too late reception
MO Class DchFrameSynch
Counter Type PEG
ST CS, PS
Unit-
Frame Synchronization Counters
 pmNoCchDiscardedDataFramesE
–
–
–
–
–
Description Number of discarded DL data frames due to too early reception
MO Class CchFrameSynch
Counter Type PEG
ST CS, PS
Unit-
 pmNoCchDiscardedDataFramesL
–
–
–
–
–
Description Number of discarded DL data frames due to too late reception
MO Class CchFrameSynch
Counter Type PEG
ST CS, PS
Unit-
Frame Synchronization Counters
 pmNoCchTimingAdjContrFrames
– Description Number of received DL timing adjustment control frames for FACH
and PCH
– MO Class CchFrameSynch
– Counter Type PEG
– ST CS, PS
– Unit-
 pmEdchDataFrameDelayIub
–
–
–
–
–
Description Enhanced Uplink Iub dynamic delay measurement results.
MO Class IubEdch
Counter Type PDF
ST PS
Unit Number of occurrences in the interval during the measure period
Handover Counters
Handover Counters
 pmNoTimesCellFailAddToActSet
– Description Number of times a cell fails to be added to an active set, also increas
ed at failure at RL replace
– MO Class UtranCell
– Counter Type PEG
– ST CS, PS
– Unit-
 pmNoTimesRlAddToActSet
– Description Number of times an RL is added to an active set, also increased at
RL replace
– MO Class UtranCell
– Counter Type PEG
– ST CS, PS
– Unit-
Handover Counters
 pmNoTimesRlDelFrActSet
– Description Number of times an RL is deleted from an active set, also increased
at RL replace
– MO Class UtranCell
– Counter Type PEG
– ST CS, PS
– Unit-
 pmNoTimesRlRepInActSet
– Description Number of times an RL is replaced in an active set, increased in the
cell where the RL is deleted.
– MO Class UtranCell
– Counter Type PEG
– ST CS, PS
– Unit-
Handover Counters
 pmInterFreqMeasNoCmStart
– Description Number of inter frequency measurements started without compressed mode
– MO Class UtranCell
– Counter Type PEG
– ST CS
– Unit-
 pmRlAddAttemptsBestCellStandAlone
– Description Number Radio Link additions attempted for RRC only connections
where this cell is the source cell and best cell in the active set
– MO Class UtranCell
– Counter Type PEG
– ST CS, PS
– Unit-
Handover Counters
 pmRlAddSuccessBestCellSpeech
– Description Number Radio Link additions for speech 12.2 Kbps CS RAB that
succeeded where this cell is the source cell and the best cell in the active set
– MO Class UtranCell
– Counter Type PEG
– ST CS
– Unit-
 pmRlAddSuccessBestCellCsConvers
– Description Number Radio Link additions for conversational 64 Kbps CS RAB
that succeeded where this cell is the source cell and the best cell in the active
set
– MO Class UtranCell
– Counter Type PEG
– ST CS
– Unit-
Inter-Frequency Handover
Counters
Inter-Frequency Handover Counters
 pmAttNonBlindInterFreqHoCsSpeech12
– Description Number of attempted non-blind outgoing inter-frequency handovers
for RAB = Conversational speech
– MO Class UtranRelation
– Counter Type PEG
– ST CS
– Unit-
 pmAttNonBlindInterFreqHoCsConversational
– Description Number of attempted non-blind outgoing inter-frequency handovers
for RAB = CS Conversational except speech
– MO Class UtranRelation
– Counter Type PEG
– ST CS
– Unit-
Inter-Frequency Handover Counters
 pmAttNonBlindInterFreqHoPsInteractiveLess64
– Description Number of attempted non-blind outgoing interfrequency handovers for RAB = Interactive less than or equal to 64 Kbps
– MO Class UtranRelation
– Counter Type PEG
– ST PS
– Unit-
 pmAttNonBlindInterFreqHoPsInteractiveGreater64
– Description Number of attempted non-blind outgoing interfrequency handovers for RAB = Interactive greater than 64 Kbps
– MO Class UtranRelation
– Counter Type PEG
– ST PS
– Unit-
Inter-Frequency Handover Counters
 pmAttNonBlindInterFreqHoStreamingOther
– Description Number of attempted non-blind outgoing inter-frequency handovers
for streaming RABs
– MO Class UtranRelation
– Counter Type PEG
– ST CS, PS
– Unit-
 pmSuccNonBlindInterFreqHoCsSpeech12
– Description Number of successful non-blind outgoing inter-frequency handovers
for RAB = Conversational speech
– MO Class UtranRelation
– Counter Type PEG
– ST CS
– Unit-
I-RAT Handover Counters
(Outgoing)
I-RAT Handover Counters (Outgoing)
 pmNoAttOutIratHoCs57
– Description Number of attempted outgoing inter-RAT handover for’ streaming
57.6 Kbps CS RAB’ for the best cell in the active set.
– MO Class GsmRelation
– Counter Type PEG
– ST CS
– Unit-
 pmNoAttOutIratHoMulti
– Description Number of attempted outgoing inter-RAT handover for ’multi RAB’ for
the best cell in the active set.
– MO Class GsmRelation
– Counter Type PEG
– ST CS, PS
– Unit-
I-RAT Handover Counters (Outgoing)
 pmNoAttOutIratHoSpeech
– Description Number of attempted outgoing inter-RAT handover for ’
Conversational speech RAB’ for the best cell in the active set.
– MO Class GsmRelation
– Counter Type PEG
– ST CS
– Unit-
 pmNoAttOutIratHoStandalone
– Description Number of attempted outgoing (to GSM) inter-RAT handover for
’Standalone signaling connection’ for the best cell in the active set
– MO Class GsmRelation
– Counter Type PEG
– ST CS, PS
– Unit-
I-RAT Handover Counters (Outgoing)
 pmIratHoGsmMeasNoCmStart
–
–
–
–
–
Description GSM measurement starts without use of compressed mode
MO Class UtranCell
Counter Type PEG
ST CS, PS
Unit-
 pmIratHoGsmMeasCmStart
–
–
–
–
–
Description GSM measurement start with compressed mode
MO Class UtranCell
Counter Type PEG
ST CS, PS
Unit-
I-RAT Handover Counters (Outgoing)
 pmNoFailOutIratHoCs57GsmFailure
– Description Number of failed outgoing inter-RAT handover due to GSM resource
allocation failure, for ’streaming 57.6 Kbps CS RAB’ for the best cell in the active
set.
– MO Class GsmRelation
– Counter Type PEG
– ST CS
– Unit-
 pmNoFailOutIratHoCs57ReturnOldChNotPhyChFail
– Description Number of failed outgoing inter-RAT handover due to reasons other
than physical channel failure, where the UE returns to the present Active Set for
’streaming 57.6 kbps CS RAB’ for the best cell in the active set.
– MO Class GsmRelation
– Counter Type PEG
– ST CS
– Unit-
I-RAT Handover Counters (Outgoing)
 pmNoFailOutIratHoCs57ReturnOldChPhyChFail
– Description Number of failed outgoing (to GSM) inter-RAT handover due to
physical channel failure, where the UE returns to the present Active Set for
’streaming 57.6 Kbps CS RAB’ for the best cell in the active set.
– MO Class GsmRelation
– Counter Type PEG
– ST CS
– Unit-
 pmNoFailOutIratHoCs57UeRejection
– Description Number of failed outgoing (to GSM) inter-RAT handover, rejected by
UE, for ’streaming 57.6 Kbps CS RAB’ for the best cell in the active set.
– MO Class GsmRelation
– Counter Type PEG
– ST CS
– Unit-
I-RAT Handover Counters
(Incoming)
I-RAT Handover Counters (Incoming)
 pmNoInCsIratHoSuccess
–
–
–
–
–
Description Number of successful CS incoming Inter System Handovers
MO Class UtranCell
Counter Type PEG
ST CS
Unit-
 pmNoInCsIratHoAtt
–
–
–
–
–
Description Number of attempted CS incoming Inter System Handovers
MO Class UtranCell
Counter Type PEG
ST CS
Unit-
I-RAT Handover Counters (Incoming)
 pmNoInCsIratHoAdmFail
– Description Number of CS incoming Inter System Handovers that files due to
admission blocking in Utran.
– MO Class UtranCell
– Counter Type PEG
– ST CS
– Unit-
I-RAT Cell Change
Counters (Outgoing)
I-RAT Cell Change Counters (Outgoing)
 pmNoOutIratCcAtt
–
–
–
–
–
Description Total number of the PS Inter-RATCC attempts on DCH.
MO Class GsmRelation
Counter Type PEG
ST PS
Unit-
 pmNoOutIratCcReturnOldCh
– Description Total number of the PS Inter-RATCC attempts for UE on DCH where
the UE returns to old channel.
– MO Class GsmRelation
– Counter Type PEG
– ST PS
– Unit-
I-RAT Cell Change Counters (Outgoing)
 pmNoOutIratCcSuccess
– Description Number of successful PS Inter RAT cell change attempts for UE on
dedicated channel. The counter is triggered by CN Iu Release Command
following the sending of the CELL CHANGE ORDERFROM UTRAN message.
– MO Class GsmRelation
– Counter Type PEG
– ST PS
– Unit-
I-RAT Cell Change Counters
(Incoming)
I-RAT Cell Change Counters (Incoming)
 pmTotNoRrcConnectAttIratCellResel
– Description Total number of RRC connection establishment attempts with
establishment cause Inter-RAT cell reselection
– MO Class UtranCell
– Counter Type PEG
– ST PS
– Unit-
 pmTotNoRrcConnectAttIratCcOrder
– Description Total number of RRC connection establishment attempts with
establishment cause Inter-RAT cell change order
– MO Class UtranCell
– Counter Type PEG
– ST PS
– Unit-
I-RAT Cell Change Counters (Incoming)
 pmTotNoRrcConnectSuccessIratCellResel
– Description Number of successful RRC Connection establishments with
establishment cause Inter RAT cell reselection
– .MO Class UtranCell
– Counter Type PEG
– ST PS
– Unit-
 pmTotNoRrcConnectSuccessIratCcOrder
– Description Number of successful RRC Connection establishments with
establishment cause Inter RAT cell change order
– MO Class UtranCell
– Counter Type PEG
– ST PS
– Unit-
I-RAT Cell Change Counters (Incoming)
 pmTotNoRrcConnectFailCongIratCellResel
– Description Number of unsuccessful RRC Connection establishments with
establishment cause Inter-RAT cell reselection, which failed due to congestion
– .MO Class UtranCell
– Counter Type PEG
– ST PS
– Unit-
 pmTotNoRrcConnectFailCongIratCcOrder
– Description Number of unsuccessful RRC Connection establishments with
establishment cause Inter-RAT cell change order, which failed due to congestion
– MO Class UtranCell
– Counter Type PEG
– ST PS
– Unit-
UE Positioning Counters
UE Positioning Counters
 pmPositioningReqAtt
–
–
–
–
–
Description Number of attempted positioning requests from CN
MO Class RncFunction
Counter Type PEG
ST CS, PS
Unit-
 pmPositioningReqAttCellId
– Description Number of UE positioning attempts for which the Cell ID method was
selected for the initial attempt
– MO Class UePositioning
– Counter Type PEG
– ST CS, PS
– Unit-
UE Positioning Counters
 pmPositioningReqAttEsCellId
– Description Number of UE emergency services positioning attempts for which
the Cell ID method was selected for the initial attempt.
– MO Class UePositioning
– Counter Type PEG
– ST CS, PS
– Unit-
 pmPositioningReqSucc
–
–
–
–
–
Description Number of successful positioning requests from CN.
MO Class RncFunction
Counter Type PEG
ST CS, PS
Unit-
UE Positioning Counters
 pmPositioningReqSuccCellId
– Description Number of successful UE positioning attempts for which the Cell ID
method was selected for the initial attempt.
– MO Class UePositioning
– Counter Type PEG
– ST CS, PS
– Unit-
 pmPositioningReqSuccCellIdQosSucc
– Description Number of successful UE positioning attempts with requested QoS
fulfilled, for which the Cell ID method was selected for the initial attempt.
– MO Class UePositioning
– Counter Type PEG
– ST CS, PS
– Unit-
UE Positioning Counters
 pmPositioningReqAttAgps
– Description Number of UE positioning attempts for which the A-GPS method was
selected for the initial attempt
– MO Class AgpsPositioning
– Counter Type PEG
– ST CS
– Unit-
 pmPositioningReqSuccAgps
– Description Number of successful UE positioning attempts for which the A-GPS
method was selected for the initial attempt.
– MO Class AgpsPositioning
– Counter Type PEG
– ST CS
– Unit-
Paging Counters
Paging Counters
 pmCnInitPagingToIdleUe
– Description Number of CN
initiated pages without paging area ID sent to idle mode UEs ( CS or PS pages)
– MO Class Paging
– Counter Type PEG
– ST CS, PS
– Unit-Counter Name
 pmNoPageDiscardCmpLoadC
–
–
–
–
–
Description Number of pages discarded due to central MP load control
MO Class Paging
Counter Type PEG
ST CS, PS
Unit-
Paging Counters
 pmNoPagingAttemptCnInitDcch
– Description Number of CNinitiated pages sent on DCCH to connected mode Ues
– MO Class UtranCell
– Counter Type PEG
– ST CS, PS
– Unit-
 pmNoPagingAttemptUtranRejected
–
–
–
–
–
Description Number of page requests rejected by UTRAN
MO Class UtranCell
Counter Type PEG
ST CS, PS
Unit-
Paging Counters
• pmNoPagingType1Attempt
– Description Number of Paging Type 1 messages routed to a cell for transmission
(excluding retransmissions).
– MO Class UtranCell
– Counter Type PEG
– ST CS, PS
– Unit-
• pmNoPagingType1AttemptCs
– Description Number of Paging Type 1 messages routed to a cell for transmission
with cause ’Terminating Conversational Call’
– MO Class UtranCell
– Counter Type PEG
– ST CS, PS
– Unit-
Packet Data Counter
Packet Data Counter
 pmNoFaultyIpPackets
– Description Number of faulty packets received in an individual PVC link of a pack
et data router device. A faulty packet is one which is received with an incorrect
header
– MO Class PacketDataRouter
– Counter Type PEG
– ST PS
– Unit Number of IP packets
 pmNoFaultyIpPackets
–
–
–
–
–
Description Number of faulty IP packets.
MO Class IpEthPacketDataRouter
Counter Type PEG
ST PS
Unit Number of IP packets
Packet Data Counter
 pmNoRoutedIpBytesDl
– Description Number of routed user IP bytes downlink in an individual PVC link of
a packet data router device
– MO Class PacketDataRouter
– Counter Type PEG
– ST PS
– Unit Number of IP bytes
 pmNoRoutedIpBytesDl
–
–
–
–
–
Description Number of routed user IP bytes DL.
MO Class IpEthPacketDataRouter
Counter Type PEG
ST PS
Unit Number of IP bytes
Packet Data Counter
 pmNoRoutedIpBytesUl
– Description Number of routed user IP bytes uplink in an individual PVC link of a
packet data router device
– MO Class PacketDataRouter
– Counter Type PEG
– ST PS
– Unit Number of IP bytes
 pmNoRoutedIpBytesUl
–
–
–
–
–
Description Number of routed user IP bytes UL.
MO Class IpEthPacketDataRouter
Counter Type PEG
ST PS
Unit Number of IP bytes
Packet Data Counter
 pmNoRoutedIpPacketsDl
– Description Number of routed user IP packets downlink in an individual PVC link
of a packet data router device
– MO Class PacketDataRouter
– Counter Type PEG
– ST PS
– Unit Number of IP packets
 pmNoRoutedIpPacketsDl
–
–
–
–
–
Description Number of routed user IP packets DL.
MO Class IpEthPacketDataRouter
Counter Type PEG
ST PS
Unit Number of IP packets
Packet Data Counter
 pmNoRoutedIpPacketsUl
–
–
–
–
–
Description Number of routed user IP packets DL.
MO Class IpEthPacketDataRouter
Counter Type PEG
ST PS
Unit Number of IP packets
 pmNoRoutedIpPacketsUl
–
–
–
–
–
Description Number of routed user IP packets UL.
MO Class IpEthPacketDataRouter
Counter Type PEG
ST PS
Unit Number of IP packets
Packet Data Counter
 pmSamplesPacketDataRab
– Description Number of samples recorded within the ROP period for number of th
e active packet data RABs for each PDR PVC link.
– MO Class PacketDataRouter
– Counter Type SCAN
– ST PS
– Unit-
 pmSamplesPacketDataRab
– Description Number of samples recorded within the ROP period for number of
packet data RABs.
– MO Class IpEthPacketDataRouter
– Counter Type SCAN
– ST PS
– Unit-
Packet Data Counter
 pmSumPacketDataRab
– Description Sum of all sample values recorded for number of the active packet
data RABs (per PDR PVC link), sampled once every 30 seconds
– MO Class PacketDataRouter
– Counter Type ACC
– ST PS
– Unit-
 pmSumPacketDataRab
–
–
–
–
–
Description Sum of all sample values recorded for number of packet data RABs.
MO Class IpEthPacketDataRouter
Counter Type ACC
ST PS
Unit-
Payload Traffic Counter
Payload Traffic Counter
 pmUlTrafficVolumeAmr7950
– Description Payload traffic on UL in kbits for speech AMR7950 RAB before
macro diversity.
– MO Class UtranCell
– Counter Type PEG
– ST CS
– Unit kbits
 pmDlTrafficVolumeAmr7950
– Description Payload traffic on DL in kbits for speech AMR7950 RAB after macro
diversity.
– MO Class UtranCell
– Counter Type PEG
– ST CS
– Unit kbits
Payload Traffic Counter
 pmUlTrafficVolumeAmr5900
– Description Payload traffic on UL in kbits for speech AMR5900 RAB before
macro diversity.
– MO Class UtranCell
– Counter Type PEG
– ST CS
– Unit kbits
 pmDlTrafficVolumeAmr5900
– Description Payload traffic on DL in kbits for speech AMR5900 RAB after macro
diversity.
– MO Class UtranCell
– Counter Type PEG
– ST CS
– Unit kbits
Payload Traffic Counter
 pmUlTrafficVolumeAmr4750
– Description Payload traffic on UL in kbits for speech AMR4750 RAB before
macro diversity.
– MO Class UtranCell
– Counter Type PEG
– ST CS
– Unit kbits
 pmDlTrafficVolumeAmr4750
– Description Payload traffic on DL in kbits for speech AMR4750 RAB after macro
diversity.
– MO Class UtranCell
– Counter Type PEG
– ST CS
– Unit kbits
Payload Traffic Counter
 pmUlTrafficVolumeCs12
– Description Traffic volume on UL in Kb for conversational/speech 12.2Kbps CS
RAB before macro diversity.
– MO Class UtranCell
– Counter Type PEG
– ST CS
– Unit kbits
 pmDlTrafficVolumeCs12
– Description Traffic volume on downlink (DL) in Kb for conversational/speech12.2
Kbps CS RAB after macro diversity.
– MO Class UtranCell
– Counter Type PEG
– ST CS
– Unit kbits
Payload Traffic Counter
 pmUlTrafficVolumePs64
–
–
–
–
–
Description Payload traffic in UL before macro diversity for UeRc configurations.
MO Class UtranCell
Counter Type PEG
ST PS
Unit Kbits
 pmDlTrafficVolumePs64
–
–
–
–
–
Description Payload traffic in DL after macro diversity for UeRc configurations
MO Class UtranCell
Counter Type PEG
ST PS
Unit Kbits
Payload Traffic Counter
 pmUlTrafficVolumePs128
–
–
–
–
Description Payload traffic in UL before macro diversity for UeRc configurations
MO Class UtranCell
Counter Type PEGST PS
Unit Kbits
 pmDlTrafficVolumePs128
– Description Payload traffic in DL after macro diversity for UeRc
configurations
– MO Class UtranCell.
– Counter Type PEG
– ST PS
Processor Supervision Counter
Processor Supervision Counter
 pmSamplesMeasuredLoad
–
–
–
–
–
Description Number of samples of the measured processor load
MO Class LoadControl
Counter Type SCAN
ST CS, PS
Unit-
 pmSumMeasuredLoad
– Description The sum of samples of the measured load. The load is measured in
percentage
– MO Class LoadControl
– Counter Type ACC
– ST CS, PS
– Unit-
Processor Supervision Counter
 pmAdmittedRequestsF0
–
–
–
–
–
Description Number of admitted requests with priority F0
MO Class LoadControl
Counter Type PEG
ST CS, PS
Unit-
 pmRefusedRequestsF0
–
–
–
–
–
Description Number of rejected requests with priority F0
MO Class LoadControl
Counter Type PEG
ST CS, PS
Unit-
Processor Supervision Counter
 pmAdmittedRequestsF1
–
–
–
–
–
Description Number of admitted requests with priority F1
MO Class LoadControl
Counter Type PEG
ST CS, PS
Unit-
 pmRefusedRequestsF1
–
–
–
–
–
Description Number of rejected requests at gate F1
MO Class LoadControl
Counter Type PEG
ST CS, PS
Unit-
Processor Supervision Counter
 pmAdmittedRequestsF2
–
–
–
–
–
Description Number of admitted requests with priority F2
MO Class LoadControl
Counter Type PEG
ST CS, PS
Unit-
 pmRefusedRequestsF2
–
–
–
–
–
Description Number of rejected requests with priority F2
MO Class LoadControl
Counter Type PEG
ST CS, PS
Unit-
RAB Handling Counter
RAB Handling Counter
 pmNoNormalRabReleaseCs64
– Description Number of successful normal RAB releases referred to the Best Cell
in the Active Set.
– MO Class UtranCell
– Counter Type PEG
– ST CS
– Unit-
 pmNoNormalRabReleaseCsStream
– Description Number of successful normal RAB releases referred to the Best Cell
in the Active Set.
– MO Class UtranCell
– Counter Type PEG
– ST CS
– Unit-
RAB Handling Counter
 pmNoNormalRabReleasePacket
– Description Number of successful normal RAB releases (PS Data) for the best
cell in the active set. When releasing a HS RAB, this counter is stepped for the
Serving HS-DCH cell
– MO Class UtranCell
– Counter Type PEG
– ST PS
– Unit-
 pmNoNormalRabReleaseSpeech
– Description Number of successful normal RAB releases (Speech) referred to the
Best Cell in the Active Set.
– MO Class UtranCell
– Counter Type PEG
– ST CS
– Unit-
RAB Handling Counter
 pmNoNormalRabReleasePacketStream
– Description Number of successful normal RAB releases referred to the Best Cell
in the Active Set.
– MO Class UtranCell
– Counter Type PEG
– ST PS
– Unit-
 pmNoSystemRabReleasePacketStream
– Description Number of successful system RAB releases referred to the Best Cell
in the Active Set
– MO Class UtranCell
– Counter Type PEG
– ST PS
– Unit -
Radio Connection Supervision Co
unter
Radio Connection Supervision Counter
 pmNoReleaseCchWaitCuT
–
–
–
–
–
Description Number of overall release triggered by cchWaitCuT expiry
MO Class Rcs
Counter Type PEG
ST PS
Unit-
 pmNoReleaseDchRcLostT
–
–
–
–
–
Description Number of overall release triggered by dchRcLostT expiry
MO Class Rcs
Counter Type PEG
ST CS, PS
Unit-
Radio Connection Supervision Counter
 pmNoRlcErrors
–
–
–
–
–
Description Number of RLC unrecoverable error for UEs on FACH or DCH
MO Class Rcs
Counter Type PEG
ST CS, PS
Unit-
RLC Handling Counter
RLC Handling Counter
 pmNoDiscardSduDcch
–
–
–
–
–
Description Number of discarded RLC SDUs
MO Class RncFunction
Counter Type PEG
ST CS, PS
Unit-
 pmNoDiscardSduDtch
–
–
–
–
–
Description Number of discarded RLC SDUs
MO Class RncFunction
Counter Type PEG
ST CS, PS
Unit-
RLC Handling Counter
 pmNoReceivedSduDcch
–
–
–
–
–
Description Number of received RLC SDUs, including discarded SDUs
MO Class RncFunction
Counter Type PEG
ST CS, PS
Unit-
 pmNoReceivedSduDtch
–
–
–
–
–
Description Number of received RLC SDUs, including discarded SDUs
MO Class RncFunction
Counter Type PEG
ST CS, PS
Unit-
RLC Handling Counter
 pmNoRetransPduDcch
–
–
–
–
–
–
Description Number of retransmitted RLC PDUs
Condition Retransmission of a DCCH RLC PDU
MO Class RncFunction
Counter Type PEG
ST CS, PS
Unit-
 pmNoRetransPduDtch
–
–
–
–
–
–
Description Number of retransmitted RLC PDUs
Condition Retransmission of a DTCH RLC PDU
MO Class RncFunction
Counter Type PEG
ST CS, PS
Unit-
RLC Handling Counter
 pmNoSentPduDcch
–
–
–
–
–
Description Number of sent RLC PDUs
MO Class RncFunction
Counter Type PEG
ST CS, PS
Unit-
 pmNoSentPduDtch
–
–
–
–
–
Description Number of sent RLC PDUs
MO Class RncFunction
Counter Type PEG
ST CS, PS
Unit-
RRC Handling Counter
RRC Handling Counter
 pmNoCellDchDisconnectAbnorm
– Description Number of abnormal disconnections from dedicated channels,
including both DCH and E-DCH, for the best cell in the active set.
– MO Class UtranCell
– Counter Type PEG
– ST CS, PS
– Unit-
 pmNoCellDchDisconnectNormal
– Description Number of normal disconnections from dedicated channels,including
both DCH and E-DCH, for the best cell in the active set.
– MO Class UtranCell
– Counter Type PEG
– ST CS, PS
– Unit-
RRC Handling Counter
 pmNoCellFachDisconnectAbnorm
–
–
–
–
–
Description Number of abnormal disconnections from common channels.
MO Class UtranCell
Counter Type PEG
ST PS
Unit-
 pmNoCellFachDisconnectNormal
–
–
–
–
–
Description Number of normal disconnections from common channels
MO Class UtranCell
Counter Type PEG
ST PS
Unit-
RRC Handling Counter
 pmNoRejRrcConnMpLoadC
–
–
–
–
–
Description Number of rejected RRC connections due to module MP load control
MO Class UtranCell
Counter Type PEG
ST CS, PS
Unit-
 pmTotNoRrcConnectReq
–
–
–
–
–
Description Total number of RRC Connection Requests
MO Class UtranCell
Counter Type PEG
ST CS, PS
Unit-
RRC Handling Counter
 pmTotNoTermRrcConnectReq
– Description Counting the number of mobile terminating RRC connection
attempts
– MO Class UtranCell
– Counter Type PEG
– ST CS, PS
– Unit-
 pmTotNoTermRrcConnectReqSucc
– Description Counting the number of successful mobile terminating RRC
connections.
– MO Class UtranCell
– Counter Type PEG
– ST CS, PS
– Unit -
Security Counter
Security Counter
 pmIntegrityFailureRrcMsg
–
–
–
–
–
Description Number of UL RRC messages discarded due to integrity failure
MO Class SecurityHandling
Counter Type PEG
ST CS, PS
Unit
Radio Link Addition Counter
Radio Link Addition Counter
 pmRlAddAttemptsBestCellSpeech
– Description Number Radio Link additions attempted for speech 12.2 Kbps CS R
AB where this UTRAN relation defines a neighbor relation from the best cell in
the current active set to the cell that is attempted to be added
– MO Class UtranRelation
– Counter Type PEG
– ST CS
– Unit-
 pmRlAddAttemptsBestCellCsConvers
– Description Number Radio Link additions attempted for conversational 64 Kbps
CSRAB where this UTRAN relation defines a neighbor relation from the best cell
in the current active set to the cell that is attempted to be added
– MO Class UtranRelation
– Counter Type PEG
– ST CS
– Unit-
Radio Link Addition Counter
 pmRlAddAttemptsBestCellPacketLow
–
–
–
–
–
Description Number of attempted radio link additions for low-rate packet RABs
MO Class UtranRelation
Counter Type PEG
ST PS
Unit-
 pmRlAddAttemptsBestCellPacketHigh
– Description Number Radio Link additions attempted for interactive PS RAB with
data rate higher than 64 Kbps where this UTRAN relation defines a neigbour
relation between the best cell in the current active set and the cell that is
attempted to be added
– MO Class UtranRelation
– Counter Type PEG
– ST PS
– Unit –
HS-DSCH Cell Change Counter
HS-DSCH Cell Change Counter
 pmNoHsCcAttempt
–
–
–
–
–
Description Number of attempted Serving HS-DSCH Cell change.
MO Class UtranCell
Counter Type PEG
ST PS
Unit-
 pmNoHsCcSuccess
–
–
–
–
–
Description Number of successful Serving HS-DSCH Cell change.
MO Class UtranCell
Counter Type PEG
ST PS
Unit-
Iu Ranap Handling Counter
Iu Ranap Handling Counter
 pmNnsfNriRouted
– Description Number of Ue Initial Direct Transfer messages routed to this Iu
interface by the NNSF,for which the NRI transferred by the Ue matches the NRI
of this Iu interface.
– MO Class Ranap
– Counter Type PEG
– ST CS, PS
– Unit-
 pmNnsfLoadDistributionRouted
– Description Number of Ue Initial Direct Transfer messages routed to this Iu
interface by the NNSF,for which the NRI transferred by the Ue does not match
the NRI of any configured Iu interface.
– MO Class Ranap
– Counter Type PEG
– ST CS, PS
– Unit-
Iu Ranap Handling Counter
 pmNoIuSigEstablishAttemptCs
–
–
–
–
–
Description Number of IU Ranap Handling setup attempts towards the CS CN.
MO Class RncFunction
Counter Type PEG
ST CS
Unit-
 pmNoIuSigEstablishSuccessCs
– Description Number of successful IU signalling connection setups towards the
CSCN.
– MO Class RncFunction
– Counter Type PEG
– ST CS
– Unit-
Iu Ranap Handling Counter
 pmNoIuSigEstablishAttemptPs
– Description Number of IU signalling connection setup attempts towards the PS
CN.
– MO Class RncFunction
– Counter Type PEG
– ST PS
– Unit-
 pmNoIuSigEstablishSuccessPs
– Description Number of successful IU signalling connection setups towards the
PSCN.
– MO Class RncFunction
– Counter Type PEG
– ST PS
– Unit-
CN Hard Handover Counter
CN Hard Handover Counter
 pmNoAttOutCnhhoSpeech
– Description Number of attempts to perform an outgoing CN Hard Handover for
speech RAB. When there are more than one cell in AS, the counter is stepped in
the best cell.
– MO Class UtranRelation
– Counter Type PEG
– ST CS
– Unit-
 pmNoSuccOutCnhhoSpeech
– Description Number of successful outgoing CN Hard Handover for speech RAB.
When there are more than one cell in AS, the counter is stepped in the best cell.
– MO Class UtranRelation
– Counter Type PEG
– ST CS
– Unit-
CN Hard Handover Counter
 pmNoAttOutCnhhoCsNonSpeech
– Description Number of attempts to perform an outgoing CN Hard Handover for a
CS RAB..
– MO Class UtranRelation
– Counter Type PEG
– ST CS
– Unit-
 pmNoSuccOutCnhhoCsNonSpeech
–
–
–
–
–
Description Number of successful outgoing CN Hard Handover for a CS RAB.
MO Class UtranRelation
Counter Type PEG
ST CS
Unit-
CN Hard Handover Counter
 pmNoAttIncCnhhoSpeech
– Description Number of attempts to perform incoming CN Hard Handover for a
speech RAB.
– MO Class IurLink
– Counter Type PEG
– ST CS
– Unit-
 pmNoSuccIncCnhhoSpeech
– Description Number of successful incoming CN Hard Handover for a speech
AB.
– MO Class IurLink
– Counter Type PEG
– ST CS
– Unit-
R
URA Update Counter
URA Update Counter
 pmNoUraUpdAttempt
–
–
–
–
–
Description Number of attempted URA updates
MO Class UtranCell
Counter Type PEG
STUnit-
 pmNoUraUpdSuccess
–
–
–
–
–
Description Number of successful URA updates.
MO Class UtranCell
Counter Type PEG
STUnit-
Multi-Operator Core Network
Multi-Operator Core Network
 pmMocnRedirections
– Description Number of MOCN Redirection Indications received from Core Netwo
rk when MOCN is active
– MO Class RncFunction
– Counter Type PEG
– ST CS&PS
– Unit -
