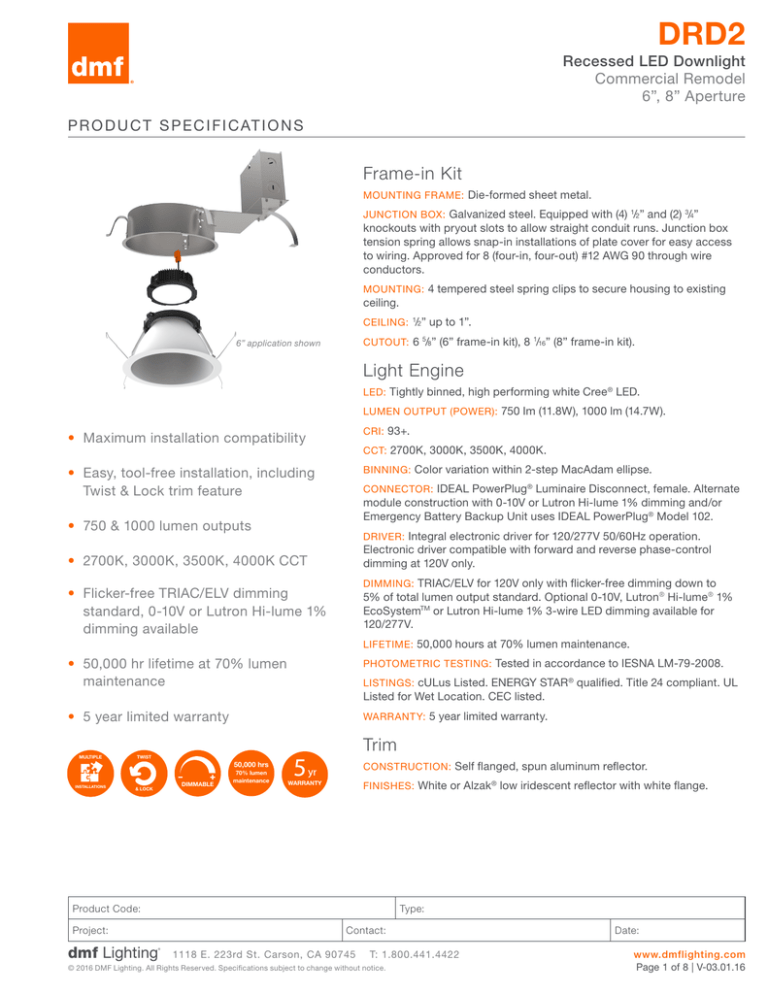

DRD2
Recessed LED Downlight
Commercial Remodel
6”, 8” Aperture
P R O D U C T S P E C I F I C AT I O N S
Frame-in Kit
MOUNTING FRAME: Die-formed sheet metal.
JUNCTION BOX: Galvanized steel. Equipped with (4) 1/2” and (2) 3/4”
knockouts with pryout slots to allow straight conduit runs. Junction box
tension spring allows snap-in installations of plate cover for easy access
to wiring. Approved for 8 (four-in, four-out) #12 AWG 90 through wire
conductors.
MOUNTING: 4 tempered steel spring clips to secure housing to existing
ceiling.
CEILING: 1/2” up to 1”.
CUTOUT: 6 5/8” (6” frame-in kit), 8 1/16” (8” frame-in kit).
6” application shown
Light Engine
LED: Tightly binned, high performing white Cree® LED.
LUMEN OUTPUT (POWER): 750 Im (11.8W), 1000 lm (14.7W).
CRI: 93+.
• Maximum installation compatibility
CCT: 2700K, 3000K, 3500K, 4000K.
BINNING: Color variation within 2-step MacAdam ellipse.
• E
asy, tool-free installation, including
Twist & Lock trim feature
CONNECTOR: IDEAL PowerPlug® Luminaire Disconnect, female. Alternate
module construction with 0-10V or Lutron Hi-lume 1% dimming and/or
Emergency Battery Backup Unit uses IDEAL PowerPlug® Model 102.
• 750 & 1000 lumen outputs
DRIVER: Integral electronic driver for 120/277V 50/60Hz operation.
Electronic driver compatible with forward and reverse phase-control
dimming at 120V only.
• 2700K, 3000K, 3500K, 4000K CCT
DIMMING: TRIAC/ELV for 120V only with flicker-free dimming down to
• F
licker-free TRIAC/ELV dimming
standard, 0-10V or Lutron Hi-lume 1%
dimming available
5% of total lumen output standard. Optional 0-10V, Lutron® Hi-lume® 1%
EcoSystemTM or Lutron Hi-lume 1% 3-wire LED dimming available for
120/277V.
LIFETIME: 50,000 hours at 70% lumen maintenance.
• 5
0,000 hr lifetime at 70% lumen
maintenance
PHOTOMETRIC TESTING: Tested in accordance to IESNA LM-79-2008.
LISTINGS: cULus Listed. ENERGY STAR® qualified. Title 24 compliant. UL
Listed for Wet Location. CEC listed.
• 5 year limited warranty
MULTIPLE
WARRANTY: 5 year limited warranty.
Trim
TWIST
CONSTRUCTION: Self flanged, spun aluminum reflector.
50,000 hrs
INSTALLATIONS
DIMMABLE
& LOCK
70% lumen
maintenance
FINISHES: White or Alzak® low iridescent reflector with white flange.
WARRANTY
Product Code:
Type:
Project:
Contact:
dmf Lighting
®
1118 E. 223rd St. Carson, CA 90745
T: 1.800.441.4422
© 2016 DMF Lighting. All Rights Reserved. Specifications subject to change without notice.
Date:
www.dmflighting.com
Page 1 of 8 | V-03.01.16
DRD2
Recessed LED Downlight
Commercial Remodel
6”, 8” Aperture
PRODUCT SELECTION GUIDE
Product Code Example: DCDHR6
FRAME-IN KIT
PRODUCT CODE
APPLICATION
APERTURE
DIMMING OPTION
DCDH
R Remodel
6 6” Aperture
[Blank]
TRIAC Dimming (Standard)
8 8” Aperture
7O
0-10V Dimming 750 lm
10O
0-10V Dimming 1000 lm
7C
Lutron LDE11 Dimming, 750 lm
10C
Lutron LDE11 Dimming, 1000 lm
7W
Lutron L3DA3W2 Dimming, 750 lm
10W
Lutron L3DA3W2 Dimming, 1000 lm
Housing
Product Code Example: DRD2M7927
LIGHT ENGINE
PRODUCT CODE
LUMENS (WATTS)
CRI
CCT
OPTION
DRD2M Module
7
9 93+ CRI
27 2700K
A
750 lm (11.8W)
10 1000 lm (14.7W)
30 3000K
35 3500K
Alternate Construction
Uses an IDEAL Model 102 connector for
alternate dimming option compatibility;
Must be selected if alternate dimming
option is selected for frame-in kit
40 4000K
Product Code Example: DCD2TR6SWH
TRIM
PRODUCT CODE
SHAPE
APERTURE
STYLE
FINISH
DCD2T
R Round
6 6” Aperture
S
WH White
Trim
Smooth
8 8” Aperture
1
2
AZ
Low Iridescent Reflector, White Flange
CC
Custom
Lutron LDE1 Dimming refers to Lutron Hi-lume 1% EcoSystem LED driver with Soft-on, Fade-to-BlackTM
Lutron L3DAE Dimming refers to Lutron Hi-lume 1% 3-wire LED driver
dmf Lighting
®
1118 E. 223rd St. Carson, CA 90745
T: 1.800.441.4422
© 2016 DMF Lighting. All Rights Reserved. Specifications subject to change without notice.
www.dmflighting.com
Page 2 of 8 | V-03.01.16
DRD2
Recessed LED Downlight
Commercial Remodel
6”, 8” Aperture
FR AME-IN KIT DIMENSIONS
DCDHR6
6” Commercial Remodel Frame-in Kit
8916"
218mm
8916"
218mm
658"
168mm
65 "
8
CEILING
CUT OUT
168mm
4"
CEILING 7CUT
OUT
1
183mm
714"
TRIM
183mm
TRIM
5116"
128mm
5116"
128mm
838"
213mm
838"
213mm
15316"
386mm
15316"
386mm
dmf Lighting
®
1118 E. 223rd St. Carson, CA 90745
T: 1.800.441.4422
© 2016 DMF Lighting. All Rights Reserved. Specifications subject to change without notice.
www.dmflighting.com
Page 3 of 8 | V-03.01.16
DRD2
Recessed LED Downlight
Commercial Remodel
6”, 8” Aperture
FR AME-IN KIT DIMENSIONS
DCDHR8
8” Commercial Remodel Frame-in Kit
8916"9
8 "
218mm16
218mm
8116" 1
8 "
205mm 16
205mm
CEILING CUT OUT
CEILING
CUT OUT
91 "
8
91 "
232mm 8
232mm
TRIM
TRIM
5116"1
938" 3
5 16"
9 "
128mm 239mm8
128mm 239mm
15316"3
15 "
385mm16
385mm
dmf Lighting
®
1118 E. 223rd St. Carson, CA 90745
T: 1.800.441.4422
© 2016 DMF Lighting. All Rights Reserved. Specifications subject to change without notice.
www.dmflighting.com
Page 4 of 8 | V-03.01.16
DRD2
Recessed LED Downlight
Commercial Remodel
6”, 8” Aperture
TRIM DIMENSIONS
DCD2TR6
6” Commercial Trim
DCD2TR8
8” Commercial Trim
31516"
100mm
434"
120mm
1
16"
1mm
1
16"
2mm
21116"
68mm
714"
183mm
21116"
68mm
918"
232mm
dmf Lighting
®
1118 E. 223rd St. Carson, CA 90745
T: 1.800.441.4422
© 2016 DMF Lighting. All Rights Reserved. Specifications subject to change without notice.
www.dmflighting.com
Page 5 of 8 | V-03.01.16
DRD2
Recessed LED Downlight
Commercial Remodel
6”, 8” Aperture
LIGHT ENGINE OVERVIE W
DRD2M
LED Module
DRD2M7
DRD2M10
Module Lumen Output (lm)
750
1000
Rated Power (W)
11.8
14.7
Efficacy (lm/W)
64
68
Color Rendering Index
1 16"
37mm
7
CCT Options
2700K, 3000K, 3500K, 4000K
Binning
2-step SDCM
Beam Angle
Very Wide Flood (90º)
Lifetime (L70)
50,000
Max Ambient Operating Temperature
40°C
Input Voltage (V)
120/277V, 50/60Hz
378 "
98mm
dmf Lighting
®
93+
Input Current at 120V (Max)
0.10A
0.13A
Input Current at 277V (Max)
0.042A
0.053A
Power Factor
>0.9
Total Harmonic Distortion
<20%
Dimming
100% - 5%
1118 E. 223rd St. Carson, CA 90745
T: 1.800.441.4422
© 2016 DMF Lighting. All Rights Reserved. Specifications subject to change without notice.
www.dmflighting.com
Page 6 of 8 | V-03.01.16
DRD2
Recessed LED Downlight
Commercial Remodel
6”, 8” Aperture
PHOTOME TRICS
Light Engine: DRD2M7930 (DRD2 Module, 750 lm, 93 CRI, 3000K)
Trim: DCD2TR6SWH (DCD2 Trim, 6” Aperture, Smooth, White)
90°
Luminous Intensity
Gamma
75°
200
60°
300
400
45°
500
600
0°
cd
15°
C0 - C180
30°
C90 - C270
588 lm
C0
º
0.0º
960
5.0º
924
10.0º
888
15.0º
812
20.0º
723
25.0º
585
30.0º
396
35.0º
239
40.0º
176
45.0º
113
50.0º
96
55.0º
80
60.0º
66
65.0º
53
70.0º
41
75.0º
30
80.0º
20
85.0º
12
90.0º
4
Values in candela
Application Reference
LED
Module
Average
Flux Power Downlight Illuminance
Max/
(lm) (W) Spacing (ft)
Min
(fcd)
4x4
47
6x6
18
8x8
9
Calculation Area: 50’(L) x 40’(W) x 10’(H)
LLF 1.0, 80/50/20 Reflectance, 2.5’(H) Workplane
Spacing Criteria: 1.28
DRD2M7
588
11.8
Zonal Lumen Summary
Zone
Lumens
Luminaire
%
0-30
0-40
0-60
0-90
0-180
338
433
531
588
588
57%
74%
90%
100%
100%
LPD
(W/sq
ft)
1.23
1.31
2.43
0.72
0.38
0.18
CCT Multiplier
CCT
Lumen
Factor
2700K
0.87
3000K
1.00
3500K
1.00
4000K
1.07
Value based upon testing with
3500, 95CRI. Lumen output of
other color temperature can be
determined by multiplying the
relative lumen factor.
Light Engine: DRD2M10930 (DRD2 Module, 1000 lm, 93 CRI, 3000K)
Trim: DCD2TR6SWH (DCD2 Trim, 6” Aperture, Smooth, White)
90°
Luminous Intensity
Gamma
75°
300
60°
450
45°
600
0°
cd
15°
C0 - C180
dmf Lighting
®
30°
C90 - C270
774 lm
C 0º
960
924
888
812
723
585
396
239
176
113
96
80
66
53
41
30
20
12
4
0.0º
5.0º
10.0º
15.0º
20.0º
25.0º
30.0º
35.0º
40.0º
45.0º
50.0º
55.0º
60.0º
65.0º
70.0º
75.0º
80.0º
85.0º
90.0º
Values in candela
1118 E. 223rd St. Carson, CA 90745
Application Reference
LED
Module
4x4
48
6x6
24
8x8
12
Calculation Area: 50’(L) x 40’(W) x 10’(H)
LLF 1.0, 80/50/20 Reflectance, 2.5’(H) Workplane
Spacing Criteria: 1.28
DRD2M10
774
14.7
Zonal Lumen Summary
Zone
Lumens
Luminaire
%
0-30
0-40
0-60
0-90
0-180
444
570
699
774
774
57%
74%
90%
100%
100%
T: 1.800.441.4422
© 2016 DMF Lighting. All Rights Reserved. Specifications subject to change without notice.
Average
Flux Power Downlight Illuminance
Max/
(lm) (W) Spacing (ft)
Min
(fcd)
LPD
(W/sq
ft)
1.22
1.29
2.46
0.84
0.44
0.21
CCT Multiplier
CCT
Lumen
Factor
2700K
0.93
3000K
1.00
3500K
1.00
4000K
1.07
Value based upon testing with
3500, 95CRI. Lumen output of
other color temperature can be
determined by multiplying the
relative lumen factor.
www.dmflighting.com
Page 7 of 8 | V-03.01.16
DRD2
Recessed LED Downlight
Commercial Remodel
6”, 8” Aperture
D I M M E R C O M PAT I B I L I T Y
Recommended Phase-control Dimmers (Dims down to less than 5% nominal measured light output)
Brand
Series
Model Number
Max # - load
Max # - load
Control 4
Control 4
C4-APD120
10
9
Cooper
Decorator
DLC03P, DAL06P
25
20
Legrand
Adorne
ADPD703TU
35
30
Caseta
PD-6WCL
12
10
CL series
AYCL-153, CTCL-153, DVCL-153, LGCL-153,
SCL-153, TGCL-153
12
10
CL series
AYCL-253, DVCL-253
20
15
Grafik Eye 3000
QSGR-3P
30
25
Grafik Sys/Homeworks
LP-RPM-4U
30
25
Grafik Sys/Homeworks
LP-RPM-4A
25
20
Maestro CL
MACL-153M, MSCL-OP153M, MSCL-VP153M
12
10
Maestro Wireless
MRF2-6ELV, MRF2-6CL
12
10
Lutron
DRD2M7xx
DRD2M10xx
Compatible Phase-control Dimmers1 (Dims down to less than 20% nominal measured light output)
Brand
Series
Model Number
Max # - load
Max # - load
Cooper
Slide
SLC03P, SAL06P
25
20
Legrand
Harmony
H703PTU, HCL453P
30
25
Leviton
IllumaTech Slide
IPE04
25
20
SureSlide
6621, 6674
10
10
Diva
DV-600
12
10
Maestro
MA-600
12
9
Maestro ELV
MAELV-600, MSCELV-600
35
30
Maestro Wireless
MRF2-6ND
12
10
Radio RA
RRD-6NA, RRD-6CL, RRD-6D
12
10
Skylark
S-600, SLV-600
35
30
Skylark
S-1000
20
18
Skylark ELV
SELV-300
25
20
Ariadni/Toggler
AY-603, TG-603
12
10
Power Booster
PHPM-PA/PHPM-WBX
25
20
Lightolier
Sunrise
SR400RPC120, ZP260QEW
20
15
Watt Stopper
Dimming Sensor
PW-100D
14
12
Lutron
1
DRD2M7xx
DRD2M10xx
Dimmer compatibility reflects performance compatibility only. Please reference your local codes for application.
dmf Lighting
®
1118 E. 223rd St. Carson, CA 90745
T: 1.800.441.4422
© 2016 DMF Lighting. All Rights Reserved. Specifications subject to change without notice.
www.dmflighting.com
Page 8 of 8 | V-03.01.16
Download
