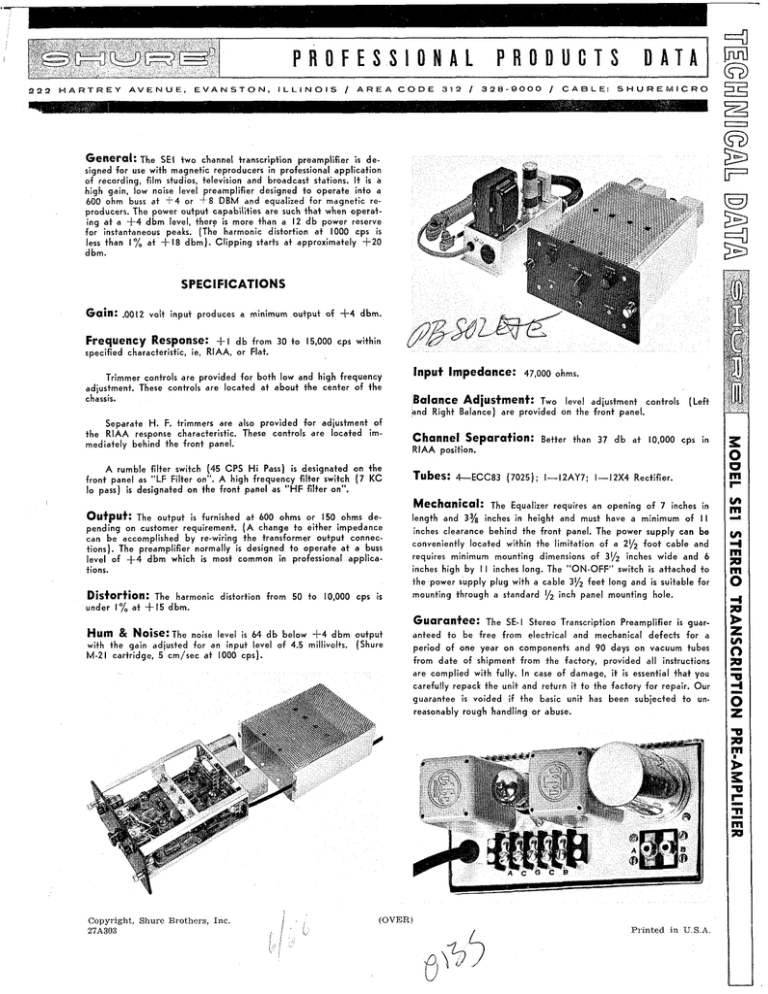

General: The SEI two channel transcription preamplifier i s designed for use with magnetic reproducers in professional application
of recording, film studios, television and broadcast stations. It is a
high gain, low noise level preamplifier designed t o operate into a
600 ohm buss at -1-4 or + 8 DBM and equalized for magnetic reproducers. The power output capabilities are such that when operating a t a +4 d b m level, there i s more than a 12 db power reserve
for instantaneous peaks. (The harmonic distortion a t 1000 cps i s
less than 1 % at + I 8 dbm). Clipping starts at approximately +20
dbm.
SPECIFICATIONS
Gain:
.0012 volt input produces a minimum output o f +4
Frequency Response: + I db from 30 t o 15,000
specified characteristic, ie, RIAA, or Flat.
CPS
dbm.
within
Trimmer controls are provided for both low and high frequency
adjustment. These controls are located at about the center o f the
chassis.
Separate H. F. trimmers are also provided for adjustment of
the R l A A response characteristic. These controls are located immediately behind the front panel.
Input Impedance:
47,000 ohms.
Balance Adjustment: TWO level adjustment controls
and Right Balance) are provided on t h e front panel.
Channel Separation:
Better than 37
db at 10,000
(Left
CPS
in
RlAA position.
A rumble filter switch (45 CPS Hi Pass) i s designated on the
front panel as "LF Filter on". A high frequency filter switch ( 7 K C
lo pass) is designated on the front panel as "HF filter on".
Tubes:
OUfPUt:
length and 3% inches in height and must have a minimum o f I1
4-ECC83
Mechanical:
The output is furnished at 600 ohms or 150 ohms depending on customer requirement. ( A change t o either impedance
can b e accomplished by re-wiring the transformer output connections). The preamplifier normally i s designed t o operate a t a buss
level o f $ 4 dbm which is most common in professional applications.
Distortion:
under 1 %
The harmonic distortion from 50 t o 10,000 cps i s
at + I 5 dbm.
noise level i s 64 db below +4 d b m output
with the gain adjusted for an input level of 4.5 millivolts. (Shure
M-21 cartridge, 5 cm/sec a t 1000 cps).
I-12X4
Rectifier.
The Equalizer requires an opening o f 7 inches in
inches clearance behind the front panel. The power supply can be
conveniently located within the limitation o f a 21/2 f o o t cable and
requires minimum mounting dimensions o f 3'/2 inches wide and 6
inches high by I I inches long. The "ON-OFF'' switch i s attached t o
the power supply plug with a cable 31/2 feet long and i s suitable for
mounting through a standard '/2 inch panel mounting hole.
Guarantee:
Hum & Noise:The
(7025): I-12AY7;
The SE-1 Stereo Transcription Preamplifier i s guar-
anteed t o be free from electrical and mechanical defects for a
period o f one year on components and
90 days on vacuum tubes
from date of shipment from t h e factory, provided all instructions
are complied with fully. In case o f damage, it i s essential that you
carefully repack the unit and return it t o the factory for repair. Our
guarantee i s voided
if the basic unit has been subjected t o un.
reasonably rough handling or abuse.
(OVER)
Printed in U.S.A.
