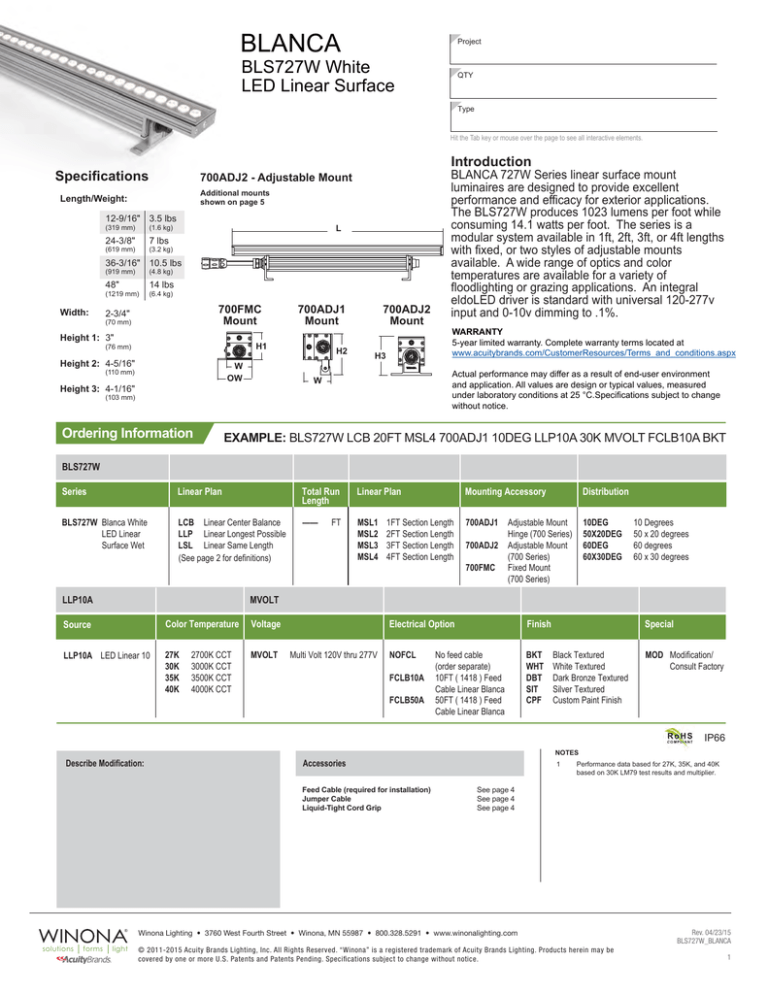

BLANCA
Project
BLS727W White
LED Linear Surface
QTY
Type
Hit the Tab key or mouse over the page to see all interactive elements.
Specifications
Introduction
700ADJ2 - Adjustable Mount
Additional mounts
shown on page 5
Length/Weight:
12-9/16" 3.5 lbs
(319 mm)
(1.6 kg)
24-3/8"
7 lbs
(619 mm)
L
(3.2 kg)
36-3/16" 10.5 lbs
(919 mm)
(4.8 kg)
48"
14 lbs
(1219 mm)
Width:
(6.4 kg)
700FMC
Mount
2-3/4"
(70 mm)
Height 1: 3"
700ADJ1
Mount
H1
(76 mm)
Height 2: 4-5/16"
W
OW
(110 mm)
Height 3: 4-1/16"
H2
700ADJ2
Mount
H3
WARRANTY
5-year limited warranty. Complete warranty terms located at
www.acuitybrands.com/CustomerResources/Terms_and_conditions.aspx
Actual performance may differ as a result of end-user environment
and application. All values are design or typical values, measured
under laboratory conditions at 25 °C.Specifications subject to change
without notice.
W
(103 mm)
Ordering Information
BLANCA 727W Series linear surface mount
luminaires are designed to provide excellent
performance and efficacy for exterior applications.
The BLS727W produces 1023 lumens per foot while
consuming 14.1 watts per foot. The series is a
modular system available in 1ft, 2ft, 3ft, or 4ft lengths
with fixed, or two styles of adjustable mounts
available. A wide range of optics and color
temperatures are available for a variety of
floodlighting or grazing applications. An integral
eldoLED driver is standard with universal 120-277v
input and 0-10v dimming to .1%.
EXAMPLE: BLS727W LCB 20FT MSL4 700ADJ1 10DEG LLP10A 30K MVOLT FCLB10A BKT
BLS727W
Series
Linear Plan
Total Run
Length
Linear Plan
Mounting Accessory
Distribution
BLS727W Blanca White
LED Linear
Surface Wet
LCB Linear Center Balance
LLP Linear Longest Possible
LSL Linear Same Length
(See page 2 for definitions)
——
MSL1
MSL2
MSL3
MSL4
700ADJ1
10DEG
50X20DEG
60DEG
60X30DEG
LLP10A
FT
1FT Section Length
2FT Section Length
3FT Section Length
4FT Section Length
700ADJ2
700FMC
Adjustable Mount
Hinge (700 Series)
Adjustable Mount
(700 Series)
Fixed Mount
(700 Series)
10 Degrees
50 x 20 degrees
60 degrees
60 x 30 degrees
MVOLT
Source
Color Temperature
Voltage
LLP10A LED Linear 10
27K
30K
35K
40K
MVOLT
2700K CCT
3000K CCT
3500K CCT
4000K CCT
Multi Volt 120V thru 277V
Electrical Option
Finish
NOFCL
BKT
WHT
DBT
SIT
CPF
FCLB10A
FCLB50A
No feed cable
(order separate)
10FT ( 1418 ) Feed
Cable Linear Blanca
50FT ( 1418 ) Feed
Cable Linear Blanca
Special
Black Textured
White Textured
Dark Bronze Textured
Silver Textured
Custom Paint Finish
MOD Modification/
Consult Factory
IP66
Describe Modification:
Accessories
Feed Cable (required for installation)
Jumper Cable
Liquid-Tight Cord Grip
WIN NA
®
solutions
forms
light
NOTES
1
Performance data based for 27K, 35K, and 40K
based on 30K LM79 test results and multiplier.
See page 4
See page 4
See page 4
Winona Lighting • 3760 West Fourth Street • Winona, MN 55987 • 800.328.5291 • www.winonalighting.com
© 2011-2015 Acuity Brands Lighting, Inc. All Rights Reserved. “Winona” is a registered trademark of Acuity Brands Lighting. Products herein may be
covered by one or more U.S. Patents and Patents Pending. Specifications subject to change without notice.
Rev. 04/23/15
BLS727W_BLANCA
1
Linear Plan
Linear Plan
Winona offers the ability to provide a continuous run plan to suit your requirements by optionally offering
three methods of configuration.
4'
LSL 20FT
LSL Linear Same Length:
In this configuration each segment is the same length is standardized based on the longest length available
and is the only option provided. Because it is dependent on one segment length there are mathematical
limitations on what overall row lengths can be achieved. Example: 22 FT row would be achieved with (5)
4FT long segments equaling 20 FT (nominal).
3'
LCB 22FT
LCB Linear Center Balanced:
This configuration incorporates the longest center segment(s) along with any additional lengths required to fill
located at each end. Example: 22FT row would have (2) 3FT segments (one at each end) and (4) 4FT
intermediate segments located in between.
LLP Linear Longest Possible:
In this plan the longest length available is optimized resulting in the fewest segments and mounting locations.
Caution should be used where balanced appearance is a concern. Example: 22FT row would have (5) 4FT
segments and (1) 2 FT segment located at one end.
4'
4'
2'
LLP 22FT
4'
4'
4'
4'
4'
4'
4'
4'
4'
3'
4'
4'
Peformance Data
Lumen Output
Lumen values are from photometric tests performed in accordance with IESNA LM-79-08. Data is considered to be representative of the configurations
shown, within the tolerances allowed by Lighting Facts. Actual performance may differ as a result of end-user environment and application. Contact factory
for performance data on any configurations not shown here.
Model
LEDs
BLS727W
System
Watts
48
Nominal
Distribution
10
50 x 20
60 x 30
60
56.5
Beam
Angle
12 x 13 32 x 28
20 x 50 51 x 87
31 x 61 71 x 106
60 x 61 112 x 120
3500K
3000K
2700K
Field
Angle
Max Cd Lumens
LPW
Max Cd Lumens
38354
8523
5148
2977
70
66
67
66
39541
8509
5308
3070
3972
3750
3791
3730
4095
3866
3909
3846
LPW
72
68
69
68
Max Cd Lumens
45867
9870
6157
3561
4750
4484
4534
4461
Electrical Load
Current (A)
Model
4000K
LPW
84
79
80
78
Max Cd Lumens
LPW
47449
10210
6369
3684
86
82
83
81
4914
4639
4690
4615
BLS727W MLS4
BLS727W MLS3
BLS727W MLS2
BLS727W MLS1
System
Watts (W)
120V
208V
240V
277V
347V
480V
56.5
42.4
28.3
14.1
0.47
0.35
0.24
0.12
0.27
0.20
0.14
0.07
0.24
0.18
0.12
0.06
0.20
0.15
0.10
0.05
-
-
Photometric Diagrams
10° DISTRIBUTION
50° X 20° DISTRIBUTION
Test Report: BAL17260
IES LM 79-08
BLS727W MLS4 10DEG 30K
Lumens: 4,095
Wattage: 56W
Efficacy: 72.5
Max. Candela: 39,541
10˚
40'
50'
50˚
30˚
60˚
ISO Candela Plot
5308
3070
29656
6382
3981
2303
19771
4256
2654
1535
9885
2127
1327
768
Illuminance at a Distance
Center Beam fc
Beam Width
220.3 fc
1' 9"
80.3 fc
3' 6"
39.6 fc
5' 3"
23.2 fc
7' 0"
15.3 fc
8' 9"
10'
20'
30'
40'
50'
Illuminance at a Distance
Illuminance at a Distance
Center Beam fc
Beam Width
50°
20°
80.1 fc
11' 6" 1' 9"
21.0 fc
23' 1" 3' 6"
9.5 fc
34' 7" 5' 3"
5.3 fc
46' 2" 7' 0"
3.4 fc
57' 8" 8' 9"
10'
20'
30'
40'
50'
60˚
ISO Candela Plot
8509
Center Beam fc
30'
20˚
Test Report: BAL17263
IES LM 79-08
BLS727W MLS4 60DEG 30K
Lumens: 3,846
Wattage: 56W
Efficacy: 68.2
Max. Candela: 3,070
39541
Illuminance at a Distance
20'
60° DISTRIBUTION
Test Report: BAL17262
IES LM 79-08
BLS727W MLS4 60X30DEG 30K
Lumens: 3,894
Wattage: 56W
Efficacy: 69.1
Max. Candela: 5,308
ISO Candela Plot
ISO Candela Plot
10'
60° X 30° DISTRIBUTION
Test Report: BAL17261
IES LM 79-08
BLS727W MLS4 50X20DEG 30K
Lumens: 3,866
Wattage: 56W
Efficacy: 68.5
Max. Candela: 8,509
Beam Width
60°
Center Beam fc
30°
50.1 fc
11' 6" 5' 4"
13.1 fc
23' 1" 10' 9"
5.9 fc
34' 7" 16' 1"
3.3 fc
46' 2" 21' 5"
2.1 fc
57' 8" 26' 10"
10'
20'
30'
40'
50'
Beam Width
28.8 fc
11' 6"
7.6 fc
23' 1"
3.4 fc
34' 7"
1.9 fc
46' 2"
1.2 fc
57' 8"
Photometric data based on test results from an independent NIST traceable testing lab. IES data is available at www.winonalighting.com. Always refer to our website for the latest IES file updates.
FEATURES & SPECIFICATIONS
Lumens: 1023 lm per foot (10°)
Lumen Maintenance: 60,300 hours L70 @ 40°C
Certification/Compliance: 727W -ETL wet location, cETL, IP66
Wattage: 14W/ft. (4’ fixture)
Size: 2 3/4"W x 3"H
Weight: 12" - 3.5 lbs / 24" - 7 lbs / 36" - 10.5 lbs / 48" - 14 lbs
Efficacy: 72.5 LPW
Housing: Extruded aluminum
Warranty: 5 years
Voltage: 120 - 277V
Finish: Polyester powder coat painted finish
Assembled in America: Buy American Act Compliant
Distribution: 10°, 50° x 20°, 60° x 30°, 60°
Lens Material: Extruded acrylic
Control System: 0 - 10v dimming standard
Temperature Ranges: -20° to 40°C
WIN NA
®
solutions
forms
light
Winona Lighting • 3760 West Fourth Street • Winona, MN 55987 • 800.328.5291 • www.winonalighting.com
© 2011-2015 Acuity Brands Lighting, Inc. All Rights Reserved. “Winona” is a registered trademark of Acuity Brands Lighting. Products herein may be
covered by one or more U.S. Patents and Patents Pending. Specifications subject to change without notice.
Rev. 04/23/15
BLS727W_BLANCA
2
Basic System Wiring Information
This very basic system wiring diagram provides an overview of components and materials
required for a simple installation of BLANCA luminaires controlled by 0-10v dimmer control.
These diagrams should not be used in place of actual installation instructions or submittal
drawings prepared for a specific project.
A
B
C
A
BLANCA may be dimmed using common 0-10v
fluorescent-style current-sink or current-source dimming
controls. These controls can range from simple wall box
units to elaborate rack mounted systems, but all must
conform to the IEC 0-10v dimming standard.
B
Belden 9829 cable is the preferred communication/data
cable used to carry the 0-10v signal to the BLANCA
luminaires.
C
Feed cable connects junction box with first fixture in a run.
14 ga. conductors carry power, shielded 18 ga. conductors
carry data. Input end is stripped for connection to the
junction box, output end includes a female plug for
fixture connection. Also included with each feed cable is a
sealing cap for the end of each run.
(Contact factory for availability of custom feed cable
lengths)
120-277V
Maximum Run Length
Model
BLS727W
w/ft.
120V
277V
14.1
85ft
196ft
Power & 0-10V Connection
CORD FROM
LUMINAIRE
10V VIOLET
COM GRAY
WHITE NEUTRAL
BLACK LINE
GREEN GROUND
Though the IEC standard for 0-10v dimming is easily followed, dimming performance
among differing manufacturers is not. BLANCA luminaires are continually being tested
with commercially available dimmers as they are discovered. Please refer to the
BLANCA section of the Winona Lighting website for the latest list of approved dimmers www.winonalighting.com.
WIN NA
®
solutions
forms
light
Winona Lighting • 3760 West Fourth Street • Winona, MN 55987 • 800.328.5291 • www.winonalighting.com
© 2011-2015 Acuity Brands Lighting, Inc. All Rights Reserved. “Winona” is a registered trademark of Acuity Brands Lighting. Products herein may be
covered by one or more U.S. Patents and Patents Pending. Specifications subject to change without notice.
Rev. 04/23/15
BLS727W_BLANCA
3
Accessory Options
Feed Cable (Linear)
Feed cable connects junction box with first
fixture in a run. 14 ga. conductors carry power,
shielded 18 ga. conductors carry data. Input
end is stripped for connection to the junction
box, output end includes a female plug for
fixture connection. Also included with each
feed cable is a sealing cap for the end of
each run.
*Required for all installations*
10'
(3.48m)
Model
50'
(15.24m)
FCLB10A 10FT (1418) FEED CABLE LINEAR BLANCA
FCLB50A 50FT (1418) FEED CABLE LINEAR BLANCA
(Contact factory for availability of custom feed cable lengths)
Jumper Cable (Linear) *Optional*
Jumper cable provides additional spacing
between linear fixtures in the same run.
14 ga. conductors carry power, shielded
18 ga. conductors carry data. Input end
includes a male connector, output end
includes a female connector.
12"
(305mm)
Model
36"
(914mm)
JCL1A 1FT JUMPER(1418) CABLE LINEAR
JCL3A 3FT JUMPER(1418) CABLE LINEAR
JCL5A 5FT JUMPER(1418) CABLE LINEAR
Liquid-Tight Cord Grip
60"
(1524mm)
1/2 NPSM Threads
Cable Diameter Range
CORDGP2
.44 - .50 diameter
Model
CORDGP2 liquid-tight cord grip
WIN NA
®
solutions
forms
light
1 3/4"
(44mm)
Winona Lighting • 3760 West Fourth Street • Winona, MN 55987 • 800.328.5291 • www.winonalighting.com
© 2011-2015 Acuity Brands Lighting, Inc. All Rights Reserved. “Winona” is a registered trademark of Acuity Brands Lighting. Products herein may be
covered by one or more U.S. Patents and Patents Pending. Specifications subject to change without notice.
Rev. 04/23/15
BLS727W_BLANCA
4
Dimensions & Mounting
700FMC - Linear Surface With Fixed Mounts
Brackets slide to
adjust to various
mounting widths
3"
(95mm)
48" (1219mm)
36 3/16" (919mm)
24 3/8" (619mm)
12 9/16" (319mm)
2 3/4"
(70mm)
3 3/4"
(95mm)
FLEXIBLE MOUNT
700ADJ1 - Linear Surface With Adjustable Hinge Mounts
3 1/32"
(77mm)
4 5/16"
(110mm)
ADJUSTABLE IN
10 DEG INCREMENTS
ADJUSTABLE
48" (1219mm)
36 3/16" (919mm)
24 3/8" (619mm)
12 9/16" (319mm)
3 1/32"
(77mm)
2 3/4"
(70mm)
4 1/8"
(105mm)
700ADJ2 - Linear Surface With Adjustable Mount Brackets
39 1/2" (1003mm)
27 11/16" (703mm)
15 7/8" (403mm)
10 7/16" (265mm)
4 1/4"
(108mm)
3 5/16"
(84mm)
48" (1219mm)
36 3/16" (919mm)
24 3/8" (619mm)
12 9/16" (319mm)
4 1/16"
(103mm)
4 1/4"
(108mm)
WIN NA
®
solutions
forms
light
Winona Lighting • 3760 West Fourth Street • Winona, MN 55987 • 800.328.5291 • www.winonalighting.com
© 2011-2015 Acuity Brands Lighting, Inc. All Rights Reserved. “Winona” is a registered trademark of Acuity Brands Lighting. Products herein may be
covered by one or more U.S. Patents and Patents Pending. Specifications subject to change without notice.
Rev. 04/23/15
BLS727W_BLANCA
5
Lighting Facts Labels
WIN NA
®
solutions
forms
light
Winona Lighting • 3760 West Fourth Street • Winona, MN 55987 • 800.328.5291 • www.winonalighting.com
© 2011-2015 Acuity Brands Lighting, Inc. All Rights Reserved. “Winona” is a registered trademark of Acuity Brands Lighting. Products herein may be
covered by one or more U.S. Patents and Patents Pending. Specifications subject to change without notice.
Rev. 04/23/15
BLS727W_BLANCA
6
