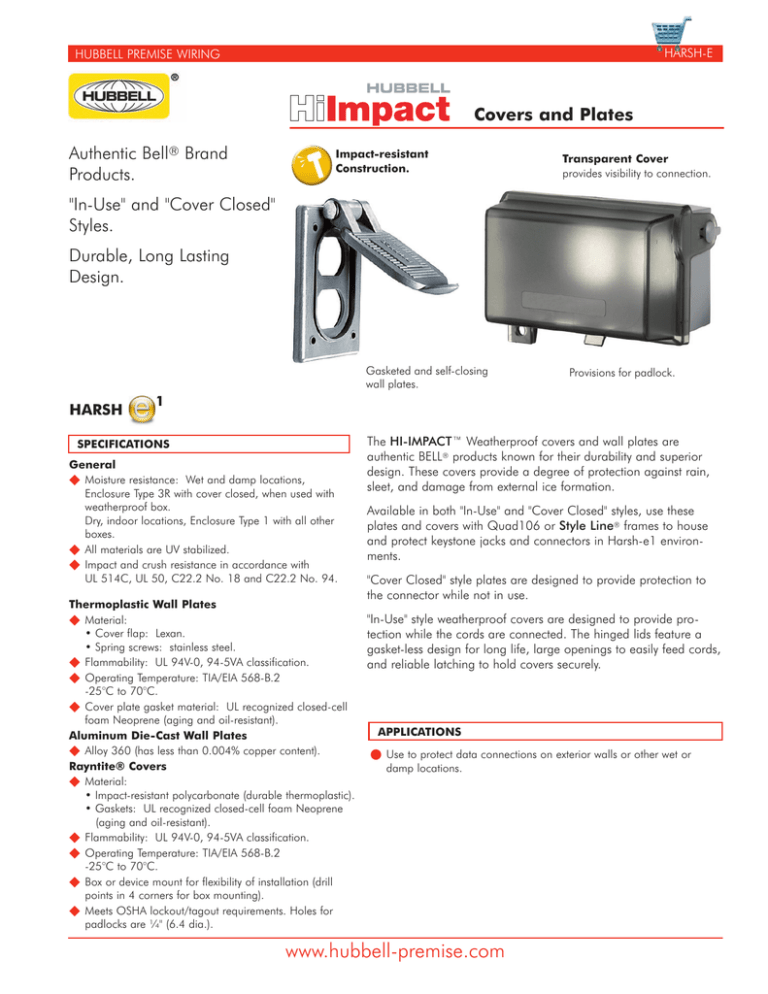

HARSH-E
HUBBELL PREMISE WIRING
Covers and Plates
Authentic Bell® Brand
Products.
Impact-resistant
Construction.
Transparent Cover
provides visibility to connection.
"In-Use" and "Cover Closed"
Styles.
Durable, Long Lasting
Design.
Gasketed and self-closing
wall plates.
HARSH
Provisions for padlock.
1
SPECIFICATIONS
General
Moisture resistance: Wet and damp locations,
Enclosure Type 3R with cover closed, when used with
weatherproof box.
Dry, indoor locations, Enclosure Type 1 with all other
boxes.
All materials are UV stabilized.
Impact and crush resistance in accordance with
UL 514C, UL 50, C22.2 No. 18 and C22.2 No. 94.
Thermoplastic Wall Plates
Material:
• Cover flap: Lexan.
• Spring screws: stainless steel.
Flammability: UL 94V-0, 94-5VA classification.
Operating Temperature: TIA/EIA 568-B.2
-25°C to 70°C.
Cover plate gasket material: UL recognized closed-cell
foam Neoprene (aging and oil-resistant).
Aluminum Die-Cast Wall Plates
Alloy 360 (has less than 0.004% copper content).
Rayntite® Covers
Material:
• Impact-resistant polycarbonate (durable thermoplastic).
• Gaskets: UL recognized closed-cell foam Neoprene
(aging and oil-resistant).
Flammability: UL 94V-0, 94-5VA classification.
Operating Temperature: TIA/EIA 568-B.2
-25°C to 70°C.
Box or device mount for flexibility of installation (drill
points in 4 corners for box mounting).
Meets OSHA lockout/tagout requirements. Holes for
padlocks are ¼" (6.4 dia.).
The HI-IMPACT™ Weatherproof covers and wall plates are
authentic BELL® products known for their durability and superior
design. These covers provide a degree of protection against rain,
sleet, and damage from external ice formation.
Available in both "In-Use" and "Cover Closed" styles, use these
plates and covers with Quad106 or Style Line® frames to house
and protect keystone jacks and connectors in Harsh-e1 environments.
"Cover Closed" style plates are designed to provide protection to
the connector while not in use.
"In-Use" style weatherproof covers are designed to provide protection while the cords are connected. The hinged lids feature a
gasket-less design for long life, large openings to easily feed cords,
and reliable latching to hold covers securely.
APPLICATIONS
Use to protect data connections on exterior walls or other wet or
damp locations.
www.hubbell-premise.com
HARSH-E
HUBBELL PREMISE WIRING
HI-IMPACT™ Weatherproof Plate (Flip Cover), Vertical Mounting, Single-Gang
Order Information
Delivery: 1 plate with 4 stainless steel mounting screws (#6-32 x ½")
Opening Style Mounting
Material
Color
Protection Level
Duplex
Device
Thermoplastic Gray
IP44 suitable/NEMA3R
Duplex
FS/FD Box (4-point) Thermoplastic Gray
IP44 suitable/NEMA3R
Style Line®
Device
Die-cast Al.
Gray
IP44 suitable/NEMA3R
Style Line®
FS/FD Box (4-point) Die-cast Al.
Gray
IP44 suitable/NEMA3R
Catalog No.
HBL5222HI
HBL5221HI
WP26HI
WPFS26HI
HI-IMPACT™ Weatherproof RAYNTITE® Cover, Maximum Protection, In-Use
Order Information
Delivery: 1 cover, 1 each plates for duplex and Style Line® devices, 4 stainless steel mounting screws
(#6-32 x ½").
Orientation
Horizontal
Vertical
Vertical
Gang
Single
Single
Double
Catalog No.
WP826MHPHI
WP826MPHI
WP8262MPHI
ACCESSORIES
Communication Jacks
HI-IMPACT™ Frames
Description
Category 6
Category 5e
XX = Color
BK = Black
GN = Green
TI = Telco Ivory
Ports
2
3
4
6
Cat. No.
HXJ6XX
HXJ5EXX
Style Line® Frames
Catalog No.
ISF2XX
ISF3XX
ISF4XX
ISF6XX
Duplex Frames
Catalog No.
BR106XX
Q106XX
-
XX = Color
B = Blue
OW = Office White
W = White
EI = Electric Ivory
OR = Orange
Y = Yellow
GY = Gray
R = Red
BK = Black
OW = Office White
EI = Electric Ivory
W = White
GY = Gray
HI-IMPACT™ Cords
HI-IMPACT™ RJ-45
Type
Cat 6
Cat 5e
XX = Length
to RJ-45
Catalog No.
HI6XXAA
HI5EXXAA
03 = 3' 05 = 5' 07 = 7' 10 = 10'
15 = 15' 20 = 20' 25 = 25'
Hubbell Premise Wiring
HUBBELL INCORPORATED (Delaware)
14 Lord’s Hill Road • Stonington, CT 06378-0901 • (860) 535-8326 • 800-626-0005
Fax: (860) 535-8328 • Internet site: http://www.hubbell-premise.com
DS-E22
