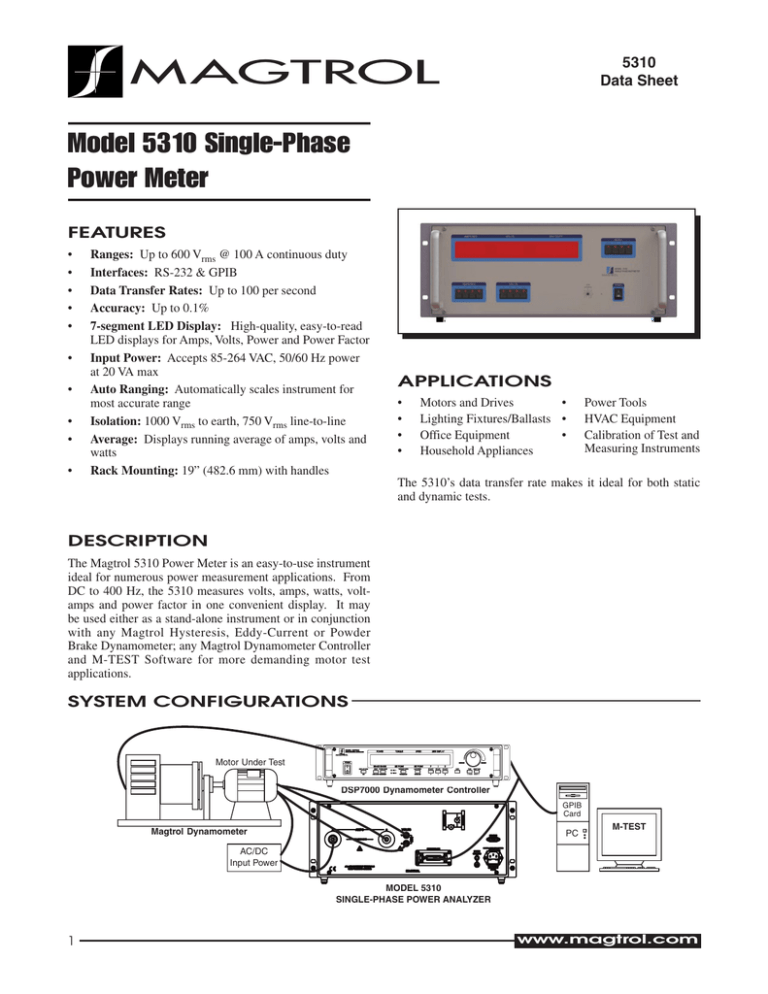

M AGTROL
5310
Data Sheet
Model 5310 Single-Phase
Power Meter
FEATURES
•
•
•
•
•
•
•
•
•
•
Ranges: Up to 600 Vrms @ 100 A continuous duty
Interfaces: RS-232 & GPIB
Data Transfer Rates: Up to 100 per second
Accuracy: Up to 0.1%
7-segment LED Display: High-quality, easy-to-read
LED displays for Amps, Volts, Power and Power Factor
Input Power: Accepts 85-264 VAC, 50/60 Hz power
at 20 VA max
Auto Ranging: Automatically scales instrument for
most accurate range
Isolation: 1000 Vrms to earth, 750 Vrms line-to-line
Average: Displays running average of amps, volts and
watts
Rack Mounting: 19” (482.6 mm) with handles
APPLICATIONS
•
•
•
•
Motors and Drives
•
Lighting Fixtures/Ballasts •
Office Equipment
•
Household Appliances
Power Tools
HVAC Equipment
Calibration of Test and
Measuring Instruments
The 5310’s data transfer rate makes it ideal for both static
and dynamic tests.
DESCRIPTION
The Magtrol 5310 Power Meter is an easy-to-use instrument
ideal for numerous power measurement applications. From
DC to 400 Hz, the 5310 measures volts, amps, watts, voltamps and power factor in one convenient display. It may
be used either as a stand-alone instrument or in conjunction
with any Magtrol Hysteresis, Eddy-Current or Powder
Brake Dynamometer; any Magtrol Dynamometer Controller
and M-TEST Software for more demanding motor test
applications.
SYSTEM CONFIGURATIONS
Motor Under Test
DSP7000 Dynamometer Controller
GPIB
Card
Magtrol Dynamometer
PC
M-TEST
AC/DC
Input Power
MODEL 5310
SINGLE-PHASE POWER ANALYZER
1
www.magtrol.com
Specifications
5310
VOLTAGE INPUT
150
V, 300 V, 600 V
Ranges
Maximum Voltage 750 V AC/DC terminal (V) to
terminal (±) and
1000 V AC/DC terminal to earth
ground
1.7 @ full scale input
Crest Factor
Impedance
2 MΩ
4 digits with 1 mV resolution
Display Range
CURRENT INPUT
5 A, 25 A, 100 A
1000 V AC/DC terminal to ground
---
2.7 @ full scale input
0.7 mΩ
4 digits with 1 mA resolution
ACCURACY
±(0.1% Reading + 0.2% Range)
±(0.1% Reading + 0.1% Range)
DC
5 Hz – 400 Hz
DIMENSIONS
19.0 in
Width
7.5 in
Height
14.75 in
Depth
with handles 16.5 in
21 lb
Weight
POWER
---
----5 digits with 1 mW resolution
0.4% of VA range
0.2% of VA range
483 mm
191 mm
375 mm
420 mm
9.5 kg
FRONT PANEL
Ready
for Rack
Mounting
Mode
(Hold, Avg, PF and VA)
Amperes
(5, 25, 100 and Auto)
2
GPIB Address
Selector
Power On/Off
Volts
(150, 300, 600 and Auto)
M AGTROL
Specifications
5310
REAR PANEL
RS-232 Interface
GPIB/IEEE-488 Interface
Power Input/Output
Due to the continual development of our products, we reserve the right to modify specifications without forewarning.
MAGTROL INC
70 Gardenville Parkway
Buffalo, New York 14224 USA
Phone: +1 716 668 5555
Fax: +1 716 668 8705
E-mail: magtrol@magtrol.com
MAGTROL SA
Route de Montena 77
1728 Rossens / Fribourg, Switzerland
Phone: +41 (0)26 407 3000
Fax: +41 (0)26 407 3001
E-mail: magtrol@magtrol.ch
Subsidiaries in:
Germany • France
China • India
Worldwide Network
of Sales Agents
5310-US 03/13
