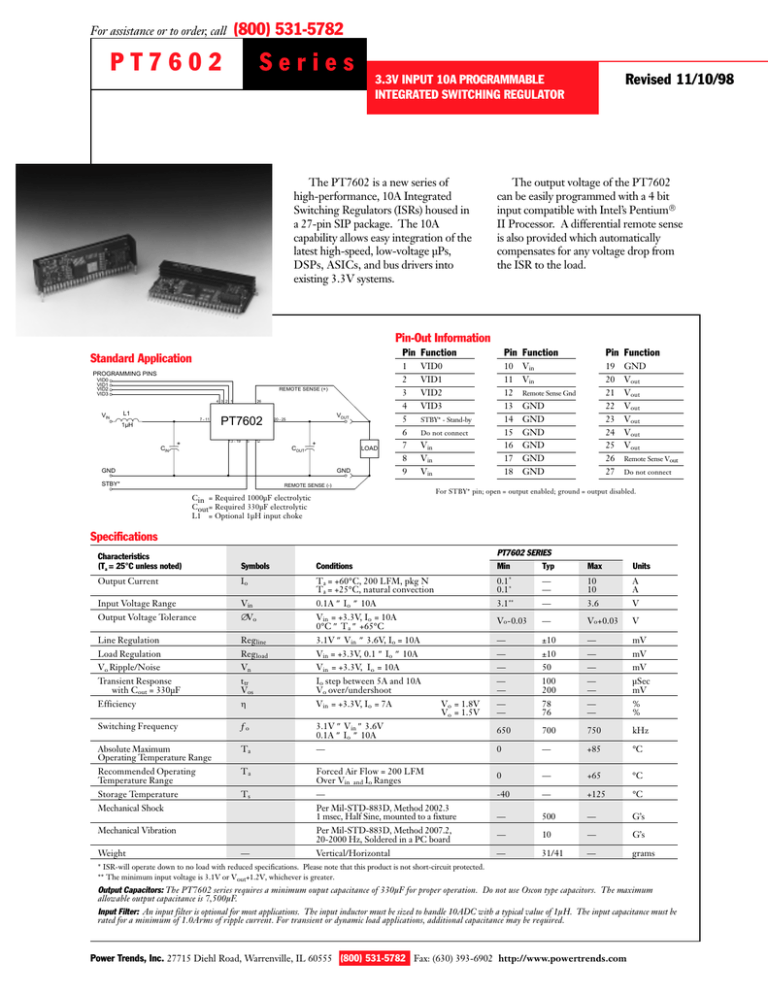

PT7602
Series
Revised 11/10/98
3.3V INPUT 10A PROGRAMMABLE
INTEGRATED SWITCHING REGULATOR
The PT7602 is a new series of
high-performance, 10A Integrated
Switching Regulators (ISRs) housed in
a 27-pin SIP package. The 10A
capability allows easy integration of the
latest high-speed, low-voltage µPs,
DSPs, ASICs, and bus drivers into
existing 3.3V systems.
The output voltage of the PT7602
can be easily programmed with a 4 bit
input compatible with Intel’s Pentium
II Processor. A differential remote sense
is also provided which automatically
compensates for any voltage drop from
the ISR to the load.
Pin-Out Information
Standard Application
PROGRAMMING PINS
VID0
VID1
VID2
VID3
REMOTE SENSE (+)
4 3 2 1
VIN
L1
7 - 11
1µH
CIN
26
PT7602
13 - 19
+
5
VOUT
20 - 25
12
COUT
+
LOAD
GND
GND
STBY*
Pin Function
Pin Function
Pin Function
1
VID0
10
Vin
19
GND
2
3
VID1
VID2
11
12
Vin
Remote Sense Gnd
20
21
Vout
Vout
4
5
VID3
13
14
GND
GND
22
23
Vout
Vout
STBY* - Stand-by
6
7
Vin
15
16
GND
GND
24
25
Vout
Vout
8
9
Vin
Vin
17
18
GND
GND
26
27
Remote Sense Vout
Do not connect
Do not connect
REMOTE SENSE (-)
For STBY* pin; open = output enabled; ground = output disabled.
Cin = Required 1000µF electrolytic
Cout= Required 330µF electrolytic
L1 = Optional 1µH input choke
Specifications
PT7602 SERIES
Characteristics
(Ta = 25°C unless noted)
Symbols
Conditions
Min
Typ
Max
Units
Output Current
Io
Ta = +60°C, 200 LFM, pkg N
Ta = +25°C, natural convection
0.1 *
0.1 *
—
—
10
10
A
A
Input Voltage Range
Vin
0.1A ≤ Io ≤ 10A
3.1**
—
3.6
V
Output Voltage Tolerance
∆Vo
Vin = +3.3V, Io = 10A
0°C ≤ Ta ≤ +65°C
Vo-0.03
—
Vo+0.03
V
Line Regulation
Regline
3.1V ≤ Vin ≤ 3.6V, Io = 10A
—
±10
—
mV
Load Regulation
Reg load
Vin = +3.3V, 0.1 ≤ Io ≤ 10A
—
±10
—
mV
Vo Ripple/Noise
Vn
Vin = +3.3V, I o = 10A
—
50
—
mV
Transient Response
with Cout = 330µF
t tr
Vos
Io step between 5A and 10A
Vo over/undershoot
—
—
100
200
—
—
µSec
mV
Efficiency
η
Vin = +3.3V, I o = 7A
—
—
78
76
—
—
%
%
Switching Frequency
ƒo
3.1V ≤ V in ≤ 3.6V
0.1A ≤ Io ≤ 10A
650
700
750
kHz
Absolute Maximum
Operating Temperature Range
Ta
—
0
—
+85
°C
Recommended Operating
Temperature Range
Ta
Forced Air Flow = 200 LFM
Over Vin and Io Ranges
0
—
+65
°C
Storage Temperature
Ts
—
-40
—
+125
°C
Mechanical Shock
Per Mil-STD-883D, Method 2002.3
1 msec, Half Sine, mounted to a fixture
—
500
—
G’s
Mechanical Vibration
Per Mil-STD-883D, Method 2007.2,
20-2000 Hz, Soldered in a PC board
—
10
—
G’s
Vertical/Horizontal
—
31/41
—
grams
Weight
—
Vo = 1.8V
Vo = 1.5V
* ISR-will operate down to no load with reduced specifications. Please note that this product is not short-circuit protected.
** The minimum input voltage is 3.1V or Vout+1.2V, whichever is greater.
Output Capacitors: The PT7602 series requires a minimum ouput capacitance of 330µF for proper operation. Do not use Oscon type capacitors. The maximum
allowable output capacitance is 7,500µF.
Input Filter: An input filter is optional for most applications. The input inductor must be sized to handle 10ADC with a typical value of 1µH. The input capacitance must be
rated for a minimum of 1.0Arms of ripple current. For transient or dynamic load applications, additional capacitance may be required.
Power Trends, Inc. 27715 Diehl Road, Warrenville, IL 60555 (800) 531-5782 Fax: (630) 393-6902 http://www.powertrends.com
Features
Programming Information
• +3.3V input
• 4-bit Programmable:
1.3V to [email protected]
• High Efficiency
• Input Voltage Range:
3.1V to 3.6V
• Differential Remote Sense
• 27-pin SIP Package
VID3 VID2 VID1 VID0
1
1
1
1
1
1
1
1
0
0
0
0
0
0
0
1
1
1
1
0
0
0
0
1
1
1
1
0
0
0
1
1
0
0
1
1
0
0
1
1
0
0
1
1
0
1
0
1
0
1
0
1
0
1
0
1
0
1
0
1
For assistance or to order, call
(800) 531-5782
PT7602
Series
Ordering Information
PT7602❏
❏ = 1.3 to 2.05 Volts
Vout
1.30V
1.35V
1.40V
1.45V
1.50V
1.55V
1.60V
1.65V
1.70V
1.75V
1.80V
1.85V
1.90V
1.95V
2.00V
(For dimensions and PC board layout,
see Package Styles 800 and 810.)
PT Series Suffix (PT1234X)
Case/Pin
Configuration
Vertical Through-Hole
Horizontal Through-Hole
Horizontal Surface Mount
N
A
C
Logic 0 = Pin 12 potential (remote sense gnd)
Logic 1 = Open circuit (no pull-up resistors)
VID3 may not be changed while the unit is operating.
