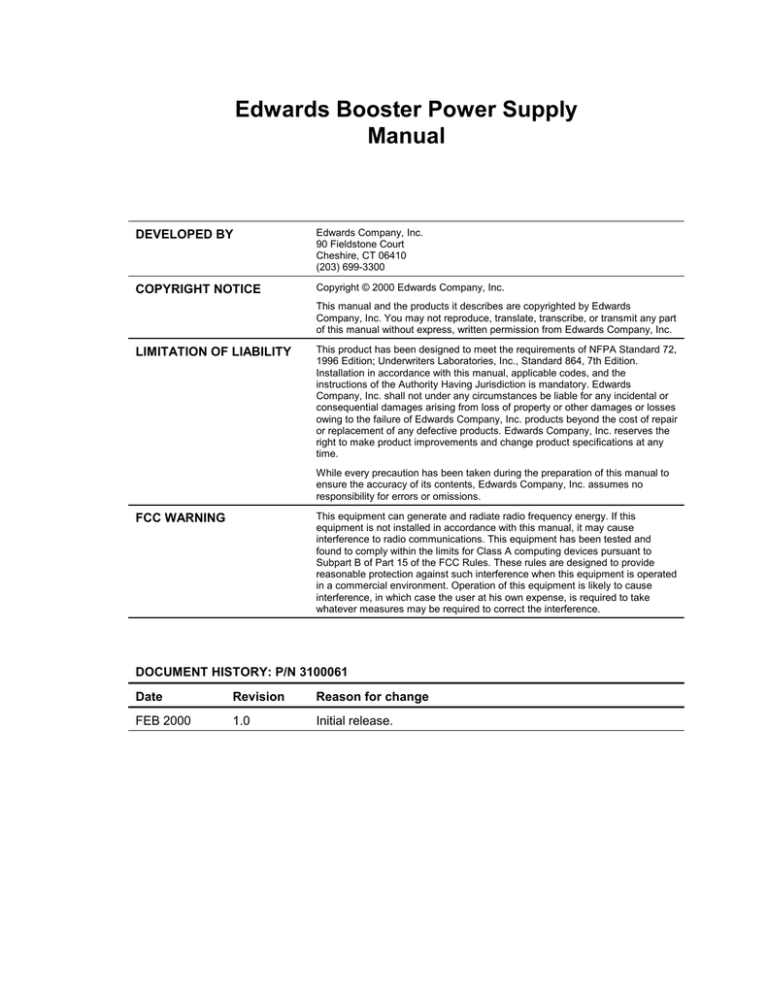

Edwards Booster Power Supply
Manual
DEVELOPED BY
Edwards Company, Inc.
90 Fieldstone Court
Cheshire, CT 06410
(203) 699-3300
COPYRIGHT NOTICE
Copyright © 2000 Edwards Company, Inc.
This manual and the products it describes are copyrighted by Edwards
Company, Inc. You may not reproduce, translate, transcribe, or transmit any part
of this manual without express, written permission from Edwards Company, Inc.
LIMITATION OF LIABILITY
This product has been designed to meet the requirements of NFPA Standard 72,
1996 Edition; Underwriters Laboratories, Inc., Standard 864, 7th Edition.
Installation in accordance with this manual, applicable codes, and the
instructions of the Authority Having Jurisdiction is mandatory. Edwards
Company, Inc. shall not under any circumstances be liable for any incidental or
consequential damages arising from loss of property or other damages or losses
owing to the failure of Edwards Company, Inc. products beyond the cost of repair
or replacement of any defective products. Edwards Company, Inc. reserves the
right to make product improvements and change product specifications at any
time.
While every precaution has been taken during the preparation of this manual to
ensure the accuracy of its contents, Edwards Company, Inc. assumes no
responsibility for errors or omissions.
This equipment can generate and radiate radio frequency energy. If this
equipment is not installed in accordance with this manual, it may cause
interference to radio communications. This equipment has been tested and
found to comply within the limits for Class A computing devices pursuant to
Subpart B of Part 15 of the FCC Rules. These rules are designed to provide
reasonable protection against such interference when this equipment is operated
in a commercial environment. Operation of this equipment is likely to cause
interference, in which case the user at his own expense, is required to take
whatever measures may be required to correct the interference.
FCC WARNING
DOCUMENT HISTORY: P/N 3100061
Date
Revision
Reason for change
FEB 2000
1.0
Initial release.
Content
Introduction • 1
Models covered • 1
Description • 1
Specifications • 2
LEDs • 2
Installing the enclosure • 3
Setting DIP switch options • 4
Setting jumpers for NAC configuration • 6
Wiring the Booster Power Supply • 7
Routing power-limited wires • 7
Connecting AC power • 8
Wiring NACs • 9
Wiring the trouble relay • 9
Wiring the battery terminals • 10
Applications for the Booster Power Supply • 11
Battery calculation worksheet • 13
24 Vdc NAC specifications • 14
Compatibility lists • 16
Introduction
Models covered
Catalog number
Description
EBPS6
6.5 Amp Booster Power Supply
EBPS6/220
6.5 Amp Booster Power Supply
EBPS10
10 Amp Booster Power Supply
EBPS10/220
10 Amp Booster Power Supply
Description
The 10 Amp and 6.5 Amp Booster Power Supplies (BPS) are
designed to extend a fire alarm panel’s signaling capacity. The
Booster can be connected to existing Class A or Class B
Notification Appliance Circuits (NACs). There are four
independent 3.0 Amp NACs supervised in a non-alarm
condition.
The Booster has a trouble relay that operates on any Booster
trouble. The Booster contains a battery charger capable of
charging up to two 10 Ah, 12 Vdc batteries for a total of 24 Vdc.
[BPS.CDR]
Figure 1: Booster Power Supply Main Board
Edwards Booster Power Supply Manual
1
Specifications
AC line voltage:
6.5 amp Booster
10 amp Booster
120/220/240 Vac (50/60 Hz) 250 watts
120/220/240 Vac (50/60 Hz) 375 watts
Sense voltage V (input)
10 – 45 Vdc or 14 – 32 Vfwr (unfiltered dc)
Sense current I (input)
6 mA @ 24 Vdc, 3 mA @ 12 Vdc, 12 mA @ 45 Vdc
NAC output voltage
24 Vdc nominal (special application output use only)
NAC output current
3.0 A max. per circuit, 10 A/6.5 A max total all NACs
Wire size
18 – 12 AWG
NAC EOL
15 kΩ
Auxiliary supv. current
6 amps max. (3 amps max./circuit)
Auxiliary outputs
2 (programmable), replaces NACs
Auxiliary outputs disabled under battery
Optional – programmable after 30 seconds
Battery Requirements
Up to 10 Ah
Battery charger current limit
1.0 A max.
Operating environment:
Temperature
Humidity
32 to 120 F (0 to 49 C)
0 to 93% RH˙
°
°
LEDs
The Booster has seven LEDs: one AC LED, four NAC trouble
LEDs, one battery trouble LED, and one ground fault LED.
[LEDs.CDR]
AC
Steady green indication
during normal conditions
DS1
TB1
Main Board of Booster Power Supply
NAC1
NAC2
NAC3
NAC4
BAT
GND
DS4
DS5
DS6
DS7
DS2
DS3
TB4
Steady yellow indication
during off-normal conditions
TB2
SW1
Main Board of Booster Power Supply
Figure 2: Booster Power Supply LEDs
2
Edwards Booster Power Supply Manual
Installing the enclosure
Note: Be sure to follow all applicable national (NFPA 72) and
local fire alarm codes and standards when installing this system.
Mount the backbox at the required location. A dedicated 120
Vac (220/240 Vac) 50/60 Hz circuit is required for power.
Install all conduit and pull all wiring into the backbox before
proceeding.
Top view
3.375 in (8.6 cm)
3.5 in
(8.9 cm)
13.0 in (33.0 cm)
7.0 in (17.8 cm)
Front view
17.0 in (43.2 cm)
Side
view
[Backbox.cdr]
All conduit knockouts are 3/4 in (1.9 cm)
Figure 3: Enclosure dimensions
Edwards Booster Power Supply Manual
3
Setting DIP switch options
The 12-position DIP switch (SW1) configures NAC options, AC
power loss, auxiliary outputs, and Class A or B wiring. The
following tables show the positions for each switch on SW1 for
various input, output, and panel configurations.
Main Board of Booster Power Supply
ON
TB2
TB3
TB4
1
SW1
2 3 4 5
S1
[Switch.CDR]
S2
6 7
AB
8 9 10 11 12
RATE AC
AUX
Figure 4: DIP switches
SW1-1/2 (S1): Sense 1 input
Switch settings
Functional descriptions
SW1-1
SW1-2
Class B
Class A
Off
Off
Activates all NACs
Activates both NACs 1/2 and 3/4
On
Off
Activates NAC1 only
Activates NAC 1/2
Off
On
Activates NACs 1 and 2 only
Activates NAC 1/2
On
On
Activates NACs 1, 2 and 3 only
Activates both NACs 1/2 and 3/4
SW1-3/4 (S1): Sense 2 input
Switch settings
Functional descriptions
SW1-1
SW1-2
Class B
Class A
Off
Off
Activates all NACs
Activates both NACs 1/2 and 3/4
On
Off
Activates NACs 2, 3, and 4 only
Activates NAC 3/4
Off
On
Activates NACs 3 and 4 only
Activates NAC 3/4
On
On
Activates NAC4 only
No NACs activated
SW1-5 (AB): Class A or B configuration
4
SW1-5
Description
ON
NACs Class A (JP1 and JP2 must be set to Class A)
OFF
NACs Class B (JP1 and JP2 must be set to Class B)
Edwards Booster Power Supply Manual
SW1-6/7/8 (RATE): NAC output rate
SW1-6
SW1-7
SW1-8
Description
Off
Off
Off
All NACs follow sense input
On
Off
Off
NAC1 is Temporal [3-3-3], all others follow sense input
Off
On
Off
NAC1 and 2 are Temporal [3-3-3], all others follow sense input
On
On
Off
NAC1, 2, and 3 are Temporal [3-3-3], NAC4 follow sense input
Off
Off
On
All NACs are Temporal [3-3-3]
On
Off
On
All NACs are 120 bpm
Off
On
On
NAC1 and 2 are 120 bpm, NAC3 and 4 follow sense input
On
On
On
NACs 1, 2, and 3 are 120 bpm, NAC4 follow sense input
SW1-9 (AUX): AC power
SW1-9
Description
On
AC power loss reporting delay is 6 hours
Off
AC power loss is reported within 20 seconds
SW1-10 (AUX): Auxiliary output/NAC setup for NAC3
SW1-10
Description
On
NAC3 configured as an auxiliary output
Off
NAC3 configured as NAC output circuit
SW1-11 (AUX): Auxiliary output/NAC setup for NAC4
SW1-11
Description
On
NAC4 configured as an auxiliary output
Off
NAC4 configured as NAC output circuit
SW1-12 (AUX): Auxiliary output setup
SW1-12
Description
On
Auxiliary outputs turn off 30 seconds after AC fail
Off
Auxiliary outputs stay on after AC fail
Edwards Booster Power Supply Manual
5
Setting jumpers for NAC configuration
JP1 and JP2 select Class A or Class B NAC wiring
configuration. Both jumpers must be positioned to match the
SW1-5 DIP switch selection (Class A or Class B).
Main Board of Booster Power Supply
TB2
TB4
SW1
[Jumper.CDR]
1
2
3
A
B
JP1 JP2
Figure 5: Jumpers
6
Edwards Booster Power Supply Manual
Wiring the Booster Power Supply
Routing power-limited wires
To avoid noise, keep input wiring isolated from high current
output and power-limited wiring. Separate high current
input/output from low current. Separate power-limited from
nonpower-limited wiring.
Wiring within the cabinet should be routed around the cabinet,
not across the printed circuit board.
Backbox
Power-limited
wiring area
2
Optional module
Optional module
3
Optional module
Route AC power
through this knockout
only.
Nonpower-limited and supervised
Battery wiring (Nonpower-limited and supervised)
Battery
Battery
wireroute.cdr
Notes:
1
Power-limited if the source is power-limited. If the source is
nonpower-limited, maintain a space of 1/4 inch (6.4 mm) from
power-limited wiring. Otherwise, use FPL, FPLP, FPLR, or an
equivalent in accordance with the National Electric Code.
2
Power-limited and supervised when not configured as auxiliary
power. Nonsupervised when configured as auxiliary power.
3
Source determines supervision (must be power-limited).
4
When using larger batteries, make sure to position the battery
terminals toward the door.
Figure 6: Wire routing
Edwards Booster Power Supply Manual
7
Connecting AC power
WARNING: Disconnect all power to the fire alarm control panel
before installing or removing any components. Failure to do so
may result in serious injury or loss of life. Be aware that residual
power may remain after any component is disconnected from
power. Wait for 30 seconds after power is disconnected to allow
for proper capacitance discharge.
Caution: The Booster Power Supply is sensitive to small
amounts of electrostatic discharge. Use static-sensitive handling
practices during installation and maintenance. Failure to do so
may damage the power supply or other system components.
Note: Strip 1/4 inch (6.4 mm) from the ends of ALL wires that
connect to the terminal blocks of the module. Exposing more
than 1/4 inch of wire may cause a ground fault. Exposing less
than 1/4 inch of wire may result in a faulty connection.
Main Board of Booster Power Supply
L N G
TB3
TB4
TB2
SW1
Per the NEC, no field
wiring can have a
potential greater than
150 Vac with respect to
earth ground.
To dedicated 120 Vac 50/60 Hz branch circuit 250 Watts for
6 Amp Booster
or
[Power.cdr]
220/230/240 Vac 50/60 Hz branch circuit
(-220 models only)
375 Watts for
10 Amp Booster
Figure 7: AC power wiring
8
Edwards Booster Power Supply Manual
Wiring NACs
Note 1: A trouble on the
Booster will be sensed on the
existing fire panels NAC
causing an NAC trouble on that
panel.
In an alarm condition, the
Booster will allow NAC current
to move downstream to
devices connected to the
existing fire panel’s NAC.
Note 2: Refer to the connected
fire alarm control panel’s
documentation for more details
on making NAC wiring
connections.
Booster
Power
Supply
Main
Board
TB1
NAC1
NAC2 +
NAC3/ AUX1
NAC
+
1
+
NAC4/ AUX2 +
NAC
UL Listed 15 kΩ EOL
1
TB2
IN
Sense 1 COM
OUT
IN
Sense 2 COM
OUT
NO
Trouble COM
NC
UL Listed 15 kΩ EOL
NAC Existing fire
alarm panel
3
+ notification
circuit
+
+
+
To next signaling device or NAC returning
+ to existing fire alarm panel
2
+
[NAC Class B.CDR]
1
NOTES:
Used for another Class B NAC circuit.
2
Used to connect another input circuit
or signaling device.
3
Polarity at existing panel shown in the
normal, supervisory state.
Figure 8: NAC Class B wiring
Booster
Power
Supply
Main
Board
TB1
+
NAC1
NAC2 +
NAC3/ AUX1
NAC
+
NAC
NAC4/ AUX2 +
2
Existing
fire
NAC
alarm panel
+ notification
circuit
TB2
IN
Sense 1 COM
OUT
IN
Sense 2 COM
OUT
NO
Trouble COM
NC
+
+
+
+
To next signaling device or NAC
+ returning to existing fire alarm panel
1
[NAC Class A.CDR]
NOTES:
1 Used to connect another input circuit or
signaling device.
2 Polarity at existing panel shown in the
normal, supervisory state.
Figure 9: NAC Class A wiring
Wiring the trouble relay
The Booster Power Supply has a Form C trouble relay that
provides a normally open and normally closed contact. The
trouble relay will deactivate under any trouble condition. A
16-second delay is used on the trouble relay for AC fail and
brownout troubles.
Edwards Booster Power Supply Manual
9
[trouble.cdr]
TB2
To Booster
trouble
monitoring
device
NO
COM
NC
TROUBLE
TB4
SW1
Figure 10: Trouble relay contacts
Wiring the battery terminals
Two backup batteries are required with the Booster Power
Supply. Use 12 Vdc, up to 10 Ah batteries. Batteries should be
replaced every five years. Figure 11 depicts proper battery
wiring.
[Battery.cdr]
L
BATTERY
+
N G
TB3
TB2
TB4
SW1
Red wire
Black wire
Jumper wire
Two batteries in series (Top view)
Figure 11: Battery terminal
10
Edwards Booster Power Supply Manual
Applications for the Booster Power Supply
NAC
SENSE 1
NAC
SENSE 2
Fire Alarm
Control Panel
To next
signaling
device,
booster,
or EOL
resistor
Inputs
NAC1
NAC2
NAC3/AUX1
NAC4/AUX2
Outputs
[APP-01.CDR]
Booster Power Supply (BPS)
Figure 12: Inputs activate NAC outputs based on programming
NAC
Fire Alarm
Control Panel
To next
signaling
device,
booster,
or EOL
resistor
To next signaling device,
booster, or EOL resistor
Note: BPS_1, BPS_2, and
BPS_3 are programmed labels
for the Booster Power
Supplies.
To next signaling device,
booster, or EOL resistor
[APP-03.CDR]
NAC1
NAC2
NAC3/AUX1
SENSE 1
Inputs
Outputs
NAC4/AUX2
BPS_1
NAC1
NAC2
NAC3/AUX1
SENSE 1
Inputs
Outputs
NAC4/AUX2
BPS_2
NAC1
NAC2
NAC3/AUX1
NAC4/AUX2
SENSE 1
Inputs
Outputs
BPS_3
Figure 13: One fire alarm control panel activating three Boosters
in series
Edwards Booster Power Supply Manual
11
NAC
NAC
Fire Alarm
Control Panel
NAC1
NAC2
NAC3/AUX1
NAC4/AUX2
SENSE 1
To next
signaling
device,
booster,
or EOL
Inputs
Outputs
BPS_1
NAC1
NAC2
NAC3/AUX1
NAC4/AUX2
SENSE 1
[APP-02.CDR]
Note: BPS_1 and
BPS_2 are programmed
labels for the Booster
Power Supplies.
To next
signaling
device,
booster,
or EOL
Inputs
Outputs
BPS_2
Figure 14: One fire alarm control panel activating two Boosters
To next signaling device,
booster, or EOL
NAC1
NAC2
NAC3/AUX1
NAC4/AUX2
SENSE 1
Inputs
Outputs
BPS_2
SENSE 1, on BPS_1, is
programmed to activate
NAC2 and NAC1, which
activates all four NACs
on BPS_2.
NAC1
NAC
SENSE 1
NAC2
NAC
SENSE 2
NAC3/AUX1
Fire Alarm
Control Panel
NAC4/AUX2
To next
signaling
device,
booster,
or EOL
To next signaling device,
booster, or EOL
[APP-04.CDR]
Inputs
Outputs
BPS_1
NAC1
NAC2
NAC3/AUX1
NAC4/AUX2
SENSE 1
Inputs
Outputs
SENSE 2, on BPS_1, is
programmed to activate
NAC3/AUX1 and
NAC4/AUX2, which activates
all four NACs on BPS_3.
Note: BPS_1, BPS_2, and BPS_3 are programmed
labels for the Booster Power Supplies.
BPS_3
Figure 15: Each fire alarm control panel NAC activates five output circuits
12
Edwards Booster Power Supply Manual
Battery calculation worksheet
Auxiliary devices
Note: Only add auxiliary current if SW1-12 is OFF. (Auxiliary output stays on after AC power failure.
Device type
Quantity
Auxiliary current (mA)
Total / device
A (mA)
Total Aux.
NAC devices
Note: Use strobe 20.4 V current rating for calculations.
Device type
Qty
Alarm current (mA)
Total NAC Alarm Current
Total alarm
B (mA)
Supervisory Current Calculation
Supervisory current
70 + A (if SW1-12 = OFF)
Supervisory Hours
(i.e. 24,60)
Supervisory battery required (mAHr)
=
X
=
(mA)
(Hr)
C (mAHr)
Alarm Current Calculation
Alarm Minutes
(i.e. 5 min.)
Alarm Hours
(D/60)
Alarm current
190 + A (if SW1-12 = OFF) + B
Alarm Hours
Alarm battery required (mAHr)
=
=
=
X
=
D (min)
E (Hr)
(mA)
E (Hr)
F (mAHr)
Total Battery Requirement
Total Amp-Hour Battery Size
[(1.11 x C) + (2 x F)] =
1000
Edwards Booster Power Supply Manual
10 Ah Max.
13
24 Vdc NAC specifications
Note: No "T" tapping
permitted.
The NAC cable must be a minimum 18 gauge. Distance limits
are determined using the maximum allowable circuit resistance
and cable manufacturer's specifications. Restrictions apply when
calculating the wire size for the NACs:
1. Minimum supply voltage available is 18.9 V.
2. Minimum required circuit voltage at any NAC is 17 Vdc.
3. Maximum alarm current required for all NACs.
Wire size
Resistance per
1,000 feet
Using Ohm's law, the NAC current requirement, and a voltage
drop of 1.9 volts (18.9 - 17), the maximum allowable NAC
resistance is determined as follows:
12 AWG
14 AWG
16 AWG
18 AWG
3.5 Ω
5.2 Ω
8.0 Ω
13.0 Ω
Vdrop
Rmax = ------Imax
Typical cable pair resistances
Rmax = Maximum allowable NAC resistance
Imax = Maximum NAC current requirement
Vdrop = Maximum allowable voltage drop
from power supply to NAC
Using this formula, the maximum permissible circuit resistance
for a loaded (2.5 A) circuit is 0.76 9 as follows:
1.9 V
0.76 Ω = ------2.5 A
Using the Load vs. Distance table, the maximum allowable length
(D) of any listed wire gauge pair is determined as follows:
Rmax
D = ------- X 1000
R/1000'PAIR
D = Distance in feet
Rmax =Maximum allowable wire resistance
R/1000' PAIR = wire resistance per 1000' pair
Using this formula, the maximum length of a loaded (2.5 A) NAC
using a pair of 14 AWG wires is:
0.76
146.1' = ------- X 1000
5.2
146 feet is the maximum length of a loaded (2.5 A) NAC branch
circuit using a pair of 14 AWG wires.
Quick reference table (load vs. distance NAC (1.9 volt drop)
Load current
Maximum distance to last appliance, in feet (meters)
12 AWG
14 AWG
16 AWG
18 AWG
0.1 A
5,428 (1656)
3,654 (1114)
2,375 (724)
1,461 (446)
0.25 A
2,171 (662)
1,461 (446)
950 (290)
585 (178)
0.50 A
1,086 (331)
731 (223)
475 (145)
292 (89)
14
Edwards Booster Power Supply Manual
Quick reference table (load vs. distance NAC (1.9 volt drop)
Load current
Maximum distance to last appliance, in feet (meters)
12 AWG
14 AWG
16 AWG
18 AWG
0.75 A
714 (218)
487 (148)
312 (95)
192 (58)
1.0 A
543 (165)
365 (111)
237 (72)
146 (44)
1.5 A
360 (110)
243 (74)
157 (48)
97 (29)
2.0 A
271 (83)
183 (56)
119 (36)
73 (22)
2.5 A
217 (66)
146 (44)
95 (29)
58 (18)
3.0 A
180 (55)
122 (37)
79 (24)
48 (15)
Edwards Booster Power Supply Manual
15
Compatibility lists
Devices manufactured by Amseco
Model
Description
SL-315
12/24 Vdc UL 1971 Strobe
SL-3
12/24 Vdc Strobe
SAD/RSD-24L
24 Vdc ADA Strobe
SZ-54ADA1575-24
24 Vdc Motor Horn ADA Strobe
SZ-54ADA110-24
24 Vdc Motor Horn ADA Strobe
BZ-54VL-24
24 Vdc Motor Fire Horn
BZ-54VT-24
24 Vdc Motor Fire Horn
BZ-54SL
24 Vdc Motor Horn Strobe
FS1-2
12/24 Vdc Electronic Fire Sounder
FS2-1
24 Vdc Electronic Fire Sounder
SF2C-24L1575
24 Vdc Electronic Sounder/ADA Strobe
SF2C-24LM110
24 Vdc Electronic Sounder/ADA Strobe
HP-24
24 Vdc Piezo Sounder
MSB-64V
12/24 Vdc Motor Bell
MSB-64SL
24 Vdc Motor Bell Strobe
EXB-6-PV4-24
24 Vdc 6" Vibrating Bell
EXB-8-PV4-24
24 Vdc 8" Vibrating Bell
EXB-10-PV4-24
24 Vdc 10" Vibrating Bell
MSB-6B-PV4-24
24 Vdc 6" Motor Driven Bell
MSB-8B-PV4-24
24 Vdc 8" Motor Driven Bell
MSB-10B-PV4-24
24 Vdc 10" Motor Driven Bell
SHP-24L1575
24 Vdc Piezo Sounder, ADA Strobe
SHP-24M110
24 Vdc Piezo Sounder, ADA Strobe
MBF-6WA
24 Vdc Motor Driven Bell
MBF-8WA
24 Vdc Motor Driven Bell
MBF-10WA
24 Vdc Motor Driven Bell
SSX-624
24 Vdc Self Contained Siren
Devices manufactured by Edwards
16
Model
Description
5530BD-AW
Multi-Tone Signal, 20-24Vdc, Gray
5533BD-AW
Multi-Tone Signal, Explosionproof, 20-24Vdc, Gray
5534BD-AW
Multi-Tone Signal, Explosionproof, 20-24Vdc, Gray
97DEXC-GW
Strobe - Explosionproof, 24Vdc
Edwards Booster Power Supply Manual
Devices manufactured by Edwards
Model
Description
97DEXR-GW
Strobe - Explosionproof, 24Vdc
2440PS-110R/W
Strobe - 110 cd Synchronized, UL/ULC
2440PS-15/75R/W
Strobe - 15/75 cd Synchronized, UL/ULC
2440PS-15R/W
Strobe - 15 cd Synchronized, UL/ULC
2440PS-30R/W
Strobe - 30 cd Synchronized, UL/ULC
2440PS-60R/W
Strobe - 60 cd Synchronized, UL/ULC
2440PS-75R/W
Strobe - 75 cd Synchronized, UL/ULC
2440S-110-R/W
Strobe - 110 cd Synchronized, UL/ULC
2440S-15/75-R/W
Strobe - 15/75 cd Synchronized, UL/ULC
2440S-15-R/W
Strobe - 15 cd Synchronized, UL/ULC
2440S-30-R/W
Strobe - 30 cd Synchronized, UL/ULC
2440S-60-R/W
Strobe - 60 cd Synchronized, UL/ULC
2441PS-110R/W
Strobe - 110 cd Synchronized, UL/ULC
2441PS-15/75R/W
Strobe - 15/75 cd Synchronized, UL/ULC
2441PS-15R/W
Strobe - 15 cd Synchronized, UL/ULC
2441PS-30R/W
Strobe - 30 cd Synchronized, UL/ULC
2441PS-60R/W
Strobe - 60 cd Synchronized, UL/ULC
2441PS-75R/W
Strobe - 75 cd Synchronized, UL/ULC
2441S-110-R/W
Strobe - 110 cd Synchronized, UL/ULC
2441S-15/75-R/W
Strobe - 15/75 cd Synchronized, UL/ULC
2441S-15-R/W
Strobe - 15 cd Synchronized, UL/ULC
2441S-30-R/W
Strobe - 30 cd Synchronized, UL/ULC
2441S-60-R/W
Strobe - 60 cd Synchronized, UL/ULC
2447TH-W/R
Horn
2450HPS-110R
Horn w/Strobe - 110cd Synchronized, 24 Vdc - Red
2450HPS-110W
Horn w/Strobe - 110cd Synchronized, 24 Vdc - White
2450HPS-15/75R
Horn w/Strobe - 15/75cd Synchronized, 24 Vdc - Red
2450HPS-15/75W
Horn w/Strobe - 15/75cd Synchronized, 24 Vdc - White
2450HPS-15R
Horn w/Strobe - 15cd Synchronized, 24 Vdc - Red
2450HPS-15W
Horn w/Strobe - 15cd Synchronized, 24 Vdc - White
2450HPS-30R
Horn w/Strobe - 30cd Synchronized, 24 Vdc - Red
2450HPS-30W
Horn w/Strobe - 30cd Synchronized, 24 Vdc - White
2450HPS-60R
Horn w/Strobe - 60cd Synchronized, 24 Vdc - Red
2450HPS-60W
Horn w/Strobe - 60cd Synchronized, 24 Vdc - White
2450HPS-75R
Horn w/Strobe - 75cd Synchronized, 24 Vdc - Red
2450HPS-75W
Horn w/Strobe - 75cd Synchronized, 24 Vdc - White
Edwards Booster Power Supply Manual
17
Devices manufactured by Edwards
18
Model
Description
2452THPS-110R
Horn w/Strobe - 110cd Synchronized, 24 Vdc - Red
2452THPS-110W
Horn w/Strobe - 110cd Synchronized, 24 Vdc - White
2452THPS-15/75R
Horn w/Strobe - 15/75cd Synchronized, 24 Vdc - Red
2452THPS-15/75W
Horn w/Strobe - 15/75cd Synchronized, 24 Vdc - White
2452THPS-15R
Horn w/Strobe - 15cd Synchronized, 24 Vdc - Red
2452THPS-15W
Horn w/Strobe - 15cd Synchronized, 24 Vdc - White
2452THPS-30R
Horn w/Strobe - 30cd Synchronized, 24 Vdc - Red
2452THPS-30W
Horn w/Strobe - 30cd Synchronized, 24 Vdc - White
2452THPS-60R
Horn w/Strobe - 60cd Synchronized, 24 Vdc - Red
2452THPS-60W
Horn w/Strobe - 60cd Synchronized, 24 Vdc - White
2452THPS-75R
Horn w/Strobe - 75cd Synchronized, 24 Vdc - Red
2452THPS-75W
Horn w/Strobe - 75cd Synchronized, 24 Vdc - White
2452THS-110-R
Horn w/Strobe - 110cd Synchronized, 24 Vdc - Red
2452THS-110-W
Horn w/Strobe - 110cd Synchronized, 24 Vdc - White
2452THS-15/75-R
Horn w/Strobe - 15/75cd Synchronized, 24 Vdc - Red
2452THS-15/75-W
Horn w/Strobe - 15/75cd Synchronized, 24 Vdc - White
2452THS-15-R
Horn w/Strobe - 15cd Synchronized, 24 Vdc - Red
2452THS-15-W
Horn w/Strobe - 15cd Synchronized, 24 Vdc - White
2452THS-30-R
Horn w/Strobe - 30cd Synchronized, 24 Vdc - Red
2452THS-30-W
Horn w/Strobe - 30cd Synchronized, 24 Vdc - White
2453BPSA-110R
Bell/Strobe Plate - 110 cd Synchronized, 24 Vdc
2453BPSA-15/75R
Bell/Strobe Plate - 15/75 cd Synchronized, 24 Vdc
2453BPSA-30R
Bell/Strobe Plate - 30 cd Synchronized, 24 Vdc
2453BPSA-60R
Bell/Strobe Plate - 60 cd Synchronized, 24 Vdc
2453BPSA-75R
Bell/Strobe Plate - 75 cd Synchronized, 24 Vdc
2453BSA-110-R
Bell/Strobe Plate - 110 cd Synchronized, 24 Vdc
2453BSA-15/75-R
Bell/Strobe Plate - 15/75 cd Synchronized, 24 Vdc
2453BSA-30-R
Bell/Strobe Plate - 30 cd Synchronized, 24 Vdc
2455H-W/R
Horn
2455C-R
Chime - 24 Vdc, Red
2455C-W
Chime - 24 Vdc, White
2457CPS-110R
Chime w/Strobe - 110cd Synchronized, 24 Vdc - Red
2457CPS-110W
Chime w/Strobe - 110cd Synchronized, 24 Vdc - White
2457CPS-15/75R
Chime w/Strobe - 15/75cd Synchronized, 24 Vdc - Red
2457CPS-15/75W
Chime w/Strobe - 15/75cd Synchronized, 24 Vdc - White
2457CPS-15R
Chime w/Strobe - 15cd Synchronized, 24 Vdc - Red
Edwards Booster Power Supply Manual
Devices manufactured by Edwards
Model
Description
2457CPS-15W
Chime w/Strobe - 15cd Synchronized, 24 Vdc - White
2457CPS-30R
Chime w/Strobe - 30cd Synchronized, 24 Vdc - Red
2457CPS-30W
Chime w/Strobe - 30cd Synchronized, 24 Vdc - White
2457CPS-60R
Chime w/Strobe - 60cd Synchronized, 24 Vdc - Red
2457CPS-60W
Chime w/Strobe - 60cd Synchronized, 24 Vdc - White
2457CPS-75R
Chime w/Strobe - 75cd Synchronized, 24 Vdc - Red
2457CPS-75W
Chime w/Strobe - 75cd Synchronized, 24 Vdc - White
2457CS-110-R
Chime w/Strobe - 110cd Synchronized, 24 Vdc - Red
2457CS-110-W
Chime w/Strobe - 110cd Synchronized, 24 Vdc - White
2457CS-15/75-R
Chime w/Strobe - 15/75cd Synchronized, 24 Vdc - Red
2457CS-15/75-W
Chime w/Strobe - 15/75cd Synchronized, 24 Vdc - White
2457CS-15-R
Chime w/Strobe - 15cd Synchronized, 24 Vdc - Red
2457CS-15-W
Chime w/Strobe - 15cd Synchronized, 24 Vdc - White
2457CS-30-R
Chime w/Strobe - 30cd Synchronized, 24 Vdc - Red
2457CS-30-W
Chime w/Strobe - 30cd Synchronized, 24 Vdc - White
323D-10AW
Bell - 10" Single Stroke, 24Vdc, Gray
323D-10AW-R
Bell - 10" Single Stroke, 24Vdc, Red
329D-AW
Chime - 24Vdc
333D-10G1
Bell - 10" (254mm), Single Stroke, 24Vdc, Red
333D-4G1
Bell - 4" (102mm), Single Stroke, 24Vdc, Red
333D-6G1
Bell - 6" (152mm), Single Stroke, 24Vdc, Red
339D-G1
Chime - Single Stroke, 24Vdc
439D-10AW
Bell - 10", 24Vdc, Vibrating, Gray
439D-10AWC
Bell - 10" (254mm), 24Vdc, Vibrating, Red
439D-10AW-R
Bell - 10", 24Vdc, Vibrating, Red
439D-6AW
Bell - 6", 24Vdc, Vibrating, Gray
439D-6AWC
Bell - 6" (152mm), 24Vdc, Vibrating, Red
439D-6AW-R
Bell - 6", 24Vdc, Vibrating, Red
439D-8AW
Bell - 8", 24Vdc, Vibrating, Gray
439D-8AW-R
Bell - 8", 24Vdc, Vibrating, Red
439DEX-10AW
Bell - Explosionproof 10", 24Vdc, UL
439DEX-10AWC
Bell - Explosionproof, 10", 24Vdc, ULC
439DEX-6AW
Bell - Explosionproof 6", 24Vdc, UL
439DEX-6AWC
Bell - Explosionproof, 6", 24Vdc, ULC
439DEX-8AW
Bell - Explosionproof 8", 24Vdc, UL
5520D-AW
Horn/Siren - Duotronic, 24Vdc
Edwards Booster Power Supply Manual
19
Devices manufactured by Edwards
Model
Description
5520D-G1
Horn/Siren - Duotronic, 24Vdc
5522D-AW
Horn - Explosionproof Duotronic, 24Vdc
5523D-AW
Siren - Explosionproof Duotronic, 24Vdc
5524D-AW
Horn - Explosionproof Duotronic, 24Vdc
5524D-G1
Horn - Explosionproof Duotronic, 24Vdc
5525D-AW
Siren - Explosionproof Duotronic, 24Vdc
5525D-G1
Siren - Explosionproof Duotronic, 24Vdc
889D-AW
Horn - Explosionproof, 24Vdc
889D-AWC
Horn - Explosionproof, 24Vdc, ULC
890RDA
Lamp Station - Supervised
890RDB-G5
Lamp Station - Supervised, 24V
890WDA-G5
Lamp Station - Supervised, 24V
890WDB-G5
Lamp Station - Supervised, 24V
922-1B-222
Chime, 24 Vdc
Devices Manufactured by Faraday
Model
Description
4461B-10-(*)-24-DC
24 Vdc 10" Vibrating Parallel, Polarized bell
4466B-6-(*)-24-DC
24 Vdc 6" Vibrating Parallel, Polarized bell
4464B-4-(*)-24-DC
24 Vdc 4" Vibrating Parallel, Polarized bell
4465-0-(*)-24-DC
24 Vdc chime
4761B-10-(*)-24-DC
24 Vdc 10" Vibrating Parallel, Polarized bell
4766B-6-(*)-24-DC
24 Vdc 6" Vibrating Parallel, Polarized bell
4764B-4-(*)-24-DC
24 Vdc 4" Vibrating Parallel, Polarized bell
4765B-0-(*)-24-DC
24 Vdc chime
4771B-10-(*)-24-DC
24 Vdc 10" Single Stroke, Polarized bell
4776B-6-(*)-24-DC
24 Vdc 6" Single Stroke, Polarized bell
4774B-4-(*)-24-DC
24 Vdc 4" Single Stroke, Polarized bell
4775B-0-(*)-24-DC
24 Vdc Single Stroke Chime
2700B-M-(*)-24-DC
24 Vdc synchronized strobe
2700B-R-(*)-24-DC
24 Vdc synchronized strobe
2700B-T-(*)-24-DC
24 Vdc synchronized strobe
2700B-Y-(*)-24-DC
24 Vdc synchronized strobe
2700B-Z-(*)-24-DC
24 Vdc synchronized strobe
(* = (-14) Red, ( -21) off-white)
20
Edwards Booster Power Supply Manual
Devices Manufactured by Faraday
Model
Description
2700B-E-(*)-24-DC
24 Vdc non-synchronized strobe
2700B-G-(*)-24-DC
24 Vdc non-synchronized strobe
2700B-J-(*)-24-DC
24 Vdc non-synchronized strobe
2700B-K-(*)-24-DC
24 Vdc non-synchronized strobe
2700B-L-(*)-24-DC
24 Vdc non-synchronized strobe
2701B-M-(*)-24-DC
24 Vdc synchronized strobe
2701B-R-(*)-24-DC
24 Vdc synchronized strobe
2701B-T-(*)-24-DC
24 Vdc synchronized strobe
2701B-Y-(*)-24-DC
24 Vdc synchronized strobe
2701B-Z-(*)-24-DC
24 Vdc synchronized strobe
2701B-E-(*)-24-DC
24 Vdc non-synchronized strobe
2701B-G-(*)-24-DC
24 Vdc non-synchronized strobe
2701B-J-(*)-24-DC
24 Vdc non-synchronized strobe
2701B-K-(*)-24-DC
24 Vdc non-synchronized strobe
2701B-L-(*)-24-DC
24 Vdc non-synchronized strobe
2705B-M-(*)-24-DC
24 Vdc Weatherproof synchronized strobe
2705B-Z-(*)-24-DC
24 Vdc Weatherproof synchronized strobe
2705B-E-(*)-24-DC
24 Vdc Weatherproof non-synchronized strobe
2705B-L-(*)-24-DC
24 Vdc Weatherproof non-synchronized strobe
2820B-0-(*)-24-DC
24 Vdc Temporal Horn
2821B-0-(*)-24-DC
24 Vdc Temporal Horn
2824B-M-(*)-24-DC
24 Vdc Temporal Horn Strobe
2824B-R-(*)-24-DC
24 Vdc Temporal Horn Strobe
2824B-T-(*)-24-DC
24 Vdc Temporal Horn Strobe
2824B-Y-(*)-24-DC
24 Vdc Temporal Horn Strobe
2824B-Z-(*)-24-DC
24 Vdc Temporal Horn Strobe
2880B-0-(*)-24-DC
8 Tone 24 Vdc horn
2881B-0-(*)-24-DC
8 Tone 24 Vdc horn
2884B-E-(*)-24-DC
8 Tone 24 Vdc horn Strobe
2884B-M-(*)-24-DC
8 Tone 24 Vdc horn sync strobe
2884B-G-(*)-24-DC
8 Tone 24 Vdc horn Strobe
2884B-R-(*)-24-DC
8 Tone 24 Vdc horn sync strobe
2884B-J-(*)-24-DC
8 Tone 24 Vdc horn Strobe
2884B-T-(*)-24-DC
8 Tone 24 Vdc horn sync strobe
2884B-K-(*)-24-DC
8 Tone 24 Vdc horn Strobe
(* = (-14) Red, ( -21) off-white)
Edwards Booster Power Supply Manual
21
Devices Manufactured by Faraday
Model
Description
2884B-Y-(*)-24-DC
8 Tone 24 Vdc horn sync strobe
2884B-L-(*)-24-DC
8 Tone 24 Vdc horn Strobe
2884B-Z-(*)-24-DC
8 Tone 24 Vdc horn sync strobe
5333
Multi-Tone Horn
5336
Multi-Tone Horn/Strobe
5337
Multi-Tone Horn/Strobe
5338
Multi-Tone Horn/Strobe
5343
Single Tone Horn/Strobe
5346
Electronic Horn with Strobe
5347
Electronic Horn with Strobe
5348
Single Tone Horn/Strobe
5373
8-Tone Horn/Strobe
5376
8-Tone Horn/Strobe
5377
8-Tone Horn/Strobe
5378
8-Tone Horn/Strobe
5383
8-Tone Horn/Strobe with Sync Strobe
5386
8-Tone Horn/Strobe with Sync Strobe
5387
8-Tone Horn/Strobe with Sync Strobe
5388
8-Tone Horn/Strobe with Sync Strobe
5390B-0-(*)-24-DC
24 Vdc Electronic Chime
5394B-E-(*)-24-DC
24 Vdc Electronic Chime Strobe
5394B-M-(*)-24-DC
24 Vdc Electronic Chime Sync Strobe
5394B-G-(*)-24-DC
24 Vdc Electronic Chime Strobe
5394B-R-(*)-24-DC
24 Vdc Electronic Chime Sync Strobe
5394B-J-(*)-24-DC
24 Vdc Electronic Chime Strobe
5394B-T-(*)-24-DC
24 Vdc Electronic Chime Sync Strobe
5394B-K-(*)-24-DC
24 Vdc Electronic Chime Strobe
5394B-Y-(*)-24-DC
24 Vdc Electronic Chime Sync Strobe
5394B-L-(*)-24-DC
24 Vdc Electronic Chime Strobe
5394B-Z-(*)-24-DC
24 Vdc Electronic Chime Sync Strobe
5395B-0-4-24-DC
24 Vdc Electronic Chime
5398B-E-4-24-DC
24 Vdc Electronic Chime Strobe
5398B-M-4-24-DC
24 Vdc Electronic Chime Sync Strobe
5398B-G-4-24-DC
24 Vdc Electronic Chime Strobe
5398B-R-4-24-DC
24 Vdc Electronic Chime Sync Strobe
(* = (-14) Red, ( -21) off-white)
22
Edwards Booster Power Supply Manual
Devices Manufactured by Faraday
Model
Description
5398B-J-4-24-DC
24 Vdc Electronic Chime Strobe
5398B-T-4-24-DC
24 Vdc Electronic Chime Sync Strobe
5398B-K-4-24-DC
24 Vdc Electronic Chime Strobe
5398B-Y-4-24-DC
24 Vdc Electronic Chime Sync Strobe
5398B-L-4-24-DC
24 Vdc Electronic Chime Strobe
5398B-Z-4-24-DC
24 Vdc Electronic Chime Sync Strobe
5405
Sync Control Unit
5406
Sync Control Module
5508
Single Gang Sync Strobe
5509
Strobe
5510
Strobe
5511
Strobe
5512
Strobe
5516
Strobe
5517
Strobe
5518
Strobe
5519
Strobe
5521
4” Square Sync Strobe
5522
4” Square Sync Strobe
6120
Horn
6140
Horn
6230B-0-(*)-24-DC
24 Vdc Mechanical vibrating horn
6234B-E-(*)-24-DC
24 Vdc Mechanical Horn Strobe
6234B-M-(*)-24-DC
24 Vdc Mechanical Horn Sync Strobe
6234B-G-(*)-24-DC
24 Vdc Mechanical Horn Strobe
6234B-R-(*)-24-DC
24 Vdc Mechanical Horn Sync Strobe
6234B-J-(*)-24-DC
24 Vdc Mechanical Horn Strobe
6234B-T-(*)-24-DC
24 Vdc Mechanical Horn Sync Strobe
6234B-K-(*)-24-DC
24 Vdc Mechanical Horn Strobe
6234B-Y-(*)-24-DC
24 Vdc Mechanical Horn Sync Strobe
6234B-L-(*)-24-DC
24 Vdc Mechanical Horn Strobe
6234B-Z-(*)-24-DC
24 Vdc Mechanical Horn Sync Strobe
6225B-0-4-24-DC
24 Vdc Mechanical Horn
6238B-E-4-24-DC
24 Vdc Mechanical Horn Strobe
6238B-M-4-24-DC
24 Vdc Mechanical Horn sync Strobe
(* = (-14) Red, ( -21) off-white)
Edwards Booster Power Supply Manual
23
Devices Manufactured by Faraday
Model
Description
6238B-G-4-24-DC
24 Vdc Mechanical Horn Strobe
6238B-R-4-24-DC
24 Vdc Mechanical Horn sync Strobe
6238B-J-4-24-DC
24 Vdc Mechanical Horn Strobe
6238B-T-4-24-DC
24 Vdc Mechanical Horn sync Strobe
6238B-K-4-24-DC
24 Vdc Mechanical Horn Strobe
6238B-Y-4-24-DC
24 Vdc Mechanical Horn sync Strobe
6238B-L-4-24-DC
24 Vdc Mechanical Horn Strobe
6238B-Z-4-24-DC
24 Vdc Mechanical Horn sync Strobe
6250B-0-(*)-24-DC
24 Vdc Hi-db Mechanical Horn
6254B-E-(*)-24-DC
24 Vdc Hi-db Mechanical Horn Strobe
6254B-M-(*)-24-DC
24 Vdc Hi-db Mechanical Horn sync Strobe
6254B-G-(*)-24-DC
24 Vdc Hi-db Mechanical Horn Strobe
6254B-R-(*)-24-DC
24 Vdc Hi-db Mechanical Horn sync Strobe
6254B-J-(*)-24-DC
24 Vdc Hi-db Mechanical Horn Strobe
6254B-T-(*)-24-DC
24 Vdc Hi-db Mechanical Horn sync Strobe
6254B-K-(*)-24-DC
24 Vdc Hi-db Mechanical Horn Strobe
6254B-Y-(*)-24-DC
24 Vdc Hi-db Mechanical Horn sync Strobe
6254B-L-(*)-24-DC
24 Vdc Hi-db Mechanical Horn Strobe
6254B-Z-(*)-24-DC
24 Vdc Hi-db Mechanical Horn sync Strobe
6254B-0-4-24-DC
24 Vdc Hi-db Mechanical Horn
6258B-E-4-24-DC
24 Vdc Hi-db Mechanical Horn Strobe
6258B-M-4-24-DC
24 Vdc Hi-db Mechanical Horn sync Strobe
6258B-G-4-24-DC
24 Vdc Hi-db Mechanical Horn Strobe
6258B-R-4-24-DC
24 Vdc Hi-db Mechanical Horn sync Strobe
6258B-J-4-24-DC
24 Vdc Hi-db Mechanical Horn Strobe
6258B-T-4-24-DC
24 Vdc Hi-db Mechanical Horn sync Strobe
6258B-K-4-24-DC
24 Vdc Hi-db Mechanical Horn Strobe
6258B-Y-4-24-DC
24 Vdc Hi-db Mechanical Horn sync Strobe
6258B-L-4-24-DC
24 Vdc Hi-db Mechanical Horn Strobe
6258B-Z-4-24-DC
24 Vdc Hi-db Mechanical Horn sync Strobe
6235B-E-(*)-24-DC
24 Vdc Weatherproof Mechanical Horn Strobe
6235B-M-(*)-24-DC
24 Vdc Weatherproof Mechanical Horn sync Strobe
6235B-L-(*)-24-DC
24 Vdc Weatherproof Mechanical Horn Strobe
6235B-Z-(*)-24-DC
24 Vdc Weatherproof Mechanical Horn sync Strobe
6255B-E-(*)-24-DC
24 Vdc Weatherproof Mechanical Horn Strobe
(* = (-14) Red, ( -21) off-white)
24
Edwards Booster Power Supply Manual
Devices Manufactured by Faraday
Model
Description
6255B-M-(*)-24-DC
24 Vdc Weatherproof Mechanical Horn sync Strobe
6255B-L-(*)-24-DC
24 Vdc Weatherproof Mechanical Horn Strobe
6255B-Z-(*)-24-DC
24 Vdc Weatherproof Mechanical Horn sync Strobe
6300B-0-(*)-24-DC
24 Vdc Electronic Horn
6301B-0-(*)-24-DC
24 Vdc Electronic Horn
6304B-E-(*)-24-DC
24 Vdc Electronic Horn Strobe
6304B-M-(*)-24-DC
24 Vdc Electronic Horn sync Strobe
6304B-G-(*)-24-DC
24 Vdc Electronic Horn Strobe
6304B-R-(*)-24-DC
24 Vdc Electronic Horn sync Strobe
6304B-J-(*)-24-DC
24 Vdc Electronic Horn Strobe
6304B-T-(*)-24-DC
24 Vdc Electronic Horn sync Strobe
6304B-K-(*)-24-DC
24 Vdc Electronic Horn Strobe
6304B-Y-(*)-24-DC
24 Vdc Electronic Horn sync Strobe
6304B-L-(*)-24-DC
24 Vdc Electronic Horn Strobe
6304B-Z-(*)-24-DC
24 Vdc Electronic Horn sync Strobe
6310B-0-(*)-24-DC
24 Vdc Electronic Horn
6311B-0-(*)-24-DC
24 Vdc Electronic Horn
6314B-E-(*)-24-DC
24 Vdc Electronic Horn Strobe
6314B-M-(*)-24-DC
24 Vdc Electronic Horn sync Strobe
6314B-G-(*)-24-DC
24 Vdc Electronic Horn Strobe
6314B-R-(*)-24-DC
24 Vdc Electronic Horn sync Strobe
6314B-J-(*)-24-DC
24 Vdc Electronic Horn Strobe
6314B-T-(*)-24-DC
24 Vdc Electronic Horn sync Strobe
6314B-K-(*)-24-DC
24 Vdc Electronic Horn Strobe
6314B-Y-(*)-24-DC
24 Vdc Electronic Horn sync Strobe
6314B-L-(*)-24-DC
24 Vdc Electronic Horn Strobe
6314B-Z-(*)-24-DC
24 Vdc Electronic Horn sync Strobe
6223
Horn
6226
Horn/Strobe
6227
Horn/Strobe
6228
Horn/Strobe
6243
Electron-Mechanical Horn
6244
Electron-Mechanical Horn
6245
Electron-Mechanical Horn
6246
Electron-Mechanical Horn/Strobe
(* = (-14) Red, ( -21) off-white)
Edwards Booster Power Supply Manual
25
Devices Manufactured by Faraday
Model
Description
6247
Electron-Mechanical Horn/Strobe
6248
Electron-Mechanical Horn/Strobe
6302
Mini-Horn
6312
Mini-Horn/Strobe/Strobe
6320
Sync Mini Horn/Strobe
6321
Sync Mini Horn/Strobe
6322
Mini Horn/Sync Strobe
6380
8-Tone Electronic Signal
(* = (-14) Red, ( -21) off-white)
Devices Manufactured by Federal Signal
Model
Description
450
Horn
VALS
Horn/Strobe
Devices Manufactured by Gentex
26
Model
Description
ST24-15
24 Vdc Strobe
ST24-15/75
24 Vdc Strobe
ST24-30
24 Vdc Strobe
ST24-60
24 Vdc Strobe
ST24-75
24 Vdc Strobe
ST24-110
24 Vdc Strobe
HS24-15
24 Vdc Horn Strobe
HS24-15/75
24 Vdc Horn Strobe
HS24-20
24 Vdc Horn Strobe
HS24-30/75
24 Vdc Horn Strobe
HS24-60
24 Vdc Horn Strobe
HS24-75
24 Vdc Horn Strobe
HS24-110
24 Vdc Horn Strobe
GX90-4
24 Vdc Horn
GX90S-4-15
24 Vdc Horn Strobe
GX90S-4-15/75
24 Vdc Horn Strobe
GX90S-4-15/75-C
24 Vdc Horn Strobe
Edwards Booster Power Supply Manual
Devices Manufactured by Gentex
Model
Description
GX90S-4-15/75-W
24 Vdc Horn Strobe
GX90S--415/75-Z
24 Vdc Horn Strobe
G90S-4-30
24 Vdc Horn Strobe
GX90S-4-30/75-W
24 Vdc Horn Strobe
GX90S-4-60
24 Vdc Horn Strobe
GX90S-4-110
24 Vdc Horn Strobe
GXS4-15
24 Vdc Strobe
GXS-15/75-C
24 Vdc Strobe
GXS4-15/75-W
24 Vdc Strobe
GXS4-15/75-Z
24 Vdc Strobe
GXS4-30
24 Vdc Strobe
GXS4-30/75-W
24 Vdc Strobe
GXS4-60
24 Vdc Strobe
GXS4-110
24 Vdc Strobe
GOT24
24 Vdc Multi-tone horn
GOS24-15
24 Vdc Multi-tone horn Strobe
GOS24-15/75-Z
24 Vdc Multi-tone horn Strobe
GOS24-30
24 Vdc Multi-tone horn Strobe
GOS24-30/75
24 Vdc Multi-tone horn Strobe
GOS24-60
24 Vdc Multi-tone horn Strobe
GOS24-110
24 Vdc Multi-tone horn Strobe
HG124
12/24 Vdc Electronic Horn
SHG24-15
24 Vdc Electronic Horn Strobe
SHG24-15/75-C
24 Vdc Electronic Horn Strobe
SHG24-15/75-W
24 Vdc Electronic Horn Strobe
SHG24-15/75-Z
24 Vdc Electronic Horn Strobe
SHG24-30
24 Vdc Electronic Horn Strobe
SHG24-30/75
24 Vdc Electronic Horn Strobe
SHG24-60
24 Vdc Electronic Horn Strobe
SHG24-110
24 Vdc Electronic Horn Strobe
GMH24
24 Vdc Electro-Mechanical Horn
GMS24-15
24 Vdc Electro-Mechanical Horn Strobe
GMS24-15/75-W
24 Vdc Electro-Mechanical Horn Strobe
GMS24-15/75-C
24 Vdc Electro-Mechanical Horn Strobe
GMS24-15/75-Z
24 Vdc Electro-Mechanical Horn Strobe
GMS24-30
24 Vdc Electro-Mechanical Horn Strobe
Edwards Booster Power Supply Manual
27
Devices Manufactured by Gentex
Model
Description
GMS24-30/75
24 Vdc Electro-Mechanical Horn Strobe
GMS24-60
24 Vdc Electro-Mechanical Horn Strobe
GMS24-110
24 Vdc Electro-Mechanical Horn Strobe
WGMS-4-75
24 Vdc Electro-Mechanical Horn Strobe
AVP-4-15-1
24 Vdc Strobe Retrofit Plate
AVP-4-15/75
24 Vdc Strobe Retrofit Plate
AVP-4-30/75
24 Vdc Strobe Retrofit Plate
AVP-4-110-1
24 Vdc Strobe Retrofit Plate
AVS44
24 Vdc Synchronization module
ZMS4
24 Vdc Synchronization module
Devices Manufactured by System Sensor
28
Model
Description
MASS241
Horn/Strobe
MASS24110ADA
Horn/Strobe
MASS2415ADA
Horn/Strobe
MASS2475ADA
Horn/Strobe
SS24110ADA
Strobe
SS2415ADA
Strobe
SS2475ADA
Strobe
PS2415ADA
Mini-Horn/Strobe
PS241575ADA
Mini-Horn/Strobe
PS24110ADA
Mini-Horn/Strobe
PS2475ADA
Mini-Horn/Strobe
SC2415(W)
24 Vdc Ceiling Mount Strobe
SC241575(W)
24 Vdc Ceiling Mount Strobe
SC2430(W)
24 Vdc Ceiling Mount Strobe
SC2475(W)
24 Vdc Ceiling Mount Strobe
SC2495(W)
24 Vdc Ceiling Mount Strobe
SC24177(W)
24 Vdc Ceiling Mount Strobe
PC2415(W)
24 Vdc Ceiling mount horn Strobe
PC241575(W)
24 Vdc Ceiling mount horn Strobe
PC2430(W)
24 Vdc Ceiling mount horn Strobe
PC2475(W)
24 Vdc Ceiling mount horn Strobe
PC2495(W)
24 Vdc Ceiling mount horn Strobe
Edwards Booster Power Supply Manual
Devices Manufactured by System Sensor
Model
Description
PC24177(W)
24 Vdc Ceiling mount horn Strobe
MDL(W)
24 Vdc Synchronization module
P2415(W)
24 Vdc Horn Strobe
P241575(W)
24 Vdc Horn Strobe
P2430(W)
24 Vdc Horn Strobe
P2475(W)
24 Vdc Horn Strobe
P24110(W)
24 Vdc Horn Strobe
P241575K
24 Vdc Horn Strobe weatherproof
P2475K
24 Vdc Horn Strobe weatherproof
P24110K
24 Vdc Horn Strobe weatherproof
P241575AG
24 Vdc Horn Strobe (AGENT)
P241575EV
24 Vdc Horn Strobe (EVAC)
S2415(W)
24 Vdc Strobe
S241575(W)
24 Vdc Strobe
S2430(W)
24 Vdc Strobe
S2475(W)
24 Vdc Strobe
S24110(W)
24 Vdc Strobe
S241575K
24 Vdc Strobe Weatherproof
S2475K
24 Vdc Strobe Weatherproof
S24110K
24 Vdc Strobe Weatherproof
S241575AG
24 Vdc Strobe (AGENT)
S241575EV
24 Vdc Strobe (EVAC)
HG12/24
12/24 Vdc Horn
HG12/24K
12/24 Vdc Horn Weatherproof
Devices Manufactured by Wheelock
Model
Description
46T-G4-24-R
Bell
46T-G6-24-R
Bell
46T-G10-24-R
Bell
46T-G6-24-WS-24-HF-R
Bell/Strobe
46T-G10-24-WS-24-HF-R
Bell/Strobe
46T-G6-24-WH-24-HF-R
Bell/Strobe
46T-G10-24-WH-24-HF-R
Bell/Strobe
7001T-12\24-W-FR
Horn Strobe
Edwards Booster Power Supply Manual
29
Devices Manufactured by Wheelock
30
Model
Description
7002T-12\24-W-FR
Horn Strobe
AES-DL1-R
Multitone Horn
AES-EL1-R
Multitone Horn
AES-DL1-WS-24-VF-R
Multitone Horn
AES-EL1-WS-24-VF-R
Multitone Horn
AES-DL1-WH-24-VF-R
Multitone Horn
AES-EL1-WH-24-VF-R
Multitone Horn
AES-DL1-WM-24-VF-R
Multitone Horn
AES-EL1-WM-24-VF-R
Multitone Horn
AH-24-R
Horn
AMT-12\24-R
Horn Strobe
AMT-24-LS-VFR
Horn Strobe
AMT-24-LSM-VFR
Horn Strobe
AMT-24-IS-VFR
Horn Strobe
AS-2415-VFR
Horn Strobe
AS-241575-VFR
Horn Strobe
AS-2430-VFR
Horn Strobe
AS-2475-VFR
Horn Strobe
AS-24110-HFR
Horn Strobe
SM-12\24-R
Strobe Horn Controller
DSM-12\24-R
Strobe Horn Controller
CF-BF1
Chime
CF-BF1-R
Chime
CH-CF1
Chime
CH-CF1-R
Chime
CH-CF1-W
Chime
CH-DF1
Chime
CH-DF1-R
Chime
CH-BF1-WS-24-HF-R
Chime Strobe
CH-CF1-LS-24
Chime Strobe
CH-CF1-MS-24
Chime Strobe
CH-CF1-IS-24
Chime Strobe
CH-CF1-LS-24-CFW
Chime Strobe
CH-CF1-MS-24-CFW
Chime Strobe
CH-CF1-IS-24-CFW
Chime Strobe
CH-CF1-WS-24-CF-W
Chime Strobe
Edwards Booster Power Supply Manual
Devices Manufactured by Wheelock
Model
Description
CH-DF1-LS-24
Chime Strobe
CH-DF1-MS-24
Chime Strobe
CH-DF1-IS-24
Chime Strobe
CH-DF1-LS-24-VFR
Chime Strobe
CH-DF1-LSM-24-VFR
Chime Strobe
CH-DF1-MS-24-VFR
Chime Strobe
CH-DF1-IS-24-VFR
Chime Strobe
CH-DF1-WM-24-VFR
Chime Strobe
CH-DF1-WS-24-VF-R
Chime Strobe
DSM-12/24
Sync Module
EH-DL1-R
Electronic Horn
EH-EL1-R
Electronic Horn
EHS-DL1-W-VF-R
Horn Strobe (single input)
EHS-EL1-W-VF-R
Horn Strobe (single input)
EH-DL1-WS-24-VF-R
Horn Strobe (dual input)
EH-EL1-WS-24-VF-R
Horn Strobe (dual input)
EH-DL1-WH-24-VF-R
Horn Strobe (dual input)
EH-EL1-WH-24-VF-R
Horn Strobe (dual input)
EH-DL1-WM-24-VF-R
Horn Strobe (dual input)
EH-EL1-WM-24-VF-R
Horn Strobe (dual input)
HSW-24-HFR
Remote Strobe
HS2W-24-HFR
Remote Strobe
HSPW-24-HFR
Remote Strobe
IS-24-VFR
Remote Strobe
IS1-24-VFR
Remote Strobe
IS3-24-VFR
Remote Strobe
ISP-24-HFR
Remote Strobe
LS-24-VFR
Remote Strobe
LS1-24-VFR
Remote Strobe
LS3-24-VFR
Remote Strobe
LSP-24-HFR
Remote Strobe
LSM-24-VFR
Remote Strobe
LS1M-24-VFR
Remote Strobe
LS3M-24-VFR
Remote Strobe
LSPM-24-VFR
Remote Strobe
MS-24-VFR
Remote Strobe
Edwards Booster Power Supply Manual
31
Devices Manufactured by Wheelock
32
Model
Description
MS1-24-VFR
Remote Strobe
MS3-24-VFR
Remote Strobe
MSP-24-HFR
Remote Strobe
MB-G6-24-R
Motor Bell
MB-G10-24-R
Motor Bell
MBS-G6-24-W-HF-R
Motor Bell with Strobe
MBS-G10-24-W-HF-R
Motor Bell with Strobe
MIZ-24-R
Mini-Horn
MIZ-24-W
Mini-Horn
MIZ-24-LS-VFR
Mini-Horn/Strobe
MIZ-24-LSM-VFR
Mini-Horn/Strobe
MIZ-24-MS-VFR
Mini-Horn/Strobe
MIZ-24-HSW-HFR
Mini-Horn/Strobe
MIZ-24-IS-VFR
Mini-Horn/Strobe
MIZ-24-WS-VF-R
Mini-Horn/Strobe
MIZ-24-WS-VF-W
Mini-Horn/Strobe
MIZ-24-WH-VF-W
Mini-Horn/Strobe
MIZ-24-WM-VF-W
Mini-Horn/Strobe
MT-12/24-R
Strobe Horn
MT-24-LS-VFR
Strobe Horn
MT-24-LSM-VFR
Strobe Horn
MT-24-MS-VFR
Strobe Horn
MT-24-IS-VFR
Strobe Horn
MT-24-SL-VFR
Strobe Horn
MT-24-SLM-VFR
Synch. Multitone Strobe
MT-24-WM
Strobe
MT-24-WM-VFR
Horn
RS-2415-HFR
Strobe
RSP-2415-VFR
Strobe
RS-241575-VFR
Strobe
RSP-241575-VFR
Strobe
RS-2430-VFR
Strobe
RS-2430-HFR
Strobe
RS-2475-VFR
Strobe
RSP-2475-HFR
Strobe
RS-24110-HFR
Strobe
Edwards Booster Power Supply Manual
Devices Manufactured by Wheelock
Model
Description
RSP-24110-HFR
Strobe
SL-24-VFR
Synchronized Remote Strobe
SL1-24-VFR
Synchronized Remote Strobe
SL3-24-VFR
Synchronized Remote Strobe
SLP-24-VFR
Synchronized Remote Strobe
SLM-24-VFR
Synchronized Remote Strobe
SL1M-24-VFR
Synchronized Remote Strobe
SL3M-24-VFR
Synchronized Remote Strobe
SLPM-24-VFR S
Synchronized Remote Strobe
SHW-24-VFR
Synchronized Remote Strobe
SH2W-24-VFR
Synchronized Remote Strobe
SHPW-24-VFR
Synchronized Remote Strobe
SCM-24-R
Controller for Synchronized Strobes
SM-12/24-R
Sync Module
SR-2415-VFR
Sync Strobe
SRP-2415-HFR
Sync Strobe
SR-241575-VFR
Sync Strobe
SRP-241575-VFR
Sync Strobe
SR-2475-VFR
Sync Strobe
SR-2475-HFR
Sync Strobe
SR-24110-HFR
Sync Strobe
SRP-24110-HFR
Sync Strobe
V7001T-12\24-W-FR
Strobe Horn
WM3T-24-FR
Remote Strobe
WM3T-24-VFR
Remote Strobe
WS1T-24-FR
Strobe
WS3T-24-FR
Strobe
WST-24-FR
Strobe
Edwards Booster Power Supply Manual
33
34
Edwards Booster Power Supply Manual
