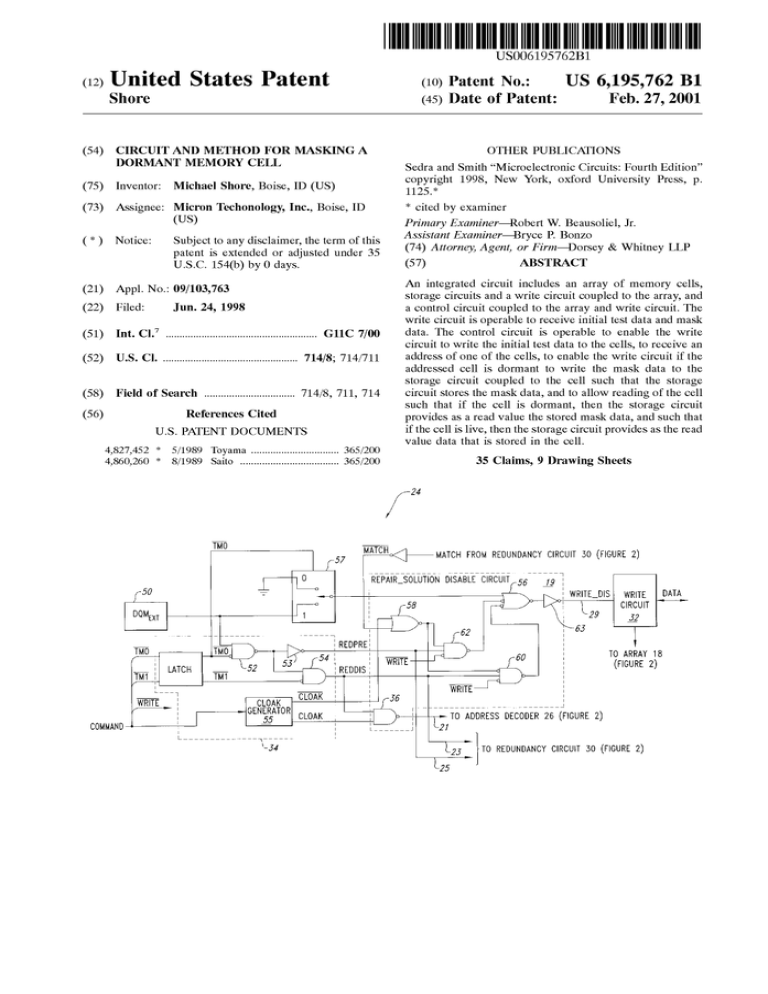

US006195762B1
(12) United States Patent
Shore
(54)
US 6,195,762 B1
(10) Patent N0.:
(45) Date of Patent:
CIRCUIT AND METHOD FOR MASKING A
DORMANT MEMORY CELL
Feb. 27, 2001
OTHER PUBLICATIONS
Sedra and Smith “Microelectronic Circuits: Fourth Edition”
copyright 1998, NeW York, oxford University Press, p.
(75) Inventor: Michael Shore, Boise, ID (US)
(73) Assignee: Micron Techonology, Inc., Boise, ID
(Us)
(*) Notice: Subject to any disclaimer, the term of this
1125*
* cited by examiner
Primary Examiner—Robert W. Beausoliel, Jr.
Assistant Examiner—Bryce P. BonZo
patent is extended or adjusted under 35
(74) Attorney, Agent, or Firm—Dorsey & Whitney LLP
U.S.C. 154(b) by 0 days.
(57)
An integrated circuit includes an array of memory cells,
storage circuits and a Write circuit coupled to the array, and
a control circuit coupled to the array and Write circuit. The
Write circuit is operable to receive initial test data and mask
data. The control circuit is operable to enable the Write
(21) Appl. No.: 09/103,763
Jun. 24, 1998
(22) Filed:
(51)
Int. Cl.7 ..................................................... .. G11C 7/00
(52)
US. Cl. ............................................... .. 714/8; 714/711
(58)
(56)
Field of Search ............................... .. 714/8, 711, 714
circuit to Write the initial test data to the cells, to receive an
address of one of the cells, to enable the Write circuit if the
addressed cell is dormant to Write the mask data to the
storage circuit coupled to the cell such that the storage
circuit stores the mask data, and to alloW reading of the cell
such that if the cell is dormant, then the storage circuit
provides as a read value the stored mask data, and such that
if the cell is live, then the storage circuit provides as the read
value data that is stored in the cell.
References Cited
U.S. PATENT DOCUMENTS
4,827,452 *
5/1989
Toyama .............................. .. 365/200
4,860,260 *
8/1989
Saito .................................. .. 365/200
ABSTRACT
