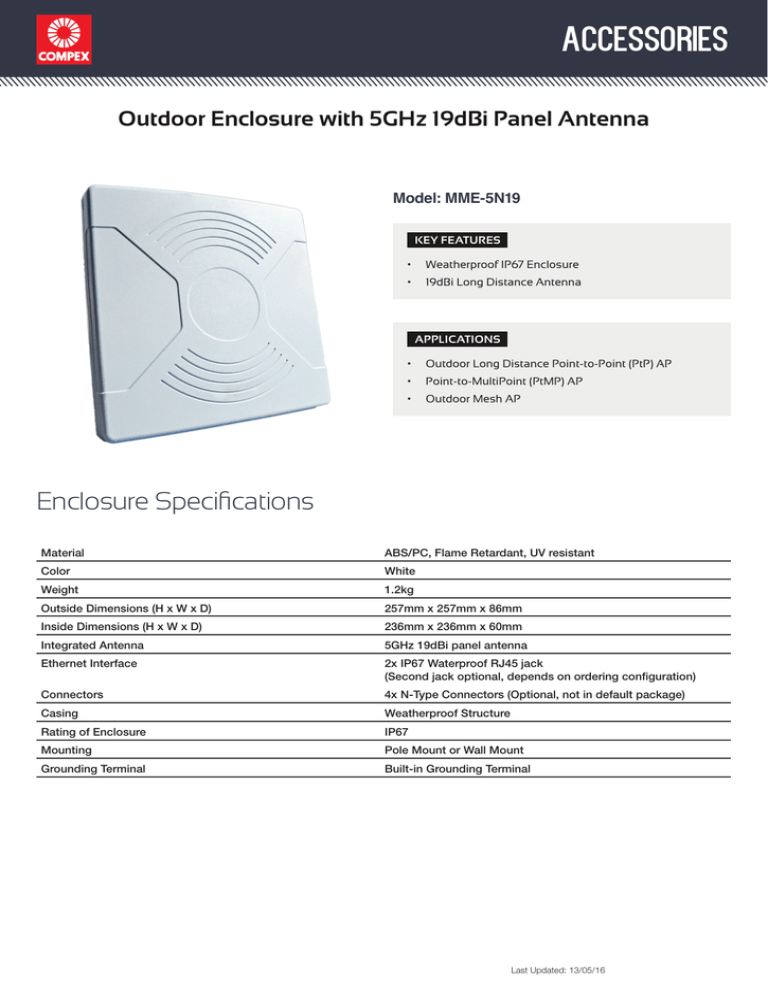

Outdoor Enclosure with 5GHz 19dBi Panel Antenna
Model: MME-5N19
KEY FEATURES
•
Weatherproof IP67 Enclosure
•
19dBi Long Distance Antenna
APPLICATIONS
•
Outdoor Long Distance Point-to-Point (PtP) AP
•
Point-to-MultiPoint (PtMP) AP
•
Outdoor Mesh AP
Enclosure Specifications
Material
ABS/PC, Flame Retardant, UV resistant
Color
White
Weight
1.2kg
Outside Dimensions (H x W x D)
257mm x 257mm x 86mm
Inside Dimensions (H x W x D)
236mm x 236mm x 60mm
Integrated Antenna
5GHz 19dBi panel antenna
Ethernet Interface
2x IP67 Waterproof RJ45 jack
(Second jack optional, depends on ordering configuration)
Connectors
4x N-Type Connectors (Optional, not in default package)
Casing
Weatherproof Structure
Rating of Enclosure
IP67
Mounting
Pole Mount or Wall Mount
Grounding Terminal
Built-in Grounding Terminal
Last Updated: 13/05/16
accessories
Features and Illustrations
Features
Illustrations
Enclosure
Inside View of the Front
showing the
Antenna Port Orientation
Waterproof Cable Gland for RJ45
(IP67)
and
N-Type Connector for External Antenna (Optional)
N-Type
Connector
Waterproof
RJ45 jack
LED
(Signal Strength and AP functions
dual color/purpose)
2
Copyright © Compex Systems. All rights reserved. COMPEX and the COMPEX logo, are registered trademarks of Compex Inc.
Atheros and other trademarks are properties of their respective owners. While every effort is made to ensure the information is accurate,
Compex does not accept liability for any errors or mistakes that may arise. All specifications are subject to change without notice.
Compex Systems Pte Ltd | www.compex.com.sg | (+65) 6286 2086 | sales@compex.com.sg | Last Updated: 13/05/16 WH HB SY
accessories
Features and Illustrations
Features
Illustrations
Enclosure
Up-Tilt (Max 25°)
Inside View of the Back
showing the
Grounding Terminal
3
Down-Tilt (Max 25°)
Grounding
Terminal
Copyright © Compex Systems. All rights reserved. COMPEX and the COMPEX logo, are registered trademarks of Compex Inc.
Atheros and other trademarks are properties of their respective owners. While every effort is made to ensure the information is accurate,
Compex does not accept liability for any errors or mistakes that may arise. All specifications are subject to change without notice.
Compex Systems Pte Ltd | www.compex.com.sg | (+65) 6286 2086 | sales@compex.com.sg | Last Updated: 13/05/16 WH HB SY
accessories
Dimensional Drawing
4
Copyright © Compex Systems. All rights reserved. COMPEX and the COMPEX logo, are registered trademarks of Compex Inc.
Atheros and other trademarks are properties of their respective owners. While every effort is made to ensure the information is accurate,
Compex does not accept liability for any errors or mistakes that may arise. All specifications are subject to change without notice.
Compex Systems Pte Ltd | www.compex.com.sg | (+65) 6286 2086 | sales@compex.com.sg | Last Updated: 13/05/16 WH HB SY
accessories
Antenna Element Specifications
Gain
19dBi
Radiation
Directional
Connectors
2x U.FL or MMCX Antenna Connectors
Frequency Range
5.1 ~ 5.9 GHz
Polarization
Dual Polarization
Azimuth -3dB Beamwidth
Horizontal (Port 1) : 17 degrees
Vertical (Port 2) : 17 degrees
Elevation -3dB Beamwidth
Horizontal (Port 1) : 17 degrees
Vertical (Port 2) : 17 degrees
Isolation
40dB (Min)
Front-to-Back Ratio
25dB (Min)
VSWR
Horizontal (Port 1) : < 1.87:1
Vertical (Port 2) : < 2.00:1
Cross Polarization Isolation
27dB (Min)
SideLobe
< -12dB
MME-5G19 Gain
19
Gain (dBi)
17
Gain Plot
15
13
Gain (P1-H)
11
Gain (P2-V)
9
4.5
4.7
4.9
5.1
5.3
5.5
5.7
Frequency (GHz)
5.9
6.1
6.3
6.5
5.9
6.1
6.3
6.5
Frequency (GHz)
0
4.5
4.7
4.9
5.1
5.3
5.5
5.7
-10
S-Parameters Graph:
Return Loss
and Isolation
S-Parameters (dB)
-20
-30
RL (P1-H)
Isolation
RL (P2-V)
-40
-50
-60
5
Copyright © Compex Systems. All rights reserved. COMPEX and the COMPEX logo, are registered trademarks of Compex Inc.
Atheros and other trademarks are properties of their respective owners. While every effort is made to ensure the information is accurate,
Compex does not accept liability for any errors or mistakes that may arise. All specifications are subject to change without notice.
Compex Systems Pte Ltd | www.compex.com.sg | (+65) 6286 2086 | sales@compex.com.sg | Last Updated: 13/05/16 WH HB SY
accessories
Antenna Element Specifications
Polar Plots (At 5.6 GHz)
0°
0°
-90°
90°
-90°
-20 dB
-20 dB
-10 dB
-10 dB
0 dB
0 dB
180°
180°
H-Pol Azimuth
H-Pol Elevation
0°
-90°
0°
90°
-90°
90°
-20 dB
-20 dB
-10 dB
-10 dB
0 dB
180°
V-Pol Azimuth
6
90°
0 dB
180°
V-Pol Elevation
Copyright © Compex Systems. All rights reserved. COMPEX and the COMPEX logo, are registered trademarks of Compex Inc.
Atheros and other trademarks are properties of their respective owners. While every effort is made to ensure the information is accurate,
Compex does not accept liability for any errors or mistakes that may arise. All specifications are subject to change without notice.
Compex Systems Pte Ltd | www.compex.com.sg | (+65) 6286 2086 | sales@compex.com.sg | Last Updated: 13/05/16 WH HB SY
accessories
Enclosure Model Matrix
Enclosure
Size
Pre-Config
Enclosure
257 x 257 x 86
mm



19dBi
Antenna
1x N-Type
Connectors
4x N-Type
Connectors
Vented
Enclosure



Earthing
Terminal
Model
Name



MMERJ45CN-1N
MME-5N19
MMERJ45CN-4N
Ordering Information
Codes
19dBi Antenna
MME-RJ45CN-4N
7
4x N-Type Connector

MME-RJ45CN-1N
MME-5N19
1x N-Type Connector


