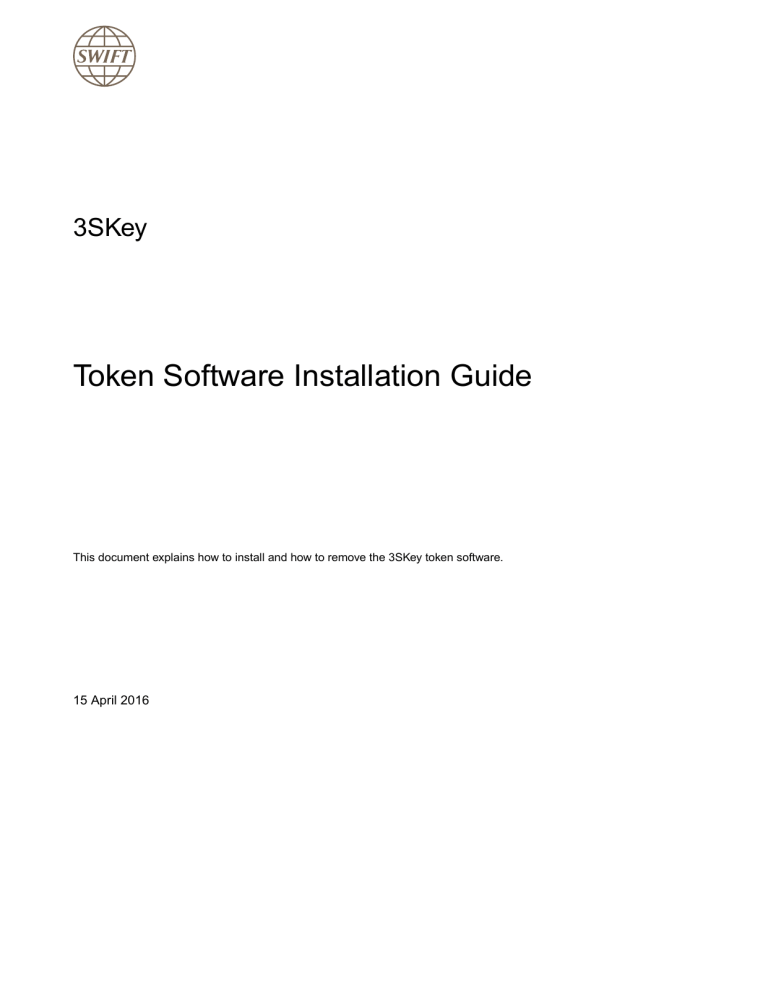

3SKey

Token Software Installation Guide

This document explains how to install and how to remove the 3SKey token software.

15 April 2016

3SKey

Token Software Installation Guide Table of Contents

Table of Contents

5

6

3

4

7

Preface......................................................................................................................................................3

1

Token Software Installation Prerequisites...................................................................................4

2

Obtain the Token Installation Software........................................................................................6

2.1

Download the installation software................................................................................................ 6

2.2

Unzip and run the software installation file.................................................................................... 6

Configure Internet Explorer Settings........................................................................................... 8

Configure Java Settings................................................................................................................9

Install the Token Software in Interactive Mode......................................................................... 10

Install the Token Software in Silent Mode................................................................................. 15

Remove the Token Software....................................................................................................... 16

7.1

Remove the Token Software in Interactive Mode........................................................................ 16

7.2

Remove the Token Software in Silent Mode................................................................................16

Legal Notices......................................................................................................................................... 18

15 April 2016 2

3SKey

Token Software Installation Guide Preface

Preface

Purpose of the document

This document explains how to install and how to remove the token software for your 3SKey token.

Audience

This document is for 3SKey token administrators, users and system administrators.

Significant changes

The following table lists significant changes since the March 2015 release. This does not include various edits that have been made.

New information Location

Obtain the Token Installation Software

on page 6

The token software installation procedure is the same for both token types (basic token and high token) and has been simplified.

The configuration of Internet Explorer settings has been updated.

Configure Internet Explorer Settings on page 8

The configuration of Java settings has been updated.

Updated screenshots have been added to the installation procedure for silent mode due to the renaming of the properties file.

Configure Java Settings

on page 9

Updated screenshots have been added to illustrate the installation procedure in interactive mode

Install the Token Software in Interactive Mode on

page 10

Install the Token Software in Silent Mode on page

15

Updated screenshots have been added to illustrate the removal procedures.

Remove the Token Software

on page 16

15 April 2016 3

3SKey

Token Software Installation Guide Token Software Installation Prerequisites

1 Token Software Installation Prerequisites

General prerequisites

• Administrator rights are required to install the necessary drivers and software.

• Your PC must be running one of the following operating systems:

Windows Vista (32-bit) with Service Pack 1 or higher

Windows 7 (32-bit or 64-bit), optionally with a Service Pack

Windows 8 (32-bit or 64-bit)

Windows 8.1 (32-bit or 64-bit)

Windows 10 (32-bit or 64- bit)

Windows Server 2008 R2 (32-bit or 64-bit)

Windows Server 2012 (64-bit)

• To access the 3SKey portal, you must use one of the following versions of Internet Explorer:

Internet Explorer 8.0 (32-bit)

Internet Explorer 9.0 (32-bit)

Internet Explorer 10.0 (32-bit)

Internet Explorer 11.0 (32-bit)

For Windows 8 and above: make sure that you have switched to desktop mode before launching internet explorer.

• Your PC must have free space of at least 500 MB.

• To check this, open Windows Explorer, right-click the C: drive and select Properties. A

System (C:) Properties window opens:

15 April 2016 4

3SKey

Token Software Installation Guide Token Software Installation Prerequisites

• To access the 3SKey portal, your system requires a 32-bit version of the Java Runtime

Environment (JRE). The minimum supported versions are 1.6.0_32 for Java 6, 1.7.0_7 for

Java 7, or Java 8.

• The Windows Script Host (WSH) must be enabled for the .vbs

scripts used by the installer to execute properly. This setting is enabled by default.

• The Windows Smart Card Service must be started for the proper detection of the certificate by the SafeNet authentication client. This service is started by default.

You can install the token software on a PC that is running either the 32-bit version or the 64-bit version of Windows. However, you must use the 32-bit versions of Internet Explorer and the

Java Runtime Environment to access the 3SKey portal and configure your tokens.

The installation procedure checks that the required versions are installed on your system. For

more information, see Install the Token Software in Interactive Mode on page 10.

3SKey with Citrix or Microsoft Terminal Services

The use of a 3SKey token is compatible with a Citrix environment or a Microsoft Terminal

Services environment.

For more information about setting up and using 3SKey in an environment that includes one of these technologies, see the 3SKey self help .

15 April 2016 5

3SKey

Token Software Installation Guide

2

Obtain the Token Installation Software

Obtain the Token Installation Software

Before you can use your token, you must obtain and download the token installation software.

First, identify your token.

There are two types of 3SKey token:

• the 3SKey basic token (eToken PRO)

The 3SKey basic token only stores a 3SKey certificate.

• the 3SKey high token (eToken NG-FLASH)

2.1

The 3SKey high token contains a 3SKey certificate and a 2GB Flash memory that can be used to store documents. The Flash memory contains a copy of the installation sources and the 3SKey Token Software Installation Guide.

Whichever type of token you have, we recommend that you download the latest version of the installation software from the 3SKey portal.

Download the installation software

2.2

Procedure

1. For Windows 8 and above: From the Start window, click the Desktop tile to enter desktop mode.

2. Navigate to http://www.3skey.com

.

3. On the Getting started page, there is a link that enables you to download the token installation software.

Click the link.

4. Save the software installation file on your PC. The file name is

3SKey_token_install_v4.0.25.zip

.

Unzip and run the software installation file

Procedure

1. Navigate to the folder in which you saved the installation software zip file.

Either unzip the archive and navigate to the extracted folder OR

Double-click the zip file. In either case, the following window appears.

15 April 2016 6

3SKey

Token Software Installation Guide Obtain the Token Installation Software

2. Double-click the software installation file contained within the zip file.

The Welcome to the SWIFT Token Client Installer window opens and you are ready to start the installation in Interactive Mode. Refer to the section

Install the Token Software in

Interactive Mode on page 10.

15 April 2016 7

3SKey

Token Software Installation Guide

3

Configure Internet Explorer Settings

Configure Internet Explorer Settings

The required Internet Explorer settings are normally part of its default settings. If the default settings of Internet Explorer have been modified, then make sure that the correct settings are selected or enabled. You can access the settings by going to Internet Explorer > Tools >

Internet Options > Advanced.

SWIFT recommends correctly configuring the Internet Explorer Settings to improve PC performance and to avoid pop-up warning messages.

Item

HTTP 1.1 settings > Use HTTP 1.1

HTTP 1.1 settings > Use HTTP 1.1 through proxy connections

Security > Check for server certificate revocation

Security > Use SSL 2.0

Security > Use SSL 3.0

Security > Use TLS 1.0

Setting

Must be selected

Must be selected

Must NOT be selected

Must NOT be selected

Must NOT be selected

Must be selected

Security > Use TLS 1.1

Security > Use TLS 1.2

It is recommended to select all TLS versions.

It is recommended to select all TLS versions.

Security > Warn about certificate address mismatch Must be selected

15 April 2016 8

3SKey

Token Software Installation Guide

4

Configure Java Settings

Configure Java Settings

The following settings of the Java plug-in are normally part of its default settings. If the default settings of the Java plug-in have been modified, then make sure that the following settings are configured as described. You can access the settings by going to the Java Control Panel >

Advanced.

Depending on the version of Java that you are using some of the settings may not be applicable.

If a setting does not exist for your version, then please ignore it.

SWIFT recommends correctly configuring the Java Settings to improve PC performance and to avoid pop up warning messages.

Setting

Must be selected

Item

Default Java for Browsers > Microsoft Internet

Explorer

Java Plug-in > Enable the next generation Java

Plug-in (requires browser restart)

Secure Execution Environment > Allow users to grant permissions to signed content

Perform certificate revocation checks on > Do not check (not recommended)

Advanced Security Settings > Use certificates and keys in browser keystore

Security > Use SSL 2.0

Security > Use SSL 3.0

Advanced Security Settings > Use TLS 1.0

Advanced Security Settings > Use TLS 1.1

Advanced Security Settings > Use TLS 1.2

Must be selected

Must be selected. It is mandatory to import the

SWIFT CA into the browser.

Must be selected

Must be selected

Must NOT be selected

Must NOT be selected

Must be selected

Must be selected

Can be selected. This option is NOT recommended for Java versions prior to:

• Java 7, update 79

• Java 8, update 45

In case of any problems with Java settings, refer also to the article Issues related to Java .

15 April 2016 9

3SKey

Token Software Installation Guide Install the Token Software in Interactive Mode

5 Install the Token Software in Interactive Mode

Install the software

Prerequisites

To install or remove the token software on a PC in interactive mode, you must have administrator rights for that PC.

Note SWIFT recommends that you close all other applications running on the PC before installing the token software.

Procedure

1. Remove all USB tokens.

2. After you double-click the software installation file, the Welcome to the SWIFT Token

Client Installer window opens. This window informs you of the actions that are performed during installation.

15 April 2016

Click

Next

.

The SWIFT Token Client Location window opens.

10

3SKey

Token Software Installation Guide Install the Token Software in Interactive Mode

Important Although it is possible to customise the options, SWIFT recommends that you accept the proposed installation options.

3. If you want to customise the installation, then you can do so by selecting or clearing the following options:

Install SafeNet Authentication Client - the installer checks whether there is already an appropriate version of the SafeNet Authentication Client installed on the PC and installs it if needed. The SafeNet software contains the drivers needed for the token to be recognised.

You can clear this box if you want to install the SafeNet software after the token software is installed.

Install SWIFT Token Client - this configures the SWIFT environment on the PC and, therefore, you cannot modify this setting.

Import SWIFT CA certificate - if you select this box, the installer automatically imports the SWIFT CA certificate on to your PC.

Clear this box if your company policy does not allow you to import certificates.

Depending on your Java version and settings, logging in to the 3SKey portal to activate and manage your tokens might not be possible if the SWIFT CA certificate is not installed.

Note If you clear this option and you want to import the SWIFT CA certificate after the token software is installed, then refer to the 3SKey Troubleshooting

Guide on www.3skey.com under Documentation for the SWIFT CA certificate import procedure.

Configure Browser settings - if you select this box, then the installer adds 3skey.com

and swift.com to the Trusted Sites zone of Internet Explorer. It also enables TLS version

1.0, TLS 1.1 and TLS 1.2 on your internet browser and disables SSL 2.0 and SSL 3.0 as these options are considered not secure.

Please check the recommended TLS and SSL settings in the section

Configure Internet

Explorer Settings

on page 8 and the section Configure Java Settings

on page 9.

When you have selected your installation options, click Next .

4. The SWIFT Token Client Location window opens.

15 April 2016 11

3SKey

Token Software Installation Guide Install the Token Software in Interactive Mode

It shows the proposed folder location for the software installation files. If you want to change the default location, then click

Browse...

and navigate to the required folder for installation.

However, the SafeNet authentication software is stored in a default folder that cannot be changed. The location of this software is shown in the field SafeNet Authentication Client

Folder Name.

Click Next .

5. The installer then runs a test to verify that the PC can support the token software installation. This can take a few moments to complete.

If one or more of the configuration tests fail, then the System Configuration Test Results window opens.

If all of the configuration tests are successful, then the SWIFT Token Client Installer confirmation window opens (see the next step).

15 April 2016

Note Windows 10 is wrongly reported during installation as not supported. Windows

10 is however fully supported and qualified.

The tests compare the Recommended conditions for installation to the Actual conditions of the user's PC.

The Result in each case appears as OK, as a Warning or an ERROR.

If there is a Warning/ERROR, then an explanation appears in the lower half of the screen.

In the case of a Warning, the installation can continue. In the case of an ERROR, it cannot.

In the example above, the PC does not have a recommended version of Java installed on it.

It is only a Warning because the installation can complete with a lower version of Java, but there can be problems when accessing the SWIFT portal.

In this case, there is also a link directly to the Java web site from where you can download the latest version of Java software.

Click Next .

6. The SWIFT Token Client Installer confirmation window opens.

12

3SKey

Token Software Installation Guide Install the Token Software in Interactive Mode

It confirms the actions that are performed during installation.

Click Install to proceed with the installation.

The installation can take a couple of minutes. Do not interrupt the installation procedure during this time.

7. The results of the installation appear.

15 April 2016

If there is a Warning, then an explanation appears at the bottom of the window.

Click Next .

8. The Installation Complete window opens.

13

3SKey

Token Software Installation Guide Install the Token Software in Interactive Mode

Click Finish .

9. The Reboot notice window opens.

Restart your computer to complete the installation. Click Restart now or Restart later .

15 April 2016 14

3SKey

Token Software Installation Guide Install the Token Software in Silent Mode

6 Install the Token Software in Silent Mode

In silent mode, you can remotely install the token software without interactive user input. The installation procedure takes the input from a response file instead.

You must extract the installer files to one location, and use a script to install the token software in silent mode.

Prerequisites

To install or remove the token software on PCs in silent mode, you must have administrator rights for all of the PCs involved.

Note SWIFT recommends that you close all other applications running on the PC before installing the token software.

Procedure

1. Extract the contents of the zip file, including the Silent subfolder to a folder of your choice.

2. Start a DOS command window and navigate to that folder. Execute the following command to start the silent installation: 3SKey_token_install.exe -silent silent\silentinstall.properties

If you want to customise the installation, then you can do so by setting the options in the file silent-install.properties

. This file provides the explanation of each option available.

15 April 2016 15

3SKey

Token Software Installation Guide Remove the Token Software

7 Remove the Token Software

7.1

You must have administrator rights on each PC from which you want to remove the token software.

Remove the Token Software in Interactive Mode

Procedure

1. From the Control Panel menu, ensure that you have the View by: Category option active.

Click the link Uninstall a program.

The Uninstall or change a program window opens.

2. Select the appropriate SWIFT Token Client program from the list and click Uninstall .

The Welcome to the SWIFT Token Client Uninstaller window opens.

7.2

3. Click Next .

Click Yes to confirm the uninstallation.

The Uninstallation Complete window opens.

Click Finish .

The Reboot notice window opens.

The token software is removed, but you must restart your computer for the uninstallation to take effect. You can choose to Restart now or Restart later .

Remove the Token Software in Silent Mode

In silent mode, you can remotely uninstall the token software without interactive user input.

To install or remove the token software on PCs in silent mode, you must have administrator rights for all of the PCs involved.

Note The directory in which the uninstall command is executed is important.

The command must not be under the installation directory otherwise the uninstaller will not be able to remove some installation files.

15 April 2016 16

3SKey

Token Software Installation Guide Remove the Token Software

Execute the uninstaller as shown in the above example.

The uninstall.exe-silent command line requires a response file as argument. A sample response file is present in the installation folder at %PDI_HOME%\..\config\silentuninstall.properties

.

15 April 2016 17

3SKey

Token Software Installation Guide Legal Notices

Legal Notices

Copyright

SWIFT © 2016. All rights reserved.

Disclaimer

The information in this publication may change from time to time. You must always refer to the latest available version.

Translations

The English version of SWIFT documentation is the only official and binding version.

Trademarks

SWIFT is the trade name of S.W.I.F.T. SCRL. The following are registered trademarks of SWIFT: the SWIFT logo, SWIFT, SWIFTNet, Accord, Sibos, 3SKey, Innotribe, the Standards Forum logo,

MyStandards, and SWIFT Institute. Other product, service, or company names in this publication are trade names, trademarks, or registered trademarks of their respective owners.

15 April 2016 18
