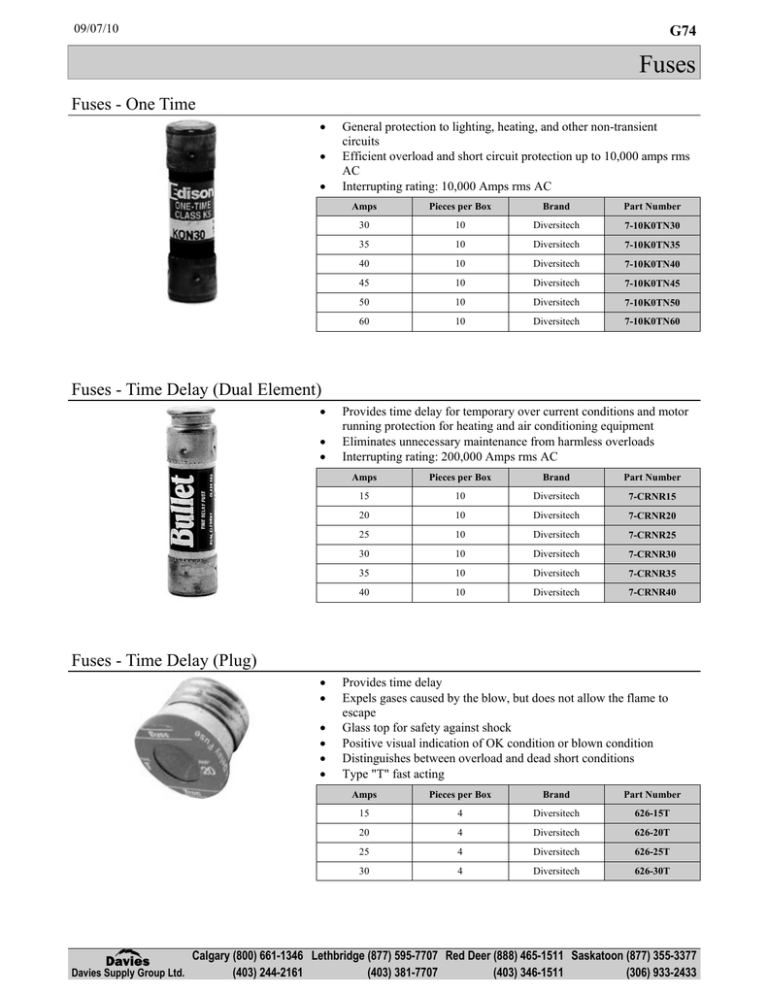

09/07/10
G74
Fuses
Fuses - One Time



General protection to lighting, heating, and other non-transient
circuits
Efficient overload and short circuit protection up to 10,000 amps rms
AC
Interrupting rating: 10,000 Amps rms AC
Amps
Pieces per Box
Brand
Part Number
30
10
Diversitech
7-10K0TN30
35
10
Diversitech
7-10K0TN35
40
10
Diversitech
7-10K0TN40
45
10
Diversitech
7-10K0TN45
50
10
Diversitech
7-10K0TN50
60
10
Diversitech
7-10K0TN60
Fuses - Time Delay (Dual Element)



Provides time delay for temporary over current conditions and motor
running protection for heating and air conditioning equipment
Eliminates unnecessary maintenance from harmless overloads
Interrupting rating: 200,000 Amps rms AC
Amps
Pieces per Box
Brand
Part Number
15
10
Diversitech
7-CRNR15
20
10
Diversitech
7-CRNR20
25
10
Diversitech
7-CRNR25
30
10
Diversitech
7-CRNR30
35
10
Diversitech
7-CRNR35
40
10
Diversitech
7-CRNR40
Fuses - Time Delay (Plug)






Davies Supply Group Ltd.
Provides time delay
Expels gases caused by the blow, but does not allow the flame to
escape
Glass top for safety against shock
Positive visual indication of OK condition or blown condition
Distinguishes between overload and dead short conditions
Type "T" fast acting
Amps
Pieces per Box
Brand
Part Number
15
4
Diversitech
626-15T
20
4
Diversitech
626-20T
25
4
Diversitech
626-25T
30
4
Diversitech
626-30T
Calgary (800) 661-1346 Lethbridge (877) 595-7707 Red Deer (888) 465-1511 Saskatoon (877) 355-3377
(403) 244-2161
(403) 381-7707
(403) 346-1511
(306) 933-2433
09/07/10
G75
Fuses
Fuses - ATO® Blade Style




International standard fuse found on most cars, trucks, buses and off
road vehicles
Color coded to indicate Amp rating
Fast acting
Voltage rating characteristics: 32V AC/DC
Color Code / Amps
Pieces per Box
Brand
Part Number
Violet - 3A
5
Littelfuse
ATO3
Tan - 5A
5
Littelfuse
ATO5
Fuses - Glass



Reliable cartridge fuses provide circuit protection and satisfies a
broad range of application requirements
Fast acting
Interrupting rating: 10,000A @ 125VAC / 35A @ 250VAC
Amps
Pieces per Box
Brand
Part Number
1
5
Littelfuse
AGC1
2
5
Littelfuse
AGC2
3
5
Littelfuse
AGC3
4
5
Littelfuse
AGC4
5
5
Littelfuse
AGC5
7.5
5
Littelfuse
AGC7.5
10
5
Littelfuse
AGC10
Fuse Holder (For ATO Blade Style Fuse)



Inline molded fuse holder for standard ATO fuses up to 30 amps
Wire: (2) 4" leads of #12 AWG stranded orange wire
Body: Black thermoplastic
Current Rating
Voltage Rating
Brand
Part Number
30A
32VDC
Littelfuse
FHA2
Fuse Holders (For AGC Style Fuse)


Davies Supply Group Ltd.
Glass fuse holders for AGC inline applications
Spring loaded for GM air conditioners, heater blower motors and
other heavy duty applications. Supplied with (2) 4" wire leads of #12
AWG stranded orange wire. Includes 30A fuse.
Current Rating
Brand
Part Number
30A
Littelfuse
FNY30
