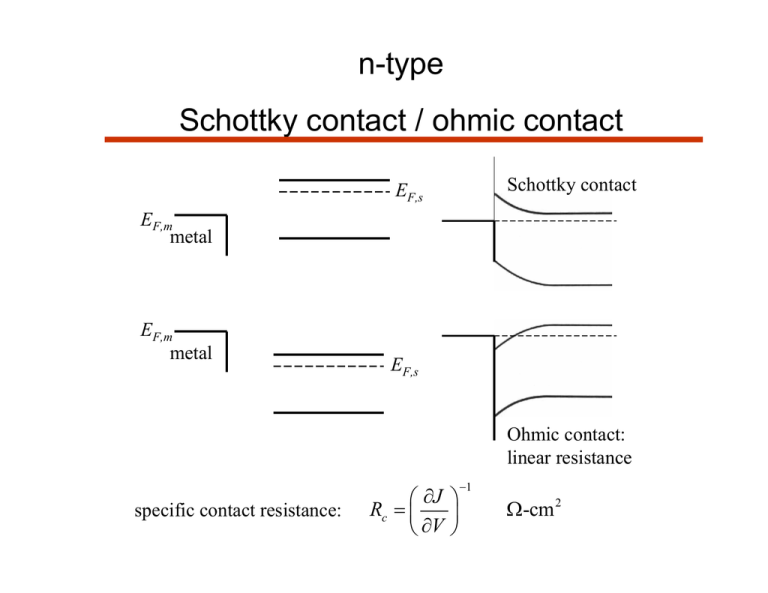

n-type Schottky contact / ohmic contact Schottky contact EF,s EF,m metal EF,m metal EF,s Ohmic contact: linear resistance specific contact resistance: ⎛ ∂J ⎞ Rc = ⎜ ⎟ ⎝ ∂V ⎠ −1 Ω-cm 2 Tunnel contacts For high doping, the Schottky barrier is so thin that electrons can tunnel through it. metal p+ p Degenerate doping at a tunnel contact metal n+ n Tunnel contacts have a linear resistance. Contacts Transport mechanisms Drift Diffusion Thermionic emission Tunneling All mechanisms are always present. One or two transport mechanisms can dominate depending on the device and the bias conditions. In a forward biased pn-junction, diffusion dominates. In a tunnel contact, tunneling dominates. In a Schottky diode, thermionic emission dominates. Student projects Calculate the diffusion current for a Schottky diode Calculate the thermionic emission current for a pn diode Institute of Solid State Physics Technische Universität Graz JFETs - MESFETs - MODFETs Junction Field Effect Transistors (JFET) Metal-Semiconductor Field Effect Transistors (MESFET) Modulation Doped Field Effect Transistors (MODFET) n JFET n-channel JFET n For NA >> ND 2ε (Vbi − V ) xn = eN D Depletion mode Enhancement mode h > xn = 2ε Vbi eN D 2ε Vbi h < xn = eN D conducting at Vg = 0 nonconducting at Vg = 0 n-channel JFET drain depletion region p n p gate JFETs are often discrete devices source MESFET Metal-Semiconductor Field Effect Transistors n Depletion layer created by Schottky barrier xn = 2ε (Vbi − V ) eN D Fast transistors can be realized in n-channel GaAs, however GaAs has a low hole mobility making p-channel devices slower. JFET n D n-channel JFET G 2ε (Vbi − V ) xn = eN D S n-channel JFET Pinch-off at h = xn eN D h 2 Vp = 2ε At Pinch-off, Vp = Vbi - V. D G S p-channel JFET Vp = pinch-off voltage JFET The drain is the side of the transistor that gets pinched off. JFET xL h xn h xR dV. There is a long derivation to determine how the current depends on VG and VD. We will find a relatively simple formula (probably familiar to electrical engineers). Understanding the derivation is important for knowing when this formula is valid. JFET xL h xn xR h dV. dV = I D dR = I D ρ dy Z (h − xn ( y )) 1 1 1 ρ= = = σ neμn N D eμn dV = I D ID is constant throughout the transistor dy eμn N D Z (h − xn ( y )) I D dy = eμn N D Z (h − xn ( y ))dV JFET I D dy = eμn N D Z (h − xn ( y ))dV xL h xn xR h VG is a forward bias V(y) is a reverse bias. dV. depletion width is a function of position xn ( y ) = differentiate 2ε (Vbi + V ( y ) − VG ) eN D dxn ( y ) 1 ⎛ 2ε (Vbi + V ( y ) − VG ) ⎞ = 2⎜ ⎟ dV eN D ⎝ ⎠ dV = eN D xn ε dxn −1/ 2 2ε ε = eN D eN D xn ( y ) JFET xL h xn h xR from last slides I D dy = eμn N D Z (h − xn ( y ))dV dV = eN D xn ε dxn I D dy = eμn N D Z (h − xn ( y )) L I D ∫ dy = eμn N D Z 0 eN D ε eN D ε xn dxn xR ∫ (h − x ( y)) x dx n n n xL μn N D2 Ze 2 ⎡ 2 2 3 3 2 ⎤ ID = h x x x x − − − ( ) ( ) R L R L 3 ⎣ ⎦ 2 Lε JFET xn xL h xR h μn N D2 Ze 2 ⎡ 2 2 3 3 2 ⎤ ID = h x x x x − − − ( ) ( R L R L )⎦ 3 ⎣ 2 Lε h= 2ε V p eN D 2ε (Vbi − VG ) xL = eN D xR = 2ε (Vbi − VG + VD ) eN D JFET - drain current ⎡V 2 ⎛ Vbi + VD − VG D ⎢ ID = I p − ⎜ Vp ⎢ V p 3 ⎜⎝ ⎣ μn N D2 Ze 2 h3 Ip = 2 Lε valid in the linear regime (until pinch-off) ⎞ ⎟⎟ ⎠ 3/ 2 2 ⎛ Vbi − VG + ⎜ 3 ⎜⎝ V p ⎞ ⎟⎟ ⎠ 3/ 2 ⎤ ⎥ ⎥ ⎦ Junction FET simulation http://www-g.eng.cam.ac.uk/mmg/teaching/linearcircuits/jfet.html JFET - Linear regime ⎡V 2 ⎛ Vbi + VD − VG D ⎢ ID = I p − ⎜ Vp ⎢ V p 3 ⎜⎝ ⎣ ⎞ ⎟⎟ ⎠ 3/ 2 2 ⎛ Vbi − VG + ⎜ 3 ⎜⎝ V p In the linear regime VD << Vsat. ⎡1 dI D 1 ⎛ Vbi + VD − VG ⎢ = Ip − ⎜ dVD Vp ⎢V p V p ⎝⎜ ⎣ dI ID ≈ D dVD 1/ 2 ⎞ ⎟⎟ ⎠ Ip ⎡ V −V VD = ⎢1 − bi G V p ⎢⎣ Vp VD = 0 variable resistor ⎤ ⎥ ⎥ ⎦ ⎤ ⎥ VD ⎥⎦ ⎞ ⎟⎟ ⎠ 3/ 2 ⎤ ⎥ ⎥ ⎦ JFET - Saturation regime ⎡V 2 ⎛ Vbi + VD − VG D ⎢ ID = I p − ⎜ Vp ⎢ V p 3 ⎜⎝ ⎣ ⎡1 dI D 1 ⎛ Vbi + VD − VG ⎢ = Ip − ⎜ dVD Vp ⎢V p V p ⎜⎝ ⎣ 1/ 2 ⎞ ⎟⎟ ⎠ ⎞ ⎟⎟ ⎠ 3/ 2 2 ⎛ Vbi − VG + ⎜ 3 ⎜⎝ V p ⎤ ⎥=0 ⎥ ⎦ set dID/dVD = 0 to find Vsat will be 0 when Vbi+ VD - VG = VP Vsat = V p − Vbi + VG I sat ⎡1 V −V 2 ⎛ Vbi − VG bi G ⎢ = Ip − + ⎜ 3 ⎜⎝ V p Vp ⎢3 ⎣ ⎞ ⎟⎟ ⎠ 3/ 2 ⎤ ⎥ ⎥ ⎦ No VD dependence Voltage controlled current source ⎞ ⎟⎟ ⎠ 3/ 2 ⎤ ⎥ ⎥ ⎦ JFET - transconductance In the saturation regime, I sat ⎡1 V −V ⎛ Vbi − VG 2 bi G = Ip ⎢ − + ⎜ 3 3 ⎜⎝ V p V ⎢ p ⎣ transconductance (describes how good the voltage controlled current source is) dI sat I p ⎛ Vbi − VG gm = = ⎜1 − dVG V p ⎜⎝ Vp ⎞ ⎟ ⎟ ⎠ dI sat 2 Z μn eN D h ⎛ Vbi − VG gm = 1 = − ⎜ ⎜ dVG L Vp ⎝ large μ small L increases gm ⎞ ⎟ ⎟ ⎠ ⎞ ⎟⎟ ⎠ 3/ 2 ⎤ ⎥ ⎥ ⎦ JFET High frequencies iin = 2π fCG vG iout = g m vG iin < iout for gain: f < average capacitance: gm = fT 2π CG CG = ZL ε xn μn eN D h 2 fT = 2πε L2 fT is the frequency where the gain drops below 1 For velocity saturation, the approximation dV = I D Ohm's law assumes vd = μE fT ≈ vs L ρ dy Z (h − xn ( y )) is not valid JFET/MESFET JFET: small gate current (reverse leakage of the gate-to-channel junction) More gate leakage than MOSFET, less than bipolar. JFET has higher transconductance than the MOSFET. Used in low-noise, high input-impedance op-amps and sometimes used in switching applications. MESFET: usually constructed in compound semiconductor technologies lacking high quality surface passivation such as GaAs, InP, or SiC, and are faster but more expensive than silicon-based JFETs or MOSFETs. Production MESFETs are operated up to approximately 30 GHz, and are commonly used for microwave frequency communications and radar. Majority carrier device (like Schottky diode). MODFET (HEMT) Modulation doped field effect transistor (MODFET) High electron mobility transistor (HEMT) Modulation doped field effect transistor High electron mobility transistor VT = Threshold voltage = voltage where charge is depleted Heterostructure pn junction formed from two semiconductors with different band gaps MODFET/HEMT undoped channel HEMT: HEMT devices are found in cell phones, electronic warfare systems, microwave and millimeter wave communications, radar, and radio astronomy. PhD Thesis Sergey Smirnov http://www.iue.tuwien.ac.at/phd/smirnov/node71.html MODFET (HEMT) j = nevd = neμn E y I = jZt = Zeμn ns E y ns n= t t is the thickness of the 2DEG ns is the sheet charge at the interface in C/cm2. VG − V ( y ) is the voltage between the gate and the 2DEG ns = 0 when VG − V ( y ) = VT gate y 2DEG q = CV −ens ( y ) = −Cg (VG − V ( y ) − VT ) MODFET (HEMT) −ens ( y ) = Cg (VG − V ( y ) − VT ) is the charge on the 2DEG at point y The charge is zero when VG − V ( y ) = VT solve for ns ns ( y ) = −Cg (VG − V ( y ) − VT ) e Substitute this in Ohm's law: I = jZt = Zeμn ns E y MODFET (HEMT) I = jZt = Zeμn ns E y ns ( y ) = −Cg (VG − V ( y ) − VT ) e substitute ns in the top equation and substitute dV ( y ) I = Z μnC (VG − VT − V ( y ) ) dy integrate along the length of the channel L VD ∫ Idy = ∫ Z μ C (V n 0 G − VT − V ( y ) ) dV 0 ⎡ VD2 ⎤ Z I D = μnC ⎢(VG − VT ) VD − ⎥ 2 ⎦ L ⎣ − dV ( y ) Ey = dy MODFET (HEMT) ⎡ VD2 ⎤ Z I = μnC ⎢(VG − VT ) VD − ⎥ 2 ⎦ L ⎣ dI Z = μnC ⎡⎣(VG − VT ) − VD ⎤⎦ = 0 dVD L Set the derivative = 0 to find saturation voltage Vsat = (VG − VT ) Substitute the saturation voltage into the formula at the top to find saturation current Z 2 I sat = 2L μnC (VG − VT )
