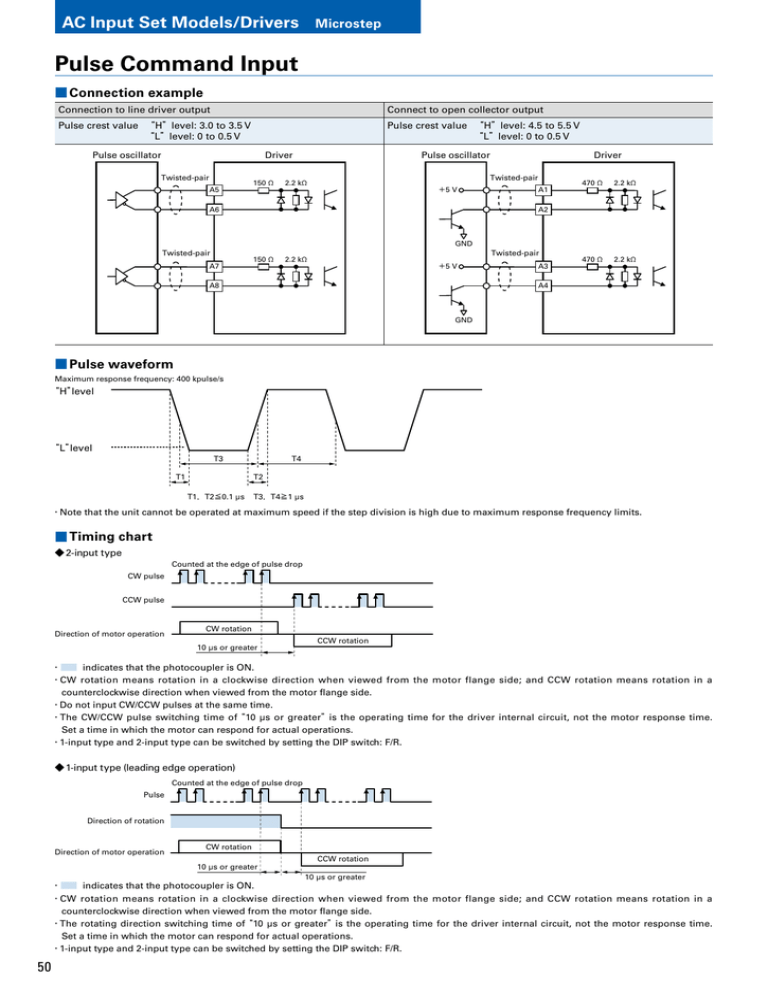

AC Input Set Models/Drivers Microstep
Pulse Command Input
■ Connection example
Connection to line driver output
Connect to open collector output
“H”level: 3.0 to 3.5 V
Pulse crest value “L”level: 0 to 0.5 V
“H”level: 4.5 to 5.5 V
Pulse crest value “L”level: 0 to 0.5 V
Pulse oscillator
Pulse oscillator
Driver
Twisted-pair
A5
150 Ω
Driver
Twisted-pair
2.2 kΩ
＋5 V
A6
A1
470 Ω
2.2 kΩ
470 Ω
2.2 kΩ
A2
GND
Twisted-pair
A7
150 Ω
Twisted-pair
2.2 kΩ
＋5 V
A8
A3
A4
GND
■ Pulse waveform
Maximum response frequency: 400 kpulse/s
“H”level
“L”level
T3
T1
T4
T2
T1，T2≦0.1 μs
T3，T4≧1 μs
・Note that the unit cannot be operated at maximum speed if the step division is high due to maximum response frequency limits.
■ Timing chart
◆ 2-input type
Counted at the edge of pulse drop
CW pulse
CCW pulse
Direction of motor operation
CW rotation
10 μs or greater
CCW rotation
・■ indicates that the photocoupler is ON.
・CW rotation means rotation in a clockwise direction when viewed from the motor flange side; and CCW rotation means rotation in a
counterclockwise direction when viewed from the motor flange side.
・Do not input CW/CCW pulses at the same time.
・The CW/CCW pulse switching time of“10 μs or greater”is the operating time for the driver internal circuit, not the motor response time.
Set a time in which the motor can respond for actual operations.
・1-input type and 2-input type can be switched by setting the DIP switch: F/R.
◆ 1-input type (leading edge operation)
Counted at the edge of pulse drop
Pulse
Direction of rotation
Direction of motor operation
CW rotation
10 μs or greater
CCW rotation
10 μs or greater
・■ indicates that the photocoupler is ON.
・CW rotation means rotation in a clockwise direction when viewed from the motor flange side; and CCW rotation means rotation in a
counterclockwise direction when viewed from the motor flange side.
・The rotating direction switching time of“10 μs or greater”is the operating time for the driver internal circuit, not the motor response time.
Set a time in which the motor can respond for actual operations.
・1-input type and 2-input type can be switched by setting the DIP switch: F/R.
