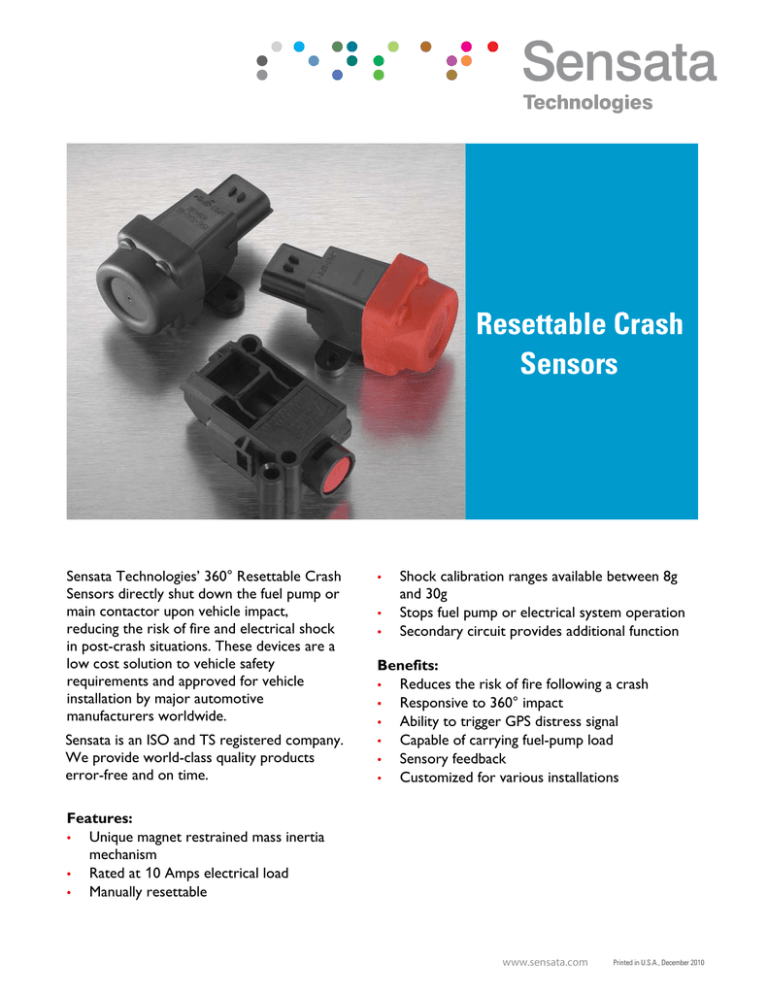

Resettable Crash Sensors Sensata Technologies’ 360° Resettable Crash Sensors directly shut down the fuel pump or main contactor upon vehicle impact, reducing the risk of fire and electrical shock in post-crash situations. These devices are a low cost solution to vehicle safety requirements and approved for vehicle installation by major automotive manufacturers worldwide. Sensata is an ISO and TS registered company. We provide world-class quality products error-free and on time. • • • Shock calibration ranges available between 8g and 30g Stops fuel pump or electrical system operation Secondary circuit provides additional function Benefits: • Reduces the risk of fire following a crash • Responsive to 360° impact • Ability to trigger GPS distress signal • Capable of carrying fuel-pump load • Sensory feedback • Customized for various installations Features: • Unique magnet restrained mass inertia mechanism • Rated at 10 Amps electrical load • Manually resettable www.sensata.com Printed in U.S.A., December 2010 EXT 200 SERIES Circuit Breakers Trip Time in Seconds 1000 800 600 400 General Specifications Typical 200 performance characteristics of resettable crash sensors Above are theEXT typical Trip Time Curve at 25ºC 200 100 80 60 40 Nominal Operating Voltage ................................................12 Volts DC Typical voltage drop at operating current .......................... 200 mV max Current Rating ...................................................... 5 to 35 amps @ 25ºC (in 5 amp increments) Typical Ambient Temperature Range ................................ -40ºC to 85ºC 20 10 8 6 4 2 0 Rated 200% Rated Current Current 135% Rated Current Test Current These curves are to be used only as a guide in selecting a protector for a particular application. Factors such as distance from the heat source and the method of mounting should be considered in selecting a protector. Final trip times are dependent upon terminal configuration and mounting in the application. Global Sales Offices North America Europe China Sensata Technologies, Inc. Autmotive Sensors 529 Pleasant Street, MS B-41 Attleboro, Massachusetts 02703 Phone: 1-508-236-3929 Email: sensors@sensata.com Sensata Technologies Holland B.V. Kolthofsingel 8 7602 EM Almelo The Netherlands Phone: 31 546 879 555 Sensata Technologies (Shanghai) Co., Ltd. Novel Plaza, 8th Floor 128 Nanjing Road West Shanghai 200003, China Phone: +86 212307 3231 Japan Korea Sensata Technologies Japan Ltd. Sumito Fudosan Nishi-Shinjuku Bldg 8-15-17 Nishi-Shinjuku Shinjuku-ku Tokyo 160-0023 Japan Phone: +81 35338-1003 Sensata Technologies Korea Ltd. 29F, Trade Tower 159-1 SamSung-Dong KangNam-Ku Seoul 135-729 South Korea Phone: +82 2551 3212 Brazil Sensata Technologies Sensores e Controles Do Brasil LTDA. Rua Azarias de Melo, 648 Taquaral-Campinas SP Brasil Phone: +55 19 3754 111
