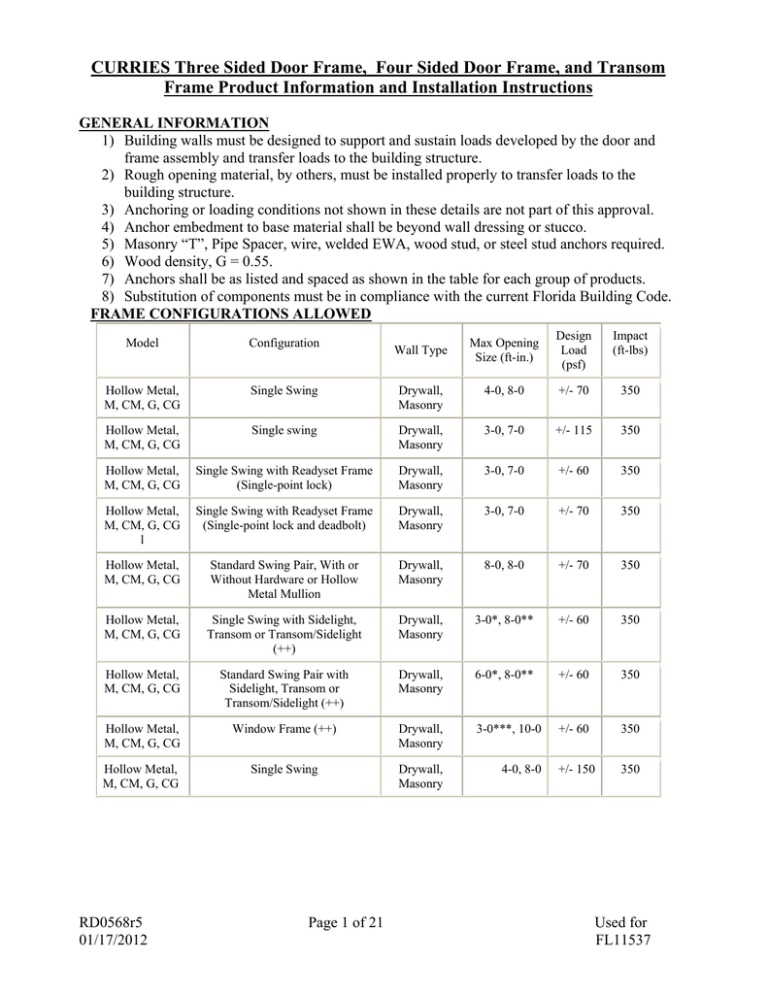

CURRIES Three Sided Door Frame, Four Sided Door Frame, and Transom
Frame Product Information and Installation Instructions
GENERAL INFORMATION
1) Building walls must be designed to support and sustain loads developed by the door and
frame assembly and transfer loads to the building structure.
2) Rough opening material, by others, must be installed properly to transfer loads to the
building structure.
3) Anchoring or loading conditions not shown in these details are not part of this approval.
4) Anchor embedment to base material shall be beyond wall dressing or stucco.
5) Masonry “T”, Pipe Spacer, wire, welded EWA, wood stud, or steel stud anchors required.
6) Wood density, G = 0.55.
7) Anchors shall be as listed and spaced as shown in the table for each group of products.
8) Substitution of components must be in compliance with the current Florida Building Code.
FRAME CONFIGURATIONS ALLOWED
Max Opening
Size (ft-in.)
Design
Load
(psf)
Impact
(ft-lbs)
Drywall,
Masonry
4-0, 8-0
+/- 70
350
Single swing
Drywall,
Masonry
3-0, 7-0
+/- 115
350
Hollow Metal,
M, CM, G, CG
Single Swing with Readyset Frame
(Single-point lock)
Drywall,
Masonry
3-0, 7-0
+/- 60
350
Hollow Metal,
M, CM, G, CG
l
Single Swing with Readyset Frame
(Single-point lock and deadbolt)
Drywall,
Masonry
3-0, 7-0
+/- 70
350
Hollow Metal,
M, CM, G, CG
Standard Swing Pair, With or
Without Hardware or Hollow
Metal Mullion
Drywall,
Masonry
8-0, 8-0
+/- 70
350
Hollow Metal,
M, CM, G, CG
Single Swing with Sidelight,
Transom or Transom/Sidelight
(++)
Drywall,
Masonry
3-0*, 8-0**
+/- 60
350
Hollow Metal,
M, CM, G, CG
Standard Swing Pair with
Sidelight, Transom or
Transom/Sidelight (++)
Drywall,
Masonry
6-0*, 8-0**
+/- 60
350
Hollow Metal,
M, CM, G, CG
Window Frame (++)
Drywall,
Masonry
3-0***, 10-0
+/- 60
350
Hollow Metal,
M, CM, G, CG
Single Swing
Drywall,
Masonry
4-0, 8-0
+/- 150
350
Model
Configuration
Hollow Metal,
M, CM, G, CG
Single Swing
Hollow Metal,
M, CM, G, CG
RD0568r5
01/17/2012
Page 1 of 21
Wall Type
Used for
FL11537
Model
Configuration
Wall Type
Max Opening
Size (ft-in.)
Design
Load
(psf)
Impact
(ft-lbs)
Hollow Metal,
M, CM, G, CG
Standard Swing Pair, With or
Without Hardware or Hollow
Metal Mullion
Drywall,
Masonry
8-0, 8-0
+/-150
350
Hollow Metal,
M, CM, G, CG
Four Sided Door Frame
Drywall,
Masonry
3-0, 7-0
+/- 60
350
Hollow Metal,
M, CM, G, CG
Four Sided Door Frame
Drywall,
Masonry
3-0, 8-0
+/- 60
350
Hollow Metal,
M, CM, G, CG
Four Sided Door Frame
Drywall,
Masonry
3-0, 8-0
+/- 60
350
Hollow Metal,
M, CM, G, CG
Four Sided Door Frame
Drywall,
Masonry
6-0, 8-0
+/- 60
350
Hollow Metal,
M, CM, G, CG
Four Sided Door Frame
Drywall,
Masonry
8-0, 8-0
+/- 70
350
Hollow Metal,
M, CM, G, CG
Four Sided Door Frame
Drywall,
Masonry
8-0, 8-0
+/-150
350
Hollow Metal,
M, CM, G, CG
Single Swing with Side Panel,
Transom or Transom/Side Panel
Drywall,
Masonry
4-0*, 8-0**
+/-150
350
Hollow Metal,
M, CM, G, CG
Standard Swing Pair with
Transom Panel
Drywall,
Masonry
8-0, 8-0**
+/-150
350
* Width is size of door opening (jamb to jamb). Sidelights may be mulled to the frame to increase the width of the
opening.
** Height is size of door opening (header to floor/sill). A transom may be mulled to the frame to increase the height of
the opening.
*** Width size of individual window frame. Multiple window frames may be mulled together to increase the width of
the opening.
++ Glass for window, transom and sidelight frames must be Glasslam laminated glass with a 0.090 in. minimum inner
layer. Multiple frames may be mulled together to increase the width of the opening.
M = Double Rabbet frame for use in masonry walls, block walls, or welded to building structure
CM = Double Rabbet frame for use in wood or metal stud walls
G = Single Rabbet frame for use in masonry walls, block walls, or welded to building structure
CG = Single Rabbet frame for use in wood or metal stud walls
Frames for use in masonry walls, block walls, or welded to building structure may also be used for wood or metal stud
walls.
1-3/4 in. thick Curries metal door panels may be used to glaze window, transom and sidelight frames. Door vision
light frames and louvers may be installed in the 1-3/4 in. thick panels
RD0568r5
01/17/2012
Page 2 of 21
Used for
FL11537
FRAME ANCHORING
MASONRY T AND MASONRY WIRE ANCHORS
CMU BLOCK AND THROAT OF FRAME
FILLED WITH 3000 PSI MORTAR
MAXIMUM SHIM
THICKNESS 0.25"
MASONRY WIRE ANCHOR
0.165" DIA. MIN.
16 GA (0.053" MIN)
MASONRY T ANCHOR
OPERATING RANGE 3" - 12"
WELDED PIPE SPACER AND WELDED EWA ACNHORS
EXISTING MASONRY OR POURED CONCRETE, 3000 psi MIN.
PIPE SPACER ANCHOR WITH 3/8" FLAT HEAD
EXPANSION HEAD ANCHOR BOLTS
MINIMUM EDGE DISTANCE = 4.00"
MAXIMUM SHIM THICKNESS = 0.25"
WOOD STUD
PIPE SPACER ANCHOR WITH 3/8" WOOD
SCREW OR LAG BOLT
MINIMUM EDGE DISTANCE = 1.75"
MAXIMUM SHIM THICKNESS = 0.25"
2.50" MIN.
3.0" MIN
2.50" MIN
16 GA (0.053" MIN)
PIPE SPACER ANCHOR
TO SUIT
JAMB DEPTH
RD0568r5
01/17/2012
Page 3 of 21
16 GA (0.053" MIN)
EWA ANCHOR
TO SUIT
JAMB DEPTH
Used for
FL11537
FRAME ANCHORING (CONT’D)
WELDED STEEL STUD ANCHORS
18 ga. (0.041" MIN.)
WELDED SLIP-IN MULTI-PURPOSE
ANCHOR FOR STEEL STUDS
SLIP -IN STUD ANCHOR WELDEED TO
FRAME. CONNECT TO STEEL STUD
WITH #8 X 1" GRADE 5
SHEET METAL SCREW;
4 SCREWS REQUIRED PER ANCHOR;
MIN EDGE DISTANCE - 0.328"
18 ga (0.041" min.)
STEEL STUDS
WELDED STEEL CHANNEL ANCHOR
#14 x 1" GRADE 5 SHEET METAL SCREW;
2 SCREWS REQUIRED PER ANCHOR LOCATION
3/4" MIN
18 ga (0.041" min.)
STEEL STUDS
WELDED WOOD STUD ANCHORS
WELDED WOOD STUD ANCHORS
4 EA #8 X 1" GRADE 5 SHEET METAL SCREWS
REQUIRED PER ANCHOR;
MIN EMBEDMENT = 1"
MIN EDGE DISTANCE = 0.524"
16 ga (0.053" MIN.)
WELDED WOOD STUD
ANCHOR
EXTERIOR
SHEETING
EXTERIOR
SHEETING
WOOD
STUD
WOOD
STUD
INTERIOR
DRYWALL
INTERIOR
DRYWALL
16 ga (0.053" MIN.)
WELDED WOOD STUD
ANCHOR
RD0568r5
01/17/2012
Page 4 of 21
Used for
FL11537
FRAME ANCHORING (CONT’D)
WELDED TO THE BULDING STRUCTURE
UP TO 14" MAX A-36
STEEL SHIM PLATE
FRAME WELDED TO SHIM
WITH 3 16" x 1" LONG FLARE BEVEL
WELDS BOTH SIDES OF FRAME
WITH E6018 ELECTRODES
EXT
5.75" MIN
14" MAX
1
4" MAX. THICK A-36 STEEL
SHIMS WELDED TO
STRUCTURAL BUILDING
MEMBER WITH FILLET WELDS
MEASURING 2" LONG AND
SIZED TO THE SAME
THICKNESS AS THE SHIM
PLATE USING E6018
ELECTRODES
SHIM PLATE 1.25"
LONGER THAN
FRAME JAMB DEPTH
WELD HOLLOW METAL
FRAME TO SHIM WITH
3/16" x 1" LONG FLARE BEVEL
WELDS, BOTH SIDES OF
FRAME USING E6018
ELECTRODES
1
4" MAX THICK, 2" WIDE A-36
STEEL SHIMPLATE(S),
LENGTH 1.25" GREATER
THAN FRAME JAMB DEPTH
RD0568r5
01/17/2012
Page 5 of 21
Used for
FL11537
THREE SIDED AND FOUR SIDED DOOR FRAME ELEVATIONS FOR FRAMES
RATED UP TO AND INCLUDING 150 PSF
100" MAX
96" MAX
48" MAX
100"
MAX
100"
Max
96"
MAX
96"
MAX
96" MAX
48" MAX
104"
MAX
104"
MAX
96"
MAX
96"
MAX
52" MAX
100" MAX
Three sided door frames may be KD corner or face welded. Four sided door frames must be face
welded.
RD0568r5
01/17/2012
Page 6 of 21
Used for
FL11537
THREE AND FOUR SIDED DOOR FRAME UP TO AND INCLUDING 70 PSF
96" Max
(100" Max w/Mullion)
100" WITH MULLION
96" MAX WITHOUT MULLION
100"
Max
104"
MAX
96"
MAX
96"
MAX
104" WITH MULLION
100" MAX WITHOUT MULLION
Three sided door frames may be KD corner or face welded. Four sided door frames and mullions
must be face welded. Only doors ma be installed in 4 sided door frames.
JAMB ANCHOR REQUIREMENT TABLE
OPENING
HEIGHT
80” – 88”
90”
92” – 96”
80” – 88”
THREE SIDED AND FOUR SIDED DOOR FRAMES UP TO AND INCLUDING 70 PSF
ANCHORS IN
MASONRY “T”
ANCHORS
MASONRY
OR WIRE
FOR STEEL
MAX.
W/ITH 3/8” DIA.
MAX.
ANCHORS,
STUD
SPACING
EXPANSION
SPACING
OR WELDED
OR WOOD STUD
SHELL ANCHOR
TO BUILDING
WALLS
BOLT
STRUCTURE
4
22
4
24
4
5
22
4
24
4
5
22
5
24
4
115 PSF THREE SIDED AND FOUR SIDED DOOR FRAMES (MAX OPENING WIDTH 3’0”)
5
21
4
24
4
MAX.
SPACING
24
24
24
24
HEAD & SILL ANCHORING REQUIREMENTS FOR PAIRS OF DOORS IN THREE & FOUR SIDED DOOR FRAMES
UP TO AND INCLUDING 70 PSF
ANCHOR TYPE
QUANTITY
OF
ANCHORS
LOCATION
ANCHORS
FOR STEEL STUD
OR WOOD STUD WALLS
4
2 located on each side of the centerline of the head
@ 9” and 12” from the centerline of the head
ANCHORS IN MASONRY W/ 3/8
EXPANSION SHELL ANCHOR BOLT
2
1 each located 9” from the centerline of the head
WELDED TO BUILDING STRUCTURE
2
1 each located 9” from the centerline of the head
RD0568r5
01/17/2012
Page 7 of 21
Used for
FL11537
JAMB ANCHOR REQUIREMENT TABLE FOR 150 psf THREE & FOUR SIDED FRAMES
OPENING WIDTH
OPENING HEIGHT
QUANTITY
OF
ANCHORS
MAX
SPACING
Up to and including 4’0”
Up to and including 7’0”
6
12”
Up to and including 3’6”
Up to and including 7’6”
7
12”
Over 3’6” and
up to and including 4’0”
Over 7’6” and
up to and including 8’0”
8
12”
Up to and including 4’0”
Up to and including 7’6”
4
24”
Up to and including 4’0”
Up to and including 8’0”
5
24”
MASONRY “T” OR
WIRE ANCHORS
Up to and including 4’0”
Up to and including 8’0”
5
24”
WELDED TO
BUILDING
STRUCTURE
Up to and including 4’0”
Up to and including 8’0”
4
24”
ANCHOR TYPE
ANCHORS
FOR STEEL STUD
OR WOOD STUD
WALLS
ANCHORS IN
MASONRY W/ 3/8
EXPANSION SHELL
ANCHOR BOLT
HEAD & SILL ANCHORING REQUIREMENTS FOR PAIRS OF DOORS IN 150 PSF THREE & FOUR SIDED
DOOR FRAMES
ANCHOR TYPE
QUANTITY
OF
ANCHORS
LOCATION
ANCHORS
FOR STEEL STUD
OR WOOD STUD WALLS
8
4 located on each side of the centerline of the head
@ 9” , 12” , 15”, and 18” from the centerline of the head
ANCHORS IN MASONRY W/ 3/8
EXPANSION SHELL ANCHOR BOLT
4
2 located on each side of the centerline of the head
@ 9” and 12” from the centerline of the head
WELDED TO BUILDING STRUCTURE
2
1 each located 9” from the centerline of the head
RD0568r5
01/17/2012
Page 8 of 21
Used for
FL11537
HOLLOW METAL MULLION ANCHOR REQUIREMENTS FOR VERTICAL HOLLOW
METAL MULLIONS IN 60 PSF AND 70 PSF THREE SIDED DOOR FRAMES
The head end of mullions shall be anchored using any of the anchors as indicated below.
ANCHOR REQUIREMENTS AT THE HEAD END OF HOLLOW METAL MULLIONS IN THREE SIDED FRAMES
ANCHOR TYPE
ANCHORS WITH 3/8" LAG SCREW
ANCHORS WITH 3/8" EXPANSION SHELL ANCHOR BOLT
STEEL STUD ANCHORS WITH FOUR #8 x 1” SHEET METAL SCREWS,
or #14 x 1” SMS
WOOD STUD ANCHORS WITH FOUR #8 x 1” SHEET METAL SCREWS
WELDED TO BUILDING STRUCTURE
QUANTITY
REQUIRED
4
2
REQUIRED
EMBEDMENT
3”
2.5”
MIN EDGE
DISTANCE
1.75”
4.00”
4
N/A
0.328”
2
2
1”
N/A
0.528”
N/A
The sill end of hollow metal mullions shall be anchored using 3/8” lag bolts into southern pine or
expansion shell anchors bolts into masonry.
ANCHOR REQUIREMENTS AT SILL END OF HOLLOW METAL MULLIONS IN THREE SIDED FRAMES
ANCHOR TYPE
ANCHORS WITH 3/8" LAG SCREW
ANCHORS WITH 3/8" EXPANSION SHELL ANCHOR BOLT
QUANTITY
REQUIRED
4
2
REQUIRED
EMBEDMENT
3”
2.5”
MIN EDGE
DISTANCE
1.75”
4.00”
NOTE: TWO FOOT CLIPS REQUIRED FOR
EXSPANSION SHELL ANCHOR BOLTS
INTO MASONRY.
FOUR FOOT CLIPS REQUIRED FOR 3/8”
LAG BOLTS INTO WOOD.
:
RD0568r5
01/17/2012
Page 9 of 21
Used for
FL11537
4’0” x 7’0’ SIDELIGHT FRAME
OPENING
HEIGHT
80” – 88”
JAMB ANCHOR REQUIREMENT TABLE FOR 4’0” x 7’0” SIDELIGHT
MASONRY “T”
ANCHORS W/ 3/8
OR WIRE
ANCHORS W/ 3/8" LAG
EXPANSION
MAX.
ANCHORS
SCREW, STEEL STUD,
SHELL ANCHOR
SPACING
OR WEDLED TO
OR WOOD STUD
BOLT
THE BULDING
STRUCTURE
4
4
22
4
SILL ANCHOR REQUIREMETNS FOR 4’0” X 7’0’ SIDELIGHT
QUANTITY
REQUIRED
ANCHOR TYPE
REQUIRED
EMBEDMENT
ANCHORS WITH 3/8" LAG SCREW
2
3”
ANCHORS WITH 3/8" EXPANSION
2
2.5”
SHELL ANCHOR BOLT
MAX.
SPACING
24
MIN EDGE
DISTANCE
1.75”
4.00
Head anchors are not required for a 4’0” x 7’0” sidelight frame.
Mullion requirements for 4’0” x 7’0’ sidelights
1.) Mullions must be anchored as described.
2.) Mullions for 4’0” x 7’0” sidelights do not require additional reinforcement
3.) Mullions must be face welded.
TO SUIT
JAMB DEPTH
RD0568r5
01/17/2012
Page 10 of 21
MULLION STIRRUP ANCHOR
MAY ONLY BE USED WITH
4' 0" X 7' 0" SIDELIGHT FRAME
Used for
FL11537
TRANSOM FRAME WITH 3’0” X 7’0” MAX SINGLE DOOR
1.) See glazing and panel installation information for more details
36" MAX
122"
MAX.
JAMB ANCHOR REQUIREMENT TABLE – TRANSOM FRAME with SINGLE DOOR
MASONRY “T”
ANCHORS W/ 3/8"
OR WIRE
ANCHORS W/ 3/8
OPENING
LAG SCREW, STEEL
MAX.
ANCHORS, OR
MAX.
EXPANSION
HEIGHT
STUD, OR WOOD
SPACING
WELDED TO
SPACING
SHELL
STUD
BUILDING
STRUCTURE
90”
5
4
22
4
24
92” – 96”
5
5
22
4
24
98” – 104”
6
6
22
5
24
106” – 126”
6
6
22
5
24
There are no head anchors required for a single transom frame.
Mullion Requirements for Single Transom Frame
1.) Mullions for single transom frames do not require additional reinforcement
2.) Mullions must be face welded.
RD0568r5
01/17/2012
Page 11 of 21
Used for
FL11537
TRANSOM FRAME WITH 3’0” WIDE SINGLE 6’0” WIDE MAX PAIR OF DOORS
1.) Anchors required in the head of a transom frame greater than 4’0” in width.
2.) Transom may be arched.
3.) 10 gauge C Channels required in mullions over 3 feet in length
4.) See glazing and panel installation information for additional details
36" Max
72" MAX
126"
MAX
96"
MAX
JAMB ANCHOR REQUIREMENT TABLE – TRANSOM FRAME with SINGLE DOOR or PAIRS of DOORS
MASONRY “T”
ANCHORS W/ 3/8"
OR WIRE
ANCHORS W/ 3/8
LAG SCREW, STEEL
MAX.
ANCHORS,
OPENING HEIGHT
EXPANSION
MAX. SPACING
STUD, OR WOOD
SPACING
OR WELDED
SHELL BOLT
STUD
TO BUILDING
STRUCTURE
90”
5
4
22
4
24
92” – 96”
5
5
22
4
24
98” – 104”
6
6
22
5
24
106” – 126”
6
6
22
5
24
ANCHOR REQUIREMENT TABLE AT TRANSOM MULLION CONNECTION TO JAMBS
(IN ADDITION TO JAMB ANCHORS ABOVE)
QUANTITY
ANCHOR TYPE
REQUIRED
LOCATION
PER JAMB
ANCHORS W/ 3/8" LAG SCREW, STEEL STUD,
AT 2” AND 4” ABOVE AND AT
WOOD STUD, or ANCHORS WITH 3/8”
4
2” AND 4” BELOW MULLION
EXPANIOSN SHELL BOLT
AT 2” ABOVE AND 2” BELOW
ANCHORS WITH 3/8” EXPANIOSN SHELL BOLT
2
MULLION
HEAD ANCHOR REQUIREMENT TABLE - TRANSOM FRAME HEAD WITH PAIR OF DOORS
ANCHOR TYPE
DISTANCE FROM END
OF THE HEAD
SPACING
2”
14” ON CENTER MAX
3”
30” ON CENTER MAX
ANCHORS W/ 3/8" LAG SCREW, STEEL STUD,
WOOD STUD, or ANCHORS WITH 3/8”
EXPANIOSN SHELL BOLT
WELDED TO THE BUILDING STRUCTURE
RD0568r5
01/17/2012
Page 12 of 21
Used for
FL11537
WINDOW FRAMES
JAMB ANCHOR REQUIREMENT TABLE
OPENING
HEIGHT
ANCHORS W/ 3/8" LAG
SCREW, STEEL STUD,
OR WOOD STUD
ANCHORS W/ 3/8
EXPANSION
SHELL BOLT
MAX.
SPACING
80” – 88”
90”
92” – 96”
98” - 104”
106” – 126”
4
5
5
6
6
4
4
5
6
6
24
24
24
24
24
MASONRY “T”
OR WIRE
ANCHORS,
OR WELDED
TO BUILDING
STRUCTURE
4
4
4
5
5
MAX.
SPACING
24
24
24
24
24
Head and sill anchor requirements for Window Frames
HEAD AND SILL ANCHOR LOCATIONS FOR 3/8" LAG BOLTS
3/8" EXPANSION SHELL BOLTS, DROP IN CONCRETE ANCHORS
WOOD STUD ANCHORS, AND STEEL STUD ANCHORS
36"
MAX
HEAD AND SILL ANCHOR LOCATIONS
FOR FRAMES WELDED
TO THE BULDING STRUCTURE
36"
MAX
94"
MAX
16" MAX
RD0568r5
01/17/2012
TWO ANCHORS REQUIRED AT BASE OF
MULLIONS ADJACENT TO DOORS
3"
Page 13 of 21
30"
MAX
94"
MAX
6"
TWO ANCHORS REQUIRED AT
TO DOORS
Used for
FL11537
Frame Construction Corner Details –Three-sided and Four sided Frames
1,) Three sided door frames may be KD or Face welded
2.) Four sided door frames and transom frames must be face welded
KD CORNER
KD CORNER
FACE WELDED
KD CORNER
FACE WELDED
KD CORNER
FACE WELDED
CORNER
RD0568r5
01/17/2012
Page 14 of 21
Used for
FL11537
Frame Construction & Mullion Details –Three and Four Sided Door Frames and Transom Frames
1.) Mullions must be face welded
2.) Mullions over 3’ in length require 10 gauge “C” channels.
3.) Mullions must run through heads, sills, or jambs and be reinforced with 10 Ga. (0.126”)
“C” channels if greater than 3’ in length.
4.) “C” channels to be installed at the factory.
FRAME FACE
CONTINUOUSLY WELDED
3/4" LEG OF "C" CHANNELS
FULLY WELDED TO FRAME
AT FACTORY
C-CHANNELS
CONTINUOUSLY WELDED AT FACTORY ON
BOTH ENDS AT SEAMS
DOOR FRAME WITH
VERTICAL HOLLOW
METAL MULLION
10 Ga. "C" CHANNELS
37" MIN
118" MAX
FRAME WITH HORIZONTAL
MULLION FOR TRANSOM
OVER 3'0" WIDE
C-CHANNELS REQUIRED
"C" CHANNEL
0.75"
PROFILE WIDTH
- 1/4"
FRAME WITH HORIZONTAL MILLION FOR
TRANSOM 3'0" WIDE AND SAMLLER.
C-CHANNELS NOT REQUIRED
Frame Splice
Alternate 1/4" Long Welds
4 Places
13.875"
WELD FACES, GRIND
SMOOTH,AND PAINT
RD0568r5
01/17/2012
14 GA. (.067" MIN)
Page 15 of 21
Used for
FL11537
GLAZING & PANEL INFORMATION
Glass may be installed on either side of the fixed stop. 1-3/4” Steel door panels must be installed on the
exterior side of the fixed stop and sealed with silicone or other sealant around the perimeter of the panel.
GLASSLAM LAMINATED
GLASS
CURRIES MODEL 747
PANEL
CURRIES MODEL 707 OR
707 CURRIESTAIN PANEL
0.472"
0.1875"
0.097"
0.50"
0.625"
DOW CORNING 995
SILICONE
10 GA. "C" CHANNELS
RD0568r5
01/17/2012
Page 16 of 21
Used for
FL11537
Panel installation
3"
12" MAX
3"
WELD LOCATIONS FOR CURRIES MODEL 707,
CURRIESTAIN MODEL 707, AND CURRIES MODEL 747 FLUSH PANELS
WELD PANEL TO FRAME WITH 14" x 12" LONG FILLET WELDS
USING E6018 ELECTRODES @ OC SPACING.
MAXIMUM DAYLIGHT OPENING SIZE 36" X 72"
PANEL WELD
Note: CURRIES Type 2 or Type 3 vision light kit or r Markar WLV60 Louver may be installed in
panels. 20 gauge surround channel is required. Maximum size is 24” x 60”.
Glazing and Louvers
1) Curries Type 2 and Type 3 Vision Light Kit may be installed in panels.
2) Markar WLV60 or Pemko LV-WS Louver may installed in panels.
3) Surround Channel – Minimum 20 gauge (0.032”)
GLASSLAM GLAZING INSTRUCTIONS – FRAMES
CAP
BEAD
0.472"
0.097"
GLASSLAM LAMINATED
GLASS ASSEMBLY
#8 X 1-21" OVAL HEAD
TEK SCREW
GLASS
STOP
1
8"
X 1/2" CLOSED
CELL FOAM TAPE
0.50"
RD0568r5
01/17/2012
DOW CORNING
Page 17
995 SILICONE
0.625"
of 21
PET FLAP
Used for
FL11537
Glasslam Glass Glazing Instructions – Frames –cont’d
1.) Before removing the removable stops, using a pencil mark alignment marks on the stops and
the frame
2.) Unscrew the #8-1-/2” Oval head TEK screws from the removable stops and remove the stops.
3.) Wipe the fixed stop clean and then apply the closed cell foam tape to the fixed stop.
4.) If there is plastic release on the foam glazing tape, pull the plastic release back about 2” from
each end of the foam tape. Pull the plastic release around the fixed stop so it can be grasped
after placing the Glasslam on the unexposed foam tape.
Steps 5- may require the assistance of another person to help hold the Glasslam in place.
5.) If there is paper release on the foam glazing tape, remove the paper release before glazing.
Spray the exposed foam tape with a mild soap solution immediately before placing the
Glasslam on the exposed foam tape.
6.) Place glazing shims, as needed, then set the Glasslam on the foam glazing tape.
7.) Adjust the Glasslam assembly, as necessary, to center the assembly in the opening.
8.) If the release is plastic, grasp the free end of the plastic release, while holding the Glasslam to
keep it from moving. Then slowly pull the plastic release off the foam tape that was applied to
the fixed stop. Press the Glasslam against the foam tape.
9.) Insert a putty knife between the PET flap and the frame rabbet. Using the putty knife pull the
PET flap up and off the frame rabbet.
10.) While holding the PET flap back away from the frame rabbet with the putty knife, use a
caulking gun to apply Dow Corning 995 silicone between the PET flap and the frame rabbet.
IMPORTANT: Ensure that the Dow Corning 995 silicone fully wets out or covers the
PET flap and comes in contact with frame rabbet.
11.) Slowly move the putty knife around the door ahead of the caulking gun and apply the
silicone around the entire opening between the PET flap and the door rabbet.
12.) Apply 1/8” x 1/2” closed cell foam tape to the removable stop.
13.) If there is plastic release on the foam glazing tape, pull the plastic release back about 2” from
each end of the foam tape. Pull the plastic release around the removable stop so it can be
grasped after placing the removable stops against the Glasslam.
14.) If there is paper release on the foam glazing tape, remove the paper. Spray the exposed foam
tape with a mild soap solution immediately before placing the removable stops against
the Glasslam.
15.) Using the alignment marks, position the removable glass stops against the glass. If stops are
too tight lightly grind the end of stop for additional clearance
16.) Install and tighten the #8 x 1-1/2” Oval Head TEK screws in the removable stops. Be careful
not to over tighten.
17.) If the release is plastic grasp the free end of the plastic release tape and slowly pull the plastic
release off the foam tape.
18.) Trim the PET flap as needed.
19.) Using the Dow Corning 995 silicone or other high quality silicone, apply a small cap bead
over the closed cell foam tape.
RD0568r5
01/17/2012
Page 18 of 21
Used for
FL11537
GLASSLAM GLAZING INSTRUCTIONS – VISION LIGHT KITS IN 1-3/4” PANELS
0.625"
0.625"
0.472"
0.1875"
0.097"
CAP
BEAD
GLAZING BY OTHERS
0.472"
1/8" X 1/2" CLOSED CELL FOAM
GLAZING TAPE USED ON FIXED
AND REMOVABLE STOPS
GLASSLAM (NEBULA GLASS)
LAMINATED GLASS ASSEMBLY
0.1875"
0.097"
#6 X 1-1/4" OVAL HEAD TEK SCREW
1/8" X 1/2" CLOSED CELL
FOAM GLAZING TAPE
USED ON FIXED AND
REMOVABLE STOPS
CAP
BEAD
PET FLAP
GLASS STOP
#6 X 1-1/4" OVAL
HEAD TEK SCREW
PET FLAP
GLAZING
SHIMS
AS NEEDED
GLASS STOP
DOW CORNING 995
STRUCTURAL SILICONE
DOW CORNING 995
STRUCTURAL SILICONE
Curries Type 2 Vision Light Kit
Curries Type 3 Vision Light Kit
1) Before removing the removable stops, check to be sure there are screws in every hole. Predrill holes with a #36 bit where there are screw holes but no screws. Do not remove stops.
2) Using a pencil, mark alignment marks on the removable stops and the door.
3) Unscrew the #6 x 1-1/4” oval head TEK screws from the removable stops and remove the
removable stops. Keep the screws.
4) Apply 1/8” x 1/2” closed cell foam glazing tape to the fixed stop.
5) If there is plastic release on the foam glazing tape, pull the plastic release back about 2”
from each end of the foam tape. Pull the plastic release around the fixed stop so it can be
grasped after placing the Glasslam on the unexposed foam tape.
6) If there is paper release on the foam glazing tape, remove the paper release before glazing.
Spray the exposed foam tape with a mild soap solution immediately before placing the
Glasslam on the exposed foam tape.
7) Place glazing shims, as needed, then set the Glasslam on the foam glazing tape.
8) Adjust the Glasslam assembly, as necessary, to center the assembly in the vision light kit.
9) If the release is plastic, grasp the free end of the plastic release, while holding the Glasslam
to keep it from moving. Then slowly pull the plastic release off the foam tape that was
applied to the fixed stop.
10) Trim the PET flap so it is flush with the door face.
11) Take a putty knife and insert it between the PET flap and the edge of the cutout in the door.
Using the putty knife pull the PET flap away from the cutout in the door.
12) While holding the PET flap back away from the cutout with the putty knife, use a caulking
gun to apply Dow Corning 995 silicone between the PET flap and the steel in the cutout of
the door.
IMPORTANT: Ensure that the Dow Corning 995 silicone fully wets out or covers the
PET flap and comes in contact with the steel around the cutout in the
door.
13) Slowly move the putty knife around the door ahead of the caulking gun and apply the 995
silicone around the entire cutout in the door between the PET flap and the steel in the cut
out around the door. .
RD0568r5
01/17/2012
Page 19 of 21
Used for
FL11537
GLASSLAM GLAZING INSTRUCTIONS – VISION LIGHT KITS IN 1-3/4” PANELS – CONT’D
14) Apply 1/8” x 1/2” closed cell foam glazing tape to the removable stop.
15) If there is plastic release on the foam glazing tape, pull the plastic release back about 2”
from each end of the foam tape. Pull the plastic release around the removable stop so it can
be grasped after placing the removable stop on the polycarbonate.
16) If there is paper release on the foam glazing tape, remove the paper. Spray the exposed
foam tape with a mild soap solution immediately before placing the removable stops
against the Glasslam.
17) Using the alignment marks, position the removable stops against the Glasslam.
18) Install and tighten the #6 x 1-1/4” oval head TEK screws in the removable stops. Be careful
not to over tighten.
19) If the release is plastic, grasp the free end of the plastic release, and slowly pull the plastic
release off the foam tape that was applied to the removable stop.
20) Using the Dow Corning 995 silicone or other high quality silicone, apply a cap bead over
the closed cell foam tape on the exterior side of the door vision light kit.
Hinges
1) Any Steel Door Institute (SDI) Member hinge spacing is permitted.
2) Minimum hinge size is 4-1/2” x 4-1/2” Std. Wt. unless otherwise noted.
3) McKinney HG305, MCK-12 HD, MCK-14HD, MCK-25HD; Markar FM100, FM200,
FM300, FM3500, FM100, or FM1111; Pemko CFMSLF-HD continuous hinges are
permitted.
4) Approved continuous hinges and pivots are allowed.
5) Install butt hinges, continuous hinges, and pivots in accordance with manufacturer’s
instructions.
Locks
1) Any SDI Member lock locations are permitted.
2) Install latching hardware in accordance with manufacturers installation instructions
3.) 1” diameter preparations for door position switches are permitted.
4.) Door position switches that fit in a cutout measuring 1.25” x 4.875” may be used in
single 3’0” x 7’0” doors rated 60 psf or less.
5.) Securitron EPT, EPTL, and CEPT and Von Duprin EPT 2 and EPT 10 power transfers
may be used.
6.) Magnetic locks may be used in addition to the required latching hardware
RD0568r5
01/17/2012
Page 20 of 21
Used for
FL11537
Thresholds and Weather-strip
1.) Thresholds
McKinney Products Part Nos. MCK177, MCK181, MCK2005
National Guard Part Nos. 803, 804, 896, 8315
Pemko Part Nos. 177, 181, 2005
2.) Weather-Strips
McKinney Products Part Nos. MCKS88, MCK303 (Use MCK303 with continuous hinges)
National Guard Part Nos. 160, 5050 (Use 160 with continuous hinges)
Pemko Part Nos. S88, 303 (Use 303 with continuous hinges)
Threshold Installation
#10 x 1-1/2" WOOD SCREW
OR
3/16" X1-1/4" TAP CON
12" OC TYP
5.25"
TYPICAL THRESHOLD
MOUNTING DETAIL
THRESHOLD
NOTE: 1/8" CLEARANCE BETWEEN
THE BOTTOM OF THE DOOR
AND THE THRESHOLD IS
TYPICAL
Test Protocols Used
1) ANSI A250.13 Testing and Rating of Severe Windstorm Resistant Components for Swinging Door
Assemblies
2) ASTM E330 Standard Test Method for Structural Performance of Exterior Windows, Curtain
Walls, and Doors by Uniform Static Air Pressure Difference
3) ASTM E1886 Standard Test Method for Performance of Exterior Windows, Curtain Walls, Doors,
and Storm Shutters Impacted by Missile(s) and Exposed to Cyclic Pressure Differentials
4) ASTM E1996 Standard Specification for Performance of Exterior Windows, Curtain Walls, Doors
and Impact Protective Systems Impacted by Windborne Debris in Hurricanes
5) TAS 201-94, Impact Test Procedures
6) TAS 202-94, Criteria for Testing Impact and Non-Impact Resistant Building Envelope Components
Using Uniform Static Air Pressure.
7) TAS 203-94, Criteria For Testing Products Subject to Cyclic Wind Pressure Loading
RD0568r5
01/17/2012
Page 21 of 21
Used for
FL11537
