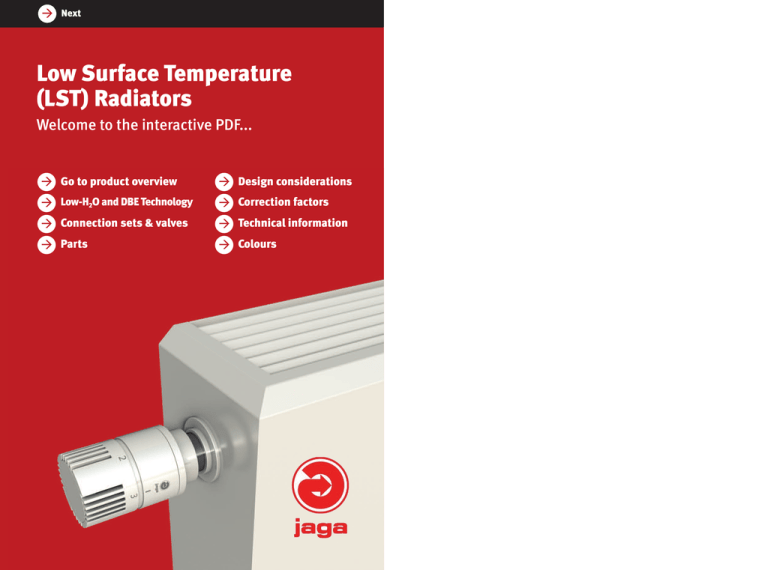

Low Surface Temperature
(LST) Radiators
Welcome to the interactive PDF...
 Go to product overview
 Design considerations
 Connection sets & valves
 Technical information
 Low-H2O and DBE Technology
 Parts
 Correction factors
 Colours

Previous

Next
Maxi LST at James Aiton Primary School, Glasgow
About Jaga
Jaga Heating is the UK's leading manufacturer of energy saving,
low surface temperature( LST) radiators. LST radiators are our speciality
and our UK based logistics and technical support teams will support our
customers to ensure that the best solution is chosen for every project.
Our products have won many awards and we have established a
reputation for innovation, quality, service and product performance, backed
by our unrivalled 30 year guarantee and the experience of over
10 million radiators and trench heaters delivered to satisfied customers
– from private residencies to some of the world's most iconic buildings.
For the UK customer, whether they are M&E
contractors, consulting engineers, architects
or end-users, we offer a comprehensive
product and support solution:
> a wide choice of guaranteed products to
meet any application and budget
> energy saving heat emitters with proven
cost-saving benefits
> higher heat outputs from smaller radiators
> customised designs where required
> comprehensive design and technical
support from expert consultants to help you
specify the best solution for any project.
Contents
Harnessing the power of Building Information Modelling (BIM)
BIM allows the intelligent management of data and processes for the
whole life of the building from conceptual stages through design and
construction to occupation.
As the take-up of BIM transforms construction – the UK Government's
announcement that use of Level 2 BIM will be compulsory on all
publicly funded work by 2016 – has accelerated this adoption,
BIM 3D digital objects for Jaga's LST range are now available to
download from www.bimstore.co.uk and www.jaga.co.uk.
Safety with design in mind
4 Valves and controls
54
Low H2O and DBE technology
6 Parts
70
Product selector
8 Design considerations
82
LST product data
10 Correction factors
84
LST specials
52 Colours
92
For technical support visit www.jaga.co.uk or telephone 01531 631 533

4
Previous

Next
LST radiators
Introduction
Safety with design in mind
Low Surface Temperature (LST) radiators comprise heat emitters
within specially designed outer casings. The emitter convects heat,
but a small air gap between the emitter and the surface of the casings
prevents any point on the surface ever getting hotter than 43°C.
LST radiators provide safe to touch
solutions for heating many types of
buildings – the most practical way to
prevent vulnerable people from coming
into direct contact with hot surfaces
Prolonged contact with higher temperatures can cause severe
burns, particularly to those most vulnerable such as young
children, the elderly and the infirm. The low surface temperature
of Jaga LST heating solutions makes them ideal in situations
where safety is paramount.
Jaga LST radiators can be installed in commercial and public
buildings running heating systems with high flow temperatures
with total public safety assured, as the maximum casing
temperature will remain safe at all times.
Meeting and exceeding the regulations
to maximise overall safety
Jaga’s LST radiators offer safe, yet stylish heating solutions for any
areas where children or vulnerable adults may be present.
Our radiators conform to the NHS Estates Health Guidance Notes on
surface temperature and casing design. They are tested and certified
to BS EN 442-2: 1997, ‘Specification for radiators and convectors –
Test methods and rating for their performance and quality’.
Heat emitters and valve bodies are totally enclosed within casings. Outer
casings remain cool to touch, even at high flow temperatures, reducing
the risk of burns. To put this into context, standard steel panel radiators
can reach a surface temperature of up to 75°C, which could cause serious
burns within seconds. The radiators are designed with rounded grilles and
chamfered front and side panels for maximum safety.
Where necessary, allen key fixings are used to discourage
unauthorised tampering and simple locking devices can be supplied
to prevent unauthorised casing removal.
On certain models, bottom grilles are supplied as standard
(or optional) to conceal all valves and pipework; they can be
assembled to run full width. Anti-ligature grilles and arthritic
TRV adaptors are also available as options.
Customer insight, on site
The Jaga project management team have a clear understanding of
how heating engineers and contractors operate and exactly where
and when products are needed on site. We can also deliver heating
elements, brackets and valves early enough for you to install and
commission the system, whilst holding back casings until you need
them, avoiding unneccesary storage or damage of units. We know that
storage on site is often an issue which is why we offer phased or split
deliveries, so that you can call-off products only when you need them.
This is why Jaga LST heating solutions
must be the first and safest choice for:
+
Nurseries and
primary schools
Educational
establishments
Hospitals
Other healthcare
buildings including
care and nursing homes
Hotels and
leisure centres
Sheltered and
social housing
Prisons and
secure facilities
Public and
government buildings
Improved performance through
Low-H2O Technology
Easy installation, minimal
maintenance
Jaga's Low-H2O radiators are low-mass, low water content products,
which use only a tenth of the water and weight of conventional steel
panel radiators. This means a faster response, improved comfort and
lower fuel bills (as confirmed in testing at BRE and KIWA).
The design of our LST radiators features with no visible welds.
Compared to steel panel radiators with separate covers, the purpose
designed Jaga LST radiators with Low-H2O heat emitters are
considerably more efficient, providing maximum power from
minimum dimensions.
Jaga LST radiators incorporate this technology, making each product
cheaper to run and environmentally-friendly.
All of our LST radiators have been designed and constructed to
enable cleaning and maintenance to be carried out easily without
disturbance to plumbing.
Grilles can be removed independently of the outer casing or, if
necessary, the complete casing can be removed for decoration
without draining the central heating system.
Some of our LST radiators are available with anti-bacterial coatings
for use in clinical areas.
See overleaf for more information on Low-H2O Technology.
For technical support visit www.jaga.co.uk or telephone 01531 631 533
5

6
Previous

Next
Low H2O technology
Low H2O technology
Low-H2O and DBE Technology
Jaga's Low-H2O radiators are low-mass, low-water content products,
which have only a tenth of the water and weight of standard steel panel
radiators. This means faster response, better comfort and lower fuel bills.
Their size and weight makes them very easy to install. All Jaga LST
radiators include Low-H2O Technology.
Greener
Size does count
More than 40 years’ continuous research into heating
technology by Jaga’s Research and Development
laboratories in conjunction with partnering universities
has resulted in the most efficient and compliant fin tube
element becoming integral to our heat emitters. Radiators
fitted with Low-H2O fin tube elements produce lower CO2
emissions and consume less energy. This means less
pollution and helps architects and building designers
and constructors meet carbon reduction targets.
As a result of our ongoing programme of scientific
research and product development, the latest generation
of Low-H2O heat exchangers has been engineered for
optimum efficiency when used with lower flow
temperatures. A 43% greater contact area guarantees
optimum heat emission, even when the water
temperature is as low as 40°C. Furthermore, the superpowered Twin versions allow flow temperatures to be
15% lower without increasing the size of the radiator.
Lower energy consumption
Healthier
Studies at the Building Research Establishment
(BRE) in Watford have shown that Low-H2O radiators
consume around 10% less energy than comparable
steel panel radiators. This is because they react much
faster when warmth is needed. The Low-H2O radiator
doesn’t have heavy steel plates to be heated; instead
Low-H2O heat exchangers are constructed from superthin, ultra-light sheets of aluminium and copper
(180 fins per metre of heat exchanger). The warmth
generated by Jaga LST radiators is faster and more
comfortable than any traditional heater.
Jaga LST radiators with Low-H2O heating elements have
a greater heat distribution with a lower exit air
temperature, so that it is healthy and evenly warm
everywhere, even in the furthest corners of the room.
Especially in well insulated areas this improved
distribution of heat is important, ensuring damp and
mould do not stand a chance.
Faster
‘
Low-H2O heat exchangers use 90% less water
than traditional steel panel radiators, and their
ultra low-mass construction helps keep thermal
inertia to a minimum. This is why Low-H2O
products are so fast to heat up and cool down.
Phil Marris, Managing Director, Jaga Heating UK
’
More versatile
Low-H2O elements are compatible with all types of
pipework and boilers and can be combined with other
heating appliances in the mains system.
Low-H2O elements have the smallest water volume
and the lowest weight in the world. The radiator’s weight
must be as low as possible to enable it to react faster.
The lower the water volume and the weight, the less
inert the radiator – and the better the radiator can be
controlled. This is exactly why Low-H2O is the ideal
technology for contemporary heating comfort.
But what happens when the temperature rises inside?
Anything from an increase in the number of people in
a room or a change in outside weather conditions could
cause a rapid rise in room temperature. Each minute
your radiator continues to give off heat is a minute of
unnecessarily lost to energy. Traditional radiators
continue to give off heat for at least 20 minutes, but
Low-H2O responds immediately thanks to the lower
thermal mass, therefore stops heating – and using
energy – much more quickly.
Dynamic Boost Effect (DBE) Technology
DBE is an option which can be specified or retrofitted to Jaga LST radiators. It has been developed
to increase power by 2 to 3 times.
DBE continuously measures both room and water
temperature. It comprises activators which are
attached to the heat emitter within the radiator
and draw air over the element – increasing the
efficiency of the radiator and helping to quietly
circulate air around the room. Whilst the DBE unit
maintains rapid, effective and accurate room
comfort conditions, it can also supply a quick
boost of heat if required. It is fully controllable.
DBE products open up a whole new world of
energy-saving possibilities.
To fully understand how DBE operates and to
find out detailed technical specifications for
heat output, acoustic data and installation,
call Jaga on 01531 631533 or visit our
website: www.jaga.co.uk.
For technical support visit www.jaga.co.uk or telephone 01531 631 533
7

8
Previous

Next
Product overview
Product overview
The Jaga LST portfolio
Our comprehensive range offers you the optimum solution for all applications.
Product
Options
Tempo LST
> Wall mounted
above skirting
Recommended applications
Sheltered
housing
Care and
nursing homes
> Freestanding
Nurseries and
pre-schools
Key features
Sizes
Options
Notes
> Rounded corners
Wall:
> Heights 200 to 900mm
> Lengths 400 to 3000mm
> DBE
> Flat packed for reduced
storage
> Easy handling & storage
> Great value for money
> Freestanding with
extended foot
> Fast delivery
> Split deliveries
(if required)
Freestanding:
> Heights 200 to 500mm
> Lengths 400 to 3000mm
> High level valve
> Casing locks
> Pencil-proof grille
> Continuous casings
Pages
10-17
> For Tempo Freestanding
both fixed and adjustable
length feet area are
available.
> Twin emitter
> Damaged casing parts
easily replaced
> Oxygen
> Automatic air vent
Cocoon LST
> Wall mounted
casing to finished
floor level
Care and
nursing homes
Sheltered
housing
Nurseries and
pre-schools
> Rounded corners
> Easy handling and storage
> Heights 400 to 1000mm
> Lengths 400 to 3000mm
> DBE
> High level valve
> Great value for money
> Casing locks
> Fast delivery
> Pencil-proof grille
> Split deliveries
(if required)
> Twin emitter
> With casing to finished
floor level, all pipework
below is covered and
access to the underside is
prevented
20-27
> With casing to finished
floor level, all pipework
below is covered and
access to the underside is
prevented
28-33
> Oxygen
> Damaged casing parts
easily replaced
> Automatic air vent
Guardian LST
> Wall mounted
above skirting
(WT)
Care and
nursing homes
> Wall mounted with
casing to finished
floor level (FT)
Secondary
schools
Sheltered
housing
+
Nurseries and
pre-schools
> Rounded corners
> One piece casing
> Knock-outs for valves
or skirting
Healthcare
centres
Public buildings
> Fast delivery
Wall:
> Heights 400 to 600mm
> Lengths 440 to 1840mm
Floor:
> Heights 400 to 800mm
> Lengths 440 to 1840mm
> DBE
> High level valve
> Twin emitter
> Oxygen
> Pencil-proof grille
> Casing locks
> Split deliveries
(if required)
Student
accommodation
> Automatic air vent
Sentinel LST
> Wall mounted
above skirting
Care and
nursing homes
Primary
schools
Sheltered
housing
+
Nurseries and
pre-schools
> Wall mounted
above skirting
(WF/WT)
> Wall fixed/floor
mounted (FF/FT)
Healthcare
centres
Public buildings
> Top or front face
grilles
+
!
> Heights 350 to 950mm†
> Lengths 500 to 2400mm†
†950 mm high only available up to
1400mm long
> DBE
34-39
> High level valve
> Range of colours
> Twin emitter
> Split deliveries
(if required)
> Oxygen
> Anti Bacterial Coating
> Automatic air vent
> Pencil Proof Grille
> Base grille
Schools
A & E centres
> Pre-assembled casing
> Type 06 slim line
model also available
Student
accommodation
Maxi LST
> Rounded corners
Secure
accommodation
Prisons
+
Any heavy duty
application
Hospital
wards
+
Hospital
corridors
> Rounded corners
> Split deliveries
(if required)
> Damaged casing parts
easily replaced
> Automatic air vent
> Super strong casing
Wall:
> Heights 440 to 740mm
> Lengths 630 to 2030mm
Floor:
> Heights 440 to 740mm
> Lengths 630 to 2030mm
> DBE
> High level valve
> Range of colours
> Twin emitter
> Oxygen
> Anti bacterial coating
> Anti ligature grilles
> Floor model with casing to
finished floor level, all
pipework below is covered
and access to the
underside is prevented
40-51
> 1.5mm thick steel ‘U’
channels riveted together
for an ultra strong front
panel
> Continuous casings
> Pencil-proof grille
Notes
For special configurations e.g. continuous casings, bespoke casings, wall recess installation, see page 52.
For controls and valves, see page 54.
For technical support visit www.jaga.co.uk or telephone 01531 631 533
9

10
Previous

Next

Go to product page on website
Tempo LST
Tempo LST
 Product data
 Outputs Wall mounted (TEMW)
 Outputs Freestanding (TEMF)
 Connection sets & valves
 Parts
 Design considerations
Tempo LST
 Technical information
Ease of handling and storage and a subtly designed, yet classic
facing makes the Tempo LST one of the UK’s most popular safe
surface temperature heating solutions. It is widely specified in care
and nursing homes, pre-schools and sheltered accommodation;
meets NHS Estates guidelines.
 Correction factors
 Back to product overview
A low water content and high co-efficient of heat conduction for low
flow temperatures makes the Tempo LST ideal to use in combination
with modern, modulating condensing boilers.
Features
> extensive range of sizes
> wall mounted or freestanding formats
> easy to handle, store and install
> valve bodies can be hidden within standard casing
> stylish casing with rounded corners stays safe to
touch, even at high flow temperatures
> if casing gets damaged, it’s easily replaceable
> casing locks also available for extra security
> DBE option available
Low-H2O heat exchanger made
from copper and aluminium:
> non-corrosive (guaranteed for 30 years)
> pressure tested to 20 bar (working pressure 10 bar)
> efficient: rapid heating up due to super low water
content and low thermal mass
> high heat output achieved with normal and lower
flow temperatures
30
YEARS
Heat emitter
guarantee
(all products)
10
YEARS
Casings and
components
(all products)
3
YEARS
Valves for
Low-H2O heat
exchangers
‘One of the UK’s most widely specified LSTs’
> the optimum combination of high output convection
and safe surface temperature
Twin power and DBE ‘Boost’
Tempo LST is also available with the super-powered
twin heat exchangers. The boiler temperature is on
average 15% lower for equivalent radiator
dimensions and output
> for the lowest temperature systems specify Tempo
with DBE boost option.
For technical support visit www.jaga.co.uk or telephone 01531 631 533
11
Next
Go to product page on website
Tempo LST
Available in
wall mounted and
freestanding options
Tempo LST
EN
442
Connection
sets and
valves
page 54
Parts
page 70
Design
considerations
page 82
Correction
factors
page 84
Technical
information
page 86
Description
Product range and dimensions (mm)
Connections
Optional accessories
Low-H2O heat exchangers comprise round - seamless circulation
tubes made from pure red copper, with pure aluminium fins and
two brass collectors for left or right 1/2” same end connection.
Air vent 1/8” and drain plug 1/2” are included.
Type
Jaga valves can be concealed within the standard casing.
Other valves may be partially visible.
Top valve
Tempo LST front panels are 0.86mm galvanised steel plates,
double profiled in length. Supplied with small positioning holes
and slots to assemble front panels to side panel with easy click
system.
B
d
BS
h min*
120
53
130
100
11 (twin)
120
53
130
100
15
170
78
180
120
Refer to page 54 for more detailed information on connection
sets and valves.
Type
10
16 (twin)
170
78
180
120
20
220
103
230
150
21 (twin)
220
103
230
150
* smaller dimensions can decrease output.
Tempo LST wall-mounted
Side panels are profiled 1mm galvanised steel plate.
80‡
L
Top grilles are galvanised steel plate (0.80 mm thick), profiled
backwards angled steel plate with angled top.
75
h
110
80‡
L
135
50
Connection to wall
(A)
10
53
29
Code
11 (twin)
53
29
5090.13001
15
78
53
16 (twin)
78
53
20
103
79
21 (twin)
103
79
The casing cannot be detached without tools.
2 per casing.
Code
5095.016
H
1
2
65
65
26
Colour
d
L
BS
75
50
25
47
May affect output when used.
38 20
Tempo LST freestanding
Standard colour is White 101/RAL 9010.
4
h
3
3
B
Unobtrusively positioned below the standard top grille. Optional
pencil-proof grille in the same finish as the casing: avoiding the
possibility of smaller objects or waste falling within the casing.
1
2
d
Price: see Parts page 70.
Example with Jaga valve: to the floor
110
Brush
High UV resistance to ASTM G53.
W
The heat exchanger is electrostatically lacquered with anthracite
grey epoxy polyester to RAL 7024 for a dirt-repellent and dustfree finish.
H
255 - 290 (AL)
135 -185 (AS)
50
25
d
option
60
option
50 37
Without TRV
and no perfo
ration in the
side panel.
Example with Jaga valve: to the wall
d
Totally concealed
within the casing
Floor mounted model heights
(weight in kg/m)
Water content
(litre/m)
200
300
400
500
600
700
900
200
300
400
500
5.4
6.6
7.8
9.0
10.3
11.5
14.3
8.2
10.2
12.2
14.2
0.65
11
–
8.2
9.4
10.7
11.9
13.1
15.8
–
11.9
13.9
15.9
1.33
15
6.7
8.1
9.5
10.8
12.2
13.6
17.3
9.7
11.8
14.0
16.1
0.98
16
–
10.8
12.2
13.6
14.9
16.3
19.8
–
14.7
16.9
19.0
1.98
20
8.3
9.8
11.3
12.9
14.4
15.9
19.3
11.2
13.5
15.7
18.0
1.32
21
–
13.4
14.9
16.4
17.9
19.4
22.3
–
17.1
19.4
21.7
2.66
A
d
24
Without TRV
and no perfo
ration in the
side panel.
Example with Jaga Pro top valve:
4
Wall mounted model heights (mm)
(weight in kg/m)
60
50 37
5090.001
7.90
The feet (standard in neutral grey lacquered) are also available in
the same colour as the casing. For this repeat the colour code after
the code of the apparatus (Example: TEMF. HHH LLL TT.101/101).
£
400 > 1200mm (2 feet)
9.40
1400 > 2200mm (3 feet)
14.10
2400 > 3000mm (4 feet)
18.80
Extended adjustable feet (freestanding model)
For extended feet in neutral grey, with a height of 255 to 290mm,
add /AL to the ordering code. Example: TEMF. 020 040 10. 101/AL
For extended feet in the same colour as the casing, with a height
of 255 to 290mm, add /AL to the ordering code and repeat the
colour code. Example: TEMF. 020 040 10. 101/AL/101
Surcharge (length casing)
50 30
£
Feet in the colour of the casing (AS model)
Surcharge (length casing)
50
25
Weights (kg/m) and water content (litres/m)
For easy cleaning of the underside of the
Low-H2O heat exchanger without detaching
the casing.
Code
‡ Max. when using Jaga TRV and Head
Type
£
46.30
Pencil-proof grille
4
For the freestanding model front and back panels are identical,
with adapted grille and side panels. Feet are telescopically
adjustable for placement on finished floor/concrete floor.
£
86.40
Casing locks
Example with Jaga Pro valve: to the wall or to the floor
At corners the grille is supplied with high quality synthetic angled
corner pieces in same finish as casing.
Scratch-resistant surface coating with a soft structured finish.
Jaga thermostatic head included. When
ordering a top valve, add to the code of the
Tempo LST/UK 30 (top left) or /UK 60 (top right).
(Example: TEMW. 050 040 10.101/60)
Connection to floor
d (mm)
5
Brackets are made from 1mm galvanised steel plate; supplied to
be installed with a maximum intermediate distance of 1.05m.
10

Tempo LST
5
12

Previous
4

£ grey/colour
400 > 1200mm (2 feet)
8.60/34.80
1400 > 2200mm (3 feet)
13.00/51.80
2400 > 3000mm (4 feet)
17.20/69.00
For technical support visit www.jaga.co.uk or telephone 01531 631 533
13

14
Previous

Next
EN
442
Tempo LST
Tempo LST
EN
Tempo
LST wall mounted (TEMW...)
442
L
EN
442
Connection
sets and
valves
page
EN54
Design
considerations
page 82
Parts
page 70

Go to product page on website
Correction
factors
page 84
H
Technical
information
page 86
442
200mm high | wall mounted
Standard
Length
(mm)
Type Watts
EN
442
Price
(£)
300mm high | wall mounted
Standard
Length
(mm)
Type Watts
Price
(£)
Twin
Type Watts
400mm high | wall mounted
With DBE
Price
(£)
Type
Watts
75/65 45/38
Standard
Price
(£)
Length
(mm)
Type Watts
400
10
15
20
262 152.20
436 181.60
613 211.50
400
10
15
20
330 162.20
544 193.10
762 224.00
11
16
21
448 264.90
592 314.00
779 333.00
–
–
–
–
–
–
–
–
–
–
–
–
400
10
15
20
500
10
15
20
328 166.70
545 200.30
766 235.70
500
10
15
20
413 178.00
680 213.00
953 249.50
11
16
21
561 288.50
740 344.60
974 369.00
–
–
–
–
–
–
–
–
–
–
–
–
500
600
10
15
20
393 177.30
654 215.80
919 255.70
600
10 496 189.30
15 815 229.40
20 1144 270.50
11 673 306.70
16 888 370.60
21 1169 399.60
11 973 418 461.17
16 1368 588 533.07
21 1649 709 562.07
700
10 459 204.40
15 763 252.20
20 1072 301.20
700
10 578 218.40
15 951 267.80
20 1334 317.30
11 785 351.20
16 1036 431.60
21 1364 468.40
800
10 524 218.50
15 872 271.40
20 1226 325.90
800
10 661 233.90
15 1087 287.80
20 1525 343.40
900
10 590 232.00
15 981 289.90
20 1379 349.00
900
1000
10 655 253.50
15 1090 319.80
20 1532 387.90
1100
Price
(£)
Type Watts
500mm high | wall mounted
With DBE
Price
(£)
Type
Watts
75/65 45/38
Standard
Price
(£)
Length
(mm)
Type Watts
Price
(£)
Twin
Type Watts
With DBE
Price
(£)
Type
Watts
75/65 45/38
Price
(£)
506 276.10
680 326.20
910 347.40
–
–
–
–
–
–
–
–
–
–
–
–
400
10
15
20
430 184.80
694 219.90
970 253.30
11 554 287.60
16 759 340.50
21 1033 362.20
–
–
–
–
–
–
–
–
–
–
–
–
10 482 190.20
15 784 226.60
20 1098 264.90
11 632 300.20
16 850 358.50
21 1137 384.70
–
–
–
–
–
–
–
–
–
–
–
–
500
10 538 203.20
15 867 242.20
20 1213 281.30
11 693 313.50
16 949 373.90
21 1291 400.90
–
–
–
–
–
–
–
–
–
–
–
–
600
10 578 202.40
15 941 243.70
20 1318 287.10
11 758 319.40
16 1020 385.20
21 1364 416.40
11 1058 455 473.90
16 1500 645 547.62
21 1844 793 578.87
600
10 646 216.50
15 1040 260.30
20 1455 304.30
11 832 333.70
16 1139 401.70
21 1549 433.40
11 1132 487 488.24
16 1619 696 564.10
21 2029 872 595.77
11 1085 467 505.68
16 1516 652 594.06
21 1844 793 630.87
700
10 674 233.00
15 1098 283.60
20 1537 335.20
11 885 365.80
16 1190 447.60
21 1592 487.00
11 1185 510 520.34
16 1670 718 610.00
21 2072 891 649.38
700
10 753 248.70
15 1214 301.50
20 1689 354.00
11 970 381.80
16 1329 465.70
21 1807 505.40
11 1270 546 536.28
16 1809 778 628.09
21 2287 983 667.78
11 897 374.90
16 1184 463.50
21 1558 506.20
11 1197 515 529.43
16 1664 716 625.95
21 2038 876 668.64
800
10 770 249.60
15 1254 305.20
20 1757 362.40
11 1011 390.40
16 1360 480.90
21 1819 525.70
11 1311 564 544.95
16 1840 791 643.28
21 2299 989 688.11
800
10 861 266.30
15 1387 324.10
20 1940 382.60
11 1109 407.20
16 1518 500.00
21 2066 545.40
11 1409 606 561.75
16 1998 859 662.43
21 2546 1095 707.80
10 743 284.30
15 1223 307.50
20 1715 367.40
11 1009 396.40
16 1332 494.10
21 1753 541.20
11 1609 692 609.47
16 2292 986 722.78
21 2713 1167 769.86
900
10 867 265.50
15 1411 325.90
20 1976 388.20
11 1138 413.20
16 1530 512.40
21 2047 562.30
11 1738 747 626.27
16 2490 1071 741.08
21 3007 1293 790.94
900
10 968 283.10
15 1561 346.50
20 2183 409.20
11 1247 431.00
16 1708 533.10
21 2324 582.90
11 1847 794 644.03
16 2668 1147 761.73
21 3284 1412 811.59
1000
10 826 271.00
15 1359 338.70
20 1906 407.50
11 1121 432.60
16 1480 543.80
21 1948 599.80
11 1721 740 645.63
16 2440 1049 772.43
21 2908 1250 828.50
1000
10 963 289.10
15 1568 357.80
20 2196 428.90
11 1264 450.40
16 1700 563.20
21 2274 621.70
11 1864 802 663.40
16 2660 1144 791.90
21 3234 1391 850.32
1000
10 1076 308.30
15 1734 379.40
20 2425 451.60
11 1386 469.70
16 1898 584.90
21 2582 643.80
11 1986 854 682.76
16 2858 1229 813.52
21 3542 1523 872.47
10 721 268.70
15 1199 341.00
20 1685 414.00
1100
10 909 287.80
15 1495 361.10
20 2097 435.40
11 1233 456.80
16 1628 577.90
21 2143 640.30
11 1833 788 669.82
16 2588 1113 805.56
21 3103 1334 868.94
1100
10 1059 307.50
15 1725 382.10
20 2416 458.20
11 1390 476.30
16 1870 599.00
21 2501 663.10
11 1990 856 689.29
16 2830 1217 827.64
21 3460 1488 891.73
1100
10 1184 327.40
15 1907 405.00
20 2668 482.00
11 1525 496.70
16 2088 621.80
21 2840 686.60
11 2125 914 709.73
16 3048 1311 850.43
21 3800 1634 915.27
1200
10 786 282.40
15 1308 359.30
20 1838 438.80
1200
10 991 302.70
15 1631 380.60
20 2287 461.10
11 1345 480.00
16 1776 609.80
21 2338 677.10
11 1945 836 693.03
16 2736 1176 838.45
21 3298 1418 905.75
1200
10 1156 322.70
15 1882 402.70
20 2635 485.20
11 1517 500.00
16 2040 631.80
21 2729 701.60
11 2117 910 713.04
16 3000 1290 860.49
21 3689 1586 930.25
1200
10 1291 344.60
15 2081 426.90
20 2910 510.10
11 1663 521.80
16 2278 655.90
21 3098 726.20
11 2263 973 734.87
16 3238 1392 884.56
21 4058 1745 954.86
1400
10 917 313.30
15 1526 402.40
20 2145 522.70
1400
10 1156 337.40
15 1903 427.10
20 2668 548.90
11 1569 532.20
16 2072 681.50
21 2727 807.90
11 2169 933 745.25
16 3032 1304 910.14
21 3687 1585 1036.50
1400
10 1348 361.30
15 2195 453.30
20 3074 577.40
11 1770 555.80
16 2380 707.30
21 3184 836.10
11 2370 1019 768.79
16 3340 1436 935.92
21 4144 1782 1064.75
1400
10 1506 386.70
15 2428 481.60
20 3395 606.40
11 1940 581.00
16 2657 735.80
21 3615 866.00
11 2540 1092 794.04
16 3617 1555 964.49
21 4575 1967 1094.61
1600
10 1048 367.50
15 1744 476.90
20 2451 619.90
1600
10 1322 393.80
15 2174 504.50
20 3050 648.40
11 1794 621.60
16 2368 805.40
21 3117 955.00
11 2994 1287 951.44
16 4288 1844 1166.62
21 5037 2166 1316.20
1600
10 1541 420.50
15 2509 532.20
20 3514 679.20
11 2022 647.80
16 2720 833.30
21 3638 985.50
11 3222 1385 977.65
16 4640 1995 1194.54
21 5558 2390 1346.70
1600
10 1722 448.20
15 2774 563.20
20 3880 710.80
11 2218 675.60
16 3037 864.00
21 4131 1017.70
11 3418 1470 1005.47
16 4957 2132 1225.25
21 6051 2602 1378.90
1800
10 1179 397.40
15 1962 518.60
20 2758 674.10
1800
10 1487 426.20
15 2446 548.40
20 3431 705.50
11 2018 670.90
16 2664 874.60
21 3506 1036.90
11 3218 1384 1000.77
16 4584 1971 1235.85
21 5426 2333 1398.16
1800
10 1733 455.70
15 2822 579.00
20 3953 738.70
11 2275 700.10
16 3060 905.10
21 4093 1070.30
11 3475 1494 1029.98
16 4980 2141 1266.34
21 6013 2586 1431.55
1800
10 1937 485.90
15 3121 612.30
20 4365 772.80
11 2495 730.00
16 3416 938.50
21 4648 1104.80
11 3695 1589 1059.83
16 5336 2294 1299.72
21 6568 2824 1466.00
2000
10 1310 430.20
15 2180 592.90
20 3064 730.10
2000
10 1652 461.40
15 2718 625.20
20 3812 764.00
11 2242 722.60
16 2960 999.60
21 3896 1121.60
11 3442 1480 1052.45
16 4880 2098 1360.82
21 5816 2501 1482.80
2000
10 1926 493.60
15 3136 658.60
20 4392 799.80
11 2528 754.20
16 3400 1033.00
21 4548 1157.10
11 3728 1603 1084.12
16 5320 2288 1394.21
21 6468 2781 1518.33
2000
10 2152 526.00
15 3468 694.80
20 4850 836.60
11 2772 786.70
16 3796 1069.00
21 5164 1194.40
11 3972 1708 1116.54
16 5716 2458 1430.26
21 7084 3046 1555.67
2200
10 1441 492.00
15 2398 681.10
20 3370 842.70
2200
10 1817 525.80
15 2990 715.70
20 4193 879.00
11 2466 825.00
16 3256 1147.00
21 4286 1291.50
11 3666 1576 1154.85
16 5176 2226 1508.27
21 6206 2669 1652.72
2200
10 2119 560.30
15 3450 751.80
20 4831 917.50
11 2781 859.20
16 3740 1183.00
21 5003 1330.00
11 3981 1712 1189.09
16 5660 2434 1544.22
21 6923 2977 1691.24
2200
10 2367 595.60
15 3815 789.90
20 5335 956.70
11 3049 894.40
16 4176 1220.90
21 5680 1369.60
11 4249 x1827 1224.29
16 6096 2621 1582.10
21 7600 3268 1730.83
2400
10 1572 528.40
15 2616 731.00
20 3677 906.30
2400
10 1982 566.00
15 3262 769.80
20 4574 946.50
11 2690 885.40
16 3552 1230.90
21 4675 1398.60
11 4490 1931 1332.25
16 6432 2766 1724.73
21 7555 3249 1883.41
2400
10 2311 604.10
15 3763 809.00
20 5270 989.90
11 3034 923.00
16 4080 1270.30
21 5458 1432.80
11 4834 2079 1369.81
16 6960 2993 1764.10
21 8338 3585 1926.64
2400
10 2582 642.50
15 4162 851.70
20 5820 1033.40
11 3326 962.00
16 4555 1313.10
21 6197 1476.40
11 5126 2204 1408.86
16 7435 3197 1806.90
21 9077 3903 1970.19
2600
10 1703 562.90
15 2834 778.90
20 3983 967.50
2600
10 2148 603.40
15 3533 820.00
20 4956 1010.20
11 2915 942.00
16 3848 1309.70
21 5065 1481.50
11 4715 2027 1388.86
16 6728 2893 1803.48
21 7945 3416 1975.32
2600
10 2504 643.40
15 4077 861.80
20 5710 1055.90
11 3286 981.70
16 4420 1351.50
21 5912 1526.90
11 5086 2187 1428.55
16 7300 3139 1845.32
21 8792 3781 2020.69
2600
10 2798 684.70
15 4508 907.10
20 6305 1102.00
11 3604 1023.60
16 4935 1396.90
21 6713 1573.20
11 5404 2324 1470.39
16 7815 3360 1890.69
21 9593 4125 2067.02
2800
10 1834 602.80
15 3052 831.00
20 4290 1032.20
2800
10 2313 645.60
15 3805 874.40
20 5337 1077.40
11 3139 1003.40
16 4144 1391.20
21 5454 1576.90
11 4939 2124 1450.27
16 7024 3020 1885.01
21 8334 3584 2070.66
2800
10 2696 688.30
15 4390 918.90
20 6149 1126.20
11 3539 1045.90
16 4760 1436.20
21 6367 1625.30
11 5339 2296 1492.75
16 7640 3285 1929.95
21 9247 3976 2119.13
2800
10 3013 732.00
15 4855 966.70
20 6790 1174.60
11 3881 1089.90
16 5314 1483.90
21 7230 1673.90
11 5681 2443 1536.62
16 8194 3523 1977.68
21 10110 4347 2167.71
3000
10 1965 633.90
15 3270 875.40
20 4596 1090.30
3000
10 2478 678.90
15 4077 921.50
20 5718 1138.10
11 3363 1054.60
16 4440 1465.40
21 5844 1664.90
11 5163 2220 1501.42
16 7320 3148 1959.17
21 8724 3751 2158.51
3000
10 2889 724.20
15 4704 969.60
20 6588 1188.60
11 3792 1099.40
16 5100 1512.70
21 6822 1715.10
11 5592 2405 1546.25
16 7980 3431 2006.46
21 9702 4172 2208.90
3000
10 3228 770.40
15 5202 1019.10
20 7275 1240.10
11 4158 1146.00
16 5694 1563.10
21 7746 1766.70
11 5958 2562 1592.80
16 8574 3687 2056.48
21 10626 4569 2260.48
How to order (example)
Product Height Length
TEMW
020
040
Type
10
Colour
101
Using above ordering code will result in a Type 10, wall mounted,
single emitter, with white casing 200mm high and 400mm long
385 173.40
627 205.40
878 238.10
Twin
11
16
21
Standard connections*
Standard delivery
Outputs
Bottom left or right, valve position 20 (left) or 70 (right)
Standard delivery includes casing, wall brackets, automatic air vent
and drain plug 1/2”.
Measured in accordance with EN 442. Water temperature of
75/65°C and room temperature of 20°C (ΔT=50).
For optional top valve, add suffix to the code /UK30 (top left) or
/UK60(top right), e.g. TEMW 020 040 10 101/UK60
For no perforation for TRV in the side panel, add suffix to the code
/00, e.g. TEMW 020 040 10 101/00
* See page 54 for connection sets and valves
For technical support visit www.jaga.co.uk or telephone 01531 631 533
15

16

Previous
Next
EN
442
Tempo LST
Tempo LST
EN
Tempo
LST wall mounted (TEMW...)
442
L
EN
442
Connection
sets and
valves
page
EN54
Design
considerations
page 82
Parts
page 70

Go to product page on website
Correction
factors
page 84
H
Technical
information
page 86
442
600mm high | wall mounted
Standard
Length
(mm)
Type Watts
Price
(£)
Twin
Type Watts
Price
(£)
700mm high | wall mounted
EN
With DBE
442
Type
Watts
75/65 45/38
Standard
Price
(£)
Length
(mm)
Type Watts
Price
(£)
Twin
Type Watts
With DBE
Price
(£)
Type
Watts
75/65 45/38
Price
(£)
400
10 468 197.20
15 746 231.50
20 1043 267.20
11 598 299.60
16 834 382.40
21 1153 376.20
–
–
–
–
–
–
–
–
–
–
–
–
400
10 499 207.00
15 789 243.10
20 1101 280.10
11 636 309.70
16 904 363.90
21 1271 389.30
–
–
–
–
–
–
–
–
–
–
–
–
500
10 585 216.40
15 933 255.30
20 1304 296.40
11 747 326.50
16 1042 387.00
21 1441 415.70
–
–
–
–
–
–
–
–
–
–
–
–
500
10 624 228.00
15 986 268.20
20 1377 310.70
11 795 338.00
16 1130 400.00
21 1589 430.20
–
–
–
–
–
–
–
–
–
–
–
–
600
10 702 230.80
15 1120 274.70
20 1565 320.50
11 896 347.90
16 1250 416.30
21 1729 499.60
11 1196 514 502.36
16 1730 744 578.76
21 2209 950 612.04
600
10 749 243.20
15 1183 289.10
20 1652 335.70
11 954 360.10
16 1356 430.60
21 1906 464.80
11 1254 539 514.56
16 1836 789 592.99
21 2386 1026 627.23
700
10 819 264.40
15 1306 317.00
20 1826 371.60
11 1046 397.00
16 1459 481.20
21 2017 523.00
11 1364 579 551.47
16 1939 834 643.60
21 2497 1074 685.44
700
10 874 278.00
15 1380 332.70
20 1927 388.40
11 1113 410.60
16 1582 496.70
21 2224 539.90
11 1413 608 565.06
16 2062 887 659.12
21 2704 1163 702.34
800
10 936 283.40
15 1493 341.20
20 2086 401.50
11 1195 424.00
16 1667 517.00
21 2306 564.50
11 1495 643 578.54
16 2147 923 679.45
21 2786 1198 726.95
800
10 998 298.50
15 1578 357.70
20 2202 419.30
11 1272 439.10
16 1808 533.60
21 2542 582.30
11 1572 676 593.63
16 2288 984 696.03
21 3022 1299 744.72
900
10 1053 301.10
15 1679 364.30
20 2347 429.30
11 1345 448.80
16 1876 550.90
21 2594 602.80
11 1945 836 661.79
16 2836 1219 779.60
21 3554 1528 831.49
900
10 1123 317.40
15 1775 382.00
20 2478 448.10
11 1431 465.10
16 2034 568.50
21 2859 621.90
11 2031 873 678.16
16 2994 1287 797.15
21 3819 1642 850.54
1000
10 1170 327.80
15 1866 398.90
20 2608 472.40
11 1494 489.10
16 2084 604.40
21 2882 665.00
11 2094 900 702.13
16 3044 1309 833.10
21 3842 1652 893.66
1000
10 1248 344.90
15 1972 417.90
20 2753 493.10
11 1590 506.10
16 2260 623.50
21 3177 685.10
11 2190 942 719.14
16 3220 1385 852.14
21 4137 1779 913.78
1100
10 1287 348.50
15 2053 426.00
20 2869 504.60
11 1643 517.00
16 2292 642.90
21 3170 709.30
11 2243 964 730.06
16 3252 1398 871.51
21 4130 1776 937.96
1100
10 1373 367.20
15 2169 445.90
20 3028 526.10
11 1749 535.90
16 2486 662.90
21 3495 730.70
11 2349 1010 748.89
16 3446 1482 891.52
21 4455 1916 959.36
1200
10 1404 366.40
15 2239 448.90
20 3130 533.80
11 1793 543.60
16 2501 678.00
21 3458 749.90
11 2393 1029 756.59
16 3461 1488 906.61
21 4418 1900 978.51
1200
10 1498 386.70
15 2366 469.90
20 3304 556.40
11 1908 563.70
16 2712 699.10
21 3812 772.40
11 2508 1078 776.71
16 3672 1579 927.79
21 4772 2052 1001.09
400
10 548 229.10
15 848 267.40
20 1183 308.50
11 703 332.20
16 1038 389.60
21 1508 417.60
–
–
–
–
–
–
1400
10 1638 412.60
15 2612 507.10
20 3651 633.90
11 2092 607.00
16 2918 761.40
21 4035 892.50
11 2692 1158 820.05
16 3878 1668 735.73
21 4995 2148 1121.14
1400
10 1747 435.40
15 2761 532.60
20 3854 661.50
11 2226 630.40
16 3164 786.70
21 4448 920.00
11 2826 1215 843.48
16 4124 1773 1015.32
21 5408 2325 1148.64
500
10 685 252.50
15 1060 295.00
20 1479 342.10
11 879 363.40
16 1298 428.00
21 1885 461.40
–
–
–
–
–
–
1600
10 1872 476.50
15 2986 591.50
20 4173 740.40
11 2390 703.50
16 3334 892.40
21 4611 1047.00
11 3590 1544 1033.40
16 5254 2259 1253.61
21 6531 2808 1408.22
1600
10 1997 501.70
15 3155 619.30
20 4405 770.80
11 2544 729.40
16 3616 920.10
21 5083 1076.80
11 3744 1610 1059.30
16 5536 2380 1281.32
21 7003 3011 1438.08
600
10 821 269.40
15 1272 317.40
20 1774 368.70
11 1055 387.00
16 1558 460.10
21 2262 497.90
1800
10 2106 516.50
15 3359 643.50
20 4694 805.50
11 2689 760.30
16 3751 969.60
21 5188 1137.20
11 3889 1672 1090.22
16 5671 2439 1330.86
21 7108 3056 1498.42
1800
10 2246 545.00
15 3550 674.10
20 4955 838.50
11 2862 789.60
16 4068 999.60
21 5719 1169.60
11 4062 1747 1119.43
16 5988 2575 1360.82
21 7639 3285 1530.84
700
10 958 307.50
15 1484 363.90
20 2070 424.50
2000
10 2340 559.70
15 3732 727.60
20 5216 871.80
11 2988 820.30
16 4168 1102.00
21 5764 1229.40
11 4188 1801 1150.14
16 6088 2618 1463.22
21 7684 3304 1590.66
2000
10 2496 590.30
15 3944 761.10
20 5506 907.30
11 3180 851.40
16 4520 1135.10
21 6354 1264.30
11 4380 1883 1181.28
16 6440 2769 1496.28
21 8274 3558 1625.54
800
2200
10 2574 631.00
15 4105 825.40
20 5738 994.00
11 3287 929.60
16 4585 1256.80
21 6340 1406.50
11 4487 1929 1259.49
16 6505 2797 1618.05
21 8260 3552 1767.74
2200
10 2746 664.00
15 4338 861.10
20 6057 1032.00
11 3498 963.20
16 4972 1292.00
21 6989 1444.30
11 4698 2020 1293.09
16 6892 2964 1653.25
21 8909 3831 1805.51
2400
10 2808 682.70
15 4478 891.70
20 6259 1075.00
11 3586 1001.60
16 5002 1352.70
21 6917 1517.80
11 5386 2316 1448.45
16 7882 3389 1846.49
21 9797 4213 2011.60
2400
10 2995 719.40
15 4733 930.80
20 6607 1117.10
11 3816 1038.50
16 5424 1392.00
21 7625 1559.80
2600
10 3042 727.10
15 4852 949.70
20 6781 1146.00
11 3884 1065.40
16 5418 1439.20
21 7493 1616.80
11 5684 2444 1512.23
16 8298 3568 1932.95
21 10373 4460 2110.57
2600
10 3245 766.10
15 5127 991.10
20 7158 1190.70
2800
10 3276 777.20
15 5225 1011.70
20 7302 1221.40
11 4183 1134.80
16 5835 1528.50
21 8070 1720.30
11 5983 2573 1581.67
16 8715 3747 2022.30
21 10950 4709 2214.15
2800
3000
10 3510 818.00
15 5598 1065.90
20 7824 1289.00
11 4482 1193.20
16 6252 1609.80
21 8646 1815.10
11 6282 2701 1639.98
16 9132 3927 2103.62
21 11562 4956 2308.95
3000
How to order (example)
Product Height Length
TEMW
060
040
Type
10
Colour
101
900mm high | wall mounted
Standard
Length
(mm)
Type Watts
Price
(£)
Twin
Type Watts
With DBE
Price
(£)
Type
Watts
75/65 45/38
Standard
Type Watts
Price
(£)
Twin
Type Watts
With DBE
Price
(£)
Length
(mm)
Price
(£)
Type
Watts
75/65 45/38
–
–
–
–
–
–
1400
10 1917 484.50
15 2968 583.70
20 4140 717.50
11 2461 679.30
16 3634 839.80
21 5278 976.50
11
16
21
3061 1316 892.38
4594 1975 1068.50
6238 2682 1205.14
–
–
–
–
–
–
1600
10 2190 555.80
15 3392 675.10
20 4731 831.90
11 2813 783.50
16 4154 978.00
21 6032 1138.40
11
16
21
4013 1726 1113.33
6074 2612 1339.21
7952 3419 1499.60
11 1355 583 541.52
16 2038 876 622.52
21 2742 1179 660.29
1800
10 2464 604.00
15 3816 735.10
20 5323 904.70
11 3164 848.40
16 4673 1062.90
21 6786 1236.20
11
16
21
4364 1877 1178.28
6593 2835 1424.17
8706 3744 1597.40
11 1231 440.90
16 1817 529.40
21 2639 575.90
11 1531 658 595.45
16 2297 988 691.86
21 3119 1341 738.30
2000
10 2738 654.20
15 4240 826.70
20 5914 978.30
11 3516 915.30
16 5192 1202.90
21 7540 1335.90
11
16
21
4716 2028 1245.15
7112 3058 1564.12
9460 4068 1697.12
10 1095 330.30
15 1696 391.70
20 2366 457.90
11 1406 471.70
16 2077 569.10
21 3016 620.60
11 1706 734 626.16
16 2557 1100 731.55
21 3496 1503 783.02
2200
10 3012 733.50
15 4664 932.20
20 6505 1107.70
11 3868 1032.70
16 5711 1365.30
21 8294 1520.10
11 5068 2179 1362.53
16 7631 3281 1726.55
21 10214 4392 1881.38
900
10 1232 351.40
15 1908 418.00
20 2661 488.90
11 1582 500.00
16 2336 606.30
21 3393 662.70
11 2182 938 713.04
16 3296 1417 834.92
21 4353 1872 891.31
2400
10 3286 795.90
15 5088 1009.70
20 7097 1201.70
11 4219 1115.90
16 6230 1473.30
21 9048 1645.00
11 6019 2588 1562.73
16 9110 3917 1967.08
21 11928 5129 2138.82
11 5616 2415 1485.37
16 8304 3571 1885.76
21 10505 4517 2053.65
1000
10 1369 381.70
15 2120 456.60
20 2957 535.90
11 1758 543.60
16 2596 663.10
21 3770 728.10
11 2358 1014 756.59
16 3556 1529 891.73
21 4730 2034 956.79
2600
10 3559 847.10
15 5512 1074.70
20 7688 1280.10
11 4571 1186.70
16 6750 1566.80
21 9802 1751.30
11 6371 2740 1633.56
16 9630 4141 2060.60
21 12682 5453 2245.07
11 4134 1104.80
16 5876 1480.70
21 8260 1661.20
11 5934 2552 1551.60
16 8756 3765 1974.47
21 11140 4790 2154.98
1100
10 1506 406.80
15 2332 487.50
20 3253 572.30
11 1934 576.20
16 2856 705.80
21 4147 776.90
11 2534 1090 789.23
16 3816 1641 934.43
21 5107 2196 1005.58
2800
10 3833 905.10
15 5936 1144.80
20 8280 1363.60
11 4922 1263.90
16 7269 1664.20
21 10556 1862.80
11 6722 2890 1710.71
16 10149 4364 2157.97
21 13436 5777 2356.56
10 3494 819.00
15 5522 1056.20
20 7708 1268.50
11 4452 1176.90
16 6328 1572.90
21 8896 1767.30
11 6252 2688 1623.72
16 9208 3959 2066.70
21 11776 5064 2261.12
1200
10 1643 428.00
15 2544 514.10
20 3548 604.60
11 2110 605.70
16 3115 744.70
21 4524 820.70
11 2710 1165 818.76
16 4075 1752 973.37
21 5484 2358 1049.34
3000
10 4107 953.60
15 6360 1206.30
20 8871 1438.30
11 5274 1329.70
16 7788 1752.70
21 11310 1964.70
11 7074 3042 1776.52
16 10668 4587 2246.46
21 14190 6102 2458.53
10 3744 862.00
15 5916 1112.90
20 8259 1338.50
11 4770 1237.80
16 6780 1656.70
21 9531 1864.70
11 6570 2825 1684.60
16 9660 4154 2150.48
21 12411 5337 2358.49
Standard connections*
Standard delivery
Outputs
Bottom left or right, valve position 20 (left) or 70 (right)
Standard delivery includes casing, wall brackets, automatic air vent
and drain plug 1/2”.
Measured in accordance with EN 442. Water temperature of
75/65°C and room temperature of 20°C (ΔT=50).
For optional top valve, add suffix to the code /UK30 (top left) or
/UK60(top right), e.g. TEMW 060 040 15 101/UK60
Price
(£)
Using above ordering code will result in a Type 10, wall mounted Tempo,
For no perforation for TRV in the side panel, add suffix to the code
single emitter, with white casing 600mm high and 400mm long
/00, e.g. TEMW 020 040 15 101/00
* See page 54 for connection sets and valves
For technical support visit www.jaga.co.uk or telephone 01531 631 533
17

18
Previous

Next
EN
442
Tempo LST

Go to product page on website
Tempo LST
EN
Tempo
LST freestanding (TEMF...)
442
L
EN
442
Connection
sets and
valves
page
EN54
Design
considerations
page 82
Parts
page 70
Correction
factors
page 84
H
Technical
information
page 86
442
200mm high | freestanding
Standard
Length
(mm)
Type Watts
EN
442
300mm high | freestanding
Standard
Length
(mm)
Price
(£)
Type Watts
Price
(£)
400mm high | freestanding
Twin
Type Watts
With DBE
Price
(£)
Type
Watts
75/65 45/38
Standard
Price
(£)
Length
(mm)
Type Watts
400
10
15
20
262 209.40
436 238.40
613 268.80
400
10
15
20
330 225.60
544 256.40
762 287.30
11
16
21
448 328.50
592 377.30
779 396.20
–
–
–
–
–
–
–
–
–
–
–
–
400
10
15
20
500
10
15
20
328 259.80
545 280.10
766 295.40
500
10
15
20
413 245.10
680 280.10
953 316.90
11
16
21
561 335.70
740 411.80
974 436.30
–
–
–
–
–
–
–
–
–
–
–
–
500
600
10
15
20
393 238.60
654 277.30
919 317.30
600
10 496 259.30
15 815 299.60
20 1144 340.50
11 673 376.50
16 888 441.10
21 1169 469.60
11 973 418 531.00
16 1368 588 603.50
21 1649 709 632.00
700
10 459 269.10
15 763 316.80
20 1072 365.30
700
10 578 292.80
15 951 342.20
20 1334 392.00
11 785 425.90
16 1036 506.10
21 1364 543.60
800
10 524 285.80
15 872 338.10
20 1226 392.80
800
10 661 311.90
15 1087 365.80
20 1525 421.30
900
10 590 301.20
15 981 359.40
20 1379 418.30
900
1000
10 655 325.10
15 1090 391.20
20 1532 459.20
1100
Price
(£)
Type Watts
With DBE
Price
(£)
Type
Watts
75/65 45/38
Standard
Price
(£)
Length
(mm)
Type Watts
Price
(£)
Twin
Type Watts
With DBE
Price
(£)
Type
Watts
75/65 45/38
Price
(£)
506 345.50
680 395.40
910 417.00
–
–
–
–
–
–
–
–
–
–
–
–
400
10
15
20
430 261.20
694 296.10
970 330.00
11 554 363.90
16 759 416.90
21 1033 438.90
–
–
–
–
–
–
–
–
–
–
–
–
10 482 264.80
15 784 301.40
20 1098 339.40
11 632 374.60
16 850 433.10
21 1137 459.40
–
–
–
–
–
–
–
–
–
–
–
–
500
10 538 286.00
15 867 325.00
20 1213 364.30
11 693 396.40
16 949 456.70
21 1291 483.60
–
–
–
–
–
–
–
–
–
–
–
–
600
10 578 281.00
15 941 322.50
20 1318 365.30
11 758 397.70
16 1020 463.80
21 1364 495.00
11 1058 455 552.20
16 1500 645 626.20
21 1844 793 657.40
600
10 646 304.00
15 1040 348.30
20 1455 391.80
11 832 421.30
16 1139 489.60
21 1549 521.00
11 1132 487 575.80
16 1619 696 652.00
21 2029 872 683.40
11 1085 467 580.40
16 1516 652 668.50
21 1844 793 706.00
700
10 674 317.30
15 1098 368.00
20 1537 419.80
11 885 449.90
16 1190 531.90
21 1592 571.50
11 1185 510 604.40
16 1670 718 694.30
21 2072 891 733.90
700
10 753 343.50
15 1214 396.30
20 1689 449.30
11 970 476.50
16 1329 560.30
21 1807 600.60
11 1270 546 631.00
16 1809 778 722.70
21 2287 983 763.00
11 897 452.90
16 1184 541.60
21 1558 584.40
11 1197 515 607.40
16 1664 716 704.00
21 2038 876 746.80
800
10 770 338.90
15 1254 394.50
20 1757 452.00
11 1011 479.40
16 1360 570.50
21 1819 615.10
11 1311 564 633.90
16 1840 791 732.90
21 2299 989 777.50
800
10 861 367.30
15 1387 424.90
20 1940 483.70
11 1109 508.40
16 1518 600.90
21 2066 646.80
11 1409 606 662.90
16 1998 859 763.30
21 2546 1095 809.20
10 743 329.80
15 1223 389.30
20 1715 449.30
11 1009 478.00
16 1332 575.90
21 1753 622.80
11 1609 692 691.00
16 2292 986 804.60
21 2713 1167 851.50
900
10 867 359.00
15 1411 419.70
20 1976 481.50
11 1138 506.80
16 1530 606.30
21 2047 655.60
11 1738 747 719.80
16 2490 1071 835.00
21 3007 1293 884.30
900
10 968 389.50
15 1561 452.80
20 2183 515.50
11 1247 537.70
16 1708 639.40
21 2324 689.30
11 1847 794 750.70
16 2668 1147 868.10
21 3284 1412 918.00
1000
10 826 356.20
15 1359 423.70
20 1906 492.90
11 1121 517.70
16 1480 629.30
21 1948 685.30
11 1721 740 730.70
16 2440 1049 858.00
21 2908 1250 914.00
1000
10 963 388.10
15 1568 456.90
20 2196 527.60
11 1264 549.10
16 1700 662.10
21 2274 720.30
11 1864 802 762.10
16 2660 1144 890.80
21 3234 1391 949.00
1000
10 1076 420.60
15 1734 492.30
20 2425 564.10
11 1386 582.30
16 1898 697.90
21 2582 756.60
11 1896 854 795.30
16 2858 1229 926.60
21 3542 1523 985.30
10 721 343.10
15 1199 415.50
20 1685 488.50
1100
10 909 376.90
15 1495 450.50
20 2097 524.70
11 1233 546.00
16 1628 667.10
21 2143 729.30
11 1833 788 759.00
16 2588 1113 895.80
21 3103 1334 958.00
1100
10 1059 411.40
15 1725 486.30
20 2416 562.70
11 1390 580.20
16 1870 703.30
21 2501 767.60
11 1990 856 793.20
16 2380 1217 932.00
21 3461 1488 996.30
1100
10 1184 447.50
15 1907 524.80
20 2668 601.80
11 1525 616.40
16 2088 741.70
21 2840 806.50
11 2125 914 829.40
16 3048 1311 970.40
21 3800 1634 1035.20
1200
10 786 358.90
15 1308 435.90
20 1838 515.30
1200
10 991 395.30
15 1631 473.40
20 2287 553.80
11 1345 572.70
16 1776 702.50
21 2338 770.00
11 1945 836 785.70
16 2736 1176 931.20
21 3298 1418 998.70
1200
10 1156 432.10
15 1882 511.90
20 2635 594.00
11 1517 608.80
16 2040 741.00
21 2729 810.40
11 2117 910 821.80
16 3000 1290 969.70
21 3689 1586 1039.10
1200
10 1291 470.30
15 2081 552.30
20 2910 635.50
11 1663 647.50
16 2278 781.50
21 3098 851.70
11 2263 973 860.50
16 3238 1392 1010.20
21 4058 1745 1080.40
1400
10 917 475.80
15 1526 506.20
20 2145 626.10
1400
10 1156 459.40
15 1903 549.40
20 2668 671.10
11 1569 654.30
16 2072 803.70
21 2727 929.90
11 2169 933 867.30
16 3032 1304 1032.40
21 3687 1585 1158.60
1400
10 1348 502.50
15 2195 594.30
20 3074 718.20
11 1770 697.20
16 2380 848.40
21 3184 977.10
11 2370 1019 910.20
16 3340 1436 1077.10
21 4144 1782 1205.80
1400
10 1506 546.90
15 2428 641.80
20 3395 766.90
11 1940 741.60
16 2657 895.90
21 3615 1026.20
11 2540 1092 954.60
16 3617 1555 1124.60
21 4575 1967 1254.90
1600
10 1048 475.80
15 1744 585.20
20 2451 728.00
1600
10 1322 523.30
15 2174 633.50
20 3050 778.10
11 1794 750.80
16 2368 934.80
21 3117 1084.30
11 2994 1287 1080.70
16 4288 1844 1296.00
21 5037 2166 1445.50
1600
10 1541 571.20
15 2509 683.50
20 3514 829.70
11 2022 798.40
16 2720 984.30
21 3638 1136.20
11 3222 1385 1128.30
16 4640 1995 1345.50
21 5558 2390 1497.40
1600
10 1722 620.60
15 2774 735.40
20 3880 883.20
11 2218 848.10
16 3037 1036.60
21 4131 1189.90
11 3418 1470 1178.00
16 4957 2132 1397.80
21 6051 2602 1551.10
1800
10 1179 511.10
15 1962 631.90
20 2758 787.60
1800
10 1487 563.50
15 2446 685.70
20 3431 842.60
11 2018 807.90
16 2664 1011.90
21 3506 1174.30
11 3218 1384 1137.80
16 4584 1971 1373.10
21 5426 2333 1535.50
1800
10 1733 616.50
15 2822 740.50
20 3953 899.90
11 2275 860.70
16 3060 1066.80
21 4093 1231.40
11 3475 1494 1190.60
16 4980 2141 1428.00
21 6013 2586 1592.60
1800
10 1937 671.60
15 3121 798.20
20 4365 958.40
11 2495 915.80
16 3416 1124.50
21 4648 1290.40
11 3695 1589 1245.70
16 5336 2294 1485.70
21 6568 2824 1651.60
2000
10 1310 548.90
15 2180 711.20
20 3064 848.80
2000
10 1652 606.40
15 2718 770.00
20 3812 909.10
11 2242 867.60
16 2960 1144.40
21 3896 1266.50
11 3442 1480 1197.50
16 4880 2098 1505.60
21 5816 2501 1627.70
2000
10 1926 664.70
15 3136 830.00
20 4392 971.00
11 2528 925.60
16 3400 1204.40
21 4548 1328.60
11 2728 1603 1255.50
16 5320 2288 1565.60
21 6468 2781 1689.80
2000
10 2152 724.50
15 3468 892.50
20 4850 1034.60
11 2772 985.10
16 3796 1267.10
21 5164 1392.70
11 3972 1708 1315.00
16 5716 2458 1628.30
21 7084 3046 1753.90
2200
10 1441 615.70
15 2398 804.20
20 3370 966.00
2200
10 1817 678.30
15 2990 867.80
20 4193 1031.30
11 2466 977.80
16 3256 1299.10
21 4286 1443.80
11 3666 1576 1307.70
16 5176 2226 1660.30
21 6206 2669 1805.00
2200
10 2119 741.00
15 3450 932.60
20 4831 1098.40
11 2781 1039.70
16 3740 1363.80
21 5003 1510.80
11 3981 1712 1369.60
16 5660 2434 1725.00
21 6923 2977 1872.00
2200
10 2367 805.70
15 3815 1000.20
20 5335 1167.00
11 3049 1104.70
16 4176 1431.60
21 5680 1580.00
11 4249 1827 1434.60
16 6096 2621 1792.80
21 7600 3268 1941.20
2400
10 1572 679.10
15 2616 881.30
20 3677 1056.70
2400
10 1982 748.50
15 3262 951.70
20 4574 1128.50
11 2690 1067.90
16 3552 1412.70
21 4675 1571.60
11 4490 1931 1514.70
16 6432 2766 1906.50
21 7555 3249 2065.40
2400
10 2311 818.00
15 3763 1022.90
20 5270 1203.60
11 3034 1137.00
16 4080 1484.40
21 5458 1646.70
11 4834 2079 1583.80
16 6960 2993 1978.20
21 8338 3585 2140.50
2400
10 2582 888.80
15 4162 1097.70
20 5820 1279.50
11 3326 1208.20
16 4555 1559.10
21 6197 1722.70
11 5126 2204 1655.00
16 7435 3197 2052.90
21 9077 3903 2216.50
2600
10 1703 718.40
15 2834 934.20
20 3983 1122.90
2600
10 2148 792.80
15 3533 1009.70
20 4956 1199.80
11 2915 1131.50
16 3848 1499.10
21 5065 1671.00
11 4715 2027 1578.30
16 6728 2893 1992.90
21 7945 3416 2164.80
2600
10 2504 867.10
15 4077 1085.40
20 5710 1279.20
11 3286 1205.60
16 4420 1575.30
21 5912 1750.40
11 5086 2187 1652.40
16 7300 3139 2069.10
21 8792 3781 2244.20
2600
10 2798 942.60
15 4508 1165.30
20 6305 1360.30
11 3604 1281.40
16 4935 1655.10
21 6713 1831.40
11 5404 2324 1728.40
16 7815 3360 2148.90
21 9593 4125 2325.20
2800
10 1834 763.30
15 3052 991.20
20 4290 1192.90
2800
10 2313 842.70
15 3805 1071.70
20 5337 1274.90
11 3139 1200.60
16 4144 1588.60
21 5454 1774.00
11 4939 2124 1647.40
16 7024 3020 2082.40
21 8334 3584 2267.80
2800
10 2696 922.70
15 4390 1153.10
20 6149 1359.60
11 3539 1280.10
16 4760 1670.20
21 6367 1859.10
11 5339 2296 1726.90
16 7640 3285 2164.00
21 9247 3976 2352.90
2800
10 3013 1003.80
15 4855 1238.00
20 6790 1446.20
11 3881 1361.30
16 5314 1755.20
21 7230 1945.40
11 5681 2443 1808.10
16 8194 3523 2249.00
21 10110 4347 2439.20
3000
10 1965 799.20
15 3270 1040.90
20 4596 1255.90
3000
10 2478 883.70
15 4077 1126.30
20 5718 1342.60
11 3363 1259.20
16 4440 1669.90
21 5844 1869.20
11 5163 2220 1706.00
16 7320 3148 2163.70
21 8724 3751 2363.00
3000
10 2889 967.90
15 4704 1212.50
20 6588 1432.60
11 3792 1343.00
16 5100 1756.50
21 6822 1959.20
11 5592 2405 1789.80
16 7980 3431 2250.30
21 9702 4172 2453.00
3000
10 3228 1053.80
15 5202 1302.20
20 7275 1523.50
11 4158 1429.30
16 5694 1846.40
21 7746 2049.90
11 5958 2562 1876.10
16 8574 3687 2340.20
21 10626 4569 2543.70
How to order (example)
Product Height Length
TEMF
020
040
Type Colour/Foot
10
101/AS
385 242.80
627 274.70
878 307.50
500mm high | freestanding
Twin
11
16
21
Standard connections*
Standard delivery
Outputs
Bottom left or right, valve position 20 (left) or 70 (right)
Standard delivery includes casing, wall brackets, adjustable feet in
neutral grey 135mm to 185mm , automatic air vent and drain plug 1/2”.
Measured in accordance with EN 442. Water temperature of
75/65°C and room temperature of 20°C (ΔT=50).
For optional top valve, add suffix to the code /UK30 (top left) or
/UK60(top right), e.g. TEMF 020 040 15 101/UK60/AS
Using above ordering code will result in a Type 10, freestanding Tempo,
For no perforation for TRV in the side panel, add suffix to the code
single emitter, with white casing 200mm high and 400mm long, with
/00, e.g. TEMF 020 040 15 101/00
standard foot 135mm to 185mm
* See page 54 for connection sets and valves
For technical support visit www.jaga.co.uk or telephone 01531 631 533
19

20
Previous

Next
Go to product page on website
Cocoon LST

Cocoon LST
 Product data
 Outputs Wall mounted (COCW)
 Connection sets & valves
 Parts
 Correction factors
Cocoon LST
 Back to product overview
Cocoon’s slim, contemporary design, featuring horizontal lines on
the front panel is a classic. Ideal for all situations where vulnerable
people may be present, from nursing homes to hospitals to schools,
Cocoon LST radiators are widely used in care accommodation.
 Technical information
 Design considerations
Cocoon's reliability, output and safe design have established a
formidable reputation within the heating and ventilation industry.
Features
> extensive range of sizes
> casing to finished floor level so pipework and
connections are totally concealed
> easy to handle, store and install
> stylish casing with rounded corners stays safe to
touch, even at high flow temperatures
> if casing gets damaged, it’s easily replaceable
> casing locks also available for extra security
> casing can be removed for decorating and replaced
without disassembly
30
YEARS
Heat emitter
guarantee
(all products)
10
3
YEARS
YEARS
Casings and
components
(all products)
Valves for
Low-H2O heat
exchangers
> DBE option available
Low-H2O heat exchanger made
from copper and aluminium:
> non-corrosive (guaranteed for 30 years)
> pressure tested to 20 bar (working pressure 10 bar)
‘Cocooned in total safety’
> efficient: rapid heating up due to super low water
content and low thermal mass
> high heat output achieved with normal and lower
flow temperatures
> the optimum combination of high output convection
and safe surface temperature
Twin power and DBE ‘Boost’
Cocoon LST is also available with the super-powered
twin heat exchangers. The boiler temperature is on
average 15% lower for equivalent radiator dimensions
and output.
> For the lowest temperature systems specify Cocoon
with DBE boost option.
For technical support visit www.jaga.co.uk or telephone 01531 631 533
21

Next
Go to product page on website
EN
442
Cocoon LST

Cocoon LST
Wall mounted
LST radiator
EN
Cocoon
LST
442
EN
442
Connection
sets and
valves
page
EN54
Parts
page 74
Design
considerations
page 82
Correction
factors
page 84
Technical
information
page 86
442
Description
EN
Low-H2O heat exchangers comprise round, seamless circulation
442
tubes made from pure red copper, with pure aluminium fins and
two brass collectors for left or right 1/2” same end connection.
Air vent 1/8” and drain plug 1/2” are included.
Brackets are made from 1mm galvanised steel plate; supplied to
be installed with a maximum intermediate distance of 1.05m.
With grille supports for exact height positioning (only for length
1400 to 3000mm).
position
pencil proof
grille (option)
Product range and dimensions (mm)
Connections
Type
Jaga valves can
be concealed within the standard casing.
position
75
110
b
pencilbe
proof
Other valves may
partially visible.
d
10
120
53
11 (twin)
120
53
15
170
78
L
position54 for more detailed information
Refer to page
on connection
locks
75
110
setsb and(option)
valves.
16 (twin)
170
78
Type
20
220
103
21 (twin)
220
103
10
d
Cocoon LST wall mounted
Example with right hand connection
15
position
locks
(option)
d
78
20
100
103
103
Code
L
5095.016
Pencil-proof grille
L
50
50
d
100
205
50
230
205
230
£
46.30
50
135
Example with left hand connection
Example
with Jaga
valve
(option)
Example
with Jaga
valve
(option)
Unobtrusively positioned below the standard top grille. Optional
pencil-proof grille in the same finish as the casing: avoiding the
possibility of smaller objects or waste falling within the casing.
May affect output when used.
Price: see Parts page 74.
Max.65
50
d
High UV resistance to ASTM G53.
The heat exchanger is electrostatically lacquered with
anthracite grey epoxy polyester to RAL 7024 for a dirt-repellent
and dust-free finish.
Max.65
50
L
50
135
Example with right hand connection
110
Example
with Jaga
valve
(option)
50
110
205
230
Weights (kg/m) and water content (litres/m)
Wall mounted model heights (mm)
(weight in kg/m)
Max.65
50
d
205
Water content
(litre/m)
500
600
700
800
900
1000
5.4
6.6
7.8
9.0
10.3
11.5
–
11
–
8.2
9.4
10.7
11.9
13.1
18.4
1.33
15
6.7
8.1
9.5
10.8
12.2
13.6
–
0.98
16
–
10.8
12.2
13.6
14.9
16.3
22.2
1.98
20
8.3
9.8
11.3
12.9
14.4
15.9
–
1.32
21
–
13.4
14.9
16.4
17.9
19.4
24.8
2.66
50
230
50
Max.65
d
205
400
Example without
TRV and no perforation in the
side panel
Example without
TRV and no perforation in the
side panel
50
d
10
The casing cannot be detached without tools.
2 per casing.
100
100
Standard colour is White 101/RAL 9010.
Casing locks
78
d
L
110
£
86.40
53
135
Colour
Type
H
100
H
Scratch-resistant surface coating with a soft structured finish.
5090.13001
53
100
position
locks
(option)
At corners the grille is supplied with high standard synthetic
angled corner pieces in same finish as casing.
Code
to wall
d (mm)
21 (twin)
75
b
Top grilles are galvanised steel plate (0.80 mm thick), profiled
backwards angled steel plate with angled top.
Jaga thermostatic head included. When
ordering a top valve, add to the code of the
Cocoon LST /UK30 (top left) or /UK60 (top right).
H Connection
16 (twin)
position
pencil proof
grille (option)
Side panels are profiled 1mm galvanised steel plate.
Top valve
grille (option)
11 (twin)
Cocoon LST front panels are 0.86mm galvanised steel plates,
double profiled in length. Supplied with small positioning holes
and slots to assemble front panels to side panel with easy click
system.
Optional accessories
L
b
4
22

Previous
230
50
0.65
Max.65
110
Example without
TRV and no perforation in the
side panel
50
d
205
230
For technical support visit www.jaga.co.uk or telephone 01531 631 533
Max.65
23

24
Previous

Next
EN
442
Cocoon LST
Cocoon LST
EN
Cocoon
LST wall mounted (COCW...)
442
L
EN
442
Connection
sets and
valves
page
EN54
Parts
page 74
Design
considerations
page 82

Go to product page on website
Correction
factors
page 84
H
Technical
information
page 86
442
400mm high | wall mounted
Standard
Length
(mm)
Type Watts
Price
(£)
Length
(mm)
500mm high | wall mounted
EN
Standard
442
Type Watts
Standard
Price
(£)
Length
(mm)
Type Watts
Price
(£)
600mm high | wall mounted
Twin
Type Watts
With DBE
Price
(£)
Type
Watts
75/65 45/38
Standard
Price
(£)
Length
(mm)
Type Watts
Price
(£)
700mm high | wall mounted
Twin
Type Watts
With DBE
Price
(£)
Type
Watts
75/65 45/38
Standard
Price
(£)
Length
(mm)
Type Watts
400
10
15
20
262
409
557
240.90
260.10
279.70
1400
10
15
20
917 379.10
1432 435.90
1949 511.70
400
10
15
20
330 248.00
510 268.70
693 288.60
11
16
21
448 312.10
558 344.30
710 356.80
–
–
–
–
–
–
–
–
–
–
–
–
400
10
15
20
385 255.20
589 276.70
798 297.80
11
16
21
506 319.20
640 351.60
829 366.20
–
–
–
–
–
–
–
–
–
–
–
–
400
10
15
20
500
10
15
20
328
512
696
251.90
274.00
296.80
1600
10
15
20
1048 425.60
1637 494.70
2227 585.20
500
10
15
20
413 259.90
638 283.20
866 306.80
11
16
21
561 328.80
697 365.50
888 381.10
–
–
–
–
–
–
–
–
–
–
–
–
500
10
15
20
482 267.90
736 291.50
998 316.40
11 632 336.50
16 800 374.00
21 1037 391.20
–
–
–
–
–
–
–
–
–
–
–
–
500
600
10
15
20
393
614
835
259.80
284.80
310.70
1800
10
15
20
1179 448.40
1841 525.00
2506 623.10
600
10 496 268.10
15 766 294.70
20 1039 321.00
11 673 341.50
16 836 383.00
21 1066 401.70
11 973 418 496.20
16 1316 566 545.40
21 1546 665 564.10
600
10 578 276.80
15 883 303.70
20 1198 331.70
11 758 349.80
16 960 391.90
21 1244 412.70
11 1058 455 504.40
16 1440 619 554.40
21 1724 741 575.10
700
10
15
20
459
716
974
280.10
310.80
342.50
2000
10
15
20
1310 474.70
2046 577.10
2784 663.70
700
10 578 289.80
15 893 322.00
20 1212 353.80
11 785 372.90
16 976 424.50
21 1243 448.40
11 1085 467 527.50
16 1456 626 586.90
21 1723 741 610.90
700
10 674 299.20
15 1030 331.70
20 1397 365.10
11 885 382.20
16 1120 434.10
21 1451 459.90
800
10
15
20
524 290.90
818 324.50
1114 359.70
2200
10
15
20
1441 520.90
2251 639.40
3062 741.80
800
10 661 301.30
15 1021 336.40
20 1386 371.90
11 897 398.30
16 1115 446.20
21 1421 473.60
11 1197 515 543.90
16 1595 686 608.60
21 1901 817 636.00
800
10 770 311.50
15 1178 347.00
20 1597 383.90
900
10
15
20
590 301.30
921 338.20
1253 376.40
2400
10
15
20
1572 563.90
2455 691.30
3341 802.20
900
10 743 312.10
15 1148 350.70
20 1559 389.20
11 1009 404.90
16 1255 467.40
21 1598 497.90
11 1609 692 617.90
16 2215 952 696.00
21 2558 1100 726.50
900
1000
10
15
20
655 317.40
1023 359.30
1392 402.70
2600
10
15
20
1703 590.60
2660 726.50
3619 845.40
1000
10 826 328.80
15 1276 372.40
20 1732 416.40
11 1121 429.80
16 1394 500.90
21 1776 536.70
11 1721 740 642.90
16 2354 1012 729.50
21 2736 1176 765.40
1100
10
15
20
721 329.00
1125 375.20
1531 421.80
2800
10
15
20
1834 624.10
2864 767.60
3898 894.60
1100
10 909 342.00
15 1404 389.20
20 1905 436.20
11 1233 447.60
16 1533 524.80
21 1954 564.40
1200
10
15
20
786 339.40
1228 388.40
1670 438.90
3000
10
15
20
1965 647.60
3069 799.60
4176 934.90
1200
10 991 352.70
15 1531 403.00
20 2078 454.20
1400
How to order (example)
Product Height Length
COCW
050
040
Type
11
Colour
101
Using above ordering code will result in a Type 11, Cocoon, twin
emitter, with white casing 500mm high and 400mm long
Price
(£)
430 261.40
651 283.80
882 306.20
Twin
Type Watts
With DBE
Price
(£)
Type
Watts
75/65 45/38
Price
(£)
554 325.80
715 359.30
942 374.30
–
–
–
–
–
–
–
–
–
–
–
–
10 538 274.90
15 814 300.00
20 1102 325.80
11 693 344.10
16 894 382.30
21 1177 400.30
–
–
–
–
–
–
–
–
–
–
–
–
600
10 646 284.70
15 977 312.90
20 1322 341.40
11 832 357.80
16 1072 401.10
21 1412 421.80
11 1132 487 512.40
16 1552 667 563.60
21 1892 814 584.20
11 1185 510 536.80
16 1600 688 596.50
21 1931 830 622.30
700
10 753 307.60
15 1140 341.70
20 1543 375.80
11 970 391.00
16 1251 444.20
21 1648 470.40
11 1270 546 545.60
16 1731 744 606.60
21 2128 915 632.80
11 1011 399.20
16 1280 456.80
21 1658 486.20
11 1311 564 553.80
16 1760 757 619.20
21 2138 919 648.60
800
10 861 320.80
15 1302 357.70
20 1763 395.40
11 1109 408.80
16 1430 467.50
21 1883 497.10
11 1409 606 563.50
16 1910 821 629.90
21 2363 1016 659.50
10 867 323.50
15 1325 362.20
20 1796 401.80
11 1138 415.60
16 1440 478.80
21 1866 510.80
11 1738 747 628.60
16 2400 1032 707.50
21 2826 1215 739.50
900
10 968 333.40
15 1465 373.80
20 1984 414.10
11 1247 426.10
16 1608 490.30
21 2119 522.70
11 1847 794 639.10
16 2568 1104 718.90
21 3079 1324 751.40
1000
10 963 340.50
15 1472 384.50
20 1996 429.90
11 1264 441.30
16 1600 512.90
21 2073 550.40
11 1864 802 654.30
16 2560 1101 741.50
21 3033 1304 779.10
1000
10 1076 351.60
15 1628 396.60
20 2204 443.00
11 1386 452.30
16 1787 525.20
21 2354 563.40
11 1986 854 665.30
16 2747 1181 753.80
21 3314 1425 792.00
11 1833 788 660.60
16 2493 1072 753.50
21 2914 1253 793.10
1100
10 1059 354.50
15 1619 402.10
20 2196 451.00
11 1390 459.90
16 1760 537.70
21 2280 579.10
11 1990 856 672.90
16 2720 1170 766.30
21 3240 1393 807.70
1100
10 1184 366.20
15 1791 415.40
20 2424 464.70
11 1525 472.00
16 1966 550.90
21 2589 592.50
11 2125 914 685.00
16 2926 1258 779.60
21 3549 1526 821.10
11 1345 463.60
16 1673 546.30
21 2131 589.20
11 1945 836 676.70
16 2633 1132 775.00
21 3091 1329 817.90
1200
10 1156 366.00
15 1766 416.90
20 2395 469.50
11 1517 476.50
16 1920 560.10
21 2488 604.80
11 2117 910 689.50
16 2880 1238 788.80
21 3448 1483 833.40
1200
10 1291 378.50
15 1954 430.60
20 2645 484.00
11 1663 489.30
16 2144 573.60
21 2825 619.20
11 2263 973 702.30
16 3104 1335 802.30
21 3785 1628 847.90
10 1156 395.20
15 1786 452.90
20 2425 529.50
11 1569 516.90
16 1952 611.60
21 2486 691.20
11 2169 933 730.00
16 2912 1252 840.30
21 3446 1482 919.90
1400
10 1348 410.60
15 2061 468.70
20 2794 547.40
11 1770 532.10
16 2240 627.70
21 2902 709.40
11 2370 1019 745.10
16 3200 1376 856.30
21 3862 1661 938.10
1400
10 1506 425.30
15 2279 485.40
20 3086 564.70
11 1940 546.90
16 2502 643.90
21 3296 726.60
11 2540 1092 759.90
16 3462 1489 872.60
21 4256 1830 955.30
1600
10 1322 442.90
15 2042 513.20
20 2771 604.10
11 1794 585.20
16 2230 701.50
21 2842 795.70
11 2994 1287 915.20
16 4150 1785 1062.60
21 4762 2048 1156.80
1600
10 1541 459.90
15 2355 530.60
20 3194 623.60
11 2022 602.10
16 2560 718.90
21 3317 815.20
11 3222 1385 932.10
16 4480 1926 1080.10
21 5237 2252 1176.40
1600
10 1722 476.30
15 2605 548.70
20 3526 642.20
11 2218 618.20
16 2859 736.90
21 3766 834.10
11 3418 1470 948.20
16 4779 2055 1098.00
21 5686 2445 1195.20
1800
10 1487 467.40
15 2297 544.80
20 3118 643.80
11 2018 620.20
16 2509 748.70
21 3197 851.10
11 3218 1384 950.20
16 4429 1904 1109.80
21 5117 2200 1212.20
1800
10 1733 485.80
15 2650 564.40
20 3593 665.20
11 2275 638.40
16 2880 768.20
21 3731 872.40
11 3475 1494 968.40
16 4800 2064 1129.30
21 5651 2430 1233.50
1800
10 1937 504.00
15 2930 583.80
20 3967 685.30
11 2495 656.70
16 3217 787.60
21 4237 892.90
11 3685 1589 986.60
16 5137 2209 1148.80
21 6157 2648 1254.00
2000
10 1652 495.00
15 2552 598.70
20 3464 686.00
11 2242 658.20
16 2788 832.60
21 3552 909.70
11 3442 1480 988.10
16 4708 2024 1193.70
21 5472 2353 1270.80
2000
10 1926 515.10
15 2944 619.30
20 3992 709.20
11 2528 678.00
16 3200 853.30
21 4146 932.40
11 3728 1603 1007.90
16 5120 2202 1214.50
21 6066 2608 1293.50
2000
10 2152 534.80
15 3256 640.70
20 4408 730.90
11 2772 697.90
16 3574 874.70
21 4708 954.40
11 3972 1708 1027.80
16 5494 2362 1235.90
21 6628 2850 1315.60
2200
10 1817 542.80
15 2807 662.80
20 3810 765.70
11 2466 729.80
16 3067 932.30
21 3907 1023.60
11 3666 1576 1059.80
16 4987 2144 1293.40
21 5827 2506 1384.70
2200
10 2119 564.60
15 3238 685.00
20 4391 790.00
11 2781 751.20
16 3520 954.40
21 4561 1047.60
11 3981 1712 1081.20
16 5440 2339 1315.60
21 6481 2787 1408.80
2200
10 2367 585.40
15 3582 707.70
20 4849 813.30
11 3049 772.40
16 3931 977.10
21 5179 1071.50
11 4249 1827 1102.40
16 5851 2516 1338.20
21 7099 3053 1432.60
2400
10 1982 588.50
15 3062 717.10
20 4157 828.40
11 2690 788.30
16 3346 1005.40
21 4262 1105.30
11 4490 1931 1235.00
16 6226 2677 1499.10
21 7142 3071 1599.00
2400
10 2311 612.50
15 3533 741.60
20 4790 855.70
11 3034 812.00
16 3840 1030.10
21 4975 1132.60
11 4834 2079 1258.70
16 6720 2890 1523.80
21 7855 3378 1626.30
2400
10 2582 635.70
15 3907 767.00
20 5290 881.80
11 3326 835.20
16 4289 1055.40
21 5650 1158.90
11 5126 2204 1282.00
16 7169 3083 1549.10
21 8530 3668 1652.60
2600
10 2148 616.70
15 3318 753.50
20 4503 873.10
11 2915 828.70
16 3624 1059.40
21 4618 1167.80
11 4715 2027 1275.40
16 6504 2797 1553.10
21 7498 3224 1661.50
2600
10 2504 642.20
15 3827 779.50
20 5190 902.00
11 3286 854.00
16 4160 1085.90
21 5390 1196.60
11 5086 2187 1300.70
16 7040 3027 1579.60
21 8270 3556 1690.30
2600
10 2798 666.90
15 4233 806.60
20 5730 929.70
11 3604 878.70
16 4646 1112.90
21 6120 1224.30
11 5404 2324 1325.40
16 7526 3236 1606.60
21 9000 3870 1718.00
2800
10 2313 652.00
15 3573 796.40
20 4850 924.20
11 3139 875.50
16 3903 1119.50
21 4973 1236.20
11 4939 2124 1322.20
16 6783 2917 1613.20
21 7853 3377 1729.90
2800
10 2696 679.10
15 4122 824.20
20 5589 954.50
11 3539 902.50
16 4480 1147.40
21 5804 1266.70
11 5339 2296 1349.30
16 7360 3165 1641.10
21 8684 3734 1760.40
2800
10 3013 705.70
15 4558 852.60
20 6171 984.20
11 3881 929.10
16 5004 1175.90
21 6591 1296.20
11 5681 2443 1375.80
16 7884 3390 1669.60
21 9471 4073 1789.90
3000
10 2478 676.90
15 3828 829.70
20 5196 965.90
11 3363 911.60
16 4182 1169.60
21 5328 1294.90
11 5163 2220 1358.40
16 7062 3037 1663.30
21 8208 3529 1788.60
3000
10 2889 705.70
15 4416 858.80
20 5988 997.90
11 3792 939.90
16 4800 1199.00
21 6219 1326.90
11 5592 2405 1386.50
16 7680 3302 1692.70
21 9099 3913 1820.60
3000
10 3228 733.50
15 4884 889.10
20 6612 1028.80
11 4158 968.10
16 5361 1229.10
21 7062 1357.80
11 5958 2562 1414.80
16 8241 3544 1722.90
21 9942 4275 1851.40
11
16
21
Standard connections*
Standard delivery
Outputs
Bottom left or right, valve position 20 (left) or 70 (right)
Standard delivery includes casing, wall brackets, automatic air vent
and drain plug 1/2”.
Measured in accordance with EN 442. Water temperature of
75/65°C and room temperature of 20°C (ΔT=50).
For optional top valve, add suffix to the code /UK30 (top left) or
/UK60(top right), e.g. COCW 050 040 11 101/UK60
For no perforation for TRV in the side panel, add suffix to the code
/00, e.g. COCW 050 040 11 101/00
* See page 54 for connection sets and valves
For technical support visit www.jaga.co.uk or telephone 01531 631 533
25

26

Previous
Next
Go to product page on website
EN
442
Cocoon LST
Cocoon LST
EN
Cocoon
LST wall mounted (COCW...)
442
L
EN
442
Connection
sets and
valves
page
EN54
Design
considerations
page 82
Parts
page 74

Correction
factors
page 84
H
Technical
information
page 86
442
900mm high | wall mounted
EN
442
Standard
Length
(mm)
800mm high | wall mounted
Standard
Length
(mm)
400
500
600
700
800
900
1000
1100
1200
Type Watts
Price
(£)
Twin
Type Watts
With DBE
Price
(£)
Type
Watts
75/65 45/38
Standard
Price
(£)
Length
(mm)
468 269.00
701 291.70
948 315.00
11 598 333.20
16 785 367.40
21 1051 383.00
11
16
21
–
–
–
–
–
–
–
–
–
1400
10 585 283.30
15 876 309.10
20 1185 335.10
11 747 352.40
16 981 391.10
21 1314 409.80
11
16
21
–
–
–
–
–
–
–
–
–
1600
10 702 293.70
15 1051 322.10
20 1422 351.40
11 896 366.70
16 1177 410.60
21 1576 432.20
11 1196 514 521.30
16 1657 713 573.00
21 2056 884 594.60
1800
10 819 318.00
15 1226 352.10
20 1659 386.80
11 1046 400.90
16 1373 454.50
21 1839 481.60
11 1346 579 555.50
16 1853 797 617.00
21 2319 997 644.00
2000
10 936 331.70
15 1402 368.60
20 1896 407.30
11 1195 419.40
16 1570 478.60
21 2102 509.10
11 1495 643 574.10
16 2050 882 641.00
21 2582 1110 671.50
2200
10 1053 344.90
15 1577 385.30
20 2133 426.80
11 1345 437.10
16 1766 502.20
21 2364 535.20
11 1945 836 650.10
16 2726 1172 730.80
21 3324 1429 763.90
2400
10 1170 363.80
15 1752 409.40
20 2370 456.60
11 1494 464.60
16 1962 537.70
21 2627 576.50
11 2094 900 677.60
16 2922 1256 766.30
21 3587 1542 805.20
2600
10 1287 379.10
15 1927 428.60
20 2607 478.80
11 1643 484.60
16 2158 564.40
21 2890 606.80
11 2243 964 687.60
16 3118 1341 793.10
21 3850 1656 835.50
2800
10 1404 392.20
15 2102 444.80
20 2844 498.60
11 1793 502.80
16 2354 587.80
21 3152 633.90
11 2393 1029 715.80
16 3314 1425 816.40
21 4112 1768 862.50
3000
10
15
20
How to order (example)
Product Height Length
COCW
080
040
Type
11
Colour
101
Using above ordering code will result in a Type 11, Cocoon, twin
emitter, with white casing 800mm high and 400mm long
Type Watts
Price
(£)
Twin
Type Watts
Type
Watts
75/65 45/38
Price
(£)
Price
(£)
Twin
Type Watts
Twin
With DBE
Price
(£)
Type
Watts
75/65 45/38
Price
(£)
Length
(mm)
Type Watts
With DBE
Price
(£)
Type
Watts
75/65 45/38
Price
(£)
400
10 499 275.70
15 740 299.30
20 1001 323.60
11 636 340.00
16 851 375.00
21 1158 391.80
–
–
–
–
–
–
–
–
–
–
–
–
400
11 671 347.00
16 915 383.00
21 1266 400.80
–
–
–
–
–
–
–
–
–
–
–
–
500
10 624 290.90
15 926 317.50
20 1251 344.90
11 795 359.70
16 1064 399.80
21 1448 419.40
–
–
–
–
–
–
–
–
500
11 839 367.50
16 1144 408.50
21 1583 429.30
–
–
–
–
–
–
–
–
–
–
–
–
600
10 646 284.70
15 977 312.90
20 1322 341.40
11 954 374.60
16 1277 419.40
21 1738 442.30
11 1254 539 529.20
16 1757 756 581.90
21 2218 954 604.80
600
11 1007 383.00
16 1373 428.70
21 1899 452.30
11 1307 562 537.60
16 1853 797 591.20
21 2379 1023 614.70
700
10 874 327.00
15 1296 362.20
20 1751 397.90
11 1113 409.80
16 1490 464.70
21 2027 492.40
11 1413 608 564.40
16 1970 847 627.10
21 2507 1078 654.80
700
11 1175 419.20
16 1602 474.80
21 2216 503.60
11 1475 634 573.80
16 2082 895 637.20
21 2696 1159 666.10
800
10 998 341.50
15 1481 379.70
20 2002 419.10
11 1272 429.50
16 1702 489.60
21 2317 520.90
11 1572 676 584.10
16 2182 938 652.10
21 2797 1203 683.30
800
11 1342 439.30
16 1830 500.70
21 2532 533.00
11 1642 706 594.00
16 2310 993 663.10
21 3012 1295 695.40
900
10 1123 355.20
15 1666 396.60
20 2252 438.90
11 1431 447.60
16 1915 513.50
21 2606 547.40
11 1847 794 660.60
16 2568 1104 742.20
21 3079 1324 776.10
900
11 1510 458.70
16 2059 525.30
21 2849 560.40
11 2110 907 671.10
16 3019 1298 753.90
21 3809 1638 789.00
1000
10 1248 375.00
15 1851 421.60
20 2502 469.60
11 1590 475.60
16 2128 550.00
21 2896 589.90
11 2190 942 688.70
16 3088 1328 778.60
21 3856 1658 818.60
1000
11 1678 487.30
16 2288 562.60
21 3165 603.40
11 2278 980 700.30
16 3248 1397 791.30
21 4125 1774 832.00
1100
10 1373 391.20
15 2036 441.60
20 2752 492.90
11 1749 496.90
16 2341 577.20
21 3186 621.00
11 2349 1010 709.90
16 3301 1419 805.80
21 4146 1783 849.70
1100
11 1846 509.30
16 2517 590.60
21 3482 635.50
11 2446 1052 722.40
16 3447 1495 819.30
21 4442 1910 864.10
1200
10 1498 405.10
15 2221 458.70
20 3002 513.50
11 1908 515.70
16 2554 601.80
21 3475 648.50
11 2508 1078 728.80
16 3514 1511 830.40
21 4435 1907 877.20
1200
11 2014 529.10
16 2746 615.90
21 3798 663.70
11 2614 1124 742.20
16 3706 1594 844.60
21 4758 2046 892.40
With DBE
Price
(£)
Type Watts
1000mm high | wall mounted
10 1638 441.40
15 2453 501.70
20 3318 581.70
11 2092 562.90
16 2747 660.60
21 3678 743.70
11 2692 1158 776.00
16 3707 1594 889.30
21 4638 1994 972.30
1400
11 2390 635.70
16 3139 754.90
21 4203 852.40
11 3590 1544 965.70
16 5059 2175 1116.00
21 6123 2633 1213.50
11 2226 578.20
16 2979 676.90
21 4054 761.20
11 2826 1215 791.30
16 3939 1694 905.50
21 5014 2156 989.90
1400
10 1872 494.00
15 2803 566.80
20 3792 660.70
10 1747 456.60
15 2591 518.10
20 3503 599.70
11 2349 593.40
16 3203 693.40
21 4431 778.90
11 2949 1268 806.50
16 4163 1790 922.00
21 5391 2318 1007.50
1600
11 2689 675.40
16 3532 807.40
21 4729 912.80
11 3889 1672 1005.40
16 5452 2344 1168.50
21 6649 2859 1273.90
11 2544 652.50
16 3405 772.50
21 4634 871.80
11 3744 1610 982.50
16 5325 2290 1133.70
21 6554 2818 1233.00
1600
10 2106 523.00
15 3154 603.40
20 4266 705.80
10 1997 510.50
15 2962 584.60
20 4003 680.40
11 2685 669.20
16 3661 790.60
21 5064 890.90
11 3885 1671 999.20
16 5581 2400 1151.70
21 6984 3003 1252.00
1800
11 2988 718.30
16 3924 895.70
21 5254 976.20
11 4188 1801 1048.30
16 5844 2513 1256.80
21 7174 3085 1337.30
11 2862 694.00
16 3830 826.50
21 5213 933.70
11 4062 1747 1024.00
16 5750 2473 1187.60
21 7133 3067 1294.80
1800
10 2340 555.40
15 3504 661.80
20 4740 752.50
10 2246 541.10
15 3332 622.80
20 4504 726.60
11 3020 712.30
16 4118 846.30
21 5697 954.50
11 4220 1815 1042.30
16 6038 2596 1207.40
21 7617 3275 1315.70
2000
11 3287 794.50
16 4316 999.90
21 5779 1094.50
11 4487 1929 1124.50
16 6236 2681 1361.00
21 7699 3311 1455.60
11 3180 738.20
16 4256 916.80
21 5792 998.50
11 4380 1883 1068.20
16 6176 2656 1277.90
21 7712 3316 1359.60
2000
10 2574 608.10
15 3854 730.40
20 5214 836.70
10 2496 575.20
15 3702 683.00
20 5004 775.30
11 3356 758.60
16 4576 937.90
21 6330 1020.60
11 4556 1959 1088.60
16 6496 2793 1299.00
21 8250 3548 1381.70
2200
11 3586 860.10
16 4709 1080.60
21 6305 1184.80
11 5386 2316 1306.80
16 7589 3263 1574.30
21 9185 3950 1678.50
11 3498 816.00
16 4682 1022.50
21 6371 1118.30
11 4698 2020 1146.00
16 6602 2839 1383.60
21 8291 3565 1479.40
2200
10 2808 660.60
15 4205 792.20
20 5688 907.90
10 2746 629.20
15 4072 753.40
20 5504 860.70
11 3692 837.70
16 5034 1045.50
21 6963 1142.40
11 4892 2104 1167.70
16 6954 2990 1406.60
21 8883 3820 1503.60
2400
11 3884 905.10
16 5101 1139.30
21 6830 1251.60
11 5684 2444 1351.80
16 7981 3432 1633.00
21 9710 4175 1745.30
11 3816 883.70
16 5107 1105.60
21 6950 1211.50
11 5616 2415 1330.40
16 7987 3434 1599.30
21 9830 4227 1705.20
2400
10 3042 693.50
15 4555 833.50
20 6162 957.50
10 2995 684.10
15 4442 817.30
20 6005 934.80
11 4027 907.80
16 5491 1131.00
21 7596 1238.10
11 5827 2506 1354.50
16 8371 3600 1624.70
21 10476 4505 1731.80
2600
11 4183 957.20
16 5494 1204.50
21 7356 1325.00
11 5983 2573 1403.90
16 8374 3601 1698.20
21 10236 4401 1818.70
11 4134 930.30
16 5533 1166.10
21 7530 1280.10
11 5934 2552 1377.00
16 8413 3618 1659.80
21 10410 4476 1773.80
2600
10 3276 733.70
15 4906 881.40
20 6636 1013.30
10 3245 718.40
15 4813 860.10
20 6505 985.60
11 4363 955.70
16 5949 1192.90
21 8229 1308.10
11 6163 2650 1402.40
16 8829 3796 1686.60
21 11109 4777 1801.80
2800
11 4482 997.20
16 5886 1259.00
21 7881 1388.30
11 6282 2701 1444.10
16 8766 3769 1752.00
21 10761 4627 1882.00
11 4452 983.70
16 5958 1232.40
21 8109 1354.90
11 6252 2688 1430.40
16 8838 3800 1726.10
21 10989 4725 1848.60
2800
10 3510 763.00
15 5256 919.10
20 7110 1059.40
10 3494 760.10
15 5183 909.70
20 7006 1043.30
11 4698 1011.30
16 6406 1261.20
21 8862 1384.50
11 6498 2794 1458.00
16 9286 3993 1754.90
21 11742 5049 1878.20
3000
10 3744 791.10
15 5553 948.90
20 7506 1090.90
11 4770 1025.80
16 6384 1288.60
21 8688 1419.70
11 6570 2825 1472.50
16 9264 3984 1782.30
21 11568 4974 1913.40
3000
11 5034 1054.40
16 6864 1319.00
21 9495 1451.20
11 6834 2939 1501.10
16 9744 4190 1812.60
21 12375 5321 1944.90
Standard connections*
Standard delivery
Outputs
Bottom left or right, valve position 20 (left) or 70 (right)
Standard delivery includes casing, wall brackets, automatic air vent
and drain plug 1/2”.
Measured in accordance with EN 442. Water temperature of
75/65°C and room temperature of 20°C (ΔT=50).
For optional top valve, add suffix to the code /UK30 (top left) or
/UK60(top right), e.g. COCW 080 040 11 101/UK60
For no perforation for TRV in the side panel, add suffix to the code
/00, e.g. COCW 080 040 11 101/00
* See page 54 for connection sets and valves
For technical support visit www.jaga.co.uk or telephone 01531 631 533
27


Next
Go to product page on website
Guardian LST

Guardian LST
Guardian LST
Ne
w
28
Previous
 Product data
 Design considerations
 Outputs Freestanding (GUAR...FT)
 Technical information
 Outputs Wall mounted (GUAR...WT)  Correction factors
 Connection sets & valves
 Parts
 Back to product overview
The latest addition to our comprehensive LST range, the new Guardian LST
has been designed to be the UK's easiest and fastest LST radiator to install.
Available in wall (WT) and ‘to the floor’ (FT) designs there is a Guardian LST
for every application.
The strong one-piece casing features chamfered corners and ‘knock-outs’
for TRVs and for skirting or pipe trunking (FT model).
Features
> extensive range of sizes
> wall or floor models
> easy to handle, store and install
> valve bodies can be hidden within standard casing
> stylish casing with rounded corners stays safe to
touch, even at high flow temperatures
> ‘knock outs’ for valve and skirting/trunking
> if casing gets damaged, it’s easily replaceble
> casing locks included for extra security
> DBE option available
Low-H2O heat exchanger made
from copper and aluminium:
> non-corrosive (guaranteed for 30 years)
> pressure tested to 20 bar (working pressure 10 bar)
> efficient: rapid heating up due to super low water
content and low thermal mass
> high heat output achieved with normal and lower
flow temperatures
> the optimum combination high output convection
and safe surface temperature
30
YEARS
Heat emitter
guarantee
(all products)
10
3
YEARS
YEARS
Casings and
components
(all products)
Valves for
Low-H2O heat
exchangers
‘Single piece casing for fast installation’
Twin power and DBE ‘Boost’
Guardian LST is also available with the super-powered
twin heat exchangers. The boiler temperature is on
average 15% lower for equivalent radiator dimensions
and output.
> for the lowest temperature systems specify Guardian
with DBE boost option.
For technical support visit www.jaga.co.uk or telephone 01531 631 533
29
30

Previous
Next
Go to product page on website
Guardian LST
Guardian LST
Available in
wall mounted and
‘to the floor’ options
Guardian LST
EN
442
Connection
sets and
valves
page 54

Parts
page 76
Design
considerations
page 82
Correction
factors
page 84
Technical
information
page 86
Description
Product range and dimensions (mm)
Connections
Optional accessories
Low-H2O heat exchangers comprise round, seamless circulation
tubes made from pure red copper, with pure aluminium fins and
two brass collectors for left or right 1/2” same end connection.
Air vent 1/8” and drain plug 1/2” are included.
Type
Jaga valves can be concealed within the standard casing.
Other valves may be partially visible.
Top valve
Brackets are made from 1mm galvanised steel plate; supplied to
be installed with a maximum intermediate distance of 1.05m.
B
d
h min*
10
119
52
100
11 (twin)
119
52
100
15
169
77
120
Refer to page 54 for more detailed information on connection
sets and valves.
16 (twin)
169
77
120
Type
Connection to floor
d (mm)
Connection to wall
A (mm)
10
52
29
11 (twin)
52
29
Pencil-proof grille
15
77
53
16 (twin)
77
53
Unobtrusively positioned below the standard top grille. Optional
pencil-proof grille in the same finish as the casing: avoiding the
possibility of smaller objects or waste falling within the casing.
* smaller dimensions can decrease output.
Guardian LST front and side panels are 1.25mm electrolytic
galvanised steel plate, from 1 continuous sheet.
Guardian floor model
Side panels come with laser cut knock-outs to allow for various
valve configuration options (top left, top right, bottom left, bottom
right).
L
h
80
150
150
Jaga thermostatic head included. When
ordering a top valve, add to the code of the
Tempo LST /30 (top left) or /60 (top right).
4

Code
5090.13001
£
86.40
May affect output when used.
Available in wall and floor models.
Example with Jaga Pro valve: to the floor (WT only)
For both models - casings are profiled to avoid sharp edges. Top
grilles are galvanised steel plate (0.80 mm thick), profiled
backwards angled steel plate with angled top.
Price: see Parts page 76.
H
75
For the floor model only, additional laser cut knock-outs to
accommodate low level pipework, with cut-outs in the lower
sections of the brackets to allow the pipe work to run through.
Laser cut front grille.
d
B
Colour
25
110
55 for Jaga
valves (max. 70)
X
Y
Guardian wall model
Scratch-resistant surface polyester powder coating with a soft
structured, satin gloss finish.
L
h
26
d
80
150
150
38 20
Example with Jaga valve: to the floor
Standard colour is white 233/RAL 9016.
The heat exchanger is electrostatically lacquered with anthracite
grey epoxy polyester to RAL 7024 for a dirt-repellent and dustfree finish.
81
H
50
55 for Jaga
valves (max. 70)
X
Y
31
d
h
B
25
60
option
d
50 37
60
option
W
50 37
Example with Jaga valve: to the wall
Weights (kg/m) and water content (litres/m)
Type
Wall mounted model heights (mm)
(weight in kg/m)
Floor model heights (mm)
(weight in kg/m)
Water content
(litre/m)
50
400
500
600
400
500
600
800
10
8.6
9.9
11.3
6
7.3
8.6
11.3
0.65
11
10.3
11.8
13.1
7.7
9
10.3
13.1
1.33
15
10.5
11.9
13.4
7.3
8.9
10.5
13.4
0.98
16
13.4
15
16.4
10.3
11.9
13.4
16.4
1.98
A
d
24
25
Totally concealed
within the casing
Without TRV
For technical support visit www.jaga.co.uk or telephone 01531 631 533
31

32

Previous
Next
EN
442
Guardian LST
Guardian LST
EN
Guardian
LST wall (GUAR.../WT) floor (GUAR.../FT)
442
L
EN
442
Connection
sets and
valves
page
EN54
Design
considerations
page 82
Parts
page 76

Go to product page on website
H
Correction
factors
page 84
Technical
information
page 86
442
400mm high | floor model FT
400mm high | wall model WT EN
Standard
Length
(mm)
Type Watts
Price
(£)
With DBE
442
Twin
Type Watts
Price
(£)
Type
Watts
75/65 45/38
Standard
Price
(£)
Length
(mm)
Type Watts
Price
(£)
Twin
Type Watts
600mm high | floor model FT
With DBE
Price
(£)
Type
Watts
75/65 45/38
Standard
Price
(£)
Length
(mm)
Type Watts
Price
(£)
Twin
Type Watts
With DBE
Price
(£)
Type
Watts
75/65 45/38
Price
(£)
440
10
15
385 190.70
627 225.90
11
16
303.60
358.90
–
–
–
–
–
–
–
–
440
10
15
330
510
276.80
299.10
11
16
448
558
370.50
433.40
–
–
–
–
–
–
–
–
440
10
15
430 293.60
651 317.70
11
16
367.20
404.60
–
–
–
–
–
–
–
–
640
10
15
578 222.90
941 268.10
11 758 351.40
16 1020 423.60
–
–
–
–
–
–
–
–
640
10
15
496
766
298.40
327.60
11
16
673 405.50
836 495.60
–
–
–
–
–
–
–
–
640
10
15
646 318.20
977 349.20
11 832 402.20
16 1072 450.80
–
–
–
–
–
–
–
–
840
10 770 274.60
15 1254 335.50
11 1011 429.40
16 1360 528.80
11 1311 564 583.90
16 1840 791 691.20
840
10 661 334.80
15 1021 373.60
11 897 465.10
16 1115 580.60
11 1197 515 619.60
16 1595 686 743.00
840
10 861 358.10
15 1302 399.00
11 1109 459.30
16 1430 525.20
11 1409 606 613.80
16 1910 821 687.60
1040
10 963 318.00
15 1568 393.60
11 1264 495.40
16 1700 619.50
11 1864 802 708.40
16 2660 1144 848.20
1040
10 826 365.00
15 1276 413.20
11 1121 514.20
16 1394 654.60
11 1721 740 727.20
16 2354 1012 883.30
1040
10 1076 391.50
15 1628 442.00
11 1386 507.40
16 1787 589.70
11 1986 854 720.40
16 2747 1181 818.40
1240
10 1156 355.00
15 1882 443.10
11 1517 550.00
16 2040 695.10
11 2117 910 763.00
16 3000 1290 923.80
1240
10 991 390.40
15 1531 446.90
11 1345 571.10
16 1673 735.70
11 1945 836 784.10
16 2633 1132 964.40
1240
10 1291 421.00
15 1954 479.50
11 1663 548.20
16 2144 643.90
11 2263 973 761.20
16 3104 1335 872.60
1440
10 1348 397.40
15 2195 498.50
11 1770 611.30
16 2380 777.90
11 2670 1148 824.30
16 3820 1643 1006.60
1440
10 1146 436.10
15 1786 501.10
11 1569 611.10
16 1952 794.90
11 2469 1062 824.10
16 3392 1459 1023.60
1440
10 1506 471.80
15 2279 539.00
11 1940 611.80
16 2859 721.90
11 2840 1221 824.80
16 4229 1849 950.60
1840
10 1733 501.40
15 2509 636.90
11 2275 770.00
16 3060 995.60
11 3475 1494 1099.90
16 4980 2141 1356.80
1840
10 1487 515.60
15 2297 603.70
11 2018 738.10
16 2509 970.80
11 3218 1384 1068.00
16 4429 1904 1332.00
1840
10 1937 558.60
15 2930 648.90
11 2495 734.30
16 3217 883.20
11 3695 1589 1064.20
16 5137 2209 1244.40
506
680
500mm high | wall model WT
Standard
Length
(mm)
Type Watts
430
694
Price
(£)
203.20
241.90
Twin
Type Watts
11
16
554
759
500mm high | floor model FT
600mm high | wall model WT
With DBE
Price
(£)
Type
Watts
75/65 45/38
316.60
374.50
–
–
–
–
–
–
–
–
Standard
Price
(£)
Length
(mm)
Type Watts
–
–
–
–
440
10
15
–
–
–
–
640
Twin
Type
329.70
387.70
–
–
–
–
10 702 254.00
15 1120 302.20
11 896 382.70
16 1250 457.70
–
–
–
–
216.90
254.60
Type Watts
Length
(mm)
Price
(£)
Type Watts
–
–
–
–
440
10
15
385 285.40
589 309.10
11
16
–
–
–
–
640
10
15
578 308.80
883 338.90
11
16
With DBE
Price
(£)
Type
Watts
75/65 45/38
506
640
359.20
395.90
–
–
–
–
758
960
393.10
440.60
–
–
–
–
Standard
Price
(£)
Length
(mm)
Type Watts
–
–
–
–
440
10
15
–
–
–
–
640
Twin
Type
383.30
422.40
–
–
–
–
–
–
–
–
10 749 337.70
15 1051 371.10
11 954 421.60
16 1277 472.60
–
–
–
–
–
–
–
–
309.50
335.70
Type Watts
With DBE
Price
(£)
499
701
Price
(£)
11
16
636
851
Watts
75/65 45/38
Price
(£)
10
15
640
10 646 238.10
15 1040 286.40
11 832 366.90
16 1139 442.10
840
10 861 293.00
15 1387 356.80
11 1109 448.00
16 1518 550.00
11 1409 606 602.50
16 1998 859 712.40
840
10 936 311.70
15 1493 375.40
11 1195 466.50
16 1667 568.90
11 1495 643 621.00
16 2147 923 731.30
840
10 770 346.60
15 1178 386.90
11 1011 447.80
16 1280 513.50
11 1311 564 602.30
16 1760 757 675.90
840
10 998 381.50
15 1402 424.00
11 1272 482.30
16 1702 550.50
11 1572 676 636.80
16 2182 938 712.90
1040
10 1076 339.00
15 1734 417.60
11 1386 516.70
16 1898 643.40
11 1986 854 729.70
16 2858 1229 872.10
1040
10 1170 360.70
15 1866 438.80
11 1494 538.00
16 2084 664.80
11 2094 900 751.00
16 3044 1309 893.50
1040
10 963 378.10
15 1472 428.30
11 1264 494.30
16 1600 575.90
11 1864 802 707.30
16 2560 1101 804.60
1040
10 1248 416.90
15 1752 470.70
11 1590 534.30
16 2128 618.10
11 2190 942 747.30
16 3088 1328 846.80
1240
10 1291 379.20
15 2081 469.60
11 1663 379.20
16 2278 721.60
11 2263 973 592.20
16 3238 1392 950.30
1240
10 1404 403.00
15 2239 493.70
11 1793 597.80
16 2501 745.70
11 2393 1029 810.80
16 3461 1488 974.40
1240
10 1156 405.50
15 1766 463.80
11 1517 533.20
16 1920 628.20
11 2117 910 746.20
16 2880 1238 856.90
1240
10 1498 451.20
15 2102 511.60
11 1908 578.30
16 2554 676.10
11 2508 1078 791.30
16 3514 1511 904.80
1440
10 1506 425.40
15 2428 529.70
11 2218 639.10
16 2657 809.50
11 3118 1341 852.10
16 4097 1762 1038.20
1440
10 1638 453.70
15 2612 557.90
11 2092 667.70
16 2918 837.60
11 2992 1287 880.70
16 4358 1874 1066.30
1440
10 1541 454.60
15 2061 520.90
11 1770 594.60
16 2240 703.70
11 2670 1148 807.60
16 3680 1582 932.40
1440
10 1747 507.70
15 2453 576.90
11 2226 647.60
16 2979 759.70
11 3126 1344 860.60
16 4419 1900 988.40
1840
10 1937 534.60
15 3121 673.60
11 2495 803.10
16 3416 1032.40
11 3695 1589 1133.00
16 5336 2294 1393.60
1840
10 2106 568.10
15 3359 707.70
11 2689 836.50
16 3751 1066.60
11 3889 1672 1166.40
16 5671 2439 1427.80
1840
10 1733 537.60
15 2650 626.60
11 2022 713.60
16 2880 861.20
11 3222 1385 1043.50
16 4800 2064 1222.40
1840
10 2246 601.40
15 3154 693.90
11 2862 776.60
16 3830 928.40
11 4062 1747 1106.50
16 5750 2473 1289.60
Product Height
GUAR
040
Length Type
044
10
Colour
233
Model
/WT
598
834
Type Watts
Twin
Price
(£)
Watts
75/65 45/38
800mm high | floor model FT
440
How to order (example)
11
16
Standard
With DBE
Price
(£)
468
746
Price
(£)
554
715
Standard delivery
Outputs
Standard delivery includes casing, wall brackets, automatic air vent
and drain plug 1/2”.
Measured in accordance with EN 442. Water temperature of
75/65°C and room temperature of 20°C (ΔT=50).
Using ordering code: GUAR 040 044 10 233 / WT will result in a
Type 10, Guardian wall model, single emitter, with white casing
400mm high and 440mm long.
For technical support visit www.jaga.co.uk or telephone 01531 631 533
33

34
Previous

Next
Go to product page on website
Sentinel LST

Sentinel LST
 Product data
 Outputs Wall mounted (SENW)
 Connection sets & valves
 Parts
 Design considerations
 Correction factors
Sentinel LST
 Colours
The stylish Sentinel LST radiator is ideal for the provision of safe
heating in sheltered accommodation, care homes and other
healthcare environments.
 Technical information
 Back to product overview
However this classically simple yet elegant form conceals a rigid
and robust casing.
The Sentinel Type 06, with a projection of only 85mm from
the wall, offers the perfect combination of attractive design and
powerful performance.
Features
> pre-assembled casing
> range of sizes
> wall mounted
> easy to handle, store and install
> stylish casing with rounded corners stays safe to
touch, even at high flow temperatures
> if casing gets damaged, it’s easily replaceable
> casing can be removed for decorating and replaced
without disassembly
> DBE option available
Low-H2O heat exchanger made
from copper and aluminium:
> non-corrosive (guaranteed for 30 years)
> pressure tested to 20 bar (working pressure 10 bar)
> efficient: rapid heating up due to super low water
content and low thermal mass
> high heat output achieved with normal and lower
flow temperatures
30
YEARS
Heat emitter
guarantee
(all products)
10
3
YEARS
YEARS
Casings and
components
(all products)
Valves for
Low-H2O heat
exchangers
‘Attractive design, powerful performance’
> the optimum combination high output convection
and safe surface temperature
Twin power and DBE ‘Boost’
Sentinel LST is also available with the super-powered
twin heat exchangers. The boiler temperature is on
average 15% lower for equivalent radiator dimensions
and output.
> for the lowest temperature systems specify Sentinel
with DBE boost option.
For technical support visit www.jaga.co.uk or telephone 01531 631 533
35
36

Previous
Next
Go to product page on website
EN
442
Sentinel LST
Sentinel LST
EN
442
Parts
page 77
Design
considerations
page 82
Correction
factors
page 84
26
Technical
information
page 86
50
26
50
25
25
47
d
47
d
38 20
38 20
442
Description
EN
Low-H2O heat exchangers comprise round, seamless circulation
442
tubes made from pure red copper, with pure aluminium fins and
two brass collectors for left or right 1/2” same end connection.
Air vent 1/8” and drain plug 1/2” are included.
Weights and water content
Connections (continued)
Optional accessories
Type
Example with Jaga valve: to the wall (not Type 06)
Top valve
Wall mounted model heights (mm) Water content
(weight in kg/m)
(litre/m)
06
Brackets are made from 1mm galvanised steel plate; supplied
to be installed with a maximum intermediate distance of 1.05m.
Sentinel LST front and side panels are 1.25mm galvanised steel
plates.
350
500
650
950
9.0
11.1
13.3
17.5
Jaga thermostatic head included. When
ordering a top valve, add to the code of the
Sentinel LST /UK30 (top left) or /UK60 (top right).
0.63
10
9.8
12.0
14.3
18.9
0.65
50
11
11.2
13.5
15.8
50
20.4
1.33
15
11.9
14.4
25
16.9
21.8
0.98
25
50
16
14.2
16.7
d
Top grilles are galvanised steel plate (0.80 mm thick), profiled
backwards angled steel plate with angled top.
60
option
24.1
19.2
d
60
1.98
option
50 37
A
d
50 37
24
25
Code
60
option
Totally concealed
50 37
within the casing
60
option
Without TRV50 37
Anti-bacterial
24
A
coating
d
Example with Jaga Sentinel valve: to the wall only for Type 06
Refer to page 54 for more detailed information on connection
sets and valves.
Type
Scratch-resistant surface polyester powder coating with a soft
structured finish.
06
40
–
Standard colour is White 133/RAL 9016 or sandblast grey metallic
001 (other colours are available to special order).
10
52
29
11 (twin)
52 50
29
High UV resistance to ASTM G53.
15
77
53
Connection to floor
d (mm)
The heat exchanger is electrostatically lacquered with anthracite grey
epoxy polyester to RAL 7024 for a dirt-repellent and dust-free finish.
Without TRV
For easy cleaning of the underside of the
Low-H2O heat exchanger without detaching
the casing.
Code
£
7.90
Connection to wall
(A)
25
Pencil-proof grille
option
50
25
17
23
53 30 35
2377
16 (twin)
Totally concealed
within the casing
Anti-bacterial coating available. Prices as shown for other colours.
5090.001
Colour
17
25
86.40
Brush
Jaga valves can be concealed within the standard casing.
Other valves may be partially visible.
Base grilles are galvanised perforated steel plate, 1.25mm thick,
in same finish as the casing.
£
50
5090.13001
Connections
At corners the grille is supplied with high standard synthetic angled
corner pieces in same finish as casing.
option
30 35
40
40
Unobtrusively positioned below the standard top grille. Optional
pencil-proof grille in the same finish as the casing: avoiding the
possibility of smaller objects or waste falling within the casing.
May affect output when used.
Price: see Parts page 77.
Example with Jaga Pro valve: to the wall or to the floor
Product range and dimensions (mm)
Type
B
d
h min*
06
85
40
100
10
118
52
100
11 (twin)
118
52
100
15
168
77
120
16 (twin)
168
77
120
d
26
d
L LL
9090
90
d
26
Base grille
50
26
* smaller dimensions can decrease output.
h hh
Standard base grille in the same finish as the casing, without
surcharge: preventing access to the inside of the casing from
below.
25
50
26
25 50
25
47
47
38 20
d
38 20
38 20
47
50
25
47
38 20
Example with Jaga valve: to the floor
L LL
130
130
130
HHH
50
50
25
ddd
BBB
h hh
65
6565
37
Wall mounted
LST radiator
EN
Sentinel
LST
442
Connection
sets and
valves
page
EN54

4

6565
65
50
d
50
25
25
d
d
d
50
60
option
25
option
option
option
60
50 37
50 37
50 37
60
option
50 option
37
60
option
60
60
option
50 37
50 37
50 37
60
50 37
60
A
50
d
24
25
Without TRV
Totally concealed
50
within the casing
25 50
25
25
24
A
24
A
Totally concealed
Totally concealed Without TRV Without TRV
24 d
d A
Without TRV
within
the casing
within the casing
Totally
concealed
d
within the casing
For technical support visit www.jaga.co.uk or telephone 01531 631 533

38
Previous

Next
Go to product page on website
EN
442
Sentinel LST
Sentinel LST
EN
Sentinel
LST wall mounted (SENW...)
442
L
EN
442
Connection
sets and
valves
page
EN54
Parts
page 76
Design
considerations
page 82

H
Correction
factors
page 84
Type 6
Technical
information
page 86
442
350mm high | wall mounted
Standard
Length
(mm)
500
Type Watts
Price
Price
std. (£) other (£)
10
15
427 258.90 324.40
699 303.30 374.30
10
15
512 277.50 347.60
838 328.30 405.20
600
800
10 682 330.80 410.70
15 1118 396.20 482.40
1000
10 853 378.10 467.40
15 1397 463.60 562.80
1200
10 1024 425.00 526.40
15 1676 525.70 639.10
1400
10 1194 466.90 575.90
15 1956 581.00 701.80
1800
10 1535 597.10 736.80
15 2515 749.70 904.80
2400
10 2047 809.50 999.70
15 3353 1065.40 1280.00
Type Watts
06
11
16
06
11
16
06
11
16
06
11
16
06
11
16
06
11
16
06
11
16
06
11
16
376
568
757
451
682
908
601
909
1210
751
1136
1513
901
1363
1816
1051
1590
2118
1352
2045
2723
1802
2726
3631
Price
std. (£)
333.20
388.50
457.50
355.10
414.50
493.20
426.60
494.60
600.20
489.50
564.90
700.70
544.80
629.70
789.40
601.80
693.90
875.90
768.60
880.10
1125.90
1040.80
1179.80
1596.20
With DBE
Price
other (£)
394.90
454.00
528.50
421.30
484.70
570.10
403.40
574.50
686.20
571.00
654.10
800.00
634.80
731.10
902.80
698.90
802.80
996.80
891.10
1019.70
1280.70
1210.00
1370.10
1810.90
Type
Standard
Watts
Price
Price
75/65 45/38 std. (£) other (£)
Standard
Type Watts
06
11
16
06
11
16
06
11
16
06
11
16
06
11
16
06
11
16
06
11
16
586
982
1388
736
1209
1690
1021
1736
2473
1171
1963
2776
1321
2190
3078
1892
3245
4643
2612
4526
6511
10
15
511 277.00 349.60
824 323.80 402.10
10
15
613 296.70 374.00
988 349.60 434.10
600
800
10 818 353.30 442.40
15 1318 420.60 516.80
1000
10 1022 403.20 502.60
15 1647 491.00 600.50
1200
10 1226 452.80 565.80
15 1976 555.40 681.10
1400
10 1431 500.90 622.50
15 2306 616.70 751.90
1800
10 1840 638.80 795.70
15 2965 793.90 966.60
2400
10 2453 863.40 1075.80
15 3953 122.10 1359.30
Type Watts
06
11
16
06
11
16
06
11
16
06
11
16
06
11
16
06
11
16
06
11
16
06
11
16
450
659
902
540
790
1082
720
1054
1442
900
1317
1803
1080
1580
2164
1260
1844
2524
1620
2371
3245
2160
3161
4327
Price
std. (£)
346.80
405.00
476.30
370.20
432.20
513.10
446.50
515.50
623.00
510.10
588.30
726.30
568.20
656.00
817.70
629.30
725.20
909.60
803.90
919.10
1167.50
1087.00
1230.40
1649.60
252
422
597
316
520
727
439
746
1063
504
844
1194
568
942
1324
814
1395
1996
1123
1946
2800
505.60
569.10
655.60
579.10
649.20
762.60
694.20
777.90
929.40
749.50
842.70
1018.10
806.50
906.90
1104.60
1081.80
1210.00
1487.10
1462.40
1626.60
2090.00
571.70
639.20
732.50
653.90
729.00
848.60
775.60
867.10
1028.70
839.50
944.20
1131.40
903.60
1015.90
1225.50
1204.30
1349.60
1641.90
1631.50
1817.00
2304.70
Type Colour*
15
133
Using above ordering code will result in a Type 15, Sentinel, single
emitter, with traffic white casing 350mm high and 500mm long
* See page 92 for colour options; standard colour is 133 white
Price
Price
std. (£) other (£)
575 298.20 377.60
913 347.10 432.70
600
10 690 319.70 404.80
15 1096 375.20 468.10
800
10 920 379.40 478.00
15 1461 449.70 555.20
1000
10 1150 430.80 540.60
15 1826 521.20 641.30
1200
10 1380 485.20 610.80
15 2191 590.40 729.30
1400
10 1610 538.20 673.00
15 2556 657.90 806.10
1800
10 2070 685.10 859.20
15 3287 843.20 1034.30
2400
10 2760 923.60 1158.30
15 4382 1185.60 1445.70
With DBE
Price
other (£)
414.60
477.50
554.40
442.60
491.20
597.70
530.00
604.70
719.30
600.70
687.70
835.80
669.30
769.00
943.20
739.00
847.00
1044.60
943.00
1075.90
1340.20
1277.50
1443.00
1886.70
How to order (example)
Product Height Length
SENW
035
050
Type Watts
Twin
Type Watts
06
11
16
06
11
16
06
11
16
06
11
16
06
11
16
06
11
16
06
11
16
06
11
16
507
733
1032
608
880
1238
810
1173
1651
1013
1446
2064
1216
1759
2477
1418
2052
2890
1823
2639
3715
2431
3518
4954
With DBE
PriceH
other (£)
438.00
504.00
584.10
468.30
539.10
630.30
560.40
639.10
756.30
634.00
724.80
875.60H
709.40
812.60
990.10
782.80
1002.90
1096.60
1000.30
1137.90
1405.60
1351.10
1522.70
1970.90
Type
Price
Price
std. (£) other (£)
Type
Price
std. (£)
363.60
424.80
498.60
389.20
454.10
537.50
468.40
540.60
650.90
533.60
615.00
755.50
596.00
687.20
851.10
660.60
761.20
948.60
844.10
964.00
1214.60
1139.10
1288.10
1710.80
06
11
16
06
11
16
06
11
16
06
11
16
06
11
16
06
11
16
06
11
16
Watts
Price
Price
75/65 45/38 std. (£) other (£)
743
1180
1718
945L
1473
2131
1283
2066
3024
1486
2359
3437
1688
2652
3850
2363
3839
5635
3241
5318
7834
319
507
739
406
633
916
552
888
1300
639
1014
1478
726
1140
1656
1016
1651
2423
1394
2287
3369
539.60
608.60
699.90
618.90
695.10
813.30
738.30
828.10
984.20
800.70
900.20
1079.70
865.30
867.20
1177.20
1157.30
1293.90
1575.80
1560.70
1734.90
2204.60
618.80
693.60
792.80
710.80
793.60
918.70
838.70
937.90
1104.20
914.10
1025.60
1218.70
987.50
1215.90
1325.30
1313.50
1467.80
1766.80
1772.70
1969.50
2464.70
Type 10&11
Type 15&16
950mm high | wall mounted
Twin
Price
Price
std. (£) other (£)
Length
(mm)
500
10
15
500mm high | wall mounted
Length
(mm)
500
L
650mm high | wall mounted
EN
Twin
442
Type
Standard
Watts
Price
Price
75/65 45/38 std. (£) other (£)
Length
(mm)
Type Watts
Price
Price
std. (£) other (£)
675
1090
1562
855
1354
1922
1170
1917
2763
1350
2180
3124
1530
2444
3484
2160
3581
5165
2970
4961
7207
290
469
672
368
582
826
503
824
1188
581
937
1343
658
1051
1498
929
1540
2221
1277
2133
3099
520.70
586.80
675.50
597.00
670.10
785.40
714.80
801.30
955.00
722.90
869.00
1046.40
834.00
938.30
1138.30
1117.10
1249.00
1528.70
1508.60
1677.20
2143.40
593.00
645.70
760.10
680.40
759.20
881.70
805.40
900.70
1064.40
874.00
982.00
1171.90
943.70
1060.00
1273.30
1256.20
1405.80
1701.40
1699.10
1889.80
2380.50
With DBE
Watts
Price
Price
75/65 45/38 std. (£) other (£)
10 794 354.60 453.00
15 1223 416.90 525.00
06 699 415.60 507.10
11 1024 484.40 582.70
16 1526 573.30 681.40
06 834 359
11 1324 569
16 2006 863
10 1058 420.60 535.10
15 1631 497.10 621.20
06 932 501.80 608.20
11 1365 577.10 691.50
16 2034 692.70 816.70
06 1067 459 652.30 758.60
11 1665 716 731.60 846.00
16 2514 1081 855.10 979.20
10 1323 481.40 612.70
15 2039 578.50 722.10
06 1165 576.20 696.40
11 1706 661.30 792.40
16 2543 807.30 950.80
06 1435 617 780.90 901.00
11 2306 992 874.30 1005.50
16 3503 1506 1036.00 1179.50
10 1588 542.20 691.90
15 2447 654.20 819.10
06 1398 645.00 781.00
11 2047 739.50 889.40
16 3052 909.60 1074.40
06 1668 717 849.70 878.70
11 2647 1138 952.50 1102.40
16 4012 1725 1138.30 1303.00
10 1852 607.50 771.10
15 2855 735.60 914.30
06 1631 719.80 868.60
11 2388 823.70 987.30
16 3560 1017.80 1196.50
06 1901 817 924.50 1073.30
11 2988 1285 1036.70 1200.30
16 4520 1944 1246.50 1425.10
600
06
11
16
06
11
16
06
11
16
06
11
16
06
11
16
06
11
16
06
11
16
Twin
Type Watts
800
1000
1200
1400
566.00 657.50
638.90 737.20
735.70 843.80
Standard connections**
Standard delivery
Outputs
Bottom left or right, valve position 20 (left) or 70 (right)
Standard delivery includes casing, wall brackets, automatic air vent
and drain plug 1/2”.
Measured in accordance with EN 442. Water temperature of
75/65°C and room temperature of 20°C (ΔT=50).
For optional top valve, add suffix to the code /UK30 (top left) or
/UK60(top right), e.g. SENW 035 050 15 133/UK60
For no perforation for TRV in the side panel, add suffix to the code
/00, e.g. SENW 035 050 15 133/00
** See page 54 for connection sets and valves
For technical support visit www.jaga.co.uk or telephone 01531 631 533
39

40
Previous

Next

Go to product page on website
Maxi LST
Maxi LST
 Product data
 Outputs Wall model (MAXW...WT)
 Outputs Wall model (MAXW...WF)
 Outputs Floor model (MAXW...FT)
 Outputs Floor model ( MAXW...FF)
 Connection sets & valves
 Parts
Maxi LST
 Correction factors
A powerful LST solution with super-strong tough casing, Maxi LST is
Jaga’s toughest LST radiator, providing exceptional performance and
the greatest safety. It is perfect for use in areas that need to comply
with the highest safety requirements and is ideal for public areas,
hospitals, schools, prisons and all special needs areas, where safety
and durability are of prime importance.
 Design considerations
 Technical information
 Colours
 Back to product overview
Anti-bacterial paint options are also available.
Features
> range of sizes
> wall or floor models
> front or top grille positions
> complies with DHSS DN4
> valve bodies can be hidden within standard casing
> stylish casing with rounded corners stays safe to
touch, even at high flow temperatures
> super strong double profiled front plates in 1.5mm steel
> casing locks included as standard for extra security
> DBE option available
> continuous casings available
Low-H2O heat exchanger made
from copper and aluminium:
> non-corrosive (guaranteed for 30 years)
> pressure tested to 20 bar (working pressure 10 bar)
> efficient: rapid heating up due to super low water
content and low thermal mass
30
YEARS
Heat emitter
guarantee
(all products)
10
3
YEARS
YEARS
Casings and
components
(all products)
Valves for
Low-H2O heat
exchangers
‘Exceptional performance
and robustness’
> high heat output achieved with normal and lower
flow temperatures
> the optimum combination high output convection
and safe surface temperature
Twin power and DBE ‘Boost’
Maxi LST is also available with the super-powered twin
heat exchangers. The boiler temperature is on average
15% lower for equivalent radiator dimensions and output.
> for the lowest temperature systems specify Maxi with
DBE boost option.
For technical support visit www.jaga.co.uk or telephone 01531 631 533
41


Next
Go to product page on website
EN
442
Maxi LST
Maxi LST
Available in wall or floor
model, with top or
front face grilles
EN
Maxi442
LST
EN
442
Connection
sets and
valves
page
EN54
Parts
page 78
Design
considerations
page 82

Correction
factors
page 84
Technical
information
page 86
442
Colour
Connections
Optional accessories
Low-H2O heat exchangers comprise round, seamless circulation
442
tubes made from pure red copper, with pure aluminium fins and
two brass collectors for left or right 1/2” same end connection.
Air vent and drain plug 1/2” are included.
Scratch-resistant surface polyester powder coating with a satin gloss
finish. Standard colour is White 233/RAL 9016 or sand blast grey
metallic 001 (other colours are available to special order). High UV
resistance to ASTM G53.
Jaga valves can be concealed within the standard casing.
Other valves may be partially visible.
Top valve
Brackets are made from galvanised steel plate of 1mm; supplied
to be installed with a maximum intermediate distance of 1.05m.
The heat exchanger is electrostatically lacquered with anthracite grey
epoxy polyester to RAL 7024 for a dirt-repellent and dustfree finish.
Description
EN
Two locks are supplied as standard per casing. The casing cannot be
detached without tools. The locks will be delivered without surcharge
with all Maxi LST casings.
Type
Front panel: pre-mounted and composed of 1.5mm galvanised
steel plate, double profiled in length.
Top grille: galvanised steel plate of 0.80mm thick, profiled back
wards angled steel plate with angled top.
B
d
h min*
10
130
53
100
11 (twin)
130
53
100
15
180
78
120
16 (twin)
180
78
120
20
230
103
150
WF: (wall model with front grille)
21 (twin)
230
103
150
Front panel: pre-mounted and composed of 1.5mm galvanised
steel plate double profiled in length.
* smaller dimensions can decrease output.
B
h 125
B
h 125
Connection to wall
A (mm)
10
53
29
11 (twin)
53
29
Anti-bacterial coating
15
78
53
Anti-bacterial coating available. Prices as shown for other colours.
16 (twin)
78
53
20
103
79
21 (twin)
103
79
Front panel: pre-mounted and composed of 1.5mm galvanised
steel plate, double profiled in length.
125
125
Front grille for air inlet and top grille: galvanised steel plate of
0.80mm thick, profiled backwards angled steel plate with angled
top. The front grille has to be mounted by the customer in the
front panel.
d
25
d
25
B
B
155
125
155
125
L
25
50
155
d
155
Side panels: 1.5mm profiled galvanised steel plate.
25
50
25
50
25
50
25
50
25
d
h
h
L
155
125
155
125
A
d
A
d
L
L
155
155
60
60
60
60
55111.020
Screws
229.20
60
5111.030
Bit
59.70
50 37 50 37
60
50 37 50 37
Code
A
d
24
A
d
24
A
d
A24
d
Pencil-proof grille
25
50
May affect output when used.
25
50
Price: see Parts pages 78 and 80.
24
25
25
150
150
max. 115
max. 115
max. 115
max. 115
Floor model heights (mm)
Models FT
Model FF
Water content
440
590
740
440
590
740
440
590
740
440
590
740
10
19.0
24.3
29.6
19.0
24.3
29.6
17.5
22.8
28.1
17.5
22.8
28.1
0.65
11
21.1
24.8
31.2
21.2
25.8
31.2
19.5
24.3
29.6
–
24.3
29.6
1.33
15
21.3
26.9
32.5
22.2
27.8
33.3
19.7
25.3
30.8
20.6
26.3
31.8
0.98
16
24.4
29.4
34.9
25.4
30.2
35.8
22.8
27.8
33.3
–
28.7
34.3
1.98
20
23.5
29.6
35.3
25.3
31.4
37.0
22.0
28.1
33.7
37.7
29.8
35.5
1.32
21
27.3
32.5
38.1
29.1
34.3
39.9
25.7
30.9
36.6
–
32.7
38.4
2.66
Unobtrusively positioned below the standard top grille. Optional
pencil-proof grille in the same finish as the casing: avoiding the
possibility of smaller objects or waste falling within the casing.
50
Base grille
Free space inside for remote control valve
Weights (kg/m) and water content (litres/m)
£
25
50
24
25
24 50
H
d
Wall model heights (mm)
Model WT
Model WF
£
16.70
50
d
Type
The casing cannot be detached without tools.
2 per casing.
100 safety screws as replacements for Allen screws.
Only removable with specialised equipment (bit).
50 3750 37
L
Replacement casing locks
5111.010 (2 pieces)
Example with Jaga valve: to the wall
228
All models:
d
d
H
228
d
d
H
h 125
Front grille for air inlet and front grille for air exhaust: galvanised
steel plate of 0.80mm thick, profiled backwards angled steel plate
with angled top. Front grilles have to be mounted by the customer
in the front panel.
50
L
H
h 125
86.40
Safety screws
Maxi LST floor model top and front grille options
Front panel: pre-mounted and composed of 1.5mm galvanised
steel plate, double profiled in length.
5090.13001
Code
Example with Jaga Pro valve: to the floor
L
L
Jaga thermostatic head included. When
ordering a top valve, add to the code of the
MAXW /UK30 (top left) or /UK60 (top right).
Code
£
Connection to floor
d (mm)
Maxi LST wall model top and front grille options
FT: (floor mounted model with top grille)
FF: (floor mounted model with two front grilles)
Type
Product range and dimensions (mm)
WT: (wall model with top grille)
Front grille for air exhaust: galvanised steel plate of 0.80mm thick,
profiled backwards angled steel plate with angled top. The front
grille has to be mounted by the customer in the front panel.
Refer to page 54 for more detailed information on connection
sets and valves.
4
42
Previous
max. 115
max. 115
WithoutWithout
TRV TRV
and no and
perfono perfoWithout
Without
TRV
ration inration
the in TRV
the
and
no
and
perfono
perfoside panel.
side panel.
ration inration
the
in
the
Without
Without
TRV TRV
side panel.
side
panel.
and
no
perfoand no
perforation
ration in the in the
side panel.
side panel.
50 max.
5085max. 85
Without TRV and no
50 max.
50 85max.perforation
85
in the side panel
Optional base grille in the same finish as the casing: prevents
access to the inside of the casing from below (models WT and
WF only).
May affect output when used.
Price: see Parts page 78.
50 85
max. 85
50 max.
For technical support visit www.jaga.co.uk or telephone 01531 631 533
43

44
Previous

Next
Go to product page on website
EN
442
Maxi LST
EN
Maxi442
LST
Maxi LST
wall model with top grille (MAXW.../WT)
Parts
page 78
Design
considerations
page 82
Correction
factors
page 84
Type 10
L
EN
442
Connection
sets and
valves
page
EN54

Type 15
45
Type 20
H
WT Single
Technical
information
page 86
442
440mm high | wall model withENtop grille (WT)
Twin
442
Standard
Length
(mm)
630
830
1030
1230
1430
1630
1830
2030
Type Watts
10
15
20
10
15
20
10
15
20
10
15
20
10
15
20
10
15
20
10
15
20
10
15
20
637
1034
1446
840
1362
1905
1042
1690
2364
1244
2018
2823
1447
2346
3282
1649
2674
3741
1851
3003
4200
2054
3331
4659
Price
std. (£)
481.40
518.70
557.00
523.60
572.10
621.70
562.10
621.10
681.90
595.80
664.60
735.30
669.30
747.20
848.80
720.00
813.00
932.60
754.50
856.90
987.40
789.70
924.80
1040.80
Price
other (£)
532.90
571.90
612.00
577.80
628.20
679.90
619.00
680.20
743.30
655.60
726.90
799.90
734.10
814.40
918.70
787.30
883.20
1005.60
824.60
929.80
1062.90
862.40
1000.50
1119.60
Type Watts
11
16
21
11
16
21
11
16
21
11
16
21
11
16
21
11
16
21
11
16
21
11
16
21
828
1121
1510
1091
1477
1990
1354
1833
2469
1617
2189
2948
1880
2545
3428
2143
2901
3907
2406
3257
4387
2669
3613
4866
Price
std. (£)
571.10
628.10
656.60
632.30
708.90
748.50
687.30
781.70
832.10
733.60
844.00
904.70
819.20
944.80
1050.30
896.10
1048.30
1172.00
944.00
1112.10
1246.90
992.50
1218.40
1320.90
Price
other (£)
622.50
681.30
711.60
686.50
764.90
806.60
744.20
841.00
893.50
793.40
906.30
969.30
884.00
1012.00
1120.20
963.50
1118.50
1244.90
1014.10
1185.00
1322.60
1065.30
1294.20
1399.80
Type
11
16
21
11
16
21
11
16
21
11
16
21
11
16
21
11
16
21
11
16
21
11
16
21
Watts
75/65 45/38
1128 485
1601 688
1990 856
1391 598
1957 842
2470 1062
1954 840
2793 1201
3429 1474
2217 953
3149 1354
3908 1680
2480 1066
3505 1507
4388 1887
3343 1437
4821 2073
5827 2506
3606 1551
5177 2226
6307 2712
3869 1664
5533 2379
6786 2918
Price
std. (£)
725.70
790.50
819.00
786.90
871.30
910.90
900.30
1010.40
1060.80
1005.20
1138.90
1199.60
1149.20
1305.90
1411.40
1109.30
1277.00
1400.70
1332.30
1539.50
1674.30
1439.30
1712.10
1814.60
Price
other (£)
777.10
843.70
874.00
841.10
927.40
969.00
957.20
1069.70
1122.10
1065.00
1201.20
1264.20
1214.00
1373.10
1481.30
1176.70
1347.20
1473.60
1402.40
1612.50
1750.10
1512.00
1787.90
1893.50
590mm high | wall model with top grille (WT)
Standard
Length
(mm)
630
830
1030
1230
1430
1630
1830
2030
Type Watts
10
15
20
10
15
20
10
15
20
10
15
20
10
15
20
10
15
20
10
15
20
10
15
20
732
1169
1633
965
1541
2152
1197
1912
2670
1429
2283
3188
1662
2655
3707
1894
3026
4225
2127
3397
4744
2359
3768
5262
Price
std. (£)
530.60
569.70
608.90
577.70
627.70
679.20
621.00
681.10
743.00
659.40
729.40
801.60
744.60
823.60
927.30
800.50
894.70
1016.40
839.20
943.50
1075.00
879.20
1016.40
1133.60
Twin
Price
other (£)
588.10
629.50
670.80
639.10
691.20
744.80
685.90
748.10
812.20
727.60
800.30
875.20
819.00
900.70
1007.30
878.50
975.70
1100.20
920.60
1027.70
1162.40
964.20
1104.20
1224.80
Type Watts
11
16
21
11
16
21
11
16
21
11
16
21
11
16
21
11
16
21
11
16
21
11
16
21
935
1300
1796
1231
1713
2366
1528
2126
2936
1825
2539
3506
2121
2952
4076
2418
3364
4646
2715
3777
5216
3011
4190
5786
Price
std. (£)
620.10
678.80
708.70
686.20
764.90
805.70
746.10
841.60
893.50
797.50
908.90
970.80
894.30
1021.30
1128.70
976.60
1130.00
1255.80
1028.80
1198.80
1334.70
1082.00
1310.10
1413.90
Type 15
Type 20
H
Type Colour* Model Connection
10
233
WT
70
Using above ordering code will result in a Type 10, wall mounted Maxi
with top grille, single emitter, with traffic white casing 440mm high
and 630mm long
* See page 92 for colour options; standard colour is 233 white or 001 sand blast grey
Type
11
16
21
11
16
21
11
16
21
11
16
21
11
16
21
11
16
21
11
16
21
11
16
21
WF Single
Type 10
L
Type 15
Type 20
H
FT Single
740mm high | wall model with top grille (WT)
With DBE
Price
other (£)
678.00
738.70
770.50
747.50
828.50
871.30
811.00
908.60
962.80
865.50
979.70
1044.20
968.60
1098.40
1208.80
1054.60
1210.90
1339.50
1110.20
1283.00
1421.90
1166.80
1398.10
1505.30
How to order (example)
Product Height Length
MAXW
044
063
Type 10
L
With DBE
Watts
75/65 45/38
1235 531
1780 765
2276 979
1531 658
2193 943
2846 1224
2128 915
3086 1327
3896 1675
2425 1043
3499 1505
4466 1920
2721 1170
3912 1682
5036 2165
3618 1556
5284 2272
6566 2823
3915 1683
5697 2450
7136 3068
4211 1811
6110 2627
7706 3314
Price
std. (£)
774.70
841.20
871.10
840.80
927.40
968.10
959.10
1070.20
1122.10
1069.00
1203.80
1265.70
1224.30
1382.40
1489.80
1189.80
1358.70
1484.40
1417.10
1626.30
1762.20
1528.70
1803.80
1907.60
Standard
Price
other (£)
832.60
901.20
932.90
902.10
990.90
1033.70
1024.00
1137.30
1191.40
1137.10
1274.60
1339.10
1298.50
1459.40
1569.90
1267.80
1439.60
1568.20
1498.50
1710.50
1849.90
1613.60
1891.80
1999.00
Length
(mm)
630
830
1030
1230
1430
1630
1830
2030
Type Watts
10
15
20
10
15
20
10
15
20
10
15
20
10
15
20
10
15
20
10
15
20
10
15
20
805
1266
1766
1060
1668
2327
1316
2070
2888
1572
2472
3449
1827
2874
4010
2083
3276
4570
2338
3678
5131
2594
4080
5692
Price
std. (£)
579.80
620.30
661.70
631.60
683.10
736.40
680.00
741.40
804.70
722.80
794.60
868.60
819.60
900.80
1005.80
880.60
976.10
1098.90
924.30
1029.60
1162.90
968.60
1107.10
1226.10
Twin
Price
other (£)
644.10
686.60
730.70
700.10
753.90
809.20
752.40
816.50
881.80
799.60
873.80
951.10
904.00
987.90
1095.70
968.90
1067.60
1193.20
1017.00
1125.20
1261.70
1065.40
1207.40
1329.50
Type Watts
11
16
21
11
16
21
11
16
21
11
16
21
11
16
21
11
16
21
11
16
21
11
16
21
1025
1466
2075
1350
1932
2733
1675
2397
3392
2000
2862
4051
2325
3328
4709
2651
3793
5368
2976
4259
6027
3301
4724
6685
Price
Price
std. (£) other (£)
669.50 733.90
729.70 796.10
761.20 830.10
740.40 808.90
820.00 890.90
H
863.10 935.90
805.20 877.70
901.90 977.00
954.90 1032.00
860.50 937.20
974.30 1053.50
1037.80 1120.20
969.60 1054.10
1098.20 1185.50
1207.20 1297.20
1056.80 1145.20
1211.30 1302.80
1338.20 1432.40
1113.90 1206.60
1284.70 1380.40
1422.50 1521.10
1171.50 1268.50
1400.80 1501.00
1506.20 1609.60
With DBE
Type
L
11
16
21
11
16
21
11
16
21
11
16
21
11
16
21
11
16
21
11
16
21
11
16
21
Watts
75/65 45/38
1325 570
1946 627
2555 1099
1650 710
2412 1037
3213 1382
2275 978
3357 1444
4352 1871
2600 1118
3822 1643
5011 2155
2925 1258
4288 1844
5669 2438
3851 1656
5713 2457
7288 3134
4176 1796
6179 2657
7947 3417
4501 1935
6644 2857
8605 3700
Price
std. (£)
824.10
878.80
923.60
895.10
982.50
1025.50
1018.20
1130.60
1183.50
1132.10
1269.20
1332.70
1299.60
1459.30
1568.30
1270.00
1440.00
1566.90
1502.20
1712.20
1849.90
1618.30
1894.50
1999.90
Price
other (£)
Type 10
888.50
958.50
992.50
963.50
1053.30
1098.40
1090.80
1205.70
1260.70
1208.80
1348.40
1415.10
1384.00
1546.50
1658.30
1358.40
1531.50
1661.10
1594.90
1807.90
1948.60
1715.20
1994.70
2103.30
Type 15
Type 20
Standard connections**
Standard delivery
Outputs
Bottom left or right, valve position 20 (left) or 70 (right)
Standard delivery includes casing, wall brackets, automatic air vent
and drain plug 1/2”.
Measured in accordance with EN 442. Water temperature of
75/65°C and room temperature of 20°C (ΔT=50).
For optional top valve, add suffix to the code /UK30 (top left) or
/UK60(top right), e.g. MAXW 044 063 10 233/UK60 WT
For no perforation for TRV in the side panel, add suffix to the code
/00, e.g. MAXW 044 063 10 233/WT/00
** See page 54 for connection sets and valves
For technical support visit www.jaga.co.uk or telephone 01531 631 533
FF Single

46
Previous

H
Next
Go to product page on website
EN
442
Maxi LST
EN
Maxi442
LST
Maxi LST
Parts
page 78
Design
considerations
page 82
Correction
factors
page 84
Type 10
L
wall model with front grille (MAXW.../WF)
EN
442
Connection
sets and
valves
page
EN54

Type 15
WT Single
47
Type 20
H
WF Single
Technical
information
page 86
442
440mm high | wall model withENfront grille (WF)
Twin
442
Standard
Length
(mm)
630
830
1030
1230
1430
1630
1830
2030
Type Watts
10
15
20
10
15
20
10
15
20
10
15
20
10
15
20
10
15
20
10
15
20
10
15
20
557
834
1111
734
1098
1464
911
1363
1817
1088
1628
2170
1265
1892
2523
1442
2157
2875
1619
2422
3228
1795
2686
3581
Price
std. (£)
518.70
559.50
601.70
561.10
613.90
667.50
599.30
663.30
728.80
633.10
705.80
780.60
708.20
792.10
900.50
759.00
858.50
985.60
793.30
902.80
1040.50
828.20
971.30
1095.30
Price
other (£)
575.90
619.00
663.60
621.10
676.20
732.70
662.30
728.60
797.00
662.30
774.10
851.80
778.40
866.20
977.70
832.10
935.30
1066.00
869.10
982.80
1124.20
906.60
1054.20
1182.00
Type Watts
11
16
21
11
16
21
11
16
21
11
16
21
11
16
21
11
16
21
11
16
21
11
16
21
744
907
1143
981
1195
1506
1217
1483
1869
1453
1771
2232
1690
2059
2595
1926
2347
2958
2162
2635
3321
2399
2923
3684
Price
std. (£)
608.40
669.00
701.20
669.80
750.60
794.20
724.60
823.90
879.00
770.80
885.20
949.90
858.10
989.60
1102.00
935.20
1093.80
1224.90
982.80
1158.00
1300.10
1030.90
1265.10
1375.40
Price
other (£)
665.60
728.50
762.90
729.80
813.00
859.40
787.70
889.30
947.30
836.10
953.60
1021.20
928.40
1063.80
1179.20
1008.50
1170.60
1305.30
1058.80
1238.00
1383.90
1109.60
1347.80
1462.20
Type
11
16
21
11
16
21
11
16
21
11
16
21
11
16
21
11
16
21
11
16
21
11
16
21
Watts
75/65 45/38
1044 449
1387 596
1623 698
1281 551
1675 720
1986 854
1817 781
2443 1050
2829 1216
2053 883
2731 1174
3192 1373
2290 985
3019 1298
3555 1529
3126 1344
4267 1835
4878 2098
3362 1446
4555 1959
5241 2254
3599 1548
4843 2082
5604 2410
Price
std. (£)
763.00
831.40
863.60
824.40
913.00
956.60
937.60
1052.60
1107.70
1042.40
1180.10
1244.80
1188.10
1350.70
1463.10
1148.30
1322.40
1453.60
1371.10
1585.40
1727.50
1477.70
1758.80
1869.10
Price
other (£)
820.30
890.90
925.30
884.50
975.40
1021.90
1000.50
1117.90
1175.90
1107.70
1248.50
1316.10
1258.40
1424.90
1540.30
1221.60
1399.30
1534.00
1447.10
1665.50
1811.40
1556.30
1841.50
1955.90
590mm high | wall model with front grille (WF)
Standard
Length
(mm)
630
830
1030
1230
1430
1630
1830
2030
Type Watts
10
15
20
10
15
20
10
15
20
10
15
20
10
15
20
10
15
20
10
15
20
10
15
20
672
990
1300
885
1304
1713
1098
1618
2126
1311
1932
2539
1524
2246
2952
1738
2561
3364
1951
2875
3777
2164
3189
4190
Price
std. (£)
568.10
610.90
653.90
615.30
668.90
724.50
658.60
723.40
789.90
696.40
770.70
847.10
783.50
868.60
978.80
839.30
940.60
1068.60
877.90
989.10
1128.00
918.00
1062.50
1188.00
Twin
Price
other (£)
631.50
677.00
722.40
682.30
738.40
796.90
728.90
796.70
866.20
770.00
847.90
927.40
863.50
952.80
1066.40
923.00
1028.30
1160.30
965.00
1080.50
1223.30
1008.50
1157.40
1287.20
Type Watts
11
16
21
11
16
21
11
16
21
11
16
21
11
16
21
11
16
21
11
16
21
11
16
21
866
1084
1401
1141
1429
1846
1416
1773
2291
1691
2117
2736
1966
2462
3181
2241
2806
3626
2516
3150
4070
2791
3494
4515
Price
std. (£)
657.80
720.00
753.50
723.70
806.10
850.90
783.70
883.90
940.30
834.20
950.20
1016.20
933.10
1066.40
1180.30
1015.40
1175.80
1308.00
1067.50
1244.40
1387.70
1120.70
1356.20
1468.50
Type 15
Type 20
H
Type Colour* Model Connection
70
WF
233
10
Using above ordering code will result in a Type 10, wall mounted Maxi
with front grille, single emitter, with traffic white casing 440mm high
and 630mm long
* See page 92 for colour options; standard colour is 233 white or 001 sand blast grey
Type
11
16
21
11
16
21
11
16
21
11
16
21
11
16
21
11
16
21
11
16
21
11
16
21
Watts
75/65 45/38
1166 501
1564 673
1881 809
1441 620
1909 821
2326 1000
2016 867
2733 1175
3251 1398
2291 985
3077 1323
3696 1589
2566 1103
3422 1471
4141 1781
3441 1480
4726 2032
5546 2385
3716 1598
5070 2180
5990 2576
3991 1716
5414 2328
6435 2767
FT Single
Type 10
L
Type 15
Type 20
FF Single
H
740mm high | wall model with front grille (WF)
With DBE
Price
other (£)
721.30
786.10
822.00
790.80
875.70
923.40
854.20
957.20
1016.60
907.80
1027.40
1096.50
1013.20
1150.60
1267.70
1099.10
1263.60
1399.70
1154.60
1335.80
1482.90
1211.20
1451.20
1567.70
How to order (example)
Product Height Length
063
044
MAXW
Type 10
L
With DBE
Price
std. (£)
812.50
882.40
915.90
878.40
968.60
1013.30
996.70
1112.60
1169.00
1105.70
1245.10
1311.10
1263.10
1427.50
1541.40
1228.60
1404.50
1536.70
1455.80
1671.90
1815.10
1567.40
1849.90
1962.20
Standard
Price
other (£)
875.90
948.60
984.40
945.50
1038.10
1085.80
1067.20
1185.90
1245.30
1179.40
1322.30
1391.40
1343.10
1511.70
1628.80
1312.30
1492.30
1628.40
1542.90
1763.30
1910.40
1658.00
1944.90
2061.40
Length
(mm)
630
830
1030
1230
1430
1630
1830
2030
Type Watts
10
15
20
10
15
20
10
15
20
10
15
20
10
15
20
10
15
20
10
15
20
10
15
20
758
1100
1461
999
1450
1925
1240
1799
2389
1481
2148
2853
1722
2498
3317
1962
2847
3781
2203
3196
4245
2444
3546
4708
Price
std. (£)
617.10
661.20
706.40
669.50
724.50
780.80
717.20
783.10
851.40
760.20
835.90
914.10
858.50
945.90
1057.60
919.10
1021.90
1152.00
962.90
1075.60
1216.10
1007.90
1153.40
1280.00
Twin
Price
other (£)
687.20
733.70
781.70
743.30
801.50
860.70
795.30
864.70
935.90
842.60
921.70
1003.10
948.60
1040.00
1155.40
1013.40
1120.30
1254.40
1061.90
1178.20
1323.40
1190.90
1260.70
1391.40
Type Watts
11
16
21
11
16
21
11
16
21
11
16
21
11
16
21
11
16
21
11
16
21
11
16
21
966
1244
1648
1272
1639
2171
1579
2034
2694
1886
2429
3217
2192
2824
3740
2499
3219
4263
2805
3614
4786
3112
4009
5310
Price
std. (£)
706.80
770.50
805.80
778.30
861.40
907.60
842.50
943.70
1001.60
897.90
1015.50
1083.20
1008.50
1143.20
1259.00
1095.40
1257.10
1391.30
1152.50
1330.80
1475.60
1210.40
1447.20
1560.20
With DBE
Price
other (£)
776.80
843.10
881.30
852.10
938.50
987.50
920.50
1025.20
1086.20
980.20
1101.50
1171.20
1098.40
1237.50
1356.90
1189.60
1355.60
1493.70
1250.90
1433.40
1583.00
1313.00
1554.50
1671.60
Type
11
16
21
11
16
21
11
16
21
11
16
21
11
16
21
11
16
21
11
16
21
11
16
21
Watts
75/65 45/38
1266 544
1724 741
2128 915
1572 676
2119 911
2651 1140
2179 937
2994 1287
3654 1571
2486 1069
3389 1457
4177 1796
2792 1201
3784 1627
4700 2021
3699 1591
5139 2210
6183 2659
4005 1722
5534 2380
6706 2884
4312 1854
5929 2549
7230 3109
Price
std. (£)
861.50
932.90
968.20
932.90
1023.80
1070.00
1055.60
1172.40
1230.30
1169.50
1310.40
1378.10
1338.40
1504.30
1620.10
1308.50
1485.80
1620.00
1540.80
1758.20
1903.10
1657.10
1940.90
2053.90
Price
other (£)
931.40
1005.50
1043.70
1006.80
1100.90
1149.90
1133.60
1253.80
1314.80
1251.80
1396.40
1467.10
1428.30
1598.50
1718.00
1402.80
1584.30
1722.40
1639.20
1807.90
2010.40
1759.70
2048.20
2165.30
Standard connections**
Standard delivery
Outputs
Bottom left or right, valve position 20 (left) or 70 (right)
Standard delivery includes casing, wall brackets, automatic air vent
and drain plug 1/2”.
Measured in accordance with EN 442. Water temperature of
75/65°C and room temperature of 20°C (ΔT=50).
For optional top valve, add suffix to the code /UK30 (top left) or
/UK60(top right), e.g. MAXW 044 063 10 233/UK60 WF
For no perforation for TRV in the side panel, add suffix to the code
/00, e.g. MAXW 044 063 10 233/WF/00
** See page 54 for connection sets and valves
For technical support visit www.jaga.co.uk or telephone 01531 631 533

48
Previous

H
Next
Go to product page on website
EN
442
Maxi LST
EN
Maxi442
LST
Parts
page 78
Design
considerations
page 82
WF Single
Maxi LST
floor model with top and front grille (MAXW.../FT)
Correction
factors
page 84
Type 10
L
EN
442
Connection
sets and
valves
page
EN54

Type 15
49
Type 20
H
FT Single
Technical
information
page 86
442
440mm high | floor model with
top and front grille (FT)
EN
Twin
442
Standard
Length
(mm)
630
830
1030
1230
1430
1630
1830
2030
Type Watts
10
15
20
10
15
20
10
15
20
10
15
20
10
15
20
10
15
20
10
15
20
10
15
20
511
790
1073
673
1041
1413
835
1292
1754
997
1543
2095
1159
1794
2435
1321
2045
2776
1484
2295
3116
1646
2546
3457
Price
std. (£)
490.70
528.40
567.40
532.10
581.30
631.60
570.10
628.70
689.20
602.50
671.00
741.40
673.50
751.70
853.20
723.90
816.60
936.60
756.80
859.20
989.60
790.90
925.90
1041.90
Price
other (£)
543.80
583.50
624.00
587.80
638.80
691.10
628.20
688.80
751.40
663.30
734.10
806.60
738.80
819.20
923.40
791.80
886.90
1010.00
827.30
932.40
1065.50
864.00
1001.70
1120.70
Type Watts
11
16
21
11
16
21
11
16
21
11
16
21
11
16
21
11
16
21
11
16
21
11
16
21
696
864
1099
917
1138
1447
1138
1412
1796
1359
1686
2145
1580
1960
2493
1801
2235
2842
2022
2509
3191
2243
2783
3540
Price
std. (£)
580.40
637.80
666.90
640.90
718.10
758.30
695.40
789.40
839.30
740.30
850.50
910.70
823.50
949.10
1054.80
900.10
1051.80
1175.80
946.30
1114.40
1249.20
993.80
1219.50
1322.00
With DBE
Price
other (£)
633.40
692.80
723.50
696.60
775.50
817.90
753.40
849.50
901.60
801.10
913.60
975.90
888.60
1016.70
1125.00
967.90
1122.10
1249.20
1016.80
1187.60
1325.20
1067.00
1295.40
1400.80
Type
11
16
21
11
16
21
11
16
21
11
16
21
11
16
21
11
16
21
11
16
21
11
16
21
Watts
75/65 45/38
996 428
1344 578
1579 679
1217 523
1618 696
1927 829
1738 747
2372 1020
2756 1185
1959 842
2646 1138
3105 1335
2180 937
2920 1256
3453 1485
3001 1290
4155 1787
4762 2048
3222 1385
4429 1904
5111 2198
3443 1480
4703 2022
5460 2348
Price
std. (£)
735.00
800.30
829.40
795.50
880.50
920.70
908.40
1018.10
1068.00
1011.90
1145.40
1205.60
1153.40
1310.20
1415.90
1113.30
1280.50
1404.50
1385.00
1541.90
1676.70
1440.50
1713.20
1815.70
Price
other (£)
788.10
855.30
886.00
851.20
938.00
980.30
966.40
1078.10
1130.20
1072.70
1208.50
1270.80
1218.60
1377.80
1486.10
1181.10
1350.80
1477.90
1405.10
1615.10
1752.70
1513.70
1789.10
1894.50
590mm high | floor model with top and front grille (FT)
Standard
Length
(mm)
630
830
1030
1230
1430
1630
1830
2030
Type Watts
10
15
20
10
15
20
10
15
20
10
15
20
10
15
20
10
15
20
10
15
20
10
15
20
637
970
1314
840
1278
1731
1042
1586
2148
1244
1894
2565
1447
2202
2982
1649
2510
3399
1851
2818
3816
2054
3126
4233
Price
std. (£)
540.40
579.20
619.00
586.80
636.40
687.80
628.30
688.80
750.60
665.90
736.30
808.60
748.70
828.20
932.50
803.70
898.10
1019.40
841.90
945.50
1077.00
880.60
1017.40
1134.60
Twin
Price
other (£)
599.80
640.60
682.40
649.60
701.20
754.90
694.30
757.00
821.10
734.90
808.20
883.20
823.80
906.10
1013.00
882.00
979.10
1103.50
923.50
1030.10
1164.70
965.60
1105.50
1225.90
Type Watts
11
16
21
11
16
21
11
16
21
11
16
21
11
16
21
11
16
21
11
16
21
11
16
21
828
1056
1377
1091
1391
1814
1354
1726
2251
1617
2061
2688
1880
2396
3125
2143
2731
3562
2406
3067
3999
2669
3402
4436
Price
std. (£)
630.30
688.40
718.70
695.30
773.60
814.40
753.50
849.40
901.00
803.80
915.60
977.70
898.40
1025.80
1134.10
979.70
1133.20
1258.90
1031.50
1200.90
1336.50
1083.50
1311.20
1415.10
How to order (example)
Product Height Length
MAXW
044
063
Type Colour* Model Connection
10
233
FT
70
Using above ordering code will result in a Type 10, wall mounted Maxi
with top and front grille, single emitter, with traffic white casing
440mm high and 630mm long
* See page 92 for colour options; standard colour is 233 white or 001 sand blast grey
Type
11
16
21
11
16
21
11
16
21
11
16
21
11
16
21
11
16
21
11
16
21
11
16
21
Watts
75/65 45/38
1128 485
1536 660
1857 799
1391 598
1871 805
2294 986
1954 840
2686 1155
3211 1381
2217 953
3021 1299
3648 1569
2480 1066
3356 1443
4085 1757
3343 1437
4651 2000
5482 2357
3606 1551
4987 2144
5919 2545
3869 1664
5322 2288
6356 2733
Price
std. (£)
785.00
850.90
881.10
849.90
936.00
976.80
966.50
1078.00
1129.70
1075.40
1210.50
1272.60
1228.30
1386.90
1495.20
1192.90
1361.90
1487.50
1419.80
1628.30
1764.00
1530.20
1804.90
1908.80
Type 20
FF Single
740mm high | floor model with top and front grille (FT)
Standard
Price
other (£)
844.30
912.20
944.60
912.70
1000.80
1043.90
1032.60
1146.30
1200.10
1144.40
1282.50
1347.20
1303.50
1464.90
1575.50
1271.30
1443.00
1571.50
1501.40
1712.90
1851.60
1615.10
1893.00
1999.90
Type 15
H
With DBE
Price
other (£)
689.70
749.70
782.20
758.10
838.30
881.50
819.50
917.60
971.50
872.80
987.60
1052.30
973.50
1103.80
1214.50
1058.10
1214.30
1342.90
1113.10
1285.40
1424.20
1168.30
1399.30
1506.20
Type 10
L
Length
(mm)
630
830
1030
1230
1430
1630
1830
2030
Type Watts
10
15
20
10
15
20
10
15
20
10
15
20
10
15
20
10
15
20
10
15
20
10
15
20
732
1097
1484
965
1446
1956
1197
1794
2427
1429
2142
2898
1662
2491
3370
1894
2839
3841
2127
3187
4312
2359
3536
4783
Price
std. (£)
589.40
629.70
671.30
640.70
692.10
744.20
687.60
749.50
813.00
729.60
800.80
874.80
823.90
905.00
1010.00
883.80
980.00
1103.00
926.50
1032.00
1165.70
969.80
1108.40
1227.10
Twin
Price
other (£)
654.80
697.70
741.50
710.80
764.10
819.00
761.10
825.70
891.80
807.30
881.50
958.20
908.80
993.00
1100.70
972.60
1072.10
1198.00
1019.30
1128.20
1265.00
1066.50
1208.50
1330.70
Type Watts
11
16
21
11
16
21
11
16
21
11
16
21
11
16
21
11
16
21
11
16
21
11
16
21
935
1225
1637
1231
1613
2156
1528
2002
2676
1825
2391
3196
2121
2779
3715
2418
3168
4235
2715
3557
4754
3011
3946
5274
Price
std. (£)
679.10
739.20
770.70
749.60
828.90
871.00
812.90
910.00
963.10
867.20
980.40
1043.90
973.80
1102.50
1211.50
1060.00
1215.30
1342.40
1116.10
1287.20
1425.20
1172.90
1402.10
1507.20
With DBE
Price
other (£)
744.60
807.10
841.00
819.60
901.20
945.60
886.30
986.20
1042.00
944.90
1061.20
1127.40
1058.80
1190.30
1302.20
1148.90
1307.40
1437.30
1209.00
1383.40
1524.30
1269.60
1502.20
1610.80
Type
11
16
21
11
16
21
11
16
21
11
16
21
11
16
21
11
16
21
11
16
21
11
16
21
Watts
75/65 45/38
1235 531
1705 733
2117 910
1531 658
2093 900
2636 1133
2128 915
2962 1274
3636 1563
2425 1043
3351 1441
4156 1787
2721 1170
3739 1608
4675 2010
3618 1556
5088 2188
6155 2647
3915 1683
5477 2355
6674 2870
4211 1811
5866 2522
7194 3093
Price
std. (£)
833.70
901.60
933.10
904.30
991.40
1033.40
1025.90
1138.70
1191.80
1138.80
1275.30
1338.80
1303.80
1463.60
1572.50
1273.20
1444.00
1571.10
1504.40
1714.70
1852.70
1619.70
1895.80
2000.90
Price
other (£)
899.20
969.50
1003.40
974.20
1063.60
1108.00
1099.30
1214.90
1270.60
1216.50
1356.10
1422.20
1388.70
1551.40
1663.30
1362.00
1536.10
1666.00
1597.30
1810.90
1951.80
1716.30
1995.90
2104.50
Standard connections**
Standard delivery
Outputs
Bottom left or right, valve position 20 (left) or 70 (right)
Standard delivery includes casing, wall brackets, automatic air vent
and drain plug 1/2”.
Measured in accordance with EN 442. Water temperature of
75/65°C and room temperature of 20°C (ΔT=50).
For optional top valve, add suffix to the code /UK30 (top left) or
/UK60 (top right), e.g. MAXW 044 063 10 233/UK60 FT
For no perforation for TRV in the side panel, add suffix to the code
/00, e.g. MAXW 044 063 10 233/FT/ 00
** See page 54 for connection sets and valves
For technical support visit www.jaga.co.uk or telephone 01531 631 533

50
Previous

Next
Go to product page on website
EN
442
Maxi LST
EN
Maxi442
LST
Maxi LST
floor model with two front grilles (MAXW.../FF)
Parts
page 78
Design
considerations
page 82
Correction
factors
page 84
Type 10
L
EN
442
Connection
sets and
valves
page
EN54

Type 15
Type 20
FF Single
H
Technical
information
page 86
442
440mm high | floor model with
two front grilles (FF)
EN
442
Standard
Length
(mm)
630
830
1030
1230
1430
1630
1830
2030
Type Watts
10
15
20
10
15
20
10
15
20
10
15
20
10
15
20
10
15
20
10
15
20
10
15
20
401
585
748
528
771
986
655
957
1223
782
1143
1460
909
1329
1698
1037
1514
1935
1164
1700
2173
1291
1886
2410
Price
std. (£)
528.40
569.70
611.50
570.10
622.40
676.00
607.00
670.80
735.60
639.30
712.80
787.60
712.40
796.60
904.80
762.70
862.30
988.90
795.30
905.10
1043.00
829.40
972.40
1096.10
Price
other (£)
587.20
630.60
674.60
631.50
686.30
742.30
670.90
737.10
805.00
705.50
782.00
859.90
783.70
871.40
982.70
836.60
939.50
1070.20
871.40
985.40
1127.10
908.10
1055.30
1183.50
590mm high | floor model with two front grilles (FF)
Standard
Length
(mm)
630
830
1030
1230
1430
1630
1830
2030
Type Watts
10
15
20
10
15
20
10
15
20
10
15
20
10
15
20
10
15
20
10
15
20
10
15
20
557
801
1020
734
1056
1344
911
1310
1668
1088
1564
1992
1265
1819
2316
1442
2073
2640
1619
2327
2964
1795
2582
3287
Price
std. (£)
578.10
620.30
663.10
623.80
677.80
733.10
665.60
731.00
797.60
703.10
777.20
854.20
787.60
872.90
983.40
842.50
943.70
1072.10
880.50
991.50
1130.30
919.00
1063.80
1189.00
Twin
Price
other (£)
642.90
687.70
733.00
692.20
748.80
806.70
737.70
805.30
874.70
778.00
855.60
935.20
868.40
957.70
1071.80
926.90
1031.90
1164.30
968.10
1082.80
1226.20
1009.80
1158.80
1288.60
Type Watts
11
16
21
11
16
21
11
16
21
11
16
21
11
16
21
11
16
21
11
16
21
11
16
21
744
873
1053
981
1150
1387
1217
1427
1721
1453
1704
2055
1690
1981
2389
1926
2258
2724
2162
2535
3058
2399
2812
3392
Price
std. (£)
668.00
729.40
762.80
732.30
815.10
859.50
790.80
891.60
947.90
841.10
956.80
1023.10
937.30
1070.60
1184.80
1018.50
1179.00
1311.50
1070.10
1246.80
1390.00
1121.70
1357.50
1469.50
How to order (example)
Product Height Length
MAXW
044
063
740mm high | floor model with two front grilles (FF)
With DBE
Price
other (£)
732.70
796.90
832.60
800.60
886.10
933.30
862.70
965.90
1025.20
915.80
1034.90
1104.20
1018.00
1155.30
1273.20
1103.00
1267.20
1403.70
1157.60
1338.20
1485.80
1212.50
1452.50
1569.00
Type Colour* Model Connection
10
233
FF
70
Using above ordering code will result in a Type 10, wall mounted Maxi
with front grilles, single emitter, with traffic white casing 440mm high
and 630mm long
* See page 92 for colour options; standard colour is 233 white or 001 sand blast grey
Type
11
16
21
11
16
21
11
16
21
11
16
21
11
16
21
11
16
21
11
16
21
11
16
21
Watts
75/65 45/38
1044 449
1353 582
1533 659
1281 551
1630 701
1867 803
1817 781
2387 1026
2681 1153
2053 883
2664 1146
3015 1296
2290 985
2941 1265
3349 1440
3126 1344
4178 1797
4644 1997
3362 1446
4455 1916
4978 2141
3599 1548
4732 2035
5312 2284
Price
std. (£)
822.60
891.80
925.20
886.90
977.60
1022.00
1003.90
1120.30
1176.60
1112.70
1251.70
1318.00
1267.30
1431.70
1545.90
1231.70
1407.70
1540.20
1458.40
1674.20
1817.50
1568.40
1851.20
1963.20
Standard
Price
other (£)
887.40
959.40
995.00
955.20
1048.50
1095.70
1075.80
1194.50
1253.80
1187.40
1329.80
1399.10
1348.00
1516.40
1634.30
1316.10
1495.90
1632.40
1545.90
1765.70
1913.30
1659.20
1946.20
2062.70
Length
(mm)
630
830
1030
1230
1430
1630
1830
2030
Type Watts
10
15
20
10
15
20
10
15
20
10
15
20
10
15
20
10
15
20
10
15
20
10
15
20
672
951
1209
885
1252
1592
1098
1554
1976
1311
1856
2360
1524
2157
2743
1738
2459
3127
1951
2761
3511
2164
3063
3894
Price
std. (£)
626.90
671.30
716.40
678.20
733.90
790.10
725.00
791.30
859.60
766.90
842.30
920.10
862.70
950.30
1061.90
922.70
1025.40
1155.30
965.40
1077.40
1217.80
1008.70
1154.70
1281.30
Twin
Price
other (£)
698.20
745.50
793.20
753.50
811.90
871.60
804.20
873.80
945.50
850.20
928.80
1010.00
953.60
1045.00
1160.20
1017.10
1124.50
1258.30
1063.90
1180.50
1325.00
1111.30
1261.50
1392.80
Type Watts
11
16
21
11
16
21
11
16
21
11
16
21
11
16
21
11
16
21
11
16
21
11
16
21
886
1044
1291
1141
1376
1700
1416
1707
2110
1691
2038
2520
1966
2370
2929
2241
2701
3339
2516
3033
3749
2791
3364
4159
Price
std. (£)
716.70
780.70
815.80
787.10
870.90
916.90
850.20
951.90
1009.90
904.60
1021.90
1089.00
1012.60
1147.80
1263.30
1098.90
1260.70
1394.60
1155.00
1332.60
1477.10
1211.80
1448.60
1561.50
With DBE
Price
other (£)
788.10
854.80
892.50
862.40
948.90
998.30
929.50
1034.40
1095.70
987.80
1108.50
1179.10
1103.50
1242.50
1361.70
1193.40
1359.60
1497.80
1253.50
1435.70
1584.50
1314.40
1555.20
1672.90
Type
11
16
21
11
16
21
11
16
21
11
16
21
11
16
21
11
16
21
11
16
21
11
16
21
Watts
75/65 45/38
1166 501
1524 655
1771 762
1441 620
1856 798
2180 937
2016 867
2667 1147
3070 1320
2291 985
2998 1289
3480 1496
2566 1103
3330 1432
3889 1672
3441 1480
4621 1987
5259 2261
3716 1598
4953 2130
5669 2438
3991 1716
5284 2272
6079 2614
Price
std. (£)
871.30
943.10
978.20
941.70
1033.30
1079.30
1063.30
1180.50
1238.50
1176.10
1316.70
1383.90
1342.60
1508.90
1624.40
1312.10
1489.40
1623.30
1543.30
1760.00
1904.60
1658.50
1942.30
2055.10
Price
other (£)
942.70
1017.20
1054.90
1017.00
1111.30
1160.70
1142.50
1263.00
1324.30
1259.40
1403.40
1474.00
1433.50
1603.60
1722.80
1406.50
1588.30
1726.50
1641.80
1863.20
2011.90
1761.10
2048.90
2166.60
Standard connections**
Standard delivery
Outputs
Bottom left or right, valve position 20 (left) or 70 (right)
Standard delivery includes casing, wall brackets, automatic air vent
and drain plug 1/2”.
Measured in accordance with EN 442. Water temperature of
75/65°C and room temperature of 20°C (ΔT=50).
For optional top valve, add suffix to the code /UK30 (top left) or
/UK60(top right), e.g. MAXW 044 063 10 233/UK60 FF
51
For no perforation for TRV in the side panel, add suffix to the code
/00, e.g. MAXW 044 063 10 233/FF/00
** See page 54 for connection sets and valves
For technical support visit www.jaga.co.uk or telephone 01531 631 533

52
Previous
Special LST products

Next
Go to product page on website
EN
442

Special LST products
EN
LST Specials
and Accessories
442
EN
442
Connection
sets and
valves
page
EN54
Parts
page 78
Design
considerations
page 82
Correction
factors
page 84
Technical
information
page 86
442
Tempo LST continuous casingEN
Continuous casing from wall to wall based on the Tempo LST casing,
442
Jaga Low-H2O heat exchanger and standard options, like in-and
outside corners, connecting pieces, wall-connections and special
brackets with holes for pipes. Offers the opportunity to conceal
pipework and can be extended with cable duct for concealing
electrical wiring.
Extremely suitable for all large and small projects such as offices,
shopping centres, doctor’s surgeries, hospitals, etc.
Jaga’s innovative ‘click’ system
allows for assembly of all
components without tools and
finished with strong synthetic
closing profiles.
Maxi Continuous
Installation in a wall recess
Whenever there is a protrusion from a wall such as the radiator,
there is a cubby hole created. If this is in an area where the
people using the area are vulnerable to injuries or self harm the
little nooks might need to be limited. This is where the Maxi
continuous comes into its own. As a very heavy duty product
based on the Maxi LST, the continuous version can be sized to go
from wall to wall, or even incorporate inner or outer corners.
LST heating solutions need not necessarily be based on a wall
mounted radiator. Jaga’s innovative Low-H2O technology allows
you to build our units into a wall recess, or behind seating or other
wall mounted units, to provide a powerful and efficient, yet
unobtrusive LST heating solution.
Optional accessories
Brush
For easy cleaning of the underside of the
Low-H2O heat exchanger without detaching
the casing.
Code
5090.001
With fabricated joints connected to the Maxi LST the continuous
sections are as strong as the original casing, and if the casing is
locked then the joining strip is also locked.
£
£7.90
Fin Comb
Sometimes during installation the fins of the element can get
damaged, especially when first and second fix is several months
before final fix. In these situations Jaga can supply a comb to
straighten the bent fins to ensure that product performance is |
not impeded.
Cupboards should be built in a way that enables access to the
heat exchanger for annual maintenance. In order to prevent dirt
from falling into the heat exchanger fit the grille a little higher
than the cupboard edge.
Code
Examples
h2
H
B
d
B
d
D
h2 h2
H
H
H
B
B
d
D
5090.003
h1
h1 h1
D
d
B
d
D
H
H
B
h2 h2
H
H
H
Pro Key
Tool for easy mounting of the Jaga Pro valve.
B
Code
d
d
d
D
B
B
h2
h1
d
h1
h1 h1
D
D
D
£
£103.80
5090.1120
h1 h1
£
£7.00
D
Dimensions (mm)
Type
10
11 (twin)
15
16 (twin)
20
21 (twin)
H
D
118
118
168
168
218
218
B
100
100
150
150
200
200
dh
53
53
78
78
103
103
1 min*
100
100
120
20
150
150
h2 min*
100
100
120
120
150
150
* smaller dimensions can decrease output.
% air flow Correction factor
75
1.00
60
0.96
50
0.92
40
0.84
30
0.66
Heat outputs
Heat outputs are calculated
on the given dimensions
and with free outlet of 75%
of dimension B. For other
dimensions or grilles,
correction factors have
to be applied.
For technical support visit www.jaga.co.uk or telephone 01531 631 533
53

54
Previous

Next
Controls and valves
Controls and valves
Why choose balancing
thermostatic
radiator valves?
LST valves range
The specially shortened valves offered by Jaga can be concealed
within the standard casing. Other valves may be partially visible.
Jaga Pro Thermostatic Valve
Jaga Thermostatic Valve
Due to the advanced design of the Jaga and
Jaga Danfoss pre-settable TRVs, the flow rate
of the water (Kv) in the heating elements can
be adjusted exactly to ensure optimal
performance of the TRVs.
(for Tempo LST, Sentinel LST and
Guardian LST)
(for all Jaga LST Radiators)
> with pre-setting
> for two pipe
> TRV head, liquid filled and with screw
thread M30 (Heimeier compatible)
> TRV head, liquid filled and with screw
thread M30 (Heimeier compatible)
> for connection to the floor or to
the wall (not Sentinel LST Type 06)
When all TRVs are fully opened, the balancing
control allows the remotest heating elements
to get the necessary flow of hot water.
> for connection to the floor or to
the wall
> complies to European standard
EN 215.1
The water flow temperature can be set back
earlier because all of the heating elements
heat up in a uniform manner thereby
minimising energy loss.
Noise from flowing water will also be reduced
thanks to the balancing flow control. The
optimal water distribution may allow a smaller
water circulation pump to be installed.
> with pre-setting
> complies to European standard
EN 215.1
white RAL 9010
white RAL 9010
chromed
chromed/white
chromed
chromed/white
Jaga Comap silver
Jaga Comap silver
Jaga Comap Valve
Jaga Danfoss Thermostatic Valve
(for all Jaga LST radiators)
(for all Jaga LST Radiators)
180°
> universal valve with revolving
underblock for wall or floor
connection
> easy pre-setting, integrated and marked
> super fast reacting gas filled TRV, with a
click connection
> replacement internal
mechanism
> for connection to the floor or to the wall
(not Sentinel LST type 06)
> with screw thread M30 x 1.5
(Heimeier compatible)
> complies to the european standard EN 215.1
> with synthetic spindle
protection for setting on site
90°
> completely lockable (flow
and return)
white RAL 9010
Type RA
white RAL 9010
Covering Rosette
Jaga Comap silver
white RAL 9010
Type RAX
Chromed
Type RAX
L
ø15
> two piece rosette
54
> with strong ABS synthetic material
> simple mounting or removing
by means of a click system
M
20
12
> heat-resistance up to 100°C
L
M
£
22170.00040101
Code
100
38
2.30
22170.00040102
112
50
2.30
White RAL 9010
Without Balancing TRV
With Balancing TRV
The water distribution to the heating elements after the night low
demand period when all TRVs are fully open. The system at the
right has balanced TRV fitted, the left does not.
For technical support visit www.jaga.co.uk or telephone 01531 631 533
55
Next
Connection possibilities
5090.110
1
5090.110
2
5090.110
2
4
5
5090.110
4
5
6
6
5090.108
5090.108
5090.108
To the wall
1
654 3 21
5090.121
5090.109
5090.110
12
5090.108
5090.110
7
With 2 lockshields 1/2” 90°,
(without perforation in side panel)
5090.109
5090.110
7
5090.109
5090.111
8
7
5090.111
9
12
9
5090.111
5095.020
5095.020
5090.111
5090.108
5090.112
5090.112
10
10
To the floor
1
1
4
2
3
4
4
5
3
11
1
With 1 lockshield 1/2” 180°
5095.020
11
5095.020
5095.020
4
5090.109
5090.109
2
5
9
13
To the wall
6
With extension pipe 1/2”
89
5090.108
5090.120
3
6
8 7
5090.108
8
5090.108
5090.111
5090.120
5090.109
5090.109
5090.109
7
5090.108
5090.108
2
6
5090.1127
4
6
5090.108
5090.108
5090.110
5090.109
3
5
12
5090.108
2
5
5
5090.109
5090.110
5090.110
5090.108
Jaga
10 Pro
1
5090.111
11
9
5090.112
5090.112
11
1
5090.1085090.109
5090.111
5090.108
5090.108
5090.108
5090.108
5090.108
5090.108
5090.108
5090.108
5095.020
5095.020
5090.109
5090.109
5090.109
5090.109
5090.109
45
4
12
5090.120
5090.108
5090.111
10
6
5090.108
5090.108
5090.110
5090.121
5090.121
3
13
10
5090.109
5090.109
8
9
10
5
5
10
9
13
5090.111
4
5090.111
5090.110
5090.110
Standard
5090.108
3
4
5090.112
5090.108
5090.108
4
1
5090.111
5090.111
5090.1105090.110
5090.110
5090.110
8
10
5090.111
5090.121
2
5090.108
5090.111
2 5090.110 4
8
5090.108
56
5 4
5090.108
5090.108
5090.108
5090.110
5090.110
5090.1085090.120
5090.120
5090.121
5090.109
5090.108
5090.112
5
5090.110
4
5090.108
5090.120
7
8
5090.121
5090.108
To the floor
6
5090.108
5090.108
5090.109
5090.120
5090.112
5090.110
5090.110
5090.110
5090.110
13
5090.108
5090.121
5090.109
5090.108 3
13
5090.108
5090.108
5090.111
5090.108
12 6
7
3
5090.108
With type 6 valve and lockshield M
24, 90° (for Sentinel LST type 06)
13
5090.121
6
5090.110
12
5
5090.109
4
5090.110
2
4
5090.121
12
5
5090.110
5090.108
5090.108
5090.110
5090.110
5090.109
5090.1095090.109
5090.110
5090.110
2
With extension pipe and H-piece 90° M 24
5090.108
5090.110
5090.121
5090.109
5090.110
5090.108
5090.110
4
412
13
5090.121
5090.110
5090.110
5090.121
3
5090.109
tube and short sleeve couplings
5090.108
3
4
5
4With 2 lockshields 1/2” 90°, extension
5090.108
5090.121
5090.110
5090.121
1
5090.108
2
5
5090.110
5090.108
5090.110
5090.110
2 25090.121
3
With 1 lockshields
1/2” 90° and
2
short sleeve couplings
3
5090.108
4
5090.110
5090.110
5
11
5090.110
5090.110
5090.110
5090.108
5090.110
1
5090.109
5090.110
4
5090.108
5090.110
5090.110
5090.108
5090.110
5090.110
5095.020
4
654 3 21
5090.108
5090.110
5090.110
654 3 21
5090.108
5090.108
1
2
4
4
4
4
5
4
5090.121
With extension
pipe and H-piece
M24 180°
4
5
4
4
3
5090.108
5090.108
5090.108
5090.108
4
4
5
4
4
3
2
4
5
10
5090.112
10
5090.108
10
5090.108
5090.121
10
5090.121
with extension pipe and H-piece
1/2” 180°
5090.121
5090.108
5090.108
4
5090.108
4
3
5090.112
5090.112
5090.108
5090.108
5090.108
5090.112
5090.112
5090.112
5090.112
5090.121
5090.108
5090.108
2
5090.121
1
5090.108
5090.108
4
4
1
1
5090.108
4
5090.112
5090.112
5090.121
5090.108
4
4
5
5
5090.108
To the floor
4
5090.121
9
4
4
5
3
4
9
5090.108
2
With extension
5090.121 pipe and 2
lockshields 1/2” 180°
9
4
9
3
8
2
8
1
2
With extension pipe and lockshield
1/2” 180°
8
5090.108
4
78
1
1
5090.108
3
7
7
Top Valve
2
7
5095.020
5090.108
5090.108
4
5
4
4
5095.020
4
4
11
4
5095.020
3
4
5095.020
3
2
3
5
1
1
11
12
With 2 curves
4
5
3
4
2
11
1
2
11
5090.109
5090.108
5090.108
5090.108
5090.108
5090.108
5090.108
5090.108
5090.108
5090.108
5090.108
5090.108
5090.108
5090.108
5090.108
5090.108
5090.108
5090.108
5095.020
5095.020
5090.108
5090.108
5090.108
5090.120
5090.120
5090.120
5090.109
5090.109
5090.109
5090.109
5090.109
5090.109
5090.120
5090.120
5090.120
5090.109
5090.109
5090.109
5090.109
5090.109
5090.109
5090.110
5090.110
5090.110
5090.110
5090.110
5090.120
5090.109
5090.110
5090.110
5090.110
5090.110 5090.109
5090.110
5095.020
90.110
5090.110
5090.108
2
5090.110
5090.108
5090.108
5090.109
5090.110
654 3 21
Jaga and Jaga Danfoss
5090.110
5090.110
5090.108
5090.108
654 3 21
654 3 21
LST connection possibilities
1
57
654 3 21
Connection possibilities
3
0
56

Previous
2
08
8

5090.108
5090.108
5090.112
5090.108
5090.108
5090.121
5090.112
5090.121
5090.108
5090.108
5090.121
5090.121
5090.121
5090.121
5090.112
5090.108
5090.112
5090.112
5090.112
For technical support visit www.jaga.co.uk or telephone 01531 631 533


Next
Valves
Valves
Jaga Danfoss valve
Jaga valve
Danfoss manual head
Jaga Danfoss
LST valve
(suitable for all
Jaga LST radiators)
Code
5090.102
> Thermostatic valve
(Kv max. 0.71 m3/h)
> specially designed thermostatic valve in order
to be fully concealed within the casing
£
4.90
Jaga valve
Jaga remote controlled head
(suitable for all
Jaga LST radiators)
Suitable for independent temperature measurement
(underfloor ducts, bath panels, project casings, etc).
Technical data: see Deco thermostatic head above.
> Thermostatic valve
(Kv max. 0.60 m3/h)
> length of capillary : 2 m
> specially shortened thermostatic valve
in order to be fully concealed within the casing
White RAL 9010
Code
5090.1107
> with pre-setting in 6 steps
> with screw thread M30 x1.5 (Heimeier compatible)
> integrated pre-setable water flow delimitation to control
max amount of flowing water
> with synthetic spindle protection for setting on site
Remote controlled head
> for connection to the floor or to the wall
> standard kv-value: 0.10 to 0.60 m3/h
> reduced Kv on request
Remote controlled TRV head for heating elements installed
in laces with difficult access (underfloor ducts, bath panels,
continuous and project casings etc. )
> reduced kv-value: 0.045 to 0.32 m3/h
(recognition: red coloured spindle protection)
> complies to the european standard EN 215.1
> length of capillary tube: 2m
> Connection to the wall Sentinel LST type 06: see page 61
> Connection to the wall Sentinel LST type 06: see page 61
> remote sensor, wire and the setting knob are all gas filled
> with synthetic spindle protection and serrated screw
for setting on site
> for connection to the floor or to the wall
Code
5090.402
> anti-freeze protection ❄ 7.5 °C
> both the min. and max. temperature can be limited (6-28 °C)
£
29.20
Code
5090.107
Minimal interior diameter of the tube for
conducting the capillary = 18mm
Code
£
5090.405 standard Kv 16.70
5090.404 reduced Kv 16.70
£
110.40
> length of capillary : 2 m
Thermostatic head type RA:
> liquid filled and anti-freeze protection ❄ 6°C.
> with click-connection
> min. and max. temperature (5-26°C) control by ring-system
> 2 locking pins by which the TRV can
be blocked or limited both at a min
and maxtemperature (5-26°C)
Colour
white type RA
£
65.90
> screw connection M30 x 1.5
Code
5090.1125
£
24.20
White RAL 9010 type RA
> locking pin as theft prevention
Code
5090.105
Code
5090.1115
34
Minimal interior diameter of the tube for
conducting the capillary = 22mm
> anti-freeze protection ❄ 7.5°C
Jaga Thermostatic Head with
Sensor at distance
Suitable for independent temperature measurement
(underfloor ducts, bath panels, project casings, etc).
Technical data: see Deco thermostatic head above.
Jaga Thermostatic head
> gas filled TRV (super fast reaction)
£
91.20
30
58
Previous
Jaga Danfoss Remote Controlled Head
White RAL 9010
£
40.40
Remote controlled TRV head for heating elements installed in
places with difficult access.
> length of capillary: 2 m
Deco Thermostatic head
> liquid filled
> anti-freeze protection ❄ 8°C and adjustable from
10 up to 27°C (Jaga Comap: 6 up to 30°C)
Thermostatic head type RAX:
> max. temperature control by pin on inside
(Jaga Comap: ring-system)
> with click connection
> screw connection M30 x 1.5
Code
5090.1071
£
130.90
> liquid filled
> anti-freeze protection ❄ 8°C
Theft protection
> regulable from 8 up to 30°C
White RAL 9010 type RAX
Chromed
Chrome/white
Jaga Comap silver
Transparent synthetic theft protection. Only suitable for chrome
and chrome/white heads above.
Transparent synthetic theft protection
Chrome type RAX
Code
5090.10501
5090.10502
Colour
white type RAX
chrome type RAX
£
23.80
32.50
Code
5090.1111
5090.1110
5090.1119
Colour
chromed
chromed/white
silver
£
48.30
36.90
36.90
Code
Description
5090.1116 theft protection
5090.1117
adapted
screwdriver
£/p
9.50
34.50
Manual head
Code
5090.110103
£
5.50
White RAL 9016
For technical support visit www.jaga.co.uk or telephone 01531 631 533
59

60

Previous
Next
Valves
Valves
Jaga and Jaga Danfoss valves (continued)
Jaga Type 6 valve
Sleeve couplings for Jaga
and Jaga Danfoss valve
Jaga valve Type 6
Options for Jaga and
Jaga Danfoss valve
J
> Sleeve couplings with adaptor to suit valve connection 1/2” BSP
Flexible steel or copper tube
Code
5098.110
5098.112
5098.114
5098.115
5098.116
5098.118
> Thermostatic valve (Kv max. 0.60 m3/h)
Extension tube
Description
£/p
Ø 1/2” x 10/1
Ø 1/2” x 12/1
Ø 1/2” x 14/1
Ø 1/2” x 15/1
Ø 1/2” x 16/1
Ø 1/2” x 18/1
4.80
4.80
4.80
4.80
4.80
4.80
Code
½”
½”
½”
Just for
tube 15 1
Just for
tube 18 1
5090.108
Code
5098.212
5098.214
5098.219
5098.216
5098.217
5098.218
2
3
5
£/p
Ø 1/2” x 12/2
Ø 1/2” x 14/2
Ø 1/2” x 16/1.5
Ø 1/2” x 16/2
Ø 1/2” x 17/2
Ø 1/2” x 18/2
5.50
5.50
5.50
5.50
5.50
5.50
3.80
> with pre-setting in 6 steps
51
> with screw thread M30 x1.5 (Heimeier compatible)
7
8
9
> with synthetic spindle protection for setting on site
10
> for connection to the wall
Application: see connection possibilities page 56
7
6
> reduced kv-value: 0.045 to 0.32m3/h
(recognition: red coloured spindle protection)
½"
Description
£
nickle-plated
9.90
Code
£
5090.407 standard Kv 16.70
5090.406 reduced Kv 16.70
½"
Application: see connection possibilities page 56
Lockshield 1/2” 90° connection to wall
5090.110
Description
£
nickle-plated
9.50
Code
5094.110
5094.112
5094.114
5094.115
5094.116
5094.118
Description
£/p
Ø M24 x 10/1
Ø M24 x 12/1
Ø M24 x 14/1
Ø M24 x 15/1
Ø M24 x 16/1
Ø M24 x 18/1
2.40
2.40
2.40
2.40
2.40
2.40
Synthetic tube
Code
60
8
Code
Flexible steel or copper tube
> standard kv-value: 0.10 to 0.60m3/h
Lockshield 1/2” 180°
5090.109
Description
£
nickle-plated
½"
Code
Synthetic tube
> specially shortened thermostatic valve in order to be
fully concealed within the casing
½"
Description
Sleeve couplings for Jaga valve type 6
(suitable for all Jaga LST radiators)
24
½"
5094.212
5094.214
5094.219
5094.216
5094.217
5094.218
Description
£/p
Ø M24 x 12/2
Ø M24 x 14/2
Ø M24 x 16/1,5
Ø M24 x 16/2
Ø M24 x 17/2
Ø M24 x 18/2
3.00
3.00
3.00
3.00
3.00
3.00
½"
30
½
RPE/ALU tube
1
RPE/ALU tube
Ø 1/2” x 12/2
Ø 1/2” x 14/2
Ø 1/2” x 16/1.5
Ø 1/2” x 16/2
Ø 1/2” x 17/2
Ø 1/2” x 18/2
12
RPE tube = reticulated polyethylene tube
with an intermediate aluminium layer
Code
Description
£/p
Application: see connection possibilities page 56
RPE tube = reticulated polyethylene tube
with an intermediate aluminium layer
Code
Description
£/p
5098.212
5098.214
5098.219
5098.216
5098.217
5098.218
2
5.50
5.50
5.50
5.50
5.50
5.50
H-piece 1/2” 180° with 2
integrated lockshields and
lockable by-pass (two pipe)*
Code
5090.112
50
½"
Description
£
nickle-plated
26.60
5094.314
5094.316
5094.326
5094.318
½"
56
22
½"
10
Lockshield M24” 90° connection to
the wall
Application: see connection possibilities page 56
Code
5094.502
5094.504
Description
£/p
Ø 1/2” x 1/2”
Ø 1/2” x 3/8”
7.50
7.50
H-piece M24 180° with 2
integrated lockshields and
lockable by-pass (two pipe)*
Code
5090.120
Description
nickle-plated
50
½"
£
58
M24
M24
9
Application: see connection possibilities page 56
Sleeve couplings: see Jaga valve page 61
H-piece M24 90° with 2
integrated lockshields and
lockable by-pass (two pipe)*
Code
5090.121
35.5
by-pass
Description
£
nickle-plated
28.10
½"
50
½"
39
57.5
51
M24
9
Application: see connection possibilities page 56
Sleeve couplings: see Jaga type 6 valve page 61
* Tool to regulate: 6mm Allen key. By-pass open: 25% of main
pipe water flow goes through heating element. By-pass closed:
100% of main pipe water flow goes through heating element.
Description
24
£
5090.111
nickle-plated
9.50
Specially shortened valve for
connection to the wall. Can be used
with all types.
½"
23
26.60
3.80
3.80
3.80
3.80
½"
Code
Steel tube for C.H.
Ø M24 x 14/2
Ø M24 x 16/2
Ø M24 x 16/2.2
Ø M24 x 18/2
½"
½"
30
61

62

Previous
Next
Valves
Valves
63
Pro valve
Jaga Comap valve
Jaga Top valve
Remote control valves
Jaga Pro and Pro angled valves
Jaga Comap valve
Jaga Top valve
Free space for remote controlled valve
(suitable for Tempo LST, Sentinel LST
and Guardian LST WT Model)
(suitable for all Jaga LST
radiators)
> Thermostatic valve for Tempo LST,
Sentinel LST and Guardian WT
(Kv max. 0.60 m3/h)
> universal valve with revolving
underblock for wall or floor
connection
Thermostatic valve for operation at the top end, on the left or
right side of the radiator. Applicable with all Low-H2O radiators
with standard or Twin heat exchanger. After mounting only the
thermostatic head remains visible at the side panel.
> for two pipe
> replacement internal mechanism
180°
> complete lockable (flow and return)
> with screw thread M30 x 1.5
(Heimeier compatible)
> for connection to the floor or to
wall (additional curves required)
> with synthetic spindle protection
for setting on site
> with pre-setting at the flow (two pipe)
> with screw thread M30 x1.5
(Heimeier compatible)
Pro
Angled
Code
5094.4414
5094.4411
£
39.00
39.00
When ordering a radiator with top valve, please specify the correct
top valve position by adding /UK30 (left) or /UK60 (right) to the
code of the radiator.
> Kv-value: 0.03 up to 0.60m3/h
£
60.80
> A heat exchanger of a smaller size can be ordered for a larger
free space within the casing. See parts Cocoon LST page 74.
Code
5090.13001
Steel tube for C.H.
5094.501
5094.503
Description
£/p
Ø M24 x 1/2”
Ø M24 x 3/8”
5.10
5.10
86.40
Example: COCW. 040 040 10. 101 /00
> Maximum free space for valve: 65mm
5094.2112
5094.2114
5094.2115
5094.2116
5094.2118
See also type 6 on page 61
> If no perforation for TRV in the side panel is desired, order a
casing with 2 closed sides. Add to the code of the wall mounted
model casing /00.
Guardian LST
> for connection to the floor or to the wall
Flexible steel or copper tube
Code
Code
£
Sleeve couplings for Jaga Comap valve
Sleeve couplings for Jaga Pro valve
> If no perforation for TRV in the side panel is desired, order a
casing with 2 closed sides. Add to the code of the wall mounted
model casing /00.
> Maximum free space for valve: 65mm
Code
5094.402
> Pro only suitable for Tempo LST, Sentinel LST and Guardian WT
> Pro angled suitable for all products
> A heat exchanger of a smaller size can be ordered for a larger
free space within the casing. See parts Tempo LST page 72.
Cocoon LST
> Kv-value: two pipe: continuous
adjustable between 0.05 and
0.6m³/h
> with synthetic spindle protection for setting on site
> Maximum free space for valve: 65mm
Example: TEMW. 020 040 10. 101/00
90°
> completely lockable (flow and
return)
Tempo LST
Description
£/p
ø 3/4” x 12/1
ø 3/4” x 14/1
ø 3/4” x 15/1
ø 3/4” x 16/1
ø 3/4” x 18/1
3.30
3.30
3.30
3.30
3.30
> A heat exchanger of a smaller size can be ordered for a larger
free space within the casing. See parts Guardian LST page 76.
> Jaga thermostatic head (white RAL 9010) included
> with synthetic spindle protection for setting on site
> If no perforation for TRV in the side panel is desired, order a
casing with 2 closed sides. Add to the code of the wall mounted
model casing /00.
> with pre-setting in 6 steps
¾”
> length of capillary: 2m
Example: GUAR. 040 044 10. 233 /00
> Kv-value: 0.10 up to 0.60 m³/h.
Sentinel LST
> Maximum free space for valve: 70mm
Options for Jaga Pro valve
Synthetic or RPE/ALU tube
Code
Curve 90° M24 x M24
Code
5095.020
3.2
£/p
5.20
M 24
3.1 2.1
M 24
11
Application: see connection possibilities page 56
Pro key
Tool for easy assembling of the
Jaga Pro valve.
Code
5095.1120
£/p
7.00
5094.2612
5094.2614
5094.2616
5094.2617
5094.2618
5094.2615
5094.2619
5094.2620
Description
£/p
ø 3/4” x 12/2
ø 3/4” x 14/2
ø 3/4” x 16/2
ø 3/4” x 17/2
ø 3/4” x 18/2
ø 3/4” x 15/2.5
ø 3/4” x 16/1.5
ø 3/4” x 20/2
3.80
3.80
3.80
3.80
3.80
3.80
3.80
3.80
Sleeve couplings
> A heat exchanger of a smaller size can be ordered for a larger
free space within the casing. See parts Sentinel LST page 77.
Identical to Jaga valve: see page 60
> If no perforation for TRV in the side panel is desired, 2 cover
plates will be delivered: add to the code /00.
Example: SENW. 35 050 06.133/00
Just for
tube 12 2
¾”
Connection possibilities
In case of ordering a casing in colour 133 or 101, the cover
plates will be white.
Connection possibilities, see page56.
For all other casing colours: silver metallic plates.
Maxi LST
> Maximum free space for valve: 115mm
Arthritic TRV
> If no perforation for TRV in the side panel is desired, order
the Maxi by adding /00 to the standard code.
Jaga’s new arthritic TRV adaptor fits to the standard white TRV head
to enable better grip for those with a loss of dexterity in their hands.
This gives the user an additional aid to make the operation of the
TRV head even easier to ensure that comfort can be maintained.
Example: MAXW. 044 063 10. 233 /WT/00
For further information please contact Jaga on 01531 631533.
85
Code
5090.ARTH
Remote controlled head
all Jaga valves (see coding
for correct selection)
£
5.00
Remote controlled head
for Jaga, Jaga type 6,
Jaga Pro and Jaga Comap.
Thermostatic head with
sensor at distance for
Jaga, Jaga type 6, Jaga Pro
and Jaga Comap.
For technical support visit www.jaga.co.uk or telephone 01531 631 533

64

Previous
Next
Valves
Valves
65
Valve pressure drops
Jaga Pro Valve
*
*
**
*
**
*
*
*
**
*
*
*
*
Regulation
I
II
III
IV
V
VI
VII
VIII
IX
X
XI
XII
XII
KVs
Pre-setting
4
4
1
4
2
4
4
4
3
4
4
5
6
6
/4
1
–
11/2
–
13/4
2
21/2
–
3
–
–
–
–
Precision
adjustment
Kv: m3/h /
Δp=1 bar
Kv (t = 2K)
3
0.03 0.05 0.07 0.11 0.16 0.17 0.22 0.31 0.32 0.36 0.44 0.51 0.60
Radiator
flow %
5
8
11
I
mWC bar
18
26
28
37
52
53
60
73
85 100
* Possible stoppage by dirty installations
** An increase in noise level may be experienced if the pressure drop exceeds 0.2 bar
Heat exchanger 1 kW (Table ΔT=50)
Example:
ΔT = 10 °C (75 - 65 = 10 °C)
ΔP = 0.1 bar (to be setted over the valve)
Pre-setting = 6
1
10
8
6
5
4
II III IV V VI VII VIII IX X XI XII XIII Kvs
kPa
Jaga and Jaga Type 6 with reduced Kv
1
0.8
0.6
0.5
0.4
100
80
60
50
40
3
0.3
30
2
1.5
0.2
20
0.15
15
Example:
1.0
0.8
0.6
0.5
0.4
0.1
0.08
0.06
0.05
0.04
10
8
6
5
4
ΔT = 10 °C (75 - 65 = 10 °C)
0.3
0.03
3
0.2
0.15
0.02
0.015
0.1
0.08
0.06
0.05
0.04
Pre-setting
Kv: m3/h/
ΔP=1 bar
1
2
3
4
5
6
mWC
10
8
6
5
4
KvS
0.045 0.065 0.095 0.155 0.220 0.320 0.350
2-pipe
0.3
0.2
1.0
0.8
0.6
0.5
0.4
0.1
0.08
0.06
0.05
0.04
10
8
6
5
4
0.3
0.03
3
2
1.5
0.2
0.15
0.02
0.015
2
1.5
0.01
0.008
0.006
0.005
0.004
1
0.8
0.6
0.5
0.4
0.1
0.08
0.06
0.05
0.04
0.01
0.008
0.006
0.005
0.004
1
0.8
0.6
0.5
0.4
0.03
0.003
0.3
0.03
0.003
0.3
0.02
0.015
0.002
0.0015
0.2
0.15
0.02
0.015
0.002
0.0015
0.2
0.15
0.01
0.001
0.1
0.01
0.001
1
2
3
0.02
4 5 67
0.05
0.02
10
20
30 40 50
70 100
200 300 400 500 700 1000
Heat exchanger 1 kW (Table ΔT=50)
ΔP = 0.1 bar (to be setted over the valve)
Pre-setting = 6
0.05
0.1
0.1
0.2
2
0.6 0.8 1
0.3 0.4
0.2
2
0.6 0.8 1
0.3 0.4
3
4
5
3
4
5
7
7
10
10
0.03
0.05
0.1
0.3 0.4
0.2
2
0.6 0.8 1
3
4
5
7
10
6t=15°C
0.1
0.2
0.3 0.4
2
0.6 0.8 1
3
4
5
7
10
4
5
7
10
20
2
3
Kv: m /h/
ΔP=1 bar
0.1
0.2
0.3
3
4
5
0.4 0.5
2-pipe
Heat exchanger 1 kW (Table ΔT=50)
6
KvS
0.6
0.8
Example:
ΔT = 10 °C (75 - 65 = 10 °C)
ΔP = 0.1 bar (to be setted over the valve)
Pre-setting = 3
mWC
0.1
0.2
0.3 0.4
2
0.6 0.8 1
3
1
bar
10
8
6
5
4
1
0.8
0.6
0.5
0.4
3
0.3
2 3 4 5 6 Kvs
6t=40°C
kPa
100
80
60
50
40
30
30 dB(A)
2
1.5
0.2
1.0
0.8
0.6
0.5
0.4
0.1
0.08
0.06
0.05
0.04
10
8
6
5
4
0.3
0.03
3
15
0.2
0.15
0.02
0.015
2
1.5
0.1
0.08
0.06
0.05
0.04
0.01
0.008
0.006
0.005
0.004
1
0.8
0.6
0.5
0.4
0.03
0.003
0.3
0.02
0.015
0.002
0.0015
0.01
0.001
1
2
6t=10°C
6t=15°C
3
0.02
0.02
4 5 67
0.05
0.05
10
20
0.1
0.1
0.2
0.2
30 40 50 70 100
2
0.6 0.8 1
0.3 0.4
0.3 0.4
200 300 400 500 700 1000
2
0.6 0.8 1
3
3
4
4
5
5
7
7
10
6t=20°C
0.03
6t=30°C
6t=40°C
Jaga Comap Valve
Pre-setting
Kv: m3/h/
ΔP=1 bar
1
2
3
4
mWC
5
6
0.05 0.10 0.15 0.20 0.25 0.32
2-pipe
7
0.4
8
9
10
0.46 0.53
0.6
0.05
0.05
0.05
0.1
0.1
0.1
0.2
0.2
0.2
0.3 0.4
0.3 0.4
0.3 0.4
0.6 0.8 1
2
0.6 0.8 1
2
0.6 0.8 1
2
3
3
4
3
4
5
4
5
7
5
7
10
7
20
20
15 kW
20 kW
10
10
10 kW
30 kW
30 40 kW
4 5 67
0.05
0.05
10
20
0.1
0.1
0.2
0.2
30 40 50 70 100
2
0.6 0.8 1
0.3 0.4
2
0.6 0.8 1
0.3 0.4
200 300 400 500 700 1000
3
4
5
3
4
5
7
4
5
7
10
7
Heat exchanger 1 kW (Table ΔT=50)
Example:
ΔT = 10 °C (75 - 65 = 10 °C)
ΔP = 0.1 bar (to be setted over the valve)
Pre-setting = 5
Technical data Jaga valves
0.2
0.15
> Maximum water flow temperature: 120 °C
0.1
> Max pressure of system: 10 bar
10
8
6
5
4
0.05
0.1
0.05
0.05
0.1
0.1
0.3 0.4
0.2
0.2
0.2
0.3 0.4
0.3 0.4
2
0.6 0.8 1
2
0.6 0.8 1
2
0.6 0.8 1
3
3
4
5
7
4
5
7
10
1
bar
3
2
10 kW
15 kW
10
10
20 kW
20
30 kW
30 40 kW
20
kPa
3 4 5 6 78910
1
0.8
0.6
0.5
0.4
100
80
60
50
40
3
0.3
2
1.5
0.2
1.0
0.8
0.6
0.5
0.4
0.1
0.08
0.06
0.05
0.04
0.3
0.03
3
0.2
0.15
0.02
0.015
2
1.5
0.1
0.08
0.06
0.05
0.04
0.01
0.008
0.006
0.005
0.004
1
0.8
0.6
0.5
0.4
0.03
0.003
0.3
0.02
0.015
0.002
0.0015
0.2
0.15
0.01
0.001
30
30 dB(A)
20
25 dB(A)
0.15
3
0.02
0.02
6t=30°C
30 kW
30 40 kW
20
0.1
2
0.03
∆t=40°C
0.05
15
6t=20°C
20 kW
∆t=30°C
0.05
20
25 dB(A)
0.15
6t=10°C
kW
15 kW
30
30 dB(A)
1
∆t=20°C
1
100
80
60
50
40
2
1.5
∆t=15°C
Pre-setting
kPa
4 5 6 Kvs
1
0.8
0.6
0.5
0.4
3
∆t=10°C
Jaga, Jaga Type 6 and Jaga
top valve, with standard Kv
1 2 3
bar
20
0.15
15
25 dB(A)
10
8
6
5
4
0.1
1
2
3
4 5 67
10
20
30 40 50 70 100
200 300 400 500 700 1000
> Max pressure drop 0.6 bar complying to the noise standard
ISO 3743
> The waterflow in the heating element can be limited to
0-100 % of the main pipe water flow in two pipe system
> RA gas filled Jaga Danfoss and RAX liquid filled thermostatic
head (setting deviation 0.5 ≤ XP=2K)
> Liquid filled Jaga and Jaga Deco thermostatic head setting
deviation 0.5 ≤ XP=2K)
6t=10°C
6t=15°C
0.02
0.02
0.05
0.05
0.1
0.1
0.2
0.2
2
0.6 0.8 1
0.3 0.4
0.3 0.4
2
0.6 0.8 1
3
4
5
3
4
5
7
4
5
7
10
7
10
6t=20°C
0.03
6t=30°C
6t=40°C
0.05
0.05
0.05
0.1
0.1
0.1
0.2
0.2
0.2
0.3 0.4
0.3 0.4
0.3 0.4
2
0.6 0.8 1
0.6 0.8 1
2
0.6 0.8 1
2
3
3
3
4
5
7
4
5
7
10
10
15 kW
20 kW
20
20
10 kW
30 kW
30 40 kW
For technical support visit www.jaga.co.uk or telephone 01531 631 533

Next
Valves
Valves
Jaga Danfoss Valve
Pre-setting
Kv: m3/h/
ΔP=1 bar
1
2
3
4
5
mWC
6
7
N
0.06 0.10 0.17 0.25 0.35 0.45 0.56 0.71
2-pipe
NKvS
1
Heat exchanger 1 kW (Table ΔT=50)
Example:
ΔT = 10 °C (75 - 65 = 10 °C)
ΔP = 0.1 bar (to be setted over the valve)
Pre-setting = 4
Technical data Jaga valves
> Maximum water flow temperature: 120 °C
> Max pressure of system: 10 bar
> Max pressure drop 0.6 bar complying to the noise standard
ISO 3743
10
8
6
5
4
1
bar
2
3 4 5 6 7N
NKvs
Valve pressure drops (continued)
1
0.8
0.6
0.5
0.4
kPa
100
80
60
50
40
3
0.3
2
1.5
0.2
1.0
0.8
0.6
0.5
0.4
0.1
0.08
0.06
0.05
0.04
0.3
0.03
3
0.2
0.15
0.02
0.015
2
1.5
0.1
0.08
0.06
0.05
0.04
0.01
0.008
0.006
0.005
0.004
1
0.8
0.6
0.5
0.4
0.03
0.003
0.3
0.02
0.015
0.002
0.0015
0.2
0.15
0.01
0.001
30
30 dB(A)
20
25 dB(A)
0.15
15
10
8
6
5
4
0.1
1
2
3
4 5 67
10
20
30 40 50 70 100
200 300 400 500 700 1000
> The waterflow in the heating element can be limited to
0-100 % of the main pipe water flow in two pipe system
> RA gas filled Jaga Danfoss and RAX liquid filled thermostatic
head (setting deviation 0.5 ≤ XP=2K)
6t=10°C
6t=15°C
> Liquid filled Jaga and Jaga Deco thermostatic head setting
deviation 0.5 ≤ XP=2K)
0.02
0.02
0.05
0.05
0.1
0.1
0.2
0.2
2
0.6 0.8 1
0.3 0.4
0.3 0.4
2
0.6 0.8 1
3
4
5
3
4
5
7
4
5
7
10
7
10
6t=20°C
0.03
6t=30°C
6t=40°C
0.05
0.05
0.05
0.1
0.1
0.1
0.2
0.2
0.2
0.3 0.4
0.3 0.4
0.3 0.4
2
0.6 0.8 1
2
0.6 0.8 1
2
0.6 0.8 1
3
3
3
4
5
7
4
5
7
10
10
15 kW
20 kW
20
20
10 kW
30 kW
30 40 kW
Adjusting the H-piece (two pipe)
Tool to regulate: 6mm Allen key.
By-pass open: 50% of main pipe water flow goes throuh heating
element.
By-pass closed: 100% of main pipe water flow goes through
heating element.
100
Radiator flow Ra in % from water flow
66

Previous
90
80
70
60
50
40
30
20
10
0
0
0.5
1
1.5
2
2.5
3
3.5
4
Number of rotations to open the by-pass
Maxi LST at James Aiton Primary School, Glasgow
For technical support visit www.jaga.co.uk or telephone 01531 631 533
67

68

Previous
Next
Connection sets
Controls and valves
Complete ordering code with sleeve couplings according to the
material used and diameter of the tube. The correct type of sleeve
coupling is determined by the ordering code of the connection set
Connection sets
Thermostatic heads
Example: COLO. PW2.DW. 32. (insert relevant code from next page).
Set 11 Jaga Pro Valve
Two pipe connection to wall – bottom of casing (Kv max 0.6)
Code*
Thermostatic head
£
COLO.PW2.DW.3xx
chrome/white
93.80
Thermostatic head
of choice
COLO.PW2.DC.3xx
chrome
105.20
Jaga Pro valve
COLO.PW2.JW.3xx
white
81.00
COLO.PW2.JC.3xx
silver
93.80
DW Chrome/White
DC Chrome
JW White
JC Silver
RW Remote controlled
DS Chrome/white
remote sensor
Sleeve couplings M24
2 curves to wall
* Ordering code is completed with sleeve coupling code
Set 12 Jaga Pro Valve
Two pipe connection to floor (Kv max 0.6)
Code*
Thermostatic head
£
COLO.PF2.DW.3xx
chrome/white
83.50
COLO.PF2.DC.3xx
chrome
94.90
COLO.PF2.JW.3xx
white
70.70
COLO.PF2.JC.3xx
silver
83.50
Thermostatic head
of choice
Jaga Pro valve
Sleeve couplings M24
* Ordering code is completed with sleeve coupling code
Code*
Thermostatic head
COLO.SW2.DC.3xx
chrome
82.10
COLO.SW2.JW.3xx
white
COLO.SW2.JC.3xx
silver
Code*
Tube Ø
612
12/2
614
14/2
115
15/1
616
16/2
116
16/1
617
17/2
118
18/1
618
18/2
Thermostatic head
of choice
615
15/2.5
619
16/1.5
AngledLockshield
620
20/2
58.00
70.70
Tube Ø
14/1
£
70.70
For synthetic or RPE/ALU tube
Code*
12/1
Sleeve couplings M24
chrome/white
For flexible steel or copper tube
114
Jaga Pro valve
COLO.SW2.DW.3xx
For Jaga Comap Valve (Eurocone 3/4”)
112
Set 25 Jaga Valve
Two pipe connection to the wall (Kv max 0.6)
Sleeve couplings
* Ordering code is completed with sleeve coupling code
For Jaga Valve (M24)
Jaga Pro valve
Set 22 Jaga Valve
For flexible steel or copper tube
For synthetic or RPE/ALU tube
Two pipe connection to floor (Kv max 0.6)
Code*
Code*
Code*
COLO.JF2.DW.2xx
Thermostatic head
chrome/white
£
75.90
COLO.JF2.DC.2xx
chrome
87.30
COLO.JF2.JW.2xx
white
60.20
COLO.JF2.JC.2xx
silver
Thermostatic head
of choice
Sleeve couplings M24
Straight Lockshield
75.90
* Ordering code is completed with sleeve coupling code
COLO.CP2.JW.4xx
COLO.CP2.JC.4xx
Thermostatic head
£
white
92.60
silver
10/1
212
112
12/1
214
14/2
114
14/1
219
16/1.5
115
15/1
216
16/2
116
16/1
217
17/2
118
18/1
218
18/2
Code*
Two pipe universal valve set for connection to wall or floor (Kv max 0.6)
105.30
Thermostatic head
of choice
Jaga Comap
thermostatic valve
Tube Ø
110
For RPE/ALU tube
Set 26 Jaga Comap Valve
Code*
Tube Ø
Tube Ø
12/2
Steel tube for CH
Code*
Tube Ø
314
14/2
501
1/2”
316
16/2
503
3/8”
326
16/2.2
318
18/2
* Ordering code is completed with sleeve coupling code
Sleeve couplings M24
Eurocone 3/4”
For technical support visit www.jaga.co.uk or telephone 01531 631 533
69

70

Previous
Next
Parts
Tempo LST
Tempo LST parts
Casings | wall mounted
Heights (mm) 200
Twin emitter | wall mounted
300
400
500
600
700
900
300
400
500
600
700
900
300
400
500
600
700
900
300
400
500
600
700
900
Length
(mm)
Type
Price
(£)
Price
(£)
Price
(£)
Price
(£)
Price
(£)
Price
(£)
Price
(£)
Length
(mm)
Type
Price
(£)
Price
(£)
Price
(£)
Price
(£)
Price
(£)
Price
(£)
Price
(£)
Length
(mm)
Type
Price
(£)
Price
(£)
Price
(£)
Price
(£)
Price
(£)
Price
(£)
Length
(mm)
Type
Price
(£)
Price
(£)
Price
(£)
Price
(£)
Price
(£)
Price
(£)
400
10
15
20
10/11
15/16
20/21
10/11
15/16
20/21
10/11
15/16
20/21
10/11
15/16
20/21
10/11
15/16
20/21
10/11
15/16
20/21
10/11
15/16
20/21
10/11
15/16
20/21
10/11
15/16
20/21
10/11
15/16
20/21
54.00
59.70
65.60
58.60
64.70
71.30
61.60
68.40
75.20
68.40
76.30
84.30
72.40
81.00
89.60
76.80
85.90
95.00
82.00
92.00
101.90
87.40
98.50
108.60
91.50
102.50
113.70
101.10
113.70
127.00
114.10
129.30
144.70
62.50
69.00
75.40
68.60
75.20
82.70
72.40
79.80
87.40
81.00
89.60
97.80
86.30
95.30
104.50
91.80
101.30
111.10
98.10
108.60
119.00
105.10
116.50
127.80
110.20
121.70
133.30
122.60
135.60
149.70
137.70
153.80
169.70
72.10
79.10
86.30
79.10
86.80
94.60
83.80
92.00
100.70
93.90
103.40
112.60
100.40
110.40
120.40
107.20
117.60
128.40
114.30
125.80
137.40
123.10
135.40
147.10
128.60
141.60
154.30
144.00
158.10
173.00
162.00
178.50
195.40
82.00
90.60
98.10
90.60
99.30
108.00
96.30
105.80
114.80
108.00
118.60
128.10
115.60
126.70
137.40
123.30
135.40
146.30
131.90
144.70
156.50
141.60
155.40
167.80
149.10
162.90
176.00
166.80
182.40
197.60
187.10
204.90
222.30
91.80
100.40
109.70
101.30
110.40
120.40
108.30
117.90
128.40
121.20
131.90
143.30
130.30
141.60
153.80
138.80
151.10
163.60
149.10
162.00
175.10
160.10
174.20
187.80
168.30
182.60
197.20
189.30
204.60
221.20
211.90
229.90
248.50
100.40
109.70
119.80
111.50
121.20
131.90
119.00
129.90
140.80
133.30
145.20
157.20
143.80
156.10
168.60
153.80
166.60
179.90
164.70
178.80
192.60
177.30
192.00
206.30
187.10
201.70
216.90
210.30
226.60
243.70
235.30
254.20
273.90
119.30
130.60
142.10
133.10
144.70
157.20
142.40
155.20
167.80
160.10
173.30
187.10
172.70
168.70
201.10
184.90
199.60
214.40
198.60
214.00
229.40
214.00
230.30
246.40
225.60
242.50
258.90
254.20
272.60
291.40
284.30
305.10
326.20
1800
10/11
15/16
20/21
10/11
15/16
20/21
10/11
15/16
20/21
10/11
15/16
20/21
10/11
15/16
20/21
10/11
15/16
20/21
10/11
15/16
20/21
123.30
139.80
156.50
134.90
152.90
170.60
149.30
170.30
190.40
159.80
182.40
203.90
170.30
194.60
217.60
187.10
212.20
236.40
195.60
222.90
248.50
149.70
166.80
184.30
163.60
182.40
200.80
180.40
202.10
222.90
193.90
217.30
239.60
206.90
232.00
255.70
226.20
251.90
276.90
237.30
265.10
291.60
176.60
194.10
212.50
193.10
212.50
231.50
212.50
234.90
256.40
228.70
252.60
275.70
243.70
269.60
294.60
265.80
292.50
318.60
279.40
308.20
335.10
204.30
223.20
242.00
223.20
244.40
263.60
245.10
268.70
290.90
264.30
289.40
313.00
282.20
309.30
334.20
306.40
334.40
360.90
322.60
353.00
380.20
231.30
251.00
271.00
253.30
274.10
295.30
277.20
301.10
324.70
299.20
324.70
349.90
319.60
347.10
373.30
346.90
374.60
402.70
365.10
395.20
424.50
257.90
278.00
299.00
282.20
303.90
325.70
308.40
333.10
357.60
333.40
359.70
385.60
356.10
384.50
411.50
385.90
414.70
443.50
406.80
437.70
467.50
311.90
333.90
356.40
340.90
364.70
388.20
372.70
399.20
424.70
403.50
431.60
458.70
430.80
461.20
489.50
465.80
496.80
527.00
491.80
524.40
555.50
400
11
16
21
11
16
21
11
16
21
11
16
21
11
16
21
11
16
21
11
16
21
11
16
21
11
16
21
11
16
21
11
16
21
202.30
244.90
257.50
219.90
269.40
286.20
234.20
290.90
312.10
270.40
342.10
370.60
288.50
368.20
401.70
304.60
392.70
430.00
334.40
435.20
480.90
351.70
461.40
512.60
369.80
488.10
543.80
409.60
546.00
658.20
483.90
651.70
785.30
203.90
247.20
261.20
221.20
271.70
290.00
235.60
293.10
315.80
271.90
344.30
374.40
290.00
370.40
405.20
306.00
394.90
433.90
336.10
437.40
484.40
353.20
463.60
516.20
371.40
490.30
547.30
411.70
549.10
663.10
485.90
654.80
790.10
205.80
249.80
264.00
222.90
274.50
292.90
237.30
296.10
318.60
273.90
347.10
377.50
291.60
373.30
408.10
307.80
397.70
436.70
337.80
440.20
487.30
355.00
466.40
519.10
327.90
493.10
550.30
414.20
553.50
668.30
488.50
659.10
795.30
207.90
252.10
266.40
225.10
276.60
295.30
239.60
298.20
321.20
275.70
349.20
379.90
293.80
375.50
410.80
309.90
399.90
439.10
340.00
442.40
489.80
357.10
468.70
521.50
375.20
495.30
552.80
417.70
556.80
671.50
491.80
662.50
798.40
209.40
254.20
269.40
226.60
278.70
298.20
241.10
300.50
324.00
277.20
351.40
382.70
295.30
377.70
413.40
311.60
402.10
442.20
341.40
444.60
492.70
358.70
470.90
524.40
376.60
497.40
555.50
420.20
560.10
676.00
494.20
665.80
802.90
212.80
258.90
275.50
230.30
283.30
304.30
244.60
305.10
330.20
280.90
356.10
388.70
299.00
382.30
419.70
315.10
406.80
448.20
344.90
449.20
498.70
362.20
475.50
530.50
380.20
502.30
561.80
425.00
567.20
685.10
499.30
673.00
812.10
1800
11
16
21
11
16
21
11
16
21
11
16
21
11
16
21
11
16
21
11
16
21
521.30
707.80
852.80
559.00
817.20
920.70
644.60
944.90
1068.50
691.60
1013.60
1150.00
735.20
1077.60
1225.90
777.10
1139.30
1299.80
817.20
1200.20
1373.20
523.40
711.00
857.90
561.00
820.50
925.60
646.80
948.10
1073.60
694.30
1017.80
1157.10
738.00
1081.90
1232.40
780.10
1143.70
1306.70
820.00
1204.50
1380.10
525.80
715.40
862.70
563.50
824.80
930.80
649.20
952.30
1078.60
697.90
1023.80
1163.60
741.40
1087.50
1239.10
783.30
1149.50
1313.10
823.40
1210.20
1386.50
529.20
718.60
866.20
567.00
828.10
934.00
652.40
955.70
1081.90
702.50
1027.90
1167.80
745.90
1091.90
1243.20
788.10
1153.70
1317.50
828.10
1214.70
1390.80
531.70
721.60
870.80
569.30
831.20
938.70
654.80
958.90
1086.60
705.20
1032.20
1174.30
748.70
1096.20
1249.80
790.90
1158.20
1323.90
831.00
1218.80
1397.20
536.50
729.00
879.90
574.40
838.30
947.70
660.10
966.00
1095.50
712.40
1041.60
1186.20
756.00
1105.60
1261.70
798.20
1167.50
1335.80
837.90
1228.40
1409.10
500
600
700
800
900
1000
1100
1200
1400
1600
Heights (mm) 200
2000
2200
2400
2600
2800
3000
500
600
700
800
900
1000
1100
Ordering code
Product
Height
CTEW
020
Length
040
Type
10
Colour
101
1200
Standard delivery is: colour 101, grille, front panel,
2 no. side panels, cover plates
1400
For optional top valve, add suffix to the code /UK30
(top left) or /UK60(top right), e.g. CTEW 020 040 10
101/UK60
1600
For no perforation for TRV in the side panel, add suffix
to the code /00, e.g. CTEW 020 040 10 101/00
Standard emitter | wall mounted
Heights (mm) 200
Heights (mm)
Heights (mm)
2000
2200
2400
2600
2800
3000
Ordering code
Product
Height
HTEW
030
Pencil proof grille
300
400
500
600
700
900
300
400
500
600
700
900
Type
Price
(£)
Price
(£)
Price
(£)
Price
(£)
Price
(£)
Price
(£)
Price
(£)
Length
(mm)
Type
Price
(£)
Price
(£)
Price
(£)
Price
(£)
Price
(£)
Price
(£)
Price
(£)
Length
(mm)
Type
Price
(£)
Length
(mm)
Type
Price
(£)
Length
(mm)
Type
Price
(£)
400
10
15
20
10
15
20
10
15
20
10
15
20
10
15
20
10
15
20
10
15
20
10
15
20
10
15
20
10
15
20
10
15
20
98.10
122.00
146.10
108.00
135.60
164.40
115.60
147.40
180.40
136.00
176.00
216.90
146.10
190.40
236.40
155.20
203.90
253.90
171.60
227.80
286.00
181.30
242.50
305.30
191.00
256.70
325.10
212.20
288.70
395.70
253.50
347.90
475.20
99.70
124.20
148.50
109.50
137.70
166.80
116.80
149.70
183.10
137.40
178.20
219.60
147.40
192.60
238.90
156.50
206.10
256.40
173.00
229.90
288.50
182.60
244.60
307.80
192.60
258.90
327.60
214.60
291.60
399.20
256.10
350.70
478.70
101.30
126.30
151.70
111.10
139.80
170.30
118.80
151.70
186.40
139.20
180.20
222.70
149.30
194.60
242.00
158.10
208.30
259.80
174.80
232.00
291.60
184.60
246.80
311.00
194.10
261.20
331.00
217.30
295.10
404.40
258.60
353.80
483.90
102.70
129.30
155.20
112.60
142.80
173.30
120.20
154.50
189.50
140.80
183.10
226.00
150.70
197.60
245.10
159.80
211.10
262.80
176.30
234.90
295.10
185.90
249.60
314.40
195.60
264.00
334.20
219.90
299.20
408.80
261.20
358.20
488.50
105.40
131.10
157.60
115.00
144.90
176.00
122.60
156.80
192.00
143.30
185.10
228.30
153.10
199.60
247.80
162.20
213.30
265.60
178.80
236.90
297.50
188.50
251.90
316.80
198.10
266.20
336.60
223.20
302.50
412.70
264.60
361.40
492.00
106.70
133.30
160.40
116.50
147.10
178.80
124.20
159.10
195.10
144.70
187.40
231.30
154.50
201.70
250.70
163.60
215.40
268.20
180.20
239.10
300.50
189.90
253.90
319.80
199.60
268.20
339.40
225.10
306.00
417.70
266.40
365.10
497.00
109.70
136.70
166.60
119.30
150.30
184.90
127.00
162.20
201.10
147.40
190.60
237.30
157.60
204.90
256.70
166.60
218.60
274.50
183.10
242.50
306.40
192.80
257.30
325.90
202.30
271.70
345.60
230.30
311.00
426.20
271.70
370.00
505.70
1800
10
15
20
10
15
20
10
15
20
10
15
20
10
15
20
10
15
20
10
15
20
274.10
378.80
517.60
295.30
440.00
559.50
342.70
510.80
652.40
368.60
548.60
702.50
392.70
584.00
749.90
415.70
618.80
796.00
438.10
652.40
841.90
276.60
381.60
521.30
297.80
442.80
563.20
345.30
513.60
656.00
372.30
552.40
707.10
396.40
588.10
754.60
419.30
622.60
800.50
441.60
656.30
846.50
279.20
384.90
526.10
300.50
446.10
568.30
347.90
516.80
661.20
375.50
556.50
714.10
399.60
592.00
761.30
422.40
626.40
807.50
444.90
660.40
853.40
281.70
389.20
530.70
302.80
450.50
573.10
350.40
521.30
665.80
378.20
562.30
720.50
402.50
597.80
767.80
425.60
632.30
813.90
447.70
666.20
860.00
285.20
392.40
534.50
306.40
453.50
576.50
353.80
524.40
669.30
383.50
567.00
725.10
407.50
602.50
772.50
430.60
637.00
818.70
452.90
670.80
864.70
287.10
396.10
539.50
308.20
457.10
581.50
355.70
528.00
674.40
385.90
571.10
731.60
410.00
606.80
779.20
432.90
641.40
825.00
455.30
675.10
871.00
292.10
401.10
548.20
313.30
462.10
590.10
360.90
533.00
683.00
392.40
577.90
743.00
416.40
613.50
790.60
439.30
648.10
836.60
461.80
681.90
882.80
400
10
15
20
10/11
15/16
20/21
10/11
15/16
20/21
10/11
15/16
20/21
10/11
15/16
20/21
10/11
15/16
20/21
–
–
–
25.90
28.90
32.60
28.40
31.80
36.20
30.70
35.00
40.10
33.30
37.90
44.00
36.00
41.10
47.80
1000
10/11
15/16
20/21
10/11
15/16
20/21
10/11
15/16
20/21
10/11
15/16
20/21
10/11
15/16
20/21
10/11
15/16
20/21
38.80
44.50
51.90
41.30
47.40
55.50
44.00
50.90
59.50
48.70
56.60
67.10
54.00
63.00
74.50
59.20
69.00
82.00
2000
10/11
15/16
20/21
10/11
15/16
20/21
10/11
15/16
20/21
10/11
15/16
20/21
10/11
15/16
20/21
10/11
15/16
20/21
64.60
75.80
89.80
69.40
81.50
97.60
74.50
87.70
105.10
79.70
94.20
112.60
84.60
99.90
120.20
–
–
–
600
700
800
900
1000
1100
1200
1400
1600
Type
11
Standard delivery is: twin heat exchanger, wall brackets,
fixing kit, automatic air vent, drain plug
Length
(mm)
500
Length
040
Heights (mm) 200
2000
2200
2400
2600
2800
3000
Ordering code
Product
Height
HTEW
020
500
600
700
800
900
Ordering code
Product
Height
5606
000
Length
040
1100
1200
1400
1600
1800
2200
2400
2600
2800
3000
Type
10
Same colour as casing.
Length
040
Type
10
Standard delivery is: heat exchanger, wall brackets,
automatic air vent, drain plug, fixing kit
For technical support visit www.jaga.co.uk or telephone 01531 631 533
71

72

Previous
Next
Parts
Tempo LST
Tempo LST parts
Casings | freestanding
Heights (mm) 200
Standard emitter | freestanding | long adjustable feet (.../AL)
300
400
500
300
400
500
300
400
500
300
400
500
300
400
500
300
400
500
Length
(mm)
Type
Price
(£)
Price
(£)
Price
(£)
Price
(£)
Length
(mm)
Type
Price
(£)
Price
(£)
Price
(£)
Price
(£)
Length
(mm)
Type
Price
(£)
Price
(£)
Price
(£)
Price
(£)
Length
(mm)
Type
Price
(£)
Price
(£)
Price
(£)
Price
(£)
Length
(mm)
Type
Price
(£)
Price
(£)
Price
(£)
Price
(£)
Length
(mm)
Type
Price
(£)
Price
(£)
Price
(£)
Price
(£)
400
10
15
20
10/11
15/16
20/21
10/11
15/16
20/21
10/11
15/16
20/21
10/11
15/16
20/21
10/11
15/16
20/21
10/11
15/16
20/21
10/11
15/16
20/21
68.60
74.00
80.30
76.10
81.50
88.50
80.70
87.40
94.30
90.60
98.50
106.00
97.30
105.40
114.10
103.60
112.90
122.00
111.10
121.20
130.90
119.30
130.60
140.80
83.60
89.80
96.30
93.40
99.90
107.50
99.90
107.50
115.00
112.90
121.70
130.30
122.00
130.90
140.20
130.90
140.80
150.30
140.80
151.50
162.00
151.70
163.40
174.40
98.90
106.00
113.40
111.10
119.00
127.00
119.80
128.40
136.70
135.60
145.20
154.50
147.10
157.60
167.30
158.10
169.10
179.50
170.80
182.40
193.30
184.60
197.20
209.20
116.00
124.40
132.50
130.90
139.80
148.50
141.30
151.10
159.80
160.40
170.80
181.00
174.20
185.10
196.00
187.40
199.20
210.30
202.10
215.20
226.80
219.00
232.80
244.90
1200
10/11
15/16
20/21
10/11
15/16
20/21
10/11
15/16
20/21
10/11
15/16
20/21
10/11
15/16
20/21
10/11
15/16
20/21
10/11
15/16
20/21
10/11
15/16
20/21
125.50
136.70
147.80
141.00
153.80
166.80
158.50
173.80
189.30
173.30
189.50
206.30
189.90
207.90
225.60
209.20
229.90
249.80
225.60
247.80
269.40
240.80
265.10
288.20
160.40
171.90
183.70
181.00
194.10
208.30
203.50
219.60
235.60
223.20
240.30
257.90
244.90
263.60
282.20
269.40
290.70
311.60
291.40
314.40
336.60
311.60
336.60
360.30
195.40
208.30
220.40
221.60
235.60
250.30
249.00
265.80
282.40
273.90
292.10
309.90
300.80
320.50
339.20
329.60
352.10
373.80
357.60
381.60
404.80
382.70
408.60
432.90
232.00
245.90
258.90
263.60
278.70
294.30
296.10
313.50
331.20
326.20
345.30
363.90
357.80
378.80
398.10
391.80
415.50
437.70
425.60
450.70
472.20
455.30
482.70
507.50
2800
10/11
15/16
20/21
10/11
15/16
20/21
262.60
287.60
312.10
276.30
303.70
329.00
338.70
364.30
389.50
357.10
384.90
411.10
415.20
441.60
467.50
438.10
467.30
494.20
493.10
520.90
547.30
521.30
551.30
578.70
400
10
15
20
10
15
20
10
15
20
10
15
20
10
15
20
10
15
20
10
15
20
10
15
20
149.30
173.00
197.20
159.10
186.70
215.40
166.60
198.60
231.50
187.10
226.80
268.00
197.20
241.30
287.40
206.10
255.10
305.10
222.70
278.70
336.90
232.20
293.50
356.40
150.70
175.10
199.60
160.40
188.70
217.90
168.10
200.80
234.20
188.50
229.10
270.40
198.60
243.50
290.00
207.50
257.30
307.50
224.00
280.90
339.40
233.80
295.50
359.00
152.50
177.30
203.10
162.20
191.00
221.20
169.70
203.10
237.30
190.40
231.30
273.90
200.30
245.70
293.10
209.40
259.30
310.70
226.00
283.10
342.70
235.60
297.80
362.20
154.00
180.20
206.10
163.60
193.90
224.50
171.10
205.80
240.80
191.70
234.20
276.90
201.70
248.50
296.40
210.80
262.30
314.20
227.40
286.00
346.00
236.90
300.80
365.30
1200
10
15
20
10
15
20
10
15
20
10
15
20
10
15
20
10
15
20
10
15
20
10
15
20
242.00
307.80
376.20
288.70
365.30
472.20
330.20
424.50
551.80
350.70
455.30
594.30
371.90
516.60
636.20
419.30
587.40
729.00
470.90
650.70
804.50
494.80
686.20
852.00
243.50
309.90
378.80
291.40
368.20
475.80
332.70
427.30
555.30
353.20
458.30
597.80
374.40
519.30
639.90
421.80
590.10
732.80
474.20
654.60
809.20
498.50
690.20
856.70
245.10
312.10
382.10
293.80
371.60
480.90
335.10
430.60
560.40
355.70
461.40
602.80
376.90
522.70
644.80
424.50
593.40
737.70
477.80
658.60
816.00
501.70
694.10
863.70
246.80
315.10
385.20
296.40
375.80
485.70
337.80
434.70
565.00
358.20
465.80
607.30
379.60
527.00
649.60
426.90
597.80
742.30
480.40
664.30
822.60
504.70
700.00
870.00
2800
10
15
20
10
15
20
518.00
720.80
898.10
540.20
754.60
944.00
521.50
724.80
902.70
543.80
758.60
948.90
524.80
728.70
909.70
547.10
762.50
955.70
527.60
734.30
916.10
550.00
768.30
962.00
500
600
700
800
900
1000
1100
Heights (mm) 200
1400
1600
1800
2000
2200
2400
2600
Heights (mm) 200
3000
Heights (mm) 200
500
600
Ordering code
Product
Height
CTEF
020
Length
040
Type
10
Colour
101
Standard delivery is:
colour 101, grille,
front panel,
2 no. side panels,
cover plates
700
800
900
For optional top valve,
add suffix to the code /UK30
(top left) or /UK60(top right),
e.g. CTEF 020 040 10 101/UK60
1000
For no perforation for TRV in the side panel, add suffix
to the code /00, e.g. CTEF 020 040 10 101/00
1100
Heights (mm) 200
1400
1600
1800
2000
2200
2400
2600
Heights (mm) 200
3000
Ordering code
Product
Height
HTEF
020
Length
040
Type
10/AL
Standard delivery is:
heat exchanger,
brackets, standard feet,
automatic air vent,
drain plug
Standard emitter | freestanding / standard adjustable feet (.../AS)
Heights (mm) 200
300
400
500
300
400
500
300
400
500
Length
(mm)
Type
Price
(£)
Price
(£)
Price
(£)
Price
(£)
Length
(mm)
Type
Price
(£)
Price
(£)
Price
(£)
Price
(£)
Length
(mm)
Type
Price
(£)
Price
(£)
Price
(£)
Price
(£)
400
10
15
20
10
15
20
10
15
20
10
15
20
10
15
20
10
15
20
10
15
20
140.80
164.40
188.50
150.30
178.20
206.90
157.90
189.90
222.90
178.50
218.40
259.30
188.50
232.80
278.70
197.60
246.40
296.40
214.00
270.20
328.40
142.10
166.60
191.00
151.70
180.20
209.40
159.30
192.00
225.60
179.90
220.40
261.70
189.90
234.90
281.10
198.90
248.50
299.00
215.40
272.20
331.00
143.80
168.60
194.10
153.80
182.40
212.50
161.20
194.10
228.70
181.60
222.70
265.10
191.70
236.90
284.60
200.80
250.70
302.10
217.30
274.50
334.20
145.20
171.60
197.60
155.20
185.10
215.80
162.60
197.20
232.00
183.10
225.60
268.20
193.10
239.80
287.60
202.10
253.50
305.30
218.60
277.20
337.40
1100
10
15
20
10
15
20
10
15
20
10
15
20
10
15
20
10
15
20
10
15
20
223.70
284.80
347.90
233.40
299.20
367.50
275.70
352.60
459.20
317.40
411.50
538.70
337.80
442.40
581.30
359.00
503.50
623.30
406.50
574.40
716.00
225.10
287.10
350.40
234.90
301.40
370.00
278.40
355.50
462.90
319.80
141.20
542.50
340.30
445.20
584.80
361.40
506.30
627.00
408.80
577.20
719.80
226.80
289.10
353.50
236.70
303.70
373.30
280.90
358.70
467.90
322.30
417.70
547.30
342.70
448.40
589.90
363.90
509.60
631.80
411.50
580.50
724.80
228.30
292.10
356.80
238.20
306.40
376.60
283.30
362.90
472.60
324.70
421.80
552.00
345.30
452.90
594.50
366.50
513.90
636.50
414.00
584.80
729.30
2400
10
15
20
10
15
20
10
15
20
10
15
20
453.50
633.30
787.30
477.80
669.00
843.80
500.70
703.50
880.70
522.90
737.40
926.90
457.10
637.20
791.90
481.30
673.00
839.40
504.10
707.30
885.40
526.50
741.40
931.60
460.40
641.40
798.90
484.40
676.90
846.30
507.50
711.60
892.20
529.80
745.30
938.40
463.30
647.00
805.30
487.30
682.70
852.80
510.50
717.10
898.90
532.60
750.90
944.90
500
600
700
800
900
1000
Heights (mm) 200
1200
1400
1600
1800
2000
2200
Heights (mm) 200
2600
2800
3000
Ordering code
Product
Height
HTEF
020
Length
040
300
400
500
300
400
500
300
400
500
Price
(£)
Price
(£)
Length
(mm)
Type
Price
(£)
Price
(£)
Price
(£)
Length
(mm)
Type
Price
(£)
Price
(£)
Price
(£)
400
11
16
21
11
16
21
11
16
21
11
16
21
11
16
21
11
16
21
11
16
21
244.90
287.40
299.90
262.30
311.90
328.70
276.60
333.40
354.60
313.00
384.50
413.20
331.00
410.80
444.20
347.10
435.20
472.60
376.90
477.80
523.40
246.40
289.40
303.70
263.60
314.20
332.30
278.00
335.40
358.20
314.40
386.70
416.90
332.30
412.90
447.70
348.50
437.40
476.30
378.20
479.80
527.00
248.10
292.50
306.40
265.60
316.80
335.10
279.90
338.70
361.20
316.10
389.50
419.70
334.20
415.70
450.70
350.40
440.20
479.00
380.20
482.70
529.80
1100
11
16
21
11
16
21
11
16
21
11
16
21
11
16
21
11
16
21
11
16
21
394.30
503.80
555.00
412.20
530.50
586.30
473.40
609.60
721.60
574.30
715.40
848.70
584.80
771.60
916.50
622.60
880.70
984.30
708.30
1008.50
1132.30
395.70
506.10
558.50
413.40
532.60
589.90
475.50
612.80
726.90
549.40
718.60
854.00
586.90
774.70
921.50
624.90
884.00
989.40
710.40
1011.70
1137.10
397.40
508.90
561.50
415.50
535.60
592.80
478.00
617.20
731.90
552.00
722.90
858.80
589.60
779.20
926.50
627.30
888.30
994.60
712.90
1016.10
1142.30
2400
11
16
21
11
16
21
11
16
21
11
16
21
776.60
1098.40
1235.00
820.00
1162.40
1310.60
862.20
1224.30
1384.50
902.00
1285.10
1458.10
779.40
1102.80
1241.90
822.90
1166.60
1317.50
865.00
1228.60
1391.50
904.90
1289.20
1465.00
782.70
1108.40
1248.40
826.10
1172.50
1323.90
868.30
1234.40
1398.10
908.10
1295.00
1471.30
600
700
800
900
1000
1400
1600
1800
2000
2200
2800
3000
300
400
500
300
400
500
Price
(£)
Price
(£)
Length
(mm)
Type
Price
(£)
Price
(£)
Price
(£)
Length
(mm)
Type
Price
(£)
Price
(£)
Price
(£)
400
11
16
21
11
16
21
11
16
21
11
16
21
11
16
21
11
16
21
11
16
21
11
16
21
253.50
296.10
308.40
270.80
320.50
337.40
285.20
342.10
363.40
321.50
393.10
421.80
339.40
419.30
452.90
355.70
443.80
481.30
385.60
486.30
532.00
402.70
512.60
563.50
255.10
298.20
312.10
272.20
322.60
340.90
286.70
344.30
366.90
322.80
395.20
425.60
340.90
421.60
456.60
357.10
446.10
484.70
386.90
488.50
535.60
404.40
514.70
567.20
256.70
301.10
315.10
274.10
325.70
343.80
288.50
347.10
369.80
324.70
398.10
428.40
342.70
424.50
459.20
359.00
448.90
487.70
388.70
491.10
538.30
406.10
517.60
570.00
1200
11
16
21
11
16
21
11
16
21
11
16
21
11
16
21
11
16
21
11
16
21
11
16
21
420.90
539.00
595.00
486.30
622.60
734.80
560.40
728.30
861.80
597.80
784.60
929.40
635.60
893.70
997.20
721.20
1021.50
1145.20
793.70
1115.70
1252.30
837.30
1179.70
1327.90
422.20
541.20
598.30
488.50
625.70
739.80
562.60
731.60
866.90
599.90
787.60
934.50
637.80
897.10
1002.40
723.30
1024.60
1150.00
796.60
1120.10
1259.20
840.20
1184.20
1334.70
424.00
544.10
601.20
490.90
630.10
744.80
565.00
735.80
871.80
602.50
791.90
939.50
640.10
901.40
1007.50
725.90
1028.90
1155.30
799.90
1125.90
1265.70
843.40
1189.80
1341.00
2800
11
16
21
11
16
21
879.20
1241.50
1402.00
919.20
1302.40
1475.40
882.40
1245.90
1408.80
922.20
1306.70
1482.10
885.40
1251.60
1451.40
925.30
1312.50
1488.70
500
600
1000
Price
(£)
2600
500
Price
(£)
900
Type
1200
400
Type
800
Standard delivery is:
heat exchanger, brackets,
standard feet, automatic
air vent, drain plug
Heights (mm)
300
Length
(mm)
Type
10/AS
Length
(mm)
500
Heights (mm)
Heights (mm)
700
Twin emitter | freestanding / standard adjustable feet (.../AS)
Heights (mm)
Twin emitter | freestanding | long adjustable feet (.../AL)
Ordering code
Product
Height
HTEF
020
Length
040
Standard delivery is:
twin heat exchanger,
brackets, standard feet,
automatic air vent,
drain plug
1100
Heights (mm)
1400
1600
1800
2000
2200
2400
2600
Heights (mm)
3000
Ordering code
Product
Height
HTEF
020
Length
040
Type
10/AL
Standard delivery is:
twin heat exchanger,
brackets, standard feet,
automatic air vent,
drain plug
Type
10/AS
For technical support visit www.jaga.co.uk or telephone 01531 631 533
73

74

Previous
Next
Parts
Parts
Cocoon LST parts
Casings | wall mounted
Heights (mm) 400
Heat exchanger twin | wall mounted
500
600
700
800
900
1000
500
600
700
800
900
1000
500
600
700
800
900
1000
500
600
700
800
900
1000
Length
(mm)
Type
Price
(£)
Price
(£)
Price
(£)
Price
(£)
Price
(£)
Price
(£)
Price
(£)
Length
(mm)
Type
Price
(£)
Price
(£)
Price
(£)
Price
(£)
Price
(£)
Price
(£)
Price
(£)
Length
(mm)
Type
Price
(£)
Price
(£)
Price
(£)
Price
(£)
Price
(£)
Price
(£)
Length
(mm)
Type
Price
(£)
Price
(£)
Price
(£)
Price
(£)
Price
(£)
Price
(£)
400
10
15
20
10/11
15/16
20/21
10/11
15/16
20/21
10/11
15/16
20/21
10/11
15/16
20/21
10/11
15/16
20/21
10/11
15/16
20/21
10/11
15/16
20/21
10/11
15/16
20/21
10/11
15/16
20/21
10/11
15/16
20/21
147.40
151.90
156.50
152.50
157.20
162.30
155.50
160.70
166.00
163.40
169.10
174.90
167.90
173.80
180.10
172.50
178.90
185.60
178.20
185.00
192.50
184.00
191.70
199.20
188.10
196.00
203.90
198.80
207.50
216.70
219.10
229.40
240.30
153.90
159.20
163.80
159.80
165.40
170.60
163.40
169.20
174.50
171.90
178.80
184.90
177.20
184.30
190.60
182.50
189.90
196.90
188.70
196.90
204.30
195.70
204.30
212.10
200.40
209.40
217.50
213.10
222.70
232.00
234.90
246.10
257.20
160.00
165.40
171.00
166.40
172.20
178.40
170.70
176.80
183.30
180.30
187.10
194.00
186.30
193.20
200.80
192.60
200.20
207.60
199.30
207.50
215.80
207.30
216.00
224.70
212.70
221.70
230.70
226.70
236.60
247.20
250.60
261.60
273.40
165.40
171.00
177.30
172.70
178.90
185.40
177.70
184.30
190.80
187.90
195.40
203.10
195.00
202.20
210.10
201.60
209.70
217.70
209.50
218.20
226.70
218.20
227.40
236.40
224.50
233.50
243.40
240.00
250.20
261.30
265.10
276.90
289.10
171.30
177.80
184.60
179.70
186.40
193.20
185.00
192.50
199.30
196.60
204.30
212.20
203.90
212.10
220.40
211.50
220.10
229.00
220.10
229.20
238.50
229.40
239.40
249.00
236.60
246.40
256.30
254.00
264.80
276.20
280.60
293.00
305.50
177.20
184.30
191.30
186.30
193.30
201.20
192.50
199.90
207.60
204.60
213.10
221.40
212.80
221.70
230.50
221.00
230.30
239.40
230.50
240.00
249.80
240.90
251.00
261.30
248.20
258.90
269.40
267.90
279.10
290.70
295.90
308.40
322.00
183.10
190.60
198.40
193.00
200.80
208.70
199.30
207.60
216.00
212.80
221.70
230.70
221.90
231.10
240.80
230.80
240.80
250.20
241.10
251.00
261.40
252.20
263.20
273.50
260.40
271.70
282.50
281.40
293.10
305.50
310.80
324.40
338.00
1800
10/11
15/16
20/21
10/11
15/16
20/21
10/11
15/16
20/21
10/11
15/16
20/21
10/11
15/16
20/21
10/11
15/16
20/21
11
16
21
229.20
240.30
251.90
242.00
254.20
266.20
258.80
272.30
286.10
269.60
284.80
299.20
281.40
297.60
313.00
265.30
317.40
333.40
309.90
328.10
344.90
246.70
258.60
270.30
261.10
274.10
286.10
279.30
293.80
307.60
292.10
308.10
322.60
305.30
322.10
337.90
326.00
343.40
359.80
336.90
355.70
372.90
263.50
275.70
288.50
279.40
292.90
305.90
299.20
314.20
328.80
314.20
330.00
345.50
328.70
345.70
362.30
351.10
368.60
386.30
363.60
382.30
400.80
280.10
292.90
305.70
297.60
311.50
324.70
318.80
334.20
349.50
335.30
351.70
367.70
351.60
369.30
385.90
375.70
393.50
411.60
389.50
408.80
427.60
296.80
310.30
323.70
316.10
330.50
344.40
338.90
354.90
370.40
357.10
374.30
391.00
375.00
393.10
410.80
400.90
419.40
437.70
416.10
436.10
455.20
313.70
327.40
341.70
334.40
349.50
363.90
358.80
375.50
391.20
379.00
396.50
413.40
398.50
417.00
435.10
425.60
444.90
463.70
442.70
463.00
482.70
330.60
345.10
359.70
353.20
368.50
383.30
378.80
395.80
412.70
400.90
418.90
436.70
421.60
440.60
459.20
450.70
470.30
489.60
469.20
490.10
510.50
400
11
16
21
11
16
21
11
16
21
11
16
21
11
16
21
11
16
21
11
16
21
11
16
21
11
16
21
11
16
21
11
16
21
158.40
185.00
193.00
169.20
200.30
211.00
178.40
213.90
227.10
201.10
245.70
263.60
212.20
262.30
283.10
222.30
277.60
300.90
241.10
303.90
332.60
251.90
320.40
352.40
263.20
336.90
371.90
303.90
389.20
459.20
350.40
455.20
538.60
159.30
186.40
195.20
170.30
201.60
213.10
179.00
215.20
229.20
201.90
247.20
265.90
213.10
263.50
285.20
223.10
278.70
302.90
241.90
305.30
334.70
252.70
321.70
354.50
264.00
338.20
374.10
305.30
391.10
462.50
351.60
457.30
541.80
160.50
188.10
196.90
171.30
203.40
214.90
180.30
216.90
231.10
203.20
249.00
267.90
214.10
265.30
287.10
224.50
280.60
304.70
242.90
307.20
336.50
253.70
323.60
356.20
265.10
340.20
375.80
306.90
393.80
465.70
353.20
459.90
544.80
162.00
189.50
198.60
172.70
204.80
216.50
181.60
218.40
232.80
204.30
250.20
269.40
215.50
266.60
288.60
225.20
282.20
306.40
244.50
308.30
338.00
255.20
324.70
357.80
266.30
341.50
377.60
309.10
395.80
467.50
355.20
462.00
546.90
162.70
190.80
200.30
173.70
206.10
218.40
182.50
219.80
234.40
205.40
251.70
271.00
216.50
268.00
290.50
226.60
283.20
308.20
245.10
309.80
340.00
256.10
326.20
359.70
267.20
342.70
379.10
310.40
397.90
470.40
356.80
464.00
550.00
163.80
192.60
202.20
174.50
207.60
220.20
183.60
221.20
236.60
206.30
253.30
273.10
217.60
269.50
292.50
227.80
284.80
310.30
246.40
311.50
342.00
257.30
328.00
361.60
268.50
344.40
381.10
312.00
400.20
473.50
358.50
466.30
552.80
1800
11
16
21
11
16
21
11
16
211
11
16
21
11
16
21
11
16
21
11
16
21
373.80
490.30
581.00
397.30
545.60
623.30
450.70
638.40
715.60
496.30
697.50
782.90
523.40
737.40
829.80
549.40
775.90
876.30
574.60
813.90
922.20
375.00
492.30
584.00
398.70
560.70
626.40
452.10
640.40
718.90
498.00
700.20
787.00
525.20
740.00
843.20
551.30
778.60
880.50
576.30
816.60
926.40
376.60
495.00
587.20
400.20
563.40
629.60
453.60
643.10
722.10
500.00
703.80
791.10
527.20
743.70
838.00
553.50
782.30
884.60
578.30
820.40
930.50
378.50
497.00
589.20
402.10
565.40
631.70
455.70
645.20
775.60
502.80
706.40
793.70
530.30
746.40
841.00
556.50
785.00
887.20
581.40
822.90
933.10
380.20
499.20
592.10
403.60
567.30
634.50
457.30
647.10
727.10
504.70
709.20
797.70
532.00
748.80
845.10
558.10
787.60
891.20
583.40
825.70
937.10
381.80
501.30
595.10
405.20
569.80
637.70
458.80
649.40
729.80
507.00
712.20
801.60
534.10
752.20
848.70
560.40
790.90
895.20
585.30
828.80
941.10
500
600
700
800
900
1000
1100
1200
1400
1600
Heights (mm) 400
2000
2200
2400
2600
2800
3000
500
600
700
800
900
1000
1100
Ordering code
Product
Height
CCOW
040
Length
040
Type
10
Colour
101
1200
Standard delivery is: colour 101, grille, front panel,
closed and open side panel
1400
For optional top valve, add suffix to the code /30
(top left) or /60(top right), e.g. CCOW 040 040 10 101/60
1600
For no perforation for TRV in the side panel, add suffix
to the code /00, e.g. CCOW 040 040 10 101/00
Heat exchanger | wall mounted
Heights (mm) 400
Heights (mm)
Heights (mm)
2000
2200
2400
2600
2800
3000
Ordering code
Product
Height
HCOW
050
Pencil proof grille
500
600
700
800
900
500
600
700
800
900
Type
Price
(£)
Price
(£)
Price
(£)
Price
(£)
Price
(£)
Price
(£)
Length
(mm)
Type
Price
(£)
Price
(£)
Price
(£)
Price
(£)
Price
(£)
Price
(£)
Length
(mm)
Type
Price
(£)
Length
(mm)
Type
Price
(£)
Length
(mm)
Type
Price
(£)
400
10
15
20
10
15
20
10
15
20
10
15
20
10
15
20
10
15
20
10
15
20
10
15
20
10
15
20
10
15
20
10
15
20
93.30
108.20
123.20
99.60
116.60
134.80
104.00
124.20
144.80
116.80
141.90
167.50
123.20
151.00
179.70
128.60
159.30
190.60
139.20
174.30
210.60
145.20
183.40
222.80
151.40
192.60
235.30
180.40
228.30
295.20
206.30
265.30
344.90
94.30
109.60
124.80
100.40
117.90
136.30
105.10
125.50
1146.30
117.80
143.30
169.10
124.20
152.20
181.30
129.60
160.70
192.50
140.10
175.60
212.20
146.20
184.90
224.50
152.20
193.90
236.70
182.20
230.30
297.50
207.90
267.10
347.10
95.30
110.90
126.90
101.30
119.30
138.50
106.00
126.90
148.40
118.90
144.70
171.00
125.10
153.70
183.30
130.90
162.10
194.10
141.10
176.90
214.10
147.20
186.30
226.30
153.40
195.20
238.90
183.60
232.10
300.60
209.50
269.00
350.40
96.10
112.60
128.60
106.00
126.90
148.40
107.10
128.50
150.30
119.80
146.30
173.20
126.00
155.40
185.10
131.70
163.80
196.20
142.10
178.80
216.40
148.30
187.90
228.30
154.30
196.90
240.90
185.10
234.90
303.70
211.10
271.80
353.20
97.80
114.10
130.40
107.10
128.50
150.30
108.60
130.20
151.90
121.30
147.60
174.50
127.80
156.60
186.80
133.20
165.40
197.80
142.40
180.10
217.70
149.80
189.40
230.20
155.70
198.40
242.50
187.50
236.90
305.70
213.30
274.00
355.50
98.80
115.20
132.40
108.60
130.20
151.90
109.50
131.10
153.90
122.40
149.20
176.40
128.50
158.00
188.60
134.20
166.60
199.60
144.70
181.40
219.80
150.70
190.60
231.90
156.60
199.60
244.40
188.60
239.10
309.10
214.50
276.20
358.70
1800
10
15
20
10
15
20
10
15
20
10
15
20
10
15
20
10
15
20
10
15
20
219.10
284.70
371.50
232.70
322.70
397.50
262.30
367.10
455.70
294.30
406.70
502.80
309.30
428.70
532.40
323.70
450.60
561.10
337.80
471.80
590.00
220.80
286.30
373.80
234.00
324.50
399.90
263.60
369.00
457.90
296.60
409.10
505.90
311.70
431.50
535.60
326.00
453.00
564.40
340.00
474.00
593.00
222.30
288.50
376.70
235.60
326.50
403.00
265.30
371.00
461.20
298.60
411.60
510.00
313.50
434.00
539.80
328.10
455.60
568.50
342.00
476.50
597.20
223.80
291.00
379.70
237.20
329.20
406.10
266.90
373.80
464.00
300.50
415.40
514.00
315.40
437.60
543.80
329.80
459.10
572.7
343.60
480.20
601.20
226.20
293.10
382.10
239.40
331.40
408.10
269.00
375.70
466.30
303.70
418.00
516.90
318.50
440.40
546.60
332.80
462.00
576.60
347.00
483.00
604.20
227.40
295.40
385.00
240.80
333.70
411.50
270.30
377.80
469.50
305.10
420.90
521.30
320.10
443.00
550.90
334.40
464.70
579.70
348.50
485.80
608.40
400
10
15
20
10/11
15/16
20/21
10/11
15/16
20/21
10/11
15/16
20/21
10/11
15/16
20/21
10/11
15/16
20/21
–
–
–
25.90
28.90
32.60
28.40
31.80
36.20
30.70
35.00
40.10
33.30
37.90
44.00
36.00
41.10
47.80
1000
10/11
15/16
20/21
10/11
15/16
20/21
10/11
15/16
20/21
10/11
15/16
20/21
10/11
15/16
20/21
10/11
15/16
20/21
38.80
44.50
51.90
41.30
47.40
55.50
44.00
50.90
59.50
48.70
56.60
67.10
54.00
63.00
74.50
59.20
69.00
82.00
2000
10/11
15/16
20/21
10/11
15/16
20/21
10/11
15/16
20/21
10/11
15/16
20/21
10/11
15/16
20/21
10/11
15/16
20/21
64.60
75.80
89.80
69.40
81.50
97.60
74.50
87.70
105.10
79.70
94.20
112.60
84.60
99.90
120.20
–
–
–
600
700
800
900
1000
1100
1200
1400
1600
Type
11
Standard delivery is: twin heat exchanger, wall brackets,
automatic air vent, drain plug, grille support(s)
from length 1400 to 3000
Length
(mm)
500
Length
040
Heights (mm) 400
2000
2200
2400
2600
2800
3000
Ordering code
Product
Height
HCOW
040
500
600
700
800
900
Ordering code
Product
Height
5606
000
Length
040
1100
1200
1400
1600
1800
2200
2400
2600
2800
3000
Type
10
Same colour as casing.
Length
040
Type
10
Standard delivery is: heat exchanger, wall brackets,
automatic air vent, drain plug, grille support(s)
from length 1400 to 3000
For technical support visit www.jaga.co.uk or telephone 01531 631 533
75

76

Previous
Next
Parts
Parts
Sentinel LST parts
Guardian LST parts
Casing | wall model (.../WT)
Casing | floor model (.../FT)
Heights (mm) 400
500
600
Heights (mm) 400
500
600
Length Type
(mm)
Price
(£)
Price
(£)
Price
(£)
Length Type
(mm)
Price
(£)
Price
(£)
79.30
87.00
Price
(£)
Heights (mm)
400
500
600
800
226.20
250.90
277.00
271.90
299.30
329.80
600
06 131.50
10/11 140.70
15/16 152.50
144.90
155.20
168.30
159.10
170.50
184.90
182.50
196.70
215.30
1400
06 193.00
10/11 217.30
15/16 241.50
218.20
243.60
269.00
243.10
270.00
296.60
297.50
326.50
357.40
800
06 149.10
10/11 159.60
15/16 172.50
165.50
177.30
191.30
182.80
195.70
211.40
212.80
228.20
247.50
1800
06 244.80
10/11 278.00
15/16 309.20
278.00
312.20
344.80
311.70
347.20
380.60
-
1000
06 162.20
10/11 178.20
15/16 197.80
181.30
198.40
219.60
214.40
218.50
240.90
239.60
260.40
287.00
2400
06 337.60
10/11 380.60
15/16 429.40
380.40
424.80
474.70
423.70
469.50
520.30
-
178.80
184.80
187.90
194.60
196.30
203.30
212.80
221.40
10/11 110.40 127.20 143.30
15/16 121.40 139.40 155.80
1840 10/11 194.30 224.70 254.40
15/16 213.50 245.50 276.10
840
10/11
15/16
193.10
199.90
203.80
211.90
214.20
222.20
234.50
243.90
1040
10/11
15/16
204.90
212.80
217.00
226.40
229.20
238.60
253.10
263.60
1240
10/11
15/16
216.30
225.40
230.50
240.80
244.60
255.00
272.10
283.40
1440
10/11
15/16
228.60
238.60
245.10
256.10
260.70
272.10
292.10
304.50
1840
10/11
15/16
263.60
276.30
283.70
297.40
303.00
317.10
341.30
356.80
Standard delivery is: colour 233, grille, single piece casing
Ordering code
Height
Product
040
CGUA
Heights (mm) 400
Length
(mm)
Length
044
Type
10
Colour
233
Model
/FT
500
600
Price
(£)
Price
(£)
Heights (mm)
400
500
600
800
Type
Price
(£)
Price
(£)
Price
(£)
Price
(£)
10 213.50 215.20 217.90
15 287.30 290.40 292.80
440
10
15
107.30
124.40
108.40
124.40
109.60
127.50
112.50
131.20
10 111.40 113.00 115.90
15 138.90 142.20 144.20
1240
640
10 130.70 132.20 134.90
15 166.90 170.00 172.50
1440
10 239.00 241.90 245.50
15 324.60 329.10 332.80
640
10
15
119.60
142.80
120.90
142.80
121.90
145.90
124.90
149.70
840
10 164.20 165.80 168.40
15 214.10 217.40 219.60
1840
10 307.10 309.90 313.70
15 423.40 428.10 431.60
840
10
15
141.70
173.70
142.80
173.70
143.90
176.80
147.00
180.10
1040
10 192.30 193.90 196.70
15 255.20 258.40 260.60
1040
10
15
160.10
200.40
161.10
200.40
162.30
203.40
163.80
207.10
1240
10
15
174.10
221.50
175.00
221.50
176.40
224.50
179.10
228.20
1440
10
15
207.50
262.50
209.50
262.50
211.10
266.90
215.60
272.40
1840
10
15
252.00
327.40
253.90
327.40
255.60
331.80
260.10
337.10
440
Ordering code
Product
Height
HGUA
040
Length
044
Type
10
Standard delivery is:
colour 233, grille,
single piece casing
Heat exchanger | floor model (.../FT)
Length
(mm)
Type Price
(£)
Model
/WT
Standard delivery is: heat exchanger, wall brackets,
automatic air vent, drain plug
Ordering code
Product
Height
HGUA
040
Length
044
Type
10
Length
(mm)
440
Type Price
(£)
500
600
Price
(£)
Price
(£)
11 224.30 226.40 228.70
16 271.90 274.80 277.30
Heights (mm) 400
Length
(mm)
1240
Type Price
(£)
500
600
Price
(£)
Price
(£)
11 408.50 215.20 412.70
16 539.30 542.40 544.80
Heights (mm)
400
500
600
800
Length
(mm)
Type
Price
(£)
Price
(£)
Price
(£)
Price
(£)
440
11
16
201.00
258.70
182.20
212.80
183.20
214.40
186.30
217.90
640
11 259.20 261.00 263.60
16 322.40 325.70 328.00
1440
11 452.90 455.60 459.50
16 604.00 608.90 612.50
640
11
16
226.70
310.80
205.20
246.00
205.90
247.50
208.80
251.20
840
11 319.00 320.80 323.20
16 407.40 410.60 413.10
1840
11 575.70 578.40 582.10
16 782.10 786.90 790.50
840
11
16
272.00
380.70
244.00
301.60
245.10
303.00
247.80
306.60
1040
11 369.70 371.60 374.00
16 481.10 484.20 486.60
1040
11
16
309.30
441.80
277.30
349.50
278.20
351.10
281.20
354.50
1240
11
16
354.80
510.30
302.70
387.40
303.60
388.90
306.20
392.70
1440
11
16
382.50
556.30
349.50
447.60
351.10
449.80
355.50
455.20
1840
11
16
474.50
694.50
429.90
563.80
431.30
566.10
435.50
571.60
Ordering code
Product
Height
HGUA
040
Length
044
Type
10
Model
/WT
Standard delivery is: heat exchanger, wall brackets,
automatic air vent, drain plug
Ordering code
Product
Height
HGUA
040
Length
044
Type
10
Model
/FT
Heights (mm)
Length
(mm)
Type
350
500
650
950
Price
(£)
Price
(£)
Price
(£)
Price
(£)
Heights (mm)
Length
(mm)
Type
350
500
650
950
Price
(£)
Price
(£)
Price
(£)
Price
(£)
500
06 185.60
10/11 196.20
15/16 212.10
203.90
216.50
234.00
222.70
236.70
256.10
-
1200
06 271.00
10/11 304.60
15/16 340.30
303.90
339.20
376.70
339.40
376.40
415.90
407.90
449.20
494.60
600
06 197.60
10/11 210.80
15/16 229.40
217.30
232.20
252.80
238.40
255.40
277.80
274.00
295.10
323.50
1400
06 290.20
10/11 326.20
15/16 362.40
328.00
365.30
403.90
393.20
365.10
404.80
446.30
490.10
536.00
800
06 223.70
10/11 239.60
15/16 258.60
249.00
266.30
287.40
274.70
294.30
316.80
319.20
342.70
371.60
1800
06 367.40
10/11 417.70
15/16 464.20
417.10
469.10
517.60
467.70
521.30
571.70
-
1000
06 243.60
10/11 267.40
15/16 296.90
271.90
297.80
328.80
300.50
328.30
361.00
359.70
391.80
430.60
2400
06 506.50
10/11 571.00
15/16 643.80
571.00
637.20
711.90
635.70
704.10
780.50
-
Price
(£)
Twin heat emitter
500
650
950
Price
(£)
Price
(£)
Price
(£)
Heights (mm) 350
Length
(mm)
-
500
Length
(mm)
Type
500
10
15
128.20 133.10 140.90
162.20 168.10 176.80
600
10
15
136.90 141.60 149.30 157.90
175.80 181.30 190.40 201.60
800
10
15
171.10 176.10 183.70 192.50
223.70 229.40 238.40 249.60
1000
10
15
200.10 204.80 212.30 221.00
265.80 271.70 280.30 291.60
1200
10
15
221.70 226.60 234.30 242.80
298.90 304.30 313.30 324.50
1400
10
15
249.60 257.20 268.20 281.10
339.40 348.00 361.30 378.20
1800
10
15
319.20 326.50 337.90
440.50 449.20 462.60
-
1400
2400
10
15
428.70 438.60 454.20
636.80 647.50 665.20
-
1800
600
800
1000
1200
2400
Ordering code
Product
Height
HSEW
035
Length
050
Type
10
Standard delivery is: heat exchanger, wall
brackets, automatic air vent, drain plug
Standard delivery is:
heat exchanger, wall
brackets, automatic
air vent, drain plug
Type
Ordering code
Product
Height
CSEW
035
Length
050
Type
06
Colour
133
Standard delivery is: colour 133 or 001,
grille, front panel, 2 side panels, cover plates,
base grille in same colour as casing
For optional top valve, add suffix
to the code /UK30 (top left) or /UK60
(top right),
e.g. CSEW 035 050 06 133/60
For no perforation for TRV in the
side panel, add suffix to the code
/00, e.g. CSEW 035 050 06 133/00
Casing | wall mounted (other colours)
Heights (mm) 350
Standard delivery is:
heat exchanger, wall
brackets, automatic
air vent, drain plug
Model
/FT
Type
Standard heat emitter
Heat exchanger twin | wall model (.../WT) Heat exchanger twin | floor model (.../FT)
Heights (mm) 400
Price
(£)
202.80
226.20
251.10
10/11
15/16
600
Price
(£)
06 181.00
10/11 203.30
15/16 226.80
640
Price
(£)
Price
(£)
1200
1440 10/11 158.40 183.50 208.20
15/16 173.90 200.60 225.10
500
Price
(£)
-
10/11 92.20 105.90 119.10
15/16 101.20 116.40 129.70
Price
(£)
Length
(mm)
148.30
157.50
170.50
640
Type Price
(£)
Price
(£)
950
136.00
143.90
155.70
197.00
204.50
Length
(mm)
Price
(£)
650
06 124.00
10/11 130.80
15/16 141.10
184.00
190.20
Heights (mm) 400
Price
(£)
500
500
177.00
183.10
Heat exchanger | wall model (.../WT)
Price
(£)
350
Length
(mm)
169.50
174.70
Model
/WT
Heights (mm)
Price
(£)
10/11
15/16
Colour
233
950
Price
(£)
440
Type
10
650
Price
(£)
1240 10/11 141.50 164.00 185.10
15/16 155.80 179.20 200.90
Length
044
500
Price
(£)
90.20 101.00
99.70 110.40
Ordering code
Height
Product
CGUA
040
350
Type
10/11
15/16
1040 10/11 125.70 145.10 164.00
15/16 138.40 159.20 178.20
Heights (mm)
Length
(mm)
440
840
Casing | wall mounted (standard colours)
Type
Price
(£)
06 209.30
11 257.80
16 316.40
06 223.70
11 274.00
16 340.80
06 279.70
11 335.00
16 427.60
06 327.30
11 386.80
16 503.00
06 363.80
11 426.40
16 562.60
06 408.70
11 476.60
16 634.40
06 523.80
11 602.10
16 816.60
06 703.30
11 799.20
16 1166.80
Ordering code
Product
Height
HSEW
035
500
650
950
Price
(£)
Price
(£)
Length
050
215.30
267.40
328.30
229.90
283.70
352.60
285.70
344.80
439.30
333.40
396.50
514.70
369.90
436.20
574.10
417.70
491.10
652.00
532.40
616.60
834.00
715.40
818.70
1190.60
Length
050
Type
06
Colour
xxx
Standard delivery is: colour as desired,
grille, front panel, 2 side panels, cover plates,
base grille in same colour as casing
For optional top valve, add suffix
to the code /UK30 (top left) or /UK60
(top right),
e.g. CSEW 035 050 06 111/UK60
For no perforation for TRV in the
side panel, add suffix to the code
/00, e.g. CSEW 035 050 06 111/00
Pencil-proof grille
Price
(£)
210.80
261.10
320.50
225.20
277.00
344.80
281.10
338.20
431.90
328.80
389.90
507.00
365.30
429.80
566.50
411.10
481.60
640.60
525.90
606.90
822.60
706.50
805.70
1175.00
Ordering code
Product
Height
035
CSEW
233.00
287.60
358.00
289.00
348.70
445.10
336.60
400.80
520.30
373.10
440.20
579.80
422.30
497.10
660.40
-
Length
(mm)
Type
Price
(£)
Length
(mm)
Type
Price
(£)
500
06
10/11
15/16
06
10/11
15/16
06
10/11
15/16
06
10/11
15/16
40.40
42.30
45.30
41.70
44.40
48.80
36.00
39.80
44.50
37.60
41.90
48.20
1200
06
10/11
15/16
06
10/11
15/16
06
10/11
15/16
06
10/11
15/16
40.30
45.70
53.20
44.50
50.50
59.20
54.50
63.10
74.90
51.80
61.60
74.90
600
800
1000
Ordering code
Product
Height
5606
000
Length
040
1400
1800
2400
Type
10
Same colour
as casing.
Type
06
Standard delivery is: twin heat exchanger,
wall brackets, automatic air vent, drain plug
For technical support visit www.jaga.co.uk or telephone 01531 631 533
77

78

Previous
Next
Parts
Maxi LST
79
Maxi LST parts
Casing | wall mounted model WT
(standard colours)
590
740
590
740
590
740
590
740
590
740
590
740
590
740
590
740
Price
(£)
Price
(£)
Length Type
(mm)
Price
(£)
Price
(£)
Price
(£)
Length Type
(mm)
Price
(£)
Price
(£)
Price
(£)
Length Type
(mm)
Price
(£)
Price
(£)
Price
(£)
Length Type
(mm)
Price
(£)
Price
(£)
Price
(£)
Length Type
(mm)
Price
(£)
Price
(£)
Price
(£)
Length Type
(mm)
Price
(£)
Price
(£)
Price
(£)
Length Type
(mm)
Price
(£)
Price
(£)
Price
(£)
630 10/11
15/16
20/21
830 10/11
15/16
20/21
1030 10/11
15/16
20/21
1230 10/11
15/16
20/21
344.30
355.70
367.20
362.10
374.50
387.20
379.90
393.80
407.70
398.10
414.00
429.80
386.10
399.40
412.40
409.10
423.50
437.80
432.00
446.80
462.10
455.00
472.00
489.20
428.60
443.50
458.00
455.90
472.00
488.10
484.00
500.10
516.60
511.20
530.40
549.10
1430 10/11
15/16
20/21
1630 10/11
15/16
20/21
1830 10/11
15/16
20/21
2030 10/11
15/16
20/21
432.00
448.30
464.40
449.60
467.30
484.40
467.50
486.30
505.00
485.80
505.30
524.80
496.80
514.50
532.20
519.70
538.60
557.70
542.10
562.60
582.60
565.00
586.50
607.30
561.10
581.30
600.50
589.60
609.60
629.70
616.70
638.30
660.00
644.10
666.90
689.90
630 10/11
15/16
20/21
830 10/11
15/16
20/21
1030 10/11
15/16
20/21
1230 10/11
15/16
20/21
395.70
408.80
422.10
416.30
430.70
445.30
436.80
452.90
469.10
458.00
476.30
494.40
443.90
459.20
474.10
470.40
487.10
503.50
496.80
513.90
531.30
523.00
542.70
562.60
493.10
509.90
527.00
524.50
542.70
561.00
556.50
575.20
593.90
588.10
609.60
631.60
1430 10/11
15/16
20/21
1630 10/11
15/16
20/21
1830 10/11
15/16
20/21
2030 10/11
15/16
20/21
496.80
515.50
534.10
516.90
537.60
557.10
537.70
559.30
580.70
558.50
581.00
603.70
571.10
591.70
612.30
597.70
619.50
641.40
623.50
646.90
669.80
649.90
674.40
698.70
646.10
668.40
690.50
678.00
701.20
724.00
709.50
734.00
758.70
741.00
767.20
792.90
630 10/11
15/16
20/21
830 10/11
15/16
20/21
1030 10/11
15/16
20/21
1230 10/11
15/16
20/21
381.60
396.50
411.70
399.60
416.30
432.90
417.10
435.90
454.50
435.40
455.20
475.20
423.80
440.50
457.10
446.50
464.70
483.00
469.50
489.20
508.90
491.80
513.20
534.60
466.00
484.20
502.60
494.00
513.20
532.60
521.30
542.10
563.40
548.70
571.70
594.50
1430 10/11
15/16
20/21
1630 10/11
15/16
20/21
1830 10/11
15/16
20/21
2030 10/11
15/16
20/21
470.90
493.30
516.00
488.60
512.90
537.40
506.30
532.20
558.10
524.20
551.90
579.20
535.60
559.50
583.80
558.50
584.40
609.90
580.70
608.30
635.60
603.70
632.70
661.80
600.50
626.30
652.30
628.10
655.40
682.80
655.40
684.30
713.20
683.00
713.20
743.40
630 10/11
15/16
20/21
830 10/11
15/16
20/21
1030 10/11
15/16
20/21
1230 10/11
15/16
20/21
438.80
455.90
473.60
459.50
478.70
498.20
480.10
501.20
522.80
500.70
523.40
546.30
487.30
506.80
525.70
513.60
534.40
555.50
539.90
562.60
585.20
565.40
590.40
614.80
536.00
556.80
577.90
567.70
590.40
612.50
599.30
623.50
647.80
631.00
657.50
683.60
1430 10/11
15/16
20/21
1630 10/11
15/16
20/21
1830 10/11
15/16
20/21
2030 10/11
15/16
20/21
541.20
567.30
593.10
561.90
589.60
617.70
582.30
612.30
642.10
602.80
643.60
666.20
615.70
643.70
671.30
642.20
672.10
701.60
667.80
699.50
730.90
694.20
727.60
761.10
690.50
720.50
750.10
722.40
753.70
785.30
753.70
787.00
820.50
785.50
820.50
854.80
Length
063
Type
10
Colour
233
Ordering code
Product
Height
CMAW
044
Model
/WT
Length
063
Heights (mm) 440
Casing | wall mounted model WF
(other colours)
Price
(£)
Ordering code
Product
Height
CMAW
044
Heights (mm) 440
Casing | wall mounted model WF
(standard colours)
Length Type
(mm)
Heights (mm) 440
Heights (mm) 440
Casing | wall mounted model WT
(other colours)
Type
10
Colour
226
Heights (mm) 440
Ordering code
Product
Height
CMAW
044
Model
/WT
Length
063
Heights (mm) 440
Type
10
Colour
233
Heights (mm) 440
Ordering code
Product
Height
CMAW
044
Model
/WF
Length
063
Type
10
Heights (mm) 440
Colour
226
Model
/WF
Standard delivery is: colour 233 or 001,
top end grille, front panel, 2 side panels, 2 casing locks
Standard delivery is: colour 233 or 001,
top end grille, front panel, 2 side panels, 2 casing locks
Standard delivery is: colour 233 or 001,
top end grille, front panel, 2 side panels, 2 casing locks
Standard delivery is: colour 233 or 001,
top end grille, front panel, 2 side panels, 2 casing locks
For optional top valve, add suffix to the code /UK30 (top left)
or /UK60 (top right), e.g. CMAW 044 063 010 233/WT/UK60
For optional top valve, add suffix to the code /UK30 (top
left) or /UK60 (top right), e.g. CMAW 044 063 010
226/WT/UK60
For optional top valve, add suffix to the code /UK30 (top
left) or /UK60 (top right), e.g. CMAW 044 063 010
233/WF/UK60
For optional top valve, add suffix to the code /UK30 (top
left) or /UK60 (top right), e.g. CMAW 044 063 010
226/WF/UK60
For no perforation for TRV in the side panel, add suffix
to the code /00, e.g. CMAW 044 063 10 226/WT/00
For no perforation for TRV in the side panel, add suffix
to the code /00, e.g. CMAW 044 063 10 233/WF/00
For no perforation for TRV in the side panel, add suffix
to the code /00, e.g. CMAW 044 063 10 226/WF/00
Heat exchanger | wall mounted model WF
Heat exchanger twin | wall mounted model WF
For no perforation for TRV in the side panel, add suffix
to the code /00, e.g. CMAW 044 063 10 233/WT/00
Heat exchanger | wall mounted model WT Heat exchanger twin | wall mounted model WT
Heights (mm) 440
Length Type
(mm)
630
10
15
20
830 10
15
20
1030 10
15
20
1230 10
15
20
590
740
590
740
Price
(£)
Price
(£)
Price
(£)
Length Type
(mm)
Price
(£)
Price
(£)
Price
(£)
137.20
163.10
189.90
161.60
197.60
234.40
182.20
227.40
274.20
197.70
250.70
305.50
144.00
170.30
196.70
168.60
204.30
241.30
189.10
234.20
281.00
204.60
257.50
312.50
151.10
176.90
203.70
175.60
211.10
248.20
196.00
241.20
288.20
211.50
264.30
319.60
1430 10
15
20
1630 10
15
20
1830 10
15
20
2030 10
15
20
237.30
298.90
384.60
270.40
345.70
448.30
287.00
370.50
482.40
303.90
419.40
516.00
247.80
309.10
395.00
280.90
356.20
458.70
297.40
380.90
492.40
314.30
429.80
526.10
258.00
319.60
405.20
291.00
366.50
469.10
307.50
391.20
503.00
324.50
440.20
536.50
Ordering code
Product
Height
HMAW
044
Length
060
Heights (mm) 440
Heights (mm) 440
Length Type
(mm)
630
11
16
21
830 11
16
21
1030 11
16
21
1230 11
16
21
590
740
590
740
Price
(£)
Price
(£)
Price
(£)
Length Type
(mm)
Price
(£)
Price
(£)
Price
(£)
226.80
272.30
289.40
270.40
334.30
361.20
307.30
388.10
424.50
335.40
430.00
474.80
234.00
279.40
296.40
277.20
341.40
367.90
314.30
394.70
431.40
342.50
437.00
481.60
240.90
286.20
303.20
284.50
348.20
375.00
321.20
401.70
438.30
349.20
443.90
488.60
1430 11
16
21
1630 11
16
21
1830 11
16
21
2030 11
16
21
387.20
496.40
586.10
446.50
581.00
687.60
476.50
625.70
741.80
506.80
713.20
796.10
397.50
506.80
596.50
456.90
591.50
698.10
486.90
636.20
752.10
516.90
723.60
806.60
408.00
516.90
606.80
467.30
601.80
708.40
497.10
646.40
762.50
527.40
743.00
816.70
Ordering code
Product
Height
HMAW
044
Type
10
Length
060
Heights (mm) 440
Heights (mm) 440
Length Type
(mm)
630
10
15
20
830 10
15
20
1030 10
15
20
1230 10
15
20
590
740
590
740
Price
(£)
Price
(£)
Price
(£)
Length Type
(mm)
Price
(£)
Price
(£)
Price
(£)
137.20
163.10
189.90
161.60
197.60
234.40
182.20
227.40
274.20
197.70
250.70
305.50
144.00
170.30
196.70
168.60
204.30
241.30
189.10
234.20
281.00
204.60
257.50
312.50
151.10
176.90
203.70
175.60
211.10
248.20
196.00
241.20
288.20
211.50
264.30
319.60
1430 10
15
20
1630 10
15
20
1830 10
15
20
2030 10
15
20
237.30
298.90
384.60
270.40
345.70
448.30
287.00
370.50
482.40
303.90
419.40
516.00
247.80
309.10
395.00
280.90
356.20
458.70
297.40
380.90
492.40
314.30
429.80
526.10
258.00
319.60
405.20
291.00
366.50
469.10
307.50
391.20
503.00
324.50
440.20
536.50
Ordering code
Product
Height
HMAW
044
Type
10
Length
060
Heights (mm) 440
Standard delivery is: twin heat exchanger, wall brackets,
automatic air vent, drain plug, fixing kit
Standard delivery is: heat exchanger, wall brackets,
automatic air vent, drain plug, fixing kit
Pencil-proof grille
Base grille
Base grille
Type
Price
(£)
Length
(mm)
Type
Price
(£)
Length
(mm)
Type
Price
(£)
Length
(mm)
Type
Price
(£)
Length
(mm)
Type
Price
(£)
Length
(mm)
Type
Price
(£)
Length
(mm)
Type
Price
(£)
Length
(mm)
Type
Price
(£)
Length
(mm)
Type
Price
(£)
630
10/11
15/16
20/21
10/11
15/16
20/21
10/11
15/16
20/21
26.10
29.40
30.70
28.20
31.80
33.60
29.70
34.10
36.90
1230
10/11
15/16
20/21
10/11
15/16
20/21
10/11
15/16
20/21
32.60
37.80
41.00
36.00
41.90
45.60
36.90
43.50
47.40
1830
10/11
15/16
20/21
10/11
15/16
20/21
37.90
45.20
49.30
38.80
47.00
57.40
630
10/11
15/16
20/21
10/11
15/16
20/21
10/11
15/16
20/21
35.40
37.90
39.60
37.20
40.70
42.40
38.80
43.20
45.60
1230
10/11
15/16
20/21
10/11
15/16
20/21
10/11
15/16
20/21
41.90
47.10
50.40
47.00
52.80
56.20
48.00
54.60
58.00
1830
10/11
15/16
20/21
10/11
15/16
20/21
49.30
56.50
60.00
50.10
58.00
62.30
630
10/11
15/16
20/21
10/11
15/16
20/21
10/11
15/16
20/21
35.40
37.90
39.60
37.20
40.70
42.40
38.80
43.20
45.60
1230
10/11
15/16
20/21
10/11
15/16
20/21
10/11
15/16
20/21
41.90
47.10
50.40
47.00
52.80
56.20
48.00
54.60
58.00
1830
10/11
15/16
20/21
10/11
15/16
20/21
49.30
56.50
60.00
50.10
58.00
62.30
1030
Ordering code
Product
Height
5612
000
Length
040
Same colour as casing.
1630
Type
10
2030
830
1030
Ordering code
Product
Height
5613
000
Length
063
Same colour as casing.
1430
1630
Type
10
2030
830
1030
Ordering code
Product
Height
5613
000
Length
063
1430
1630
630
11
16
21
830 11
16
21
1030 11
16
21
1230 11
16
21
590
740
590
740
Price
(£)
Price
(£)
Price
(£)
Length Type
(mm)
Price
(£)
Price
(£)
Price
(£)
226.80
272.30
289.40
270.40
334.30
361.20
307.30
388.10
424.50
335.40
430.00
474.80
234.00
279.40
296.40
277.20
341.40
367.90
314.30
394.70
431.40
342.50
437.00
481.60
240.90
286.20
303.20
284.50
348.20
375.00
321.20
401.70
438.30
349.20
443.90
488.60
1430 11
16
21
1630 11
16
21
1830 11
16
21
2030 11
16
21
387.20
496.40
586.10
446.50
581.00
687.60
476.50
625.70
741.80
506.80
713.20
796.10
397.50
506.80
596.50
456.90
591.50
698.10
486.90
636.20
752.10
516.90
723.60
806.60
408.00
516.90
606.80
467.30
601.80
708.40
497.10
646.40
762.50
527.40
743.00
816.70
Length
060
Heights (mm) 440
Type
10
Standard delivery is: twin heat exchanger, wall brackets,
automatic air vent, drain plug, fixing kit
Length
(mm)
1430
Length Type
(mm)
Ordering code
Product
Height
HMAW
044
Type
10
Standard delivery is: heat exchanger, wall brackets,
automatic air vent, drain plug, fixing kit
830
Heights (mm) 440
2030
Type
10
Same colour as casing.
For technical support visit www.jaga.co.uk or telephone 01531 631 533

80

Previous
Next
Parts
Maxi LST
Maxi LST parts
Casing | floor model FT (standard colours) Casing | floor model FT (other colours)
Heights (mm) 440
590
740
590
740
590
740
590
740
Length Type
(mm)
Price
(£)
Price
(£)
Price
(£)
Length Type
(mm)
Price
(£)
Price
(£)
Price
(£)
Length Type
(mm)
Price
(£)
Price
(£)
Price
(£)
Length Type
(mm)
Price
(£)
Price
(£)
Price
(£)
630 10/11
15/16
20/21
830 10/11
15/16
20/21
1030 10/11
15/16
20/21
1230 10/11
15/16
20/21
353.50
365.30
377.60
370.50
383.70
397.10
388.10
401.40
415.10
404.90
420.40
435.90
396.30
409.10
422.30
418.00
432.20
446.50
439.20
454.50
469.60
461.30
478.70
495.90
438.30
452.90
467.50
465.10
480.90
495.90
491.70
508.40
524.80
518.00
536.50
555.30
1430 10/11
15/16
20/21
1630 10/11
15/16
20/21
1830 10/11
15/16
20/21
2030 10/11
15/16
20/21
436.20
452.80
468.70
453.50
470.90
488.20
469.80
488.60
507.40
487.10
506.30
525.90
501.00
519.10
537.60
522.80
541.80
560.70
544.70
564.60
584.40
566.50
587.50
608.50
565.90
585.40
604.80
592.80
613.40
634.00
619.00
640.70
662.80
645.40
668.20
690.50
630 10/11
15/16
20/21
830 10/11
15/16
20/21
1030 10/11
15/16
20/21
1230 10/11
15/16
20/21
406.70
420.40
434.10
426.20
441.30
456.70
446.10
461.40
477.30
465.70
483.40
501.20
455.70
470.40
485.80
480.90
496.90
513.60
505.30
522.80
540.10
530.40
550.60
570.70
503.80
520.90
537.70
535.20
553.00
570.70
565.00
584.40
603.70
595.70
617.20
638.70
1430 10/11
15/16
20/21
1630 10/11
15/16
20/21
1830 10/11
15/16
20/21
2030 10/11
15/16
20/21
501.40
520.30
538.90
521.40
541.20
561.60
540.40
561.90
583.40
560.30
582.30
604.80
576.00
597.00
617.90
601.20
622.80
644.80
626.30
649.20
672.10
651.30
675.70
699.60
650.80
673.40
695.50
681.70
705.70
728.90
711.90
736.90
761.90
741.90
768.30
794.00
Ordering code
Product
Height
CMAW
044
Length
063
Heights (mm) 440
Type
10
Colour
233
Heights (mm) 440
Ordering code
Product
Height
CMAW
044
Model
/FT
Length
063
Type
10
Heights (mm) 440
Casing | floor model FF (standard colours) Casing | floor model FF (other colours)
Colour
226
Heights (mm) 440
Length Type
(mm)
630
10
15
20
830 10/11
15/16
20/21
1030 10/11
15/16
20/21
1230 10/11
15/16
20/21
590
740
590
740
Price
(£)
Price
(£)
Price
(£)
Length Type
(mm)
Price
(£)
Price
(£)
Price
(£)
391.20
406.70
421.60
408.60
424.80
441.60
424.80
443.50
461.40
441.60
462.10
482.40
434.00
450.00
466.40
455.20
473.60
491.80
476.60
496.80
516.60
498.60
519.90
541.50
475.80
494.40
512.60
502.60
522.70
542.10
529.10
550.10
571.70
555.30
577.90
600.50
1430 10/11
15/16
20/21
1630 10/11
15/16
20/21
1830 10/11
15/16
20/21
2030 10/11
15/16
20/21
475.20
497.90
520.20
492.30
516.60
540.60
508.50
534.60
560.70
525.40
553.00
580.20
539.90
563.90
588.30
561.60
587.50
613.40
583.40
610.60
637.90
604.80
634.00
662.90
604.80
630.80
656.70
631.60
658.90
686.20
657.80
686.20
714.70
684.30
714.50
744.70
Ordering code
Product
Height
CMAW
044
Model
/FT
Length
063
Type
10
Heights (mm) 440
Colour
233
Heights (mm) 440
Length Type
(mm)
630
10
15
20
830 10/11
15/16
20/21
1030 10/11
15/16
20/21
1230 10/11
15/16
20/21
590
740
590
740
Price
(£)
Price
(£)
Price
(£)
Length Type
(mm)
Price
(£)
Price
(£)
Price
(£)
450.00
467.50
484.70
469.80
488.80
507.70
488.80
509.90
530.70
507.70
531.30
554.40
498.70
517.60
536.30
523.40
544.70
565.40
548.60
571.10
593.90
573.40
598.00
622.60
547.20
568.60
589.40
577.90
600.70
623.50
608.30
632.70
657.50
638.70
664.60
690.50
1430 10/11
15/16
20/21
1630 10/11
15/16
20/21
1830 10/11
15/16
20/21
2030 10/11
15/16
20/21
546.30
572.70
598.10
566.20
593.90
621.80
584.60
614.80
644.80
604.20
635.80
667.60
620.50
648.50
676.80
646.10
675.70
705.70
670.80
701.90
733.70
695.50
728.90
762.50
695.50
725.40
754.90
726.10
757.90
789.30
756.40
789.30
822.00
787.00
821.30
856.30
Ordering code
Product
Height
CMAW
044
Model
/FF
Length
063
Type
10
Heights (mm) 440
Colour
226
Model
/FF
Standard delivery is: colour 233 or 001,
top end grille, front panel, 2 side panels, 2 casing locks
Standard delivery is: colour 233 or 001,
top end grille, front panel, 2 side panels, 2 casing locks
Standard delivery is: colour 233 or 001,
top end grille, front panel, 2 side panels, 2 casing locks
Standard delivery is: colour 233 or 001,
top end grille, front panel, 2 side panels, 2 casing locks
For optional top valve, add suffix to the code /UK30 (top
left) or /UK60 (top right), e.g. CMAW 044 063 010
233/FT/UK60
For optional top valve, add suffix to the code /UK30 (top
left) or /UK60 (top right), e.g. CMAW 044 063 010
226/FT/UK60
For optional top valve, add suffix to the code /UK30 (top
left) or /UK60 (top right), e.g. CMAW 044 063 010
233/FF/UK60
For optional top valve, add suffix to the code /UK30 (top
left) or /UK60 (top right), e.g. CMAW 044 063 010
226/FF/UK60
For no perforation for TRV in the side panel, add suffix
to the code /00, e.g. CMAW 044 063 10 233/FT/00
For no perforation for TRV in the side panel, add suffix
to the code /00, e.g. CMAW 044 063 10 226/FT/00
For no perforation for TRV in the side panel, add suffix
to the code /00, e.g. CMAW 044 063 10 233/FF/00
For no perforation for TRV in the side panel, add suffix
to the code /00, e.g. CMAW 044 063 10 226/FF/00
Heat exchanger | floor model FT
Heat exchanger twin | floor model FT
Heat exchanger | floor model FF
Heat exchanger twin | floor model FF
Heights (mm) 440
Length Type
(mm)
630
10
15
20
830 10
15
20
1030 10
15
20
1230 10
15
20
590
740
590
740
Price
(£)
Price
(£)
Price
(£)
Length Type
(mm)
Price
(£)
Price
(£)
Price
(£)
137.20
163.10
189.90
161.60
197.60
234.40
182.20
227.40
274.20
197.70
250.70
305.50
144.00
170.30
196.70
168.60
204.30
241.30
189.10
234.20
281.00
204.60
257.50
312.50
151.10
176.90
203.70
175.60
211.10
248.20
196.00
241.20
288.20
211.50
264.30
319.60
1430 10
15
20
1630 10
15
20
1830 10
15
20
2030 10
15
20
237.30
298.90
384.60
270.40
345.70
448.30
287.00
370.50
482.40
303.90
419.40
516.00
247.80
309.10
395.00
280.90
356.20
458.70
297.40
380.90
492.40
314.30
429.80
526.10
258.00
319.60
405.20
291.00
366.50
469.10
307.50
391.20
503.00
324.50
440.20
536.50
Ordering code
Product
Height
HMAW
044
Length
060
Heights (mm) 440
Heights (mm) 440
Length Type
(mm)
630
11
16
21
830 11
16
21
1030 11
16
21
1230 11
16
21
590
740
590
740
Price
(£)
Price
(£)
Price
(£)
Length Type
(mm)
Price
(£)
Price
(£)
Price
(£)
226.80
272.30
289.40
270.40
334.30
361.20
307.30
388.10
424.50
335.40
430.00
474.80
234.00
279.40
296.40
277.20
341.40
367.90
314.30
394.70
431.40
342.50
437.00
481.60
240.90
286.20
303.20
284.50
348.20
375.00
321.20
401.70
438.30
349.20
443.90
488.60
1430 11
16
21
1630 11
16
21
1830 11
16
21
2030 11
16
21
387.20
496.40
586.10
446.50
581.00
687.60
476.50
625.70
741.80
506.80
713.20
796.10
397.50
506.80
596.50
456.90
591.50
698.10
486.90
636.20
752.10
516.90
723.60
806.60
408.00
516.90
606.80
467.30
601.80
708.40
497.10
646.40
762.50
527.40
743.00
816.70
Ordering code
Product
Height
HMAW
044
Type
10
Standard delivery is: heat exchanger, wall brackets,
automatic air vent, drain plug, fixing kit
Length
060
Heights (mm) 440
Type
10
Standard delivery is: twin heat exchanger, wall brackets,
automatic air vent, drain plug, fixing kit
Heights (mm) 440
Length Type
(mm)
630
10
15
20
830 10
15
20
1030 10
15
20
1230 10
15
20
590
740
590
740
Price
(£)
Price
(£)
Price
(£)
Length Type
(mm)
Price
(£)
Price
(£)
Price
(£)
137.20
163.10
189.90
161.60
197.60
234.40
182.20
227.40
274.20
197.70
250.70
305.50
144.00
170.30
196.70
168.60
204.30
241.30
189.10
234.20
281.00
204.60
257.50
312.50
151.10
176.90
203.70
175.60
211.10
248.20
196.00
241.20
288.20
211.50
264.30
319.60
1430 10
15
20
1630 10
15
20
1830 10
15
20
2030 10
15
20
237.30
298.90
384.60
270.40
345.70
448.30
287.00
370.50
482.40
303.90
419.40
516.00
247.80
309.10
395.00
280.90
356.20
458.70
297.40
380.90
492.40
314.30
429.80
526.10
258.00
319.60
405.20
291.00
366.50
469.10
307.50
391.20
503.00
324.50
440.20
536.50
Ordering code
Product
Height
HMAW
044
Length
060
Heights (mm) 440
Type
10
Standard delivery is: heat exchanger, wall brackets,
automatic air vent, drain plug, fixing kit
Heights (mm) 590
Length Type
(mm)
630
11
16
21
830 11
16
21
1030 11
16
21
1230 11
16
21
740
Heights (mm) 590
740
Price
(£)
Price
(£)
Length Type
(mm)
Price
(£)
Price
(£)
234.00
279.40
296.40
277.20
341.40
367.90
314.30
394.70
431.40
342.50
437.00
481.60
240.90
286.20
303.20
284.50
348.20
375.00
321.20
401.70
438.30
349.20
443.90
488.60
1430 11
16
21
1630 11
16
21
1830 11
16
21
2030 11
16
21
397.50
506.80
596.50
456.90
591.50
698.10
486.90
636.20
752.10
516.90
723.60
806.60
408.00
516.90
606.80
467.30
601.80
708.40
497.10
646.40
762.50
527.40
743.00
816.70
Ordering code
Product
Height
HMAW
044
Length
060
Type
10
Standard delivery is: twin heat exchanger, wall brackets,
automatic air vent, drain plug, fixing kit
Pencil-proof grille
Length
(mm)
Type
Price
(£)
Length
(mm)
Type
Price
(£)
Length
(mm)
Type
Price
(£)
630
10/11
15/16
20/21
10/11
15/16
20/21
10/11
15/16
20/21
26.10
29.40
30.70
25.20
31.80
33.60
29.70
34.10
36.90
1230
10/11
15/16
20/21
10/11
15/16
20/21
10/11
15/16
20/21
32.60
37.80
41.00
36.00
41.90
45.60
36.90
43.50
47.40
1830
10/11
15/16
20/21
10/11
15/16
20/21
37.90
45.20
49.30
38.80
47.00
57.40
830
1030
Ordering code
Product
Height
5612
000
Length
040
1430
1630
2030
Type
10
Same colour as casing.
For technical support visit www.jaga.co.uk or telephone 01531 631 533
81

82
Previous

Next
Design considerations
Design considerations
Design considerations and ‘Duty of Care’
Regulations for hot surfaces are governed by two major bodies:
> the NHS which covers its own estates
> the HSE (Heath and Safety Executive)
which covers other working environments.
HSE
HSE Information Sheet, ‘Managing the risks from
hot water and surfaces in health and social care’
This covers ‘Safe hot water and surface temperatures’.
This booklet was issued following a number of serious
accidents.
The HSE’s job is to prevent people being killed, injured or
made ill by work. This covers burning risks from hot
surfaces in health and social care.
This guidance should be followed in all healthcare and
personal social services premises and those premises
registered under the Registered Homes Act 1984.
Chief executives, general managers and managers under
the Health and Safety at Work Act 1974 have a ‘duty of
care’ and should demonstrate that they are providing
care in a safe environment; this is equally applicable to
new and existing premises.
Recommendations regarding water and surface
temperature apply to all ward accommodation, residents’
rooms and those areas to which patients, residents and
visitors have free access (including public areas).
It may also be appropriate in non-registered premises, for
example sheltered accommodation, where the occupants
are equally at risk.
BS EN 442
BS EN
442
Guidance sheet from the Health and Safety Executive
states the following when it comes to hot surfaces:
‘Contact with surfaces above 43°C can lead to serious
injury. Prolonged contact often occurs because people
have fallen and are unable to move, or are trapped by
furniture. Incidents can occur in areas where there are
low levels of supervision, e.g. in bedrooms, bathrooms
and some communal areas...’
Part
M
Part M, Section 5: Sanitary accommodation in
buildings other than dwellings
Section 5 states that sanitary accommodation will satisfy
requirement Part M1 or M3 if...
‘Many radiators and associated pipework are likely to
operate at temperatures which may present a burn risk.
‘any heat emitters are either screened or have their
exposed surfaces kept at a temperature below 43°C’.
Where assessment identifies that vulnerable people may
come into prolonged contact, such equipment should be
designed or covered so that the maximum accessible
surface temperature does not exceed 43°C.
and that
‘any heat emitters are located so that they do not restrict
the minimum clear wheelchair manoeuvring space, nor
the space beside the WC used for transfer from the wheel
chair to the WC.’
The risk of burns from hot surfaces may be reduced by:
> providing low surface temperature heat emitters
BS 8300
BS
8300
> locating sources of heat out of reach
> guarding the heated areas (e.g. providing radiator
covers, covering exposed pipework)
> reducing the flow temperatures, although this
should not reduce the effectiveness or increase
risk from legionella.
NHS Estates Health Guidance Notes – DN4
DN4
BS EN 442-2: 1997, ‘Specification for radiators and
convectors – Test methods and rating for their
performance and quality’ is the British Standard test for
heat output – it requires that water enters and leaves the
radiator at definite temperatures. Flow into the radiator
will be at 75°C. Return out (from) the radiator will be at
65°C. And the room temperature will be at a steady 20°C.
The ramifications of the judgements are considered
within the Health Service, for instance, to be so serious,
that NHSE issued guidelines to advise of the potential
dangers of uncovered radiators or pipework that can be
hot enough to cause serious injury or even death to those
who fall onto them and be unable, through infirmity, to
move away.
BS 8300: 2009, ‘Design of buildings and their
approaches to meet the needs of disabled people – Code
of practice’ makes recommendations for the provision of
‘Changing Places’. These are new toilet and
sanitary/changing facilities for use by disabled persons
and their carers where conventional accessible toilets are
inadequate. They offer adequate space for the disabled
person and up to two carers and incorporate a centrally
placed toilet, height adjustable adult-sized changing
bench, hoist, screen or curtain and often have washdown facilities. They are recommended for large publicly
accessible places such as shopping malls, airports, or
motorway service stations. ‘Changing Places’ make it
possible for more people, especially those with profound
and multiple learning difficulties, to get out and enjoy
facilities most of us take for granted, and to do so with
dignity.
For technical support visit www.jaga.co.uk or telephone 01531 631 533
83

84

Previous
Next
Correction factors
Correction factors
Correction factors – standard
Correction factors – with DBE
Average correction factors according to EN442 ( 75/65/20°C)
Average correction factors according to EN442 ( 75/65/20°C)
Tv
90
85
80
75
70
65
60
55
50
45
40
35
30
Tl
18
20
22
24
18
20
22
24
18
20
22
24
18
20
22
24
18
20
22
24
18
20
22
24
18
20
22
24
18
20
22
24
18
20
22
24
18
20
22
24
18
20
22
24
18
20
22
24
18
20
22
24
Tr
25
0.45
0.38
0.30
0.20
0.42
0.36
0.28
0.19
0.39
0.33
0.26
0.17
0.37
0.30
0.24
0.16
0.34
0.28
0.22
0.14
0.31
0.25
0.19
0.12
0.28
0.23
0.17
0.11
0.25
0.20
0.15
0.09
0.22
0.18
0.13
0.08
0.19
0.15
0.11
0.06
0.16
0.12
0.09
0.05
0.13
0.10
0.07
0.03
0.10
0.07
0.04
0.02
Tv
30
35
40
45
50
55
60
65
70
75
80
85
0.58
0.52
0.46
0.39
0.54
0.49
0.42
0.36
0.51
0.45
0.39
0.34
0.47
0.42
0.36
0.31
0.44
0.39
0.33
0.28
0.40
0.35
0.30
0.25
0.37
0.32
0.27
0.23
0.33
0.29
0.24
0.20
0.30
0.25
0.21
0.17
0.26
0.22
0.18
0.14
0.22
0.18
0.15
0.12
0.19
0.15
0.12
0.09
0.69
0.63
0.57
0.52
0.65
0.59
0.54
0.48
0.61
0.56
0.50
0.45
0.57
0.52
0.46
0.41
0.53
0.48
0.43
0.38
0.49
0.44
0.39
0.34
0.45
0.40
0.35
0.31
0.40
0.36
0.32
0.27
0.36
0.32
0.28
0.24
0.32
0.28
0.24
0.20
0.28
0.24
0.20
0.17
0.79
0.74
0.68
0.62
0.75
0.69
0.64
0.58
0.70
0.65
0.60
0.54
0.66
0.61
0.55
0.50
0.61
0.56
0.51
0.46
0.57
0.52
0.47
0.42
0.52
0.47
0.43
0.38
0.47
0.43
0.38
0.34
0.43
0.38
0.34
0.30
0.38
0.34
0.30
0.26
0.89
0.83
0.78
0.72
0.84
0.79
0.73
0.68
0.79
0.74
0.68
0.63
0.74
0.69
0.64
0.59
0.69
0.64
0.59
0.54
0.64
0.59
0.54
0.50
0.59
0.54
0.50
0.45
0.55
0.50
0.45
0.40
0.49
0.44
0.40
0.36
0.98
0.92
0.87
0.81
0.93
0.87
0.82
0.76
0.88
0.82
0.77
0.72
0.82
0.77
0.72
0.67
0.77
0.72
0.67
0.62
0.71
0.66
0.61
0.57
0.66
0.62
0.57
0.52
0.60
0.56
0.51
0.47
1.07
1.01
0.96
0.90
1.01
0.96
0.90
0.85
0.96
0.90
0.85
0.80
0.90
0.85
0.79
0.74
0.85
0.80
0.74
0.69
0.79
0.74
0.69
0.64
0.73
0.68
0.63
0.58
1.16
1.10
1.04
0.99
1.10
1.04
0.99
0.93
1.04
0.98
0.93
0.87
0.99
0.93
0.88
0.83
0.92
0.87
0.81
0.76
0.85
0.80
0.75
0.70
1.24
1.18
1.13
1.07
1.20
1.12
1.06
1.01
1.12
1.07
1.01
0.96
1.05
1.00
0.95
0.89
0.99
0.93
0.88
0.83
1.34
1.28
1.22
1.15
1.27
1.21
1.15
1.10
1.20
1.14
1.08
1.03
1.12
1.07
1.01
0.96
1.41
1.35
1.30
1.24
1.34
1.28
1.22
1.17
1.27
1.21
1.15
1.10
1.49
1.43
1.37
1.31
1.41
1.35
1.30
1.24
1.56
1.50
1.44
1.38
90
85
80
75
70
65
60
55
50
45
40
35
30
Tl
18
20
22
24
18
20
22
24
18
20
22
24
18
20
22
24
18
20
22
24
18
20
22
24
18
20
22
24
18
20
22
24
18
20
22
24
18
20
22
24
18
20
22
24
18
20
22
24
18
20
22
24
Tr
25
0.56
0.49
0.42
0.31
0.53
0.47
0.39
0.29
0.50
0.44
0.37
0.27
0.48
0.42
0.35
0.25
0.45
0.39
0.32
0.24
0.42
0.36
0.30
0.22
0.39
0.34
0.28
0.20
0.36
0.31
0.25
0.17
0.33
0.28
0.22
0.15
0.30
0.25
0.20
0.13
0.26
0.22
0.17
0.11
0.23
0.18
0.14
0.08
0.19
0.14
0.10
0.06
30
35
40
45
50
55
60
65
70
75
80
85
0.67
0.62
0.56
0.50
0.64
0.59
0.53
0.47
0.61
0.56
0.50
0.45
0.58
0.53
0.48
0.42
0.55
0.50
0.45
0.39
0.51
0.47
0.42
0.36
0.48
0.43
0.39
0.33
0.44
0.40
0.35
0.30
0.41
0.36
0.32
0.27
0.37
0.33
0.28
0.24
0.33
0.29
0.25
0.20
0.29
0.25
0.21
0.16
0.76
0.71
0.66
0.61
0.73
0.68
0.63
0.58
0.70
0.65
0.60
0.55
0.66
0.62
0.57
0.52
0.63
0.58
0.54
0.49
0.59
0.55
0.50
0.46
0.55
0.51
0.47
0.42
0.51
0.47
0.43
0.39
0.47
0.43
0.39
0.35
0.43
0.39
0.35
0.31
0.39
0.35
0.31
0.27
0.84
0.80
0.75
0.71
0.81
0.76
0.72
0.67
0.77
0.73
0.68
0.64
0.74
0.69
0.65
0.60
0.70
0.65
0.61
0.57
0.66
0.62
0.57
0.53
0.62
0.58
0.54
0.49
0.58
0.54
0.49
0.45
0.53
0.49
0.45
0.41
0.49
0.45
0.41
0.37
0.92
0.87
0.83
0.79
0.88
0.84
0.79
0.75
0.84
0.80
0.76
0.71
0.80
0.76
0.72
0.68
0.76
0.72
0.68
0.64
0.72
0.68
0.64
0.60
0.68
0.64
0.60
0.56
0.64
0.60
0.55
0.51
0.59
0.55
0.51
0.47
0.99
0.94
0.90
0.86
0.95
0.91
0.86
0.82
0.91
0.87
0.82
0.78
0.87
0.82
0.78
0.74
0.82
0.78
0.74
0.70
0.78
0.74
0.70
0.66
0.74
0.70
0.66
0.62
0.69
0.65
0.61
0.57
1.05
1.01
0.97
0.93
1.01
0.97
0.93
0.89
0.97
0.93
0.89
0.85
0.93
0.88
0.84
0.80
0.89
0.85
0.80
0.76
0.84
0.80
0.76
0.72
0.79
0.75
0.71
0.67
1.11
1.07
1.03
0.99
1.07
1.03
0.99
0.95
1.03
0.99
0.95
0.91
0.99
0.95
0.91
0.87
0.94
0.90
0.86
0.82
0.89
0.85
0.81
0.77
1.17
1.13
1.09
1.05
1.14
1.09
1.05
1.01
1.09
1.05
1.01
0.97
1.04
1.00
0.96
0.92
0.99
0.95
0.91
0.87
1.24
1.20
1.16
1.11
1.19
1.15
1.11
1.07
1.14
1.10
1.06
1.02
1.09
1.05
1.01
0.97
1.29
1.25
1.21
1.17
1.24
1.20
1.16
1.12
1.19
1.15
1.11
1.07
1.34
1.30
1.26
1.22
1.29
1.25
1.21
1.17
1.39
1.35
1.31
1.27
Rapid estimation of heat losses
Calculate the volume of the room (L x W x H) and multiply this by the
Watts/m³ figure given in the table below. Choose according to the
level of insulation and the desired room temperature.
Required output in Watts/m³
Insulation
20°
24°
Excellent
45
55
Good
65
75
Average
85
95
Poor
100
115
Example
Use the table to determine the relevant correction factor with a
water temperature of 80/60°c with a room temperature of 24°C.
The correction factor = 0.89
Required output 1000 watts: 1000 divided by 0.89 = 1124 watts
therefore look in the output tables for a product with an output
of at least 1124 watts.
Key
Key
Tv = flow temperature
Tr = return temperature
Tl = desired air temperature
Tv = flow temperature
Tr = return temperature
Tl = desired air temperature
Notes: The indicated outputs with ΔT 50°c and ΔT 30°c are the exact outputs. ΔT 50°c outputs are measured in accordance with EN442 and ΔT 30°C outputs
are calculated according to EN442. An average correction factor is given in this table for outputs at other ΔT and is applicable for all dimensions.
How to choose the right radiator?
Alternatively use the ‘Radiator Finder’s each function on
www.jaga.co.uk to identify all Jaga heating products with this
required output.
Notes: The indicated outputs with ΔT 50°c and ΔT 30°c are the exact outputs. ΔT 50°c outputs are measured in accordance with EN442 and ΔT 30°C outputs
are calculated according to EN442. An average correction factor is given in this table for outputs at other ΔT and is applicable for all dimensions.
For technical support visit www.jaga.co.uk or telephone 01531 631 533
85

86

Previous
Next
Pressure drops
Pressure drops
Pressure drops
Pressure drop type 8
(for Sentinel Type 06)
Pressure drop type 10
$P $P
$P
Pressure drop type 16
$P $P
$P $P
$P
$P $P
$P
1000
800
600
500
400
300
200
0.02
2
200
0.02
2
200
0.02
2
200
0.02
2
100
80
60
50
40
30
0.01
0.008
0.006
0.005
0.004
0.003
1
0.8
0.6
0.5
0.4
0.3
100
80
60
50
40
30
0.01
0.008
0.006
0.005
0.004
0.003
1
0.8
0.6
0.5
0.4
0.3
100
80
60
50
40
30
0.01
0.008
0.006
0.005
0.004
0.003
1
0.8
0.6
0.5
0.4
0.3
100
80
60
50
40
30
0.01
0.008
0.006
0.005
0.004
0.003
1
0.8
0.6
0.5
0.4
0.3
20
0.002
0.2
20
0.002
0.2
20
0.002
0.2
20
0.002
0.2
10
8
6
5
4
3
0.001
0.0008
0.0006
0.0005
0.0004
0.0003
0.1
0.08
0.06
0.05
0.04
0.03
10
8
6
5
4
3
0.001
0.0008
0.0006
0.0005
0.0004
0.0003
0.1
0.08
0.06
0.05
0.04
0.03
10
8
6
5
4
3
0.001
0.0008
0.0006
0.0005
0.0004
0.0003
0.1
0.08
0.06
0.05
0.04
0.03
10
8
6
5
4
3
0.001
0.0008
0.0006
0.0005
0.0004
0.0003
0.1
0.08
0.06
0.05
0.04
0.03
2
0.0002
0.02
2
0.0002
0.02
2
0.0002
0.02
2
0.0002
0.02
1
0.0001
0.01
1
0.0001
0.01
1
0.0001
0.01
1
0.0001
10
2
3 4
6 8
100
2
3 4
6 8
1000
800
600
500
400
300
[bar]
0.1
0.08
0.06
0.05
0.04
0.03
$P
[bar]
0.1
0.08
0.06
0.05
0.04
0.03
L = 280 L = 150
L = 70
[kPa]
10
8
6
5
4
3
Pressure drop type 20
1000
L = 490
L = 350
L = 150
L = 70
10
Pressure drop type 11
2
3 4
6 8
100
2
3 4
6 8
[kPa]
10
8
6
5
4
3
1000
800
600
500
400
300
[bar]
0.1
0.08
0.06
0.05
0.04
0.03
10
1000
Pressure drop type 15
$P $P
$P
6 8
100
2
3 4
6 8
1000
1000
800
600
500
400
300
[bar]
0.1
0.08
0.06
0.05
0.04
0.03
$P
$P $P
[kPa]
10
8
6
5
4
3
1000
800
600
500
400
300
[bar]
0.1
0.08
0.06
0.05
0.04
0.03
2
200
0.02
2
200
0.02
2
100
80
60
50
40
30
0.01
0.008
0.006
0.005
0.004
0.003
1
0.8
0.6
0.5
0.4
0.3
100
80
60
50
40
30
0.01
0.008
0.006
0.005
0.004
0.003
1
0.8
0.6
0.5
0.4
0.3
100
80
60
50
40
30
0.01
0.008
0.006
0.005
0.004
0.003
1
0.8
0.6
0.5
0.4
0.3
20
0.002
0.2
20
0.002
0.2
20
0.002
0.2
10
8
6
5
4
3
0.001
0.0008
0.0006
0.0005
0.0004
0.0003
0.1
0.08
0.06
0.05
0.04
0.03
10
8
6
5
4
3
0.001
0.0008
0.0006
0.0005
0.0004
0.0003
0.1
0.08
0.06
0.05
0.04
0.03
10
8
6
5
4
3
0.001
0.0008
0.0006
0.0005
0.0004
0.0003
0.1
0.08
0.06
0.05
0.04
0.03
2
0.0002
0.02
2
0.0002
0.02
2
0.0002
0.02
1
0.0001
0.01
1
0.0001
0.01
1
0.0001
6 8
100
2
3 4
6 8
1000
L = 490
L = 350
L = 150
L = 70
10
2
3 4
6 8
100
3 4
6 8
100
2
3 4
6 8
1000
0.01
[kPa]
10
8
6
5
4
3
0.02
3 4
2
[kPa]
10
8
6
5
4
3
$P
200
2
L = 490
L = 250
L = 150
L = 70
10
1000
800
600
500
400
300
10
1000
800
600
500
400
300
3 4
[kPa]
10
8
6
5
4
3
Pressure drop type 21
$P $P
[bar]
0.1
0.08
0.06
0.05
0.04
0.03
2
L = 150
L = 050
[bar]
0.1
0.08
0.06
0.05
0.04
0.03
L = 280
L = 150
L = 050
[kPa]
10
8
6
5
4
3
L = 280
2
3 4
6 8
1000
L = 280
L = 150
L = 050
10
2
3 4
6 8
100
2
3 4
6 8
1000
0.01
For technical support visit www.jaga.co.uk or telephone 01531 631 533
87

88

Previous
Next
Heat exchangers
Installation and guarantee
Overview heat exchangers
100
Installation
150
200
The building services engineer should consider what heating element
to specify, based on the following conditions:
> heat output calculations according to the relevant standard
> tables of heat outputs and dimensions for Tempo LST / Cocoon LST /
Guardian LST / Sentinel LST / Maxi LST elements, according to
EN 442
100
Type 10
80
Type 15
Type 20
> the normal fitting position for the heating elements is under the
window, and to achieve the most aesthetically pleasing
appearance the casing should not be wider than the total width of
the window. The height of the casing has to be a function of the
heat loss calculations; aesthetically narrower types are preferable.
Types 20 and 21 are more suitable for utility areas
> when only small outputs are required, the casing can be extended,
if necessary, to fill up the total window space
> the minimum space requirement under the heating elements is:
for Tempo LST / Guardian (WT Model) LST / Sentinel LST /
Maxi (WT and WF models) LST
200
100mm for Types 06, 10 and 11
120 mm for Types 15 and 16
> to achieve a minimum space between the top of the casing and
the extended window sills, the above mentioned dimensions have
to be applied
> the heat exchangers will be connected to a two pipe system, with
a same end connection. The heat exchangers are equipped with
1/2” brass collector, 1/8” air vent and a 1/2” drain plug. The flow
valve always has to be fitted to the top connection of the heat
exchanger
The specially designed thermostatic Jaga Danfoss / Jaga /
Jaga type 6 / Jaga Pro / Jaga Comap / Jaga Top valves can be
connected to plastic central heating service pipes/ RPE/ALU. tube /
copper tube/ steel pipe. The valve body is concealed within the
standard casing
> Jaga Danfoss type RA thermostatic heads white / Jaga Danfoss type
RAX thermostatic heads white / Jaga Danfoss type RAX
thermostatic heads chrome / Jaga thermostatic heads / Jaga Deco
thermostatic heads chrome / Jaga Deco thermostatic heads
chrome white / Jaga Comap thermostatic heads silver / remote
controlled Jaga thermostatic heads / Jaga Deco thermostatic heads
chrome-white with sensor at distance / not / to be fitted.
150 mm for Types 20 and 21
Type 8*
Type 11
Type 16
Type 21
Guarantees
Heat exchangers per appliance (overview codes)
Type
Tempo LST
Cocoon LST
Sentinel LST
Maxi LST
Guardian LST
08
–
–
5003.08*
–
–
10
5003.10
5003.10
5003.10
5003.10
5003.10
11
5003.11
5003.11
5003.11
5003.11
5003.11
15
5003.15
5003.15
5003.15
5003.15
5003.15
16
5003.16
5003.16
5003.16
5003.16
5003.16
20
5003.20
5003.20
–
5003.20
–
21
5003.21
5003.21
–
5003.21
–
* Sentinel LST Type 06
1. The guarantee is valid only if the equipment is properly and correctly used,
by its first owner and if installed in accordance with the norms and instructions
as detailed in the instruction leaflet and current industry standard practices.
2. The guarantee only applies to the equipment and the spare parts supplied by
Jaga. Jaga has the choice between repair and replacement of the equipment or
the spare parts. If any modifications have been made by Jaga to the standard
product design, Jaga reserves the right to replace the guaranteed equipment
with equivalent products or spare parts.
The guarantee is also revoked when unsuitable parts or components are used.
The guarantee for our heat exchangers is not valid if they are regularly drained,
or if they are heated by means of industrial water, steam or water saturated by
excessive quantities of oxygen.
The quality of the system water has to be in accordance with the VDI 2035-2
directives. The guarantee is also not applicable if the heat exchangers are
placed in unsuitable atmospheric surroundings, such as but not exclusively
ammonia, caustic substances etc.
3. The period of guarantee is mentioned in this certificate. The guarantee
decreases every year on a straight line basis by an equal percentage in order to
reach a zero guarantee at the end of the guarantee period (e.g. for a period of
10 years the annual decrease of the guarantee is 10% of the invoiced value).
6. This guarantee excludes damage due to incorrect handling and/or use of the
equipment, or due to formation of lime deposits, incorrect use of the safety
valve, or to all equipment that is incorporated into the building in a way that
means it cannot be accessed normally.
Repaired or replaced product is guaranteed through to the end of the original
guarantee period.
7. Any work undertaken or product supplied as a result of a guarantee claim
that proves not to be valid will be charged for. Product supplied will be invoiced
at the customer’s standard purchasing terms, and labour will be charged at £50
per hour with a minimum labour charge of £200.
4. The guarantee is valid only on products displaying the appropriate
identification information concerning product type and series. No guarantee is
granted on equipment or spare parts lacking this information, on equipment
where this information has been removed or altered, or on equipment that has
been repaired or modified by persons not authorised by Jaga to carry out this
work.
5. The customer is responsible for any damage caused as a result of errors in
installation or use of incorrect fittings, or for any damage caused by electrical
connections, faulty or damaged electrical installations or appliances, erroneous
voltage or hydraulic pressure and all other errors not directly related to the
product delivered by Jaga.
30
10
YEARS
YEARS
Heat emitter
guarantee
(all products)
Casings and
components
(all products)
Valves for
Low-H2O heat
exchangers
YEARS
8. The guarantee period starts from the date of the invoice for supply of the
products covered by the guarantee.
If the invoice is not available, the date of production will be used based on the
product ID number/ series.
9. Only the courts of judicial district Hasselt (Belgium) are authorised to deal
with disputes arising from this guarantee. It will apply Belgian law even when
sales involved are subjects of EU member states as well as non-EU member
countries.
3
For technical support visit www.jaga.co.uk or telephone 01531 631 533
89

Previous
Guarantee and Conditions of Sale

Next
90
91
Conditions of Sale
The general conditions are binding between the buyer and Jaga Heating
Products (UK) Limited (hereinafter referred to as “the Company”) unless
otherwise agreed in writing. All orders to which the general conditions of sale
are totally or partially applicable, the general conditions of the buyer are
rendered inoperative unless stipulated differently in writing by the Company.
Subjects that are not described under these conditions of sale will be under
English law.
Orders
An order shall only be deemed to have been accepted if confirmed by the
Company by letter or fax. Once an order has been accepted by us it cannot be
cancelled without our express written approval.
Contracts made are personal and may only be transferred by mutual agreement.
The buyer may only modify or cancel an order for a standard stock item
provided the buyer accepts all the costs arising from this modification or
cancellation. Sums between 10% and 100% of the value of the goods will be
charged in addition to the normal price for all goods cancelled. Orders placed
for nonstock or custom designed products cannot be cancelled or modified.
Delivery times
Delivery times given are indicative. Unless otherwise agreed in writing, the
Company may not be held responsible or found guilty of breach of contract if
there is a delay in delivery. Nor may the Company be held liable if it is unable to
fulfil its obligations in respect of the delivery of goods or services if the nondelivery is the result of circumstances beyond the direct control of the
Company, including but not exclusively wars, strikes, lockouts, bad weather
and all causes which prevent the receipt of raw materials, fuels or other energy
or hinder the normal production or shipment of goods and in general all causes
beyond our control shall be seen at least, although not exclusively, as force
majeure and shall discharge the Company from any liability, even if it was
agreed that the delivery times are binding. These circumstances may not be
invoked by the buyer in order to claim compensation. In all these cases the
Company reserves the right to postpone delivery or even to terminate the
contract.
From their due date all unpaid invoices will be increased, by law and without
formal notice, by an interest based on the reference interest increased with
an additional 7 percentage points and rounded-up to the nearest half a
percentage point (art. 5, Act 02/08/2002). In addition, all unpaid invoices
will be increased, by law and without formal notice, by a fixed compensation
of 10% of the due amount on the invoice, except when the real collection
charges – including the costs for legal assistance – should be higher
(art. 6, Act 02/08/2002).
Reservation of Title
Title to product supplied by the Company will only be transferred to the buyer
when the buyer has paid the indebted purchase price in full. The buyer does not
have the right to transfer title to the goods, which remain the property of the
Company until payment in full is received by the Company, to a third party
without the express written permission of the Company.
Delivery risks
Notwithstanding the Reservation of Title above, all risks to which goods
supplied by the Company may be exposed shall be borne by the buyer as soon
as the goods have been delivered to him. The goods shall be inspected by the
Company and/or its agents and placed in transport in perfect condition.
Our haulier is responsible for any damage caused during transport and delivery.
Notification by the purchaser of any damaged goods must immediately be
indicated on the delivery note, or via e-mail to jaga@jaga.co.uk, or by fax:
01531 631534, or by letter to the Company’s registered address, within fortyeight hours of delivery. This notification will be deemed to have been received
only if acknowledged in writing or by e-mail by the Company.
Product modifications
The Company reserves the right to modify and/or improve the design and/or
specification of its products at any time. Receipt of an order does not bind the
Company to supply a product identical to any sample that may have been
provided if that product is subsequently modified or improved.
Unless stated otherwise, all our prices exclude VAT. The products will be
invoiced at the prices ruling on the day of the delivery, unless otherwise
agreed in writing.
The Company reserves the right to modify its products to a limited degree
(slight modifications) and at any time after being ordered by the customer in
order to bring about improvements that will be to the benefit of the customer.
Even in instances of sale by sample, the Company is not bound to deliver an
absolutely identical model.
Price comparisons
Postponed deliveries
The price
The prices given by Jaga N.V. in the various international editions of brochures
and other material vary according to the region in which the order was placed
and must be delivered. Prices vary according to differences in commercial
practices, transport costs and taxes, etc. between different countries. An order
is always accepted by the Company in accordance with the terms and
conditions and prices given in the international edition applicable to the
customer’s account address, unless otherwise agreed in writing.
If delivery of any goods is postponed by the purchaser after an order has been
received and acknowledged by the Company, the Company reserves the right
after a period of three months from the date of the order acknowledgement to
invoice in full for the goods ordered by the purchaser, or to cancel the sale
agreement. The Company retains the right to cancel the sale agreement with-out
formal notice and without prejudice to the right to claim damages and/or
interest from the purchaser.
Quotations
Complaints
Prices indicated in quotations are only binding when they have been confirmed
in writing by a person authorised by the Company’s General Manager to do so.
In all other cases they serve only as information. The prices indicated in
quotations will only apply to orders that refer to the particular quotation and
that are placed within sixty days after the date of the quotation, unless stated
otherwise in writing by the Company.
Payment
Invoices are payable by the end of the month following the date of invoice
unless otherwise stated in writing on the invoice. When the goods are delivered
in two or more parts, each part will be invoiced separately and payment is due
against each invoice.
The Company will not allow any discount for early payment. In case of default of
payment of an invoice or a bill of exchange at its expiry date the following will
be claimed and debited legally, without proof of default and at the same time:
> default in payment; interest calculated daily from the due date at 5% per
annum above the base rate set by the Bank of England.
> damages; 15% on the outstanding principal sum with a minimum of £100.
The default of payment at the expiry date also gives the Company the right to
cancel any current agreement in total. This is applicable to goods which still
have to be delivered as well as to goods already delivered. The latter will be
done without any formal notice and without the buyer having any recourse
to damages. No complaint of any kind will release the buyer from the
obligation to respect the expiry/due dates, even if the complaint has been
considered by us and is valid. The buyer binds himself to respect these expiry
dates, even in case of complaint.
Complaints will only be accepted as having been received if communicated by
the purchaser in writing to the Company’s registered address, by fax to 01531
631533 or by e-mail to jaga@jaga.co.uk within seven days after receipt of the
goods by the purchaser.
Returns
Correctly executed orders may not be returned to the Company. Returns may
only be accepted by prior agreement and with the express written authorisation
of the Company. The Company will only consider a refund if the goods are
returned undamaged, in the original packaging and suitable for re-sale. The
Company is entitled to charge for transport, handling and administrative costs.
Warranty
The warranty given by Jaga differs from product to product. The details and
duration of the warranties are given in the Company’s technical catalogues.
If items are faulty or damaged within these provisions, the Company will
resolve the problem in accordance with the details of the relevant guarantee.
In the event of an onward sale the purchaser undertakes to make the
Company’s general and specific warranty conditions available to his own
customer. In any event the purchaser shall agree to Indemnify the Company
against the consequences of any claim that may be made against the Company
by his customer and that may exceed the limits of any claim that the purchaser
has against the Company under the terms of the relevant guarantee.
Disputes
Any disputes between the Company and its customers will be settled under
English Law.
Deviations
Any individual agreement to amend these terms and conditions must be
confirmed by the Company in writing and is applicable only to the transactions
referred to in that written correspondence.
For technical support visit www.jaga.co.uk or telephone 01531 631 533

92

Previous
Next
Colours
Colours
Jaga has environmentally friendly electrostatic powder coating lines
with recuperation and without the use of solvents. After a thorouh
pre-treatment, the radiators are painted and baked at a temperature
of about °C. This ensures a highly UV and scratch resistant finish .
Colours
Special colours
Smooth metallics
Jaga colours are available in alternative finishes :
> CODE 1.. Soft touch: fine structured, satin look
> CODE 2 .. Glossy : smooth lossy finish
> CODE 3 .. Satin : smooth satin look
COLOUR CODE .33
Complete code with 1, 2, 3
.33
.01
Traffic white RAL 9016
White RAL 9010
.05
Pergamon
.23
Natural
.12
Bahama
.34
006
Aluminium RAL 9006
049
Anodic grey
051
Yellow gold
050
Old gold
005
Gunmetal grey
007
Anthracite
Warm brown RAL 070 60 10
Fine texture metallic
.02
.20
Off-white RAL 9001
Aegean
.35
.37
Traffic yellow RAL 1023
Yellow green RAL 110 80 60
.36
Orange
.38
Green
.11
Flaming Red RAL 3000
.21
Calypso
.39
Azure
.40
Ocean blue RAL 230 70 30
.08
Sapphire blue RAL 5003
.41
Night blue RAL 5011
.42
Pink
.43
Magenta RAL 010 50 50
.19
Violet RAL 4008
.44
Purple
.28
Classic white
.03
Light gey RAL 7035
.09
Dark grey RAL 7011
.31
Anthracite grey RAL 7016
.26
.13
Ruby red RAL 3003
035
Silver grey
036
Warm grey
045
Concrete grey
001
Sandblast grey
018
Pearl black
037
Cream
039
Grey brown
038
Cappuccino
042
Chocolate
017
Pearl brown
053
Pure white
052
Aluminium grey
026
Platinum grey
028
Granite grey
046
Graphite black
040
Copper
041
Cinnamon
043
Khaki
044
Navy blue
English green RAL 6009
Fine texture
.04
Black RAL 9005
Tempo LST and Cocoon LST: available in colour 101 (lightly structured)
Guardian LST: available in colour 233 glossy plus special colours
Sentinel LST: available in colours 101 to 133 (lightly structured) plus special colours
Maxi LST: available in colours 201 to 233 (glossy) and 301 to 333 (satin matt) plus special colours
This colour chart is only indicative. It’s impossible to obtain a 100% exact colour reproduction in printing. Metal slides with the different
colours can be obtained on request.
93

Previous
www.jaga.co.uk
Jaga Heating Products UK Ltd
Jaga House, Orchard Business Park,
Bromyard Road, Ledbury,
Herefordshire HR8 1LG
Tel: +44 1531 631 533
Fax: +44 1531 631 534
E-mail: jaga@jaga.co.uk
Jaga International
Verbindingslaan z/n
B-3590 Diepenbeek
Tel: +32 11 29 41 16
Fax: +32 11 29 41 60
E-mail: export@jaga.be
Download
