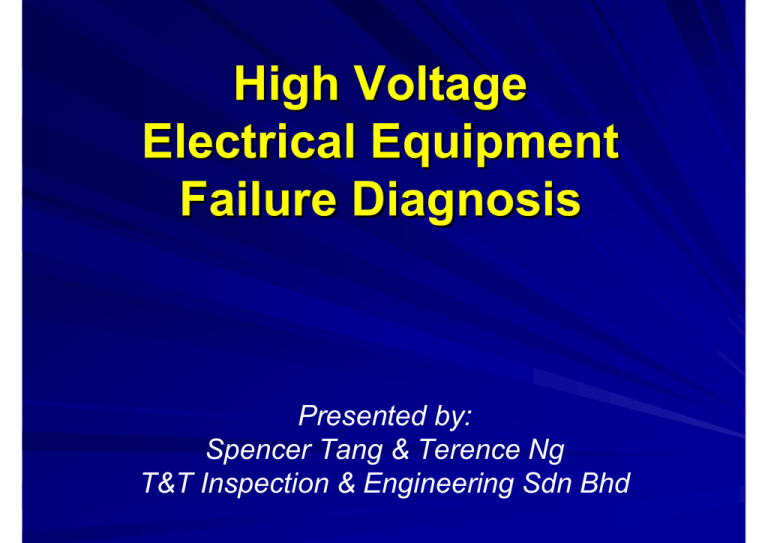

High Voltage
Electrical Equipment
Failure Diagnosis
Presented by:
Spencer Tang & Terence Ng
T&T Inspection & Engineering Sdn Bhd
High Voltage Electrical Equipment Failure Diagnosis
Definition of High Voltage (H.V. / H.T.)
– According to IEC standard,
High voltage is defined as those with more than
1000V (>1000V AC) for alternating current
low voltage (50~1000V AC) and extra-low voltage
(<50V AC) circuits, in the context of building wiring
and the safety of electrical apparatus.
– In South East Asia, HV is ranging from
1kV (1000V), 3.3kV, 6.6kV, 11kV, 22kV,
33kV, 132kV, 230kV, 275kV, 400kV & 500kV.
Ultrasound World VII 2011
2
Map of the Asean
Ultrasound World VII 2011
3
High Voltage Electrical Equipment Failure Diagnosis
Characteristic of High Voltage
– Higher voltage required higher insulation level
– Ability to penetrate insulation material (air,
vacuum, gas, oil, XLPE, PILC, porcelain, etc)
due to deterioration / aging / interruption /
human error, etc and create short circuit /
discharge between phase to phase / phase to
ground
– resulting severe facility damage / loss, injury /
death
Ultrasound World VII 2011
4
High Voltage Electrical Equipment Failure Diagnosis
NDT Technology of Ultrasound
– a method to detect HV fault symptom
(electrical partial discharge – E.P.D.) from a
safe distance
– Provide safe access via structure borne and
airborne method without direct expose to the
live part / component.
– Highly sensitive ultrasound instrument
coupled with qualified inspector will able to
detect HV fault symptom (eg: corona,
tracking, arcing, mechanical looseness and
etc)
Ultrasound World VII 2011
5
E.P.D. at 33kV VCB – Cable VOID
Cable insulation void at cable compartment
Ultrasound World VII 2011
6
E.P.D. at 33kV VCB – Cable VOID
Cable insulation void at cable compartment
2007
Jul 2008
Oct 2008
Ultrasound World VII 2011
7
E.P.D. at 33kV VCB – Busbar
Busbar insulation deterioration – corona
partial discharge
Ultrasound World VII 2011
8
E.P.D. at 33kV VCB – Breaker Contact
Chemical reaction on conductor
Ultrasound World VII 2011
9
E.P.D. at 132kV Lightning Arrester
Internal partial discharge at porcelain
Ultrasound World VII 2011
10
E.P.D. at 33kV Overhead Disc Isolator
Airborne detected PD at disc isolator
suspension clamp – sharp edges/
oxidization / deterioration
Ultrasound World VII 2011
11
High Voltage Electrical Equipment Failure Diagnosis
mechanical vibration / looseness in HV
breaker causes by
– the resonance of electrical frequency (50Hz /
60Hz) or electrical harmonics
– workmanship issue during on site installation
(eg: tightening / torque, panel and floor
leveling, greasing, etc)
– Operator ignorant or mechanism error (eg:
breaker misalignment, breaker arm bent,
shutter jammed, etc
Ultrasound World VII 2011
12
Mechanical vibration / looseness in HV breaker
Looseness detected at breaker & busbar
Ultrasound World VII 2011
13
High Voltage Electrical Equipment Failure Diagnosis
Repair urgency on partial discharge
detected:
– Rate of deterioration
– Location of the PD detected
– Loading fluctuation - on/off, surge start, peak
load
– Surrounding environment condition – seaside,
chemical industry, dusty area…
– External factors – animal, human error…
Ultrasound World VII 2011
14
Repair urgency on PD detected
11kV CT flashover during breaker surge
start after maintenance due to ignorant
Ultrasound World VII 2011
15
Repair urgency on PD detected
Dusty and salty environment induced
speedy deterioration at 33kV VCB
Ultrasound World VII 2011
16
Repair urgency on PD detected
High moisture environment induced
oxidization & chemical reaction
Ultrasound World VII 2011
17
Repair urgency on PD detected
PD chemical effect on metal panel
Before
After
Ultrasound World VII 2011
18
Repair urgency on PD detected
Close PD location increase rate of
deterioration
Ultrasound World VII 2011
19
Repair urgency on PD detected
External factor
– Minor corona partial discharge give way in 7 days due
to road construction
Ultrasound World VII 2011
20
Repair urgency on PD detected
Client common question to inspector:
How long does the PD symptom can last before it
flashover??
Can we arrange shut down after our production
peak time, may be about 6 months later??
Should we shut down by tonight??
Ultrasound World VII 2011
21
Perfect match of Ultrasound and Thermography
Ultrasound (US) – hear what we cannot
hear; Thermography (IR) – see what we
cannot see.
– Technology limitation but not weakness.
Integration of US & IR will supplement the
survey findings and produce a better
diagnosis result
Ultrasound World VII 2011
22
Perfect match of Ultrasound and Thermography
11kV RMU required immediate attention
y
y
39.0 °C
39.0 °C
35
Sp1:temp 32.0
30
35
Ar1:max 34.5
26.0
30
26.0
Ultrasound World VII 2011
23
Perfect match of Ultrasound and Thermography
Localizing the fault area
F LI R S ys tem s
FLIR Systems
70.0 °C
60
50
Sp1:temp 44.6
40.0 °C
38
36
34
40
Ar1:max 67.6
30
25.0
Ultrasound World VII 2011
32
30
29.0
24
Perfect match of Ultrasound and Thermography
Localizing the fault area
31.9 °C
y
39.0 °C
35
30
Ar1:max 36.1
30
28
25
27.0
Ultrasound World VII 2011
24.0
25
High Voltage Electrical Equipment Failure Diagnosis
NDT technology ease the inspector / owner to
visualize & localize the faults
How is the HV partial discharge look like in our
visual view???
– Tx HV corona ring;
43.0 °C
Ar2:max 40.2
40
30
Ar3:max 30.5
Ar1 :max 40.1
20
19.0
Ultrasound World VII 2011
26
Tx HV Cable - corona ring partial discharge
Ultrasound World VII 2011
27
Tx HV bushing partial discharge
Ultrasound World VII 2011
28
Tx HV bushing partial discharge
50.0 °C
Ar3:max 44.3
45
Ar2:max 49.1
40
Ar1:max 46.1
38.0
Ultrasound World VII 2011
29
Electrical partial discharge effect to plant/climber
Ultrasound World VII 2011
30
HV flashover
Ultrasound World VII 2011
31
High Voltage Electrical Equipment Failure Diagnosis
To conduct a safe and effective inspection
on high voltage electrical equipment, we
should well understand and aware on:
– The safety measure of the HV equipment to
be inspected;
– Our NDT instruments’ strength and limitation;
– Be observant and sensitive to the on-site
condition of the HV equipment;
– “a careful inspector will live longer than a hero
(fool) in HV electrical system”
Ultrasound World VII 2011
32
230kV GIS
FLIR Systems
46.0 °C
45
40
35
:max 30.7
:max 32.8
30
:max 30.8
25.0
FLIR Systems
46.0 °C
45
40
35
30
25.0
Ultrasound World VII 2011
33
230KV GIS
FLIR Systems
46.0 °C
45
40
35
:max 32.8
:max 30.9
30
25.5
Ultrasound World VII 2011
34
3MVA Pauwels Trafo
Ultrasound World VII 2011
35
Ultrasound World VII 2011
36
High Voltage Electrical Equipment Failure Diagnosis
Glad to share with you,
Thank you
