Heavy Duty Safety Switches
Disconnect Switches
Safety Switch Features . . . . . . . . . . . . . . . . . . . . . . . .18/2
Selection, 240V Fusible . . . . . . . . . . . . . . . . . . . . . . . .18/3
Selection, 600V Fusible . . . . . . . . . . . . . . . . . . . . . . . .18/4
Selection, 600V Non-Fusible . . . . . . . . . . . . . . . . . . . .18/5
Selection Window Switches . . . . . . . . . . . . . . . . . . . .18/6
Selection 4 & 6 Pole Switches . . . . . . . . . . . . . . . . . . .18/7
Selection Receptacle Switches . . . . . . . . . . . . . . . . . . .18/8
Selection Non-Metallic & 316 Grade
Stainless Steel Switches . . . . . . . . . . . . . . . . . . . . . . . .18/9
Accessories . . . . . . . . . . . . . . . . . . . . . . . . . . .18/10–18/13
Enclosed Rotary Switches . . . . . . . . . . . . . . .18/14–18/15
Compact UL508 Non-Fusible . . . . . . . . . . . . .18/16–18/19
Type VBII UL98 Fusible . . . . . . . . . . . . . . . . . .18/20–18/24
Type MCS UL98 Fusible . . . . . . . . . . . . . . . . .18/25–18/26
Compact Fusible Type CFS . . . . . . . . . . . . . . .18/27–18/30

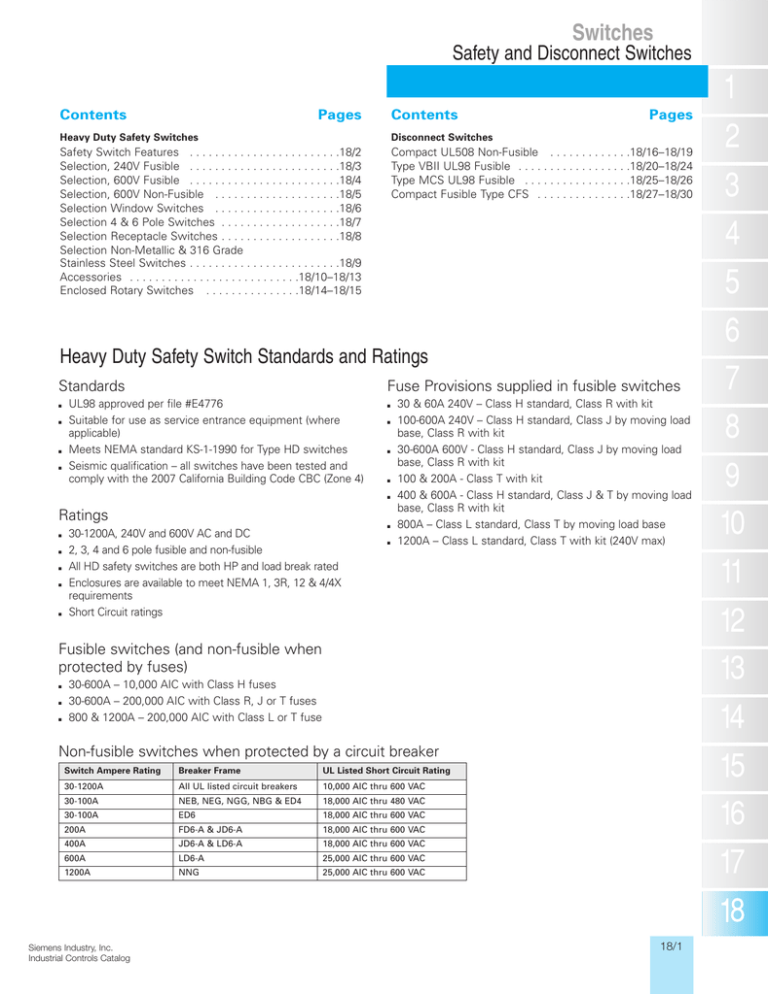

Heavy Duty Safety Switch Standards and Ratings
Standards
Fuse Provisions supplied in fusible switches
▪ UL98 approved per file #E4776
▪ Suitable for use as service entrance equipment (where
applicable)
▪ Meets NEMA standard KS-1-1990 for Type HD switches
▪ Seismic qualification – all switches have been tested and
comply with the 2007 California Building Code CBC (Zone 4)
▪ 30 & 60A 240V – Class H standard, Class R with kit
▪ 100-600A 240V – Class H standard, Class J by moving load
base, Class R with kit
▪ 30-600A 600V - Class H standard, Class J by moving load
base, Class R with kit
▪ 100 & 200A - Class T with kit
▪ 400 & 600A - Class H standard, Class J & T by moving load
base, Class R with kit
▪ 800A – Class L standard, Class T by moving load base
▪ 1200A – Class L standard, Class T with kit (240V max)
Ratings
30-1200A, 240V and 600V AC and DC
2, 3, 4 and 6 pole fusible and non-fusible
All HD safety switches are both HP and load break rated
Enclosures are available to meet NEMA 1, 3R, 12 & 4/4X
requirements
▪ Short Circuit ratings
▪
▪
▪
▪
Fusible switches (and non-fusible when
protected by fuses)
▪ 30-600A – 10,000 AIC with Class H fuses
▪ 30-600A – 200,000 AIC with Class R, J or T fuses
▪ 800 & 1200A – 200,000 AIC with Class L or T fuse
Non-fusible switches when protected by a circuit breaker
Switch Ampere Rating
Breaker Frame
UL Listed Short Circuit Rating
30-1200A
All UL listed circuit breakers
10,000 AIC thru 600 VAC
30-100A
NEB, NEG, NGG, NBG & ED4
18,000 AIC thru 480 VAC
30-100A
ED6
18,000 AIC thru 600 VAC
200A
FD6-A & JD6-A
18,000 AIC thru 600 VAC
400A
JD6-A & LD6-A
18,000 AIC thru 600 VAC
600A
LD6-A
25,000 AIC thru 600 VAC
1200A
NNG
25,000 AIC thru 600 VAC
Siemens Industry, Inc.
Industrial Controls Catalog
18/1
Switches
Heavy Duty Safety Switches
Features
15
3
20
2
17
11
16
9
4
1
5
18
6
13
19
8
14
12
1. Quick-make, quick-break operating mechanism
that ensures positive operation.
7
2. Visible blade, double-break switching action.
3. Arc chutes dissipate heat and prolong switch life.
13. Spring reinforced fuse clips that assure reliable
contact for cool operation.
4. Highly visible red handle grip.
Designed for hook stick operation.
14. Door latch securely holds door closed and
allows cover padlocking.
5. Defeatable dual cover interlock.
15. Front removable mechanical lugs that are
suitable for CU/AI 60 or 75° C conductors.
6. Center punch provided for field drilling
to allow ON padlocking.
10
7. Handle can be padlocked in the OFF position
with up to (3) padlocks with 5/16” hasps.
8. Generous top, bottom and side gutters that
meet or exceed NEC wire-bending space
requirements.
18/2
12. Unique enclosure design increases rigidity and
prevents cuts and scrapes to conductors and
installer’s hands.
16. Lugs are field convertible to copper
body and to a wide variety of compression
connectors.
17. Hinged clear line terminal shield
with probe holes for inspecting or
testing line side terminals.
9. Informative door labeling which includes
replacement parts list.
18. Embossed aluminum nameplate on Heavy
Duty Switches provides highly visible ON/OFF
indication.
10. Tangential knockouts through 600A for easy
conduit lineup.
19. Drawn cover for increased rigidity
and resistance to abuse.
11. Side-hinged door that opens past 180 degrees
for easier wiring.
20. Top key hole and bottom mounting holes
provide easy 2 or 3 point mounting.
Siemens Industry, Inc.
Industrial Controls Catalog
Switches
Heavy Duty Safety Switches
Selection
Horsepower Ratings Indoor — Type 1
System
Ampere
Rating
Catalog
Number
List
Price $
Outdoor — Type 3R
Ship Wt.* Catalog
Std. Pkg. Number
List
Price $
240V AC
1 Phase,
Ship Wt.* 2 Wire
Std. Pkg. Std. Max.
2 Phase,
4 Wire
3 Phase,
3 Wire
Std.
Std.
Max.
Max.
250
Volt
DC
240 Volt Fusible
2-Pole, 2-Fuse, and Solid Neutral 0030
0060
0100
0200
0400
0400
0600
0600
800
1200
3-Pole, 3-Fuse, and Solid Neutral
0030
0060
0100
0200
0400
0400
0600
0600
0800
1200
(Also used for 2-Pole, 2-Wire Applications)
HF221N
HF222N
HF223N
HF224N
HF225NH
HF225N
HF226NH
HF226N
HF227N
HF228N ■
012
018
023
047
129
153
133
155
365
385
HF221NR
HF222NR
HF223NR
HF224NR
HF225NRH
HF225NR
HF226NRH
HF226NR
HF227NR
HF228NR ■
013
019
024
048
131
157
135
159
365
385
011⁄2
03
071⁄2
15
15
15
15
15
—
—
240 Volt AC/250 Volt DC
03
10
15
—
—
—
—
—
—
—
—
—
—
—
—
—
—
—
—
—
011⁄2
03
071⁄2
15
15
15
15
15
—
—
03
10
15
—
—
—
—
—
—
—
—
—
—
—
—
—
—
—
—
—
011⁄2
03
071⁄2
15
03
10
15
—
—
—
—
—
(Also used for 3-Pole, 3-Wire Applications)
HF321N
HF322N
HF323N
HF324N
HF325NH
HF325N
HF326NH
HF326N
HF327N
HF328N
014
019
025
049
137
158
139
161
375
395
HF321NR
HF322NR
HF323NR
HF324NR
HF325NRH
HF325NR
HF326NRH
HF326NR
HF327NR
HF328NR
015
020
026
050
138
162
142
165
375
388
—
—
—
—
—
—
—
—
—
—
003
0071⁄2
015
025
050
050
075
075
100
100
0071⁄2
015
030
060
125
125
200
200
250
250
05
10
20
40
50
50
50
50
50
50
240 Volt AC/250 Volt DC
—
—
—
—
—
—
—
—
—
—
003
0071⁄2
015
025
050
050
075
075
100
100
0071⁄2
015
030
060
125
125
200
200
250
250
05
10
20
40
50
50
50
50
50
50
240 Volt Fusible
2-Pole, 2-Fuse 0030
0060
0100
0200
3-Pole, 3-Fuse 0030
0060
0100
0200
400
600
800
Type 4/4X Stainless Type 12 Industrial HF221S
HF222S
HF223S
HF224S
HF221J
HF222J
HF223J
HF224J
013
019
024
048
240 Volt AC/250 Volt DC
—
—
—
—
003
0071⁄2
015
025
0071⁄2
015
030
060
05
10
20
40
(Also used for 2-Pole, 2-Wire Applications in 400–800A Ratings) 240 Volt AC/250 Volt DC
HF321S
HF322S
HF323S
HF324S
HF325S
HF326S
HF327S ■
■ Built to order. Allow 2–3 weeks for delivery.
* In pounds (lbs).
Height reduced switch (45.25 rather than 56 inches in
height) for use with 500MCM or smaller conductors.
Siemens Industry, Inc.
Industrial Controls Catalog
013
019
024
048
014
020
025
049
154
157
370
HF321J
HF322J
HF323J
HF324J
HF325J■
HF326J■
HF327J■
014
020
025
049
110
161
365
Dual horsepower ratings: Std.- applies when non-time
delay fuses are installed. Max.- applies when timedelay fuses are installed.
These switches are UL-listed for application on
grounded B-phase systems and are suitable for
3-phase motor applications.
Product Category: HDSS
011⁄2
3
071⁄2
15
15
15
—
3
10
15
—
—
—
—
—
—
—
—
—
—
—
—
—
—
—
—
—
—
003
0071⁄2
015
025
50
75
100
0071⁄2
015
030
060
125
200
250
—
10
20
40
50
50
50
When a neutral is required use a field installed
neutral kit.
Suitable for use as service entrance equipment.
Also rated Type 3S/3R.
304 grade stainless steel. See page 18/9 for switches with
enclosures constructed from 316 grade stainless steel.
18/3
Switches
Heavy Duty Safety Switches
Selection
Horsepower Ratings Indoor — Type 1
System
Ampere
Rating
Catalog
Number
List
Price $
Outdoor — Type 3R
Ship Wt.* Catalog
Std. Pkg. Number
List
Price $
480V AC
600V AC
1 Phase,
Ship Wt.* 2 Wire
Std. Pkg. Std. Max.
3 Phase,
3 Wire
1 Phase,
2 Wire
3 Phase,
3 Wire
Std.
Std.
Std.
Max.
Max.
250 600
Volt Volt
Max. DC DC
600 Volt Fusible 2-Pole, 2-Fuse 0030
0060
0100
0400
0600
480 Volt AC/600 Volt AC/600 Volt DC
HF261
HF262
HF263
HF265■
HF266■
015
020
026
149
150
HF261R
HF262R
HF263R
HF265R ■
HF266R ■
015
020
027
152
155
03
05
10
—
—
071⁄2
20
30
50
50
HF361R
HF361R L
HF362R
HF362RL
HF363R
HF364R
HF365R H
HF365R
HF366R H
HF366R
HF367R
HF368R
015
020
020
025
025
049
137
157
141
161
365
385
333
3
5
5
5
25
—
—
—
—
—
—
071⁄2
071⁄2
20
20
20
50
—
—
—
—
—
—
HF361
HF361L
HF362
—
HF363
HF364
HF365H
HF365
HF366H
HF366
HF367
HF368
14
19
19
—
24
48
136
154
138
157
365
383
—
HF361NR
HF362NR
HF363NR
HF364NR
HF365NR
HF366NR
HF367NR
HF368NR
015
020
026
050
162
165
375
388
03
05
10
25
—
—
—
—
07 ⁄2
20
30
50
—
—
—
—
03
10
15
50
50
10
25
40
—
—
—
—
—
—
—
—
—
—
—
—
05
10
20
40
50
15
30
50
50
50
HF361N
HF362N
HF363N
HF364N
HF365N
HF366N
HF367N
HF368N
005
005
015
015
025
050
100
100
150
150
200
200
015
015
030
030
060
125
250
250
400
400
500
500
03
03
10
10
15
30
—
—
—
—
—
—
10
10
25
25
40
50
—
—
—
—
—
—
0071⁄2
0071⁄2
015
015
030
060
125
125
200
200
250
250
020
020
050
050
075
150
350
350
500
500
500
500
05
05
10
10
20
40
50
50
50
50
50
50
—
—
30
30
50
50
—
—
—
—
—
—
480 Volt AC/600 Volt AC/250 Volt DC 3-Pole, 3-Fuse and Solid Neutral
0030
0060
0100
0200
0400
0600
0800
1200
—
—
—
—
—
480 Volt AC/600 Volt AC/250 Volt DC 3-Pole, 3-Fuse
0030
0030
0060
0060
0100
0200
0400
0400
0600
0600
0800
1200
—
—
—
—
—
014
019
025
049
158
161
375
395
1
005
015
025
050
100
150
250
250
015
030
060
125
250
400
500
500
03
10
15
30
—
—
—
—
10
25
40
50
—
—
—
—
0071⁄2
015
030
060
125
200
250
250
020
050
075
150
350
500
500
500
05
10
20
40
50
50
50
50
—
30
50
50
—
—
—
—
600 Volt Fusible (For 2-Pole Applications use outside poles of 3-Pole Switches)
2-Pole, 2-Fuse 0030
0060
0100
0400
0600
480 Volt AC/600 Volt AC/600 Volt DC
Type 4/4X Stainless
HF261S
HF262S
HF263S■
HF265S■
HF266S■
HF361S
HF362S
HF363S
HF364S
HF365S
HF366S
HF367S
HF368S■
015
020
027
153
156
Type 12 Industrial HF261J■
HF262J■
HF263J■
HF265J■
HF266J■
015
020
027
155
156
03
05
10
—
—
071⁄2
20
30
50
50
013
020
025
049
158
161
370
388
HF361J
HF362J
HF363J
HF364J
HF365J
HF366J
HF367J ■
HF368J ■
014
020
025
049
160
161
365
388
—
—
—
—
—
—
—
—
—
—
—
—
—
—
—
—
■ Built to order. Allow 2–3 weeks for delivery.
* In pounds (lbs).
60-200A 3-Pole switches are also rated 600V DC.
Height reduced switch (45.25 rather than 56 inches in
height) for use with 500MCM or smaller conductors.
Use 3-Pole switch for 200A applications.
18/4
—
—
—
—
—
03
10
15
50
50
10
25
40
—
—
—
—
—
—
—
—
—
—
—
—
05
10
20
40
50
15
30
50
50
50
480 Volt AC/600 Volt AC/250 Volt DC 3-Pole, 3-Fuse
0030
0060
0100
0200
0400
0600
0800
01200
—
—
—
—
—
Dual horsepower ratings: Std.- applies when non-time
delay fuses are installed. Max.- applies when timedelay fuses are installed.
Suitable for use as service entrance equipment except for
1200 when used on 480 or 600V grounded wye system.
Also rated Type 3S/3R.
Product Category: HDSS
005
015
025
050
100
150
200
250
015
030
060
125
250
400
500
500
—
—
—
—
—
—
—
—
—
—
—
—
—
—
—
—
0071⁄2
015
030
060
125
200
250
250
020
050
075
150
350
500
500
500
05
10
20
40
50
50
50
50
—
30
50
50
—
—
—
—
Indicates oversized enclosure (30A switch with 60A
lugs in a 60A enclosure or 60A switch with 100A lugs
in a 100A enclosure).
600V DC & 600V DC horsepower rating shown
requires (2) poles to be connected in series.
304 grade stainless steel. For switches with enclosures
constructed from 316 grade stainless steel see page 18/9.
Siemens Industry, Inc.
Industrial Controls Catalog
Switches
Heavy Duty Safety Switches
Selection
Indoor - Type 1
Ampere Catalog
Rating Number
System
Ship.
Wgt.
Outdoor - Type 3R
List
Catalog
Price $ Number
Ship. List
Wgt. Price $
Horsepower Ratings
240 Volt
480 Volt
1-Phase 3-Phase 1-Phase
600 Volt
250V
3-Phase 1-Phase 3-Phase DC
600V
DC
600 Volt Non-Fusible
2-Pole
480 Volt AC / 600 Volt AC / 600 Volt DC
30
60
100
400
600
HNF261
HNF262
HNF263
HNF265■
HNF266■
12
19
24
109
111
HNF261R
HNF262R
HNF263R
HNF265R
HNF266R■
12
—
11
18
—
23
46
114
116
295
305
HNF361R
HNF361RL
HNF362RH
HNF362R
HNF362RL
HNF363R
HNF364R
HNF365R
HNF366R
HNF367R
HNF368R
13
20
25
113
115
—
—
—
15
15
—
—
—
—
—
7 1/2
20
30
50
50
3-Pole
—
—
—
—
—
10
25
40
50
50
—
—
—
—
—
5
10
20
40
50
15
30
50
50
50
480 Volt AC / 600 Volt AC / 250 Volt DC
30
30
60
60
60
100
200
400
600
800
1200
HNF361
—
HNF362H
HNF362
—
HNF363
HNF364
HNF365
HNF366
HNF367
HNF368
—
—
13
19
11
19
24
24
47
118
120
295
307
5
5
10
10
10
15
15
15
15
15
15
10
10
20
20
20
40
60
125
200
250
250
7 1/2
7 1/2
20
20
20
30
50
50
50
50
50
20
20
50
50
50
75
125
250
400
500
500
10
10
20
25
25
40
50
50
50
50
50
30
30
40
60
60
100
150
350
500
500
500
5
5
10
10
10
20
40
50
50
50
50
—
—
—
30
30
50
50
—
—
—
—
600 Volt Non-Fusible
2-Pole
480 Volt AC / 600 Volt AC / 600 Volt DC
30
60
100
400
600
Type 4 / 4X Stainless HNF261S
13
HNF262S
20
HNF263S■
25
HNF265S■ 113
HNF266S■ 115
Type 12 Industrial HNF261J
13
HNF262J
20
HNF263J■
25
HNF265J■
114
HNF266J■
120
—
—
—
15
15
—
—
—
—
—
7 1/2
20
30
50
50
3-Pole
—
—
—
—
—
10
25
40
—
—
—
—
—
—
—
5
10
20
40
50
15
30
50
50
50
480 Volt AC / 600 Volt AC / 250 Volt DC
30
60
60
100
200
400
600
800
1200
HNF361S
HNF362SH
HNF362S
HNF363S
HNF364S
HNF365S
HNF366S
HNF367S
HNF368S
13
15
19
24
47
118
120
295
310
■ Built to order. Allow 2–3 weeks for delivery.
Also rated 600V DC.
Compact switch (11.1"H, 6.6"W box less cover and handle).
Short circuit withstand rating—100,000 RMS sym. amps.
Use 3-Pole switch for 200A application.
Siemens Industry, Inc.
Industrial Controls Catalog
HNF361J
HNF362JH
HNF362J
HNF363J
HNF364J
HNF365J
HNF366J
HNF367J ■
HNF368J
13
14
19
24
47
119
120
295
310
5
10
10
15
15
15
15
15
15
Suitable
10
20
20
40
60
125
200
250
250
7 1/2
20
20
30
50
50
50
50
50
for use as service entrance equipment except for
1200 when used on a 480 or 600V grounded wye system.
Also rated type 3S / 3R.
Indicates oversized enclosure (30A switch in a 60A
enclosure or a 60A switch in a 100A enclosure.
Product Category: HDSS
20
50
50
75
125
250
400
500
500
10
20
25
40
50
50
50
50
50
30
40
60
100
150
350
500
500
500
5
10
10
20
40
50
50
50
50
—
—
30
50
50
50
50
50
50
600V
DC and 600V DC horsepower rating shown
requires (2) poles to be connected in series.
grade stainless steel. For switches with enclosures
constructed from 316 grade stainless steel see page 18/9.
304
18/5
Switches
Heavy Duty Safety Switches
Type 4/4X & 12 with Viewing Window
Description
Features
30–600A, 3-pole 600V max. in fusible and
non-fusible versions in Type 4/4X stainless
steel and Type 12 enclosures.
All allow viewing of visible blade position.
30–200A also allow viewing of indicating
type fuses.
▪ Rugged installer-friendly enclosure
design features a gasket flange with
continuously welded seams
▪ Tool-free cover latches
▪ Two, three and four point mounting
▪ Metal handle with large insulating grip
features a positive stop in both ON and
OFF position
▪ Ground lugs provided as standard
▪ Type 12 enclosures are fabricated from
galvanized steel and are also rated for
3R/3S outdoor applications
▪ Type 4X stainless steel switches
(30–200A) are provided with stainless
steel interior parts
▪ The widest range of accessories
available including 200% neutrals,
gold plated PLC auxiliary contacts
and isolated ground kits
Maximum Horsepower Ratings
System
Ampere
Rating
Catalog
Number
List
Price $
Ship.
Weight
240V AC
1 Phase, 2 Wire
480V AC
3 Phase, 3 Wire
3 Phase, 3 Wire
3-Pole, 3 Wire Fusible, Type 12 30
60
100
200
400
600
HF361JW
HF362JW
HF363JW
HF364JW
HF365JW
HF366JW
HNF361JW
HNF362JW
HNF363JW
HNF364JW
HNF365JW
17
22
26
53
166
168
3
10
15
—
—
—
7 1/2
15
30
60
125
200
15
30
60
125
250
400
HF361SW
HF362SW
HF363SW
HF364SW
HF365SW
14
21
25
51
133
3
10
15
15
15
10
20
40
60
125
20
50
75
125
250
In
HNF361SW
HNF362SW
HNF363SW
HNF364SW
HNF365SW
17
23
28
55
168
3
10
15
—
15
7 1/2
15
30
60
125
pounds (lbs).
switches are also rated 600V DC.
HP ratings listed apply only when time delay
fuses are used.
Also rated 3S/3R for outdoor use.
5
10
20
40
50
50
—
30
50
50
—
—
15
23
27
54
134
30
60
100
150
350
5
10
20
40
50
—
30
50
50
—
15
30
60
125
250
3
10
15
15
15
20
50
75
150
350
5
10
20
40
50
—
30
50
50
—
600 Volt AC / 250 Volt DC
10
20
40
60
125
All
Maximum
switches are suitable for use as service entrance
equipment. Use outside poles of 3-pole switch for 2-pole
application.
600V DC and 600V DC horsepower rating shown
requires (2) poles to be connected in series.
18/6
Product Category: HDSS
200A
20
50
75
150
350
500
600 Volt AC / 250 Volt DC
3-Pole, 3 Wire Non-Fusible, Type 4X Stainless Steel 30
60
100
200
400
600V
DC
600 Volt AC / 250 Volt DC
3-Pole, 3 Wire Fusible, Type 4X Stainless Steel 30
60
100
200
400
250V
DC
600 Volt AC / 250 Volt DC
3-Pole, 3 Wire Non-Fusible, Type 12 30
60
100
200
400
600V AC
3-Phase, 3 Wire
20
50
75
125
250
30
60
100
150
350
5
10
20
40
50
—
30
50
50
—
304
grade stainless steel. For switches with enclosures
constructed from 316 grade stainless steel see page 18/9.
Siemens Industry, Inc.
Industrial Controls Catalog
Switches
Heavy Duty Safety Switches
Type VBII 4 & 6 Pole
Heavy Duty Safety Switches
Application
Standards
4 & 6 pole Switches are commonly
used as a disconnecting means for
two-speed, two-winding motors.
Fused switches provide both over
current and short circuit protection.
Non-fusible switches normally provide
a local disconnection means for twospeed motors which are remote from
their motor controller. 4 pole switches
are also used in 3-phase, 4-wire circuits
when a switching neutral is required.
All 4 & 6 pole switches are service
entrance rated.
▪ UL & CUL listed under file #E4776
▪ Meets UL98 for enclosed switches
▪ 4 & 6 Pole switches are suitable for
use as service entrance
▪ Meets NEMA Standard KS-1 for
enclosed switches
▪ Meets NEC wire bending space
requirements
Description
4 & 6 pole switches are available in
30-200A ratings and in both fusible and
non-fusible versions. 4-pole switches are
supplied with either Type 1 or Type12/3R
enclosures.
6-pole switches are available with either
Type 12/3R or Type 4X stainless steel
enclosures.
Features
▪ Visible blade, double break switching
action
▪ Highly visible ON/OFF indication
▪ Defeatable dual cover interlock
▪ Padlock option in OFF position
햲
▪ All copper current carrying parts
▪ Tangenital knockouts (Type 1,
4-pole switches)
HNF663S
4 Pole Type VBII Switches햲 햳
System
Indoor Type 1
Amp
Catalog List
Rating Number Price $
햴
Type 12/3R Industrial
Ship Wt. Catalog
List
Ship Wt.
(lbs.)
Number
Price $ (lbs.)
Horsepower Ratings
240V, 2Ø, 4W
240V 3Ø
Std.
Max.
Std.
Max.
480V, 3Ø
Std.
Max.
600V, 3Ø
250V
Std.
Max. DC
Fusible 600 Volt AC, 250 Volt DC — 4 Pole, 4 Fuse햵
30
60
100
200
HF461
HF462
HF463
HF464■
36
40
43
88
HF461J
HF462J
HF463J
HF464J■
36
40
43
88
3
71⁄2
15
25
10
20
30
50
3
71⁄2
15
25
71⁄2
15
30
60
5
15
25
50
15
30
60
125
71⁄2
15
30
60
20
50
75
150
5
10
20
40
32
34
36
78
—
—
—
—
10
20
30
50
—
—
—
—
10
20
40
60
—
—
—
—
20
50
75
125
—
—
—
—
30
60
100
150
5
10
20
40
Non-fusible 600 Volt AC, 250 Volt DC — 4 Pole
30
60
100
200
HNF461
HNF462
HNF463■
HNF464■
32
34
36
78
HNF461J
HNF462J
HNF463J■
HNF464J■
6 Pole Type VBII Switches햲 햳
System
Type 12/3R Industrial
Type 4X Stainless Steel
Amp
Catalog
List
Ship Wt. Catalog
List
Ship Wt.
Rating Number
Price $
(lbs.) Number
Price $
(lbs.)
햴
Horsepower Ratings
240V 3Ø
480V, 3Ø
Std.
Max.
Std.
Max.
600V, 3Ø
Std.
Max.
250V
DC
Fusible 600 Volt AC, 250 Volt DC — 6 Pole, 6 Fuse햵
30
60
100
200
HF661J
HF662J
HF663J■
HF664J■
37
41
44
90
HF661S■
HF662S■
HF663S■
HF664S■
37
41
44
90
3
71⁄2
15
25
71⁄2
15
30
60
5
15
25
50
15
30
60
125
71⁄2
15
30
60
20
50
75
150
5
10
20
40
33
35
37
80
—
—
—
—
10
20
40
60
—
—
—
—
20
50
75
125
—
—
—
—
30
60
100
150
5
10
20
40
Non-fusible 600 Volt AC, 250 Volt DC — 6 Pole
30
60
100
200
HNF661J
HNF662J
HNF663J
HNF664J
33
35
37
80
■ Built to order. Allow 2–3 weeks for delivery.
HNF661S
HNF662S
HNF663S
HNF664S■
햴
햲
Lugs are aluminum alloy as standard. Optional copper body lugs are available.
햳 All 4 & 6 pole VBII switches are suitable for use as
service equipment when a neutral is installed or
equipment ground kit is properly connected.
Siemens Industry, Inc.
Industrial Controls Catalog
햵
Dual horsepower ratings: Std. – applies when
non-time-delay fuses are installed. Max. – applies
when time delay fuses are installed.
Fusible switches accept Class H Fuses as the standard. Class R & J fuses can also be installed and
increase the rating from 10,000 to 200,000 AIC. For
Product Category: HDSS
Class J, the load base is moved upward. For Class R
fuses, rejection kits are required.
18/7
Switches
Heavy Duty Safety Switches
Special Application Switches /
Interlocked Receptacle Switches
Application
Description 햲 햳
Receptacle Safety Switches
provide cord connection protection
of heavy-duty portable equipment
(welders, infrared ovens, batch
feeders, portable conveyors, assembly
line fixtures and tools, refrigerator
trucks, etc.) under load or fault
conditions.
Type 12 and 4/4X Receptacle
Safety Switches are available
with 3-phase, 4-wire grounded
type Crouse-Hinds Arkite™ 2 or
Pyle-National receptacle, pre-wired
and mounted with interlock linkage to
the switch mechanism. Insertion or
removal of the plug is prevented by
the interlock linkage while the switch
is in the “ON” position. Receptacle
prevents operation of switch if
incorrect plug is inserted.
Standards
All receptacle switches are UL listed
under file #E4776. Those with a
viewing window are also CSA certified
under file #1079316.
Crouse-Hinds Interlocked Receptacle Switches
햷
Ampere
Rating햶
Type 12
Catalog
Number
햸
Type 4/4X
Catalog
Number
List
Price $
Shipping
Weight
Std. Pkg.햵
List
Price $
Accepts Crouse-Hinds
Arktite 햲 Plug
Catalog Number
240V Fusible, 3-Pole, 3-Wire
30
60
100
HF321JCH
HF322JCH
HF323JCH
HF321SCH▲
HF322SCH▲
HF323SCH▲
23
30
36
APJ3485 & NPJ3485
APJ6485 & NPJ6485
APJ10487 & NPJ10487
HF361SCH
HF362SCH
HF363SCH▲
24
30
36
APJ3485 & NPJ3485
APJ6485 & NPJ6485
APJ10487 & NPJ10487
HNF361SCH▲
HNF362SCH
HNF363SCH▲
22
29
35
APJ3485 & NPJ3485
APJ6485 & NPJ6485
APJ10487 & NPJ10487
24
30
36
APJ3485 & NPJ3485
APJ6485 & NPJ6485
APJ10487 & NPJ10487
22
29
35
APJ3485 & NPJ3485
APJ6485 & NPJ6485
APJ10487 & NPJ10487
600V Fusible, 3-Pole, 3-Wire
30
60
100
HF361JCH
HF362JCH
HF363JCH
600V Non-Fusible, 3-Pole, 3-Wire
30
60
100
HNF361JCH▲
HNF362JCH
HNF363JCH▲
600V Fusible, 3-Pole, 3-Wire with Viewing Window
30
60
100
HF361JCHW▲
HF362JCHW
HF363JCHW▲
HF361SCHW▲
HF362SCHW
HF363SCHW▲
600V Non-Fusible, 3-Pole, 3-Wire with Viewing Window
30
60
100
HNF361JCHW▲
HNF362JCHW
HNF363JCHW▲
HNF361SCHW▲
HNF362SCHW▲
HNF363SCHW▲
Pyle-National Interlocked Receptacle Switches
3-Poles Fusible and Non-Fusible
Type 12
Ampere Rating
Voltage Catalog
List
Price $
Switch Receptacle Rating
Number 햷
30
30
600 (F)
HF361JPN▲
600 (N-F) HNF361JPN
60
60
240 (F)
HF322JPN▲
600 (F)
HF362JPN▲
600 (N-F) HNF362JPN
▲ Built to order. Allow 6–8 weeks for delivery.
햲
Arktite™ is a registered trademark of the CrouseHinds Company. Plugs are not sold or supplied by
Siemens.
18/8
Type 12
Stainless Steel
Catalog
List
Number 햸
Price $
HF361SPN▲
HNF361SPN
—
HF362SPN▲
HNF362SPN
햳
햴
햵
—
Shipping Accepts Pyle-National
Weight
QuelArc™ 햳햴 Plugs
Std. Pkg.햵 Plug Catalog Number
23
JPD-83046
21
28
28
27
JPD-116046
Indicates plug with maximum diameter cable bushing.
QuelArc™ is a registered trademark of the PyleNational Company.
In pounds (lbs.).
Product Category: HDSS
햶
햷
햸
Ampere rating of both switch and receptacle.
Also rated Type 3R/3S.
Enclosure is constructed of Type 304 stainless steel.
Siemens Industry, Inc.
Industrial Controls Catalog
Switches
Heavy Duty
Special Application Safety Switches /
Type VBII Non-Metallic & 316 Grade Stainless Steel
Application
Siemens Non-metallic and 316 grade
stainless steel switches provide a
superior level of corrosion resistance
to assure trouble free performance in
the most severe conditions. 316 grade
stainless steel provides increased
corrosion resistance when compared to
304 grade, especially in atmospheres
containing a high level of chlorine
commonly encountered in marine and
waste management applications. Our
non-metallic enclosures are constructed
from fiberglass reinforced polyester and
are extremely resistant to a wide range
of corrosive atmospheres. They allow a
wide range of operating temperatures
and their insulating properties virtually
eliminate problems caused by internal
condensation.
Description
30-200A, 600V Max, fusible and nonfusible switches are available in both
non-metallic and 316 grade stainless
steel versions. All are supplied with
factory installed ground bars as
standard. Viewing windows are also
available in the stainless offering.
Type 4/4X Non-Metallic
Ampere Catalog
Rating Number
Ship
Weight
Std. pkg. List
Price $
(lbs.)
Horsepower Rating—3-Phase
250
600
Volts Volts
Max. DC
DC
240 Volt AC 480 Volt AC 600 Volt AC
Std.
Max. Std.
Max. Std.
햶
3-Pole, 4-Wire, 240 Volt Fusible, Type 4X
30
60
HF321NX
HF322NX▲
21
22
3
71⁄2
71⁄2
15
—
—
—
—
—
—
—
—
5
10
—
—
20
50
75
150
5
10
20
40
15햵
30햵
50햵
50
30
60
100
150
5
10
20
40
15햵
30햵
50햵
50
3-Pole, 4-Wire, 600 Volt AC Fusible, Type 4X햳햴햶
30
60
100
200
HF361NX
HF362NX
HF363NX▲햲
HF364NX▲햲
21
22
39
83
3
71⁄2
15
25
71⁄2
15
30
60
5
15
25
50
15
30
60
125
71⁄2
15
30
60
3-Pole, 3-Wire, 600 AC Volt Non-Fusible,햲 Type 4X햳햴
30
60
100
200
HNF361X
HNF362X
HNF363X▲
HNF364X▲
20
20
38
81
—
—
—
—
71⁄2
15
30
60
—
—
—
—
20
50
75
125
—
—
—
—
Type 4/4X 316 Grade Stainless Steel
Standard
Ampere Catalog
Rating
Number
With Viewing Window
List
Price $
Catalog
Number
Horsepower Rating—3-Phase
List
Price $
Ship
Weight
(lbs.)
250
600
Volts Volts
Max. DC
DC
240 Volt AC 480 Volt AC 600 Volt AC
Std.
Max. Std.
Max. Std.
3
71⁄2
15
25
71⁄2
15
30
60
—
—
—
—
—
—
—
—
3
71⁄2
15
25
71⁄2
15
30
60
5
10
25
50
15
30
60
125
10
20
40
60
—
—
—
—
20
50
75
125
240V AC, 250V DC Fusible 3-Pole, 3-Wire
30
60
100
200
HF321SS▲
HF322SS▲
HF323SS▲
HF324SS▲
—
—
—
—
—
—
—
—
15
19
27
48
—
—
—
—
—
—
—
—
5
10
20
40
—
—
—
—
71⁄2
15
30
60
20
50
75
150
5
10
20
40
—
30햵
50햵
50
—
—
—
—
30
60
100
150
5
10
20
40
—
30햵
50햵
50
600V AC, 250V DC Fusible 3-Pole, 3-Wire햴
30
60
100
200
HF361SS
HF362SS
HF363SS
HF364SS
HF361SSW
HF362SSW▲
HF363SSW▲
HF364SSW▲
17
21
28
54
600V AC, 250 V DC Non-Fusible 3-Pole, 3-Wire햲햴
30
60
100
200
HNF361SS
HNF362SS
HNF363SS
HNF364SS
HNF361SSW
HNF362SSW▲
HNF363SSW▲
HNF364SSW▲
▲ Built to order. Allow 6–8 weeks for delivery.
햲
Also used for 240 volt applications.
Siemens Industry, Inc.
Industrial Controls Catalog
15
21
26
51
—
—
—
—
햳
Add “L” to end of catalog number for switches less
line & load lugs with mounting hardware for crimp
type or copper body lugs.
햴 200A switches are also rated 600V DC max.
Product Category: HDSS
햵
햶
600V DC voltage and horsepower rating shown
requires (2) poles to be connected in series.
Supplied with factory installed neutral.
18/9
Switches
General and Heavy Duty Safety Switches
Accessories
HT63
HR612
HN612
Class R Fuse Clip Kits
Class T Fuse Adapter Kits
All General Duty and Heavy Duty Switches
are field convertible to accept Class R
Fuse Clip Kits. The kits prevent the
installation of Class H and K fuses
(one kit required per 3 pole switch).
Class R Fuse Clip Kits
All 200-600A, General Duty and 1001200A Heavy Duty Switches are field
convertible to accept Class T fuses.
400-800A switches are field convertible
to accept Class T fuses by moving the
load base to a pre-drilled
T fuse position.
Catalog
Number
Class T Fuse Adapter Kits햲
List
Price $
Description
GSRK321
30A, 240V Kit (GD only)
HR21
30A, 240V Kit (HD only)
Catalog
Number
HR612
30A, 600V Kit/60A, 240V Kit
HT23
100A, 240V Kit
HR62
60A, 600V Kit
HT63
100A, 600V Kit
HR63
100A Kit
HT24
200A, 240V Kit
HR64
200A Kit
HT64▲
200A, 600V Kit
HR656
400A/600A Kit
TFAK82
1200A, 240V Kit
List
Price $
Description
HN264
200% Neutral Kits
Class J Fuse
Neutral Kits
All 30-600A, 600V and 100-600A,240V
fusible Heavy Duty Switches are field
convertible to accept Class J fuses by
moving the load base to a pre-drilled J
fuse position. All 200-600A, 240V
fusible General Duty switches can also
be field converted to accept Class J
fuses.
Standard Neutral Kits can be field
installed in General and Heavy Duty
Switches.
Neutral Kits
Switch
Ampere Rating
30 GD
Kit Catalog
Number
W410190
30 HD, 60 GD
HN612
60, 100 HD, 100 GD
200
UL listed 200% Neutrals are available
on 100-600A Heavy Duty Switches.
They are typically used with non-linear
transformers or where increased neutral
ampacity/lug capacity is required.
200% Neutral Kits
List Price $
HN623
Switch
Ampere
Rating
100
Kit
Catalog List
Number Price $
HN263
Wire Range
Line & Load
Lugs (Cu/Al)
(2) #14-1/0 AWG
HN64
200
HN264
(2) #6 AWG-300 Kcmil
400 & 600
HN656
400
HN656
800 & 1200
HN678
(2) 1/0 AWG-750 Kcmil
or (4) 1/0 AWG-250 Kcmil
600
HN678
(4) 1/0 AWG-750 Kcmil
▲ Built to order. Allow 6–8 weeks for delivery.
햲
One kit per pole required.
18/10
Product Category: HDSS
Siemens Industry, Inc.
Industrial Controls Catalog
Switches
General and Heavy Duty Safety Switches
Accessories
HA261234
HA161234
Auxiliary Contacts
Auxiliary Contacts are available only for Heavy Duty Switches. The auxiliary
contacts are available in 1 normally open and 1 normally closed or 2 normally
open and 2 normally closed configurations. Siemens offers a PLC Auxiliary
Switch (30-200A) that has very low resistance for low voltage and current
typical in PLC circuits. All auxiliary contacts make after and break before
main switch contacts.
Auxiliary Contacts
Switch
Ampere
Rating
Aux. Switch
Catalog
List
Number
Price $
Kit Ampere Rating
125V AC
Max.
250V AC
Max.
Kit Horsepower Rating
28V DC 125V AC
Max.
Max.
250V AC
Max.
28V DC
Max.
With 1 NO & 1 NC Isolated Contacts
30-200
HA161234
10
10
—
1/2
3/4
—
400-1200
HA165678
10
10
—
1/2
3/4
—
With 2 NO & 2 NC Isolated Contacts
30-200
HA261234
10
10
7
1/2
3/4
—
400-1200
HA265678
10
10
7
1/2
3/4
—
Low Current PLC Type with 1 NO & 1 NC Gold Plated Contacts
30-200
HA361234
10
10
—
1/2
3/4
—
400-1200
HA365678
10
10
—
1/2
3/4
—
Fuse Puller Kits
Fuse Puller Kits
Fuse Puller Kits are field installable in
30-100A Type VBII Heavy Duty Switches
(one kit required per 3 pole switch).
Switch
Ampere
Rating
030
Fuse Puller Kit
Catalog Number
HP61
060
HP62▲
100
HP63▲
List Price $
HP61
▲ Built to order. Allow 6–8 weeks for delivery.
Siemens Industry, Inc.
Industrial Controls Catalog
Product Category: HDSS
18/11
Switches
General and Heavy Duty Safety Switches
Accessories
Copper Lug Kits
Heavy duty switches are UL approved to accept
field installed copper lug kits.
Copper Lug Kits
Switch
Ampere
Rating
30–60
Copper Lug
Catalog
List
Number
Price $
HLC612
Description
(9) Lugs/Kit #14-4 AWG Cu
100
HLC63▲
(9) Lugs/Kit #14-1/0 AWG Cu
200
HLC64▲
(9) Lugs/Kit #6 AWG-300 Kcmil Cu
400–1200 HLC65678
HLC612
(1) Lugs/Kit #1/0 AWG-600 Kcmil Cu
Equipment Ground Kits
Equipment Ground Lug Kits are available for all General
and Heavy Duty Switches. They are field installable in
Type 1 and Type 3R Switches and are factory installed
as standard in Type 4 / 4X and Type 12 and also in all
VBII 4&6 pole Switches.
Equipment Ground Kits
Switch
Ampere
Rating
30A GD
Catalog
Number
GSGK60
60–200 GD
30–200 HD
List
Price $
Number of
Terminals
2
Wire Range
Per Terminal (Cu/Al)
#14-8 AWG
HG61234
2
#14-4 AWG
HG61234
2
#14-4 AWG
400 & 600
HG656
4
#6 AWG-250 Kcmil
800–1200
HG678
8
#6 AWG-250 Kcmil
HG261234
Isolated Ground Kits
Isolated Ground Kits are available on 30-600A Heavy Duty
Switches. They are normally used on circuits with a high
content of computer or other electronic loading which
require a ground which is isolated from the building
ground and neutral circuits. The kit includes both
isolated and grounded terminals as listed below.
Isolated Ground Kits
Switch
Ampere
Rating
30–200
Catalog
Number
HG261234
400–600
HG2656
List
Price $
Number of Terminals
Isolated
Grounded
2
2
Wire Range
Per Terminal (Cu/Al)
#14-4 AWG
4
#14-2/0 AWG
4
▲ Built to order. Allow 6–8 weeks for delivery.
18/12
Product Category: HDSS
Siemens Industry, Inc.
Industrial Controls Catalog
Switches
General and Heavy Duty Safety Switches
Hub and Lug Data
SSH150
ECHV300
Interchangeable Hubs
Conduit hubs are available for Type 3R,
12 and 4 / 4X applications. 30-200A
Type 3R Switches are provided with a
conduit hub provision and a removable
hub plate on their top rainshed.
Hubs
Conduit
Size
(inches)
Catalog
Number
List
Price $
Used On
Type 3R 햲
Cover
3/4
1
1 1/4
ECHA000
ECHA075
ECHA100
ECHA125
Cover
3/4
1
1 1/4
1 1/2
2
2 1/2
ECHS000
ECHS075
ECHS100
ECHS125
ECHS150
ECHS200
ECHS250
2 1/2
3
3 1/2
4
ECHV250
ECHV300
ECHV350
ECHV400
ECHS200
Compression Lug Mounting &
Neutral Barrier Kit
All Heavy Duty Switches are field
convertible for (Crimp) type lugs.
When compression lugs are required for
30-100A switches, a neutral barrier kit is
required for 1-Phase, 3W or 3-Phase, 4W
applications. When compression lugs are
required on 400-1200A switches, lug
mounting kits are required.
Compression Lug Mounting 햴
and Neutral Barrier Kits
30A GD Only
60–200A GD
30–200A HD
400–1200A
Switch
Ampere Catalog
Rating Number
30
HCL612
List
Price $ Kit Description
Neutral Barrier Kit
60 & 100 HCL623
Neutral Barrier Kit
400 햵
HCL65
1 Pole, Compression
Lug Mounting Kit
400
& 600 햶
HCL65678■
1 Pole, Compression
Lug Mounting Kit
800
HCL65678■
& 1200 햶
1 Pole, Compression
Lug Mounting Kit
Type 4/4X햳
Lugs
3/4
1
1 1/4
1 1/2
2
30 & 60A Switches are suitable for use
with 60° or 75°C wire. 100–1200A are
suitable for use with 75°C rated wire.
SSH075
SSH100
SSH125
SSH150
SSH200
30–200A
SL0420
Multiple Padlock Accessory
A tamper-proof device to provide for
multiple padlocking to meet OSHA or
plant requirements. Accepts up to 6 1/4"
padlocks. Catalog number SL0420.
Standard Carton-12. List Price $83.00.
Kirk-Key Interlocks
Kirk-Key Interlocks can be factoryinstalled only on Type VBII Heavy
Duty Safety Switches. Interlocks are
used to prevent the operator from
making an unauthorized operation.
The interlock system is a simple
method of applying key interlocks
to safety switches so as to require
operation in a predetermined
sequence. List Price $1925.00.
Before consulting the factory, the
following information is required:
▪ User name and address
▪ Key number from lock assemblies
on any existing locks to be
interlocked with
▪ Complete locking scheme
Consult factory for delivery.
Wire Ranges (Line, Load and Standard Neutral)
Note: 30 thru 200A. Type 3R Switches have
removable hub plates on rainshed. 400A and
larger Type 3R Switches have no provisions for
mounting hubs. Drill or punch hole in the field to
accommodate hub size desired.
Switch
Ampere
Rating
30GD
■ Built to order. Allow 2-3 weeks for delivery.
햲
Hubs suitable for 3R Switches.
햳 Also suitable for Type 12 applications.
햴 Neutral Barrier kits are required on 30-100A switches
only and only with 1-Phase / 3W or 3-Phase / 4W loads.
Compression Lugs mounting kits are required on 4001200A switches only.
햵 Provides mounting for a single line or load lug.
햶 Provides mounting for (2) compression lugs per phase
on line or load.
Siemens Industry, Inc.
Industrial Controls Catalog
Wire Range with
Wire Bending Space
Per NEC Requirements
Lug Wire Range
#14-8 AWG (Cu/AI)햷
#14-8 AWG (Cu/Al)
30HD
#14-6 AWG (Cu/AI)
#14-2 AWG (Cu/Al)
60햹햻
#14-3 AWG (Cu/AI)
#14-2 AWG (Cu/Al)
100햽
#14-1/0 AWG (Cu/Al)
#14-1/0 AWG (Cu/Al)
200햺
#6 AWG-250 Kcmil (Cu/Al)
#6 AWG-300 Kcmil (Cu/Al)
400햸
1/0 AWG-750 Kcmil (Cu/Al) or
(2) 1/0 AWG-250 Kcmil (Cu/Al)
(1) 1/0 AWG-750 Kcmil (Cu/Al) or
(2) 1/0 AWG-250 Kcmil (Cu/Al)
600햸
(2) 1/0 AWG-750 Kcmil (Cu/Al) or
(4) 1/0 -250 Kcmil (Cu/Al)
(2) 1/0 AWG-750 Kcmil (Cu/Al) or
(4) 1/0 AWG-250 Kcmil (Cu/Al)
800
(3) 1/0 AWG-750 Kcmil (Cu/Al) Line Load
(4) 1/0 AWG-750 Kcmil (Cu/Al) neutral
(3) 1/0 AWG-750 Kcmil (Cu/Al) Line Load
(4) 1/0 AWG-750 Kcmil (Cu/Al) neutral
1200
(4) 3/0 AWG-750 Kcmil (Cu/Al) Line Load
(4) 1/0 AWG-750 Kcmil (Cu/Al) neutral
(4) 1/0 AWG-750 Kcmil (Cu/Al) Line Load
(4) 1/0 AWG-750 Kcmil (Cu/Al) neutral
햷
Line lugs are UL approved to accept #14-6 CU/Al cable.
Max. wire size for height reduced switches is 500 kcmil
(Cu/Al).
햹 All but 60A GD & Compact HD NF switches are also UL
approved for #2 Cu/Al conductors.
햸
Product Category: HDSS
햺
All 200A Heavy Duty Switches have a wire range
& wire bending space for (1) #6-300 Kcmil (Cu/Al).
Also for 30A oversized heavy duty switches.
햽 Also for 60A oversized heavy duty switches.
햻
18/13
Switches
Enclosed Switches
Rotary Disconnect Switches
in Non-Metallic Enclosures
Application
Siemens Rotary Disconnect switches
are ideally suited for use as ”in sight“
disconnects for motor loads and other
electrical equipment which is remotely
located from its branch circuit protective
device. All are supplied in non-metallic
enclosures which are UL & CUL or CSA
approved for a wide range of both
indoor and outdoor environments. All
meet UL508 requirements.
Siemens Enclosed Rotary
Disconnect Switches
▪ 16–125A, Non-Fusible
▪ 600VAC max. rated (except catalog
no. HNF3100CX is rated 480VAC
max.)
▪ Available in both Type 12 and 4X
non-metallic enclosures
▪ Both screw and hinged cover
designs available
▪ Listed and marked “suitable for use
as motor disconnect” per NEC
Section 430-109
Description
16–125A non-fusible switches are
available in fiberglass reinforced
polycarbonate enclosures which
are UL approved as Type 12 & 4X and
for either indoor or outdoor use.
All are horsepower and load break
rated. All are panel mounted and are
either supplied with factory installed
aux. contacts or will accept contact
kits. All are compact in size while providing ample wiring space for copper
line & load conductors.
3 Pole, 3 Wire
▪ 16–63A screw cover switches have
factory installed ground bars. All
hinge cover switches accept
ground lug kits
▪ Screw cover switches are UL listed
under File No. E47705 and are CSA
certified under File No. 203576
▪ IEC 60947-3 rated and CE marked
(enclosures are IP65 rated)
▪ Screw cover switches are
provided with knockouts
▪ Hinged door switches are UL listed
for multiple line and load conductors
per phase in 30–100A ratings. They
are UL & CUL listed under File No.
E191706
Catalog Number
Ampere
Rating
▪ HP rated
▪ Rotary handles are available in
black, red, and yellow and in pistol
grip designs
▪ Padlockable in OFF position
with up to (3) padlocks
Horsepower Ratings
List
Price $
3 Pole, 3 Wire with (1) NO
& (1) NC Aux. Contact
List
Price $
Shipping
Weight 240V AC
1 Phase
3 Phase
480V AC
3 Phase
600V AC
3 Phase
Non-Fusible, Type 1, 4X & 12K with Screw Cover and Black Rotary Handle 600V AC Max.
16
25
30
30
30
63
100
125
3LD2064-0TB51-0US2
3LD2164-0TB51-0US2
3LD2264-0TB51-0US2
—
—
3LD2565-0TB51-0US2
3LD2766-0TB51-0US2
3LD2866-0TB51-0US2
—
—
3LD2064-1GP51-0US2
3LD2164-1GP51-0US2
3LD2264-1GP51-0US2
3LD2264-1TS51-0US2▲
3LD2264-2TW51-0US2
▲
3LD2565-1GP51-0US2▲
3LD2766-1GP51-0US2▲
3LD2866-1GP51-0US2▲
1
1
1
1
1
3
6
6
11⁄2
3
3
3
3
10
—
—
3
71⁄2
10
10
10
15
30
40
71⁄2
10
20
20
20
40
60
75
10
15
20
20
20
50
75
100
71⁄2
10
20
20
20
40
60
75
10
15
20
20
20
50
75
100
15
40
50
20
50
—
Non-Fusible, Type 1, 4X & 12K with Screw Cover and Red and Yellow Rotary Handle 600V AC Max.
16
25
30
30
30
63
100
125
3LD2064-0TB53-0US2
3LD2164-0TB53-0US2
3LD2264-0TB53-0US2
—
—
3LD2565-0TB53-0US2
3LD2766-0TB53-0US2▲
3LD2866-0TB53-0US2▲
—
—
3LD2064-1GP53-0US2
3LD2164-1GP53-0US2
3LD2264-1GP53-0US2
3LD2264-1TS53-0US2▲
3LD2264-2TW53-0US2
▲
3LD2565-1GP53-0US2▲
3LD2766-1GP53-0US2▲
3LD2866-1GP53-0US2▲
1
1
1
1
1
3
6
6
11⁄2
3
3
3
3
10
—
—
3
71⁄2
10
10
10
15
30
40
Non-Fusible, Type 4X with Hinged Door and Black Pistol Grip Rotary Handle 480V AC Max.
30
60
100
HNF3030CX
HNF3060CX
HNF3100CX
▲ Built to order. Allow 6–8 weeks for delivery.
Carton
quantity of (1). Shipping weight in pounds (lbs.).
Approved for both indoor and outdoor use. No cover
interlock provided.
30 and 60A switches are also rated 600V AC.
18/14
—
—
—
—
—
—
4
4
5
3
10
15
Also
Switch
Screw
rated as Type 12 and UL approved for both indoor
and outdoor use. Defeatable cover interlock provided.
cover enclosures are constructed from Makrolon
9425. Hinged cover enclosures are constructed from
fiberglass reinforced polycarbonate.
Switch is supplied with (2) NO and no NC aux. contacts.
Product Category: HDSS
71⁄2
15
25
is supplied with (4) NO and no NC aux. contacts.
Ground bar is not provided or available.
Aux. contacts break about 3 Ms before and make about
3 Ms after main switch contacts.
6P, 25A, switch with 1 NO & 1 NC aux. contacts and a
black operating handle is also available. Order catalog
number 3LD2165-4VD51 (Discount Code: Pilot Devices).
Siemens Industry, Inc.
Industrial Controls Catalog
Switches
Enclosed Switches
Rotary Disconnect Selection
Switches
Wire ranges 60/75°C Cu Only
Enclosed Disconnect Switch Dimensions (Inches)*
3LD2 Type Switches Dimensions
Catalog
Number
Ampere Fig.
Rating No.
A
B
C
D
3LD20643LD21643LD22643LD25653LD27663LD2866HNF3030CX
HNF3060CX
HNF3100CX
16
25
30
63
100
125
30
60
100
5.52
5.52
5.52
6.93
11.90
11.90
7.87
11.77
11.77
3.94
3.94
3.94
5.75
8.35
8.35
7.87
7.87
7.87
3.19
3.19
3.19
4.10
5.36
5.36
5.20
5.20
5.20
4.57
4.57
4.57
5.87
7.13
7.13
7.29
7.29
7.29
1
2
16 Amps
25–30 Amps
63 Amps
100–125 Amps
(1) #18- 10 AWG
(1) #14 - 10 AWG
(1) #14 - 6 AWG
(1) #12- 1 AWG
HNF Type Switches
(1) #14 - #10 AWG Solid
(1) #14 - #4 AWG Stranded
Up to (4) #12 AWG Solid
Up to (3) #12 AWG Stranded
Up to (6) #14 AWG Stranded
Up to (4) #14 AWG Stranded
with (1) #10 AWG Stranded
30 Amps
Note: 3LD2 Type switches only have top and bottom end KOs as follows:
16-30A - 1/2" & 3/4", 63A - 3/4" & 1", 100 & 25A - 1" & 1 1/4"
Figure 1
D
(1) #14 - #10 AWG Solid
(1) #14 - #1 AWG Stranded
(2) #6 AWG Stranded
Up to (3) #8 AWG Stranded
Up to (6) #10 AWG Stranded
Up to (6) #12 AWG Solid
C
60 & 100 Amps
A
Figure 2
D
C
B
A
UL and CUL Short Circuit Withstand Ratings
Short Circuit Withstand Rating and Fuse Class
With Load Side Fusing With Line Side Fusing
Ampere 5 kA at
Rating
600V Max
10 kA at
600V Max
18 kA at
480V Max
5 kA at
480V Max
18 kA at
480V Max
3LD2 Type Switches
—
—
—
—
RK5
25 & 30
(80A Max)
—
—
—
—
—
—
—
—
—
—
—
63
RK5
(175A Max)
100 &
125
—
RK5
(200A Max)
Ampere Rating
—
H, K & RK5
(100A Max)
H, K & RK5
(150A Max)
60
J, T & CC
(100A Max)
H, K & RK5
(60A Max)
100
H, K & RK5
(30A Max)
For
gG Fuse Size
Short Circuit Rating
3LD2 Screw Cover Switches
HNF Type Switches
30
B
IEC Fuse and Withstand Ratings
RK5
(50A Max)
16
.5
Ferraz
Shawmut
A50P or lower
let-through
semiconductor
fuses
(60A Max)
Ferraz
Shawmut
A50P or lower
let-through
semiconductor
fuses
(100A Max)
use as supplemental protection on the load side of the branch circuit over current
protective device.
Ground lug kit has two lugs for #14-4 Cu/Al wire.
Factory installed ground lugs supplied as follows: 16-30A #14-10 Cu, 63A #14-8 Cu.
Ground lug not provided and is not available on catalog numbers 3LD2264-2TW51-0US2
and 3LD2264-2TW53-0US2.
6.38 inches high including mounting feet.
7.85 inches high including mounting feet.
60 & 100A HNF switches are rated 10kA at 480V max. with line side Class H, K & RK5
150A max. fuses.
Wire range (1) #14-2 AWG 60/75 °C Cu only.
16-63A 3LD switches are also rated 5kA at 600VAC max when protected by a 3RV type
MSP of the same or lesser ampere rating.
16
20A
5k Arms
25
25A
10k Arms
32
50A
10k Arms
63
63A
15k Arms
100
100A
20k Arms
125
125A
20k Arms
HNF Hinged Cover Switches
30
63A
10k Arms
60
100A
10k Arms
100
100A
10k Arms
Accessories
Switch
Ampere
Rating
Catalog
Number
3LD2 Type Switches
List
Price $
Description
16 –30A
3LD9220-2C
Neutral Kit
63A
3LD9250-2CA
Neutral Kit
100 –125A
3LD9280-2C
Neutral Kit
HNF Type Switches
30–100A
GSGK60
Ground Lug Kit 30A
LBRA1
Auxiliary Contact Kit (1 NO - 1 NC)
60 –100A
LBRA2
Auxiliary Contact Kit (1 NO - 1 NC)
30 –100A
HF63CX Neutral Kit
*For inches / millimeters conversion, multiply inches by 25.4.
Siemens Industry, Inc.
Industrial Controls Catalog
Product Category: HDSS
18/15
Switches
Disconnect Switches
Compact Non-Fusible —
Selection
Rotary
and Toggle
Features
▪ 25 -125 Ampere, to 75 hp 480V and 600V
▪ Rotary and Toggle actuation models
▪ LBR Type switches are padlockable in the
OFF position and are UL & CUL listed
under File No. E191706 as manual motor
controllers per UL Standard UL508
▪ 3LD2 Type switches are padlockable in the
OFF position and are UL listed under File
No. E47705 per UL508 and are CSA
certified under File No. 203576
▪ Base, DIN-rail and door mounting
▪ Multiple conductor, distribution terminal type
rating LBR & LBT Type (40A -100A only)
Type LBR Rotary Switches
Type LBT Toggle Switches
▪ IEC 947-1 rated, CE marked
▪ Listed and marked “suitable as motor
disconnect” per NEC Section 430-109
Short Circuit Withstand Ratings
Switch Rating
& Type
Max. Line Side Fuse Rating
5kA with Line Side Class H, K, or
RK5 Fuses
Application
Siemens Load Break Switches are listed
as manual motor controllers and are suitable as motor disconnects. They are load
break rated and act as enclosure disconnects when short circuit protection is
provided upstream of the switch. If
upstream over current protection is not
provided, use a Siemens fusible Type
VBII, CFS or MCS Disconnect Switch.
Ordering Information
Door Mounted Switches (Rotary
Type Only) — Order either complete
“3LD2” assemblies or individual “LBR”
components as follows:
Complete Assemblies include switch,
handle, and shaft. Certain 25 and 32A
assemblies are also available with factory installed neutral blocks and/or aux.
contacts. These accessories can also
be ordered as field installed kits.
Individual Components are ordered as
follows:
25A — LBR3025D switch + LBRH3 or 4
handle.
40 –100A — LBR switch + LBRH3 or 4
handle + LBRD1.
Notes: (LBR Type switches only)
1. Aux contacts are available as field
installed kits on 25A units only.
2. Lugs on 25A units face to the rear and
lugs on 40 –100A units face toward
the front.
왎
Built to order. Allow 6–8 weeks for delivery.
auxiliary contacts (1 NO and 1 NC).
Includes
25 & 32A 3LD2
3LD2254-0TK51
63A 3LD2
80A Max. at 600V AC Max.
175A Max. at 600V AC Max.
10kA with Line Side Class H, K, or
RK5 Fuses
Base/DIN Rail Mounted Switches
(Rotary or Toggle Type) — Order
individual components as follows:
Toggle — Order the LBT switch required
and a toggle switch cover plate if
needed.
Rotary, Base Mounted with Door
Mounted Handle — Order “LBR”
switch + door mounted handle + shaft +
any accessories.
Rotary, Base Mounted with Direct
Mounted Handle — Order “LBR”
switch + direct mounted handle.
25A LBR
30A Max. at 480V AC Max.
40A, 4P
LBR & LBT
60A Max. at 480V AC Max.
40 & 60A, 3P
LBR & LBT
100A Max. at 480V AC Max.
80 & 100A
LBR & LBT
150A Max. at 480V AC Max.
18kA with Line Side Class J, T, or
CC Fuses
40 –100A, 3P
LBR & LBT
100A Max. at 480V AC Max.
Note: 3LD2 switches are also rated 5kA at 600V
AC Max. when protected by a 3RV motor starter
with a FLA rating equal to or less than the switch
ampere rating.
Door Mounted Complete Assemblies
Operator, Shaft, & Switch) 600V AC Max.
Shaft Mounted
Catalog
Number
4 Hole Mounted
List
Price $
Catalog
Number
AC Horsepower Ratings
List
Number Ampere
Price $ of Poles Rating
120V
1Ø
240V 480V
1Ø 3Ø 3Ø
3LD2003-1TP53
3
16
1
⁄2
11⁄2 3
3LD2154-0TK_ _
3LD2154-1TP_ _
3LD2154-1TL_ _
3LD2154-2EP__
3LD2103-0TK_ _
3LD2103-1TP_ _
3LD2103-1TL_ _
3LD2103-2EP_ _
3
3
3+N
3 + N
25
2
3
3LD2254-0TK_ _
3LD2254-1TL_ _
3LD2555-0TK_ _
—
—
3LD2203-0TK_ _
3LD2203-1TL_ _
3LD2504-0TK_ _
3LD2704-0TK_ _
3LD2804-0TK_ _
3
3+N
3
3
3
32
2
63
100
125
—
—
—
—
—
—
—
600V
3Ø
71⁄2
10
71/2
10
15
3
10
20
20
10
—
—
15
30
40
40
60
75
50
75
100
Add
51 for a black handle or 53 for a red & yellow handle
to the end of the catalog number.
Handles
are IP65 rated and are also UL listed for Type 1, 4X
and 12 applications.
18/16
Product Category: PILO
Siemens Industry, Inc.
Industrial Controls Catalog
Switches
Disconnect Switches
Compact Non-Fusible —
Rotary and
Selection
Toggle
3LD Type Base Mounted Complete Assemblies
(Operator, Shaft, & Switch) 600V AC Max.
Handle Mounting
Shaft (center hole)
4 Hole
Catalog
Number
Catalog
Number
List
Price $
—
—
AC Horsepower Ratings
List
Number
Price $ of Poles
3LD2013-0TK_ _
3
3LD2144-0TK_ _
3LD2144-1TL_ _
3LD2113-0TK_ _
3LD2113-1TL_ _
3
3+N
3LD2244-0TK_ _
3LD2244-1TL53
3LD2545-0TK_ _
—
—
3LD2213-0TK_ _
3LD2213-1TL53
3LD2514-0TK_ _
3LD2714-0TK_ _
3LD2814-0TK_ _
3
3+N
3
3
3
—
—
Ampere
Rating
16
120V
1Ø
⁄2
240V 480V
1Ø 3Ø 3Ø
11⁄2 3
1
600V
3Ø
71⁄2
10
1
25
2
3
7 /2
10
15
32
2
3
10
20
20
63
100
125
—
—
—
10
—
—
15
30
40
40
60
75
50
75
100
Note: Shaft length allows a maximum depth from switch mounting surface to the outside of the cover of 15.25" on 25 &
32A switches and of 15.75" on 63-125A switches.
3LD2213-0TK53
Accessories for Front Mounted 3LD2 Switches
Catalog
Number
3LD9200-5B
3LD9200-5BF
1 NO, 1 NC Aux. Contact
1 NO, 1 NC Aux. with Gold Plated Contacts
Switches
Used With
25-125A
25-125A
3LD9220-2B
3LD9250-2BA
3LD9280-2B
Neutral/Ground Terminal
Neutral/Ground Terminal
Neutral/Ground Terminal
25 & 32A
63A
100 & 125A
3LD9220-0B
3LD9250-0BA
3LD9280-0B
4th Pole (leading ON, lagging OFF)
4th Pole (leading ON, lagging OFF)
4th Pole (leading ON, lagging OFF)
25 & 32A
63A
100 & 125A
3LD9224-1B
3LD9284-1B
3LD9224-3B
3LD9284-3B
Black Handle (4 hole mtg.)
Black Handle (4 hole mtg.)
Red/Yellow Handle (4 hole mtg.)
Red/Yellow Handle (4 hole mtg.)
25 & 32A
63-125A
25 & 32A
63-125A
3LD9224-1D
3LD9284-1D
3LD9224-3D
3LD9284-3D
Black Handle (shaft mtg.)
Black Handle (shaft mtg.)
Red/Yellow Handle (shaft mtg.)
Red/Yellow Handle (shaft mtg.)
25 & 32A
63-125A
25 & 32A
63-125A
3LD9221-2A
3LD9251-2A
3LD9281-2A
3LD9221-0A
3LD9251-0A
Terminal
Terminal
Terminal
Terminal
Terminal
25 & 32A
63A
100-125A
25 & 32A
63A
Description
Cover
Cover
Cover
Cover
Cover
1P
1P
1P
3P
3P
(Pack
(Pack
(Pack
(Pack
(Pack
of
of
of
of
of
4)
4)
4)
4)
4)
List
Price $
3LD9220-2C
Accessories for Base Mounted 3LD2 Switches
Catalog
Number
3LD9200-5C
3LD9200-5CF
1 NO, 1 NC Aux. Contact
1 NO, 1 NC Aux. with Gold Plated Contacts
Switches
Used With
25-125A
25-125A
3LD9220-2C
3LD9250-2CA
3LD9280-2C
Neutral/Ground Terminal
Neutral/Ground Terminal
Neutral/Ground Terminal
25 & 32A
63A
100 & 125A
3LD9220-0C
3LD9250-0CA
3LD9280-0C
4th Pole (leading ON, lagging OFF)
4th Pole (leading ON, lagging OFF)
4th Pole (leading ON, lagging OFF)
25 & 32A
63A
100 & 125A
3LD9224-1B
3LD9284-1B
3LD9224-3B
3LD9284-3B
Black Handle (4 hole mtg.)
Black Handle (4 hole mtg.)
Red/Yellow Handle (4 hole mtg.)
Red/Yellow Handle (4 hole mtg.)
25 & 32A
63-125A
25 & 32A
63-125A
3LD9224-1D
3LD9284-1D
3LD9224-3D
3LD9284-3D
Black Handle (shaft mtg.)
Black Handle (shaft mtg.)
Red/Yellow Handle (shaft mtg.)
Red/Yellow Handle (shaft mtg.)
25 & 32A
63-125A
25 & 32A
63-125A
3LD9221-2A
3LD9251-2A
3LD9281-2A
3LD9221-0A
3LD9251-0A
Terminal
Terminal
Terminal
Terminal
Terminal
25 & 32A
63A
100-125A
25 & 32A
63A
Description
Cover
Cover
Cover
Cover
Cover
1P
1P
1P
3P
3P
(Pack
(Pack
(Pack
(Pack
(Pack
of
of
of
of
of
4)
4)
4)
4)
4)
Handles
Add
Add
Can
and line side terminal covers are supplied as
standard with 3LD2 switches.
suffix 51 for a black handle or 53 for a red & yellow
handle to the catalog number. Handles are 1P65 rated and
are also UL listed for Type 1, 4X & 12 applications.
Siemens Industry, Inc.
Industrial Controls Catalog
List
Price $
51 for a black handle or 53 for a red & yellow handle to
the end of the catalog number.
be used as replacement handles on enclosed 3LD2
switches.
Product Category: PILO
3LD9251-0A
Aux.
contacts break about 30 Ms before and make about 3
Ms after main switch contacts.
Ratings
10A
at 120V AC
6A
at 240V AC
1.4A
at 480V AC
18/17
Switches
Disconnect Switches
Compact Non-Fusible —
Selection
Rotary and Toggle
Individual Components
Rotary and Toggle Switches
Catalog
Number
LBR3025
LBR3025D
LBR3040
LBR3060
LBR3080
LBR3100
LBR4040
LBT3040
LBT3060
LBT3080
LBT3100
LBT4040
Switch No. of
Type
Poles
Rotary 3
Rotary 3
Rotary 3
Rotary 3
Rotary 3
Rotary 3
Rotary 4
Toggle 3
Toggle 3
Toggle 3
Toggle 3
Toggle 4
Ampere
Rating
25
25
40
60
80
100
40
40
60
80
100
40
AC Horsepower Ratings
Max
AC 115V 240V
480V
600V
Volt 1Ø
1Ø 3Ø 3Ø
3Ø
3
480
⁄4
2
5
10
—
3
480
⁄4
2
5
10
—
600 2
3 71⁄2 20
25
480 2
5 10
25
—
600 3
10 20
40
50
480 5
15 25
50
—
480 2
3 71⁄2 20
—
1
25
600 2
3 7 ⁄2 20
480 2
5 10
25
—
600 3
10 20
40
50
480 5
15 25
50
—
480 2
3 71⁄2 20
—
List
Price $
Standard Duty Rotary
Switch Door Handles
Heavy Duty Rotary
Switch Door Handle
LBR Type Handles
Catalog
Number
Standard Duty
LBRH2
LBRH3
LBRH4
LBRH9
LBRH10
LBRH5
LBRH6
LBRH7
LBRH8
Heavy Duty
CFSH10B12
CFSH10R12
Used on
Rotary Switches
NEMA
Type
All
All
All
All (Pistol Grip Type)
All (Pistol Grip Type)
25 Amps
3-Pole, 40-60 Amps
3-Pole, 80-100 Amps
4-Pole, 40-60 Amps
1
1,
1,
1,
1,
1
1
1
1
All
All
1, 3R, 12
1, 3R, 12
3R,
3R,
3R,
3R,
12,
12,
12,
12,
4X
4X
4X
4X
Mounting
Marking
Color
Cover
Interlock
Supplied
Door
Door
Door
Door
Door
Direct
Direct
Direct
Direct
ON/OFF
O/I, ON/OFF
O/I, ON/OFF
O/I, ON/OFF
O/I, ON/OFF
O/I
O/I
O/I
O/I
Black
Black
Red/Yel
Black
Red/Yel
Black
Black
Black
Black
No
Yes
Yes
Yes
Yes
—
—
—
—
No
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
O/I, ON/OFF
O/I, ON/OFF
Black
Red/Yel
Yes
Yes
Yes
Yes
Mount
Mount
Mount
Mount
Door
Door
Padlockable
List
Price $
LBR Type Rotary Shafts
Catalog No
Length In. (mm)
For Standard Duty Handles
LBRS040
1.57 (40)
LBRS050
1.97 (50)
LBRS055
2.17 (55)
LBRS080
3.15 (80)
LBRS120
4.72 (120)
LBRS180
7.09 (180)
LBRS305
12.00 (305)
For Heavy Duty Handles
CFSS5200H 7.9 (200)
CFSS5400H 15.7 (400)
List Price $
Rotary Shafts
25 Amp, 4th Pole
Used on Catalog No Catalog No
LBR3025
LBRP25
LBR3025D
LBRP25D
List Price $
LBR Type Toggle Switch Cover Plate
Auxiliary Switch Kits
Used on
Rotary Switch
LBR3025
LBR3025D
LBR3040,
LBR3060
LBR3080,
LBR3100
Catalog
Number
LBRA25 LBRA25D LBRA1 LBRA2 Contact Arrangement
1 NO & 1 NC
1 NO & 1 NC
1 NO/1 NC
with common point
1 NO/1 NC
with common point
List
Price $
Used on
Toggle Switches
LBT3040, LBT3060
LBT3080,LBT3100
LBT4040
cover interlock defeat mechanism provided. To eliminate cover interlock, order additional catalog number
LBRDC1.
LBRH2 is IP54 rated. All others are IP65.
Ratings
15.1A resistive at 250V AC max.
.5A at 125V DC
.25A at 250V DC
.5 HP at 250V AC max.
18/18
Catalog Number
LBTCP1
LBTCP2
LBTCP3
List
Price $
LBR Type Rotary Switch Door Mounting Kit
(For use with LBRH3 & LBRH4 only)
Used on
Rotary Switch
Catalog Number
40-100 Amps
List
Price $
LBRD1
LBR/LBT Neutral Kit Used with
Catalog Number
All
No
Toggle Switch Cover
Plates
Rotary Switch Direct
Mount Handles
Auxiliary
switch contacts break about 30 Ms before and
make about 3 Ms after main switch contacts.
Lug wire ranges:
HF63CX —(1) #14-2 AWG 60/75°C Cu only
Product Category: HDSS
Catalog Number
HF63CX
List
Price $
Only
door mountable and for use with LBRH3 &
4 handles only.
door mounting of 40–100A LBR switches use
door mounting kit LBRD1 & LBRH3 or 4 handle.
For
Siemens Industry, Inc.
Industrial Controls Catalog
Switches
Disconnect Switches
Compact Non-Fusible —
Rotary and Toggle
Dimension Drawings and Wire Ranges
Dimension J Minimum Dept h햲
3.15 in.
(80 mm)
Switch
1.38 in.
(35 mm)
2.92 in.
(74 mm)
1.77 in.
(45 mm)
0.20 in.
(5 mm)
0.87 in.
(22 mm)
1.54 in.
(39 mm)
Dimension J
LBR 40-100A
3.35 (85)
3LD2 25 & 32A Front Shaft Mounted
3LD2 63 Front Shaft Mounted
3LD2 25 &32A Front 4-hole Mounted
3LD2 63A Front 4-hole Mounted
3LD2 100 & 125A Front 4-hole Mounted
3.07 (78)
3.35 (85)
2.13 (54)
2.48 (63)
2.56 (65)
3LD2 25 & 32A Base w/shaft Mtg. Handle
3LD2 63A Base w/shaft Mtg. Handle
3LD2 25 & 32A Base w/4-hole Mtg. Handle
3LD2 63A Base w/4-hole Mtg. Handle
3LD2 100 & 125A Base w/hole Mtg. Handle
6.46 (164)
6.77 (172)
5.59 (142)
5.99 (152)
6.07 (154)
0.71 in.
(18 mm)
J
2.24 in.
(57 mm)
1.42 in.
(36 mm)
햲
C
A
E
F
2.76 in.
(70 mm)
3.35 in.
(85 mm)
Minimum Depth
D
0.16 in.
(4 mm)
햲
G
B
LBR 3025
H
0.31 in.
(8 mm)
Wire Ranges 60/75°C Cu only
25 Amps LBR
(1) #14 - #10 AWG Solid
(1) #14 - #8 AWG Stranded
40 & 60 Amps
LBR & LBT
(1) #14 - #10 AWG Solid
(1) #14 - #4 AWG Stranded
UP to (4) #12 AWG Solid
Up to (3) #12 AWG Stranded
Up to (6) #14 AWG Stranded
Up to (4) #14 AWG Stranded
with (1) #10 AWG Stranded
80 & 100 Amps
LBR & LBT
25A, 3LD21
32A, 3LD22
63A, 3LD25
100, 125A, 3LD2
(1) #14 - #10 AWG Solid
(1) #14 - #1 AWG Stranded
(2) #6 AWG Stranded
Up to (3) #8 AWG Stranded
Up to (6) #10 AWG Stranded
Up to (6) #12 AWG Solid
(1)
(1)
(1)
(1)
#14-8
#14-8
#14-6
#12-1
Drilling
Pattern
.125
(3.2)
LBR 40-100 Amps & 3LD2 25-125A
3.00 in.
(76 mm)
Minimum Depth
.95
(24.1)
C
.877
(22.5)
A
E
F
D
Shaft Mounted
3LD2 Handle Cutout
0.16 in.
(4 mm)
G
B
AWG
AWG
AWG
AWG
H
0.31 in.
(8 mm)
LBT Toggle — 40-100 Amps
Switch
Type
Dimensions Inches (mm)
Switch
Catalog Number A
B
C
Rotary
Rotary
Rotary
Rotary
Rotary
Rotary Front Mtg.
Rotary Front Mtg.
Rotary Front Mtg.
LBR3040
LBR3060
LBR3080
LBR3100
LBR4040
3LD21 & 2 햳
3LD25 햳
3LD27 & 8
2.00
2.00
2.09
2.09
2.42
1.81
2.36
2.40
2.72
2.72
2.92
2.92
2.72
1.97
2.32
2.40
Rotary Base Mtg.
Rotary Base Mtg.
Rotary Base Mtg.
3LD21 & 2
3LD25
3LD27 & 8
1.81 (46)
2.36 (60)
2.80 (71)
2.17 (55)
2.52 (64)
3.27 (83)
2.29 (58)
2.68 (68)
2.76 (70)
—
—
—
Toggle
Toggle
Toggle
Toggle
Toggle
LBT3040
LBT3060
LBT3080
LBT3100
LBT4040
2.00
2.00
2.09
2.09
2.42
2.72
2.72
3.32
3.32
2.72
2.75
2.75
2.90
2.90
2.75
1.78
1.78
1.97
1.97
2.28
햲 Depth
from outside of cover to back of switch.
Siemens Industry, Inc.
Industrial Controls Catalog
(51)
(51)
(53)
(53)
(61)
(46)
(60)
(61)
(51)
(51)
(53)
(53)
(61)
2.72
2.72
3.32
3.32
2.72
2.17
2.52
3.27
(69)
(69)
(84)
(84)
(69)
(55)
(64)
(83)
(69)
(69)
(84)
(84)
(69)
D
(69)
(69)
(74)
(74)
(69)
(50)
(59)
(61)
(70)
(70)
(74)
(74)
(70)
1.78
1.78
1.97
1.97
2.28
—
—
—
E
(45)
(45)
(50)
(50)
(58)
2.16
2.16
2.29
2.29
2.16
—
—
—
F
(55)
(55)
(58)
(58)
(55)
—
—
—
(45)
(45)
(50)
(50)
(58)
2.16
2.16
2.29
2.29
2.16
1.67
1.67
1.69
1.69
1.67
—
—
—
G
(42)
(42)
(42)
(42)
(42)
—
—
—
(55)
(55)
(58)
(58)
(55)
1.67
1.67
1.69
1.69
1.67
1.50
1.50
1.66
1.66
1.50
—
—
—
H
(38)
(38)
(42)
(42)
(38)
—
—
—
(42)
(42)
(42)
(42)
(42)
1.50
1.50
1.66
1.66
1.50
1.22
1.22
1.66
1.66
1.22
—
—
—
(31)
(31)
(42)
(42)
(31)
—
—
—
(38)
(38)
(42)
(42)
(38)
1.22
1.22
1.66
1.66
1.22
(31)
(31)
(42)
(42)
(31)
햳 Handle
front plate dimensions:
3LD21 & 2—2.64 inches square
3LD25, 7 & 8—3.55 inches square
18/19
Switches
Disconnect Switches
Type VBII (30-600A)
with Flange Mounted Operating Handle
Features
▪ 30-600A, 600VAC and DC ratings
▪ UL Recognized (file # E121152 vol. 3)
and CSA Certified under file number
154852
▪ Visible blade quick make and break
switching action
▪ Panel and Flange mounted assemblies
facilite installation
▪ Panel mounted switches are variable
depth
VBFS361, VBLK1 & VBH1
▪ Short circuit rating of 10,000 AIC with
class H fuse, and of 200,000 AIC with
class R or J fuses
▪ Flange mounted handles rated as
either Type1, 3R & 12 or 4X are
padlockable in the off position with up
to (3) padlocks with 5/16 hasps
▪ Meets UL98 requirements and suitable
for both main and branch circuit applications
VBFS363F
▪ A complete line of aux contacts are
available
▪ Load break and horsepower rated
▪ Defeatable cover interlock standard
with all handles
▪ Meets NFPA79 requirements
▪ Seismec qualified – complies with
2007 California Building Code
(CBC)–Zone 4
VBNFS366, VBLK4 & VBH2R
Ordering Information
1. Determine the ratings required (amps,
volts, HP, Fusible, NF), the mounting
needed (Panel or Flange), and select
the appropriate switch.
18/20
2. For panel mounted switches with a
rigid operating shaft (30-600A), order
panel mounted switch flange mounted
operating handle & rigid linkage kit
based on depth required.
3. For panel mounted switches with a
Max-Flex operator, order panel mounted switch, Max-Flex Handle & Adapter
Kit and drive cable.
4. Select accessories if required.
Siemens Industry, Inc.
Industrial Controls Catalog
Switches
Disconnect Switches
Type VBII Switch, Handle and
Linkage Kit Selection
Switches
Switch
Ampere
Rating
Horsepower Rating, Switches and 3-Phase햵
Max. AC
Voltage
Rating
240 Volts AC
Catalog
Number
Standard
480 Volts AC
Max.
Standard
600 Volts AC
Max.
Standard
Max.
600
Volts DC
(max)햵
List
Price $
Fusible Panel Mounted Variable Depth Switches - 3-Pole햶
30
60
30
60
100
200
400
600
240
240
600
600
600
600
600
600
VBFS321
VBFS322
VBFS361
VBFS362
VBFS363
VBFS364
VBFS365
VBFS366
3
7 1/2
—
—
—
—
—
—
7 1/2
15
—
—
—
—
—
—
—
—
5
15
25
50
100
150
—
—
15
30
60
125
250
400
—
—
7 1/2
15
30
60
125
200
—
—
20
50
75
150
350
500
—햲
—햳
15 햴
30 햴
50 햴
50
—햺
—햺
Non-fusible Panel Mounted Variable Depth Switches - 3-Pole햶
30
60
100
200
400
600
600
600
600
600
600
600
—
—
—
—
—
—
10
20
40
60
125
200
—
—
—
—
—
—
20
50
75
125
250
400
—
—
—
—
—
—
30
60
100
150
300
500
15 햴
30 햴
50 햴
50
—햺
—햺
3
7 1/2
—
—
—
—
7 1/2
15
—
—
—
—
—
—
5
15
50
100
—
—
15
30
60
125
—
—
7 1/2
15
30
60
—
—
20
50
75
150
—햲
—햳
15 햴
30 햴
50 햴
50
10
20
40
60
—
—
—
—
20
50
75
125
—
—
—
—
30
60
100
150
15
30
50
50
VBNFS361
VBNFS362
VBNFS363
VBNFS364
VBNFS365
VBNFS366
Fusible Flange Mounted Switches - 3-Pole햷
30
60
30
60
100
200
240
240
600
600
600
600
VBFS321F
VBFS322F
VBFS361F
VBFS362F
VBFS363F
VBFS364F
Non-fusible Flange Mounted Switches - 3-Pole햷
30
60
100
200
600
600
600
600
VBNFS361F
VBNFS362F
VBNFS363F
VBNFS364F
—
—
—
—
햴
햴
햴
Note: Fusible switches include fuse provisions for Class H Fuses. The load base can be moved to pre-drilled holes for Class J Fuses. If Class R Fuses are required add
a Class R Fuse Clip Kit.
Flange Mounted Operating Handles
Cable Kit
For use with Panel Mounted Switches and Rigid Linkage Kits.
Included with Flange Mounted Switches as standard.
For use with 30-200A panel mounted switches and Max-Flex
handle and adapter kit.
Catalog
Number
Description
30-200A Type 1, 3R & 12
FHOEC036
36" long drive cable
30-200A Type 4X
FHOEC048
48" long drive cable
Catalog
Number
Handle Assembly
Description
List
Price $
VBH1
VBH14X
VBH2
400 Type 1 & 12
VBH2R
400 & 600A Type 1, 3R & 12
VBH24X
400 & 600A Type 4X
List
Price $
Rigid Linkage Kits
For use with Panel Mounted Switches. Not required for Flange
Mounted Switches.
Catalog
Number
Switch
Ampere
Rating
VBLK1
VBLK2
30-200
30-200
6.94햹
6.94햹
6.94햹
19.0
VBLK3
VBLK4
400 & 600
400 & 600
9.00
9.00
9.00
19.0
Enclosure Depth햸
Min
Max.
List
Price $
Max-FlexTM Handle and Adapter Kit
(Type 1, 12, 3R & 4X)
Use with 30-200A panel mounted switches and cable kit.
Catalog
Number
Description
VBHM1
30-200A Max-Flex Adapter Kit
햲
List
Price $
Rated 5 HP at 250V DC.
Rated 10 HP at 250V DC.
600V DC & 600V DC horsepower rating shown requires
(2) poles to be connected in series.
햵 Std. - applies when non-time delay fuses are used.
Max. - applies when time delay fuses are used.
햳
햴
Siemens Industry, Inc.
Industrial Controls Catalog
VBNFS361, VBHM1 & FHOEC036
햶
Includes line base, load base, operating mechanism
and line and load lugs. Order operating handle and
linkage kits from tables on this page.
햷 Complete assembly, includes line base, load base,
operating mechanism line and load lugs, operating
handle and required linkage.
Product Category: HDSS
햸
Dimensions (min. & max.) from enclosure mounting
pan to outside surface of enclosure handle mounting
flange.
햹 7.12 for 200A switches.
햺 Rated 250V DC Max and 50HP at 250V DC.
18/21
Switches
Disconnect Switches
Accessories Type VBII
HT63
HR612
HN612
Class R Fuse Clip Kits
Class T Fuse Adapter Kits
200% Neutral Kits햳
These kits prevent the installation of
Class H and K fuses (one kit required per
switch).
100-600A fusible switches are field
convertible to accept Class T fuses.
400-600A switches are field convertible
to accept Class T fuses by moving the
load base to a pre-drilled T fuse
position.
UL listed 200% neutrals are available on
60 & 100A switches. They are typically
used with non-linear transformers or
where increased neutral ampacity/lug
capacity is required.
Class R Fuse Clip Kits
Catalog
Number
List
Price $
Description
Class T Fuse Adapter Kits햲
HR21
30A, 240V Kit (HD only)
HR612
30A, 600V Kit/60A, 240V Kit
HR62
60A, 600V Kit
Catalog
Number
HR63
100A Kit
HT23
100A, 240V Kit
HR64
200A Kit
HT63
100A, 600V Kit
HR656
400A/600A Kit
HT24
200A, 240V Kit
HT64▲
200A, 600V Kit
List
Price $
Description
Class J Fuse Provisions
Neutral Kits햳
All 30-600A, 600V fusible switches are
field convertible to accept Class J fuses
by moving the load base to a pre-drilled
J fuse position.
Standard Neutral Kits can be field
installed in 30-100A switches.
200% Neutral Kits
Switch
Ampere
Rating
60 & 100
Kit
Catalog List
Number Price $
HN263
Wire Range
Line & Load
Lugs (Cu/Al)
(2) #14-1/0 AWG
Neutral Kits
Switch
Ampere Rating
30A 600V, 60A 240V
Kit Catalog
Number
HN612
60A, 600V & 100A
HN623
List Price $
Internal Door Latch Kits
For use with enclosures with door
mounted latching bar. Required when a
flange mounted switch is mounted in a
Hoffmann or Rittal enclosure provided
with an AB cutout.
Catalog
Number
Description
DKR2
2 point (for use with
enclosures less than 40" high)
DKR3
3 point (for use with
enclosures 40" or larger
in height)
List
Price $
Window Kits (Type 1, 12, 3R and 4x)
Allows viewing of visible blades and of
indicating fuses through 200A.
Catalog
Number
Description
VBWK1
30A Window Kit
VBWK2
60 & 100A Window Kit
VBWK3
200-600A Window Kit
List
Price $
▲ Built to order. Allow 6–8 weeks for delivery.
햲 One kit per pole required.
햳 UL approved (not CSA certified).
18/22
Product Category: HDSS
Siemens Industry, Inc.
Industrial Controls Catalog
Switches
Disconnect Switches
Type VBII Accessories
Auxiliary Contacts
The auxiliary contacts are available in 1 normally open and 1 normally closed
or 2 normally open and 2 normally closed configurations. Siemens offers a
PLC Auxiliary Switch (30 -200A) that has very low resistance for low voltage
and current typical in PLC circuits. All auxiliary contacts make after and break
before main switch contacts.
HA161234
Switch
Ampere
Rating
Aux. Switch
Catalog
List
Number
Price $
Kit Ampere Rating
125V AC
Max.
250V AC
Max.
Kit Horsepower Rating
28V DC 125V AC
Max.
Max.
250V AC
Max.
28V DC
Max.
With 1 NO & 1 NC Isolated Contacts
30-200
HA161234
10
10
—
1/2
3/4
—
400-600
HA165678
10
10
—
1/2
3/4
—
With 2 NO & 2 NC Isolated Contacts
30-200
HA261234
10
10
7
1/2
3/4
—
400-600
HA265678
10
10
7
1/2
3/4
—
Low Current PLC Type with 1 NO & 1 NC Gold Plated Contacts
30-200
HA361234
10
10
—
1/2
3/4
—
400-600
HA365678
10
10
—
1/2
3/4
—
HA261234
Fuse Puller Kits
Fuse Puller Kits are field installable in 30-100A Type VBII Heavy Duty
Switches (one kit required per 3 pole switch).
Switch
Ampere
Rating
030
Fuse Puller Kit
Catalog Number
HP61
060
HP62▲
100
HP63▲
List Price $
HP61
Copper Lug Kits
All switches are UL approved to accept field installed copper lug kits.
Switch
Ampere
Rating
30–60
Copper Lug
Catalog
List
Number
Price $
HLC612
Description
(9) Lugs/Kit #14-4 AWG Cu
100
HLC63▲
(9) Lugs/Kit #14-1/0 AWG Cu
200
HLC64▲
(9) Lugs/Kit #6 AWG-300 Kcmil Cu
400–600A HLC65678▲
(1) Lugs/Kit #1/0 AWG-600 Kcmil Cu
Equipment Ground Kits
Equipment Ground Lug Kits are available for all switches.
HLC612
Switch
Ampere
Rating
30–200
Catalog
Number
HG61234
400 & 600
HG656
List
Price $
Number of
Terminals
2
Wire Range
Per Terminal (Cu/Al)
#14-4 AWG
4
#6 AWG-250 Kcmil
▲ Built to order. Allow 6–8 weeks for delivery.
Siemens Industry, Inc.
Industrial Controls Catalog
Product Category: HDSS
18/23
Switches
Disconnect Switches
Type VBII Lug Wire Ranges & Dimensions
Lugs
30 & 60A switches are suitable for use with 60° or 75°C wire. 100–600A
switches are suitable for use with 75°C rated wire. All switches are supplied
with factory installed line and load lugs.
Wire Ranges (Line, Load and Standard Neutral)
Switch
Ampere
Rating
30
60
UL Approved Wire Range
Lug Wire Range
#14-6 AWG (Cu/AI)
#14-2 AWG (Cu/Al)
#14-2 AWG (Cu/AI)
#14-2 AWG (Cu/Al)
100
#14-1/0 AWG (Cu/Al)
#14-1/0 AWG (Cu/Al)
200
#6 AWG-300 Kcmil (Cu/Al)
#6 AWG-300 Kcmil (Cu/Al)
400
1/0 AWG-750 Kcmil (Cu/Al) or
(2) 1/0 AWG-250 Kcmil (Cu/Al)
(1) 1/0 AWG-750 Kcmil (Cu/Al) or
(2) 1/0 AWG-250 Kcmil (Cu/Al)
600
(2) 1/0 AWG-750 Kcmil (Cu/Al) or
(4) 1/0 -250 Kcmil (Cu/Al)
(2) 1/0 AWG-750 Kcmil (Cu/Al) or
(4) 1/0 AWG-250 Kcmil (Cu/Al)
Approximate Dimensions
Mounting bracket shown with handle installed is supplied
with Flange Mounted Switches only. All Panel Mounted
Switches have a “L” shaped mounting pan with a line base,
load base (if fusible) and mechanism installed.
Catalog
Number
A
Fusible, Panel Mounted
B
Dimensions
C
D (min)
D (max)
VBFS321
11.88
N/A
7.47
6.94
19
VBFS322
13.12
N/A
8.50
6.94
19
VBFS361
11.88
N/A
7.47
6.94
19
VBFS362
13.12
N/A
8.50
6.94
19
VBFS363
13.12
N/A
8.50
6.94
19
VBFS364
17
N/A
12.33
7.12
19
VBFS365
26.25
N/A
16.50
8.63
19
VBFS366
26.25
N/A
16.50
8.63
19
B A
Non-fusible, Panel Mounted
VBNFS361
9.79
N/A
7.47
6.94
19
VBNFS362
9.79
N/A
8.50
6.94
19
VBNFS363
9.79
N/A
8.50
6.94
19
VBNFS364
10.77
N/A
12.33
7.12
19
VBNFS365
13
N/A
16.50
8.63
19
VBNFS366
13
N/A
16.50
8.63
19
Fusible, Flange Mounted
D
VBFS321F
11.88
14.08
7.47
7.27
N/A
VBFS322F
13.12
15.83
8.85
7.27
N/A
VBFS361F
11.88
14.08
7.47
7.27
N/A
VBFS362F
13.12
15.83
8.85
7.27
N/A
VBFS363F
13.12
15.83
8.85
7.27
N/A
VBFS364F
17
18.20
12.68
7.57
N/A
C
Non-fusible, Flange Mounted
VBNFS361F
9.79
11.78
7.47
7.27
N/A
VBNFS362F
9.79
11.78
8.85
7.27
N/A
VBNFS363F
9.79
11.78
8.85
7.27
N/A
VBNFS364F
10.77
11.97
12.68
7.57
N/A
Dimension
C for panel mounted switches indicates the minimum width from the left
hand edge of the switch mounting pan to the right hand inside surface of the enclosure.
18/24
Siemens Industry, Inc.
Industrial Controls Catalog
Switches
Disconnect Switches
Type MCS (30-200A) —
Switches, Fuse and No Fuse Kits
Features
▪ 30, 60, 100 and 200 Ampere Switches
▪ UL Recognized (file# 121152 vol. 1 &
2) and CSA Certified
▪ Simple Mounting — with an integral
switch and over center mechanism
▪ Horsepower & load break rated
▪ Compact Size
▪ Visible Blade Contacts
▪ Rugged Construction — with a short
circuit current rating of 10,000 amps
with Class H or 200,000 amps at 600V
maximum AC, when fused with Class
R or Class J fuses
Type MCS Disconnect Switch with
Max-Flex™ handle operator
Type MCS Disconnect Switch with
fixed-depth, flange-mounted handle
Type MCS Disconnect Switch with
rotary handle
Ordering Information
1. Select the basic switch size you need
(30, 60, 100 or 200 ampere).
2. Check the switch selected against the
maximum horsepower rating required
for your application. “L” or “R” suffix on
▪ Available with three operator handle
options, allowing flexible placement
of switch
▪ Field Installable Auxiliary Contacts
▪ Flexible Fuse Class Configurations
18/26 for installation space requirements.
5. Select from the list of handle operators,
the type which best suits your
application. Handle operators can be
selected from the next page.
switch catalog numbers denotes left or
right-handed mechanism drive.
3. Choose either fuse or no fuse kit from
chart below.ng Information
4. Check “Minimum Dimensions” on page
Basic Switches
Maximum Horsepower Rating, 3 Phase햵
Maximum
Voltage
Rating
Catalog
Number
Right
Hand
Catalog
Number
Left
Hand
240 Volts AC
Switch
Ampere
Rating
Standard
Fuse
Time
Delay
Fuse
130
600
MCS603R
MCS603L
13
160
600
MCS606R
MCS606L
171⁄2
MCS610L▲ 15
MCS620L▲ 25
100
600
MCS610R
200
600
MCS620R
480 Volts AC
600 Volts AC
Time
Delay
Fuse
250
Volts
DC
(max)햵
Standard
Fuse
Time
Delay
Fuse
Standard
Fuse
171⁄2
15
115
171⁄2
120
15
15
15
130
15
150
10
30
25
160
30
175
20
60
50
125
60
150
40
List
Price $
Fuse And No Fuse Kits (Includes load base plus line and load fuse clips)햲
Basic
Switch
Ampere
Rating
130
160
100
200
No Fuse Kits
Switch
Catalog
Number
Kit
Description
For Class H
Cu Only햳
Standard
Std
List
Price $
Catalog
Number
List
Price $
Catalog
Number
No Fuse
MCS603R 30A, 250V
or
30A, 600V
MCS603L 60A, 250V
60A, 600V
TMK606
—
—
—
—
—
—
—
—
—
—
—
—
—
—
—
FCK203▲
FCK206
FCK206
FCK606
—
—
—
—
—
No Fuse
MCS606R 60A, 250V
or
60A, 600V
MCS606L 100A, 250V
100A, 600V
TMK606
—
—
—
—
—
—
—
—
—
—
—
—
—
—
—
FCK206
FCK606
OFCK661▲
OFCK661▲
—
—
—
—
—
No Fuse
MCS610R 100A, 250V
or
100A, 600V
MCS610L 200A, 250V
200A, 600V
TMK610
—
—
—
—
TMK610C
—
—
—
—
—
—
—
—
—
FCK610
FCK610
OFCK620
OFCK620
—
—
—
—
—
No Fuse
MCS620R 200A, 250V
or
200A, 600V
MCS620L
TMK620
—
—
—
—
—
FCK620
FCK620
—
—
—
TMK620C▲
—
—
▲ Built to order. Allow 6–8 weeks for delivery.
햲 For “copper only” connectors, order as follows:
Fusible—order standard switch, standard fuse kit and copper only no fuse kit.
Siemens Industry, Inc.
Industrial Controls Catalog
List
Price $
For Class J
Catalog
Number
햲
Std
List
Price $
—
—
FCJK603
—
FCJK606
—
—
햲
—
—
—
FCJK606
OFCK661▲
OFCK661▲
—
—
—
FCK610
FCK610
OFCK620
OFCK620
—
—
FCK620
FCK620
—
Non-Fusible—order standard switch and copper only no
fuse kit.
햳 Includes both line and load lugs.
햴 For Class R fuses order Class H kit from this table and the
Class R conversion kit from the next page.
Product Category: HDSS
For Class R
Catalog
Number
햵
Catalog
Number
Std
List
Price $
—
FCRK203
FCRK206
FCRK206
FCRK606
—
—
FCRK206
FCRK606
—
햲
햴
햴
—
햴
햴
햴
햴
—
햴
햴
Lug
Wire
Size
#14 to
#4 AWG
Cu/AI
—
—
—
—
—
—
—
—
—
—
#14 to
#4 AWG
Cu/AI
#14 to
#2/0 AWG
Cu/AI
#6 to
300 kcmil
Cu/AI
HP ratings for time delay fuses and for 250V DC also
apply to Non-fusible switches.
18/25
Switches
Disconnect Switches
Type MCS (30-200A)
Auxiliary Switch Kits
Class R Fuse Conversion Kits
Contact Arrangement
1 NO/1 NC
Switch
Catalog
Number
Catalog
Number
MCS603R
MCS603L
MCS606R
MCS606L
MCS610R
MCS610L
MCS620R
MCS620L
MCSAKR136
MCSAKL136
MCSAKR136
MCSAKL136
MCSAK116
MCSAK116
MCSAK126
MCSAK126
2 NO/2 NC
List
Price $
Catalog
Number
List
Price $
MCSAKR236
MCSAKL236▲
MCSAKR236
MCSAKL236▲
MCSAK216
MCSAK216
MCSAK226
MCSAK226
Fuse Clip
Rating
Catalog
Number
100A, 600V
200A, 600V
SSRK33
SSRK34
List
Price $
Fuse Ejector Kits
Handle Operators
Switch
Catalog
Number
Fuse
Ejector Kit
Catalog
Number
MCS610
MCS620
FE100▲
FE200▲
List
Price $
Fixed Depth, Flange Mounted, Types 1, 3, 3R, 12 Switch
Catalog
Number
Complete Handle Mechanism
Handle Only
Catalog
Number
Catalog
Number
MCS603R
MCS603L
MCS606R
MCS606L
MCS610R
MCS610L
MCS620R
MCS620L
FDFS06R
FDFS06L
FDFS06R
FDFS06L
FDFS06R
FDFS06L
FDFS20R
FDFS20L
List
Price $
Switch Operator Only
List
Price $
Catalog
Number
FDH10
FDH10
FDH10
FDH10
FDH10
FDH10
FDH20
FDH20
List
Price $
FDS06R
FDS06L
FDS06R
FDS06L
FDS06R
FDS06L
FDS20R
FDS20L
Variable Depth, Flange Mounted Max-Flex™, Types 1, 3, 3R, 12 Switch
Catalog
Number
Complete Handle Mechanism
Handle Only
Catalog
Number
Catalog
Number
MCS603R
MCS603L
MCS606R
MCS606L
MCS610R
MCS610L
MCS620R
MCS620L
FHOS06036R
FHOS06036L
FHOS06036R
FHOS06036L
FHOS06036R
FHOS06036L
FHOS20036R
FHOS20036L
List
Price $
List
Price $
FHOHS
FHOHS
FHOHS
FHOHS
FHOHS
FHOHS
FHOHS
FHOHS
Switch Operator Only
Cable Only Catalog
Number
Catalog
Number
List
Price $
FHOS06R
FHOS06L
FHOS06R
FHOS06L
FHOS06R
FHOS06L
FHOS20R
FHOS20L
FHOEC036
FHOEC036
FHOEC036
FHOEC036
FHOEC036
FHOEC036
FHOJC036
FHOJC036
RHOS06
RHOS06
RHOS06
RHOS20
RHOSVD
RHOSVD
RHOSVD
RHOSVD
List
Price $
Variable Depth Rotary, Through-The-Door-Mounted, Types 1, 12 Variable Depth
MCS603R
MCS606R
MCS610R
MCS620R
Shaft Only Variable Depth
CRHOS06VD
CRHOS06VD
CRHOS06VD
CRHOS20VD
CRHOH
CRHOH
CRHOH
CRHOH
MCS Disconnect Switch Panel Space Requirements
Panel Space Requirements
Minimum Dimensions (inches*)
Switch
Catalog
Number Size
30A/240V
MCS603 30A/600V
30A/600V
60A/240V
MCS606 60A/600V
60A/600V
100A/240V
MCS610 100A/600V
100A/600V
200A/240V
MCS620 200A/600V
200A/600V
▲ Built to order. Allow 6–8 weeks for delivery.
For Type 4 and 4X applications, order handle only
Catalog Number
100A - FDH104 (list price $ )
200A - FDH204 (list price $ )
For Type 4 and 4X applications, order handle only
Catalog Number FHOHS4, List Price $
18/26
“A”
6.13
6.13
6.13
6.13
6.13
6.13
7.38
7.38
7.38
9.17
9.17
9.17
“B”
5.52
5.52
5.52
5.52
5.52
5.52
7.59
7.59
7.59
9.00
9.00
9.00
“C”
8.11
10.11
8.48
7.86
10.38
8.35
11.85
13.85
10.6
14.7
17.2
13.32
Standard
Fuse
Class
H, K, R
H, K, R
J
H, K, R
H, K, R
J
H, K, R
H, K, R
J
H, K, R
H, K, R
J
cable length is 36 inches. Alternate lengths are
available as follows:
Length
Amps
Cat. No.
List Price $
48"
30–100
FHOEC048
60"
30–100
FHOEC060
48"
200
FHOJC048
60"
200
FHOJC060
Product Category: HDSS
“A” – Dimension is measured from each
cross bail pin.
“B” – Dimension is measured from line
side barrier to load side barrier.
“C” – Dimension is measured from line
side terminal of switch to load side
terminal of fuse load base.
For
Type 4 and 4X applications, order handle only
Catalog Number RHOH4, List Price $
Type 3 and 3R applications, order handle only
Catalog Number RHOH, List Price $
Min. enclosure depth from mounting pan to handle mounting surfaces: 30-100A 6.44 Inches
200A 10.93 Inches
*For millimeters multiply inches by 25.4.
For
Siemens Industry, Inc.
Industrial Controls Catalog
Switches
Disconnect Switches
Type CFS Compact Fusible Switches
Features
▪ 30–800A ratings
▪ UL Listed & CSA Certified
▪ IEC 60 947-3 Certified & CE marked
▪ Door mounted rotary handles with
defeatable cover interlock
▪ Meets UL requirements for both main
and branch circuit applications
Switch
CFS363JN with (2) CFSAUX1NO
▪ Compact size
▪ 65 or 100KA with Class CC fuses or up
to 200KA with Class J fuses
▪ Load break and horsepower rated
▪ Quick make and break operation
▪ All handles are padlockable with up to
(3) padlocks with 5/16" hasps in the
OFF position
Shaft
Handle
CFSS10200HN
CFSH10BL12N
▪ Catalog number CFS361C5, CFS361J5
& CNFS361 can be DIN-rail mounted
and can be either front or side operated
with standard rotary handles
▪ Handles are available in Type 1, 3R,
4/4X & 12 ratings
▪ NFPA 79 field installed kits are available
Lugs/Accessories
CFSL200
Ordering Information
1. Select the panel mounted switch
required based on Ampere, HP and
AIC requirements. Switches with a
right hand mechanism are standard.
30-100A switches with a left hand
mechanism are available.
2. Select handle based on environmental
rating required.
3. Select operating shaft (200 or 400mm
in length). For enclosure depths of 9.0"
or less from panel mounting surface to
inside of door use 200mm long shafts.
For deeper enclosures use 400mm
long shafts. 30A 65kA switches can be
used in 10" deep enclosures (panel to
inside of door) with 200mm shaft and
CFSH5N handles.
Note: Be sure to check shaft and handle
compatibility with the switch selected by
using the information provided in the
selection tables.
4. Line & load lugs are provided as
standard on 30–100A switches.
Terminal kits are available for
200–800A switches if needed.
5. Auxiliary contacts are available if
needed as follows:
A. 30A, 65kA switch CFS361C5 and
non-fusible 30A switch CNFS361
will accept up to (4) aux contacts.
B. 30A, 65kA switch CFS361J5 will
accept up to (2) aux contacts
without an aux contact holder.
If more than (2) aux contacts are
required order aux contacts PLUS
aux contact holder kit CFSAUXH1.
All other switches will accept up to
(4) aux contacts.
6. If non-fusible switch is required
order a shorting bar for 60-600A
switches or catalog number CNFS361
for 30A.
7. 30–100A switches are designed to
prevent inadvertent contact with live
parts and shields are not required.
200–800A switches are supplied as
standard with line shields and terminal
shroud kits are available for the load
side.
Note: Availability of new style 200 & 400A switches, catalog numbers CFS364JN & CFS365JN to be announced.
Siemens Industry, Inc.
Industrial Controls Catalog
18/27
Switches
Disconnect Switches
Type CFS Compact Fusible Switches
Fusible Switches, 3-Pole 600V AC Max, 250V DC Max
(CFS364JN & CFS365JN availability to be announced)
Max Horsepower Ratings
Switch
Ampere
Rating
Catalog
Number
Fuse
Provisions
Provided
List
Price $
240V
3Ø AC
480V
3Ø AC
600V
3Ø AC
250V
DC
20
20
20
20
20
50
50
75
150
350
500
500
5
5
5
5
5
10
10
20
40
50
—
—
20
50
75
5
10
20
AC
Short
Circuit
Rating
Standard - with Right Hand Mounted Mechanism
30
30
30
30
30
60
60
100
200
400
600
800
CFS361C5
CFS361J5
CFS361CN
CFS361JN
CNFS361
CFS362JN1
CFS362JN
CFS363JN
CFS364JN
CFS365JN
CFS366J
CFS367L
Class CC
Class J
Class CC
Class J
None
Class J
Class J
Class L
7.5
7.5
7.5
7.5
7.5
15
15
30
60
125
200
200
15
15
15
15
15
30
30
60
125
250
400
400
65kA
65kA
100kA
200kA
65kA
100kA
CFS361J5
200kA
200kA
Optional - with Left Hand Mounted Mechanism
30
60
100
CFS361JLN
CFS362JLN
CFS363JLN
7.5
15
30
Class J
15
30
60
200kA
Operating Shafts for 30–400A switches
Catalog
Number
CFSS5200N
Shaft
Length
In. (mm)
7.9 (200)
List
Price $
CFSS5400N
15.7 (400)
CFSS5200HN
7.9 (200)
CFSS5400HN
15.7 (400)
CFSS10200HN
7.9 (200)
CFSS10400HN
15.7 (400)
CFSS5400N
Switch & Handle Compatibility
5mm x 5mm for use with CFS361C5, CFS361J5 &
CNFS361 switches & with “CFSH5” handles only
5mm x 5mm for use with all “CFSH10” handles & with
CFS361C5, CFS361J5 & CNFS361 switches only
10mm x 10mm for use with all “CFSH10” handles & with
all 30–400A switches except CFS361C5, CFS361J5 & CNFS361
Rotary Operating Handles—Door Mounted (for use with
65kA CFS361C5, CFS361J5 & CNFS361 switches only)
Catalog
Number
CFSH5B12N
CFSH5R12N
List
Price $
CFSH5B4N
CFSH5R4N
Color
Blue & Black
Yellow & Red
Blue & Black
Yellow & Red
UL
Type
Operating Shaft Compatibility
1, 3R & 12
CFSS5200N or CFSS5400N
1, 3R, 12 & 4/4X
CFSH5B12N
Rotary Operating Handles—Door Mounted (for use with
CFSS5200HN, CFSS5400HN, CFSS10200HN & CFSS10400HN)
Catalog
Number
Type 1, 3R &
CFSH10B12N
List
Price $
12
Color
Description
Blue & Black
CFSH10R12N
Heavy duty pistol grip
Yellow & Red (2.75" long for use with 30A switches & CFS362JN1)
CFSH10BL12N
Blue & Black
CFSH10RL12N
Yellow & Red
Heavy duty pistol grip (4.92" long for 30–400A switches)
Type 1, 3R, 4/4X & 12
CFSH10B4N
Blue & Black
CFSH10R4N
Yellow & Red
CFSH10BL4N
Blue & Black
CFSH10RL4N
Yellow & Red
Line
Heavy duty pistol grip
(2.75" long for use with 30A switches & CFS362JN1)
Heavy duty pistol grip (4.92" long for 30–400A switches)
and load lugs included.
and load lugs are not included.
Order from table on next page if required.
DC HP rating shown requires (2) poles to be connected in
series.
Line
18/28
DC
HP rating shown requires (3) poles to be connected in
series.
numbers CFS361C5 & CFS361J5 accept 5mm x
5mm operating shafts. All other 30–400A switches accept
10mm x 10mm operating shafts.
Catalog
Product Category: HDSS
Compact
pistol grip design (2.75" long) with defeatable
cover interlock. Cover can be opened when handle is
padlocked in the OFF position.
Defeatable cover interlock provided. Cover cannot be
opened when handle is padlocked in the OFF position.
Catalog number CNFS361 is a non-fusible switch.
4-Pole 600 & 800A switches, CFS466J & CFS467L are also
available.
Siemens Industry, Inc.
Industrial Controls Catalog
Switches
Disconnect Switches
Type CFS Compact Fusible Switches
600 & 800A Rotary Operating Handles—Door Mounted (8.27" long)햸
Catalog Number
CFSH12BL12
CFSH12RL12
CFSH12BL4
CFSH12RL4
List Price $
Color
Blue & Black
Yellow & Red
Blue & Black
Yellow & Red
UL Type
1, 3R & 12
1, 3R & 12
1, 3R, 12 & 4/4X
1, 3R, 12 & 4/4X
600 & 800A Operating Shafts (Cross section 12X12 mm)
Catalog
Number
CFSS12200H
CFSS12400H
List
Price $
Enclosure Depth
(switch mounting surface to door OD)
10.43 — 16.68 inches
10.43 — 19.84 inches
Shaft Length
In. (mm)
12.59 (320)
15.75 (400)
CFSL200 & 400
Type CFS Fusible Switch Accessories
Catalog
Number
List
Price $
Description
Terminals햲
CFSL200
200A Lug Kit (6 lugs per kit) (1)#6–3/0
CFSL400N
400A Lug Kit (6 lugs per kit) (1)#2–600kcmil
CFSL400
600–800A Lug Kit (6 lugs per kit) (2)#2–600kcmil
Shorting Bars (no fuse kits)
CFSSB60
60A Shorting Bar Kit (3 links per kit)
CFSSB100
100A Shorting Bar Kit (3 links per kit)
CFSSB200
200A Shorting Bar Kit (3 links per kit)
CFSSB400
400A Shorting Bar Kit (3 links per kit)
CFSSB680
600 & 800A Shorting Bar Kit (1 link per kit)
CFSAUX1NC
Auxiliary Contacts (NEMA ratings AC A600 DC N600)
CFSAUXH1햳
Aux Contact Holder (30A 50kA Sws)
CFSAUX1NO
Aux Contact 1 NO (30–800A Sws)
CFSAUX1NC
Aux Contact 1 NC (30–800A Sws)
CFS11AUX
1NO, 1NC Aux Contact Kit for use with CFSNFPA2N & 3N (side mount)
CFS22AUX
2NO, 2NC Aux Contact Kit for use with CFSNFPA2N & 3N (side mount)
Terminal Shrouds (line or load)
CFST200N햷
200A Shroud Kit (Line or load 3-Pole kit)
CFST400N햷
400A Shroud Kit (Line or load 3-Pole kit)
CFSTS680햷
600/800A 3-Pole Shroud Kit
CFSTS6804햷
600/800A 4-Pole Shroud Kit
30A Compact Switch Kits
CFSPLK
Shaft Padlocking Kit for 30A Compact Switch when door is open햴
CFSH5CDM
Direct Mount Handle Kit for CFS361C5
CFSH5JDM
Direct Mount Handle Kit for CFS361J5
CFS5B100 – 400
NFPA 79 Kits
Kits provide an operating shaft suitable for use with all heavy duty handles (not
for use with CFSH5 handles). Kits also provide an internal operating handle & an
internal OFF padlocking provision.
CFSNFPA1햵
For use with CFS361C5, CFS361J5 & CNFS361
CFSNFPA2N햶
For use with CFS361JN, CFS361CN, CFS362JN & CFS363JN
CFSNFPA3N
For use with CFS364JN & CFS365JN
Note: CFSNFPA2N & CFSNFPA3N cannot be used in combination with CFSAUX1NO or CFSAUX1NC auxiliary contacts.
햲
햳
Supplied as standard on 30–100A switches.
CFS361C5 and CNFS361 will accept (4) aux contacts
without an aux contact holder. CFS361J5 will accept (2)
aux contacts without an aux contact holder.
Siemens Industry, Inc.
Industrial Controls Catalog
햴
Supplied as standard on all but 30A compact switches.
12.6 inch (320 mm) long operating shaft included.
11.3 inch (288 mm) long operating shaft included.
햷 Line side terminal shrouds supplied with switch.
햵
햶
Product Category: HDSS
햸
Defeatable cover interlock provided. Cover cannot be
opened when the handle is padlocked in the OFF
position.
18/29
Switches
Disconnect Switches
Type CFS Compact Fusible Switches
UL & CSA Technical Characteristics and Panel Space Requirements
Panel Space Requirements – Inches (mm)
Catalog
Number
Amps
Fuse
Class
AC Short
Circuit Rating
Electrical
Endurance
Mechanical
Endurance
Height
Width
Depth햲
CFS361C5
30
CC
65kA
6000
10000
4.56 (116)
3.78 (96)
6.00 (152)
CFS361J5
30
J
65kA
6000
10000
4.56 (116)
4.15 (96)
6.00 (152)
CFS361CN
30
CC
100kA
6000
10000
5.87 (149)
4.92(125)
6.00 (152)
CFS361JN
30
J
200kA
6000
10000
5.35 (136)
5.89 (150)
6.00 (152)
CFS361JLN
30
J
200kA
6000
10000
5.35 (136)
5.89 (150)
6.00 (152)
CNFS361
30
None
65kA
6000
10000
4.56 (116)
3.78 (96)
6.00 (152)
CFS362JN1
60
J
100kA
6000
10000
5.35 (136)
5.89 (150)
6.00 (152)
CFS362JN
60
J
200kA
6000
10000
7.32 (186)
5.89 (150)
6.00 (152)
CFS362JNL
60
J
200kA
6000
10000
7.32 (186)
5.89 (150)
6.00 (152)
CFS363JN
100
J
200kA
6000
10000
7.32 (186)
5.89 (150)
6.00 (152)
CFS363JNL
100
J
200kA
6000
10000
7.32 (186)
5.89 (150)
6.00 (152)
CFS364JN
200
J
200kA
6000
8000
11.46 (291)
7.72 (196)
6.00 (152)
CFS365JN
400
J
200kA
1000
6000
15.35 (390)
10.19 (259)
8.00 (203)
CFS366J
600
J
200kA
1000
5000
11.81 (300)
14.33 (364)
11 (280)
CFS466J
600
J
200kA
1000
5000
11.81 (300)
18.03 (458)
11 (280)
CFS367L
800
L
200kA
500
3500
11.81 (300)
14.33 (364)
11 (280)
CFS467L
800
L
200kA
500
3500
11.81 (300)
18.03 (458)
11 (280)
Wire Ranges Line & Load Lugs
Switch
Ampere
Rating
UL
Approved
Wire Size (75°C)
Mechanical
Wire Range
of Lug (75°C)
30
#6–10 Cu
#14–10 Cu
60
#6–10 Cu
#10–3 Cu
100
#12–1 Cu
#12–1 Cu
200
#3/0 Cu
#6–3/0 Cu/Al
400
(1) 500 or 600 kcmil Cu
(1)#2–600 kcmil Cu/Al
600
(2) 350 kcmil Cu
(2)#2–600 kcmil Cu/Al
800
(2) 600 kcmil Cu
(2)#2–600 kcmil Cu/Al
햲
Minimum dimension from mounting surface to inside
of cover. Dimensions shown can be decreased if aux
contacts are not required.
18/30
Siemens Industry, Inc.
Industrial Controls Catalog
Download
