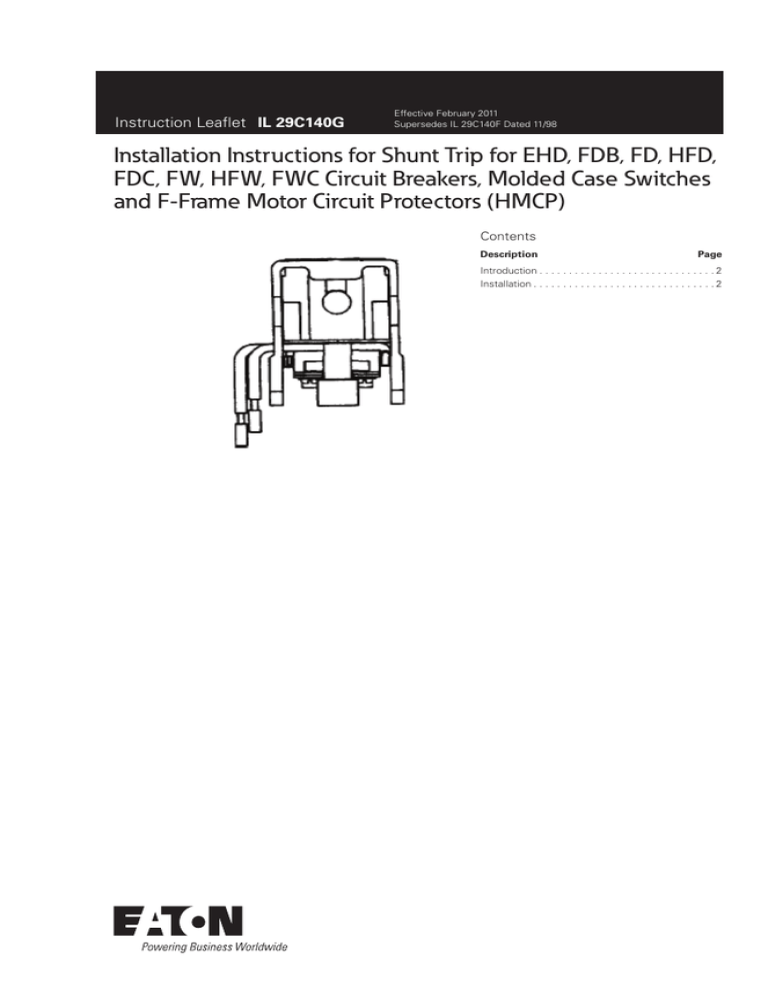

Instruction Leaflet IL 29C140G
Effective February 2011
Supersedes IL 29C140F Dated 11/98
Installation Instructions for Shunt Trip for EHD, FDB, FD, HFD,
FDC, FW, HFW, FWC Circuit Breakers, Molded Case Switches
and F-Frame Motor Circuit Protectors (HMCP)
Contents
Description
Page
Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
Instruction Leaflet IL 29C140G
E ective February 2011
2
EATON CORPORATION www.eaton.com
Installation Instructions for Shunt Trip for EHD, FDB, FD, HFD,
HFW,FWC Circuit Breakers, Molded Case Switches,
and F-Frame Motor Circuit Protectors (HMCP)
Installation Instructions for Shunt Trip for EHD, FDB, FD, HFD,
HFW, FWC Circuit Breakers, Molded Case Switches,
and F-Frame Motor Circuit Protectors (HMCP)
Instruction Leaflet IL 29C140G
E ective February 2011
0
EATON CORPORATION www.eaton.com
3
Instruction Leaflet IL 29C140G
E ective February 2011
4
EATON CORPORATION www.eaton.com
Installation Instructions for Shunt Trip for EHD, FDB, FD, HFD,
HFW,FWC Circuit Breakers, Molded Case Switches,
and F-Frame Motor Circuit Protectors (HMCP)
Installation Instructions for Shunt Trip for EHD, FDB, FD, HFD,
HFW, FWC Circuit Breakers, Molded Case Switches,
and F-Frame Motor Circuit Protectors (HMCP)
Barrier
Instruction Leaflet IL 29C140G
E ective February 2011
Flat Blade
Screwdriver
Solenoid
Plunger
Shunt Trip
Plug-In
Module
Long Leg
of Barrier
Trip
Bar
Slot
Base
Molded
Crossbar
Plug-in
Module
Cutoff
Switch
Cutoff
Switch
Actuator
Arm
Accessory
Operating
Protection
Molded
Crossbar
In Tripped
Position
Trip Bar
In Tripped
Position
EATON CORPORATION www.eaton.com
5
Instruction Leaflet IL 29C140G
E ective February 2011
Installation Instructions for Shunt Trip for EHD, FDB, FD, HFD,
HFW, FWC Circuit Breakers, Molded Case Switches,
and F-Frames Motor Circuit Protectors (HMCP)
Pigtail Leads
R
Control
Voltage
Source
Overcurrent
Protection
Yellow
Device
(Customer Supplied)
When Required
Customer Supplied
Remote Signal
Contact and
Indication (As
Requiered)
ST
White
Terminal Block
R
Control
Voltage
Source
Overcurrent
Protection Device
(Supplied By
Customer)
When Required
ST1
ST
ST2
6
EATON CORPORATION www.eaton.com
Installation Instructions for Shunt Trip for EHD, FDB, FD, HFD,
HFW, FWC Circuit Breakers, Molded Case Switches,
and F-Frame Motor Circuit Protectors (HMCP)
Instruction Leaflet IL 29C140G
E ective February 2011
EATON CORPORATION www.eaton.com
7
Instruction Leaflet IL 29C140G
Effective February 2011
Installation Instructions for Shunt Trip for EHD, FDB, FD, HFD,
HFW, FWC Circuit Breakers, Molded Case Switches,
and F-Frame Motor Circuit Protectors (HMCP)
