LM
Linear modules · Pneumatic · Linear axis
Sizes
25 .. 300
Mass
0.44 kg .. 15.81 kg
Driving force
50 N .. 753 N
Stroke
25 mm .. 450 mm
Repeat accuracy
± 0.005 mm .. ± 0.01 mm
Application example
8
6
7
5
3
4
9
3
10
2
2
1
1

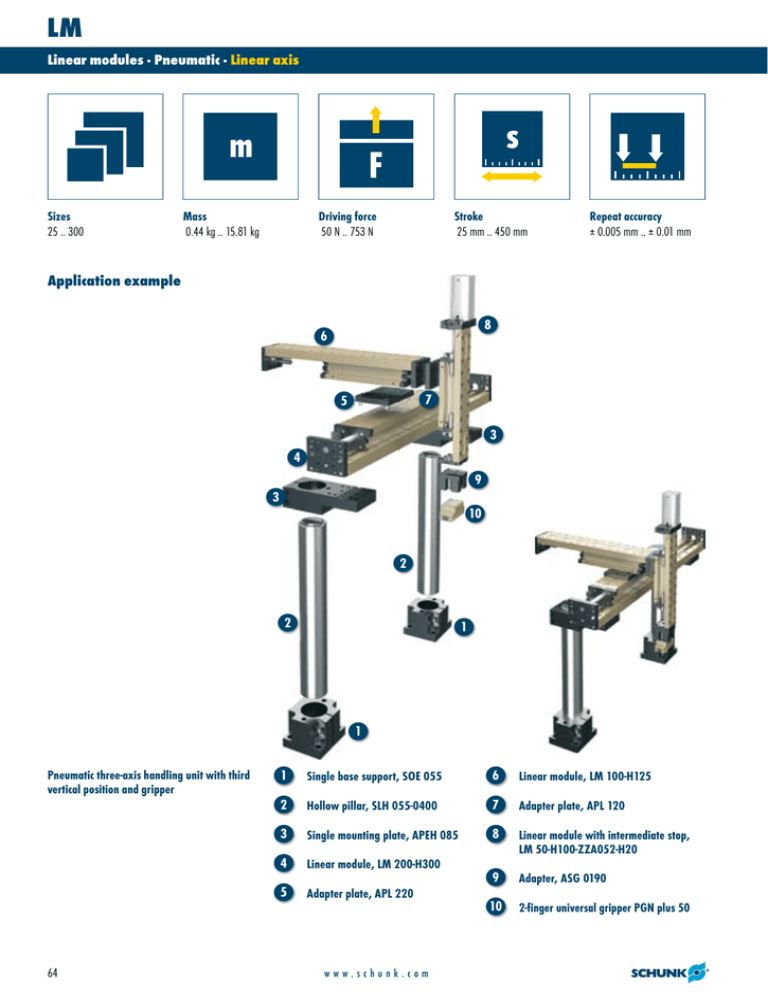

Pneumatic three-axis handling unit with third
vertical position and gripper
64
1
Single base support, SOE 055
6
Linear module, LM 100-H125
2
Hollow pillar, SLH 055-0400
7
Adapter plate, APL 120
3
Single mounting plate, APEH 085
8
4
Linear module, LM 200-H300
Linear module with intermediate stop,
LM 50-H100-ZZA052-H20
5
9
Adapter plate, APL 220
Adapter, ASG 0190
10
2-finger universal gripper PGN plus 50
www.schunk.com
LM
Linear modules · Pneumatic · Linear axis
Stroke module
Pneumatically driven with pre-loaded crossed roller bearings.
Area of application
For use in clean environments, such as assembly and testing systems. Optimal
standard solution for high-precision applications.
Advantages – your benefits
Closed slide construction
For high rigidity
Integrated shock absorbers and proximity switches.
For vibration-free movements and end-position monitoring
Compact dimensions
For minimum interfering contours of the entire system
Pre-loaded crossed roller guides
That means absolutely no backlash
High basic load ratings
In all load directions
Several intermediate positions possible
For maximum flexibility in applications
Standardized mounting bores
For numerous combinations with other GEMOTEC system elements
Level control by means of rod lock
For safety in case of emergency stops
General information about the series
Guidance
Pre-loaded crossed roller bearings
Material
Aluminum, hard-anodized
Actuation
Pneumatic, via filtered compressed air (10 µm): dry, lubricated, or non-lubricated
Pressurizing medium: requirements for compressed air quality class according to DIN
ISO 8573-1:
Quality class 4
Ambient temperature range
From 5°C to 60°C
Operating pressure range
2 bar to 8 bar
Scope of delivery
Including shock absorbers and driver for proximity switch
Warranty
24 months
Rod lock
Can be retrofitted by using a kit
For production reasons, the colors may vary from those shown in the catalog.
www.schunk.com
65
LM
Linear modules · Pneumatic · Linear axis
Cross-section of function
1
Crossed roller guide
With wiper, pre-loaded, and without backlash
3
Modular design hole pattern
Completely integrated in the module system
2
Drive
Powerful piston rod cylinder
4
Dampening adjustment
Adjustment of the dampening characteristic
5
End position setting
Convenient adjustment using the shock
absorber threads
6
Sensor systems
With sensor driver for convenient adjustment
Description of function
Options and special information
The slide is guided with pre-loaded crossed rollers at the base body and driven with
a double-acting pneumatic cylinder which is integrated in the base body.
Fall protection version
Prevents the structure from falling in the event of a sudden loss of energy.
This module can be combined as standard with many elements from the modular
system. You can find more information in the “Accessories” chapter.
66
www.schunk.com
LM
Linear modules · Pneumatic · Linear axis
Accessories
Intermediate stop, ZZA
Intermediate stop,
LMZAW
Rod lock, ASP
Adapter plates
Accessories from SCHUNK
– the ideal components
for the best functionality,
reliability, and controlled
production for all automation modules.
Fittings
Sensor cable
Inductive proximity
switch, NI
Pillar assembly systems
Pressure maintenance
valve
Centering strips
Please see the side views at the end of the respective size for information concerning specific sizes, accessories availability for that size, designation, and ID numbers.
You can find more information about our accessories program in the “Accessories” part of the catalog.
General information about the series
Repeat accuracy
Repeat accuracy is defined as the distribution of the end positions for
100 consecutive cycles.
Travel times
The travel times are pure movement times of the slide or the base body. Valve
switching times, hose filling times, or PLC reaction times are not a part of this and
are to be considered when cycle times are calculated.
Stroke
The stroke is the maximum nominal stroke of the unit. This can shortened on both
sides by the shock absorbers.
Layout or sizing
For layout or sizing of linear modules, we recommend using our TOOLBOX sizing
software, which can be obtained at www.schunk.com. Sizing the selected unit is
absolutely necessary, since otherwise overloading can result.
Ambient conditions
The modules are designed mainly for use in clean ambient conditions. Please
note that the life span of the modules can be shortened if they are used in harsh
ambient conditions and that SCHUNK cannot assume liability in such cases. Please
contact us for assistance.
www.schunk.com
67
LM 25
Linear modules · Pneumatic · Linear axis
Moment load
Designation
LM 25-H025
LM 25-H042
LM 25-H059
Fz
[N]
348
322
299
Mx
[Nm]
4.3
5.1
5.8
My
[Nm]
4.7
5.7
6.7
Mz
[Nm]
2.35
2.85
3.35
Force Fy must be calculated by the TOOLBOX sizing software.
L = 23 mm
The forces and moments shown here are maximum values
for individual loading. If more than one force or moment
occurs simultaneously, the application can be calculated by
the TOOLBOX sizing software.
Technical data
Designation
Stroke length
Extend force [FV] at 6 bar
Retract force [FR] at 6 bar
Piston diameter
Rod diameter
Overall length
Mass
Fluid consumption/10 mm stroke
Minimum pressure
Maximum pressure
Nominal operating pressure
IP rating
Min. ambient temperature
Max. ambient temperature
Repeat accuracy
Horizontal travel time at 1 kg additional load
Vertical travel time at 1 kg additional load
68
ID
[mm]
[N]
[N]
[mm]
[mm]
[mm]
[kg]
[cm³]
[bar]
[bar]
[bar]
[°C]
[°C]
[mm]
[s]
[s]
LM 25-H025
0314050
25
67
50
12
6
135
0.44
1.13
3
8
6
40
5
60
± 0.005
0.17
0.17
www.schunk.com
LM 25-H042
0314051
42
67
50
12
6
169
0.52
1.13
3
8
6
40
5
60
± 0.005
0.18
0.18
LM 25-H059
0314052
59
67
50
12
6
203
0.60
1.13
3
8
6
40
5
60
± 0.005
0.19
0.19
LM 25
Linear modules · Pneumatic · Linear axis
Main views, LM 25-H025
A, a
B, b
1
2

Main and direct connections, extend linear unit
Main and direct connections, retract linear unit
Connection, linear unit
Connection of the assembly
On both attachment faces
Stroke variants
The linear module can be fastened either to the base body or the slide. The structure
can also optionally be fastened to either the slide or the base body. This view shows
the mounting of the module to the base body and the mounting of the structure to
the slide.
Variable dimensions of stroke variants
Type
LM 25-H025
LM 25-H042
LM 25-H059
Stroke
A
B
C
D
E
F
G
[mm] [mm] [mm] [mm] [mm] [mm] [mm] [mm]
25 135 2x34 1x34 18…43
74 1x34 43…18
42 169 3x34 1x34 18…60
91 2x34 60…18
59 203 4x34 2x34 18…77 108 3x34 77…18
Not all dimensions shown can be seen in the main view.
www.schunk.com
69
LM 25
Linear modules · Pneumatic · Linear axis
Fine adjustment
 Stroke
 Stroke adjustment range
 Dampening stroke adjustment range
This illustration shows the possibility of the stroke fine adjustment.
Intermediate stop, ZZA on the piston side
Intermediate stop, ZZA on the piston rod side
 Air connection
 Intermediate stroke
 Overall length “A”, the variant without intermediate stroke (see dimension table of stroke variants)
 Air connection
 Intermediate stroke
 Overall length “A”, the variant without intermediate stroke (see dimension table of stroke variants)
ZZA 26
Holding force at 6 bar
Additional mass at 0 mm stroke
Additional mass per mm stroke
[N]
[kg]
[kg]
54
0.2
0.002
Sample order
LM 25-H59-ZZA026-H15
The intermediate position is measured from the respective end position. The
intermediate position can be approached from both sides and can proceed in the
original stroke direction.. The holding force is the piston force of the intermediate
stop less the piston force of the linear module.
ZZA 27
Holding force at 6 bar
Additional mass at 0 mm stroke
Additional mass per mm stroke
54
0.2
0.002
Sample order
LM 25-H59-ZZA027-H15
The intermediate position is measured from the respective end position. The
intermediate position can be approached from both sides and can proceed in the
original stroke direction.. The holding force is the piston force of the intermediate
stop less the piston force of the linear module.
You can find further information and components for the accessories mentioned here in the “Accessories” part of the catalog.
70
[N]
[kg]
[kg]
www.schunk.com
LM 25
Linear modules · Pneumatic · Linear axis
Sensor systems
End-position monitoring:
Inductive proximity switch, can be directly mounted
Designation
ID
NI 10
0313427
Extension cable for proximity switch
Designation
ID
Remark
STV 10
0313432 Sleeve M8x1, straight
STV 20
0313433 Sleeve M8x1, angled
G enerally, two sensors are needed for each linear unit. For additional monitoring of the intermediate positions, one sensor per additional position as well as (optionally) one extension
cable will be needed.
Deflection under load: fa
Deflection under load: fb
fa in mm
fb in mm
Stroke in mm
Stroke in mm
You can find further information and components for the accessories mentioned here in the “Accessories” part of the catalog.
www.schunk.com
71
LM 50
Linear modules · Pneumatic · Linear axis
Moment load
Designation
LM 050-H013
LM 050-H025
LM 050-H038
LM 050-H050
LM 050-H063
LM 050-H075
LM 050-H088
LM 050-H100
Fz
[N]
806
731
705
683
656
656
627
627
Mx
[Nm]
10.2
10.2
12.6
12.6
14.9
14.9
17.1
17.1
My
[Nm]
11.6
11.6
15.1
15.1
18.6
18.6
22
22
Mz
[Nm]
5.8
5.8
7.55
7.55
9.3
9.3
11
11
Force Fy must be calculated by the TOOLBOX sizing software.
L = 35 mm
The forces and moments shown here are maximum values
for individual loading. If more than one force or moment
occurs simultaneously, the application can be calculated by
the TOOLBOX sizing software.
Technical data
Designation
Stroke length
Extend force [FV] at 6 bar
Retract force [FR] at 6 bar
Piston diameter
Rod diameter
Overall length
Mass
Fluid consumption/10 mm stroke
Minimum pressure
Maximum pressure
Nominal operating pressure
IP rating
Min. ambient temperature
Max. ambient temperature
Repeat accuracy
Horizontal travel time at 3 kg additional load
Vertical travel time at 3 kg additional load
OPTIONS and their characteristics
Fall protection version
Designation
Stroke loss of nominal stroke (on the rod side)
Mass
Static holding force
Max. axial backlash of the clamping
ZZA intermediate stop on the rod side possible
ZZA intermediate stop on the piston side possible
LMZAW intermediate stop possible
72
ID
[mm]
[N]
[N]
[mm]
[mm]
[mm]
[kg]
[cm³]
[bar]
[bar]
[bar]
[°C]
[°C]
[mm]
[s]
[s]
LM 50-H013
0314053
13
120
103
16
6
150
0.88
2.0
3
8
6
40
5
60
± 0.01
0.1
0.11
ID
[mm]
[kg]
[N]
[mm]
www.schunk.com
LM 50-H025
0314054
25
120
103
16
6
150
0.88
2.0
3
8
6
40
5
60
± 0.01
0.11
0.13
LM 50-H038
0314055
38
120
103
16
6
200
1.06
2.0
3
8
6
40
5
60
± 0.01
0.12
0.15
0314454
LM 50-H025-ASP
10
0.91
180
0.2
Yes
Yes
No
0314455
LM 50-H038-ASP
10
1.09
180
0.2
Yes
Yes
No
LM 50
Linear modules · Pneumatic · Linear axis
LM 50-H050
0314056
50
120
103
16
6
200
1.06
2.0
3
8
6
40
5
60
± 0.01
0.14
0.17
LM 50-H063
0314057
63
120
103
16
6
250
1.24
2.0
3
8
6
40
5
60
± 0.01
0.15
0.18
LM 50-H075
0314058
75
120
103
16
6
250
1.24
2.0
3
8
6
40
5
60
± 0.01
0.16
0.2
LM 50-H088
0314059
88
120
103
16
6
300
1.42
2.0
3
8
6
40
5
60
± 0.01
0.17
0.21
LM 50-H100
0314060
100
120
103
16
6
300
1.42
2.0
3
8
6
40
5
60
± 0.01
0.18
0.22
0314456
LM 50-H050-ASP
10
1.09
180
0.2
Yes
Yes
No
0314457
LM 50-H063-ASP
10
1.27
180
0.2
Yes
Yes
No
0314458
LM 50-H075-ASP
10
1.27
180
0.2
Yes
Yes
No
0314459
LM 50-H088-ASP
10
1.45
180
0.2
Yes
Yes
No
0314460
LM 50-H100-ASP
10
1.45
180
0.2
Yes
Yes
No
www.schunk.com
73
LM 50
Linear modules · Pneumatic · Linear axis
Main views, LM 50-H013
A, a
B, b
1
2



Main and direct connections, extend linear unit
Main and direct connections, retract linear unit
Connection, linear unit
Connection of the assembly
On both attachment faces
Back
Through-bores in the face plate and thread in the base body (only single sided)
Stroke variants
The linear module can be fastened either to the base body or the slide. The structure
can also optionally be fastened to either the slide or the base body. This view shows
the mounting of the module to the base body and the mounting of the structure to
the slide.
Variable dimensions of stroke variants
Type
LM 50-H013
LM 50-H025
LM 50-H038
LM 50-H050
LM 50-H063
LM 50-H075
LM 50-H088
LM 50-H0100
Stroke
[mm]
13
25
38
50
63
75
88
100
A
[mm]
150
150
200
200
250
250
300
300
B
[mm]
3x25
3x25
5x25
5x25
7x25
7x25
9x25
9x25
Not all dimensions shown can be seen in the main view.
You can find further information and components for the accessories mentioned here in the “Accessories” part of the catalog.
74
www.schunk.com
C
[mm]
1x25
1x25
2x25
2x25
3x25
3x25
4x25
4x25
D
[mm]
21…34
21…46
21…59
21…71
21…84
21…96
21…109
21…121
E
[mm]
83
83
108
108
133
133
158
158
G
[mm]
46…33
46…21
71…33
71…21
96…33
96…21
121…33
121…21
LM 50
Linear modules · Pneumatic · Linear axis
Fine adjustment
Fine adjustment
 Stroke
 Stroke adjustment range
 Dampening stroke adjustment range
 Stroke
 Stroke adjustment range
 Dampening stroke adjustment range
Shock absorbers can be mounted either on the base body or on the slide. This
illustration shows the mounting on the base body and the possibility of stroke fine
adjustment.
Shock absorbers can be mounted either on the base body or on the slide. This
illustration shows the mounting on the slide and the possibility of stroke fine
adjustment.
Rod lock
Variable dimensions of rod lock
Type
LM 50-H025
LM 50-H038
LM 50-H050
LM 50-H063
LM 50-H075
LM 50-H088
LM 50-H0100
Stroke
[mm]
15
28
40
53
65
78
90
D
[mm]
21…36
21…49
21…61
21…74
21…86
21…99
21…111
E
[mm]
93
118
118
143
143
168
168
G
[mm]
36…21
61…33
61…21
86…33
86…21
111…33
111…21
 Air connection, rod lock
The rod lock prevents weights from falling in the event of energy loss, such as
emergency stop situations. The rod lock can also be retrofitted, but this will reduce
the useful stroke.
You can find further information and components for the accessories mentioned here in the “Accessories” part of the catalog.
www.schunk.com
75
LM 50
Linear modules · Pneumatic · Linear axis
Intermediate stop, ZZA on the piston side
Intermediate stop, ZZA on the piston rod side
 Air connection
 Intermediate stroke
 Overall length “A”, the variant without intermediate stroke (see dimension table of stroke variants)
 Air connection
 Intermediate stroke
 Overall length “A”, the variant without intermediate stroke (see dimension table of stroke variants)
ZZA 51
Holding force at 6 bar
Additional mass at 0 mm stroke
Additional mass per mm stroke
[N]
[kg]
[kg]
175
0.35
0.003
Sample order
LM 50-H100-ZZA051-H30
The intermediate position is measured from the respective end position. The
intermediate position can be approached from both sides and can proceed in the
original stroke direction.. The holding force is the piston force of the intermediate
stop less the piston force of the linear module.
ZZA 52
Holding force at 6 bar
Additional mass at 0 mm stroke
Additional mass per mm stroke
End-position monitoring:
Inductive proximity switch, can be directly mounted
Designation
ID
NI 10
0313427
Remark
Sleeve M8x1, straight
Sleeve M8x1, angled
G enerally, two sensors are needed for each linear unit. For additional monitoring of the intermediate positions, one sensor per additional position as well as (optionally) one extension
cable will be needed.
You can find further information and components for the accessories mentioned here in the “Accessories” part of the catalog.
76
175
0.35
0.003
Sample order
LM 50-H100-ZZA052-H30
The intermediate position is measured from the respective end position. The
intermediate position can be approached from both sides and can proceed in the
original stroke direction.. The holding force is the piston force of the intermediate
stop less the piston force of the linear module.
Sensor systems
Extension cable for proximity switch
Designation
ID
STV 10
0313432
STV 20
0313433
[N]
[kg]
[kg]
www.schunk.com
LM 50
Linear modules · Pneumatic · Linear axis
Deflection under load: fa
Deflection under load: fb
fa in mm
fb in mm
Stroke in mm
Stroke in mm
You can find further information and components for the accessories mentioned here in the “Accessories” part of the catalog.
www.schunk.com
77
LM 100
Linear modules · Pneumatic · Linear axis
Moment load
Designation
LM 100-H25
LM 100-H50
LM 100-H75
LM 100-H100
LM 100-H125
LM 100-H150
LM 100-H175
LM 100-H200
LM 100-H225
Fz
[N]
1.570
1.352
1.352
1.264
1.264
1.216
1.216
1.187
1.187
Mx
[Nm]
34.8
47.1
47.1
58.8
58.8
69.9
69.9
80.5
80.5
My
[Nm]
29.8
43
43
56.3
56.3
69.5
69.5
82.8
82.8
Mz
[Nm]
14.9
21.5
21.5
28.15
28.15
34.75
34.75
41.4
41.4
Force Fy must be calculated by the TOOLBOX sizing software.
L = 44 mm
The forces and moments shown here are maximum values
for individual loading. If more than one force or moment
occurs simultaneously, the application can be calculated by
the TOOLBOX sizing software.
Technical data
Designation
Stroke length
Extend force [FV] at 6 bar
Retract force [FR] at 6 bar
Piston diameter
Rod diameter
Overall length
Mass
Fluid consumption/10 mm stroke
Minimum pressure
Maximum pressure
Nominal operating pressure
IP rating
Min. ambient temperature
Max. ambient temperature
Repeat accuracy
Horizontal travel time at 5 kg additional load
Vertical travel time at 5 kg additional load
OPTIONS and their characteristics
Fall protection version
Designation
Stroke loss of nominal stroke (on the rod side)
Mass
Static holding force
Max. axial backlash of the clamping
ZZA intermediate stop on the rod side possible
ZZA intermediate stop on the piston side possible
LMZAW intermediate stop possible
78
ID
[mm]
[N]
[N]
[mm]
[mm]
[mm]
[kg]
[cm³]
[bar]
[bar]
[bar]
[°C]
[°C]
[mm]
[s]
[s]
ID
[mm]
[kg]
[N]
[mm]
LM 100-H025
0314061
25
294
226
25
12
170
1.9
4.9
3
8
6
40
5
60
± 0.01
0.11
0.11
LM 100-H050
0314062
50
294
226
25
12
270
2.6
4.9
3
8
6
40
5
60
± 0.01
0.15
0.15
LM 100-H075
0314063
75
294
226
25
12
270
2.6
4.9
3
8
6
40
5
60
± 0.01
0.18
0.18
LM 100-H100
0314064
100
294
226
25
12
370
3.3
4.9
3
8
6
40
5
60
± 0.01
0.21
0.21
0314461
LM 100-H025-ASP
12
1.98
600
0.25
Yes
Yes
Yes
0314462
LM 100-H050-ASP
12
2.68
600
0.25
Yes
Yes
Yes
0314463
LM 100-H075-ASP
12
2.68
600
0.25
Yes
Yes
Yes
0314464
LM 100-H100-ASP
12
3.38
600
0.25
Yes
Yes
Yes
www.schunk.com
LM 100
Linear modules · Pneumatic · Linear axis
LM 100-H125
0314065
125
294
226
25
12
370
3.3
4.9
3
8
6
40
5
60
± 0.01
0.24
0.24
LM 100-H150
0314066
150
294
226
25
12
470
4.0
4.9
3
8
6
40
5
60
± 0.01
0.27
0.27
LM 100-H175
0314067
175
294
226
25
12
470
4.0
4.9
3
8
6
40
5
60
± 0.01
0.3
0.3
LM 100-H200
0314068
200
294
226
25
12
570
4.7
4.9
3
8
6
40
5
60
± 0.01
0.33
0.33
LM 100-H225
0314069
225
294
226
25
12
570
4.7
4.9
3
8
6
40
5
60
± 0.01
0.35
0.35
0314465
LM 100-H125-ASP
12
3.38
600
0.25
Yes
Yes
Yes
0314466
LM 100-H150-ASP
12
4.08
600
0.25
Yes
Yes
Yes
0314467
LM 100-H175-ASP
12
4.08
600
0.25
Yes
Yes
Yes
0314468
LM 100-H200-ASP
12
4.78
600
0.25
Yes
Yes
Yes
0314469
LM 100-H225-ASP
12
4.78
600
0.25
Yes
Yes
Yes
www.schunk.com
79
LM 100
Linear modules · Pneumatic · Linear axis
Main views, LM 100-H025
A, a
B, b
1
2



Main and direct connections, extend linear unit
Main and direct connections, retract linear unit
Connection, linear unit
Connection of the assembly
On both attachment faces
Back
Through-bores in the face plate and thread in the base body (only single sided)
Stroke variants
The linear module can be fastened either to the base body or the slide. The structure
can also optionally be fastened to either the slide or the base body. This view shows
the mounting of the module to the base body and the mounting of the structure to
the slide.
Variable dimensions of stroke variants
Type
LM 100-H025
LM 100-H050
LM 100-H075
LM 100-H100
LM 100-H125
LM 100-H150
LM 100-H175
LM 100-H200
LM 100-H225
Stroke
[mm]
25
50
75
100
125
150
175
200
225
A
[mm]
170
270
270
370
370
470
470
570
570
B
[mm]
2x50
4x50
4x50
6x50
6x50
8x50
8x50
10x50
10x50
Not all dimensions shown can be seen in the main view.
You can find further information and components for the accessories mentioned here in the “Accessories” part of the catalog.
80
www.schunk.com
C
[mm]
1x25
3x25
3x25
5x25
5x25
7x25
7x25
9x25
9x25
D
[mm]
25…50
25…75
25…100
25…125
25…150
25…175
25…200
25…225
25…250
E
[mm]
95
145
145
195
195
245
245
295
295
G
[mm]
50…25
100…50
100…25
150…50
150…25
200…50
200…25
250…50
250…25
LM 100
Linear modules · Pneumatic · Linear axis
Fine adjustment
Fine adjustment
 Stroke
 Stroke adjustment range
 Dampening stroke adjustment range
 Stroke
 Stroke adjustment range
 Dampening stroke adjustment range
Shock absorbers can be mounted either on the base body or on the slide. This
illustration shows the mounting on the base body and the possibility of stroke fine
adjustment.
Shock absorbers can be mounted either on the base body or on the slide. This
illustration shows the mounting on the slide and the possibility of stroke fine
adjustment.
Rod lock
Variable dimensions of rod lock
Type
LM 100-H025
LM 100-H050
LM 100-H075
LM 100-H100
LM 100-H125
LM 100-H150
LM 100-H175
LM 100-H200
LM 100-H225
Stroke
[mm]
13
38
63
88
113
138
163
188
213
D
[mm]
25…38
25…63
25…88
25…113
25…138
25…163
25…188
25…213
25…238
E
[mm]
107
157
157
207
207
257
257
307
307
G
[mm]
38…25
88…50
88…25
138…50
138…25
188…50
188…25
238…50
238…25
 Air connection, rod lock
The rod lock prevents weights from falling in the event of energy loss, such as
emergency stop situations. The rod lock can also be retrofitted, but this will reduce
the useful stroke.
You can find further information and components for the accessories mentioned here in the “Accessories” part of the catalog.
www.schunk.com
81
LM 100
Linear modules · Pneumatic · Linear axis
Intermediate stop, ZZA on the piston side
Intermediate stop, ZZA on the piston rod side
 Air connection
 Intermediate stroke
 Overall length “A”, the variant without intermediate stroke (see dimension table of stroke variants)
 Air connection
 Intermediate stroke
 Overall length “A”, the variant without intermediate stroke (see dimension table of stroke variants)
ZZA 101
Holding force at 6 bar
Additional mass at 0 mm stroke
Additional mass per mm stroke
[N]
[kg]
[kg]
460
0.75
0.006
ZZA 102
Holding force at 6 bar
Additional mass at 0 mm stroke
Additional mass per mm stroke
[N]
[kg]
[kg]
460
0.75
0.006
Sample order
LM 100-H100-ZZA101-H30
The intermediate position is measured from the respective end position. The
intermediate position can be approached from both sides and can proceed in the
original stroke direction.. The holding force is the piston force of the intermediate
stop less the piston force of the linear module.
Sample order
LM 100-H100-ZZA102-H30
The intermediate position is measured from the respective end position. The
intermediate position can be approached from both sides and can proceed in the
original stroke direction.. The holding force is the piston force of the intermediate
stop less the piston force of the linear module.
Intermediate stop, LMZAW
Sensor systems
 Air connection
 Stroke
 Grid dimension, stroke adjustment
 Dampening stroke adjustment range
 Stroke fine adjustment range
 Intermediate stroke (min. 12.5 mm / max. useful stroke H-4 mm)
End-position monitoring:
Inductive proximity switch, can be directly mounted
Designation
ID
NI 30-KT
0313429
Designation
ID
Mass [kg]
LMZAW 100
0314115
0.98
Depending on the application, the end position can be approached without a
repeat stroke. The possible operating cycles can be obtained from the operating
manual.
Extension cable for proximity switch
Designation
ID
STV 10
0313432
STV 20
0313433
Generally, two sensors are needed for each linear unit. For additional monitoring of the intermediate positions, one sensor per additional position as well as (optionally) one extension
cable will be needed.
You can find further information and components for the accessories mentioned here in the “Accessories” part of the catalog.
82
Remark
Sleeve M8x1, straight
Sleeve M8x1, angled
www.schunk.com
LM 100
Linear modules · Pneumatic · Linear axis
Deflection under load: fa
Deflection under load: fb
fa in mm
fb in mm
Stroke in mm
Stroke in mm
You can find further information and components for the accessories mentioned here in the “Accessories” part of the catalog.
www.schunk.com
83
LM 200
Linear modules · Pneumatic · Linear axis
Moment load
Designation
L = 56.5 mm
The forces and moments shown here are maximum values
for individual loading. If more than one force or moment
occurs simultaneously, the application can be calculated by
the TOOLBOX sizing software.
LM 200-H025
LM 200-H050
LM 200-H075
LM 200-H100
LM 200-H125
LM 200-H150
LM 200-H175
LM 200-H200
LM 200-H225
LM 200-H250
LM 200-H275
LM 200-H300
LM 200-H325
LM 200-H350
Fz
[N]
1.925
1.925
1.980
1.980
2.010
2.010
2.030
2.030
2.040
2.040
2.050
2.050
2.060
2.060
Mx
[Nm]
48
48
67
67
87
87
105
105
123
123
140
140
156
156
My
[Nm]
63
63
90
90
117
117
144
144
171
171
198
198
225
225
Mz
[Nm]
31.5
31.5
45
45
58.5
58.5
72
72
85.5
85.5
99
99
112.5
112.5
Force Fy must be calculated by the TOOLBOX sizing software.
Technical data
Designation
Stroke length
Extend force [FV] at 6 bar
Retract force [FR] at 6 bar
Piston diameter
Rod diameter
Overall length
Mass
Fluid consumption/10 mm stroke
Minimum pressure
Maximum pressure
Nominal operating pressure
IP rating
Min. ambient temperature
Max. ambient temperature
Repeat accuracy
Horizontal travel time at 10 kg additional load
Vertical travel time at 10 kg additional load
OPTIONS and their characteristics
Fall protection version
Designation
Stroke loss of nominal stroke (on the rod side)
Mass
Static holding force
Max. axial backlash of the clamping
ZZA intermediate stop on the rod side possible
ZZA intermediate stop on the piston side possible
LMZAW intermediate stop possible
84
ID
[mm]
[N]
[N]
[mm]
[mm]
[mm]
[kg]
[cm³]
[bar]
[bar]
[bar]
[°C]
[°C]
[mm]
[s]
[s]
ID
[mm]
[kg]
[N]
[mm]
LM 200-H025
0314070
25
482
415
32
12
224
3.9
8.04
3
8
6
40
5
60
± 0.01
0.09
0.09
LM 200-H050
0314071
50
482
415
32
12
224
3.9
8.04
3
8
6
40
5
60
± 0.01
0.12
0.12
LM 200-H075
0314072
75
482
415
32
12
324
5.0
8.04
3
8
6
40
5
60
± 0.01
0.16
0.16
LM 200-H100
0314073
100
482
415
32
12
324
5.0
8.04
3
8
6
40
5
60
± 0.01
0.18
0.18
LM 200-H125
0314074
125
482
415
32
12
424
6.1
8.04
3
8
6
40
5
60
± 0.01
0.21
0.22
LM 200-H150
0314075
150
482
415
32
12
424
6.1
8.04
3
8
6
40
5
60
± 0.01
0.23
0.24
0314470
0314471
0314472
0314473
0314474
0314475
LM 200-H025-ASP LM 200-H050-ASP LM 200-H075-ASP LM 200-H100-ASP LM 200-H125-ASP LM 200-H150-ASP
12
12
12
12
12
12
3.99
3.99
5.09
5.09
6.19
6.19
600
600
600
600
600
600
0.25
0.25
0.25
0.25
0.25
0.25
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
www.schunk.com
LM 200
Linear modules · Pneumatic · Linear axis
LM 200-H175
0314076
175
482
415
32
12
524
7.2
8.04
3
8
6
40
5
60
± 0.01
0.26
0.28
LM 200-H200
0314077
200
482
415
32
12
524
7.2
8.04
3
8
6
40
5
60
± 0.01
0.28
0.3
LM 200-H225
0314078
225
482
415
32
12
624
8.3
8.04
3
8
6
40
5
60
± 0.01
0.31
0.34
LM 200-H250
0314079
250
482
415
32
12
624
8.3
8.04
3
8
6
40
5
60
± 0.01
0.33
0.36
LM 200-H275
0314080
275
482
415
32
12
724
9.4
8.04
3
8
6
40
5
60
± 0.01
0.36
0.4
LM 200-H300
0314081
300
482
415
32
12
724
9.4
8.04
3
8
6
40
5
60
± 0.01
0.37
0.42
LM 200-H325
0314082
325
482
415
32
12
824
10.5
8.04
3
8
6
40
5
60
± 0.01
0.4
0.47
LM 200-H350
0314083
350
482
415
32
12
824
10.5
8.04
3
8
6
40
5
60
± 0.01
0.42
0.48
0314476
LM 200-H175-ASP
12
7.29
600
0.25
Yes
Yes
Yes
0314477
LM 200-H200-ASP
12
7.29
600
0.25
Yes
Yes
Yes
0314478
LM 200-H225-ASP
12
8.39
600
0.25
Yes
Yes
Yes
0314479
LM 200-H250-ASP
12
8.39
600
0.25
Yes
Yes
Yes
0314480
LM 200-H275-ASP
12
9.49
600
0.25
Yes
Yes
Yes
0314481
LM 200-H300-ASP
12
9.49
600
0.25
Yes
Yes
Yes
0314482
LM 200-H325-ASP
12
10.59
600
0.25
Yes
Yes
Yes
0314483
LM 200-H350-ASP
12
10.59
600
0.25
Yes
Yes
Yes
www.schunk.com
85
LM 200
Linear modules · Pneumatic · Linear axis
Main views, LM 200-H025
A, a
B, b
1
2




Main and direct connections, extend linear unit
Main and direct connections, retract linear unit
Connection, linear unit
Connection of the assembly
On both attachment faces
Back
Through-bores in the face plate and thread in the base body (only single sided)
Sensors and shock absorbers can also be fastened to the back. For variant H025, the shock absorbers
have to be fastened crosswise.
Stroke variants
The linear module can be fastened either to the base body or the slide. The structure
can also optionally be fastened to either the slide or the base body. This view shows
the mounting of the module to the base body and the mounting of the structure to
the slide.
Variable dimensions of stroke variants
Type
Not all dimensions shown can be seen in the main view.
LM 200-H025
LM 200-H050
LM 200-H075
LM 200-H100
LM 200-H125
LM 200-H150
LM 200-H175
LM 200-H200
LM 200-H225
LM 200-H250
LM 200-H275
LM 200-H300
LM 200-H325
LM 200-H350
Stroke
[mm]
25
50
75
100
125
150
175
200
225
250
275
300
325
350
A
[mm]
224
224
324
324
424
424
524
524
624
624
724
724
824
824
B
[mm]
2x50
2x50
4x50
4x50
6x50
6x50
8x50
8x50
10x50
10x50
12x50
12x50
14x50
14x50
You can find further information and components for the accessories mentioned here in the “Accessories” part of the catalog.
86
www.schunk.com
C
[mm]
1x50
1x50
2x50
2x50
3x50
3x50
4x50
4x50
5x50
5x50
6x50
6x50
7x50
7x50
D
[mm]
27…52
27…77
27…102
27…127
27…152
27…177
27…202
27…227
27…252
27…277
27…302
27…327
27…352
27…377
E
[mm]
120
120
170
170
220
220
270
270
320
320
370
370
420
420
G
[mm]
77…52
77…27
127…52
127…27
177…52
177…27
227…52
227…27
277…52
277…27
327…52
327…27
377…52
377…27
LM 200
Linear modules · Pneumatic · Linear axis
Fine adjustment
Fine adjustment
 Stroke
 Stroke adjustment range
 Dampening stroke adjustment range
 Stroke
 Stroke adjustment range
 Dampening stroke adjustment range
Shock absorbers can be mounted either on the base body or on the slide. This
illustration shows the mounting on the base body and the possibility of stroke fine
adjustment.
Shock absorbers can be mounted either on the base body or on the slide. This
illustration shows the mounting on the slide and the possibility of stroke fine
adjustment.
Rod lock
Variable dimensions of rod lock
Type
 Air connection, rod lock
The rod lock prevents weights from falling in the event of energy loss, such as
emergency stop situations. The rod lock can also be retrofitted, but this will reduce
the useful stroke.
LM 200-H025
LM 200-H050
LM 200-H075
LM 200-H100
LM 200-H125
LM 200-H150
LM 200-H175
LM 200-H200
LM 200-H225
LM 200-H250
LM 200-H275
LM 200-H300
LM 200-H325
LM 200-H350
Stroke
[mm]
13
38
63
88
113
138
163
188
213
238
263
288
313
338
D
[mm]
27…40
27…65
27…90
27…115
27…140
27…165
27…190
27…215
27…240
27…265
27…290
27…315
27…340
27…365
E
[mm]
132
132
182
182
232
232
282
282
332
332
382
382
432
432
G
[mm]
65…52
65…27
115…52
115…27
165…52
165…27
215…52
215…27
265…52
265…27
315…52
315…27
365…52
365…27
You can find further information and components for the accessories mentioned here in the “Accessories” part of the catalog.
www.schunk.com
87
LM 200
Linear modules · Pneumatic · Linear axis
Intermediate stop, ZZA on the piston side
Intermediate stop, ZZA on the piston rod side
 Air connection
 Intermediate stroke
 Overall length “A”, the variant without intermediate stroke (see dimension table of stroke variants)
 Air connection
 Intermediate stroke
 Overall length “A”, the variant without intermediate stroke (see dimension table of stroke variants)
ZZA 201
Holding force at 6 bar
Additional mass at 0 mm stroke
Additional mass per mm stroke
[N]
[kg]
[kg]
696
0.9
0.008
ZZA 202
Holding force at 6 bar
Additional mass at 0 mm stroke
Additional mass per mm stroke
[N]
[kg]
[kg]
696
0.9
0.008
Sample order
LM 200-H100-ZZA201-H30
The intermediate position is measured from the respective end position. The
intermediate position can be approached from both sides and can proceed in the
original stroke direction.. The holding force is the piston force of the intermediate
stop less the piston force of the linear module.
Sample order
LM 200-H100-ZZA202-H30
The intermediate position is measured from the respective end position. The
intermediate position can be approached from both sides and can proceed in the
original stroke direction.. The holding force is the piston force of the intermediate
stop less the piston force of the linear module.
Intermediate stop, LMZAW
Sensor systems
 Air connection
 Stroke
 Grid dimension, stroke adjustment
 Dampening stroke adjustment range
 Stroke fine adjustment range
 Intermediate stroke (min. 18.5 mm / max. useful stroke H-5 mm)
End-position monitoring:
Inductive proximity switch, can be directly mounted
Designation
ID
NI 30-KT
0313429
Designation
ID
Mass [kg]
LMZAW 200
0314116
1.4
Depending on the application, the end position can be approached without a
repeat stroke. The possible operating cycles can be obtained from the operating
manual.
Extension cable for proximity switch
Designation
ID
STV 10
0313432
STV 20
0313433
Generally, two sensors are needed for each linear unit. For additional monitoring of the intermediate positions, one sensor per additional position as well as (optionally) one extension
cable will be needed.
You can find further information and components for the accessories mentioned here in the “Accessories” part of the catalog.
88
Remark
Sleeve M8x1, straight
Sleeve M8x1, angled
www.schunk.com
LM 200
Linear modules · Pneumatic · Linear axis
Deflection under load: fa
Deflection under load: fb
fa in mm
fb in mm
Stroke in mm
fa in mm
Stroke in mm
fb in mm
Stroke in mm
Stroke in mm
You can find further information and components for the accessories mentioned here in the “Accessories” part of the catalog.
www.schunk.com
89
LM 300
Linear modules · Pneumatic · Linear axis
Moment load
Designation
L = 64.5 mm
The forces and moments shown here are maximum values
for individual loading. If more than one force or moment
occurs simultaneously, the application can be calculated by
the TOOLBOX sizing software.
LM 300-H025
LM 300-H050
LM 300-H075
LM 300-H100
LM 300-H125
LM 300-H150
LM 300-H175
LM 300-H200
LM 300-H225
LM 300-H250
LM 300-H275
LM 300-H300
LM 300-H325
LM 300-H350
LM 300-H375
LM 300-H400
LM 300-H425
LM 300-H450
Mx
[Nm]
66
66
85
85
103
103
121
121
138
138
155
155
171
171
186
186
201
201
My
[Nm]
63
63
90
90
117
117
144
144
171
171
198
198
225
225
252
252
279
279
Mz
[Nm]
31.5
31.5
45
45
58.5
58.5
72
72
85.5
85.5
99
99
112.5
112.5
126
126
139.5
139.5
Force Fy must be calculated by the TOOLBOX sizing software.
Technical data
Designation
ID
[mm]
[N]
[N]
[mm]
[mm]
[mm]
[kg]
[cm³]
[bar]
[bar]
[bar]
Stroke length
Extend force [FV] at 6 bar
Retract force [FR] at 6 bar
Piston diameter
Rod diameter
Overall length
Mass
Fluid consumption/10 mm stroke
Minimum pressure
Maximum pressure
Nominal operating pressure
IP rating
Min. ambient temperature
[°C]
Max. ambient temperature
[°C]
Repeat accuracy
[mm]
Horizontal travel time at 10 kg additional load [s]
Vertical travel time at 10 kg additional load [s]
OPTIONS and their characteristics
Fall protection version
ID
Designation
Stroke loss of nominal stroke (on the rod side)[mm]
Mass
[kg]
Static holding force
[N]
Max. axial backlash of the clamping
[mm]
ZZA intermediate stop on the rod side possible
ZZA intermediate stop on the piston side possiLMZAW intermediate stop possible
90
Fz
[N]
1.925
1.925
1.980
1.980
2.010
2.010
2.030
2.030
2.040
2.040
2.050
2.050
2.060
2.060
2.065
2.065
2.070
2.070
LM 300-H025
0314084
25
753
633
40
16
224
4.85
12.57
3
8
6
40
5
60
± 0.01
0.09
0.09
LM 300-H050
0314085
50
753
633
40
16
224
4.85
12.57
3
8
6
40
5
60
± 0.01
0.12
0.13
LM 300-H075
0314086
75
753
633
40
16
324
6.2
12.57
3
8
6
40
5
60
± 0.01
0.17
0.18
LM 300-H100
0314087
100
753
633
40
16
324
6.2
12.57
3
8
6
40
5
60
± 0.01
0.19
0.21
LM 300-H125
0314088
125
753
633
40
16
424
7.55
12.57
3
8
6
40
5
60
± 0.01
0.24
0.26
LM 300-H150
0314089
150
753
633
40
16
424
7.55
12.57
3
8
6
40
5
60
± 0.01
0.26
0.29
LM 300-H175
0314090
175
753
633
40
16
524
8.9
12.57
3
8
6
40
5
60
± 0.01
0.3
0.34
0314484
0314485
0314486
0314487
0314488
0314489
0314490
LM 300-H025-ASP LM 300-H050-ASP LM 300-H075-ASP LM 300-H100-ASP LM 300-H125-ASP LM 300-H150-ASP LM 300-H175-ASP
18
18
18
18
18
18
18
5.01
5.01
6.36
6.36
7.71
7.71
9.06
1000
1000
1000
1000
1000
1000
1000
0.25
0.25
0.25
0.25
0.25
0.25
0.25
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
www.schunk.com
LM 300
Linear modules · Pneumatic · Linear axis
LM 300-H200 LM 300-H225 LM 300-H250 LM 300-H275 LM 300-H300 LM 300-H325 LM 300-H350 LM 300-H375 LM 300-H400 LM 300-H425 LM 300-H450
0314091
0314092
0314093
0314094
0314095
0314096
0314097
0314098
0314099
0314100
0314101
200
225
250
275
300
325
350
375
400
425
450
753
753
753
753
753
753
753
753
753
753
753
633
633
633
633
633
633
633
633
633
633
633
40
40
40
40
40
40
40
40
40
40
40
16
16
16
16
16
16
16
16
16
16
16
524
624
624
724
724
824
824
924
924
1024
1024
8.9
10.25
10.25
11.6
11.6
12.95
12.95
14.3
14.3
15.65
15.65
12.57
12.57
12.57
12.57
12.57
12.57
12.57
12.57
12.57
12.57
12.57
3
3
3
3
3
3
3
3
3
3
3
8
8
8
8
8
8
8
8
8
8
8
6
6
6
6
6
6
6
6
6
6
6
40
40
40
40
40
40
40
40
40
40
40
5
5
5
5
5
5
5
5
5
5
5
60
60
60
60
60
60
60
60
60
60
60
± 0.01
± 0.01
± 0.01
± 0.01
± 0.01
± 0.01
± 0.01
± 0.01
± 0.01
± 0.01
± 0.01
0.33
0.37
0.4
0.45
0.47
0.52
0.54
0.6
0.62
0.68
0.7
0.37
0.42
0.45
0.51
0.53
0.6
0.62
0.7
0.72
0.8
0.82
0314491
0314492
0314493
LM 300-H200- LM 300-H225- LM 300-H25018
18
18
9.06
10.41
10.41
1000
1000
1000
0.25
0.25
0.25
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
0314494
0314495
0314496
0314497
LM 300-H275- LM 300-H300- LM 300-H325- LM 300-H35018
18
18
18
11.76
11.76
13.11
13.11
1000
1000
1000
1000
0.25
0.25
0.25
0.25
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
www.schunk.com
0314498
0314499
0314500
0314501
LM 300-H375- LM 300-H400- LM 300-H425- LM 300-H45018
18
18
18
14.46
14.46
15.81
15.81
1000
1000
1000
1000
0.25
0.25
0.25
0.25
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
91
LM 300
Linear modules · Pneumatic · Linear axis
Main views, LM 300-H025
A, a
B, b
1
2




Main and direct connections, extend linear unit
Main and direct connections, retract linear unit
Connection, linear unit
Connection of the assembly
On both attachment faces
Back
Through-bores in the face plate and thread in the base body (only single sided)
Sensors and shock absorbers can also be fastened to the back. For variant H025, the shock absorbers
have to be fastened crosswise.
Stroke variants
Not all dimensions shown can be seen in the main view.
92
The linear module can be fastened either to the base body or the slide. The structure
can also optionally be fastened to either the slide or the base body. This view shows
the mounting of the module to the base body and the mounting of the structure to
the slide.
Variable dimensions of stroke variants
Stroke
[mm]
LM 300-H025
25
LM 300-H050
50
LM 300-H075
75
LM 300-H100
100
LM 300-H125
125
LM 300-H150
150
LM 300-H175
175
LM 300-H200
200
LM 300-H225
225
LM 300-H250
250
LM 300-H275
275
LM 300-H300
300
LM 300-H325
325
LM 300-H350
350
LM 300-H375
375
LM 300-H400
400
LM 300-H425
425
LM 300-H450
450
Type
www.schunk.com
A
[mm]
224
224
324
324
424
424
524
524
624
624
724
724
824
824
924
924
1024
1024
B
[mm]
2x50
2x50
4x50
4x50
6x50
6x50
8x50
8x50
10x50
10x50
12x50
12x50
14x50
14x50
16x50
16x50
18x50
18x50
C
[mm]
1x50
1x50
2x50
2x50
3x50
3x50
4x50
4x50
5x50
5x50
6x50
6x50
7x50
7x50
8x50
8x50
9x50
9x50
D
[mm]
27…52
27…77
27…102
27…127
27…152
27…177
27…202
27…227
27…252
27…277
27…302
27…327
27…352
27…377
27…402
27…427
27…452
27…477
E
[mm]
120
120
170
170
220
220
270
270
320
320
370
370
420
420
470
470
520
520
G
[mm]
77…52
77…27
127…52
127…27
177…52
177…27
227…52
227…27
277…52
277…27
327…52
327…27
377…52
377…27
427…52
427…27
477…52
477…27
LM 300
Linear modules · Pneumatic · Linear axis
Fine adjustment
Fine adjustment
 Stroke
 Stroke adjustment range
 Dampening stroke adjustment range
 Stroke
 Stroke adjustment range
 Dampening stroke adjustment range
Shock absorbers can be mounted either on the base body or on the slide. This
illustration shows the mounting on the base body and the possibility of stroke fine
adjustment.
Shock absorbers can be mounted either on the base body or on the slide. This
illustration shows the mounting on the base body and the possibility of stroke fine
adjustment.
Rod lock
Variable dimensions of rod lock
Type
 Air connection, rod lock
The rod lock prevents weights from falling in the event of energy loss, such as
emergency stop situations. The rod lock can also be retrofitted, but this will reduce
the useful stroke.
LM 300-H025
LM 300-H050
LM 300-H075
LM 300-H100
LM 300-H125
LM 300-H150
LM 300-H175
LM 300-H200
LM 300-H225
LM 300-H250
LM 300-H275
LM 300-H300
LM 300-H325
LM 300-H350
LM 300-H375
LM 300-H400
LM 300-H425
LM 300-H450
Stroke
[mm]
7
32
57
82
107
132
157
182
207
232
257
282
307
332
357
382
407
432
D
[mm]
27…34
27…59
27…84
27…109
27…134
27…159
27…184
27…209
27…234
27…259
27…284
27…309
27…334
27…359
27…384
27…409
27…434
27…459
E
[mm]
138
138
188
188
238
238
288
288
338
338
388
388
438
438
488
488
538
538
G
[mm]
59…52
59…27
109…52
109…27
159…52
159…27
209…52
209…27
259…52
259…27
309…52
309…27
359…52
359…27
409…52
409…27
459…52
459…27
You can find further information and components for the accessories mentioned here in the “Accessories” part of the catalog.
www.schunk.com
93
LM 300
Linear modules · Pneumatic · Linear axis
Intermediate stop, ZZA on the piston side
Intermediate stop, ZZA on the piston rod side
 Air connection
 Intermediate stroke
 Overall length “A”, the variant without intermediate stroke (see dimension table of stroke variants)
 Air connection
 Intermediate stroke
 Overall length “A”, the variant without intermediate stroke (see dimension table of stroke variants)
ZZA 301
Holding force at 6 bar
Additional mass at 0 mm stroke
Additional mass per mm stroke
[N]
[kg]
[kg]
1117
1.7
0.011
ZZA 302
Holding force at 6 bar
Additional mass at 0 mm stroke
Additional mass per mm stroke
[N]
[kg]
[kg]
1117
1.7
0.011
Sample order
LM 300-H100-ZZA301-H30
The intermediate position is measured from the respective end position. The
intermediate position can be approached from both sides and can proceed in the
original stroke direction.. The holding force is the piston force of the intermediate
stop less the piston force of the linear module.
Sample order
LM 300-H100-ZZA302-H30
The intermediate position is measured from the respective end position. The
intermediate position can be approached from both sides and can proceed in the
original stroke direction.. The holding force is the piston force of the intermediate
stop less the piston force of the linear module.
Intermediate stop, LMZAW
Sensor systems
 Air connection
 Stroke
 Grid dimension, stroke adjustment
 Dampening stroke adjustment range
 Stroke fine adjustment range
 Intermediate stroke (min. 18.5 mm / max. useful stroke H-5 mm)
End-position monitoring:
Inductive proximity switch, can be directly mounted
Designation
ID
NI 30-KT
0313429
Designation
ID
Mass [kg]
LMZAW 300
0314117
1.6
Depending on the application, the end position can be approached without a
repeat stroke. The possible operating cycles can be obtained from the operating
manual.
Extension cable for proximity switch
Designation
ID
STV 10
0313432
STV 20
0313433
G enerally, two sensors are needed for each linear unit. For additional monitoring of the intermediate positions, one sensor per additional position as well as (optionally) one extension
cable will be needed.
You can find further information and components for the accessories mentioned here in the “Accessories” part of the catalog.
94
Remark
Sleeve M8x1, straight
Sleeve M8x1, angled
www.schunk.com
LM 300
Linear modules · Pneumatic · Linear axis
Deflection under load: fa
Deflection under load: fb
fa in mm
fb in mm
LM 300-H175..H200
LM 300-H125..H150
LM 300-H075..H100
LM 300-H025..H050
0,5
0,4
0,3
0,2
0,1
0,0
fa [mm]
s [mm]
0
50
100
150
200
Stroke in mm
fa in mm
Stroke in mm
fb in mm
Stroke in mm
Stroke in mm
You can find further information and components for the accessories mentioned here in the “Accessories” part of the catalog.
www.schunk.com
95
