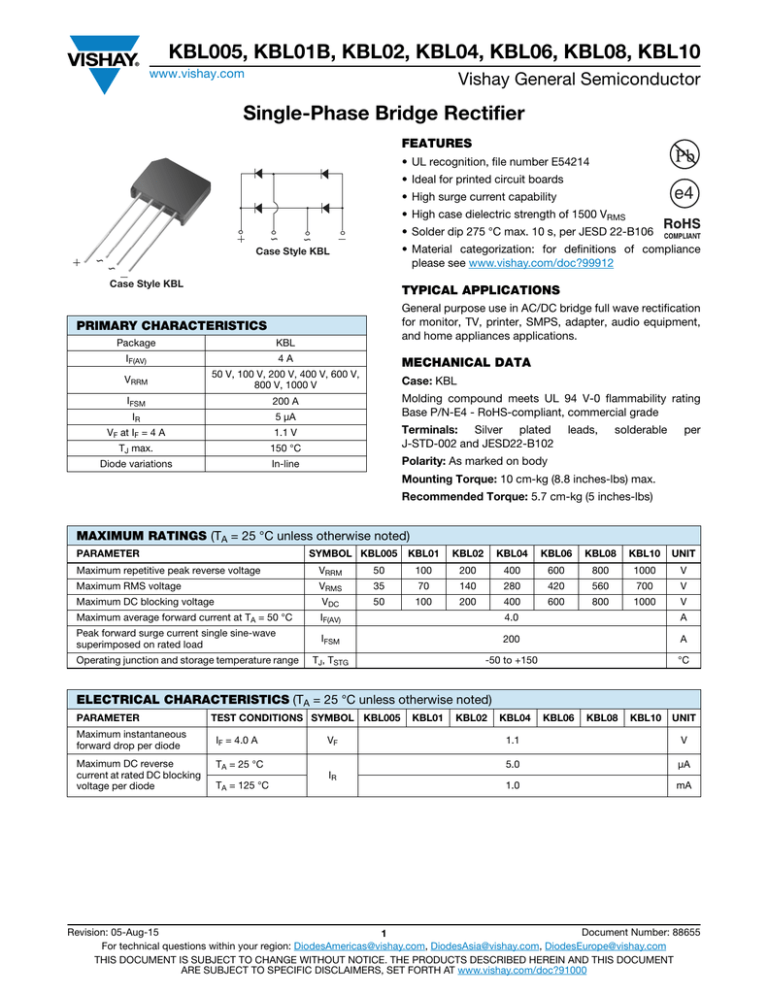

KBL005, KBL01B, KBL02, KBL04, KBL06, KBL08, KBL10
www.vishay.com
Vishay General Semiconductor
Single-Phase Bridge Rectifier
FEATURES
• UL recognition, file number E54214
• Ideal for printed circuit boards
e4
• High surge current capability
• High case dielectric strength of 1500 VRMS
~
~
• Solder dip 275 °C max. 10 s, per JESD 22-B106
~
• Material categorization: for definitions of compliance
please see www.vishay.com/doc?99912
Case Style KBL
~
Case Style KBL
TYPICAL APPLICATIONS
General purpose use in AC/DC bridge full wave rectification
for monitor, TV, printer, SMPS, adapter, audio equipment,
and home appliances applications.
PRIMARY CHARACTERISTICS
Package
KBL
IF(AV)
4A
VRRM
50 V, 100 V, 200 V, 400 V, 600 V,
800 V, 1000 V
IFSM
200 A
IR
5 μA
VF at IF = 4 A
1.1 V
TJ max.
150 °C
Terminals: Silver plated
J-STD-002 and JESD22-B102
Diode variations
In-line
Polarity: As marked on body
MECHANICAL DATA
Case: KBL
Molding compound meets UL 94 V-0 flammability rating
Base P/N-E4 - RoHS-compliant, commercial grade
leads,
solderable
per
Mounting Torque: 10 cm-kg (8.8 inches-lbs) max.
Recommended Torque: 5.7 cm-kg (5 inches-lbs)
MAXIMUM RATINGS (TA = 25 °C unless otherwise noted)
PARAMETER
KBL01
KBL02
KBL04
KBL06
KBL08
KBL10
Maximum repetitive peak reverse voltage
SYMBOL KBL005
VRRM
50
100
200
400
600
800
1000
V
Maximum RMS voltage
VRMS
35
70
140
280
420
560
700
V
Maximum DC blocking voltage
VDC
50
100
200
400
600
800
1000
Maximum average forward current at TA = 50 °C
IF(AV)
4.0
A
Peak forward surge current single sine-wave
superimposed on rated load
IFSM
200
A
TJ, TSTG
-50 to +150
°C
Operating junction and storage temperature range
UNIT
V
ELECTRICAL CHARACTERISTICS (TA = 25 °C unless otherwise noted)
PARAMETER
Maximum instantaneous
forward drop per diode
Maximum DC reverse
current at rated DC blocking
voltage per diode
TEST CONDITIONS SYMBOL KBL005
IF = 4.0 A
VF
TA = 25 °C
KBL01
KBL02
KBL04
KBL06
KBL08
KBL10
UNIT
1.1
V
5.0
μA
1.0
mA
IR
TA = 125 °C
Revision: 05-Aug-15
Document Number: 88655
1
For technical questions within your region: DiodesAmericas@vishay.com, DiodesAsia@vishay.com, DiodesEurope@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT www.vishay.com/doc?91000
KBL005, KBL01B, KBL02, KBL04, KBL06, KBL08, KBL10
www.vishay.com
Vishay General Semiconductor
THERMAL CHARACTERISTICS (TA = 25 °C unless otherwise noted)
PARAMETER
SYMBOL
Typical thermal resistance
KBL005
KBL01
KBL02
KBL04
RJA (2)
19
RJL (1)
4.0
KBL06
KBL08
KBL10
UNIT
°C/W
Notes
(1) Thermal resistance from junction to ambient with units mounted on 3.0" x 3.0" x 0.11" thick (7.5 cm x 7.5 cm x 0.3 cm) aluminum plate
(2) Thermal resistance from junction to lead with units mounted on PCB at 0.375" (9.5 mm) lead length and 0.5" x 0.5" (12 mm x 12 mm) copper
pads
ORDERING INFORMATION (Example)
PREFERRED P/N
UNIT WEIGHT (g)
PREFERRED PACKAGE CODE
BASE QUANTITY
DELIVERY MODE
6.0
51
300
Anti-static PVC tray
KBL06-E4/51

RATINGS AND CHARACTERISTICS CURVES (TA = 25 °C unless otherwise noted)
100
Heatsink Mounted
3.0" sq. x 0.06" Thickness
(7.5 x 0.15 cm) Copper Plate
Instantaneous Forward Current (A)
Average Forward Current (A)
4.0
3.0
2.0
PCB Mounting
0.375" (9.5 mm) Lead Length
60 Hz Resistive or Inductive Load
1.0
0
TJ = 25 °C
Pulse Width = 300 µs
1 % Duty Cycle
1
0.1
0
100
50
150
0.6
0.7
0.8
0.9
1.0
1.1
1.2
1.3
Temperature (°C)
Instantaneous Forward Voltage (V)
Fig. 1 - Derating Curve Output Rectified Current
Fig. 3 - Typical Instantaneous Forward Characteristics Per Diode
10
Instantaneous Reverse Current (µA)
200
Peak Forward Surge Current (A)
10
TJ = 150 °C
Single Sine-Wave
175
150
125
100
75
50
1.0 Cycle
25
TJ = 100 °C
1
0.1
TJ = 25 °C
0.01
1
10
100
0
20
40
60
80
100
Number of Cycles at 60 Hz
Percent of Rated Peak Reverse Voltage (%)
Fig. 2 - Maximum Non-Repetitive Peak Forward Surge
Current Per Diode
Fig. 4 - Typical Reverse Leakage Characteristics Per Diode
Revision: 05-Aug-15
Document Number: 88655
2
For technical questions within your region: DiodesAmericas@vishay.com, DiodesAsia@vishay.com, DiodesEurope@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT www.vishay.com/doc?91000
KBL005, KBL01B, KBL02, KBL04, KBL06, KBL08, KBL10
www.vishay.com
Vishay General Semiconductor
Junction Capacitance (pF)
250
TJ = 25 °C
f = 1.0 MHz
Vsig = 50 mVp-p
200
150
100
50
0
0.1
100
10
1
Reverse Voltage (V)
Fig. 5 - Typical Junction Capacitance Per Diode

PACKAGE OUTLINE DIMENSIONS in inches (millimeters)
Case Style KBL
0.768 (19.5)
0.726 (18.5)
0.640 (16.3)
0.600 (15.2)
1.1
(27.9)
MIN.
0.591 (15.0)
0.567 (14.4)
1.0
(25.4)
MIN.
0.210 (5.33)
0.190 (4.83)
0.052 (1.3) DIA.
0.048 (1.2) TYP.
0.091 (2.30)
0.077 (1.95)
0.256 (6.5)
0.236 (6.0)
Revision: 05-Aug-15
Document Number: 88655
3
For technical questions within your region: DiodesAmericas@vishay.com, DiodesAsia@vishay.com, DiodesEurope@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT www.vishay.com/doc?91000
