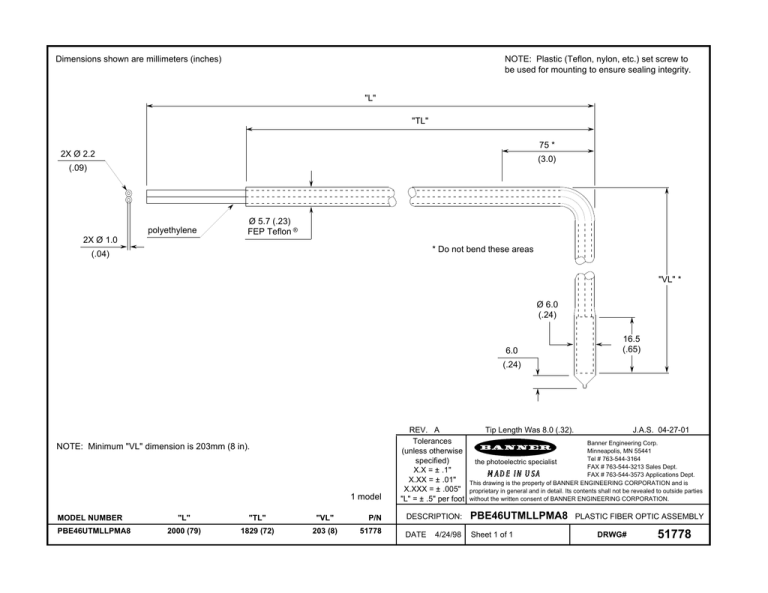

Dimensions shown are millimeters (inches)
NOTE: Plastic (Teflon, nylon, etc.) set screw to
be used for mounting to ensure sealing integrity.
"L"
"TL"
75 *
2X Ø 2.2
(3.0)
(.09)
polyethylene
2X Ø 1.0
Ø 5.7 (.23)
FEP Teflon ®
* Do not bend these areas
(.04)
"VL" *
Ø 6.0
(.24)
6.0
16.5
(.65)
(.24)
1 model
REV. A
Tolerances
(unless otherwise
specified)
X.X = ± .1"
X.XX = ± .01"
X.XXX = ± .005"
"L" = ± .5" per foot
P/N
DESCRIPTION:
PBE46UTMLLPMA8
DATE
Sheet 1 of 1
NOTE: Minimum "VL" dimension is 203mm (8 in).
MODEL NUMBER
PBE46UTMLLPMA8
"L"
"TL"
"VL"
2000 (79)
1829 (72)
203 (8)
51778
4/24/98
Tip Length Was 8.0 (.32).
J.A.S. 04-27-01
Banner Engineering Corp.
Minneapolis, MN 55441
Tel # 763-544-3164
the photoelectric specialist
FAX # 763-544-3213 Sales Dept.
MADE IN USA
FAX # 763-544-3573 Applications Dept.
This drawing is the property of BANNER ENGINEERING CORPORATION and is
proprietary in general and in detail. Its contents shall not be revealed to outside parties
without the written consent of BANNER ENGINEERING CORPORATION.
PLASTIC FIBER OPTIC ASSEMBLY
DRWG#
51778
