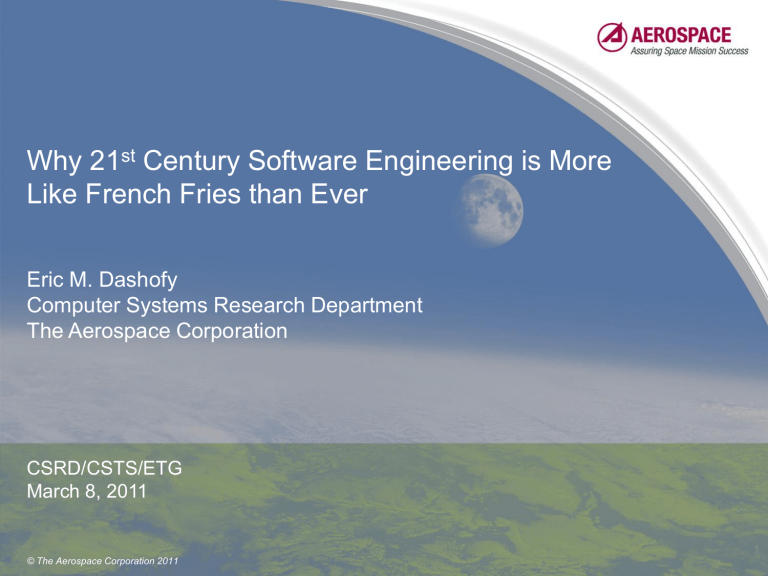

Why 21 Century Software Engineering is More Like French Fries than Ever

advertisement

Why 21

st

Century Software Engineering is More

Like French Fries than Ever

Eric M. Dashofy

Computer Systems Research Department

The Aerospace Corporation

CSRD/CSTS/ETG

March 8, 2011

© The Aerospace Corporation 2011

1

2

I’ll give you the answer up front…

It comes in many different sizes:

– Small

– Medium

– Large

– Super-Size Me!

It’s cheap and it doesn’t last long

Nearly any alternative is healthier

3

Outline

I’ll talk about three areas of interest at different scales

– Small: Wireless sensor networks

– Medium: Tiny embedded computers, clustered

– Large: High-performance and cloud computing

And identify some unique challenges in each area

And describe some Aerospace research or investigations in each one

Large Fries

High-Performance Computing

© The Aerospace Corporation 2011

5

High-Performance Computing

• Critical domain to work of The Aerospace Corporation

• Solving computationally-intensive problems, generally with large data sets

• Sometimes data sets are from “real” sensor sources:

– Signal processing, image processing

• Sometimes they are synthesized

– e.g., find optimal satellite configuration through exhaustive search or Monte-Carlo method

• …using a variety of different, interconnected computing architectures, techniques, and resources beyond a single core/serial implementation.

• HPC-style resources are everywhere: laptops, desktops, gaming consoles, embedded processors…

6

Major trends in HPC

• Increasing the speed of individual processing elements

– i.e., more megahertz!

• Increasing the “smarts” within processors

– i.e., longer pipelines, branch prediction, speculative execution

• Parallelism is the name of the game: dwarfs megahertz and smarts

At the level of…

Instructions

Data elements

Threads

Through…

Multi-issue processors

Vector processing, SIMD instructions

“Hyperthreading”

Processor elements Multicore processors, Heterogeneous Multicore

Processors Symmetric Multiprocessing (SMP), NUMA

Machines

Clusters

Cluster-based computing

Grid computing

Increasing Complexity in HPC

• Put another way…

Chip Multiissue

486

Pentium X

PII/III X

P4 X

Core… X

GPUs

Power6 X

Itanium

Cell

SIMD

Inst.

X

X

X

X

X

X/X

SIMD

Units

X

SMT

X

X

X/_

7

Not shown: FPGAs, tilebased computing…

Multicore

X

X

X

X/X

VLIW/E

PIC

X

X

X

X

X

X

X

X

X

Multi-

Proc.

X

H.M.P.

X

8

A Challenge Problem

What is the fastest way to transform a large amount of data through three transformations (“Red”, “Green”, and “Blue”)?

– I’ll give you two options (assume both will result in the same output)

Data

Data

9

A Challenge Problem: Option 1

• Do all the red, then all the green, then all the blue.

Data

10

A Challenge Problem: Option 2

• Chunk up the data and do red, then green, then blue on each chunk.

Data

Ordinary parallelism is only one side of the story…

• Moore’s Law: The number of transistors on a chip will double every

~18 months

Credit: User Wgsimon; used under Creative

Commons ShareAlike 3.0 License

11

…but what are we doing with those transistors?

• Moore’s law: the number of transistors on a chip will double every

~18 months

Multicore + SMT

Multicore VLIW/EPIC

VLIW/EPIC

SMT, multi-issue

GPUs

Multicore

Heterogeneous Multiprocessor

SMT, in-order

Superscalar, multi-issue

12

13

Key Challenges

Parallelism is still hard for people to understand and master

– Some techniques – OpenMP, actor model – ease things

Trying out different parallelization strategies is still expensive and labor-intensive

Good tooling is hard to get, because the platforms are evolving faster than the tools can be built

14

A Little Research

Medium Fries

Kinda-Embedded Computing

© The Aerospace Corporation 2011

“Kinda-Embedded” Computing

16

New computing platforms and processors emerging in a niche we haven’t seen before

– The power, programmability, and connectivity of an (old) desktop computer

– In extremely small form factors

Largely driven by developments in cell phone technology

Meet Gumstix Overo

600Mhz ARM-based processor w/extensions

256MB RAM, 256MB Flash, plus

SD card (up to 8GB)

10/100 Ethernet, 54mbps WiFi,

Bluetooth

USB, HDMI

17

Applications

Cell phones, tablets, PDAs, other handhelds

“Plug Computers”

Car-puters

Walltops

Location-aware applications

Situational Awareness

Micro web-servers

Spaceborne(?)

18

Research: Gumstix for HPC-style Processing

Are they viable for future spaceborne applications?

Worked with a UCSB student team and a summer intern

Developed two clusters

– One homemade

– One on Gumstix “Stagecoach” backplane

Ported Range-Doppler SAR algorithm to Gumstix and parallelized it

Compared performance and power usage to a small-formfactor desktop (Mac Mini)

19

20

15

10

5

Performance of various implementations

Comparing Gumstix implementation strategies to Mac Mini

SAR Image Processing Time

Comparing Different Compilation Tools with Several

Computers and Platforms

40

37,04

35

30

25

24,51

20,39

16,79

14,37

13,64

18,32

13,25

17,09

13,07

16,29

12,93

15,88

12,85

Native FFTW Compilation

BitBake FFTW Compilation

FFMPEG Compilation

Mac Mini

5,732

6,288 6,47 6,558 6,656 6,718 6,75

0

1

0,422

2 3 4 5

Number of Computers

6 7

Energy Use

It’s slower, but how much energy does it use?

Energy Cost of Processing SAR Data Using Several Computers

160,0

142

140,0

120

120,0

105

100,0

88,5

75,7

80,0

79,3

62,3

60,0

65,2

45,9

40,0

49,2

36,9

20,0

0,0

12,6

11,5

1

24,5

2 3 4

Number of Computers

5 6

Gumstix extremely close to Mac Mini in terms of power consumption

20

101

7

Gumstix Energy Cost

(Computation Only)

Gumstix Energy Cost

(Including Cluster Hardware)

Mac Mini

21

Key Challenges

Optimization can make performance vary widely

– Software engineering gives us few tools to do that optimization

Biggest performance gains at very low levels of abstraction

Likely to see increasing diversity in processors at this scale

– Will what we learn on one apply to another?

True mobility requires batteries

– Power-aware computing probably increasingly important

– But the lure of these platforms is how similar they are to platforms where we can blithely ignore power use.

Small Fries

Wireless Sensor Networks

© The Aerospace Corporation 2011

23

Wireless Sensor Networks

• A wireless network of physically distributed small computing devices

(colloquially: “motes”) equipped with tiny sensors

• Additional characteristics:

– Network topology may be fixed, variable, or ad-hoc

• Motes may be mobile, though infrequently

– Devices expected to run for months or years unattended

– Data collected generally forwarded to a central collection point

– Network should survive the loss of numerous motes

• Applications:

– Environmental monitoring

– Factory/industrial monitoring

– Target detection and tracking

Meet Mica

• MicaZ Mote

– 8Mhz Atmel ATMega128 Microcontroller (MIPS-like assembly language)

– 4KB of RAM

– 512KB of Flash (usually partitioned into 4x128KB program blocks)

– CC2420 802.15.4 “Zigbee”-compliant radio

• 7 power usage modes

– Several analog inputs, several digital inputs, I2C

24

• Sensor boards stack on top

– Light, temperature, humidity, orientation (magnetometer), acceleration, location (GPS), microphone (levels only)

Crossbow MicaZ Mote

25

How Motes Work

• Drop a bunch of motes in an area

• Distance between them: 50-100 meters

• One distinguished mote is the “gateway;” this is connected to an ordinary PC by a serial connection or Ethernet transceiver for data collection

GW

Base Station PC

26

How Motes Work

• Drop a bunch of motes in an area

• Distance between them: 50-100 meters

• One distinguished mote is the “gateway;” this is connected to an ordinary PC by a serial connection or Ethernet transceiver for data collection

GW

• Software on the motes allows them to self-organize, collect data, and report that data to their ‘parent’ in the network

– Base station ultimately gets all data

27

A sample application we developed

• Signal transmitter tracking application

28

A sample application we developed

• Cell-phone tracking application

29

The Software Stacks

User App

Socket

XServe

Serial USB Ethernet

XServe receives data from base station mote and makes it available to userspace apps

XMesh forms and maintains ad-hoc network; also provides interface for other TinyOS components to send and receive messages.

Motes communicate over 802.15.4 protocol

(used in ZigBee devices)

Long-range, low data rate.

TinyOS

Mote software based on open-source

TinyOS.

A thin component model is built on top of that.

30

Software on the Motes

• TinyOS developed concurrently with the Mica family motes

– Mica motes still probably the #1 platform for TinyOS

– Other platforms supported

Amazingly, there is a thin but useful component model configuration Blink {

} implementation { components Main, BlinkM, SingleTimer, LedsC;

Components written in nesC (a dialect of C) with well-defined interfaces

}

Main.StdControl -> BlinkM.StdControl;

Main.StdControl -> SingleTimer.StdControl;

BlinkM.Timer -> SingleTimer.Timer;

BlinkM.Leds -> LedsC;

Interfaces connected through a configuration diagram that resembles early module interconnection languages (e.g., Polylith)

} interface Timer { command result_t start(char type, uint32_t interval); command result_t stop(); event result_t fired();

31

Key Challenges

• Extreme power management is key

– How can we better integrate higher-level power management principles into the sensor architecture?

• Control flow is low-level and painful

– Can we alleviate this with higherlevel models that are “compiled down” to implementations without sacrificing power?

• Are there architectural styles appropriate for these applications?

– How do you build applications that use computation and aggregation in-the-mesh to reduce data transmission?

• How do you build debuggable systems?

• How do you transition to next-generation systems?

32

Conclusion

We are faced with yetanother “Cambrian Explosion” of

– Scales

– Platforms

Software engineering knowledge and insight lacking in these domains

– For the smaller domains, abstraction (the key to software engineering) is the enemy of performance and battery life

We are building platforms faster than we can build tools and far faster than we can build skills

– Domain experts often have little formal training in software engineering

Need lightweight “force multipliers” with a very low cost:benefit ratio
