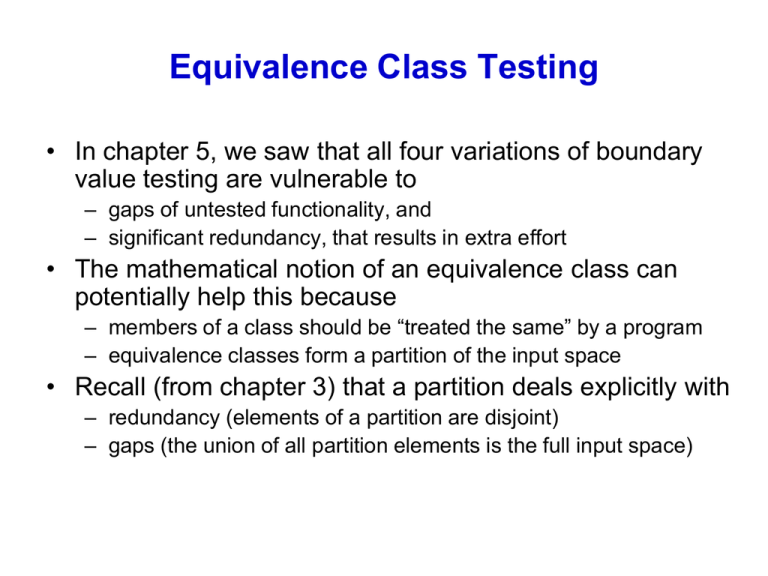

Equivalence Class Testing
• In chapter 5, we saw that all four variations of boundary
value testing are vulnerable to
– gaps of untested functionality, and
– significant redundancy, that results in extra effort
• The mathematical notion of an equivalence class can
potentially help this because
– members of a class should be “treated the same” by a program
– equivalence classes form a partition of the input space
• Recall (from chapter 3) that a partition deals explicitly with
– redundancy (elements of a partition are disjoint)
– gaps (the union of all partition elements is the full input space)
Equivalence Class Testing
• If you were testing the Triangle Program, would you use
these test cases?
– (3, 3, 3), (10, 10, 10), (187, 187, 187)
• In Chapter 5, the normal boundary value test cases
covered June 15 in five different years. Does this make
any sense?
• Equivalence class testing provides an elegant strategy to
resolve such awkward situations.
Equivalence Class Testing
•
Use the mathematical concept of
partitioning into equivalence classes
to generate test cases for Functional
(Black-box) testing
•
The key goals for equivalence class
testing are similar to partitioning:
1.
2.
completeness of test coverage
lessen duplication of test coverage
Partitioning
• Recall a partitioning of a set, A, is to divide the
set A into ( a1, a2, - - - -, an ) subsets such that:
– a1 U a2 U - - - - U an = A
(completeness)
– for any i and j, ai ∩ aj = Ø
(no duplication)
Size ≤ 10”
Size > 10”
Partitioning of a Set A of rocks
with no relational meaning
Partitioning of a Set A of rocks
with relational meaning
( with respect to “size”)
Equivalence Classes
• Equivalence Relation, R, is a relation defined on the set A such that
it is reflexive, transitive, and symmetric: let ε to mean an “element
of”
– Reflexive:
z ε A, then (z,z) ε R
– Symmetric: (a,b) ε R then (b,a) ε R, for all a,b in A
– Transitive : (p,q) ε R and (q,r) ε R, then (p,r) ε R for all p,q,r in A
• Equivalence class testing is the partitioning of the (often times, but
not always) input variable’s value set into classes (subsets) using
some equivalence relation.
– Test cases are formed by selecting one value from each equivalence class.
– Identifying the classes may be hard
Equivalence Class Test Cases
•
Consider a numerical input variable, i, whose values may range from -200
through +200. Then a possible partitioning of testing input variable, i, by 4
partitions may be:
–
-200 to -100
–
–
–
•
Define “same sign” as the equivalence relation, R, defined over the input
variable’s value set, i = {-200 - -,0, - -, +200}. Then one partitioning will be:
–
–
–
•
-101 to 0
1 to 100
101 to 200
-200 to -1 (negative sign)
0
(no sign)
1 to 200 (positive sign)
Let’s check if “same sign” relation, SS, is an equivalence relation: (let ‘ε’
be “element of”)
– reflexive :
-2 ε Input Variable then (-2, -2) ε SS
–
–
symmetric :
transitive:
(3, 5) ε SS, then (5, 3) ε SS
(-5, -7) ε SS and (-7, -200) ε SS , then (-5, -200) ε SS
A sample equivalence test case “set” from the above “same sign” relation
would be { -5; 0; 8 } where -5 is negative sign, 0 is no sign, 8 is positive sign
Forms of Equivalence Class Testing
• “Traditional”—focus on invalid inputs
• Normal: classes of valid values of inputs
• Robust: classes of valid and invalid values of
inputs
• Weak: (single fault assumption) one from each
class
• Strong: (multiple fault assumption) one from
each class in Cartesian Product
• We compare these for a function of two
variables, F(x1, x2)
• Extension to problems with 3 or more variables
is “obvious”.
“Traditional” Equivalence Class
Testing
• Programmer arrogance:
– in the 1960s and 1970s, programmers often had very
detailed input data requirements.
– if input data didn’t comply, it was the user’s fault
– the popular phrase—Garbage In, Garbage Out (GIGO)
• Programs from this era soon developed
defenses
– (many of these programs are STILL legacy software)
– as much as 75% of code verified input formats and
values
• “Traditional” equivalence class testing focuses
on detecting invalid input.
– (almost the same as our “weak robust equivalence
class testing”)
Example of Traditional
Equivalence Class Testing
• (only 2-dimensions for drawing purposes)
• easy to extend to more variables
• F(x1, x2) has these classes...
–
–
–
–
valid values of x1: a ≤ x1 ≤ b
invalid values of x1: x1 < a, b < x1
valid values of x2: c ≤ x2 ≤ d
invalid values of x2: x2 < c, d < x2
• Process
– test F for valid values of all variables,
– then test one invalid variable at a time
– (note this makes the single fault assumption)
Example
x2
Invalid values of x2
d
Valid values of x2
c
Invalid values of x2
x1
a
Invalid values of x1
b
Valid values of x1
Invalid values of x1
Weak Normal Equivalence testing
1. Assumes the ‘single fault’ or “independence
of input variables.”
–
e.g. If there are 2 input variables, these input
variables are independent of each other.
2. Partition the test cases of each input variable
separately into one of the different equivalent
classes.
3. Choose the test case from each of the
equivalence classes for each input variable
independently of the other input variable
Example of : Weak Normal Equivalence testing
Assume the equivalence partitioning of input X is: 1 to 10; 11 to 20, 21 to 30
and the equivalence partitioning of input Y is: 1 to 5; 6 to 10; 11 to15; and 16 to 20
X
We have covered everyone
of the 3 equivalence classes
for input X.
30
20
10
1
Y
1
5
10
15
We have covered each of the 4
equivalence classes for input Y.
20
For ( x, y )
we have:
(24, 2)
(15, 8 )
( 4, 13)
(23, 17)
General rule for # of test cases?
What do you think?
# of partitions of the largest set?
Strong Normal Equivalence testing
• This is the same as the weak normal
equivalence testing except for
“multiple fault assumption”
or
“dependence among the inputs”
• All the combinations of equivalence classes
of the variables must be included.
Example of : Strong Normal Equivalence
testing
Assume the equivalence partitioning of input X is: 1 to 10; 11 to 20, 21 to 30
and the equivalence partitioning of input Y is: 1 to 5; 6 to 10; 11;15; and 16 to 20
X
30
We have covered everyone
of the 3 x 4 Cartesian
product of equivalence
classes
20
10
1
Y
1
5
10
15
20
General rule for # of test cases?
What do you think?
Weak Robust Equivalence testing
• Up to now we have only considered
partitioning the valid input space.
• “Weak robust” is similar to “weak
normal” equivalence test except that
the invalid input variables are now
considered.
A note about considering invalid input is that there may not
be any definition “specified” for the various, different invalid
inputs - - - making definition of the output for these invalid
inputs a bit difficult at times. (but fertile ground for testing)
Example of : Weak Robust Equivalence testing
Assume the equivalence partitioning of input X is 1 to 10; 11 to 20, 21 to 30
and the equivalence partitioning of input Y is 1 to 5; 6 to 10; 11;15; and 16 to 20
X
30
We have covered
everyone of the 5
equivalence classes
for input X.
20
10
1
Y
1
5
10
15
20
We have covered each of the 6
equivalence classes for input Y.
x2
Is this
preferable
to this? Why?
g
f
e
a b
x2
g
f
e
a b
c
d
x1
c
d
x1
Strong Robust Equivalence testing
• Does not assume “single fault” - - - assumes
dependency of input variables
• “Strong robust” is similar to “strong normal”
equivalence test except that the invalid input
variables are now considered.
Example of : Strong Robust Equivalence
testing
Assume the equivalence partitioning of input X is: 1 to 10; 11 to 20, 21 to 30
and the equivalence partitioning of input Y is: 1 to 5; 6 to 10; 11;15; and 16 to 20
X
30
We have covered everyone
of the 5 x 6 Cartesian
product of equivalence
classes (including invalid
inputs)
20
10
1
Y
1
5
10
15
20
Equivalence class Definition
• Note that the examples so far focused on defining input
variables without considering the output variables.
• For the earlier “triangle problem,” we are interested in 4
questions:
–
–
–
–
Is it a triangle?
Is it an isosceles?
Is it a scalene?
Is it an equilateral?
• We may define the input test data by defining the
equivalence class through “viewing” the 4 output groups:
–
–
–
–
input sides <a, b, c> do not form a triangle
input sides <a, b ,c> form an isosceles triangle
input sides <a, b, c> form a scalene triangle
input sides <a, b, c> form an equilateral triangle
Consider: Weak Normal Equivalence Test
Cases to cover “Triangle” Problem Output
“valid” inputs:
1<= a <= 200
1<= b <= 200
1<= c <= 200
and
for triangle:
a<b+c
b<a+c
c<b+a
inputs
a
b
c
Not triangle
35
10
4
Equilateral
35
35
35
Isosceles
24
24
7
18
24
output
Valid Inputs to get:
Equilateral
Not
Triangle
Isosceles
Scalene
Scalene
35
Strong Normal Equivalence Test Cases for
Triangle Problem
• Since there is no further sub-intervals inside
the valid inputs for the 3 sides a, b, and c, and
the 4 outputs are “independent,” Strong Normal
Equivalence is the same as the Weak Normal
Equivalence for covering the outputs because
the outputs are “independent”
– You may want to look at Equilateral as the super set
of Isosceles. But for this discussion, let’s consider
them separate sets.
Weak Robust Equivalence Test Cases for
Triangle Problem
<200,200,200>
Now, on top of the
earlier 4 normal test
cases, include the
“invalid” inputs
Valid outputs
<1, 1, 1>
Equilateral
Not
Triangle
Isosceles
Scalene
Include 6 invalid test case in addition to Weak Normal
above:
below:
<201, 45, 50 >
<45, 204, 78 >
<50, 78, 208 >
< -5, 76, 89 >
< 56, -20, 89 >
< 56, 89, 0 >
Strong Robust Equivalence Test Cases for
Triangle Problem
• Similar to Weak robust, but all combinations of “invalid” inputs
must be included for the Strong Robust .
• Look at the “cube” figure and consider the corners (two
diagonal ones)
a) Consider one of the corners <200,200,200> : there are a total of 23
combinatoric of valid-invalid but only (23 – 1) = 7 cases of “invalids”
< 201, 201,
< 201, 201,
< 201, 50 ,
< 201, 50 ,
201 >
50 >
201 >
50 >
< 50 , 201,
< 50 , 201,
< 50, 50 ,
(50, 50,
50 >
201 >
201 >
50) valid
b) There will be 7 more “invalids” when we consider the other corner , <1,1,1 >:
< 0, 0, 0 >
< 0, 0, 5 >
< 0, 10, 0 >
< 0, 8, 10>
<7, 0, 9 >
<8, 0, 0 >
<8, 9, 0 >
Next Day Program example
• Here we have 3 input variables and may choose to
have the sets defined as (without partitioning of
days, month, or year):
– Day : 1 through 31 days
– Month: 1 through 12
– Year: 0001 through 3000
• In this case, for weak normal equivalence testing
only needs 1 test case from each input:
–
(year; month; day) : (2001, 9, 23)
• Clearly, this “non-partitioning” of the input gives
very limited test case!
Next Day Program example (cont.)
• A more useful situation is to partition the 3 inputs. As
an example:
–
–
–
–
Day: 1 through 28
Day :29
Day: 30
Day: 31
4 partitions of days
– Month: those that have 31 days or {1,3,5,7,8,10,12}
– Month: those that have 30 days or {4,6,9,11}
– Month: that has less than 30 days or {2}
– Year: leap years between 0001 and 3000
– Year: non-leap years between 0001 and 3000
3 partitions
of months
2 partitions
of years
Next Day Problem example (cont.)
• Weak Normal equivalence Test Cases:
• Number of test cases is driven by the # of
partitions of the largest set, which in this
case is the Days – has 4 partitions:
(year, month, day):
–
–
–
–
(leap year, 10, 8)
(leap year, 4, 30)
(non-leap year, 2, 31)
(non-leap year, 7, 29)
Without considering any
relationship among the inputs
and just mechanically following
the rule
How good is this set of test cases ??
How valuable is the “generic” Weak Normal test Cases? --- Not Much!
Next Day Problem example (cont.)
• What about the Strong Normal case where we consider all the
permutations of the previously partitioned 3 inputs?
– We should have (2 years x 3 months x 4 days) = 24 test cases
(leap year, 10, 5)
(leap year, 10, 30)
(leap year, 10, 31)
(leap year, 10, 29)
(non-leap year, 10, 5)
(non-leap year, 10, 30)
(non-leap year, 10, 31)
(non-leap year, 10, 29)
(leap year, 6, 5)
(leap year, 6, 30)
(leap year, 6, 31)
(leap year, 6,29)
(non-leap year, 6, 5)
(non-leap year, 6, 30)
(non-leap year, 6, 31)
(non-leap year, 6, 29)
(leap year, 2, 5)
(leap year, 2, 30)
(leap year, 2, 31)
(leap year, 2, 29)
(non-leap year, 2, 5)
(non-leap year, 2, 30)
(non-leap year, 2, 31)
(non-leap year, 2, 29)
A little better
than previous?
Next Day Problem example (cont.)
• What if we also consider the invalids, Weak Robust?
–
–
–
31 < days; days < 1
12 < months; months < 1
3000 < year ; year < 0001
Then we need to include the following to the Weak Normal :
( valid year, 5, 45)
( valid year, 5, -5)
( valid year, 22, 30)
( valid year, 0, 15)
( 3500, 7, 20 )
( 0000, 7, 15)
combine ( 3500, 22, 45)
into
( 0000, 0 , -5)
Would you combine or leave them separately?
Why?
Next Day Problem example (cont.)
• For Strong Robust, we need to consider and include all
the permutations of the invalids to the Strong Normal:
• 3 inputs, so there are 23 – 1=7 invalids each for high
and for low, making a total of 14 more.
high
–
–
–
–
–
–
–
( 3025, 45, 80)
( 3025, 45, 25)
( 3025, 7, 80)
( 3025, 7, 25)
( 2000, 45, 80)
( 2000, 45, 25)
( 2000, 7, 80)
low
( 0000, -2, 0)
( 0000, -2, 15)
( 0000, 4 , 0)
( 0000, 4, 10)
( 2000, -2, 0)
( 2000, -2, 10)
( 2000, 4, 0)
