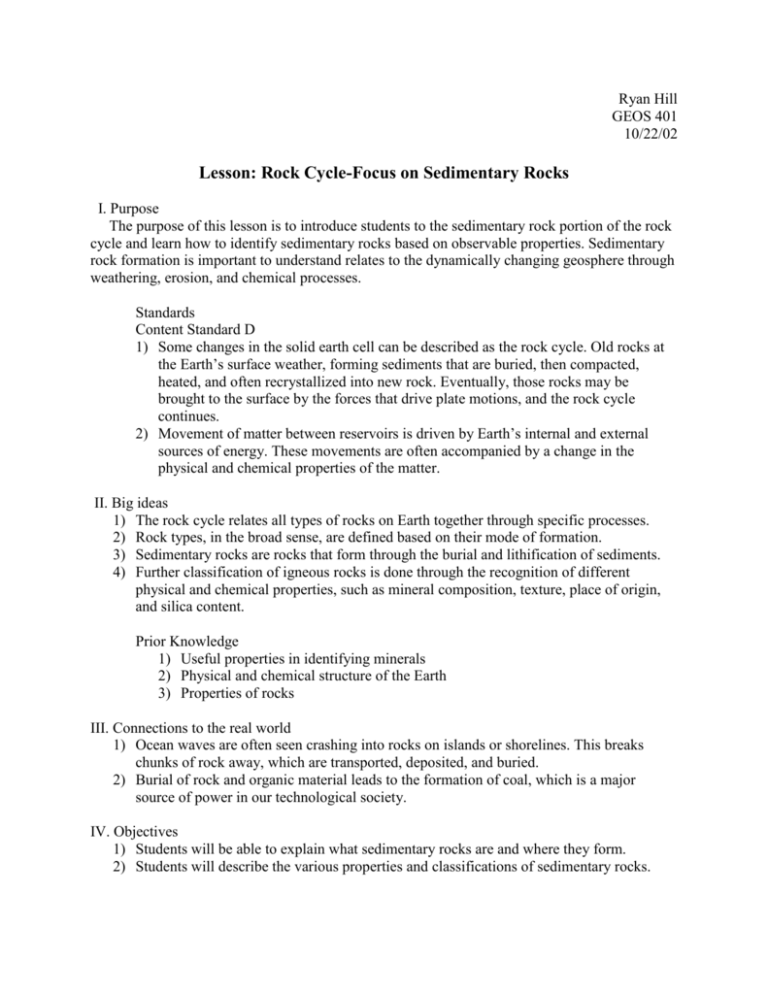

Ryan Hill GEOS 401 10/22/02 Lesson: Rock Cycle-Focus on Sedimentary Rocks I. Purpose The purpose of this lesson is to introduce students to the sedimentary rock portion of the rock cycle and learn how to identify sedimentary rocks based on observable properties. Sedimentary rock formation is important to understand relates to the dynamically changing geosphere through weathering, erosion, and chemical processes. Standards Content Standard D 1) Some changes in the solid earth cell can be described as the rock cycle. Old rocks at the Earth’s surface weather, forming sediments that are buried, then compacted, heated, and often recrystallized into new rock. Eventually, those rocks may be brought to the surface by the forces that drive plate motions, and the rock cycle continues. 2) Movement of matter between reservoirs is driven by Earth’s internal and external sources of energy. These movements are often accompanied by a change in the physical and chemical properties of the matter. II. Big ideas 1) The rock cycle relates all types of rocks on Earth together through specific processes. 2) Rock types, in the broad sense, are defined based on their mode of formation. 3) Sedimentary rocks are rocks that form through the burial and lithification of sediments. 4) Further classification of igneous rocks is done through the recognition of different physical and chemical properties, such as mineral composition, texture, place of origin, and silica content. Prior Knowledge 1) Useful properties in identifying minerals 2) Physical and chemical structure of the Earth 3) Properties of rocks III. Connections to the real world 1) Ocean waves are often seen crashing into rocks on islands or shorelines. This breaks chunks of rock away, which are transported, deposited, and buried. 2) Burial of rock and organic material leads to the formation of coal, which is a major source of power in our technological society. IV. Objectives 1) Students will be able to explain what sedimentary rocks are and where they form. 2) Students will describe the various properties and classifications of sedimentary rocks. V. Assessment instruments The lesson includes an activity that will demonstrate to students how sedimentary rocks form. This activity includes questions for the students to answer. Students will also classify different sedimentary rock samples based on the properties that they observe. Answers to all questions will be answered on paper. VI. Activities Introduction Review what the rock cycle is, showing the rock cycle diagram. Review with the students what they learned about igneous rocks. Pose a scenario to the class. Describe a volcanic eruption that has occurred on an island. Over time, water begins to incise through the newly formed rock, forming a stream. Ask the students what they think water and increasing stream size will do to the newly formed rock over time. Describe how this is one scenario that can lead to the formation of sedimentary rocks, which form from the burial of rock particles that were weathered and eroded away from a previous source and deposited. (The description of this specific scenario is meant to help students relate their previous experience with igneous rocks to the formation of igneous rocks.) The continual deposition of more sediments leads to the compaction and cementation of the sediments previously deposited. Activities Ask students to list out possible ways for existing rock to be weathered and eroded. These should include rain, streams, rivers, oceans, wind, chemical weathering, etc. Conclude that there are many processes at work that serve to break down existing rock and transport the sediments. Show the class an example of a layered sedimentary rock. Ask them how they think the sediments became layered. Tell them that they are going to conduct an activity that will demonstrate how layered sedimentary rocks form. Divide the class up into groups of four. Pass out all the supplies and the instructions for the activity “How do sedimentary layers form?” Help the students complete the activity and answer the questions. Day 2 Introduction Review with the class the activity they completed the previous day. Ask them how sedimentary layers form. Tell students that they will now learn how to classify sedimentary rocks in a way similar to igneous rocks. Activities Have students get into the same groups of four from the previous day. Define sedimentary rock types clastic, organic, and chemical. Have students name each sample of rock based on the definition they were just given and explain what they observed in order to reach their conclusion. Work on further classifying clastic rocks. Define conglomerates and breccias, sandstones, and shales. Have the students classify the clastic rock samples in front of them to their appropriate name. Define Organic rocks. Have them classify their organic samples as coal, limestone, or chalk. Define chemical rocks. Have students classify their samples as halite or gypsum. They may recall these names from the minerals lesson. This is a good place to explain to them the relationship between minerals and rocks, as they may be confused as to how a mineral and rock have the same name. Also have students check on the progress their sedimentary layers formation activity from the previous day. Have them write down any differences they see in their sample. Conclusion Have students describe what defines a clastic, organic, and chemical sedimentary rock. Ask them to write down any areas that remain unclear to them. VII. Materials 1) Diagram of rock cycle 2) Instructions for “How do sedimentary layers form?” activity. 3) Worksheets with tables for observations for this activity 4) 8-10 medium-size jars 5) Graduated cylinder 6) 1 kg each of gravel, sand, and clay 7) 8-10 spoons 8) 8-10 cups 9) 1 box of toothpicks 10) 1 L of diluted white glue solution 11) 8-10 stopwatches Day 2 12) 8-10 samples each of conglomerate, breccia, sandstone, shale, limestone, coal, chalk, halite, and gypsum 13) Worksheet to write their observations down on. Note: “How do sedimentary layers form” activity is an activity that can be found on page 225 of the following textbook: DiSpezio et al. Science Insights: Exploring Earth and Space. Addison-Wesley Publishing, 1996.
