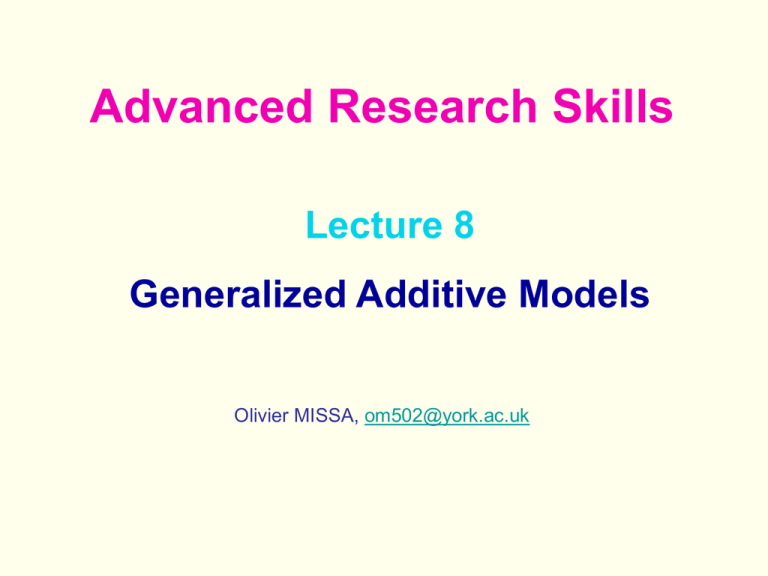

Advanced Research Skills
Lecture 8
Generalized Additive Models
Olivier MISSA, om502@york.ac.uk
Outline
Introduce you to Generalized Additive Models.
2
GAMs vs. GLMs
GLMs
g ( y   i )     0  1 x1   2 x2     p x p
GAMs
g ( y   i )     0  s( x1 )  s( x2 )    s( x p )
Smooth
function
of x1
3
"Smooth" functions
A number of algorithms are available to fit them,
all known generically as "splines"
The most frequently used are:
Thin Plate Regression Splines (default) &
Cubic Regression Splines
4
More efficient than Polynomials
Thin Plate Regression Splines
Est. degr. freedom : 8.69
R2 (adj) : 0.783
Dev. Expl. :79.8%
Polynomials
degr. freedom : 10
R2 (adj) : 0.762
Dev. Expl. : 78%
degree 5
degree 10
5
More efficient than Polynomials
No need to specify the degrees of freedom (Wiggliness)
of the smooth function.
The algorithm finds the optimal solution for us,
and avoids overfitting by cross-validation ('leave-one-out' trick).
6
Example: ozone pollution
Revisiting the ozone dataset (Lecture 4 Linear Models III)
> ozone.pollution <- read.table("ozone.data.txt", header=T)
## in datasets folder
> names(ozone.pollution)
[1] "rad"
"temp" "wind" "ozone"
> attach(ozone.pollution)
> modgam <- gam(ozone ~ s(rad) + s(temp) + s(wind) )
> plot(ozone ~ modgam$$fitted, pch=16)
> abline(0,1, col="red")
7
Ozone Example
> summary(modgam)
Family: gaussian
Link function: identity
...
Parametric coefficients:
Estimate Std. Error t value Pr(>|t|)
(Intercept)
42.10
1.66
25.36
<2e-16 ***
--...
Approximate significance of smooth terms:
edf Ref.df
F p-value
s(rad) 2.763 3.263 4.106 0.00699 **
s(temp) 3.841 4.341 12.785 7.31e-09 ***
s(wind) 2.918 3.418 14.687 1.21e-08 ***
R-sq.(adj) =
GCV score =
0.724
338
Deviance explained = 74.8%
Scale est. = 305.96
n = 111
Generalised Cross-Validation
8
Ozone Example
> plot(modgam, residuals=T, pch=16)
rad
temp
wind
> modgam2 <- update(modgam, ~. - s(rad) )
> modgam3 <- update(modgam, ~. - s(temp) )
> modgam4 <- update(modgam, ~. - s(wind) )
9
Ozone Example
> anova(modgam, modgam2, test="F")
Model 1: ozone ~ s(rad) + s(temp) + s(wind)
Model 2: ozone ~ s(temp) + s(wind)
Resid. Df Resid. Dev
Df Deviance
F
Pr(>F)
1 100.4779
30742
2 102.8450
34885 -2.3672
-4142 5.7192 0.002696 **
> anova(modgam, modgam3, test="F")
Model 1: ozone ~ s(rad) + s(temp) + s(wind)
Model 2: ozone ~ s(rad) + s(wind)
Resid. Df Resid. Dev
Df Deviance
F
Pr(>F)
1 100.4779
30742
2 104.7320
47967 -4.2541
-17224 13.233 5.141e-09 ***
> anova(modgam, modgam4, test="F")
Model 1: ozone ~ s(rad) + s(temp) + s(wind)
Model 2: ozone ~ s(rad) + s(temp)
Resid. Df Resid. Dev
Df Deviance
F
Pr(>F)
1 100.4779
30742
2 103.5741
46942 -3.0962
-16199 17.1 3.218e-09 ***
10
Ozone Example
> modgam5 <- gam(ozone ~ rad + s(temp) + s(wind) )
> summary(modgam5)
linear term
Family: gaussian
Link function: identity
...
Parametric coefficients:
Estimate Std. Error t value Pr(>|t|)
(Intercept) 30.21525
4.03762
7.483 2.57e-11 ***
rad
0.06431
0.01985
3.239 0.00162 **
--Approximate significance of smooth terms:
edf Ref.df
F p-value
s(temp) 3.448 3.948 14.77 1.73e-09 ***
s(wind) 2.912 3.412 15.35 5.56e-09 ***
--R-sq.(adj) = 0.715
GCV score = 341.18
Deviance explained = 73.4%
Scale est. = 315.48
n = 111
11
Ozone Example
> anova(modgam, modgam5, test="F")
Analysis of Deviance Table
Model 1: ozone ~ s(rad) + s(temp) + s(wind)
Model 2: ozone ~ rad + s(temp) + s(wind)
Resid. Df Resid. Dev
Df Deviance
F Pr(>F)
1 100.4779
30742
2 102.6408
32381 -2.1630
-1639 2.4766 0.0848 .
---
> shapiro.test(residuals(modgam5, type="deviance"))
Shapiro-Wilk normality test
data: residuals(modgam5, type = "deviance")
W = 0.9123, p-value = 1.999e-06
> resid <- residuals(modgam5, type="deviance")
12
Ozone Example
> qqnorm(resid, pch=16)
> qqline(resid, lwd=2, col="red")
> plot(resid ~ fitted(modgam5), pch=16)
> abline(h=0, col="gray85", lty=2)
13
Ozone Example
> plot(sqrt(abs(resid)) ~ fitted(modgam5), pch=16)
> lines(lowess(sqrt(abs(resid)) ~ fitted(modgam5)),
lwd=2, col="red")
> plot(cooks.distance(modgam5), type="h")
14
Possible Refinements
Specify a different family than Gaussian
> modgam <- gam(resp ~ pred1 + s(pred2) + s(pred3),
family=poisson(link="log") )
Specify a different spline basis than Thin Plate
cubic regression spline
> modgam <- gam(resp ~ pred1 + s(pred2, bs="cr") + s(pred3) )
Specify a maximum number of degrees of freedom for the spline
> modgam <- gam(resp ~ pred1 + s(pred2, k=5) + s(pred3) )
15
1st Example
> plot( c(0,1) ~ c(1,32), type="n", log="x",
xlab="dose", ylab="Probability")
> text(dose, numdead/20, labels=as.character(sex) )
> ld <- seq(0,32,0.5)
> lines (ld, predict(modb3, data.frame(ldose=log2(ld),
sex=factor(rep("M", length(ld)), levels=levels(sex))),
type="response") )
> lines (ld, predict(modb3, data.frame(ldose=log2(ld),
sex=factor(rep("F", length(ld)), levels=levels(sex))),
type="response"), lty=2, col="red" )
16
1st Example
> modbp <- glm(SF ~ sex*ldose,
family=binomial(link="probit"))
> AIC(modbp)
[1] 41.87836
> modbc <- glm(SF ~ sex*ldose,
family=binomial(link="cloglog"))
> AIC(modbc)
[1] 43.8663
> AIC(modb3)
[1] 42.86747
17
1st Example
> summary(modb3)
logit scale
 p 

log
 (1  p) 
Coefficients:
Estimate Std. Error z value Pr(>|z|)
(Intercept) -3.4732
0.4685 -7.413 1.23e-13 ***
sexM
1.1007
0.3558
3.093 0.00198 **
ldose
1.0642
0.1311
8.119 4.70e-16 ***
---
> exp(modb3$coeff)
(Intercept)
0.031019
## careful it may be misleading
sexM
3.006400
ldose
2.898560
## odds ration: p / (1-p)
Every doubling of the dose will lead
to an increase in the odds of dying
over surviving by a factor of 2.899
> exp(modb3$coeff[1]+modb3$coeff[2])
## odds for males
(Intercept)
0.09325553
18
2nd Example
Erythrocyte Sedimentation Rate in a group of patients.
Two groups : <20 (healthy) or >20 (ill) mm/hour
Q: Is it related to globulin & fibrinogen level in the blood ?
> data("plasma", package="HSAUR")
> str(plasma)
'data.frame':
32 obs. of 3 variables:
$ fibrinogen: num 2.52 2.56 2.19 2.18 3.41 2.46 3.22 2.21 ...
$ globulin : int 38 31 33 31 37 36 38 37 39 41 ...
$ ESR
: Factor w/ 2 levels "ESR < 20","ESR > 20": 1 1 ...
> summary(plasma)
fibrinogen
Min.
:2.090
1st Qu.:2.290
Median :2.600
Mean
:2.789
3rd Qu.:3.167
Max.
:5.060
globulin
Min.
:28.00
1st Qu.:31.75
Median :36.00
Mean
:35.66
3rd Qu.:38.00
Max.
:46.00
ESR
ESR < 20:26
ESR > 20: 6
19
2nd Example
> stripchart(globulin ~ ESR, vertical=T, data=plasma,
xlab="Erythrocyte Sedimentation Rate (mm/hr)",
ylab="Globulin blood level", method="jitter" )
> stripchart(fibrinogen ~ ESR, vertical=T, data=plasma,
xlab="Erythrocyte Sedimentation Rate (mm/hr)",
ylab="Fibrinogen blood level", method="jitter" )
20
factor
2nd Example
> mod1 <- glm(ESR~fibrinogen, data=plasma, family=binomial)
> summary(mod1)
Coefficients:
Estimate Std. Error z value Pr(>|z|)
(Intercept) -6.8451
2.7703 -2.471
0.0135 *
fibrinogen
1.8271
0.9009
2.028
0.0425 *
--(Dispersion parameter for binomial family taken to be 1)
Null deviance: 30.885
Residual deviance: 24.840
AIC: 28.840
on 31
on 30
degrees of freedom
degrees of freedom
> mod2 <- glm(ESR~fibrinogen+globulin, data=plasma,
family=binomial)
> AIC(mod2)
[1] 28.97111
21
2nd Example
> anova(mod1, mod2, test="Chisq")
Analysis of Deviance Table
Model 1:
Model 2:
Resid.
1
2
ESR ~ fibrinogen
ESR ~ fibrinogen + globulin
Df Resid. Dev Df Deviance P(>|Chi|)
30
24.8404
29
22.9711 1
1.8692
0.1716
The difference in terms of
Deviance between these
models is not significant,
which leads us to select
the least complex model
> summary(mod2)
Coefficients:
Estimate Std. Error z value Pr(>|z|)
(Intercept) -12.7921
5.7963 -2.207
0.0273 *
fibrinogen
1.9104
0.9710
1.967
0.0491 *
globulin
0.1558
0.1195
1.303
0.1925
--(Dispersion parameter for binomial family taken to be 1)
Null deviance: 30.885
Residual deviance: 22.971
AIC: 28.971
on 31
on 29
degrees of freedom
degrees of freedom
22
2nd Example
> shapiro.test(residuals(mod1, type="deviance"))
Shapiro-Wilk normality test
data: residuals(mod1, type = "deviance")
W = 0.6863, p-value = 5.465e-07
> par(mfrow=c(2,2))
> plot(mod1)
