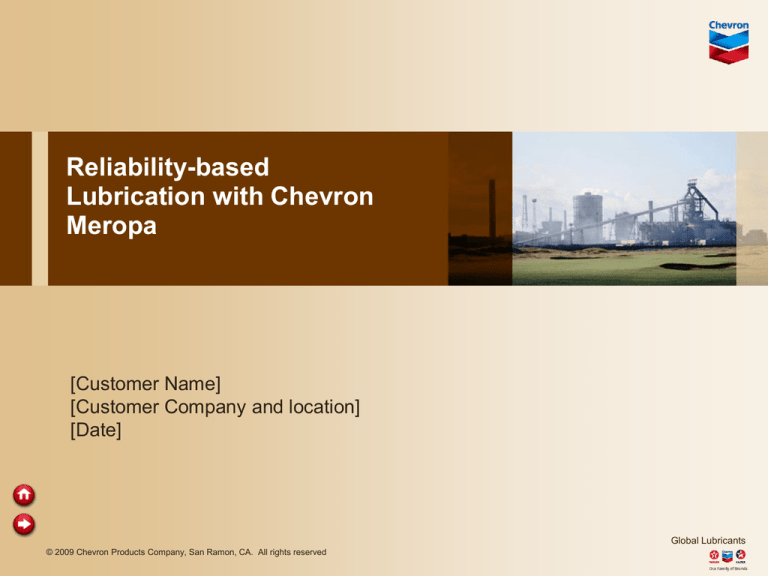

Reliability-based
Lubrication with Chevron
Meropa
[Customer Name]
[Customer Company and location]
[Date]
Global Lubricants
© 2009 Chevron Products Company, San Ramon, CA. All rights reserved
Agenda







Who is Chevron Global Lubricants
Main Functions of Gears
How Do Gear Oils Work?
Basic Types of Gear Oils
Chevron Meropa Performance Attributes
Chevron Meropa Benefits
Reliability-based Lubrication with Chevron Meropa
Global Lubricants
© 2009 Chevron Products Company, San Ramon, CA. All rights reserved
Global Presence, Local Expertise
Our vision is to be the global energy company most admired for its people,
partnership and performance:




No. 6 Global Fortune 500 in total sales
Over $22 billion spent annually bringing energy to market
Conduct business in more than 100 countries
Engaged in every aspect of the oil and natural gas industry
Global Lubricants
© 2009 Chevron Products Company, San Ramon, CA. All rights reserved
Expertise in the Industries We Serve
Chevron Global Lubricants has in-depth experience serving a broad range of industries:
■
■
■
■
■
■
Manufacturing
Mining/Quarrying
Power Generation
Oil & Gas
Agriculture
Construction
Global Lubricants
© 2009 Chevron Products Company, San Ramon, CA. All rights reserved
Chevron Global Lubricants
 Knowledgeable people with experience helping customers
make the right choices
 Global network of lubrication specialists
 Joint working relationships with leading OEMs
 Only wholly-owned additive supplier – Oronite
Global Lubricants
© 2009 Chevron Products Company, San Ramon, CA. All rights reserved
Main Functions of Gears





Transmit Power
Increase or Decrease Speed
Increase or Decrease Torque
Change Axis/Direction of Motion
Synchronize Timing
Global Lubricants
© 2009 Chevron Products Company, San Ramon, CA. All rights reserved
Major Functions of Gear Oil
Metal
Oil Film




Provide oil film between moving surfaces
Protect against metal contact
Reduce wear
Reduce friction
Global Lubricants
© 2009 Chevron Products Company, San Ramon, CA. All rights reserved
How Do Gear Oils Protect Equipment?
 Oil film can break down under the following
conditions:
 High load or extreme pressure (EP)
 High temperature
 Low viscosity to start
 Gear Lube Contains EP and Antiwear Additives
That Form a Protective Film on Metal Surfaces
Load
Metal
Oil
Motion
Additive
Film
Metal
Global Lubricants
© 2009 Chevron Products Company, San Ramon, CA. All rights reserved
How Does Sulfur Work?
Metal
S
S
S
S
S
Sulfur
Film
Oil
S
S
S
S
S
Metal
The Sulfur Film:
 Formed by additive breakdown
 Chemically attached to metal
Global Lubricants
© 2009 Chevron Products Company, San Ramon, CA. All rights reserved
Gear Oil Performance Levels
 R&O (Non-EP, Light Duty)
 AGMA 9005 R&O, API GL-1
 Industrial EP (Medium Duty)
 AGMA 9005 EP, US Steel 224
Global Lubricants
© 2009 Chevron Products Company, San Ramon, CA. All rights reserved
Gear Oil Additives
 All oils contain rust and corrosion inhibitors,
antioxidants, foam inhibitors, and pour point
depressants
 Industrial EP gear oils contain a moderate dose of
antiwear and antiscuff (EP) additives - may contain
demulsifiers
Global Lubricants
© 2009 Chevron Products Company, San Ramon, CA. All rights reserved
Factors to Consider When Selecting a Gear Oil
 OEM recommendation
 Type of gears
 Type of service (steady versus shock)
 EP performance level needed
 Viscosity grade
 Other issues:
 Drain interval
 Cost versus Benefit
 Supplier relationship
Global Lubricants
© 2009 Chevron Products Company, San Ramon, CA. All rights reserved
How to Select the Right Viscosity Grade
 OEM or Oil Supplier Recommendation
 AGMA 9005-E02, Annex B Guidelines
 Errichello Guideline
 v40 = 7000/(V)0.5
 v40 = cSt at 40°C; V = Pitch Line Velocity, Feet/Minute
 V = 0.262 *d*n, Where d = Pinion Pitch Diameter, Inches
and n = Pinion Speed, rpm
 Detailed engineering calculation
Global Lubricants
© 2009 Chevron Products Company, San Ramon, CA. All rights reserved
Which Gear Oil Should I Use?
 R&O Oils for mild loads, non-shock service. Good
for systems with copper alloys and high
temperatures.
 Industrial EP Gear Oils for nearly all enclosed,
stationary gearboxes containing spur, helical and
spiral bevel gears. Good for high loads and shock
service.
Global Lubricants
© 2009 Chevron Products Company, San Ramon, CA. All rights reserved
Meropa Meets the
Requirements of Today’s Equipment
 Typical applications include:
 Industrial-enclosed gear systems, chain drives, sprockets,
plain & antifriction bearings, slide guides, flexible couplings,
and wherever an AGMA EP lubricant is specified
 Enclosed gear drives & speed reducers, in metal rolling mills,
cement mills, and mine hoists
 Bath, splash and circulation applications. Mist-Oil
applications used in a wide variety of fields, such as: steel,
aluminum, chemical, machine tooling and material handling
Global Lubricants
© 2009 Chevron Products Company, San Ramon, CA. All rights reserved
Meropa Meets Major OEM Global Specifications
 Chevron Meropa Gear Lubricants have been formulated to meet
service requirements and specifications of:
 US Steel 224 Specification (ISO 220 grades and higher)
 AGMA EP 9005-E02 Specification
 MAG Cincinnati, Cincinnati Machine (Milacron) P35, P59,
P63, P74, P77, and P78
 Textron Power Transmission (Formerly David Brown) ISO 68
through ISO 1000
 DIN 51517/3 (CLP)
 ISO 12925-1 (Type CKD) Specification
Global Lubricants
© 2009 Chevron Products Company, San Ramon, CA. All rights reserved
Meropa Performance Features








Extended Lifetime – Long Life Lubricant
High Thermal and Oxidative Stability
Retention of Extreme Pressure Properties
Retention of Low foam Tendency and Demulsibility
Contaminant Resistance in Foam Test
Micropitting Resistance
Long-Term Rust and Corrosion Protection
Exceptional Load Carrying Capabilities
Global Lubricants
© 2009 Chevron Products Company, San Ramon, CA. All rights reserved
Meropa Shows Excellent
Demulsibility After Severe Oxidation
D 1401 Demulsibility on Drain Oil From USS
S-200 Oxidation Test (mL Oil/Water/Emulsion)
Sample
Meropa
ISO 220
Competitor A
ISO 220
Competitor B
ISO 220
0 Minutes
Settling Time
0 / 0 / 80
0 / 0 / 80
0 / 0 / 80
5 Minutes
Settling Time
40 / 38 / 2
3 / 5 / 72
0 / 0 / 80
60 Minutes
Settling Time
38 / 40 / 2
5 / 9 / 66
32 / 10 / 38
18
Global Lubricants
© 2009 Chevron Products Company, San Ramon, CA. All rights reserved
Meropa Shows Superior
Thermal Stability and Cleanliness
Conventional Gear Oil
Meropa 220
Test Procedure: ASTM D2893 (312 Hours at 121°C)
Global Lubricants
© 2009 Chevron Products Company, San Ramon, CA. All rights reserved
Meropa Shows Low Deposit
Forming Tendency and High Cleanliness
Meropa
Conventional Gear Oil
Test Procedure: ASTM D 5704, L-60 (25 Hours at 163°C)
Global Lubricants
© 2009 Chevron Products Company, San Ramon, CA. All rights reserved
Meropa Performance
Standards Claims Versus Competition
Performance
Standards
Meropa Mobilgear 600 Mobilgear 600 Shell Omala
Series*
XP Series*
Oils*







ISO 12925-1 (Type
CKD)



MAG Cincinnati,
Cincinnati Machine

Textron Power
Transmission (David
Brown)

US Steel 224
AGMA EP 9005-E02
DIN 51517/3 (CLP)




* Published Company Product Literature
Global Lubricants
© 2009 Chevron Products Company, San Ramon, CA. All rights reserved
Meropa Performance Benefits
 Maintains Gear Set Efficiencies:
 High thermal stability EP system maintains clean gear and
bearing surfaces, minimizing deposits with high oxidation stability
 Extends Equipment Life:
 Effective EP System forms a protective film in areas of metal-to-
metal contact
 Good water separation and effective rust inhibitors
 Reduces formation of corrosive products that are corrosive to
metal components
 Long Oil Life:
 Oxidation inhibitors and copper passivators minimize oil
oxidation, limiting viscosity increase and extending oil drain
intervals
Global Lubricants
© 2009 Chevron Products Company, San Ramon, CA. All rights reserved
Reliability the Chevron Way
 Reliability is the predictable, dependable performance of:



People
Processes
Equipment
 Reliable performance ensures the delivery of products and services



On spec
On time
Every time
Reliability, like safety, is a critical element of
operational excellence, and requires our
constant attention.”
—Dave O’Reilly, Chairman and CEO
Chevron Corporation
Global Lubricants
© 2009 Chevron Products Company, San Ramon, CA. All rights reserved
Reliability-based Lubrication for your business
 RbL Definition: A unique combination of industry knowledge,
targeted products and customized services to optimize
equipment performance for increased productivity.
 Global network of experienced lubrication specialists coming from
a culture of Operational Excellence
 In-depth knowledge and understanding of your industry
 Portfolio of premium products and customized services
 Chevron’s RbL approach combines industry knowledge with
technologically advanced lubricants which can help you run
more reliably, efficiently and profitably to attain:
 Longer equipment life
 Less maintenance
 Reduced downtime
Global Lubricants
© 2009 Chevron Products Company, San Ramon, CA. All rights reserved
Knowledge Offering
 Over 100 years of experience serving the industry
 Industry Specialists - Chevron has a team of dedicated national and regional
specialists to work with you to address your specific requirements
 Global network of STLE Certified Lubrication Specialists
 Nationwide Distribution Network - Signature Class Lubrication Marketers,
equipment programs (tankage, etc.), dedicated sales force, comprehensive
delivery services, industry knowledge
 LUBETEK - Knowledge Resource Center
1-800-582-3835 lubetek@chevron.com
 Chevron Oronite - Chevron Oronite is a leading developer, manufacturer and
marketer of specialty chemicals used to produce additives for lubricant
formulations.
Global Lubricants
© 2009 Chevron Products Company, San Ramon, CA. All rights reserved
Services Offering
 LubeWatch® – oil analysis program is designed to help you optimize
equipment life and oil replacement intervals, identify lubricant-related
needs and understand the changing environment within a piece of
equipment.
 Chevron Business Point - provides easy access to business critical
information and transactions online, where you can obtain invoices,
statements, place orders and track order status.
 Training - On-site training is provided in the areas of lubricant
fundamentals; products and applications; oil analysis; and the
importance of lubrication as it relates to equipment reliability.
Global Lubricants
© 2009 Chevron Products Company, San Ramon, CA. All rights reserved
Optimizing Reliability-based Lubrication
Chevron’s RbL approach combines industry knowledge with
technologically advanced lubricants which can help you run more
reliably, efficiently and profitably, and improve your bottom line.
Thank You
Global Lubricants
© 2009 Chevron Products Company, San Ramon, CA. All rights reserved
