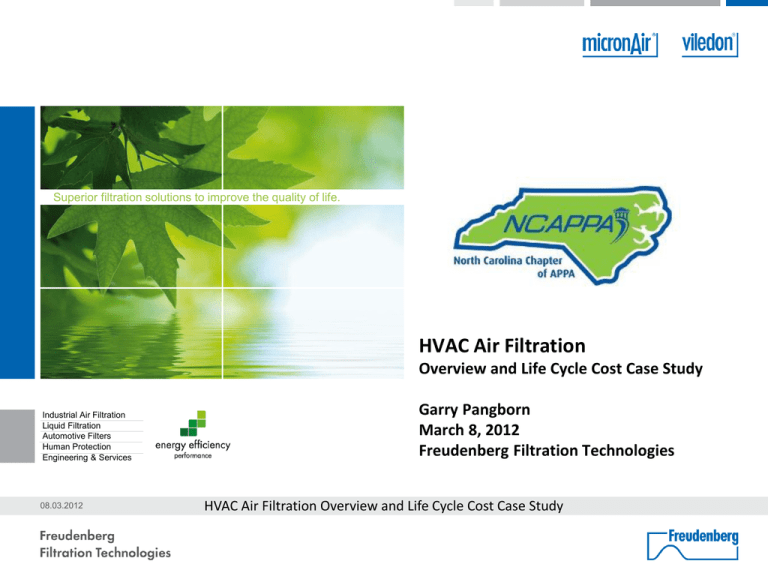

HVAC Air Filtration Overview and Life Cycle Cost Case Study
STRICTLY CONFIDENTIAL
The Air We Breath - Sizes of Common Particles
08.03.2012
HVAC Air Filtration Overview and Life Cycle Cost Case Study
2
The Air We Breathe - Particle Size Distribution of Atmospheric Air
Primarily NaturallyOccurring
 The activities of
modern society have
greatly increased
presence of submicron particles
Primarily
Man-made
Fine
08.03.2012
HVAC Air Filtration Overview and Life Cycle Cost Case Study
3
The Air We Breathe – Health & Wellness Considerations

Every day, the typical adult in the U.S.:
 Eats 3 lbs of food
 Drinks 4 lbs of fluids
 Breathes 35 lbs of air!

Particles are deposited into respiratory tract; the
smaller the particle, the deeper it can reach

EPA estimates that people spend 90% of time
indoors

Sick Building Syndrome, Building Related
Illness, Pandemics

Productivity benefits of improved IAQ (Indoor
Air Quality)

Increases in allergy and asthma cases
nationwide

Increasing evidence that disease can spread via
airborne routes (droplet nuclei)
08.03.2012
HVAC Air Filtration Overview and Life Cycle Cost Case Study
4
The Air We Breathe – Dust Concentrations
 What is the dust concentration in this room?
 10 to 50 μg/m3
 What is it in the extremes in the world?
 Lowest recorded – Antarctica at 0.00001
μg/m3
 Highest recorded – Sandstorms at
4,000 to 6,000 μg/m3
 What is Urban Typical?
 In the United States – 20 to 50 μg/m3
 In China – 300 to 500 μg/m3
08.03.2012
HVAC Air Filtration Overview and Life Cycle Cost Case Study
5
Air Filtration Mechanisms
Electrostatic
Inertial Impaction
Attraction
(+)
(-)
Filter
Fiber
Brownian Diffusion
Interception
08.03.2012
HVAC Air Filtration Overview and Life Cycle Cost Case Study
6
Filter Efficiency - Filtration Mechanisms Working Together
 Filter Efficiency is the
combination of the
various capture schemes
08.03.2012
HVAC Air Filtration Overview and Life Cycle Cost Case Study

Sieving

Inertial impaction

Interception

Diffusion

Electrostatic
attraction
7
Filtration Efficiency - What is MERV?
Minimum Efficiency Reporting
Value (MERV)
ASHRAE 52.2 MERV Table
 ASHRAE 52.2 standard
 Classification system for
filters based upon particle
capture efficiency
 Numerical designation
between 1 and 16
LEED Point for
MERV Level ≥13
08.03.2012
HVAC Air Filtration Overview and Life Cycle Cost Case Study
8
Filter Pressure Drop and Energy
 Energy consumption impact: Up to 30% of fan energy usage due
to filter pressure drop
Governing equation for
how lower ΔP equates to
lower energy usage:
Energy =
Q x ΔP x t
η
where…
Q = volumetric flow rate
ΔP = pressure drop
t = time
Target operating zone.
η = motor-fan efficiency
08.03.2012
HVAC Air Filtration Overview and Life Cycle Cost Case Study
9
Filter Pressure Drop and Energy
Optimum Filter Change-out Timing
Goal should be to changeout filters at the lowest
point on this curve.
08.03.2012
HVAC Air Filtration Overview and Life Cycle Cost Case Study
10
Filter Selection Criteria
 Life cycle costs most
important
 Note difference in
values between LCC
and Initial Cost
 Avoidance of catastrophic
failures due to blowout or
moisture are noteworthy
 Fit and MERV naturally a
key criteria
 Vendor knowledge /
service is valued
08.03.2012
HVAC Air Filtration Overview and Life Cycle Cost Case Study
11
Filter Types by Efficiency Levels
08.03.2012
HVAC Air Filtration Overview and Life Cycle Cost Case Study
12
A Case Study in Energy and Life Cycle Cost Savings
Case Study Background
 Interest in energy savings and sustainability

Business and Aerospace Building, 3rd Floor

Pursued side-by-side energy consumption comparison study
Business & Aerospace Bldg
Single-stage
2-Stage System
vs.
Filter Installation
 Side access housing
 4 rows of 20” tall tracks
 Two stages
08.03.2012
 Single stage – no pre-filter

2” pleated pre-filter

20”x24”x12” box filter

20”x24”x20” pocket
filter
 5 columns of filters 24” wide
 Side-load gasketing
 4 pockets per filter
HVAC Air Filtration Overview and Life Cycle Cost Case Study
13
A Case Study in Energy and Life Cycle Cost Savings
Head-to-Head Pressure Drop Across Filter Banks
Data courtesy
MTSU
08.03.2012
HVAC Air Filtration Overview and Life Cycle Cost Case Study
14
A Case Study in Energy and Life Cycle Cost Savings
Illustration of Pressure Drop Comparison Across Filter Banks
08.03.2012
HVAC Air Filtration Overview and Life Cycle Cost Case Study
15
A Case Study in Energy and Life Cycle Cost Savings
Energy Monitoring

ABB variable
frequency drives
(VFD)

30 HP motors

Hourly data logging
of motor voltage and
current for each air
handler

Power data then
tabulated in Excel
08.03.2012
HVAC Air Filtration Overview and Life Cycle Cost Case Study
16
A Case Study in Energy and Life Cycle Cost Savings
Energy Monitoring Results
Data courtesy
MTSU
08.03.2012
HVAC Air Filtration Overview and Life Cycle Cost Case Study
17
A Case Study in Energy and Life Cycle Cost Savings
Filter Pressure Drop Checks under Controlled Laboratory Conditions
08.03.2012
HVAC Air Filtration Overview and Life Cycle Cost Case Study
18
Sustainability Impact – In Addition to Energy Reduction
 Potential waste reduction on campus

Major reduction in filter usage
 Pre-filters eliminated
 3x lifetime of typical box/cell filters
Filter Qty: 300  20
93% potential
reduction in usage
over 3 yr period
08.03.2012
HVAC Air Filtration Overview and Life Cycle Cost Case Study
19
Filtration Life Cycle Cost Reduction
 Note importance of
energy consumption
Initial Filter
Costs
 For every 0.1” w.g.
reduction in P there is
an energy savings of
$17 per filter per year
(@ $0.06 per kWh)
Operating
Costs
 Case Study Total Cost of Ownership Impact
(over 3 years)

Energy Cost
44%

Filter Cost
54%

Labor Cost
86%
 Overall
08.03.2012
50%
HVAC Air Filtration Overview and Life Cycle Cost Case Study
20
Additional University Case Studies
Additional Example #1
Southeast
Additional Example #2 - Midwest
Additional Example #3
Northeast
 V-bank Type Filter (no pre-filter)
 Pocket Filter (no pre-filter)
 Filter dP after 24 months
of service: 0.24” w.c. (new
= 0.20” w.c.)
Previous Incumbent:
Pre-filters:
changed quarterly
Final filters: changed
every 12-18 months
08.03.2012
 Filter dP at 30 months of service: 0.68”
w.c. (new 0.28” w.c.)
 Case study presented at 2010 MIAPPA
summer conference:
www.fm.wmich.edu/miappa/conf/s10/index.html
 Pocket Filter (no pre-filter)
 Filter dP after 40 months of
service: 0.29” w.c.
Previous Incumbent:
Pre-filters:
changed quarterly
Final filters: changed
annually
HVAC Air Filtration Overview and Life Cycle Cost Case Study
Previous Incumbent:
Pre-filters:
changed quarterly
Final filters: changed
every 12-18 months
21
Greenguard Certification
Check air filters for
certification

3rd party qualification

Assesses emissions of VOC’s (i.e. formaldehyde)

Evaluates product for mold/fungi growth
08.03.2012
HVAC Air Filtration Overview and Life Cycle Cost Case Study
22
Trends in Air Filtration Market
 Elimination of roll filters
 Consolidation of 2-stage pleated filter + box filter to long-life pocket
technology or V-bank filters
 Higher efficiencies (LEED - MERV 13)
 End-user focus on energy conservation (lower dP filters)
 End-user focus on life cycle costs
 End-user focus on sustainability and less waste
 Growth of synthetic media filters vs. glass due to:

Lower cost

Glass fiber shedding

Moisture resistance

More puncture resistant

Lower VOC emissions

Installer friendly (skin contact)
 Ultraviolet (UV) lights used in conjunction with air filters to help
keep heat transfer coils ultra clean
 Nanofiber filter media
08.03.2012
HVAC Air Filtration Overview and Life Cycle Cost Case Study
23
