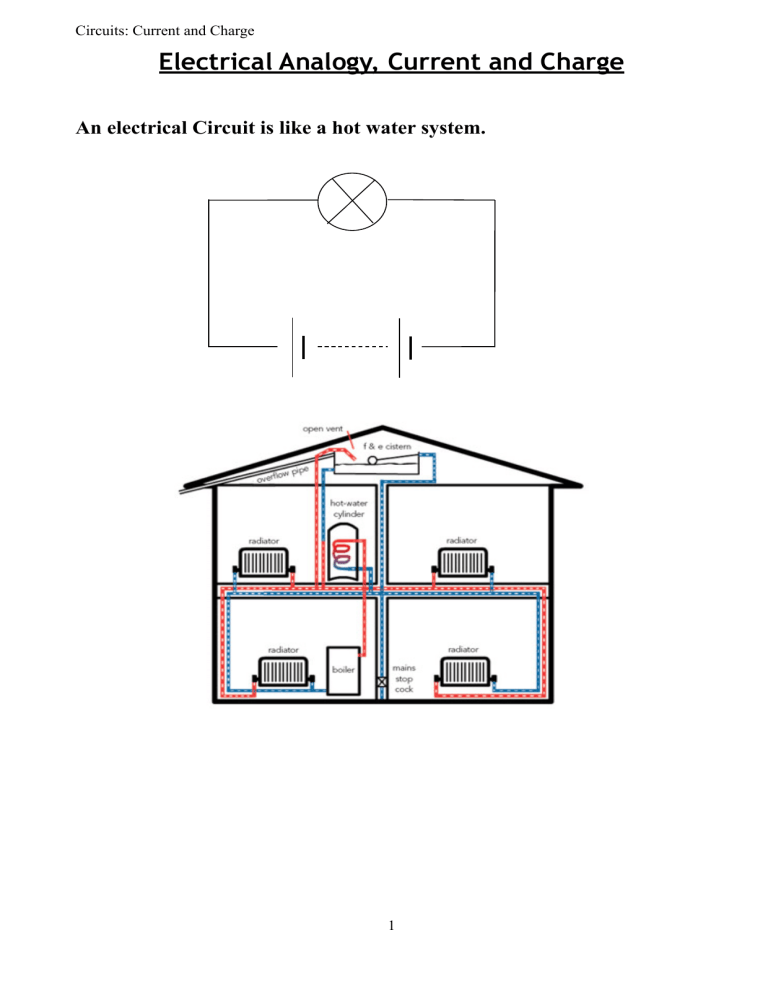

Circuits: Current and Charge Electrical Analogy, Current and Charge An electrical Circuit is like a hot water system. 1 Circuits: Current and Charge Analogy Electrical Is like the….. Because…. Component Battery ……… It supplies ……… to the circuit. Charge (electrons) ……… It ……. around the circuit and carries …….. Wire ……… ……… It carries the ……../……. Lamp ………. It transfers …….. from the circuit to the surrounding ……….. difference in the water (before and after the heater) This is a measure of the energy transferred. A* mark” Potential difference in the circuit (across the lamp) 2 (any short comings in the analogy) Water will leak from a broken pipe, but electrons will not ‘leak’ from a broken wire Circuits: Current and Charge Charge What is the relationship between charge and current? Definition: Current is the rate of flow of charge. Current = Charge / time Current I is measured in Amps A. Charge Q is measured in Coulombs C. Time t is measured in seconds s. Practice Question Q1. A bucket can hold 12kg of water. A tap starts fill the bucket at a flow rate of 0.10kg/s. Calculate time taken to fill the bucket. to the 120 seconds which is 2 minutes. 12kg/0.10kg/ s=120 seconds. Q2. A battery delivers a current of 1.2A to a circuit. After 2.0mins how much charge has moved around the circuit? 3 Circuits: Current and Charge Electrical Symbols Identify these common symbols used in circuits. conductor resistor cell battery positive battery A variable resistor V ammeter lamp voltmeter switch open DC power suply switch closed Fuse ?? 4 Circuits: Current and Charge Electrical Basics We need to define some basic properties in electricity: Charge The unit of Charge is the Coulomb . The symbol for charge is Q. The symbol for the Coulomb is C. Current Current is the rate of flow of electric charge . Current is measured using an Ampere Meter . A The unit of Current is the ampere , or coulomb per second. The symbol for Current is I. The symbol for the Amp is A. Potential Difference (Potential Difference is the power that makes charge move.) Potential Difference is the force supplied to the charges Potential Difference is measured using a volt meter The unit of Potential Difference is the Joule per Coulomb.. The symbol for Potential Difference is delta V . The symbol for the Volt is V . 5 V Circuits: Current and Charge Resistance Resistance resists the flow of charge and power of the current. Resistance is calculated from Potential Difference and Current. The unit of Resistance is the ohm . The symbol for Resistance is Ω . The symbol for the Ohm is Ω . 6
