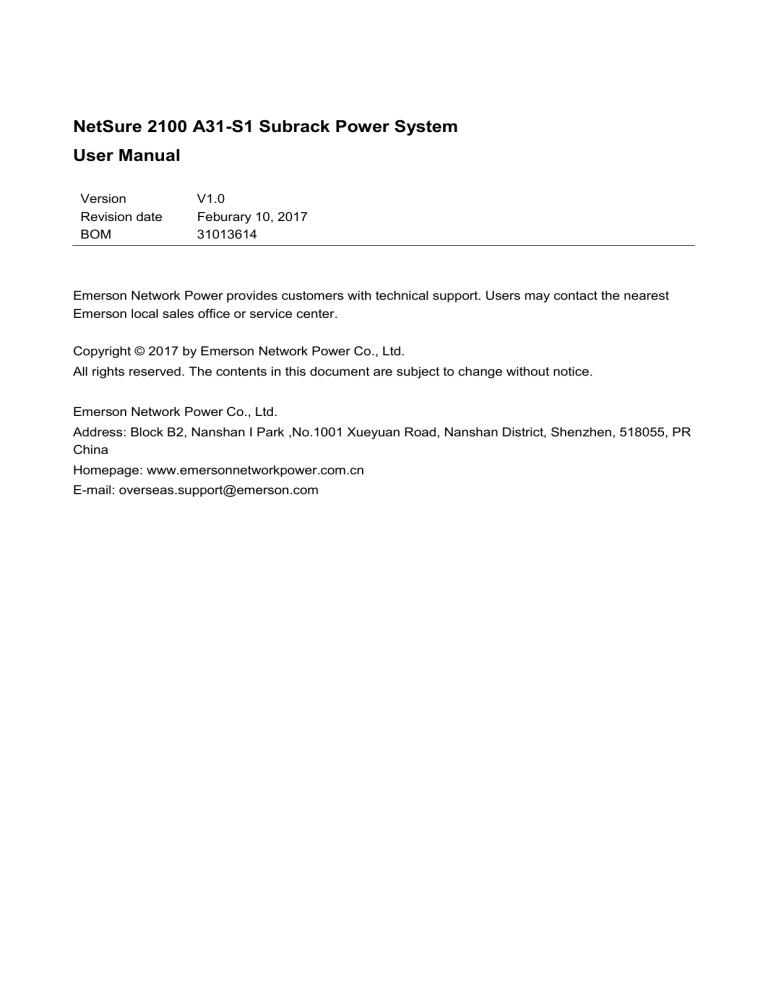

NetSure 2100 A31-S1 Subrack Power System
User Manual
Version
Revision date
BOM
V1.0
Feburary 10, 2017
31013614
Emerson Network Power provides customers with technical support. Users may contact the nearest
Emerson local sales office or service center.
Copyright © 2017 by Emerson Network Power Co., Ltd.
All rights reserved. The contents in this document are subject to change without notice.
Emerson Network Power Co., Ltd.
Address: Block B2, Nanshan I Park ,No.1001 Xueyuan Road, Nanshan District, Shenzhen, 518055, PR
China
Homepage: www.emersonnetworkpower.com.cn
E-mail: overseas.support@emerson.com
Safety Precautions
To reduce the chance of accident, please read the safety precautions carefully before operation. The ‘Caution,
Notice, Warning, Danger’ in this book do not represent all the safety points to be observed, and are only
supplement to various safety points. Therefore, the installation and operation personnel must be strictly trained
and master the correct operations and all the safety points before operation.
When operating Emerson products, you must strictly observe the safety rules in the industry, the general safety
points and special safety instructions specified in this book.
Electrical Safety
I. Hazardous voltage
Danger
Danger
Some components of the power system carry hazardous voltage in operation. Direct contact or indirect contact through
moist objects with these components will result in fatal injury.
Observe safety rules in the industry when installing the AC power system. The installation personnel must be
licensed to operate high voltage and AC power.
In operation, the installation personnel are not allowed to wear conductive objects such as watches, bracelets,
bangles or rings.
When you find water or moisture is on the cabinet, then turn off the power immediately. In moist environment,
precautions must be taken to keep moisture out of the cabinet.
‘Prohibit’ warning label must be attached to the switches and buttons that are not permitted to operate during
installation.
Danger
Danger
High voltage operation may cause a fire and an electric shock. The connection and wiring of AC cables must be in
compliance with the local rules and regulations. Only those who are licensed to operate high voltage and AC power can
perform high voltage operations.
Danger
Danger
To avoid electric shock hazard of outdoor environment and outdoor equipment, the non-professionals are prohibited to
operate or maintain the power system.
III. Tools
Warning
In high voltage and AC operation, special tools must be used. No common or self-carried tools should be used.
IV. Thunderstorm
Danger
Danger
Never operate on high voltage, AC, iron tower or mast in the thunderstorm.
In thunderstorms, a strong electromagnetic field will be generated in the air. Therefore the equipment should be
well earthed in time to avoid damage by lightning strikes.
V. ESD
Note
The static electricity generated by the human body will damage the static sensitive elements on PCBs, such as large-scale
ICs. Before touching any plug-in board, PCB or IC chip, you must wear ESD wrist strap to prevent body static from
damaging the sensitive components. The other end of the ESD wrist strap must be well earthed.
VI. Short circuit
Danger
Danger
During operation, never short the positive and negative poles of the DC distribution unit of the system or the non-grounding
pole and the earth. The power system is constant voltage DC power equipment, and short circuit will result in equipment
burning and endanger human safety.
VII. Reverse connection
Warning
Never reverse-connect live line and neutral line of the AC input cables, or else the system will be damaged.
VIII. Dangerous energy
Warning
The power system contains output exceeds 240VA, dangerous energy, must be far away and can not be bridged.
Check carefully the polarity of the cable and connection terminal when performing DC live operations.
The conductive part of the DC output and signal port (including the dry contact) can not be touched when the
system is with live power, especially in thunderstorms or wet weather, otherwise there will be an electric shock
hazard.
As the operation space in the DC distribution unit is tight, please carefully select the operation space.
Never wear a watch, bracelet, bangle, ring, or other conductive objects during operation.
Insulated tools must be used.
In live operation, keep the arm muscle tense, so that when tool connection is loosened, the free movement of the
human body and the tool is reduced to a minimum.
Battery
Danger
Danger
Before working on the battery, read very carefully the safety precautions for battery transportation and the correct battery
connection method.
Warning
If the battery is configured by customer, the battery installation and maintenance must comply with the appropriate safety
standards.
Non-standard operation on the battery will result in danger. In operation, pay close attention to prevent battery
short circuit and spill of the electrolyte.
For safety reasons, before working on the battery, pay attention to the following points:
Remove the watch, bracelet, bangle, ring, and other metal objects.
Use insulated tools.
Wear eye protection and take preventive measures.
Wear rubber gloves and apron to guard against spilt electrolyte.
In battery transportation, the electrode of the battery should always be kept facing upward. Never put the
battery upside down or slanted.
Others
I. Sharp object
Warning
When moving equipment by hand, protective gloves should be worn to avoid injury by sharp object.
II. Power cable
Note
Noti
Warn
cein g
Please verify the compliance of the cable and cable label with the actual installation prior to cable connection.
III. Binding the signal lines
Note
Noti
Warn
cein g
The signal lines should be bound separately from power cables, with binding interval of at least 150mm.
IV. Subrack power supply
Warning
It is strictly forbidden to stand or place objects on the equipment body and accessories.
Contents
Chapter 1 Overview ............................................................................................................................................................ 1
1.1 Model Description ................................................................................................................................................. 1
1.2 Composition And Configuration ............................................................................................................................ 1
1.3 Operating Theory .................................................................................................................................................. 2
1.4 Features ................................................................................................................................................................ 2
Chapter 2 Installation .......................................................................................................................................................... 3
2.1 Safety Regulations ................................................................................................................................................ 3
2.2 Preparation ........................................................................................................................................................... 3
2.3 Mechanical Installation.......................................................................................................................................... 4
2.4 Electrical Installation ............................................................................................................................................. 5
2.4.1 Connecting Power Cable ........................................................................................................................... 5
2.4.2 Connecting Battery Cable .......................................................................................................................... 6
2.4.3 Connecting Communication Cable ............................................................................................................ 6
2.4.4 Connecting Temperature Compensation Cable......................................................................................... 7
2.5 Installation Check.................................................................................................................................................. 7
Chapter 3 Testing ................................................................................................................................................................ 8
3.1 Startup .................................................................................................................................................................. 8
3.2 Basic Settings ....................................................................................................................................................... 8
3.3 Alarm Check And System Operation Status Check .............................................................................................. 9
3.4 Final Steps ............................................................................................................................................................ 9
Chapter 4 Use Of Controller .............................................................................................................................................. 10
4.1 Operation Panel .................................................................................................................................................. 10
4.2 Main LCD Screens .............................................................................................................................................. 10
4.2.1 System Information Screen ..................................................................................................................... 10
4.2.2 Password Confirmation Screen ............................................................................................................... 11
4.2.3 MAINMENU Screen ................................................................................................................................. 11
4.3 Querying System Main Information ..................................................................................................................... 12
4.3.1 Querying Active Alarm ............................................................................................................................. 12
4.3.2 Querying Historical Alarm ........................................................................................................................ 12
4.3.3 Querying Rectifier Information ................................................................................................................. 12
4.4 Setting System Parameters ................................................................................................................................ 13
Chapter 5 Maintenance ..................................................................................................................................................... 14
5.1 Routine Maintenance .......................................................................................................................................... 14
5.2 Handling Alarms And Fault ................................................................................................................................. 14
5.2.1 Handling Controller Alarms ...................................................................................................................... 14
5.2.2 Handling Rectifier Fault ........................................................................................................................... 16
5.3 Replacing Parts................................................................................................................................................... 17
5.3.1 Replacing Rectifier .................................................................................................................................. 17
5.3.2 Replacing Controller ................................................................................................................................ 17
5.3.3 Replacing Logic Board............................................................................................................................. 18
Appendix 1 Technical Data ............................................................................................................................................... 19
Appendix 2 Menu Structure Of The Controller .................................................................................................................. 21
Appendix 3 Schematic Diagram ........................................................................................................................................ 22
Appendix 4 Wiring Diagram............................................................................................................................................... 23
Chapter 1
Overview
1
Chapter 1 Overview
The NetSure 2100 A31-S1 subrack power system (power system for short) can be directly used in corridor and other
semi-enclosed environment. It supports 19'' rack and wall-mounting installation, and can supply as much as 2kW
power.
This chapter introduces the model description, composition and configuration, operating theory and features of the
power system.
1.1 Model Description
The model description of the power system is given in Figure 1-1.
NetSure
A 3 1 -S 1
2 1 0 0
Configuration version: 1
System form feature. S: subrak power supply
System version: 1
Max. rectifier number: 3 pieces
Region: Asia-Pacific
Reserved: 0
Reserved: 0
Platform series: 1
Rectifier power: 1000W
Brand name of the power system
Figure 1-1 Model description
1.2 Composition And Configuration
Composition
The power system is composed of rectifiers, a controller and a power distribution unit. The structure of the power
system is shown in Figure 1-2.
Rectifier
Controller
Power distribution unit
Figure 1-2 Structure of the power system
Configuration
The configuration of the power system is given in Table 1-1.
Table 1-1 Configuration list
Component
Configuration
Controller
M225S
1 piece
Rectifier
R48-1000e3
Standard configuration: 2 pieces
AC distribution
L + N + PE/220Vac
1 × 30A; quick-plug terminal
DC distribution
Priority load (PL):
1 × 20A/1P; MCB
2 × 10A/1P; MCB
1 × 30A; quick-plug terminal
2 × 30A; quick-plug terminal
Battery MCB
1 × 30A/1P; MCB
1 × 30A; quick-plug terminal
Note:
Optional configuration: temperature sensor cable
NetSure 2100 A31-S1 Subrack Power System
User Manual
2
Chapter 1
Overview
1.3 Operating Theory
Electrical theory
The schematic diagram of the power system is shown in Figure 1-3.
Rectifier
220Vac
220Vac
AC
distribution
Thermal
control unit
- 48Vdc
DC
distribution
Load
Controller
Figure 1-3 Schematic diagram
The AC distribution unit introduces the AC power and feeds to the rectifier, which converts the 220Vac into -48Vdc and
delivers it to the AC distribution unit, through which the -48Vdc power is outputted to each load.
The controller has functions of battery management, LLVD, BLVD, data acquisition and alarm, and it can communicate
with the host.
Heat dissipation theory
The power system uses natural cooling to dissipate heat.
1.4 Features
Rectifier
 Power factor up to 0.99, efficiency over 94.5%.
 Wide AC input voltage ranges from 85Vac to 300Vac. When the input voltage is between 85Vac and 175Vac, the
rectifier will derate the output power.
 High module power density.
 Hot pluggable. It takes less than one minute to replace a rectifier.
 Two over-voltage protection methods are optional: hardware protection and software protection. The latter one
also has two optional modes: lock out at the first over-voltage and lock out at the second over-voltage.
System
 Perfect battery management. The system has BLVD function, and can perform functions such as temperature
compensation, automatic voltage regulation, stepless current limiting, battery capacity calculation, and online
battery test.
 Network design. Providing multiple communication ports, which enable remote monitoring and unattended
operation.
 Up to 200 pieces of historical alarm records can be recorded by M225S controller.
 Complete fault protection and fault alarm functions.
 Safety guideline: IP20
 Application of rectifier module dormancy technology, which enhances the energy saving function of the system.
High system efficiency: above 93.5%.
NetSure 2100 A31-S1 Subrack Power System
User Manual
Chapter 2
Installation
3
Chapter 2 Installation
This chapter introduces the installation and cable connection of the power system. Before installation, please read
through the safety regulations, and then follow the instructions in this chapter to carry out the installation and cable
connection.
2.1 Safety Regulations
Certain components in the power system carry hazardous voltage and current. Always follow the instructions below:
1. Only trained personnel with adequate knowledge of the power system shall carry out the installation. The Safety
Precautions listed before the Contents of this manual and local safety rules in force shall be adhered to during the
installation.
2. All external circuits below -48V connected to the power system must comply with the SELV requirements defined in
IEC 60950.
3. Do not operate or maintain the power system under thunderstorm or humid weather!
4. Make sure that the power system is powered off before any operation carried out within the system.
5. The power cables should be routed and protected properly, so that the cables are kept away from the operation and
maintenance personnel.
2.2 Preparation
Unpacking inspection
The equipment should be unpacked and inspected after it arrives at the installation site. The inspection shall be done
by representatives of both the user and Emerson Network Power Co., Ltd.
To inspect the equipment, you should open the packing case, take out the packing list and check against the packing
list that the equipment is correct and complete. Make sure that the equipment is delivered intact.

Note
The rectifiers have been installed in the subrack power system at factory.
Preparing cables
The cable should be selected in accordance with relevant electric industry standards.
It is recommended to use the RVVZ cables as AC cables. The cables should reach at least +70°C temperature
durability.
Select the AC cable CSA according to Table 2-1.
Table 2-1 Selection of AC cable CSA
Connector
Specification
AC cable CSA
AC input terminal
1 × 30A quick-plug terminal
≤ 10mm2
Note: With cable shorter than 30m, the CSA calculation should be based on the current density of 2.5A/mm2. The recommended
CSA value is not less than 2.5mm2
The DC cable CSA depends on the current flowing through the cable, the allowable voltage drop and the load peak
capacity. The recommended load peak capacity is 1/2 to 2/3 of MCB capacity.
NetSure 2100 A31-S1 Subrack Power System
User Manual
4
Chapter 2
Installation
Select the battery cable CSA according to Table 2-2 and load cable CSA according to Table 2-3.
Table 2-2 Battery cable CSA selection
Battery MCB
Max. battery
Min. cable
Max. cable length (volt
Max. cable
Max. cable length (volt drop:
rated current
current
CSA
drop: 0.5V)
CSA
0.5V, with max. CSA)
Note:
1. The specification is applicable at ambient temperature of 40°C. If the temperature is higher, the CSA should be increased.
2. The battery cable should reach at least +90°C heat durability. It is recommended to use double-insulated copper-core flame
retardant cable as battery cable
Table 2-3 Load cable CSA selection
Load route
Max. output
Min. cable
Max. cable length (volt
Max. cable
Max. cable length (volt drop:
rated current
current
CSA
drop: 0.5V, with min. CSA)
CSA
0.5V, with max. CSA)
20A
10A
1.5mm2
1.9m
10mm2
13m
10A
5A
1.5mm2
3.8m
10mm2
26m
Note: The specification is applicable at ambient temperature of 40°C. If the temperature is higher, the CSA should be increased
2
The CSA of the system grounding cable should be not less than 2.5mm , use yellow-green dual color cable, the
grounding terminal is M6 screw.
Preparing tools
The installation tools are given in Table 2-4. The tools must be insulated and ESD-proof processed before they are
used.
Table 2-4 Installation tools
Tool
Specification
Combination wrench
(hatch, club)
Adjustable wrench
Electrician diagonal pliers
Electrician sharp nose
pliers
Wrench set (10#, 13#, 16#,
18#, 21#)
200mm
150mm
Tool
Specification
Box wrench
12mm
Cross screwdriver
Slotted screwdriver
100mm, 200mm
100mm, 200mm
150mm
Wire cutters
Max. 300mm2
Steel tape
5m
Hydraulic-pressure
compaction pincher
Max. 300mm2
Electrician knife
Normal type
Digital multimeter
Gradienter
Blinkers
Normal type
To prevent splash
Impact electric drill
Power socket
Hammer
Safety shoes
Three and a half bit digital
display
With Φ8 impact aiguille
With 5m cable
To prevent puncture and for
insulation
Preparing shielding metal pipes
It is recommended to use metal pipes to shield and protect all the cables. Plastic coated metal hoses are
recommended. Prepare the metal pipes according to the actual amount and size of cables.
2.3 Mechanical Installation
The power system uses 19'' rack or wall-mounting installation. The required mounting components are shipped with
the power system at delivery.

Note
1. When installing the power system against the wall, make sure that the wall strength and thickness meet the load-bearing and
expansion bolt installation requirements.
2. The three brackets are fixed on both sides of the subrack power system before delivery.
The installation procedures are as follows:
1. If wall-mounting installation is used, firstly remove the three brackets, turn the bracket with the grounding screw to
make the grounding screw facing forward, and then fasten the bracket to the front of the subrack left side wall,
SiteWeb2 Graphic Configuration Tool
Operation Manual
Chapter 2
Installation
5
meanwhile, respectively fix the other two brackets after rotation to the middle of the subrack left and right side wall.
The position of the bracket is shown in Figure 2-2.
2. By referring to the dimension shown in Figure 2-1, mark the central points of the installation holes on the wall. Use
an electric drill (aiguille: Φ8) to dig holes (depth: 45mm) at the marked points. Clean the holes off dust. Put the four
expansion pipes (M6 × 65) into the holes and keep 20mm exposed.
Wall
Expansion pipe M6 × 65
20
32
465
Figure 2-1 Installation dimension of cabinet base
3. As shown in Figure 2-2, use four groups of flat washer Ф6, spring washer Ф6 and nut M6 to fix the power system on
the wall.
Flat washer Ф6, spring washerФ6, nut M6 (4 group)
Figure 2-2 Fixing the power system
4. After the installation, the power system should stand firmly no matter how it is shaken.
5. If rack mounting installation is used, firstly remove the three brackets, turn the bracket with the grounding screw to
make the grounding screw facing forward, and then fasten the bracket to the front of the subrack left side wall,
meanwhile, fix any one of the other two brackets after rotation to the front of the subrack right side wall (the rest
bracket is no need to be fixed). The position of the bracket is shown in Figure 2-2, use the fixing screws to fasten the
subrack power system to the rack through bracket.
2.4 Electrical Installation
All the cables entering or outgoing the power system must be put into the metal pipe for protection. The metal pipe
should be connected to the PE bar reliably. Plastic coated metal hoses are recommended.
2.4.1 Connecting Power Cable
Danger
Danger

1. Switch off all MCBs before the electrical connection.
2. Only the qualified personnel can do the mains cable connection.
3. Before electrical connection, make sure all the AC MCBs of the power system are switched off, the AC 230/400V 20A double
pole C type MCB is recommended.
4. There is a dangerous voltage in the primary circuit, disconnect the power supply before maintenance.
Connecting Earth Cable
Connect one end of the earth cable to the grounding terminal (see Figure 2-3), and solder the other end to the
grounding metal base outside the power system.
NetSure 2100 A31-S1 Subrack Power System
User Manual
6
Chapter 2
Installation
Connecting AC Input Cables
The routing method of the AC input cables is the same as that of the earth cables. Connect the live line (L) and neutral
line (N) of the AC input cables respectively to the lower terminals of the power system AC input terminal L and AC input
terminal N, as shown in Figure 2-3.
Load output route 1Load output route 2Load output route 3Battery-
AC input terminal L
Grounding terminal
AC input terminal N
Battery+
Load output route 3+
Load output route 2+
Load output route 1+
Figure 2-3 Illustration of connection terminal
Connecting DC Cables
The power system can be connected with three route of loads respectively controlled by three MCBs, as shown in
Figure 2-3. Connect the negative load cable to the corresponding load '-' and then connect the positive load cable to
the corresponding load ‘+’ (see Figure 2-3).
Table 2-5 Specification of load MCB and cable
Load MCB
Load MCB capacity
Load cable CSA
Load MCB 1 ~ Load MCB 3
20A × 1, 10A × 2
≤ 10mm2

Remark
The total output capacity of the load should
not be greater than the corresponding MCB
rated current
Note
When the mains failure, the battery supplies power to the load. when the battery voltage drops to 43.2V, the power system will
automatically switch off all the loads to avoid battery over-discharge.
2.4.2 Connecting Battery Cable
The power system can be accessed in one group of batteries controlled by a battery MCB, as shown in Figure 2-3.
During connection, connect the negative battery cable to the battery terminal '-' and then connect the positive battery
cable to the battery terminal '+' (see Figure 2-3).
2.4.3 Connecting Communication Cable
Communication port
The power system provides two kinds of communication ports, including dry contact alarm output port and RS232 port,
as shown in Figure 2-4.
Figure 2-4 Illustration of controller front panel
Connecting dry contact output port
The controller is configured with two pairs of alarm dry contact output (DO1 ~ DO2) as standard configuration and four
expanded outputs (DO3 ~ DO6) as optional. The dry contact that generating corresponding alarm is normally closed,
users can connect according to actual needs. When wiring, take out the female of the 4-pin phoenix terminal bound at
SiteWeb2 Graphic Configuration Tool
Operation Manual
Chapter 2
Installation
7
the controller handle, connect the multi-core communication cable with the pipe terminal to the corresponding female
of the phoenix terminal according to the dry contact silkprint on the controller, and then insert the terminal into the
controller front panel. The position of communication terminal and port definition are shown in Figure 2-4 (Users need
to prepare signal cable themselves).
Connecting RS232 port
The RS232 port is used for communication with the host. The correlation of the RS232 and DB9 port on the host is
shown in Table 2-6. When wiring, take out the female of the 3-pin phoenix terminal bound at the controller handle,
connect the multi-core communication cable with the pipe terminal to the corresponding female of the phoenix terminal
according to the RS232 port silkprint on the controller, and then insert the terminal into the controller front panel, as
shown in Figure 2-4 (Users need to prepare signal cable themselves).
Table 2-6 Correlation of ports
RS232 port
1 (Tx)
2 (Rx)
3 (GND)
DB9 port
2
3
5
2.4.4 Connecting Temperature Compensation Cable
If the user selects the temperature compensation cable, first loosen the captive screw in the upper left of the controller,
and slowly pull the controller out of the power system until the 3pin temperature sensing interface J2 is exposed on the
monitoring board. Then take out the temperature compensation cable and insert the cable into the interface, and then
slowly push the controller into the power system and fix the captive screw.
2.5 Installation Check
After the installation, you should carry out the inspection procedures given in Table 2-7.
Table 2-7 Installation check list
Check item
Rack
installation
No.
1
2
3
4
5
1
2
3
Electrical
installation
4
5
6
7
8
9
Check content
Check that the rack is installed horizontally, vertically and steadily
Check that all the bolts and screws are tightened, especially those in electrical connections. Check that
plain washers and spring washers are present and not reversed
Check that there are no unwanted materials inside the rack and clear up the unwanted materials
Check that the rack paint is intact. If there are scratches, paint them immediately with antirust paint to
prevent corrosion
Clean up the rack
Check that all the MCBs and cable specifications are correct
Check that the bus and input/output cables are connected correctly, and that the system is grounded
correctly
Measure the resistance value between the positive terminal and negative terminal in the DC loop and
phase - to - phase resistance value in the AC loop. Make sure there is no shortcircuit
Check that the number and connection of the battery cell, and polarities of the battery strings are correct
Check that the battery cell number and connection
Check that the rectifiers are fastened down
Check that all MCBs are switched off
Check that the cables are tidy, and the cable binding is normative
Check the AC input and distribution. Check that the color of the AC cables is normative, the cables are laid
fast, and the safety labels are complete. See Appendix 4 Wiring Diagram for AC wiring and cable
connection
NetSure 2100 A31-S1 Subrack Power System
User Manual
8
Chapter 3
Testing
Chapter 3 Testing
This chapter introduces the testing after installation. The corresponding safety rules shall be adhered to in the testing.
If abnormal phenomenon is found, shut down the power system immediately. After finding the cause, then continue the
testing.
3.1 Startup

Note
1. Before the test, inform the manufacturer representative.
2. Before the test, take off conductive objects such as watches and rings.
3. Only trained electrical engineers shall maintain and operate the power system.
During operation, parts of this equipment carry hazardous voltage. Misoperation can result in severe or fatal injuries and
property damage. Before the test, check the equipment to ensure the proper grounding. Installation check (see Table 2-7)
must be done before testing. Then the batteries can be charged for the first time.
Make sure that the system AC output MCB and the load MCB in the subrack are switched off, and ensure that all the
devices are installed.
Please check the power system according to below listed items.
Startup preparations
Check item
Make sure that all the MCBs are switched off
Measure the AC input voltage. Make sure that the input voltage is within the rated input range
Check that the communication and alarm cables are connected to the signal transfer board
Check that the temperature sensor has been installed
Check with an ohmmeter that there is no short circuit between the positive & negative DC output terminals,
or between the positive & negative battery terminals or the AC input terminals (Note: Pull out all modules
before the check and restore them after the check)
Measure the battery string voltage with a voltmeter and ensure that the battery polarity is correct
OK




Comments
Umin=___V


Umin=___V
OK

Comments
Startup
Check item
Switch on the system AC input MCB The run indicator on the rectifier will be on after a certain delay
Switch on the load MCB. Use a voltmeter to check the voltage of both ends of load, if it is 53.5V ± 0.5V, it is
normal
Switch on the battery MCB


3.2 Basic Settings
The power system parameters are set at factory, and the default value can meet the requirements of the power system.
Users can modify the parameters (such as AC over/under voltage point, DC over/under voltage point and etc.) of the
power system controller through background software. Users can also reset the commonly used parameters of the power
system through LCD screen based on actual needs. When setting the system parameters, you must input correct
password to allow you setting the controller parameters. The password of M225S controller is 1.
Users can view and set common parameters (see Table 3-1) through the LCD screen of the controller. See Appendix 2
Menu Structure Of The Controller for specific setting path.
Table 3-1 Settable common parameters of power system
Parameters
Battery capacity
Battery protection voltage
Float charge voltage
Setting range
20Ah-600Ah
40-60V
42V ~ 58V (lower than boost charge voltage)
NetSure 2100 A31-S1 Subrack Power System
User Manual
Default value
100Ah
43.2V
53.5V
Chapter 3
Testing
Parameters
Setting range
Default value
Boost charge voltage
42V ~ 58V (higher than float charge voltage)
56.4V
Note:
1. The battery protection voltage should be set according to the requirements of the battery manufacturer
2. If the user configures iron lithium battery, the relevant charging parameters should be set according to the requirements of the
battery manufacturers
3.3 Alarm Check And System Operation Status Check
Alarm check
Check that all functional units can trigger alarms that can be displayed on the controller.
Check item
OK
Pull out one rectifier. The ‘Rect N Com Failure’ alarm should be triggered. Insert the rectifier in. The
alarm should disappear. Repeat the same procedures on other rectifiers

Switch off battery MCB. The ‘Batt Failure’ alarm should be triggered. Switch on the MCB. The alarm
should be cleared

Switch off a load MCB connected to a DC output route. The alarm ‘Load N Failure’ should be triggered.
Switch on the MCB, and the alarm should be cleared. Repeat the same operation on the other load
MCBs

Switch off all the battery MCBs. Keep only one rectifier in operation. Through the controller, adjust the
rectifier FC voltage to make it lower than the alarm point. The alarm ‘DC Voltage Low’ should be
triggered

Comments
Note: The controller will trigger alarms after approximately three seconds
System operation status check
The system works normally without alarm. Check whether the system is running normally through the controller.
Check item
OK
The controller should display the correct AC voltage

The controller should be able to display the DC voltage. The difference between the displayed voltage
and the actual voltage should be less than 1%

The controller should display the battery current. The difference between the displayed and measured
battery current should be less than 3%

Check the number of the rectifiers through the controller. The number should be consistent with the
actual number

Check the voltage, current, current limiting point of rectifiers through the controller. They should agree
with the actual values

For the system with a temperature sensor, the controller should be able to display the battery ambient
temperature. Hold the probe of the temperature sensor with hand, which should display the change of
temperature

Comments
3.4 Final Steps
Check item
OK
Disconnect all test equipment from the system and make sure that materials irrelevant to the equipment
have been all removed

Restore the power system to its original condition

Check and handover the equipment that the user has purchased

Note down all the operations taken, including time of the operation and name of the operator

Comments
If any defects are found in this equipment, inform the personnel responsible for the contract.
If repairing is needed, please fill in the FAILURE REPORT and send the report together with the defective unit to the
repairing center for fault analysis.
NetSure 2100 A31-S1 Subrack Power System
User Manual
9
10
Chapter 4
Use Of Controller
Chapter 4 Use Of Controller
This chapter introduces the operation panel indicators and functional keys of the controller briefly, and expounds the
main screen contents, access method, information querying and parameter setting.
For the factory parameter setting and operation menu structures of the controller, refer to Appendix 1
and Appendix 2 Menu Structure Of The Controller.
Technical Data
4.1 Operation Panel
The operation panel of the controller provides the LCD screen, functional keys and indicators, as shown in Figure 4-1.
Figure 4-1
Operation panel of the controller
The indicators on the operation panel are described in Table 4-1.
Table 4-1 Description of the controller indicators
Color
Normal state
Fault state
Run indicator
Indicator
Green
On
Off
No operation power supply
Observation alarm
indicator
Yellow
Off
On
There are observation alarms
Red
Off
On
There is a critical alarm
Critical alarm indicator
Fault cause
The controller uses a 128 × 64 LCD unit, and a keypad with three functional keys (listed in Table 4-2).
Table 4-2 Description of the controller functional keys
Key
Name
ESC
Escape
Function
Return or cancel
ENT
ENT
Confirm or execute
▼
Down
Move the cursor down or select the next screen
4.2 Main LCD Screens
The following LCD screens will be mentioned in this chapter for many times. This section is a centralized introduction
about the contents and access methods of these LCD screens.

Note
The contents of the LCD screens given in this manual are just the examples. For different configurations, models and system
states, the actual contents of the LCD screens may be different from this manual.
4.2.1 System Information Screen
After the controller is powered on for the first time, following initialization program will be executed.
NetSure 2100 A31-S1 Subrack Power System
User Manual
Chapter 4
Use Of Controller
11
1. After the controller is powered on, the language screen is displayed, as shown in Figure 4-2.
English
中文
Chinese
Chinese
Figure 4-2
Language screen
Press ▼ to select the language needed and press ENT to confirm the selection. If no key is pressed within 3s, the
controller will select the displayed language automatically.
2. During initialization, the controller displays “Wait…”, as shown in Figure 4-3.
Wait
稍候...
...
Figure 4-3 Wait screen
3. After initialization, the screen will display the main screen (see Figure 4-4) that displays the most frequently used
information of the system, and the information is displayed by scrolling every row. You can press the adjustment key to
perform single direction cyclic scrolling.
53.5V
51.3V
53.5V
浮充
FC
125A
0.0A
125A
告警
Alarm
Remaining
电池:
Cap.
剩余:
0.0A
0.0A
100%
100%
AC
Volt.
交流电压:
温度:
Temp.
220V
220V
25.0 ℃
25.0°
C
Figure 4-4 Main screen
4. Press ‘ESC’ in system operating screen to enter the product information screen, as shown below in Figure 4-5
Controller model: LCU
Software version 1.00
1.02
Figure 4-5 Product information screen
5. Press ‘ESC’ in the product information screen to return to the first system operating information screen.
4.2.2 Password Confirmation Screen
During the operation, the 'Settings' submenu will prompt you to input password, as shown in Figure 4-6. Only the
correct password allows you to enter the screen you need to operate.
Password:
x
输入密码:x
Figure 4-6 Password confirmation screen
When inputting the password, use the ENT key to get into editing state, use▼ to input numbers 1 ~ 9. After input '1',
press ENT to enter the first parameter setting screen.
4.2.3 MAINMENU Screen
The main menu is the highest-level menu of the controller. At the sub-menus of this screen, you can query the settings,
controls, rectifier and alarm information of the system. The main menu screen is shown in Figure 4-7.
Active alarm
Rect Infor
Settings
History alarm
Figure 4-7 Main menu screen
NetSure 2100 A31-S1 Subrack Power System
User Manual
12
Chapter 4
Use Of Controller
1. At any one of the system information screen, press the ENT key to enter the MAINMENU screen.
2. At any sub-menu of the MAINMENU screen, press the ESC key repeatedly to return to the higher-level menu, and
ultimately return to the MAINMENU screen.
3. Select the required sub-menu through pressing ▼. The selected sub-menu is shown by cursor, and press the ENT
key to enter the corresponding sub-menu.
4.3 Querying System Main Information
4.3.1 Querying Active Alarm
When a new alarm is generated, the LCD of the controller will prompt the active alarm screen automatically. If there
are multiple alarms in the current system, you can query alarms through the following steps.
At the MAINMENU screen (see Figure 4-7), press▼ to select ‘Active Alarm’ menu. Press the ENT key to confirm.
The previous screen includes the alarm serial No./alarm total number, alarm name and alarm time. The alarm
generating time determines the sequence it is displayed, with the latest alarm displayed first. Press ▼ to view all active
alarms. The active alarms may be displayed in the controller are given in Table 4-3.
Table 4-3 Active alarm of the controller
Alarm name
Default associated
output relay
Conditions
DC Low Volt
System output voltage lower than DC low voltage alarm point
4*1
DC High Volt
System output voltage higher than DC high voltage alarm point
4*1
AC Low Volt
System input voltage lower than AC low voltage alarm point
None
AC High Volt
System input voltage higher than AC high voltage alarm point
None
Temp Low
Temperature lower than normal operating range
None
Temp High
Temperature higher than normal operating range
None
Batt Discharging
Battery is discharging
None
Batt Charging Over Curr
Charging current exceeds preset max. value
None
AC Fail
Rectifier AC input voltage lower than 80Vac
3*1
Load Disconnect
Load distribution fuse or MCB off
None
Batt Disconnect
Battery fuse or MCB off
None
BLVD
BLVD contactor opens due to low battery voltage
6*1
ECO Fail
Energy saving failure
6*1
Sys Curr Imbalance
System current is not balanced
None
Output Volt Abnormal
System output voltage is abnormal
None
Rect Fault
Rectifier fails
5*1
Rect Fan Fail
Rectifier fan fails
5*1
Rect Protect
Rectifier protects itself as its AC input voltage is out of normal range: 85Vac
~ 295Vac
5*1
Rect Comm Fail
Rectifier cannot communicate with LCU
5*1
Critical alarm
There is one or several critical alarms
1
Observation alarm
There is one or several observation alarms
2*2
Note:
1. Relays 3 ~ 6 are available only if the DO expansion board is installed.
2. The relay2 associated with observation alarm, it is necessary to set the parameter 'Relay2' under the 'Settings' menu to 'Alarm
output'. The system is set to 'Alarm output' at factory
4.3.2 Querying Historical Alarm
At the MAINMENU screen (see Figure 4-7), press ▼ to select the ‘History Alarm’ menu. Press the ENT key to confirm.
The alarm contents include the alarm serial No./alarm total number, alarm name and alarm time. The alarm generating
time and the alarm end time are displayed alternatively. Press ▼ to view all historical alarms.
4.3.3 Querying Rectifier Information
The 'Rect. Information' screen displays the information of the first rectifier module. To query the next rectifier
information, simply press ▼. When a rectifier is selected, the corresponding run indicator will flash.
NetSure 2100 A31-S1 Subrack Power System
User Manual
Chapter 4

Use Of Controller
13
Note
If the controller does not detect the rectifier module, the rectifier information can not be queried.
The rectifier information includes rectifier No., output voltage, output current and start state.
At the MAINMENU screen (see Figure 4-7), press ▼ to select the ‘Rect. Information’ menu. Press ENT key to enter
the rectifier information screen, as shown in Figure 4-8.
Rect.1 ON
模块1:开
53.5V 0.0A
Figure 4-8
Rectifier information screen
4.4 Setting System Parameters
The 'Settings' screen has 14 parameters to be set: 'Batt Cap', 'BLVD Volt', 'FC Volt', 'BC Volt', 'Shunt Current', Shunt
Volt', 'ECO Enable', 'Clear', 'Address', 'Baud Rate', 'LLVD Enable', 'LLVD Volt', 'Relay 2' and 'Walk-in Time'. For 'Clear'
submenu, you can select 'History Alarm', 'Rect Lost', 'Communication Failure' and ' Testing abnormal' to clear
corresponding alarms.
Table 4-4 lists all the system parameter settings.
Table 4-4 System parameter settings
Name
Batt Cap
BLVD Volt
FC Volt
BC Volt
Shunt Current
Shunt Volt
Address
Baud Rate
LLVD Enable
LLVD Volt
Relay 2
Walk-in Time
Setting Range
Low
20
40
42
42
1
1
High
600
60
58
58
500
150
1 ~ 254
0/1/2/3
(Corresponding to
4800/9600/19200/38400)
0/1 (Corresponding to disable/enable)
40 ~ 60
0/1 (Corresponding to alarm
output/LLVD)
0, 8 ~ 128 (0 represents disable)
NetSure 2100 A31-S1 Subrack Power System
Default
Unit
100
43.2
53.5
56.4
50
75
1
Ah
V
V
V
A
mV
1 (Corresponding
to 9600)
0 (Disable)
44
V
0 (Alarm output)
0 (Disable)
User Manual
S
14
Chapter 5
Maintenance
Chapter 5 Maintenance
This chapter describes routine maintenance, alarm and fault handling, and replacing parts of the power system.

Note
1. The maintenance must be conducted under the guidance of the related safety regulations.
2. Only trained personnel with adequate knowledge about the power system shall maintain the inner part of the subrack power
system.
3. There is a dangerous voltage at AC side, and the grid must be disconnected when maintaining the AC side.
5.1 Routine Maintenance
Inspect the power system periodically and shoot the trouble in time. The routine maintenance items are given in Table
5-1.
Table 5-1 Routine maintenance items
Inspection item
DC output
Indicators of the
rectifier and the
controller
Rectifier fan
Frequency
Inspecting method
Guide
Measure the voltage between the load MCB and the DC
output positive busbar. Check that the voltage is normal
Once half a year
Multimeter
Once half a year
Visual inspection
Refer to 5.2.1 Handling Controller Alarms and 5.2.2
Handling Rectifier Fault
Once half a year
Visual inspection
If the fans are dusty, the fans should be dusted or cleaned
5.2 Handling Alarms And Fault
5.2.1 Handling Controller Alarms
You can query the controller alarms through LCD screen of the controller.
Alarm type
The controller alarms are classified into three types: critical alarm, observation alarm and no alarm.
Critical alarm: These two types of alarms have strong impacts on the system performance. Whenever these alarms
are generated, you should handle them immediately. The alarm indicators (see Figure 5-1) will be on and audible
indication will be given.
Observation alarm: When this type of alarm is raised, the system maintains normal output for a while. If the alarm
occurs during watch time, it should be handled immediately. If the alarm occurs during non-watch-time, handle it
during watch time. The alarm indicators (see Figure 5-1) will be on when the observation alarm occurs.
No alarm: Alarms set as ‘no alarm’ by the users, will generate no visible or audible indication and the system works
normally.
NetSure 2100 A31-S1 Subrack Power System
User Manual
Chapter 5
Maintenance
15
Controller indicator
The controller alarm indicators are displayed through LCD screen, as shown in Figure 5-1. The description of the
indicators is listed in Table 5-2.
Run indicator
Observation alarm
Critical alarm indicator
Figure 5-1
Controller indicators
Table 5-2 Description of the controller indicators
Indicator
Color
Normal state
Fault state
Run indicator
Green
On
Off
No operation power supply
Observation alarm
indicator
Yellow
Off
On
There are observation alarms
Red
Off
On
There is a critical alarm
Critical alarm indicator
Fault cause
Handling common alarms
The handling methods of common alarms are given in Table 5-3.
Table 5-3 Handling methods of common alarms
No.
Alarm
1
AC Failure
2
Rect Fan Fails
3
Rect Not Respond
4
Over Temp
5
Load Fuse Alarm,
Batt Fuse Alarm
6
DC Volt High
7
DC Volt Low
8
LVD2
9
Rect Fault
10
AC Voltage High
11
AC Voltage Low
Handling method
If the failure does not last long, the battery will power the load. If the cause is unknown or the
failure lasts too long, a diesel generator is needed. Before using the generator power to supply
the power system, it is suggested to run the generator five minutes to minimize the impact on the
power system
Pull out the rectifier to check if the fan is obstructed. If yes, clean it and push the rectifier back. If
the fan is not obstructed or if the fault persists after cleaning, replace the fan
Check if the communication cable is connected properly between rectifier and controller. If yes,
restart the rectifier. If the alarm persists, replace the rectifier
Check the temperature around the temperature sensor is too high, if so, find the cause and
reduce the temperature
Check if the corresponding MCB is switched off. If the MCB is open, find out the fault and remove
it. Otherwise, the alarm circuit is faulty. Please contact Emerson
Find out the rectifier that caused the over-voltage alarm. pull out all the rectifiers under the
circumstance that the battery can supply power normally. Then insert the rectifiers one by one.
When inserting a certain rectifier, the system triggers over-voltage again, that rectifier is
over-voltage, replace it
1. Check if any rectifier is inoperative, or has no output current. If yes, replace it.
2. Check if the total load current exceeds the total rectifier current during float charge. If yes,
disconnect some loads or add more rectifiers to make the total rectifier current bigger than 120%
of the total load current with one redundant rectifier
Check if there is mains failure, and the battery voltage is lower than the value of ‘LVD2’.
The rectifier with the fault indicator (red) on is faulty.
Power off the rectifier, and then power it on after a while. If the alarm persists, replace the rectifier
Check if the AC over-voltage value is too low. If yes, change the value.
A mild over-voltage does not affect the system operation. However, the rectifier will stop
operation when the mains voltage is more than 305V. If the mains voltage is above the AC
over-voltage value, the mains grid should be improved
Check if the AC under- voltage value is too high. If yes, change the value.
NetSure 2100 A31-S1 Subrack Power System
User Manual
16
Chapter 5
No.
Maintenance
Alarm
11
AC Voltage Low
12
Rect Protect
Handling method
When the mains voltage is lower than 176V, the output power of the rectifiers will be derated.
When the mains voltage is lower than 80V, the rectifiers will stop working. If the mains voltage is
under the AC under-voltage value, the mains grid should be improved
Check if the mains voltage is above 305V or under 80V. If the mains voltage is under the AC
under-voltage value or above the AC over-voltage value, the mains grid should be improved
5.2.2 Handling Rectifier Fault
When the rectifier has any other component failure except rectifier fan, the rectifier needs to be replaced. Therefore,
do not disassemble or replace any part of the rectifier other than the fan.
The symptoms of usual rectifier faults include: run indicator (green) off, protection indicator (yellow) on or blinking, fault
indicator (red) on or blinking.
The indicators of the rectifier are shown in Figure 5-2.
Run indicator (green)
电源指示灯(绿色)
Protection indicator (yellow)
保护指示灯(黄色)
Fault
indicator (red)
故障指示灯(红色)
Figure 5-2
Rectifier indicators
The handling methods of rectifiers are given in Table 5-4.
Table 5-4 Handling methods of rectifiers
Indicator
Run
indicator
Color
Normal
state
Green
On
Abnormal
state
Off
Cause
Handling method
No input or output voltage
AC input voltage exceeds normal range
PFC output OverVolt/LowVolt
protection
Current sharing imbalance strongly
Protection
indicator
Yellow
On
Rect over temp:
1. Fan blocked
2. Ventilation path blocked at the inlet
or vent
3. Ambient temperature too high or the
inlet too close to a heat source
Blinking
Rectifier communication interrupted
Off
Rectifier over-voltage
Fault
indictor
Red
Off
On
Blinking
Fuse fault
Make sure that there is input voltage
and output voltage
Ensure AC input voltage is normal
Replace the faulty rectifier with a new
one
Replace the faulty rectifier with a new
one
1. Remove the object that blocks the
fan
2. Remove the object at the inlet or
vent
3. Decrease the ambient temperature
or remove the heat source
Check whether the communication
cable is properly connected
Restart the rectifier. If the protection is
triggered again, replace the rectifier
Check whether the rectifier outputs
over-voltage. If not, replace the
rectifier
Rectifier current sharing imbalance
(current imbalance degree>±5%)
Replace the rectifier
Fan fault
Replace the fan
NetSure 2100 A31-S1 Subrack Power System
User Manual
Chapter 5
Maintenance
17
5.3 Replacing Parts
5.3.1 Replacing Rectifier
For rectifier, it is recommended not to repair any other parts. When faulty, the rectifier should be replaced, not repaired.
See the following procedures to replace the rectifier.
1. Take a new rectifier and check it for any damage from transport.
2. Loosen the fixing screw of the rectifier handle. Pull out the faulty rectifier from the rack by grabbing its handle, as
shown in Figure 5-3.
Fixing screw of handle
Handle
Figure 5-3

Replacing rectifier
Note
The surface temperature of the rectifier just exit working is still very high, pay attention to grasp the rectifier to avoid falling
damage.
3. Hold the rectifier handle and push the new rectifier into the slot just vacated and make sure the connection is good.
After a brief delay, the run indicator of the rectifier will turn on and the fan will start running.
4. Check whether the new rectifier works normally.
You should make sure that:
1) The monitoring unit recognizes the new rectifier.
2) The new rectifier shares current with other rectifiers.
3) When this new rectifier is pulled out, there is a corresponding alarm and the monitoring unit displays the alarm.
If the new rectifier passes all the above tests, the replacement is a success.
5. Push the handle back into the front panel to fix the rectifier, and tighten the fixing screw of the rectifier handle.
5.3.2 Replacing Controller
Controller fault: the run indicator (green) is off and the LCD screen does not display (external alarms may also be
triggered if a background system is connected).
Please check whether the system bus voltage is normal, and the controller connection terminal is reliable. If the above
two points are normal, then the controller is faulty, replace a new controller.
The replacing procedures are as follows:
1. Safety preparation
Attach one end of the effective grounding strap to the wrist and the other end to a suitable ground.
2. Loosen the locking screw on the controller to pull out the controller from the subrack power system until the
terminals J6, J7, J2 (when the temperature sensor is configured) are exposed. Unplug the connection terminal on J6,
J7 and J2, then pull out the controller from the subrack power system completely.
NetSure 2100 A31-S1 Subrack Power System
User Manual
18
Chapter 5
Maintenance
Locking
screw
松不脱螺钉
监控模块
Controller
Figure 5-4
Replacing the controller
3. Insert the new controller into the subrack power system, reconnect the terminals J2, J6, J7, and then tighten the
locking screw of the controller.
4. After restarting the controller, set the parameters according to 4.4
configuration.
Setting System Parameters and actual
5.3.3 Replacing Logic Board
The position of the logic board is shown in Figure 5-5. The replacing procedures of the logic board are as follows:
1. Switch off the battery MCB (see Figure 5-6) and system AC output MCB.
2. Loosen all the fixing screws on the top cover of the subrack power system, and remove the top cover.
3. Unplug all the cable connectors connected to the logic board.
The terminal layout of the logic board is shown in Figure 5-5.
H1
H4
J2
H2
Figure 5-5
J1
H3
Connection terminal layout
4. Loosen the four fixing screws of the logic board, and then remove the logic board, as shown in Figure 5-6.
Logic board
Fixing screw (4 pcs)
Battery MCB
Figure 5-6
Dismantling logic board
5. Replace a new logic board and install the new logic board according to the above reverse steps.
6. Switch on the battery MCB and system AC output MCB.
NetSure 2100 A31-S1 Subrack Power System
User Manual
Appendix 1
Technical Data
19
Appendix 1 Technical Data
Table 2 Technical data
Parameter
category
Environmental
AC input
DC output
AC input alarm
and protection
DC output alarm
and protection
Parameter
Description
Operating temperature
Storage temperature
Relative humidity
Altitude
Over-voltage level
Pollution level
Others
-5°C ~ 40°C
-40°C ~ 70°C
≤ 90%RH (30°C)
≤ 2000m (derating is necessary above 2,000m)
Level II
Level II
No conductive dust or erosive gases. No possibility of explosion
AC input system
L+N+PE/220Vac
Applicable power grid
Input voltage range
Input AC voltage frequency
Max input current
Power factor
Nominal outout voltage
Reted output voltage
Output DC voltage
TN, TT
85Vac ~ 300Vac
45Hz ~ 65Hz
≤ 12.3A
≥ 0.99
-48Vdc
-53.5Vdc
-42.3Vdc ~ -57.6Vdc
0 ~ 34.4A (output voltage is -53.5V)
load current ≤ 20A, battery charge current ≤ 14.4A
≤ 1%
≥ 93.5%
≤ 200mV (0 ~ 20MHz)
≤ 2mV (300Hz ~ 3400Hz)
Default: 280Vac ± 5Vac, configurable through controller
Default: 270Vac ± 5Vac, 10Vac less than the AC input over-voltage
alarm point
Default: 180Vac ± 5Vac, configurable through controller
Default: 190Vac ± 5Vac, 10Vac higher than the AC input under-voltage
alarm point
Output DC current
Voltage set-point accuracy
Efficiency
Noise (peak-peak)
Weighted noise
AC input over-voltage alarm point
AC input over-voltage recovery
difference
AC input under-voltage alarm point
AC input under-voltage recovery
difference
AC input over-voltage protection
point
AC input over-voltage protection
recovery difference
AC input under-voltage protection
point
AC input under-voltage protection
recovery difference
DC output over-voltage alarm point
DC output over-voltage recovery
difference
DC output under-voltage alarm point
DC output under-voltage recovery
difference
DC output over-voltage protection
point
LLVD
BLVD
Load sharing
Rectifier
Derate by input (at 45°C)
Default 305Vac ± 5Vac, configurable through controller
Default: 295Vac ± 5Vac, 10Vac lower than the AC input over-voltage
protection point
Default: 80Vac ± 5Vac, configurable through controller
Default: 95Vac ± 5Vac, 10Vac higher than the AC input under-voltage
protection point
Default: -58.5Vdc ± 0.2Vdc, configurable through controller
Default: -58Vdc ± 0.2Vdc, 0.5Vdc lower than the DC output
over-voltage alarm point
Default: -45.0Vdc ± 0.2Vdc, configurable through controller
Default: -45.5Vdc ± 0.2Vdc, 0.5Vdc higher than the DC output
under-voltage alarm point
Default: -59.0Vdc ± 0.2Vdc, configurable through controller
Default: -44.0Vdc ± 0.2Vdc, configurable through controller
Default: -43.2Vdc ± 0.2Vdc, configurable through controller
The rectifiers can work in parallel and share the current. The unbalance
is better than ± 5% rated output current.
The rectifier can output power of 100% with input voltage of 176Vac;
The rectifier can output power of 750% with input voltage of 132Vac;
Rectifiers output 20% power with input voltage of 85Vac;
Rectifiers under-vlotage stop with input voltage of 80Vac
NetSure 2100 A31-S1 Subrack Power System
User Manual
20
Appendix 1
Technical Data
Parameter
category
Parameter
Over-voltage protection
Rectifier
Output delay
EMC
Fan speed adjustable
Temperature derating (176 ~
300VAC)
Conducted emission
Radiated emission
Harmonic current emissions
Voltage wave and flicker
Immunity to EFT
Immunity to ESD
Immunity to Surges
Immunity to radiation
Immunity to conduction
safety
Acoustic noise
Insulation resistance
Others
Insulation strength
MTBF
ROHS
Dimensions
(mm)
Mechanical
Weight (kg)
Subrack power
system
Subrack power
system
Rectifier
Description
The rectifier provides over-voltage hardware and software protection.
The hardware protection point is 59.5V ± 0.5V, and it requires manual
resetting to restore operation. The software protection point is between
56V and 59V (0.5V above output voltage, 59V by default), and can be
set through the controller
There are two software protection modes, which can be selected
through the software at the host:
1. Lock out at the first over-voltage
Once the output voltage reaches protection point, the rectifier will shut
off and hold that state. it requires manual resetting to restore the
operation
2. Lock out at the second over-voltage
When the output voltage reaches the software protection point, the
rectifier will shutdown, and restart automatically after 5 seconds. If the
over-voltage happens again within a set time (default: 5min.
Configurable through controller), the rectifier will shut off and hold that
state. It requires manual resetting to restore the operation
Manual resetting: Resetting can be done manually through the
controller, or by removing the rectifier from system
Output voltage can rise slowly upon rectifier start up. The rise time is
configurable
Rectifier fan speed can be set to half or full speed
-5°C ~ 40°C, the system outputs with full load
/
Class A
EN61000-3-2
/
EN61000-3-3
Level 4
EN61000-4-4
Level 3
EN61000-4-2
Level 4
EN61000-4-5
Level 2
EN61000-4-3
Level 2
EN61000-4-6
Meet the criteria of EN60950
≤ 55dB (A) (When the ambient temperature is lower than25℃)
At temperature of 15°C ~ 35°C and relative humidity not bigger than
90%RH, apply a test voltage of 500Vdc. The insulation resistances
between AC circuit and earth, DC circuit and earth, and AC and DC
circuits are all not less than 2MΩ
(Remove the controller and rectifiers from the power system before the
test.)
AC circuit to earth:, 3535Vac
DC circuit to earth: 707Vac
AC to DC circuits: 4242Vac
For all the three tests above, there should be no breakdown or
flashover within 1min, with leakage current not bigger than 10mA
/
Satisfy R6
482 (W) × 240 (D) × 43.6 (H)
≤ 4 (excluding rectifiers)
≤ 0.5
NetSure 2100 A31-S1 Subrack Power System
User Manual
Appendix 2
Menu Structure Of The Controller
Appendix 2 Menu Structure Of The Controller
Model:
SW Ver:
LCU
1.02
ESC
51.3V
FC
0.0A
Alarm
Cap:
Remaining:
0.0A
100%
AC Volt:
Temp:
220V
25.0℃
ENT
Active alarm
Rect Infor
Settings
History alarm
ENT
AC failure
000105 18:00:08
Door alarm
000105 18:00:02
SPD alarm
000105 18:00:02
Rect1:
53.5V
ON
38.5A
Rect 2:
53.5V
ON
38.5A
...
300Ah
Cap:
LVD Volt:
43.2V
53.5V
FC Volt:
BC Volt:
56.4V
Shunt A:
300A
Shunt V:
25mV
ECO Enable: No
Clear: History alarm
Address:
1
Baud rate: 9600
LLVD:
Y
LLVD:
44.0V
Relay 2:
LLVD
Walk-in T: 0S
SPD Alarm
Start 0105 17:00:02
End 1213 18:00:00
Door Alarm
Start 0105 16:00:02
End 1213 17:00:00
AC Failure
Start 0105 16:00:08
End 1213 17:00:00
Figure 1 Menu structure of the controller
NetSure 2100 A31-S1 Subrack Power System
User Manual
21
Appendix 3
Schematic Diagram
Appendix 3 Schematic Diagram
1 2
J3
2 1
J4
1 2
J3
1 2
J2
Module backboard X1
2 1
J4
1 2
J2
0V
-48V
Module backboard X1
J2
W34C3C1
J1
Can+
Can-
N PE
0V
J2
L
-48V
Can+
Can-
0V
N PE
-48V
J1
L
1
3
2
1
KMD
FL
2
2
PowerBATPower+
Batt_com
Batt_off
Can+
Can-
0V
-48V
-48V
Can+
Can-
0V
PE N L
L
PE N L
1
J3 2
3
N JX1
RS232 DO1 DO2
1 2
3 1 2 3 4
Rx Tx
Figure 2 Schematic diagram
NetSure 2100 A31-S1 Subrack Power System
User Manual
QFB1
Controller
D3
H2
1
2
3
4
5
6
J6 7
8
M1 9
10
11
12
13
14
15
QFD3
J7
D2
1 2 4 5 6 7 8 9 12
QFD2
H1
2
D1
3
QFD1
3
2
2
CanCan+
JX2
BAT1_SH+
BAT1_SHBATfuse1
Loadfuse1
2
Optional
Temp
22
Appendix 4 Wiring Diagram
H1
B7
1 Temp+
2 Temp3 PE
A7
B1
3
12--,13--,14-10
6
Loadfuse111
PE
H2
H1
A1
B7
BAT1_SH+ 7
BAT1_SH- 8
BATfuse1 9
PE
PE
PE
H2
A7
B1
12
13
14
15
7-b
7-a
15--
3-J4-1
3-J4-2
16-1
6-J1-2
6-J1-1
ACL
ACN
A1
2
W5432X1
W03
J7
J2
J1
J1
W03
3
4
5
J4
D-DCVOUT-
Can- 1
Can+ 2
CAN-D CAN+D
D-DCVOUT+
W03
7
8
9
10
11
12
ACL
3
J3
ACN
1-N
1-L
16-2
5-1
J2
Power+ 4
Batt_com 5
Batt_off 6
J4
D-DCVOUT-
W01
W03
Power- 1
BAT- 2
CAN-D CAN+D
D-DCVOUT+
1-N
1-L
3-J4-1
3-J4-2
16-2
5-1
J3
W02 W03
W01
2-J4-1,4-J6-1
2-J4-2,4-J6-2
W02 W03
W03
5-1
20-1
Appendix 4 Wiring Diagram
J6
4
M225S
J3
W5432x1
Temperature sensor cable(optional)
M225SSL02W01
W02 W03
2-J3-DC-,3-J3-DC-,8-1,4-J7-1,6-J2-3
W03
20
BATT-
1
b
4-J6-7
1
1 1 1
W02
W03
2
1 J1
W03
W03
W02 W02 W02 W02
1
W03
4-J7-2
8
11-1,16-2
QFD1
W02
9
QFD2
Figure 3 Wiring diagram
NetSure 2100 A31-S1 Subrack Power System
User Manual
10
QFD3
W02
PE
2-J3-DC+,3-J3-DC+,20-2
2
2
AC Connector
PE
4-J7-4,6-J2-1,5-A1
1
3
16
BUS+
20-2
4-J6-8
2 2 2
9-1
a
FL
2
5-1,9-1
7
4-J7-5
4-J7-6
16-1
5-A2
5-1
8-1,10-1
2-J2-ACL,3-J2-ACL
W01
2-J2-ACN,3-J2-ACN
1
J2 2
3
15--
6
W34C3C1
14--
12--
W03
6-J2-2
A2
13--
5
KMD
L
N
16-3
W02 W02 W02 W02
11-2,4-J6-9
W02
16-1
9-2,4-J6-11
A1
10-2,4-J6-11
1
8-2,4-J6-11
W02
W03
11
QFB1
12
JX1
13
JX2
14
JX3
15
JX4
23
